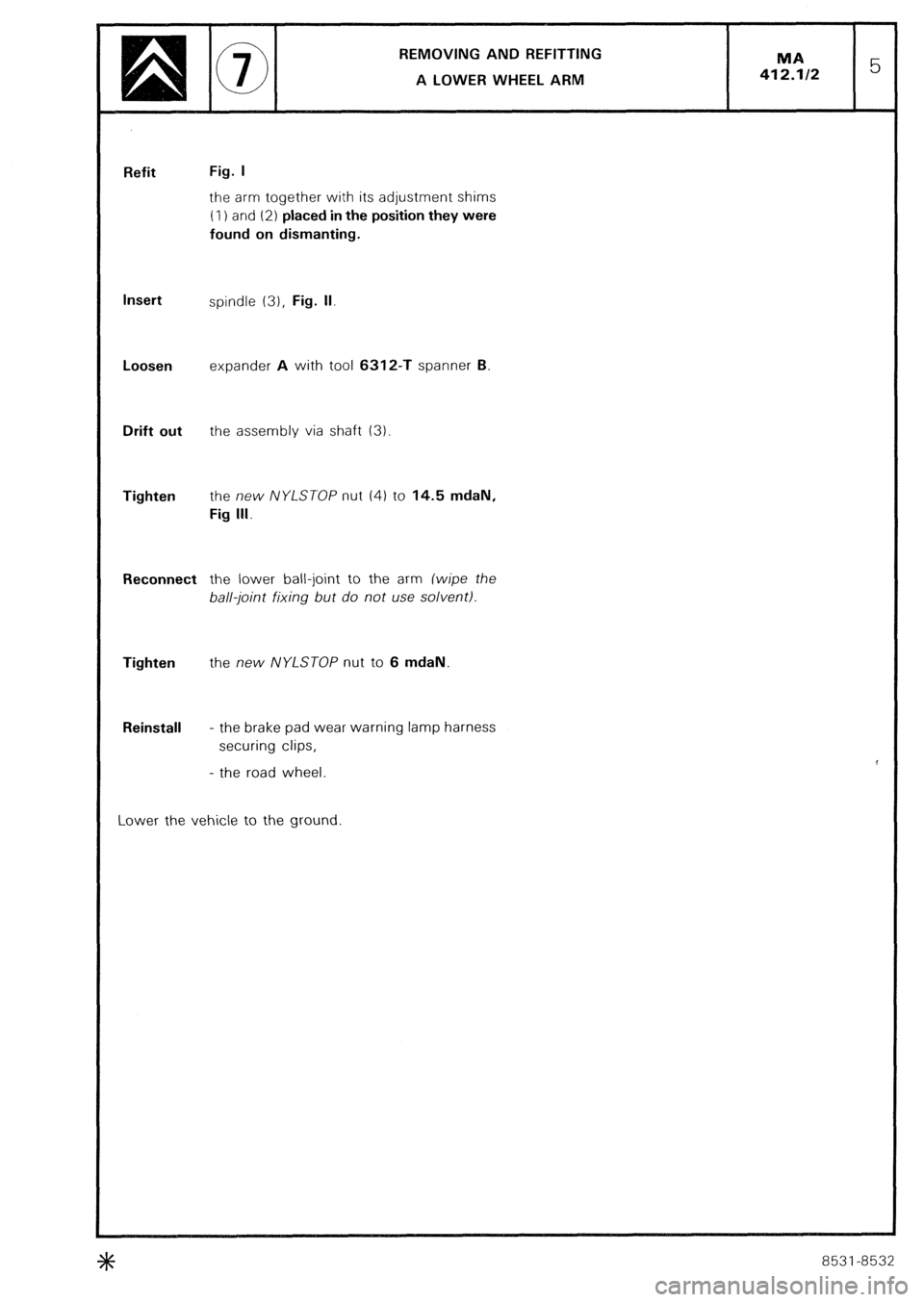

REMOVING AND REFITTING
A LOWER WHEEL ARM
Refit
Insert
Loosen
Drift out
Tighten
Reconnect
Tighten
Reinstall Fig. I
the arm together with its adjustment shims
(7 1 and (2) placed in the position they were
found on dismanting.
spindle (31, Fig. II
expander A with tool 6312-T spanner B.
the assembly via shaft (3)
the new NYLSTOP nut (4) to 14.5 mdaN,
Fig Ill.
the lower ball-joint to the arm hvipe the
ball-joint fixing but do not use solvent).
the new NYLSTOP nut to 6 mdaN.
- the brake pad wear warning lamp harness
securing clips,
- the road wheel.
Lower the vehicle to the ground
Jfc 8531-8532

85.6041

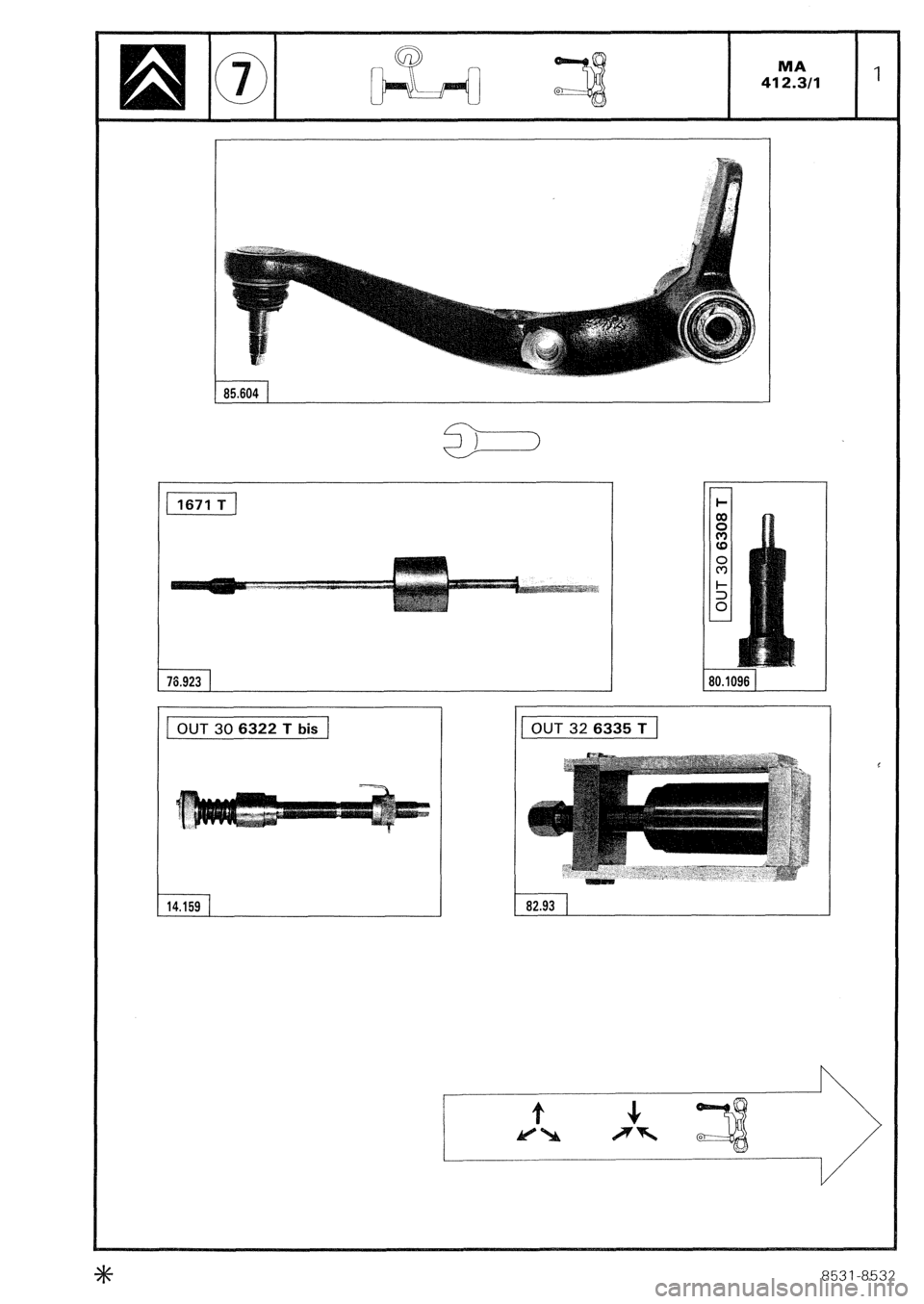

75.923 1 OUT 30 6322 T bis
14.159 OUT 32 6335 T
1
8531-8532

MA
412.311 3
r
r
I I
---

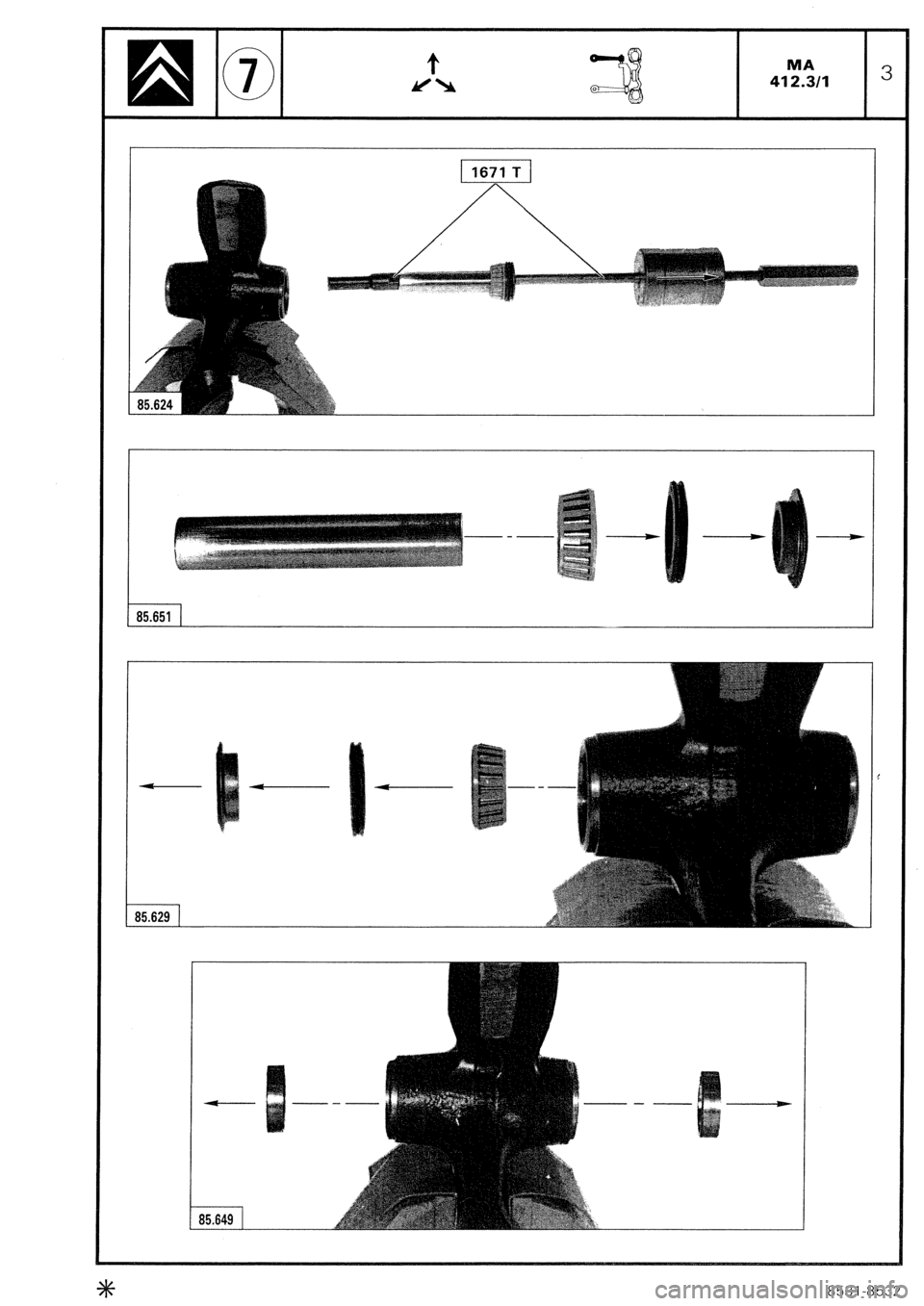

85.651 1
85.629 1
85.649 1
8531-8532

1 85.649
1

85,652 1
8531-8532

1 85.656
C 2

,+I/87

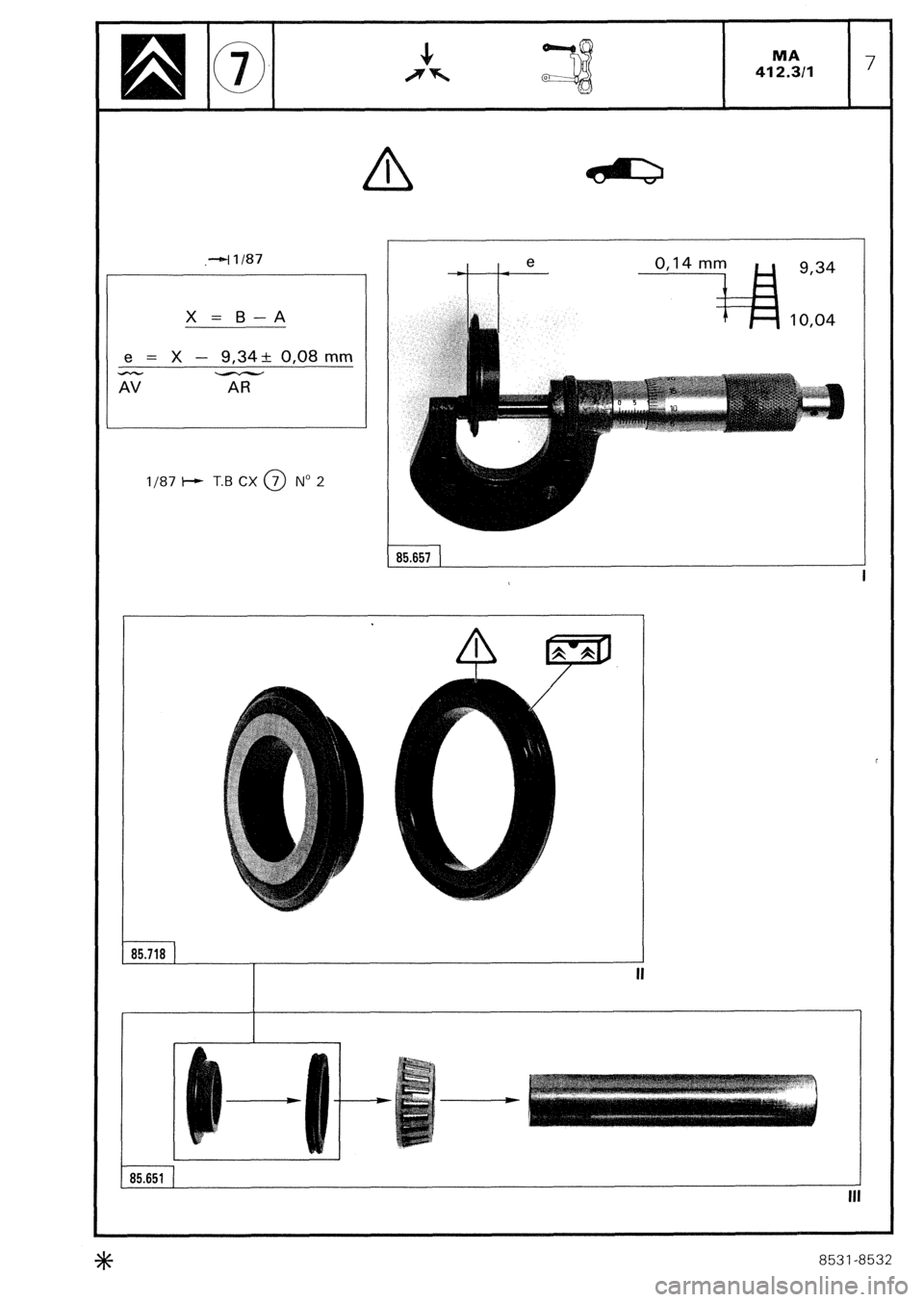

X = B-A
