Engine compartment
fusebox
The fusebox is located in the engine compartment   near   the   battery   (left-hand   side).Access to the fuses
F Unclip  the   cover.
F  C hange   the   fuse   (see   corresponding
par

agraph).
F

W
hen you have finished, close the cover
carefully
  to   ensure   the   sealing   of   the   fuse
b

ox.
All

work

on

the

fuses

in

the

box

l

ocated

on

the

battery,

must

be

done

b

y a CITR
oË

N dealer or a qualified
workshop.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014
Fuse table
Fuse N°Rating Functions
F1 20 AEngine
  control   unit   supply,   cooling   fan   unit   control   relay,   multifunction   engine   control   main   relay,   injection   pump
(

Diesel).
F2 15 AHorn.
F3 10 AFront
  /   rear   screenwash.
F4 20 ALED
  lamps.
F5 15 ADiesel
  heater   (Diesel),   particle   filter   additive   pump   (Diesel),   air   flow   sensor   (Diesel),   blow-by   heater   and
e

lectrovalves   (VTi).
F6 10 AABS/ESP
  control   unit,   secondary   stop   switch.
F7 10 AElectric
  power   steering,   automatic   gearbox.
F8 25 AStarter
  control.
F9 10 ASwitching
  and   protection   unit   (Diesel).
F10 30 AFuel
  heater   (Diesel),   blow-by   heater   (Diesel),   fuel   pump   (VTi),   injectors   and   ignition   coils   (petrol).
F11 40 AHeater
 b

lower.

231
DS3_en_Chap10_info-pratiques_ed01-2014

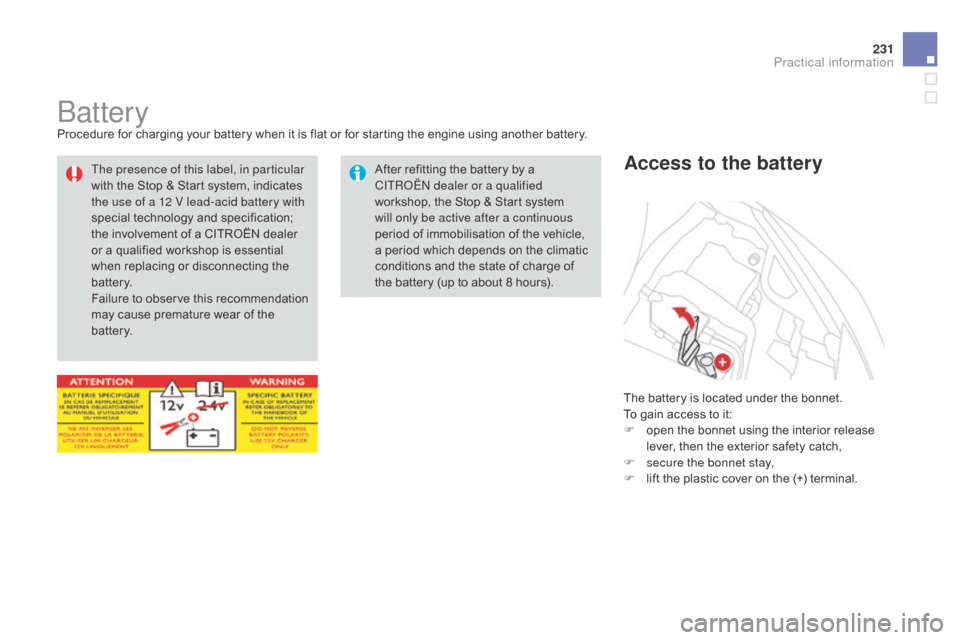

batteryProcedure for charging your battery when it is flat or for starting the engine using another battery.T he   battery   is   located   under   the   bonnet.
To
  gain   access   to   it:
F

o
pen   the   bonnet   using   the   interior   release
l

ever,   then   the   exterior   safety   catch,
F

s
ecure the bonnet stay,
F

l
ift   the   plastic   cover   on   the   (+)   terminal.
Access to the batteryAfter refitting the battery by a CITRoË N dealer or a qualified
workshop,
  the   Stop   &   Start   system
w

ill only be active after a continuous
period
  of   immobilisation   of   the   vehicle,
a

  period   which   depends   on   the   climatic
c

onditions   and   the   state   of   charge   of
t

he   battery   (up   to   about   8   hours).
The presence of this label, in particular
with

the

Stop

&

Start

system,

indicates

t

he use of a 12 V lead-acid battery with
special
 t

echnology
 a

nd
 s

pecification;
 t

he

involvement

of

a

CITROËN

dealer

o

r

a

qualified

workshop

is

essential

w

hen

replacing

or

disconnecting

the

b

attery.
Failure

t

o

o

bserve

t

his

r

ecommendation

m

ay

cause

premature

wear

of

the

b

attery.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014
When the battery on your vehicle is discharged, the   engine   can   be   started   using   a   slave   battery
(

external   or   on   another   vehicle)   and   jump   leads.
Starting using another
battery
First check that the slave battery has a nominal voltage   of   12   V   and   a   capacity   at   least   equal   to
t

hat   of   the   discharged   battery.
Do
  not   try   to   start   the   engine   by   connecting   a
b

attery   charger.
Do
  not   disconnect   the   (+)   terminal   when   the
e

ngine   is   running.
F

C
onnect the red cable to the positive
terminal
  (+)   of   the   flat   battery   A, then to the
positive
  terminal   (+)   of   the   slave   battery   B.
F

C
onnect   one   end   of   the   green   or   black
c

able   to   the   negative   terminal   (-)   of   the
s

lave battery B (or earth point on the other
vehicle).
F

C
onnect
t
he
o
ther
e
nd
o
f
t
he
g
reen
o
r
b
lack
c

able   to   the   negative   terminal  c
(or
  the   engine   mounting)   of   the   broken-
down
  vehicle. F

S
tart   the   engine   of   the   other   vehicle   and
a

llow   it   to   run   for   a   few   minutes.
F

O
perate   the   starter   of   the   broken-down
v

ehicle   and   let   the   engine   run.
 I

f   the   engine   does   not   start   immediately,
s

witch   off   the   ignition   and   wait   a   few
m

oments   before   trying   again.
F

W
ait   until   the   engine   returns   to   idle,   then
d

isconnect   the   jump   leads   in   reverse   order.Some
  functions   are   not   available   if   the
b

attery   is   not   sufficiently   charged.

233
DS3_en_Chap10_info-pratiques_ed01-2014
Protect your eyes and face before
handling  the   battery.
All
  operations   on   the   battery   must   be
c

arried out in a well ventilated area
away
  from   naked   flames   and   sources
o

f   sparks,   so   as   to   avoid   the   risk   of
e

xplosion   and   fire.
Do
  not   try   to   charge   a   frozen   battery;
t

he   battery   must   first   be   thawed   out   to
a

void
t
he
r
isk
o
f
e
xplosion.
I
f
t
he
b
attery
h

as   been   frozen,   before   charging   have
i

t   checked   by   a   CITROËN   dealer   or
a

  qualified   workshop   who   will   check
t

hat   the   internal   components   have   not
b

een   damaged   and   the   casing   is   not
c

racked,   which   could   cause   a   leak   of
t

oxic   and   corrosive   acid.
Do not reverse the polarity and use
only
  a   12   V   charger.
Do
  not   disconnect   the   terminals   while
t

he   engine   is   running.
Do
  not   charge   the   batteries   without
d

isconnecting   the   terminals   first.
Wash
  your   hands   after wards.
Do not push the vehicle to start the
engine

if

you

have

an

electronic

g

earbox

or

automatic

gearbox.charging the battery using
a battery charger
Batteries contain harmful substances such a s   sulphuric   acid   and   lead.   They   must   be d

isposed   of   in   accordance   with   regulations
 a

nd   must   not,   in   any   circumstances,   be
 d

iscarded   with   household   waste.
Take
  used   remote   control   batteries   and
 v

ehicle batteries to a special collection
point.
F Follow the instructions for use provided by the   manufacturer   of   the   charger.
Do
  not   disconnect   the   battery   to   charge   it.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014

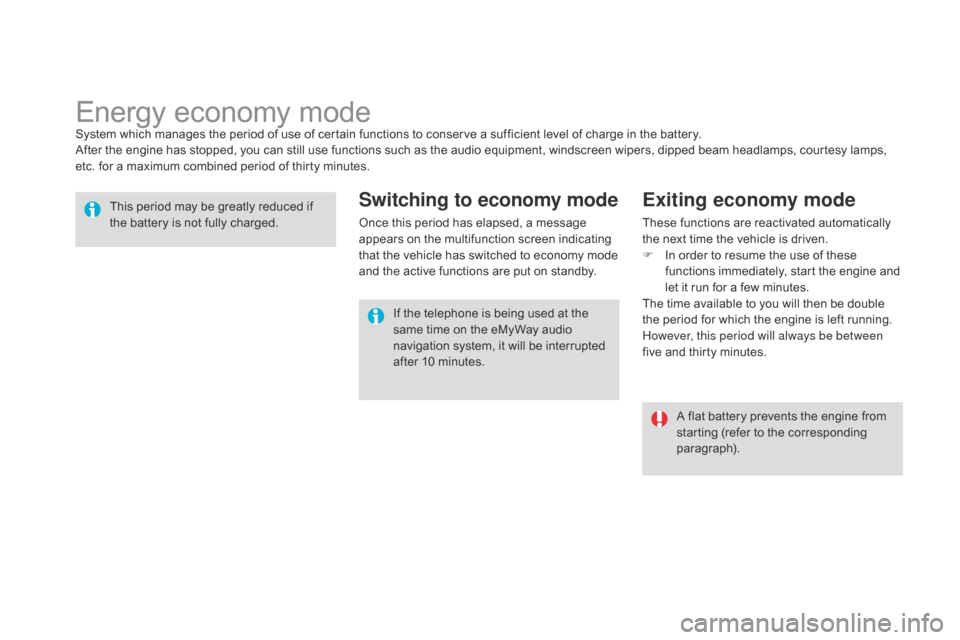

Energy economy modeSystem which manages the period of use of certain functions to conserve a sufficient level of charge in the battery.
A fter   the   engine   has   stopped,   you   can   still   use   functions   such   as   the   audio   equipment,   windscreen   wipers,   dipped   beam   headlamps,   courtesy   lamps,
e

tc.   for   a   maximum   combined   period   of   thirty   minutes.
This
  period   may   be   greatly   reduced   if
t

he   battery   is   not   fully   charged.
A
  flat   battery   prevents   the   engine   from
s

tarting   (refer   to   the   corresponding
par

agraph).
If
  the   telephone   is   being   used   at   the
s

ame   time   on   the   eMyWay   audio
n

avigation   system,   it   will   be   interrupted
a

fter   10   minutes.
Switching to economy mode
Once this period has elapsed, a message appears   on   the   multifunction   screen   indicating
t

hat   the   vehicle   has   switched   to   economy   mode
a

nd   the   active   functions   are   put   on   standby.
Exiting economy mode
These functions are reactivated automatically the   next   time   the   vehicle   is   driven.
F

I
n   order   to   resume   the   use   of   these
f

unctions   immediately,   start   the   engine   and
l

et   it   run   for   a   few   minutes.
The
  time   available   to   you   will   then   be   double
t

he   period   for   which   the   engine   is   left   running.
H

owever, this period will always be between
five
  and   thirty   minutes.

DS3_en_Chap10_info-pratiques_ed01-2014
Towing the vehicleProcedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
T he   towing   eye   is   installed   in   the   boot   under
t

he   floor.
To
  gain   access   to   it:
F

o
pen the boot,
F

r
aise the floor,
F

r
emove   the   polystyrene   storage   box,
F

r
emove   the   towing   eye   from   the   holder.
Access to the tools General recommendations
Observe the legislation in force in your country.
E nsure   that   the   weight   of   the   towing   vehicle   is   higher   than   that   of   the   towed   vehicle.
The
  driver   must   remain   at   the   wheel   of   the   towed   vehicle   and   must   have   a   valid   driving   licence.
When
  towing   a   vehicle   with   all   four   wheels   on   the   ground,   always   use   an   approved   towing
a

rm;   rope   and   straps   are   prohibited.
The
  towing   vehicle   must   move   off   gently.
When
  towing   a   vehicle   with   the   engine   off,   there   is   no   longer   any   power   assistance   for
b

raking   or   steering.
In
  the   following   cases,   you   must   always   call   on   a   professional   recovery   service:
-

v
ehicle   broken   down   on   a   motor way   or   fast   road,
-
f

our-wheel drive vehicle,
-

w
hen   it   is   not   possible   to   put   the   gearbox   into   neutral,   unlock   the   steering,   or   release
t

he   parking   brake,
-

t
owing   with   only   two   wheels   on   the   ground,
-

w
here   there   is   no   approved   towing   arm   available...

237
DS3_en_Chap10_info-pratiques_ed01-2014
F On  the   front   bumper,   unclip   the   cover   by  p
ressing   at   the   bottom.
F

S
crew   the   towing   eye   in   fully.
F

I
nstall   the   towing   bar.
F

P
lace   the   gear   lever   in   neutral   (position   N
for
  an   electronic   or   automatic   gearbox). F
 O n   the   rear   bumper,   unclip   the   cover   by  p
ressing   at   the   bottom.
F

S
crew   the   towing   eye   in   fully.
F

I
nstall   the   towing   bar.
F

S
witch   on   the   hazard   warning   lamps   on
b

oth   vehicles.
F

M
ove   off   gently   and   drive   for   a   short
d

istance
 o
nly.
Towing your vehicleTowing another vehicle
Failure to observe this special condition
could
  result   in   damage   to   certain
c

omponents   (braking,   transmission...)
a

nd   the   absence   of   braking   assistance
t

he   next   time   the   engine   is   started.
F

U

nlock   the   steering   by   turning   the   key   one
n

otch   in   the   ignition   switch   and   release   the
par

king
 b
rake.
F

S

witch   on   the   hazard   warning   lamps   on
b

oth   vehicles.
F

M

ove   off   gently   and   drive   for   a   short
d

istance
 o
nly.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014
Towing a trailer
Towbar suitable for the attachment of a trailer with a dditional l ighting an d s ignalling. We
  recommend   the   use   of   genuine
C

ITR
oË
N towbars and their harnesses
that have been tested and approved
from   the   design   stage   of   your   vehicle,
a

nd   that   the   fitting   of   the   towbar   is
e

ntrusted to a CITR
oË
N dealer or a
qualified
 w
orkshop.
If the towbar is not fitted by a CITR
oË
N
dealer,   it   is   imperative   that   it   is
f

itted in accordance with the vehicle
manufacturer's
 i
nstructions.
Driving   with   a   trailer   places   greater   demands
o

n   the   towing   vehicle   and   the   driver   must   take
par

ticular
 c
are.
driving advice
distribution of loads
F Distribute the load in the trailer so that the heaviest   items   are   as   close   as   possible   to t

he   axle   and   the   nose   weight   approaches   the
 m

aximum   permitted   without   exceeding   it.
ai

r density decreases with altitude, thus
reducing
  engine   per formance.   Above
1

  000   metres,   the   maximum   towed   load   must
b

e   reduced   by   10   %   for   every   1   000   metres   of
al

titude.
Side wind
F Take   into   account   the   increased   sensitivity  t
o   side   wind.
Your

vehicle

is

primarily

designed

for

t

ransporting

people

and

luggage,

but

it

may

a

lso

be

used

for

towing

a

trailer. Refer to the "Technical Data" section for details
of  the   weights   and   towed   loads   which   apply   to
y

our   vehicle.

239
DS3_en_Chap10_info-pratiques_ed01-2014
RAcING towbar
Your vehicle cannot be fitted with a
towbar.  The   space   occupied   by   the
s

port   diffuser   prevents   this.
Ty r e s
F Check  the   tyre   pressures   of   the   towing  v
ehicle   and   of   the   trailer,   observing   the
re

commended
 p
ressures.
cooling
Towing a trailer on a slope increases the temperature   of   the   coolant.
As
  the   fan   is   electrically   controlled,   its   cooling
c

apacity   is   not   dependent   on   the   engine   speed.
F

T
o   lower   the   engine   speed,   reduce   your
s

peed.
The
  maximum   towed   load   on   a   long   incline
d

epends   on   the   gradient   and   the   ambient
t

emperature.
In
  all   cases,   keep   a   check   on   the   coolant
t

emperature.
Braking
Towing a trailer increases the braking distance.
T o   avoid   overheating   of   the   brakes   on   a   long
m

ountain   type   of   descent,   the   use   of   engine
b

raking   is   recommended.
Lighting
F Check   the   electrical   lighting   and   signalling  o
n   the   trailer.
The
  rear   parking   sensors   will   be
d

eactivated   automatically   if   a   genuine
C

ITROËN   towbar   is   used.
F

I

f

the

warning

lamp

and

the

S

TOP


warning

lamp

come

on,

s

top the vehicle and switch off
the

engine

as

soon

as

possible.
Practical information
