189Safety






Curtain airbags

System which protects the driver and
passengers (with the exception of the rear
centre passenger) in the event of a serious side
impact in order to limit the risk of injury to the
side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area.

Deployment

The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.


Operating fault

In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
deployed.
In the event of a rear or front collision,
the airbag is not deployed.
If this warning lamp comes on in the
instrument panel, accompanied by
an audible signal and a message
in the screen, contact a CITROËN dealer
or a qualified workshop to have the system
checked. The airbags may no longer be
deployed in the event of a serious impact.

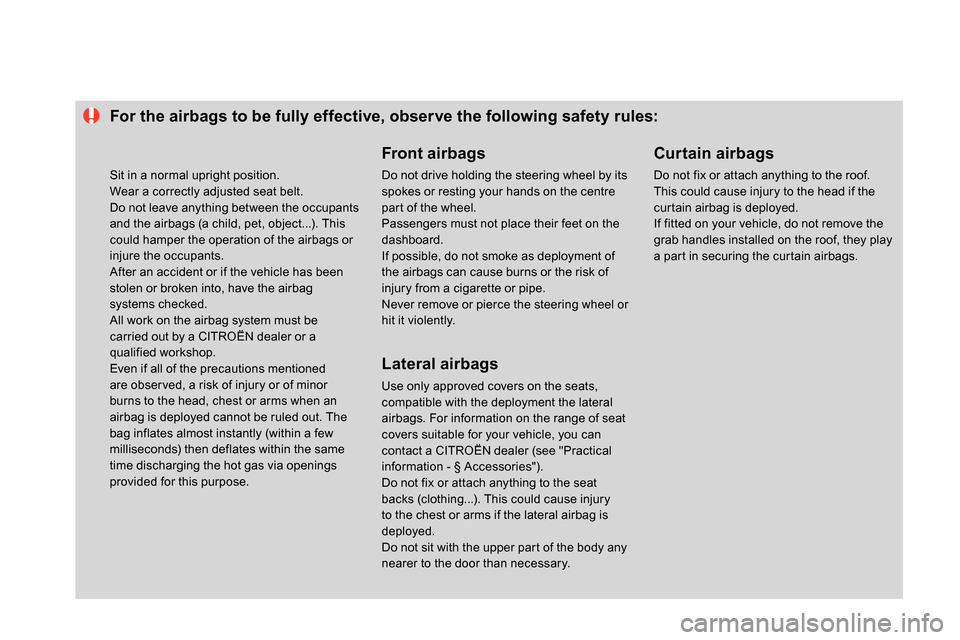

For the airbags to be fully effective, observe the following safety rules:

Front airbags

Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
If possible, do not smoke as deployment of
the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.




Lateral airbags

Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN dealer (see "Practical
information - § Accessories").
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.


Curtain airbags

Do not fix or attach anything to the roof.
This could cause injury to the head if the
curtain airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the occupants
and the airbags (a child, pet, object...). This
could hamper the operation of the airbags or
injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned
are obser ved, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.

191Safety

009
Driving

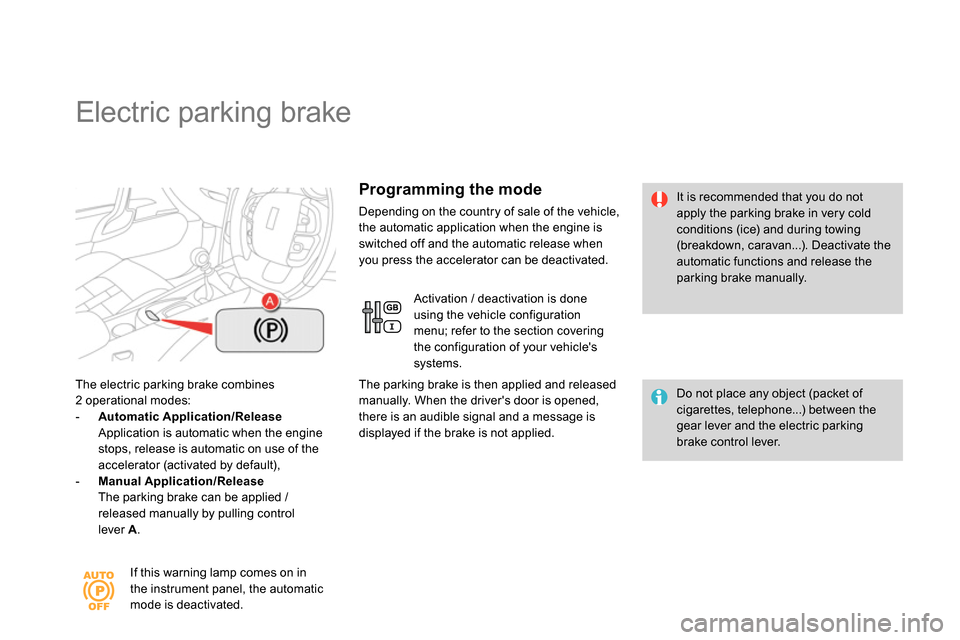

Electric parking brake


The electric parking brake combines
2 operational modes:


- Automatic Application/Release

Application is automatic when the engine
stops, release is automatic on use of the
accelerator (activated by default),

- Manual Application/Release

The parking brake can be applied /
released manually by pulling control
lever A
.
Do not place any object (packet of
cigarettes, telephone...) between the
gear lever and the electric parking
brake control lever.
It is recommended that you do not
apply the parking brake in very cold
conditions (ice) and during towing
(breakdown, caravan...). Deactivate the
automatic functions and release the
parking brake manually.

If this warning lamp comes on in
the instrument panel, the automatic
mode is deactivated.

Programming the mode

Depending on the country of sale of the vehicle,
the automatic application when the engine is
switched off and the automatic release when
you press the accelerator can be deactivated.
Activation / deactivation is done
using the vehicle configuration
menu; refer to the section covering
the configuration of your vehicle's
systems.
The parking brake is then applied and released
manually. When the driver's door is opened,
there is an audible signal and a message is
displayed if the brake is not applied.

195Driving
With the ignition on or the engine running, to
release the parking brake, press
on the brake

pedal
or the accelerator, pull then release

control A
.

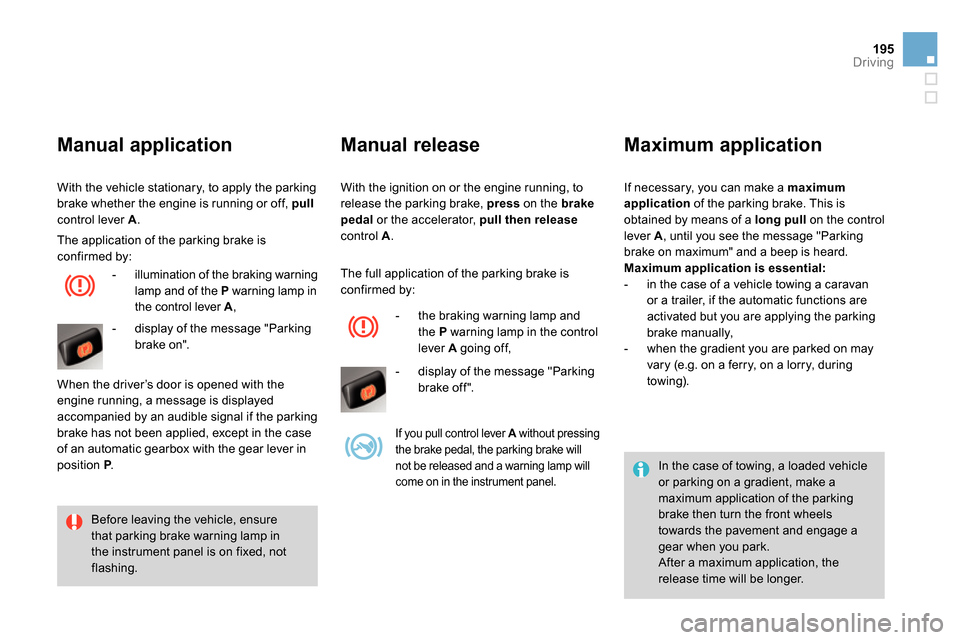

Manual release


Before leaving the vehicle, ensure
that parking brake warning lamp in
the instrument panel is on fixed, not
flashing.



Manual application

With the vehicle stationary, to apply the parking
brake whether the engine is running or off, pull

control lever A
.
The application of the parking brake is
confirmed by:


- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,

- display of the message "Parking
brake on".
When the driver’s door is opened with the
engine running, a message is displayed
accompanied by an audible signal if the parking
brake has not been applied, except in the case
of an automatic gearbox with the gear lever in
position P
. The full application of the parking brake is
confirmed by:


- the braking warning lamp and
the P
warning lamp in the control
lever A
going off,

- display of the message "Parking
brake off ".

If you pull control lever A
without pressing
the brake pedal, the parking brake will
not be released and a warning lamp will
come on in the instrument panel.


Maximum application

If necessary, you can make a maximum
application
of the parking brake. This is
obtained by means of a long pull
on the control
lever A
, until you see the message "Parking
brake on maximum" and a beep is heard.

Maximum application is essential:



- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parking
brake manually,

- when the gradient you are parked on may
vary (e.g. on a ferry, on a lorry, during
towing).

In the case of towing, a loaded vehicle
or parking on a gradient, make a
maximum application of the parking
brake then turn the front wheels
towards the pavement and engage a
gear when you park.
After a maximum application, the
release time will be longer.

With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.

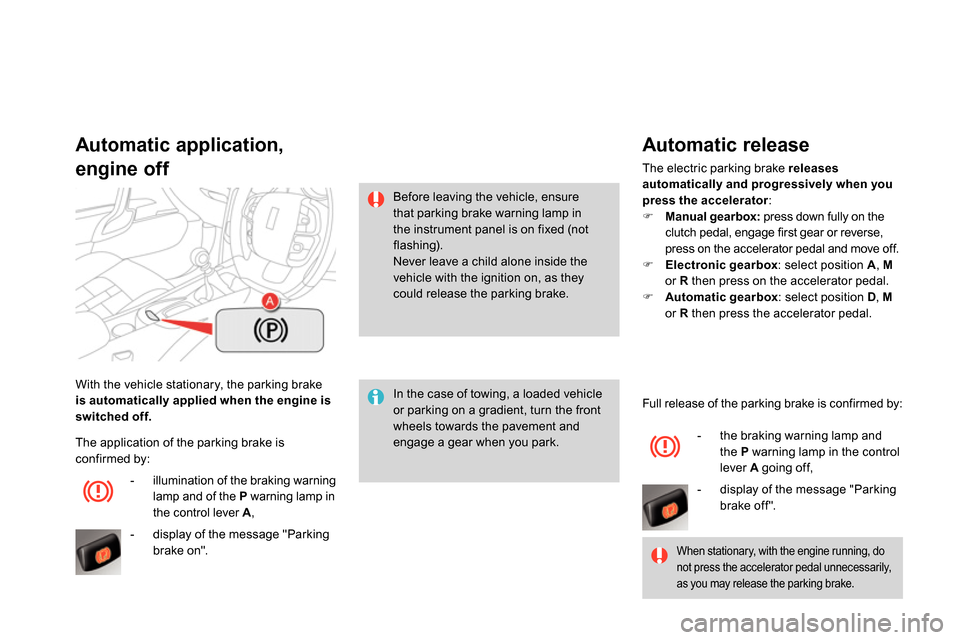

Automatic application,
engine off

In the case of towing, a loaded vehicle
or parking on a gradient, turn the front
wheels towards the pavement and
engage a gear when you park.

Before leaving the vehicle, ensure
that parking brake warning lamp in
the instrument panel is on fixed (not
flashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.


- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,

- display of the message "Parking
brake on". The application of the parking brake is
confirmed by:

Automatic release

The electric parking brake releases
automatically and progressively
when you
press the accelerator:



Manual gearbox:
press down fully on the
clutch pedal, engage first gear or reverse,
press on the accelerator pedal and move off.


Electronic gearbox
: select position A
, M

or R
then press on the accelerator pedal.


Automatic gearbox
: select position D
, M

or R
then press the accelerator pedal.


When stationary, with the engine running, do
not press the accelerator pedal unnecessarily,
as you may release the parking brake.


Full release of the parking brake is confirmed by:


- the braking warning lamp and
the P
warning lamp in the control
lever A
going off,

- display of the message "Parking
brake off ".

197Driving
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
it is essential to manually
apply the parking
brake by pulling
control lever A
.


Immobilising the vehicle,
engine running

The emergency braking must only be
used in exceptional circumstances.

Before leaving the vehicle, ensure
that parking brake warning lamp in
the instrument panel is on fixed, not
flashing.
The application of the parking brake is
confirmed by:


- illumination of the braking
warning lamp and the P
warning
lamp in the control lever A
,

- display of the message "Parking
brake on".
When the driver’s door is opened, a message is
displayed accompanied by an audible signal, if
the parking brake has not been applied, except
in the case of an automatic gearbox with the
gear lever in position P
.


Particular situations


In certain situations (e.g. starting the engine),
the parking brake can automatically alter its
force. This is normal operation.
To advance your vehicle a few centimetres
without starting the engine, but with the ignition
on, press on the brake pedal and release the
parking brake by pulling
then releasing
the
control lever A
. The full release of the parking
brake is confirmed by the warning lamps in
the control lever A
and in the instrument panel
going off and display of the message "Parking
brake off ".
If the parking brake develops a fault while
applied
or if the battery runs flat, an
emergency release is always possible.



Emergency braking



In the event of failure of the electronic
stability control system, signalled
by the illumination of this warning
lamp, braking stability is then not
guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever A
. In the event of a failure of the main ser vice
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuous
pull on the control lever A
will stop the vehicle.
The electronic stability control provides stability
during emergency braking.
If the emergency braking malfunctions,
the message "Parking brake faulty" will be
displayed.

In the event of the electric parking brake
malfunctioning or the battery running flat, an
emergency device can be used to release the
parking brake manually.

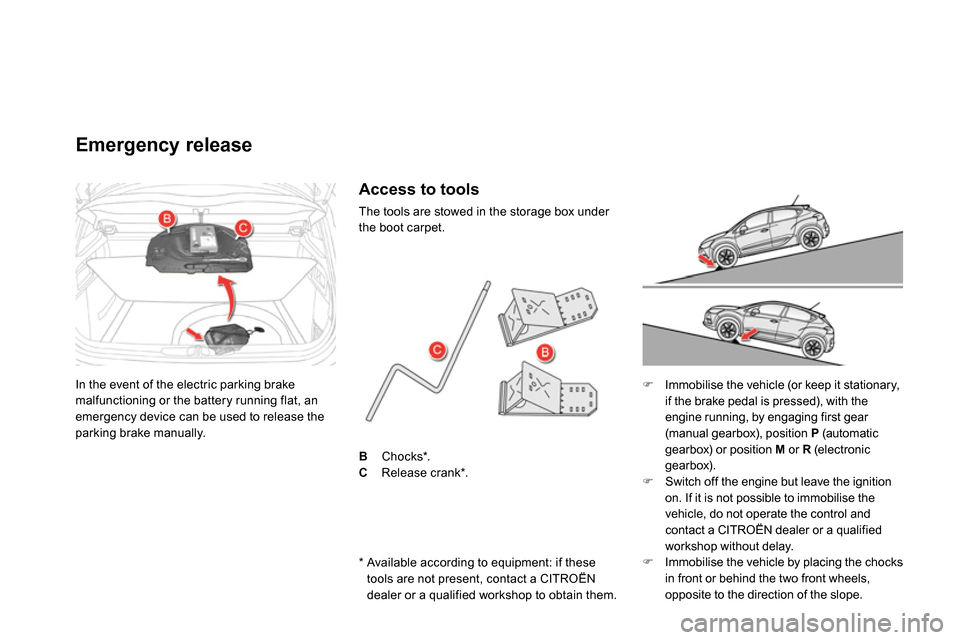

Emergency release




Immobilise the vehicle (or keep it stationary,
if the brake pedal is pressed), with the
engine running, by engaging first gear
(manual gearbox), position P
(automatic
gearbox) or position M
or R
(elec tronic
gearbox).


Switch off the engine but leave the ignition
on. If it is not possible to immobilise the
vehicle, do not operate the control and
contact a CITROËN dealer or a qualified
workshop without delay.


Immobilise the vehicle by placing the chocks
in front or behind the two front wheels,
opposite to the direction of the slope.

Access to tools

The tools are stowed in the storage box under
the boot carpet.

B
Chocks*.

C
Release crank*.
* Available according to equipment: if these
tools are not present, contact a CITROËN
dealer or a qualified workshop to obtain them.
