Citroen DS4 RHD 2013.5 1.G Owner's Manual

MODELS:



ENGINES AND GEARBOXES



Model codes:


NX...


5FS0



5FV8/P



5FMA



5FU8



PETROL ENGINES


VTi 120



THP 155



THP 160



THP 200


Cubic capacity (cc)
1 598
1 598
1 598
1 598
Bore x stroke (mm)
77 x 85.8
77 x 85.8
77 x 85.8
77 x 85.8
Max power * : EU standard (kW)
88
115
120
147
Max power engine speed (rpm)
6 000
6 000
6 000
5 500
Max torque: EU standard (Nm)
160
240
240
275
Max torque engine speed (rpm)
4 250
1 400
1 400
1 700
Fuel
Unleaded
Unleaded
Unleaded

Unleaded
Catalytic conver ter
yes
yes
yes
yes

GEARBOX

Manual
(5-speed)


Electronic gearbox system
(6-speed)

Automatic
(6-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)




Engine (with filter replacement)
4.2
4.2
4.2
4.2

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

291Te c h n i c a l d a t a

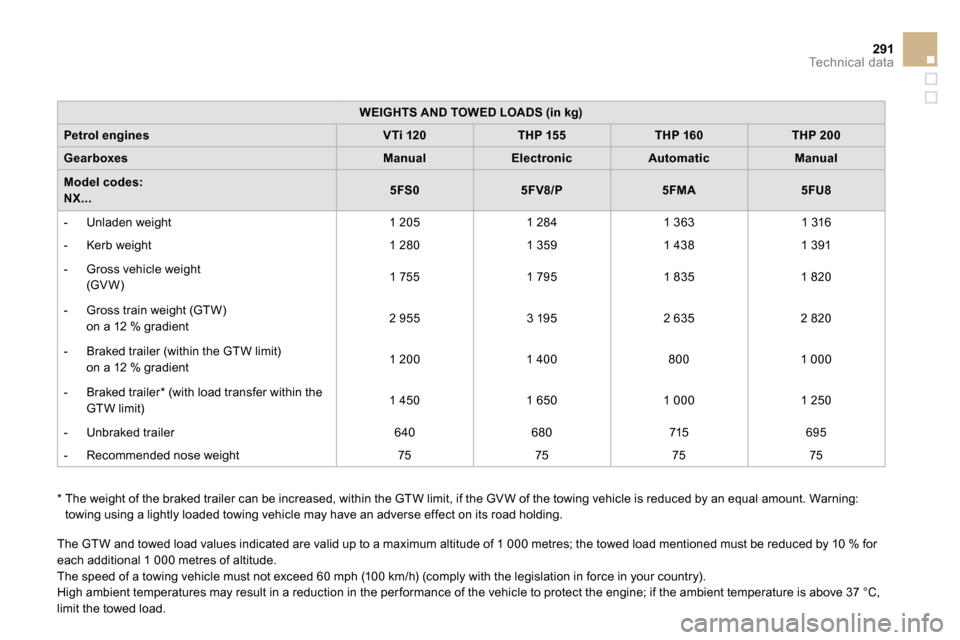

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


VTi 120



THP 155



THP 160



THP 200



Gearboxes


Manual



Electronic



Automatic



Manual



Model codes:
NX...


5FS0



5FV8/P



5FMA



5FU8




- Unladen weight
1 205
1 284
1 363
1 316


- Kerb weight
1 280
1 359
1 438
1 391


- Gross vehicle weight
(GV W)
1 755
1 795
1 835
1 820


- Gross train weight (GTW)
on a 12 % gradient
2 955
3 195
2 635
2 820


- Braked trailer (within the GTW limit)
on a 12 % gradient
1 200
1 400
800
1 000


- Braked trailer * (with load transfer within the
GTW limit)
1 450
1 650
1 000
1 250


- Unbraked trailer
640
680
715
695


- Recommended nose weight
75
75
75
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

MODELS:



ENGINES AND GEARBOXES



Model codes:
NX...


9HP0



9HR8

9HR8/S



9HR8/PS



RHH8



RHHA



DIESEL ENGINES


HDi 90 PEF



HDi 110 PEF



HDi 160 PEF


Cubic capacity (cc)
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
85 x 88
Max power * : EU standard (kW)
68
82
120
Max power engine speed (rpm)
4 000
3 600
4 000
Max torque: EU standard (Nm)
230
270
340
Max torque engine speed (rpm)
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Catalytic conver ter
yes
yes
Ye s
Particle emissions filter (PEF)
yes
yes
Ye s

GEARBOX

Manual
(5-speed)
Manual
(6-speed)
Electronic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)

OIL CAPACITIES (in litres)




Engine (with filter replacement)
3.75
3.75
3.75
-

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

.../S:
e-HDi model fitted with Stop & Start.

293Te c h n i c a l d a t a

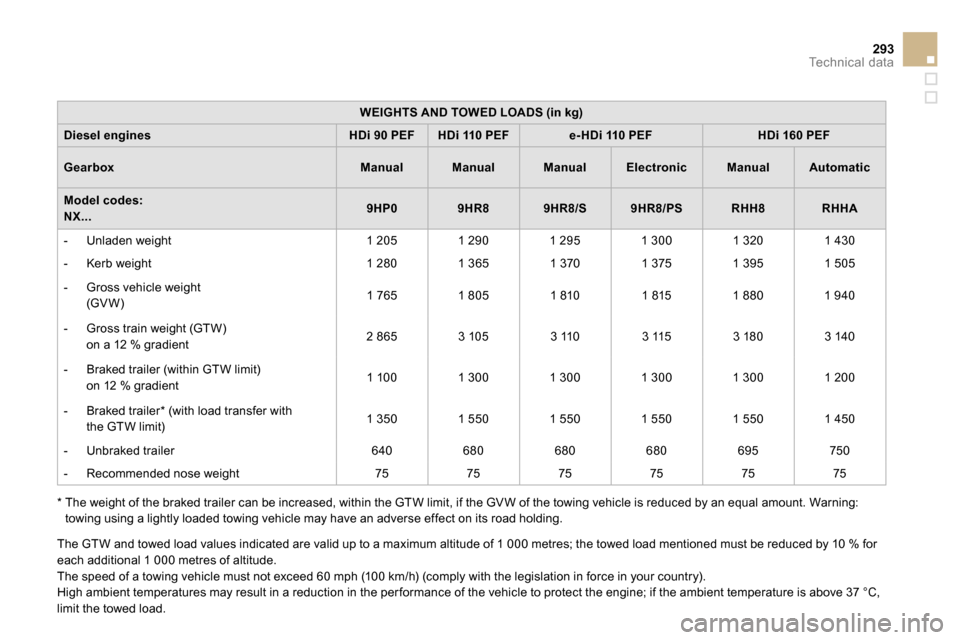

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 90 PEF



HDi 110 PEF



e- HDi 110 PEF



HDi 160 PEF



Gearbox


Manual



Manual



Manual



Electronic



Manual



Automatic



Model codes:
NX...


9HP0



9HR8



9HR8/S



9HR8/PS



RHH8



RHHA




- Unladen weight
1 205
1 290
1 295
1 300
1 320
1 430


- Kerb weight
1 280
1 365
1 370
1 375
1 395
1 505


- Gross vehicle weight
(GV W)
1 765
1 805
1 810
1 815
1 880
1 940


- Gross train weight (GTW)
on a 12 % gradient
2 865
3 105
3 110
3 115
3 180
3 140


- Braked trailer (within GTW limit)
on 12 % gradient
1 100
1 300
1 300
1 300
1 300
1 200


- Braked trailer * (with load transfer with
the GTW limit)
1 350
1 550
1 550
1 550
1 550
1 450


- Unbraked trailer
640
680
680
680
695
750


- Recommended nose weight
75
75
75
75
75
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Dimensions (in mm)

295Te c h n i c a l d a t a

















Identifi cation markings
Various visible markings for the identification of your vehicle.

A. Vehicle identification number (VIN)
under the bonnet.

This number is engraved on the bodywork near
the suspension damper mounting.

B.

Vehicle identification number on the dashboard.
This number is indicated on a self-adhesive
label which is visible through the windscreen.
D. Tyre/paint label.

This label is affixed to the driver's front pillar.
Low tyre pressures increase fuel
consumption. The tyre pressures must be checked
when the tyres are cold, at least once
a month.
C. Manufacturer's label.

The VIN is indicated on a self-destroying label
affixed to the driver's centre pillar. It bears the following information:


- the tyre pressures, for unladen and laden
conditions,

- the tyre sizes (including the load index and
speed rating),

- the spare tyre inflation pressure,

- the paint colour code.
