Citroen DS4 RHD 2013.5 1.G Owner's Manual

299

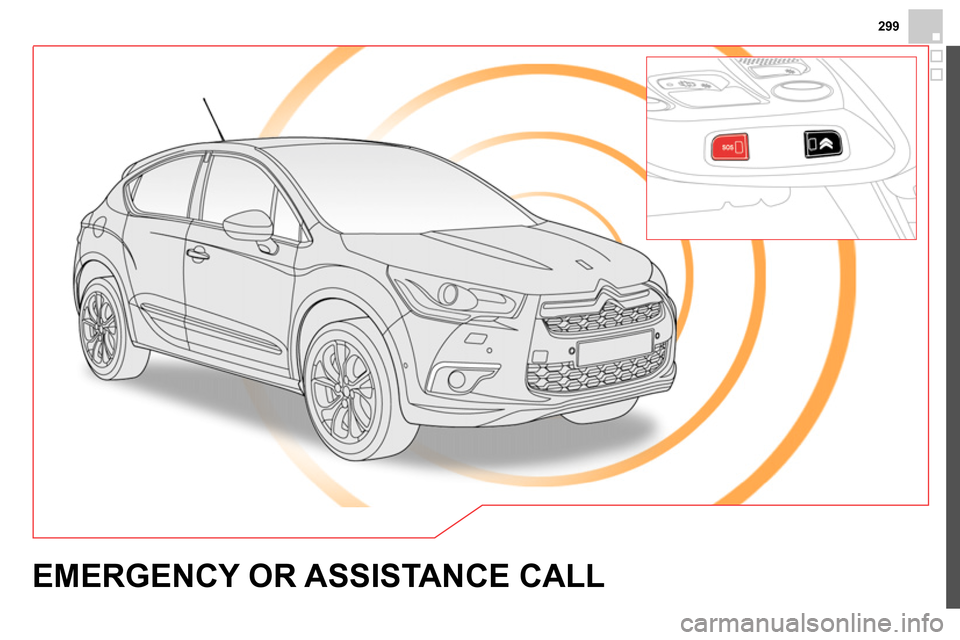

EMERGENCY OR ASSISTANCE CALL

EMERGENCY OR ASSISTANCE CALL








CITROËN Localised Emergency Call


In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
CITROËN Localised Emergency Call centre * .

Pressing this button again immediately cancels the call. The green LED
goes off.
Pressing this button (at any time) for more than 8 seconds cancels
the call.


CITROËN Localised Assistance Call


When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.

If the orange LED fl ashes: there is a
system fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a CITROËN dealer.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .


Operation of the system


The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.

This call is dealt with by the CITROËN Localised Emergency Call centre
which receives locating information from the vehicle and can send a
detailed alert to the appropriate emergency services. In countries in
which the team is not operational, or when the locating service has
been expressly declined, the call is dealt with directly by the emergency
services (112) without the vehicle location.

If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.



* These services are subject to conditions and availability.
Consult a CITROËN dealer.
If you purchased your vehicle outside the CITROËN dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularly to improve the quality of Telematic
services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.

If you benefi t from the CITROËN eTouch offer, you also have available
additional services in your MyCITROËN personal space, via the CITROËN
Internet website in your country, accessible on www.citroen.com.

301

The system is protected in such a way that it will only
operate in your vehicle.






eMyWay


01 First steps - Control panel


For safety reasons, the driver must only carry out
operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
304
306
307
309
322
325
335
339
345
346
347
351

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

01 FIRST STEPS


Access to the
" Navigation - guidance
"
menu and display the
recent destinations.

Rotary control knob:
Short press without the engine running: on / off.
Short press with the engine running: audio
source off / restore.
Rotation: volume adjustment (each source
is independent, including TA messages and
navigation instructions).
Continuous press:
reinitialisation of the system.

Short press: select pre-set
radio station.
Long press: pre-set the
current station.


MODE
button: Selection of the
type of permanent display.
Long press: black screen
(DARK).

Open the
" Telephone
" menu
and display the list of
recent calls or accept
an incoming call.
Open the
" Confi guration
" menu.
Long press: access
to the GPS coverage
and the navigation
demonstration mode.
Open the " Traffi c
information
" menu
and display the
current traffi c alerts.

01

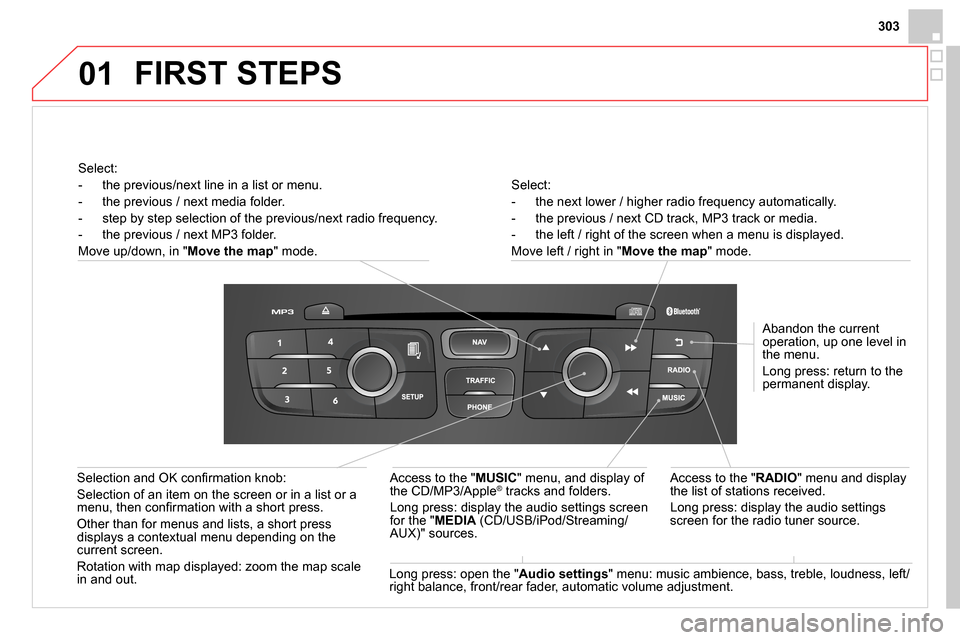

303

Select:


- the next lower / higher radio frequency automatically.

- the previous / next CD track, MP3 track or media.

- the left / right of the screen when a menu is displayed.
Move left / right in " Move the map
" mode.

Abandon the current
operation, up one level in
the menu.
Long press: return to the
permanent display.

Access to the " RADIO
" menu and display
the list of stations received.
Long press: display the audio settings
screen for the radio tuner source.

Long press: open the " Audio settings
" menu: music ambience, bass, treble, loudness, left/
right balance, front/rear fader, automatic volume adjustment.
Access to the " MUSIC
" menu, and display of
the CD/MP3/Apple
® tracks and folders.
Long press: display the audio settings screen
for the " MEDIA
(CD/USB/iPod/Streaming/
AUX)" sources.
Selection and OK confi rmation knob:
Selection of an item on the screen or in a list or a
menu, then confi rmation with a short press.
Other than for menus and lists, a short press
displays a contextual menu depending on the
current screen.
Rotation with map displayed: zoom the map scale
in and out.

Select:


- the previous/next line in a list or menu.

- the previous / next media folder.

- step by step selection of the previous/next radio frequency.

- the previous / next MP3 folder.
Move up/down, in " Move the map
" mode.

FIRST STEPS

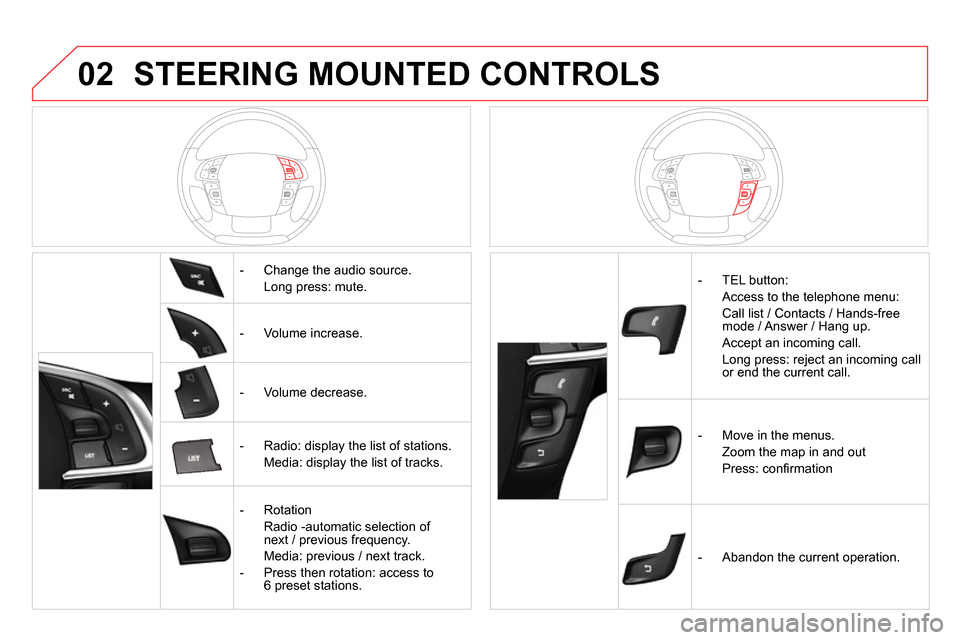

02 STEERING MOUNTED CONTROLS




- Change the audio source.
Long press: mute.


- Volume increase.


- Volume decrease.


- Radio: display the list of stations.
Media: display the list of tracks.


- Rotation
Radio -automatic selection of
next / previous frequency.
Media: previous / next track.

- Press then rotation: access to
6 preset stations.


- TEL button:
Access to the telephone menu:
Call list / Contacts / Hands-free
mode / Answer / Hang up.
Accept an incoming call.
Long press: reject an incoming call
or end the current call.


- Move in the menus.
Zoom the map in and out
Press: confi rmation


- Abandon the current operation.

03
305

For the details of the menus, refer to the "Screen menu map"
section.

For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
" RADIO
"

" TELEPHONE
"
(If conversation in progress)


SETUP
:
PARAMETERS
date and time, display confi guration, sound, vehicle
settings.
Changing the audio source:
RADIO
:
RADIO broadcasts.

MUSIC
: playing MUSIC.






Press the MODE
button several times in succession for access to the following displays:

GENERAL OPERATION


" FULL SCREEN MAP
"

" MAP IN WINDOW
"
(If navigation guidance in
progress)

03
A press on the knob gives access
to short-cut menus according to the
display in the screen.

GENERAL OPERATION







Display according to context

RADIO:
Activate / Deactivate TA
Activate / Deactivate RDS
MUSIC MEDIA PLAYERS,
CD or USB (according to
media):
Play modes:

Normal
Random
Random on all media
Repetition

TELEPHONE (call in
progress):
Private mode
FULL SCREEN MAP OR
IN A NEW WINDOW:
Stop / Restore guidance Select destination



Enter an address


Directory


GPS coordinates





Divert route

Move the map



Info. on location


Select as destination


Select as stage


Save this place (contacts)


Quit map mode






Guidance criteria

Put call on hold DTMF ring tones
Hang up
1
1
1
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1


Change waveband



FM


AM


2
2
1


TA 1

04
307
List of recent destinations.
" Navigation - guidance
"

To delete the list of recent destinations, select " Guidance
options
" in the navigation menu then select " Delete last
destinations
" and confi rm. Select " Ye s
" then confi rm.
Deleting just one destination is not possible.
Go from the list to the menu (left/right).
" Select destination
"
" Journey leg and route
"
" Guidance options
"
" Map management
"
" Stop / Restore guidance
"



NAVIGATION - GUIDANCE







Access to the "Navigation" menu


Press NAV
.
or

To make full use of all of the
functions of your navigation
system, update the mapping
regularly. Contact a
CITROËN dealer or order
your mapping update at
http://citroen.navigation.com

A short press on the end of the
lighting control stalk repeats
the last navigation message.

04

Press NAV
to display the
" Navigation - guidance
" menu.
Towards a new destination

NAVIGATION - GUIDANCE













Selecting a destination


Select " Select destination
" and
confi rm, then select " Enter an address
"
and confi rm.

Select the " Country
" function then
confi rm.

Select the " Town
" or " Post code
"
function then confi rm.

Select the letters in the name of the
town or the characters in a post code
one at a time, confi rming each one with
the knob.
Selection the town from the list offered,
then confi rm
A pre-set list (by entering the fi rst few
letters) of the towns in the country
selected can be accessed directly by
selecting and confi rming " List
" in the
screen.

If possible, enter the " Road
" and " N°/X
"
information in the same way.

Select " Archive
" to save the address entered in a contact fi le.
The system allows up to 400 contact fi les to be recorded.

Confi rm " OK
" to start guidance.

Select the guidance criteria: " Fastest
route
", " Shortest route
" or optimised
" Distance/Time
", then select the
desired restriction criteria: " With tolls
",
" With Ferry
", or " Traffi c info
" then
confi
rm " OK
".
