Citroen DS4 RHD 2013.5 1.G Owner's Manual

06
329

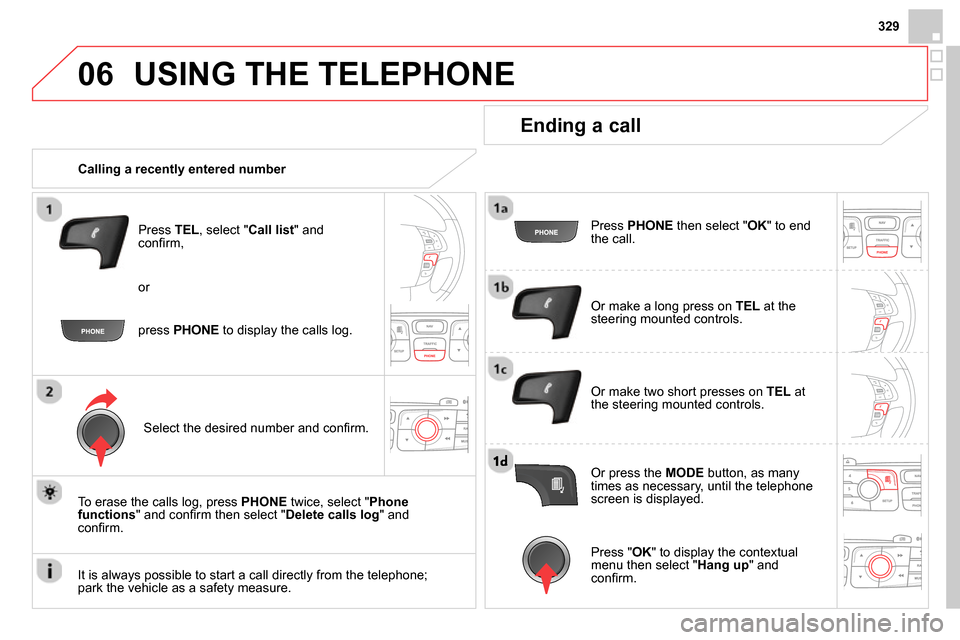

USING THE TELEPHONE



Calling a recently entered number

Press TEL
, select " Call list
" and
confi rm,

Select the desired number and confi rm.

To erase the calls log, press PHONE
twice, select " Phone
functions
" and confi rm then select " Delete calls log
" and
confi rm.


Ending a call


Press PHONE
then select " OK
" to end
the call.

Or make a long press on TEL
at the
steering mounted controls.

Or make two short presses on TEL
at
the steering mounted controls.

Or press the MODE
button, as many
times as necessary, until the telephone
screen is displayed. press PHONE
to display the calls log. or
Press " OK
" to display the contextual
menu then select " Hang up
" and
confi rm.

It is always possible to start a call directly from the telephone;
park the vehicle as a safety measure.

06 USING THE TELEPHONE

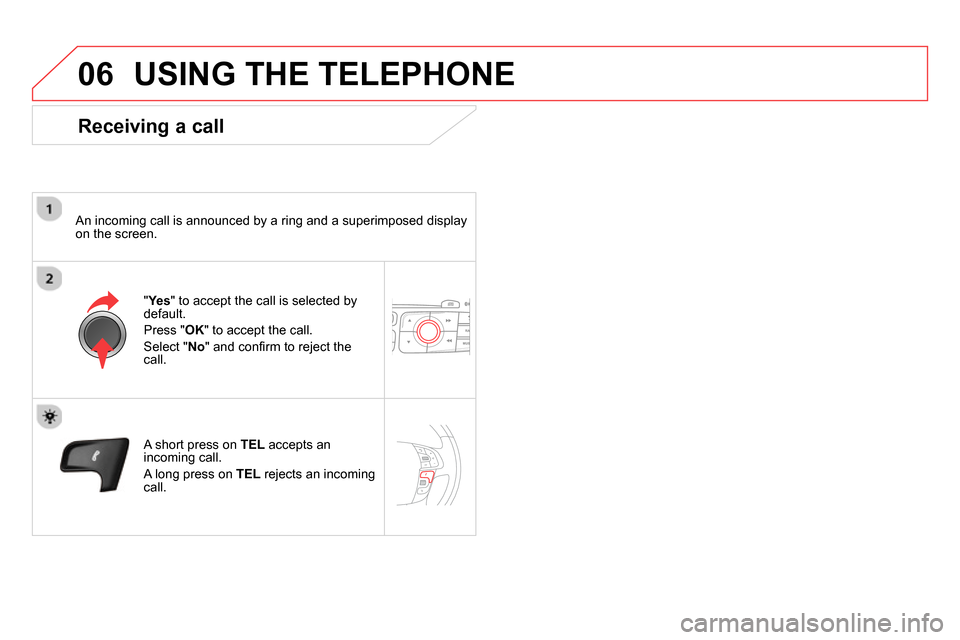

Receiving a call


An incoming call is announced by a ring and a superimposed display
on the screen.


"Ye s
" to accept the call is selected by
default.
Press " OK
" to accept the call.
Select " No
" and confi rm to reject the
call.

A short press on TEL
accepts an
incoming call.
A long press on TEL
rejects an incoming
call.

06
331
USING THE TELEPHONE

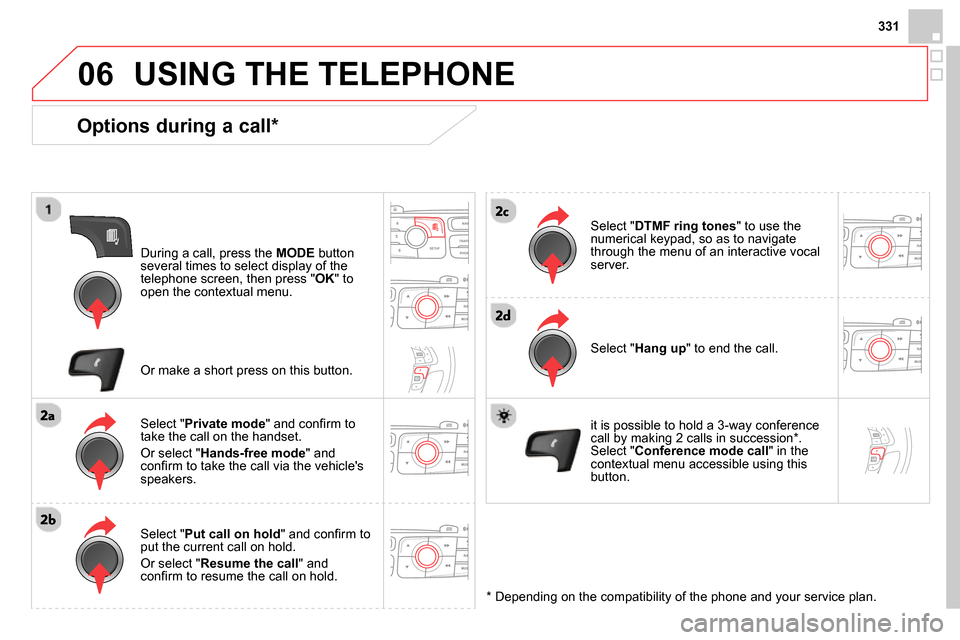

Options during a call *


During a call, press the MODE
button
several times to select display of the
telephone screen, then press " OK
" to
open the contextual menu.

Select " Private mode
" and confi rm to
take the call on the handset.
Or select " Hands-free mode
" and
confi rm to take the call via the vehicle's
speakers.

Select " Put call on hold
" and confi rm to
put the current call on hold.
Or select " Resume the call
" and
confi rm to resume the call on hold.
Select " DTMF ring tones
" to use the
numerical keypad, so as to navigate
through the menu of an interactive vocal
server.

Select " Hang up
" to end the call.

*
Depending on the compatibility of the phone and your service plan.
it is possible to hold a 3-way conference
call by making 2 calls in succession*.
Select " Conference
mode call
" in the
contextual menu accessible using this
button.

Or make a short press on this button.

06

Press PHONE
twice.

Select " List of the paired peripherals
"
and confi rm.

It is possible to:


- " Connect
" or " Disconnect
" the
selected telephone,

- delete the pairing of the selected
telephone.
It is also possible to select all pairings.


USING THE TELEPHONE


Managing paired telephones

Changing the ringtone


Press PHONE
twice.

Select " Phone functions
" and confi rm.

Select " Ring options
" and confi rm.

You can adjust the volume and the type
of ringtone.
Select " Bluetooth functions
".

Select " OK
" and confi rm to save the
changes.

07
333

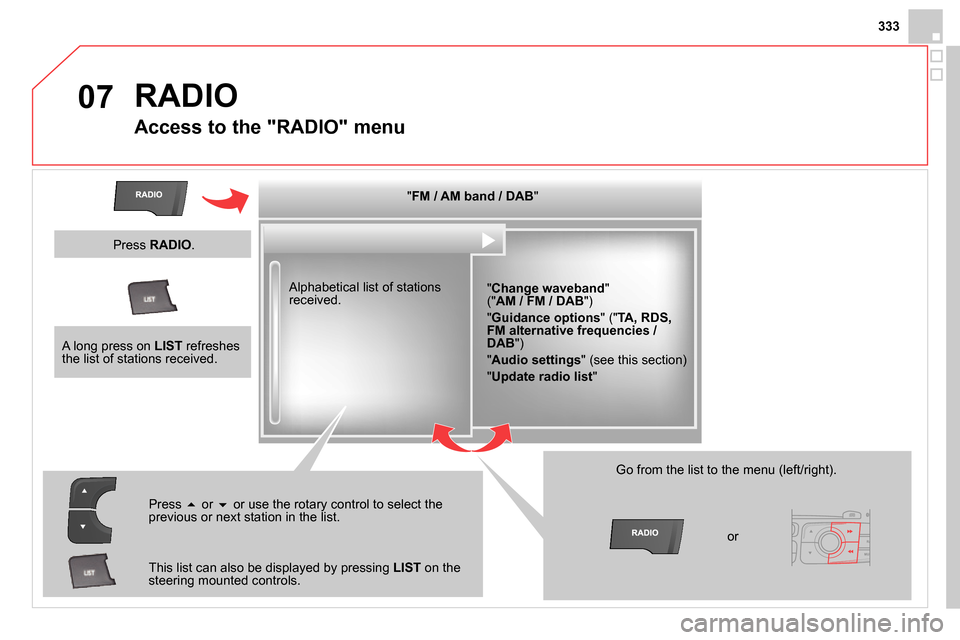

RADIO







Access to the "RADIO" menu



" FM / AM band / DAB
"

" Change waveband
"
(" AM / FM / DAB
")
" Guidance options
" (" TA, RDS,
FM alternative frequencies /
DAB
")
" Audio settings
" (see this section)
" Update radio list
"

Alphabetical list of stations
received.

Press 
or 
or use the rotary control to select the
previous or next station in the list.

This list can also be displayed by pressing LIST
on the
steering mounted controls.
Go from the list to the menu (left/right).
or

A long press on LIST
refreshes
the list of stations received.
Press RADIO
.

07 RADIO


By alphabetical list
Press RADIO
or LIST
, select the station
of your choice and confi rm.

By automatic frequency search
Press 
or 
for the automatic search
for a lower or higher radio frequency.
Or turn the thumb wheel at the steering
mounted controls.

By manual frequency search
Press 
or 
to adjust the radio
frequency step by step.

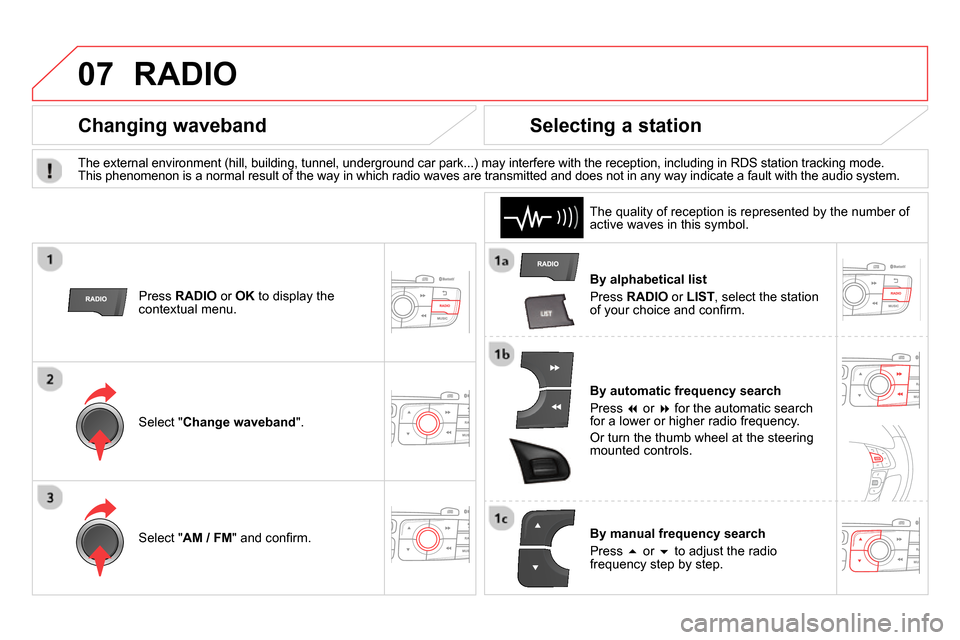

Selecting a station


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode.
This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.

The quality of reception is represented by the number of
active waves in this symbol.

Press RADIO
or OK
to display the
contextual menu.






Changing waveband


Select " Change waveband
".

Select " AM / FM
" and confi rm.

07
335

Press the button on the numerical
keypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.

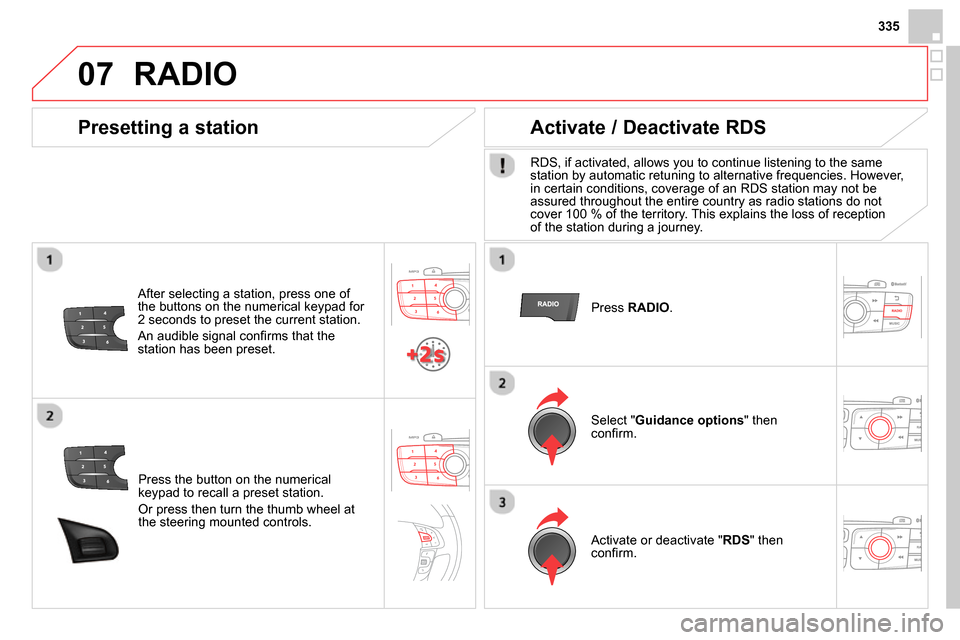

Presetting a station


After selecting a station, press one of
the buttons on the numerical keypad for
2 seconds to preset the current station.
An audible signal confi rms that the
station has been preset.
Press RADIO
.







Activate / Deactivate RDS


RDS, if activated, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception
of the station during a journey.

Select " Guidance options
" then
confi rm.

Activate or deactivate " RDS
" then
confi rm.


RADIO

07 RADIO


Press " RADIO
".

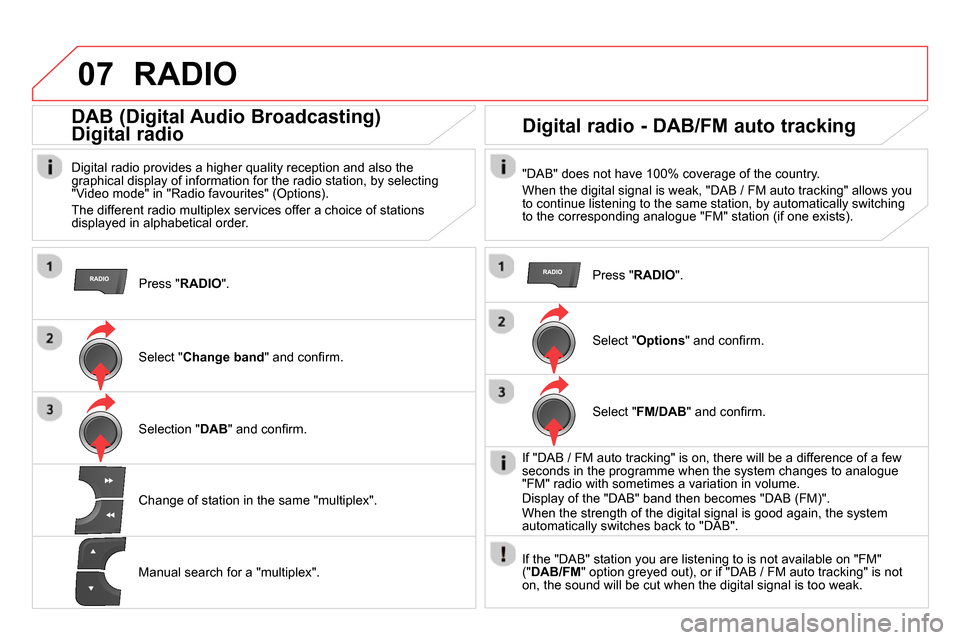

DAB (Digital Audio Broadcasting)
Digital radio

Digital radio provides a higher quality reception and also the
graphical display of information for the radio station, by selecting
"Video mode" in "Radio favourites" (Options).
The different radio multiplex services offer a choice of stations
displayed in alphabetical order.

Select " Change band
" and confi rm.

Selection " DAB
" and confi rm.







Digital radio - DAB/FM auto tracking


"DAB" does not have 100% coverage of the country.
When the digital signal is weak, "DAB / FM auto tracking" allows you
to continue listening to the same station, by automatically switching
to the corresponding analogue "FM" station (if one exists).

Change of station in the same "multiplex".

Manual search for a "multiplex".

Press " RADIO
".

Select " Options
" and confi rm.

Select " FM/DAB
" and confi rm.

If "DAB / FM auto tracking" is on, there will be a difference of a few
seconds in the programme when the system changes to analogue
"FM" radio with sometimes a variation in volume.
Display of the "DAB" band then becomes "DAB (FM)".
When the strength of the digital signal is good again, the system
automatically switches back to "DAB".

If the "DAB" station you are listening to is not available on "FM"
(" DAB/FM
" option greyed out), or if "DAB / FM auto tracking" is not
on, the sound will be cut when the digital signal is too weak.

08
337
MUSIC MEDIA PLAYERS







Access to the "MUSIC MEDIA PLAYER" menu


" MEDIA
"

" Change Media
"
" Eject USB device
" (if USB
connected)
" Play mode
" (" Normal
",
" Random
", " Random on all
media
", " Repetition
")
" Audio settings
" (see this section)
" Activate / Deactivate AUX input
" List of the current media
tracks.

This list can also be displayed by pressing LIST

at the steering mounted controls.
Go from the list to the menu (left/right).
or

Press MUSIC
.

08 MUSIC MEDIA PLAYERS


CD, MP3 CD / USB player


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac,
.ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u...) can be played.
WMA fi les must be of the standard wma 9 type.
The sampling rates supported are greater than 32 KHz.

It is advisable to restrict fi le names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format (udf, ...), it may not be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
Information and advice

The system supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
If a partitioned USB memory key is connected to the
system, only the fi rst partition is recognised.
Control of the peripheral device is with the audio
system controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
If the current consumption at the USB port exceeds
500 mA, the system goes into protection mode and
deactivates the port.
Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable
(not supplied).

In order to be read, a USB memory stick must be formatted FAT 16
or 32.



The system does not support the operation of an Apple
®
player and a
USB memory stick connected at the same time.

It is recommended that offi cial Apple
®
USB cables are used to ensure
correct operation.
