69Multifunction screens

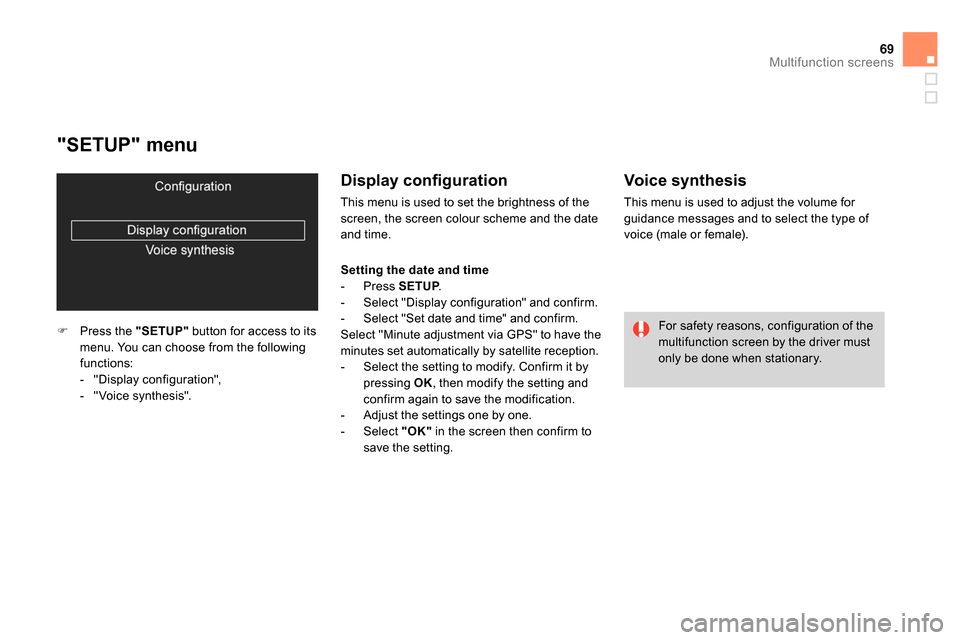

"SETUP" menu





Press the "SETUP"
button for access to its
menu. You can choose from the following
functions:


- "Display configuration",

- " Voice synthesis".




Display confi guration

This menu is used to set the brightness of the
screen, the screen colour scheme and the date
and time.

Voice synthesis

This menu is used to adjust the volume for
guidance messages and to select the type of
voice (male or female).
For safety reasons, configuration of the
multifunction screen by the driver must
only be done when stationary.


Setting the date and time



- Press SETUP
.

- Select "Display configuration" and confirm.

- Select "Set date and time" and confirm.
Select "Minute adjustment via GPS" to have the
minutes set automatically by satellite reception.


- Select the setting to modify. Confirm it by
pressing OK
, then modify the setting and
confirm again to save the modification.

- Adjust the settings one by one.

- Select "OK"
in the screen then confirm to
save the setting.

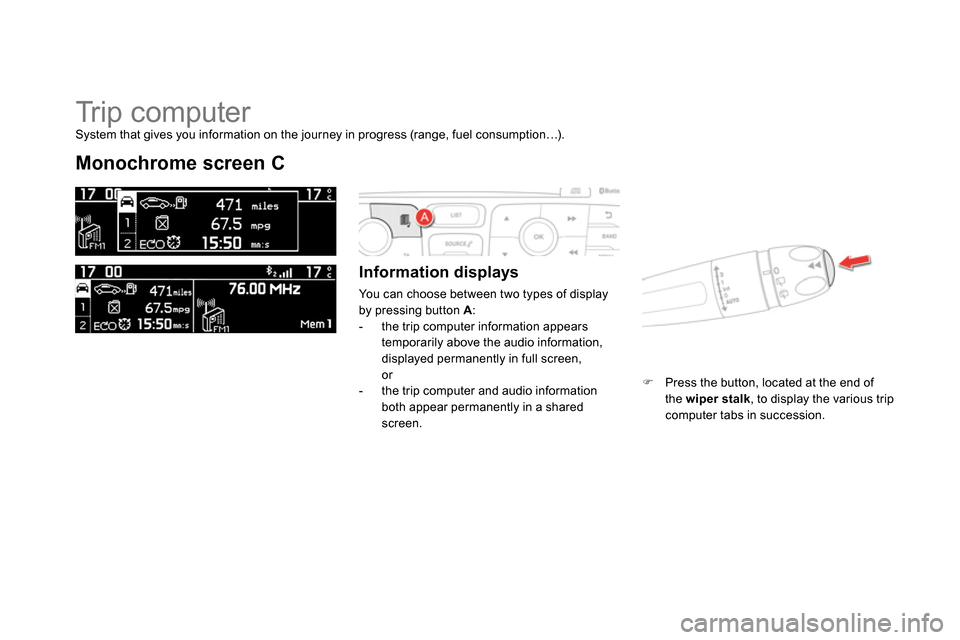

Tr i p c o m p u t e r







Monochrome screen C


Information displays

You can choose between two types of display
by pressing button A
:


- the trip computer information appears
temporarily above the audio information,
displayed permanently in full screen,
or

- the trip computer and audio information
both appear permanently in a shared
screen.


Press the button, located at the end of
the wiper stalk
, to display the various trip
computer tabs in succession.
System that gives you information on the journey in progress (range, fuel consumption…).

71Multifunction screens


- the current information tab with:


●
the range,

●
the current fuel consumption,

●
the Stop & Start time counter.



- the trip "1"
tab with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the first trip.



- the trip "2"
tab with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the second trip.





Trip zero reset




When the trip required is displayed, press
the button on the end of the wiper stalk for
more than two seconds.
Trips "1"
and "2"
are independent but their use
is identical.
For example, trip "1"
can be used for daily
figures, and trip "2"
for monthly figures.

Type 2 central instrument panel screen


Information displays



- Display of instantaneous information with:


●
the range,

●
the current fuel consumption,

●
Stop & Start time counter,



- Display of trip "1"
with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the first trip.



- Display of trip "2"
with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the second trip.



●
information on the current audio source,

●
black screen,

●
navigation-guidance messages.



Press the button, located at the end of the
wiper stalk

or


turn the thumb wheel, located on the left of
the steering wheel
,
to display the following information in turn:


●
reminder of the speed,

●
instantaneous information,

●
trip "1"
,

●
trip "2"
,

73Multifunction screens

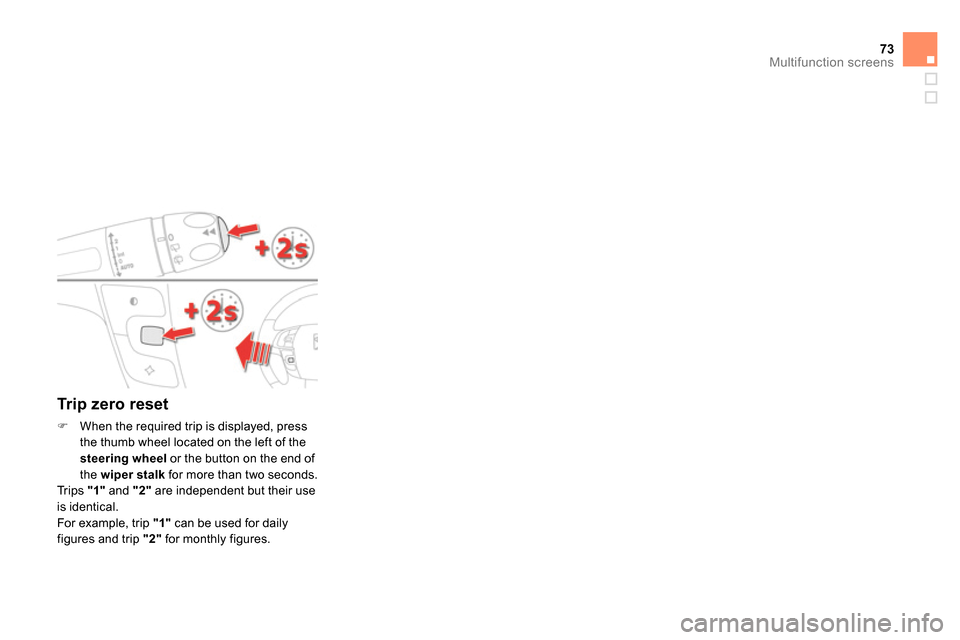

Trip zero reset




When the required trip is displayed, press
the thumb wheel located on the left of the
steering wheel
or the button on the end of
the wiper stalk
for more than two seconds.
Trips "1"
and "2"
are independent but their use
is identical.
For example, trip "1"
can be used for daily
figures and trip "2"
for monthly figures.

A few definitions…

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop. This function is only displayed from
20 mph (30 km/h).
The fuel consumption of your vehicle will
be higher than the official figures obtained
by CITROËN during the first 3 000 miles
(5 000 km) of the vehicle's life.


Range

(miles or km)
This indicates the distance
which can still be travelled with the fuel
remaining in the tank in relation to the average
fuel consumption over the last few miles
(kilometres) travelled.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

Current fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption during the
last few seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption since the
last trip computer zero reset.

Average speed

(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).


Distance travelled

(miles or km)
This indicates the distance
travelled since the last trip computer zero reset.









Stop & Start time
counter
(minutes/seconds or hours/
minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on with the key.

75Multifunction screens

003
Comfort

Vent ilat i on


Air intake

The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.


Air treatment

The incoming air follows various routes
depending on the controls selected by the
driver:


- direct arrival in the passenger
compartment (air intake),

- passage through a heating circuit (heating),

- passage through a cooling circuit (air
conditioning).



Control panel

The controls of this system are grouped
together on control panel A
on the centre
console.


Air distribution



1.
Windscreen demisting-defrosting vents.

2.
Front side window demisting-defrosting
vents.

3.
Side adjustable air vents.
4.
Central adjustable air vents.

5.
Air outlets to the front footwells.

6.
Air nozzles to the front footwells.

7.
Air outlets to the rear footwells.
