Page 31 of 400

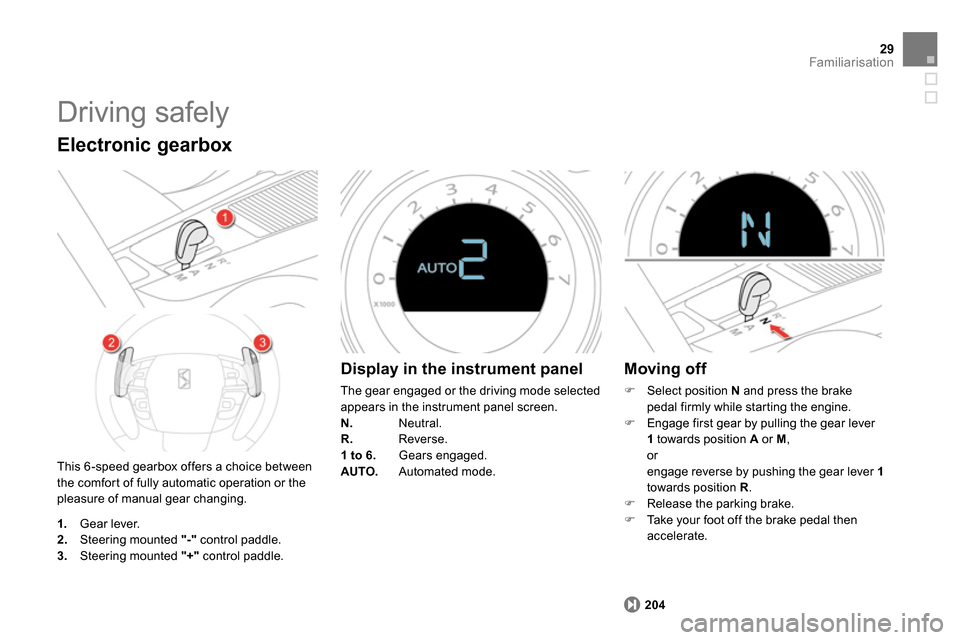

29Familiarisation
Driving safely
This 6 -speed gearbox offers a choice between
the comfort of fully automatic operation or the
pleasure of manual gear changing.
Electronic gearbox
1.
Gear lever.
2.
Steering mounted "-"
control paddle.
3.
Steering mounted "+"
control paddle.
Display in the instrument panel
The gear engaged or the driving mode selected
appears in the instrument panel screen.
N.
Neutral.
R.
Reverse.
1 to 6.
Gears engaged.
AUTO.
Automated mode.
Moving off
Select position N
and press the brake
pedal firmly while starting the engine.
Engage first gear by pulling the gear lever
1
towards position A
or M
,
or
engage reverse by pushing the gear lever 1
towards position R
.
Release the parking brake.
Take your foot off the brake pedal then
accelerate.
204
Page 32 of 400
Driving safely
Automatic gearbox
This six-speed gearbox offers the choice of
automatic operation or the pleasure of manual
gear changing.
1.
Gear lever.
2.
"S" (spor t)
button.
3.
"
" (snow)
button.
Display in the instrument panel
The driving mode selected and/or the gear
engaged appear in the left hand instrument
panel screen.
P.
Park.
R.
Reverse.
N.
Neutral.
D.
Drive (automatic).
S.
Sport programme.
.
Snow programme.
1 to 6.
Gears engaged.
-.
Invalid value in manual operation.
Moving off
With your foot on the brake, select
position P
or N
.
Start the engine.
then select position R
, D
or M
.
Remove your foot from the brake pedal,
then move off.
208
Page 33 of 400
31Familiarisation
Stop & Start
Engine going into STOP mode
216
The "ECO"
warning lamp comes on in
the instrument panel and the engine is
automatically put into standby:
- with a manual gearbox;
at speeds below
12 mph (20 km/h), when you put the gear
lever into neutral and release the clutch
pedal,
- with an electronic gearbox;
at speeds
below 5 mph (8 km/h), when you press
the brake pedal or put the gear lever in
position N
.
Engine going into START mode
Deactivation / Reactivation
You can deactivate the system at any time by
pressing the "ECO OFF"
button; the button's
warning lamp comes on.
217
217
The system is reactivated automatically
every time you start the engine with
the key.
Before refuelling or doing anything
under the bonnet, you must switch off
the ignition with the key. The "ECO"
warning lamp goes off
and the engine restarts automatically:
- with a manual gearbox;
when you fully
depress the clutch pedal,
- with an electronic gearbox;
●
with the gear lever in position A
or M
,
when you release the brake pedal,
●
or gear lever in position N
and brake
pedal released, when you change to
position A
or M
,
●
or when you engage reverse.
In certain circumstances the STOP mode may
not be available; the "ECO"
warning lamp
flashes for a few seconds then goes off. In certain condition, START mode may engage
automatically; the "ECO"
warning lamp flashes
then goes off.
Driving safely
Page 34 of 400

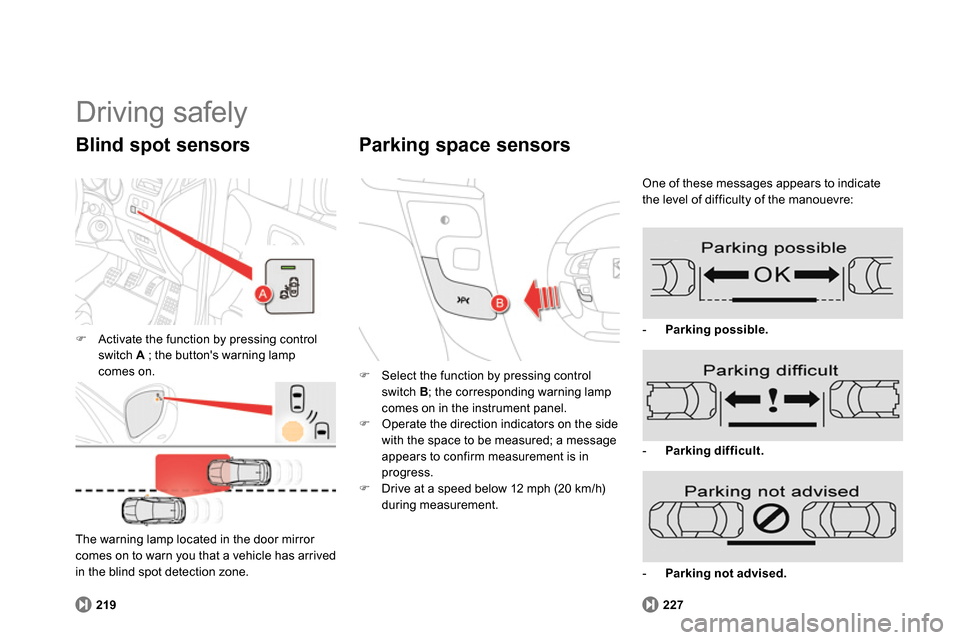

Driving safely
Activate the function by pressing control
switch A
; the button's warning lamp
comes on.
Blind spot sensors
219
The warning lamp located in the door mirror
comes on to warn you that a vehicle has arrived
in the blind spot detection zone.
Select the function by pressing control
switch B
; the corresponding warning lamp
comes on in the instrument panel.
Operate the direction indicators on the side
with the space to be measured; a message
appears to confirm measurement is in
progress.
Drive at a speed below 12 mph (20 km/h)
during measurement.
Parking space sensors
One of these messages appears to indicate
the level of difficulty of the manouevre:
- Parking possible.
227
- Parking difficult.
- Parking not advised.
Page 35 of 400

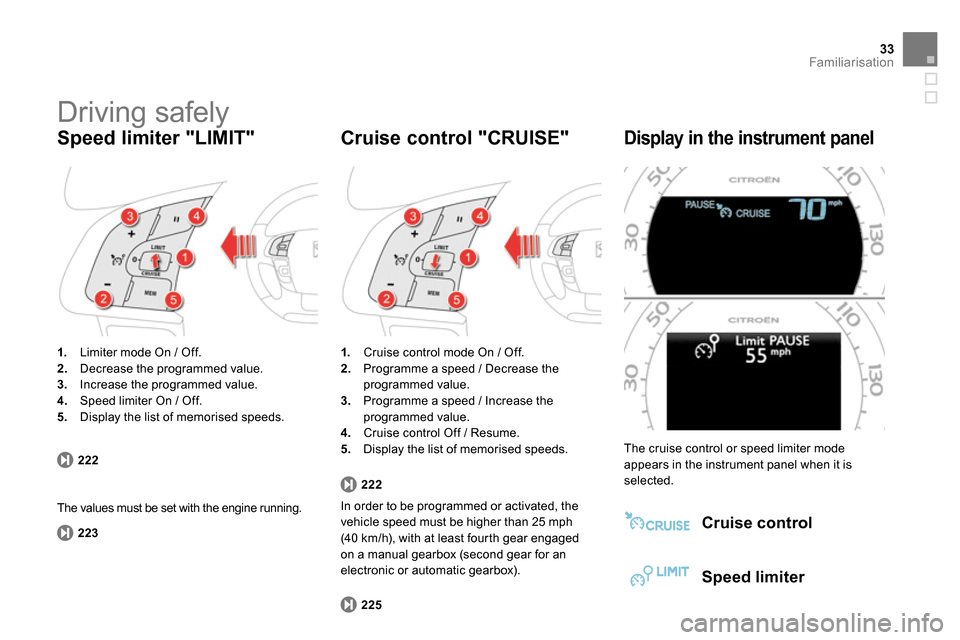

33Familiarisation
Driving safely
1.
Limiter mode On / Off.
2.
Decrease the programmed value.
3.
Increase the programmed value.
4.
Speed limiter On / Off.
5.
Display the list of memorised speeds.
Speed limiter "LIMIT"
222
1.
Cruise control mode On / Off.
2.
Programme a speed / Decrease the
programmed value.
3.
Programme a speed / Increase the
programmed value.
4.
Cruise control Off / Resume.
5.
Display the list of memorised speeds.
Cruise control "CRUISE"
222
The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.
Display in the instrument panel
The values must be set with the engine running.
223
225
In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least fourth gear engaged
on a manual gearbox (second gear for an
electronic or automatic gearbox).
Speed limiter
Cruise control
Page 36 of 400
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently
and change up without waiting. During
acceleration change up early.
With an automatic or electronic gearbox,
give preference to automatic mode and avoid
pressing the accelerator pedal heavily or
suddenly.
The gear efficiency indicator invites you
to change up: as soon as the indication to
change up is displayed in the instrument
panel, follow it straight away.
With an electronic or automatic gearbox, this
indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal,
and press the accelerator progressively. These
practices contribute towards a reduction in
fuel consumption and CO
2 emissions and also
helps reduce the background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.
Control the use of your
electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before using the air conditioning. Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Remember to make use of equipment that can
help keep the temperature in the passenger
compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has
automatic regulation, as soon as the desired
temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as possible.
Page 37 of 400
35
As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the
heaviest items in the bottom of the boot, as
close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and
refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.
Have your vehicle ser viced regularly (engine
oil, oil filter, air filter...) and obser ve the
schedule of operations recommended by the
manufacturer.
When refuelling, do not continue after
the third cut-off of the nozzle to avoid any
over flow.
Switch off the headlamps and front foglamps
when the level of light does not require their
use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.
At the wheel of your new vehicle, it is only after
the first 1 800 miles (3 000 kilometres) that you
will see the fuel consumption settle down to a
consistent average.
Page 38 of 400
001
Instruments and controls
Page 39 of 400
Page 40 of 400
Customisable colour instrument panel - Type 1
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear efficiency indicator or gear lever
position and gear engaged (electronic or
automatic gearbox).
3.
Analogue speedometer (mph or km/h).
4.
Cruise control or speed limiter setting.
5.
Digital speedometer (mph or km/h).
6.
Engine oil level indicator.
Dials and screens
Control buttons
7.
Ser vice indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the ignition.
Lighting dimmer setting (when making an
adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
warning lamp.
10.
Range (miles or km).
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation of the
background colour of the screens.
C.
Lighting dimmer (available in night mode).
D.
Reminder of the servicing information
Reset the service indicator or the trip
mileage recorder.
