Citroen DS4 RHD 2013.5 1.G Service Manual
Manufacturer: CITROEN, Model Year: 2013.5, Model line: DS4 RHD, Model: Citroen DS4 RHD 2013.5 1.GPages: 400, PDF Size: 31.86 MB
Page 41 of 400
39Monitoring
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear efficiency indicator or gear lever
position and gear for an electronic or
automatic gearbox.
3.
Speedometer (mph or km/h).
4.
Central screen.
5.
Fuel gauge and associated low fuel level
warning lamp.
Dials and screens
6.
Trip mileage recorder (miles or km).
7.
Ser vice spanner (if a ser vice is due or
missed),
total mileage recorder.
(miles or km)
Control buttons
Customisable colour instrument panel - Type 2
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation of the
background colour of the screens.
C.
Dashboard lighting dimmer (in night mode).
D.
Start a manual test (procedure for checking
the status of systems and display of vehicle
alerts).
Reset service indicator or trip mileage
recorder.
Page 42 of 400

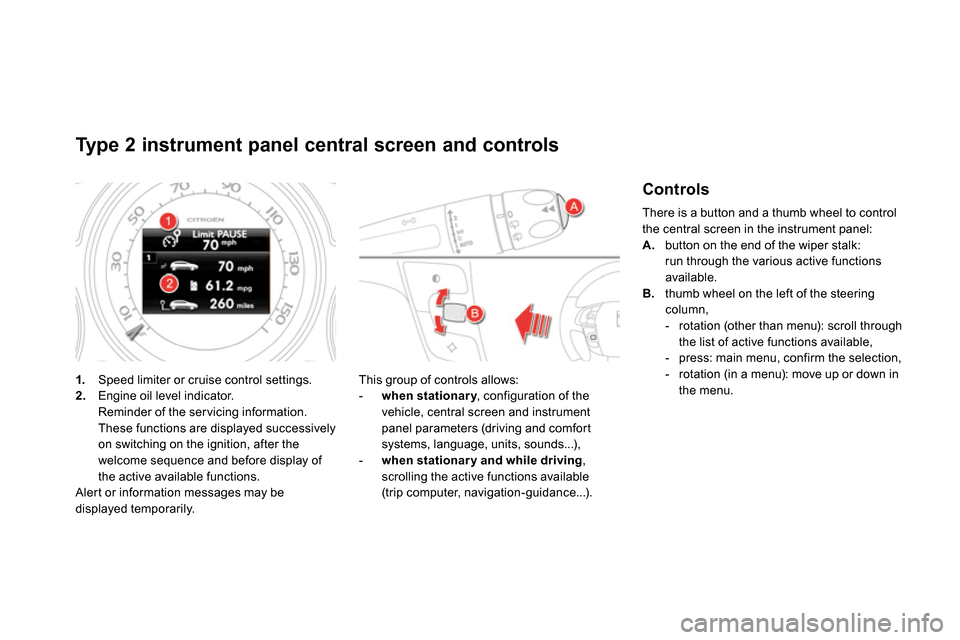

Type 2 instrument panel central screen and controls
1.
Speed limiter or cruise control settings.
2.
Engine oil level indicator.
Reminder of the servicing information.
These functions are displayed successively
on switching on the ignition, after the
welcome sequence and before display of
the active available functions.
Alert or information messages may be
displayed temporarily.
This group of controls allows:
- when stationary
, configuration of the
vehicle, central screen and instrument
panel parameters (driving and comfort
systems, language, units, sounds...),
- when stationar y and while driving
,
scrolling the active functions available
(trip computer, navigation-guidance...).
Controls
There is a button and a thumb wheel to control
the central screen in the instrument panel:
A.
button on the end of the wiper stalk:
run through the various active functions
available.
B.
thumb wheel on the left of the steering
column,
- rotation (other than menu): scroll through
the list of active functions available,
- press: main menu, confirm the selection,
- rotation (in a menu): move up or down in
the menu.
Page 43 of 400
41Monitoring
Press thumb wheel B
for access to the
main menu and select one of the following
functions:
- "Vehicle parameters",
- "Display adjustment",
- "Choice of sounds".
Turn the thumb wheel B
to move around in
the instrument panel central screen.
Press the thumb wheel B
again to confirm
the selection. This menu is used to activate or deactivate
certain driving and comfort systems, classified
in different categories:
- "Access to the vehicle" (see "Access"
section):
●
"Plip action" (Selective unlocking of the
driver's door),
●
"Unlocking only boot" (Selective
unlocking of the boot).
- "Driving assistance":
●
"Parking brake automatic" (Automatic
electric parking brake; see "Driving"
section),
●
"Rear wipe in reverse gear" (Rear wiper
coupled to reverse gear; see " Visibility"
section),
●
"Speeds memorised" (Memorising
speeds; see "Driving" section).
- " Vehicle lighting" (see " Visibility" section):
●
"Directional headlamps" (Main/additional
directional lighting),
●
"Daytime lights" (Daytime running
lamps).
- "Interior lighting" (see " Visibility" section):
●
"Follow-me-home" (Automatic timed
operation of headlamps),
●
" Welcome lighting" (Interior/exterior
welcome lighting).
Vehicle parameters
Main menu
The main menu and its associated
functions can only be accessed when
stationary.
A message appears in the instrument
panel central screen, above a certain
speed threshold, indicating that the
main menu cannot be displayed.
Page 44 of 400

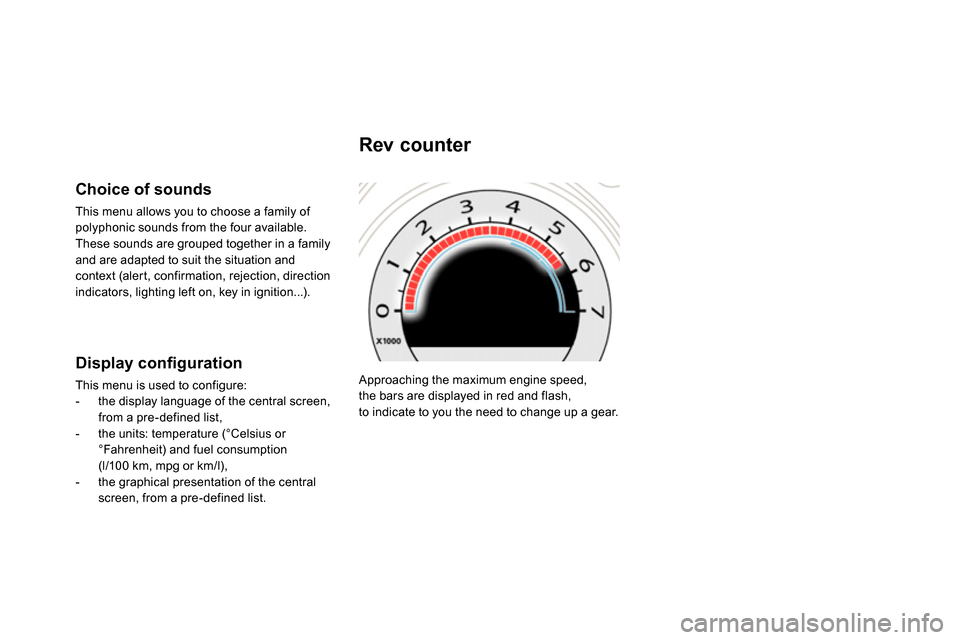

Approaching the maximum engine speed,
the bars are displayed in red and flash,
to indicate to you the need to change up a gear.
Rev counter
Choice of sounds
This menu allows you to choose a family of
polyphonic sounds from the four available.
These sounds are grouped together in a family
and are adapted to suit the situation and
context (alert, confirmation, rejection, direction
indicators, lighting left on, key in ignition...).
Display confi guration
This menu is used to configure:
- the display language of the central screen,
from a pre-defined list,
- the units: temperature (°Celsius or
°Fahrenheit) and fuel consumption
(l/100 km, mpg or km/l),
- the graphical presentation of the central
screen, from a pre-defined list.
Page 45 of 400
43Monitoring

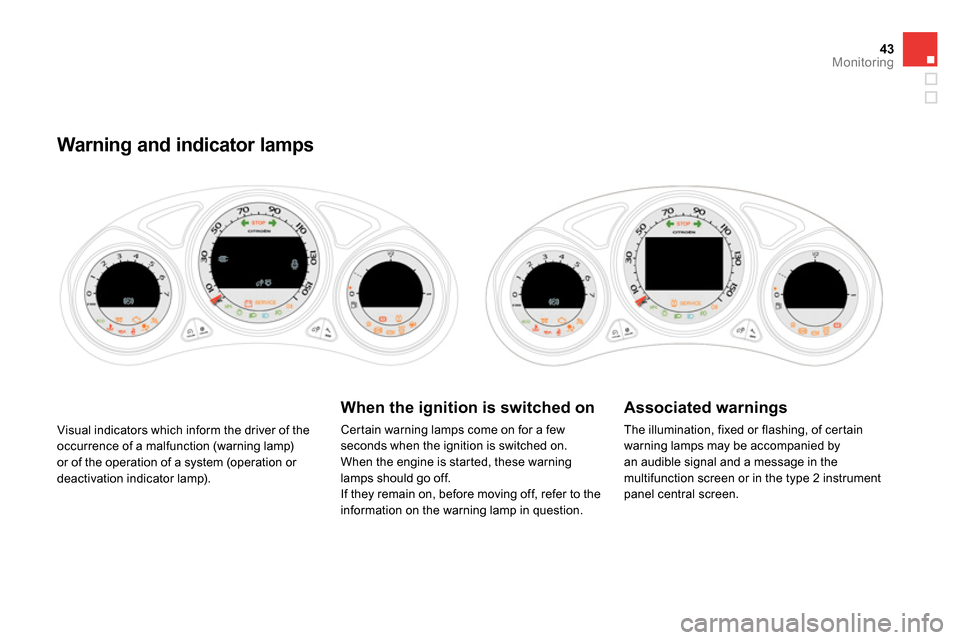

Visual indicators which inform the driver of the
occurrence of a malfunction (warning lamp)
or of the operation of a system (operation or
deactivation indicator lamp).
Warning and indicator lamps
When the ignition is switched on
Certain warning lamps come on for a few
seconds when the ignition is switched on.
When the engine is started, these warning
lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp in question.
Associated warnings
The illumination, fixed or flashing, of certain
warning lamps may be accompanied by
an audible signal and a message in the
multifunction screen or in the type 2 instrument
panel central screen.
Page 46 of 400

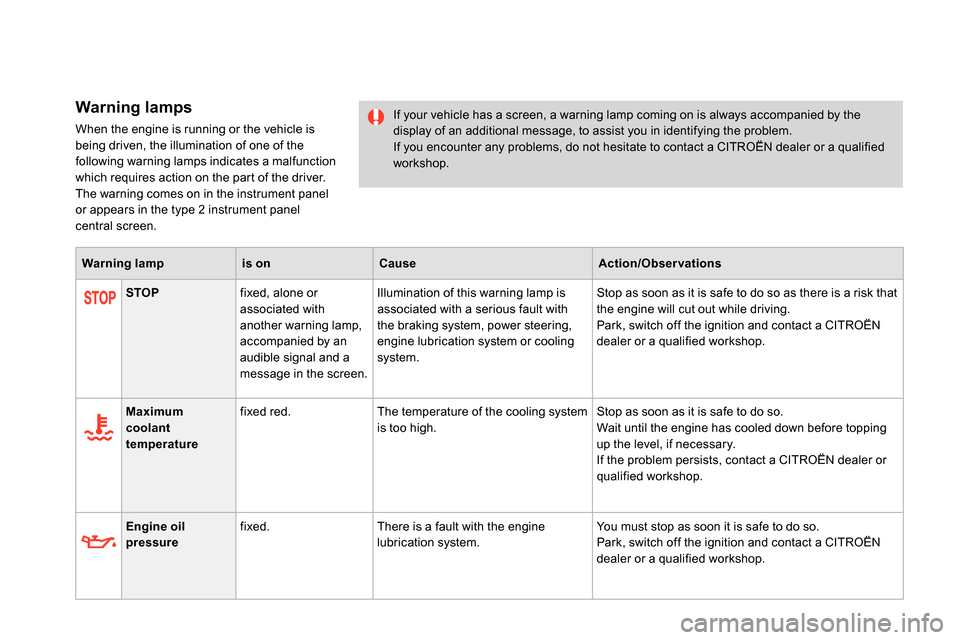

Warning lamps
When the engine is running or the vehicle is
being driven, the illumination of one of the
following warning lamps indicates a malfunction
which requires action on the part of the driver.
The warning comes on in the instrument panel
or appears in the type 2 instrument panel
central screen. If your vehicle has a screen, a warning lamp coming on is always accompanied by the
display of an additional message, to assist you in identifying the problem.
If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified
workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fixed, alone or
associated with
another warning lamp,
accompanied by an
audible signal and a
message in the screen. Illumination of this warning lamp is
associated with a serious fault with
the braking system, power steering,
engine lubrication system or cooling
system. Stop as soon as it is safe to do so as there is a risk that
the engine will cut out while driving.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Maximum
coolant
temperature
fixed red. The temperature of the cooling system
is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Engine oil
pressure
fixed. There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Page 47 of 400
45Monitoring
Warning lamp
is on
Cause
Action/Observations
Battery charge
fixed. The battery charging circuit has a fault
(dirty or loose terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
Braking
fixed, associated with
the STOP warning
lamp. The braking system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid recommended by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.
+
fixed, associated with
the electric parking
brake malfunction
warning lamp, if the
parking brake is
released. The braking system has a fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
+
fixed, associated with
the STOP and ABS
warning lamps. The electronic brake force distribution
(EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
Page 48 of 400
Warning lamp
is on
Cause
Action/Observations
Electric parking
brake
flashing. The application or release of the
electric parking brake was interrupted. You must stop as soon as it is safe to do so.
Park on level ground, switch off the ignition and
contact a CITROËN dealer or a qualified workshop.
+
Electric
parking brake
malfunction
fixed. The electric parking brake has a fault. Automatic application/release is no longer possible.
Contact a CITROËN dealer or a qualified workshop
without delay.
The parking brake can be released manually using the
emergency release procedure.
For more information on the electric parking brake,
refer to the "Driving" section.
Door(s) open
fixed if the speed is
below 6 mph (10 km/h).
A door or the boot is still open. Close the door or boot.
fixed and accompanied
by an audible signal
if the speed is above
6 mph (10 km/h).
* According to country.
Seat belt not
fastened/
unfastened *
fixed, then flashing,
accompanied by an
increasing audible
signal. The driver or front passenger has not
buckled or has unbuckled their seat
belt. Pull on the belt in question and insert the tongue in
the buckle.
This warning repeats the seat belt information given
by the roof console warning lamps. At least one rear passenger has
unbuckled their seat belt.
Page 49 of 400
47Monitoring
Service
temporarily,
accompanied by a
message. A minor malfunction has occurred for
which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen, such as, for example:
- the opening of the doors, boot or bonnet,
- the engine oil level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission filter on
Diesel vehicles (see "Checks - § Checks/Particle
emissions filter").
For any other malfunctions, contact a CITROËN dealer
or a qualified workshop.
fixed, accompanied
by a message and an
audible signal. A major malfunction has occurred
for which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen and contact a CITROËN dealer
or a qualified workshop.
Warning lamp
is on
Cause
Action/Observations
Particle
emissions filter
(Diesel)
fixed, accompanied
by an audible signal
message on the risk of
blockage of the particle
emissions filter. This indicates that the particle
emissions filter is starting to become
saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
fixed, accompanied by
an audible signal and
and a message that the
particle emissions filter
additive level is too low.
This indicates the low level of the
additive reservoir. Have the reser voir topped up as soon as possible by a
CITROËN dealer or a qualified workshop.
Page 50 of 400
Warning lamp
is on
Cause
Action/Observations
Anti-lock Braking
System (ABS)
fixed. The anti-lock braking system has
a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
CITROËN dealer or a qualified workshop without delay.
Dynamic stability
control (ESP/
ASR)
flashing. The ESP/ASR regulation is active. The system optimises traction and improves the
directional stability of the vehicle.
fixed, associated with
illumination of the indicator
lamp in the " ESP OFF
"
button, accompanied by an
audible signal and a message.
The ESP/ASR or hill start assist
system has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Engine
autodiagnosis
system
flashing. The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.
Low fuel level
fixed, accompanied by
and audible signal and
a message. When it first comes on there remains
approximately 6
litres
of fuel in the
tank.
At this point, you begin to use the fuel
reserve. Refuel as soon as possible to avoid running out of
fuel.
Until sufficient fuel is added, this warning lamp will
come on every time the ignition is switched on,
accompanied by an audible signal and a message.
This audible signal and message are repeated
with increasing frequency as the fuel level drops
towards "0".
Fuel tank capacity: approximately 60 litres
.
Never continue to drive until you run out of fuel,
as this could damage the emission control and
injection systems.
