49Monitoring

Power steering
fixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.




Under-inflation


fixed. The pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.

+
flashing then fixed,
accompanied by the
Ser vice warning lamp. The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked by a CITROËN dealer or a
qualified workshop.




Directional
headlamps


flashing. The directional headlamps system
has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.

Warning lamp



is on



Cause



Action/Observations






Foot on the brake
pedal


fixed. The brake pedal is not pressed. With an electronic gearbox, press the brake pedal to
start the engine (lever in position N
).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will remain
on.

flashing. With an electronic gearbox, if you hold
the vehicle on a rising incline using
the accelerator for too long, the clutch
overheats. Use the brake pedal and/or the electric parking brake.




Airbags


temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.

fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.

Warning lamp



is on



Cause



Action/Observations






Left-hand
direction indicato

r


flashing with buzzer. The lighting stalk is pushed down.




Right-hand
direction indicator


flashing with buzzer. The lighting stalk is pushed up.






Sidelamps


fixed. The lighting control is in the
"Sidelamps" position. On vehicle where the daytime running lamps are deactivated,
if the lighting control is in the "AUTO" position, the sidelamps
come on as a luminous signature of the vehicle.





Dipped beam
headlamps


fixed. The lighting stalk is in the "Dipped beam
headlamps" position or in the "AUTO"
position in conditions of low light.






Main beam
headlamps


fixed. The lighting stalk is pulled towards
you. Pull the stalk again to return to dipped beam
headlamps.




Front foglamps


fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.




Rear foglamps


fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.



Hazard warning
lamps


flashing with audible
signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.










Operation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the screen.

51Monitoring

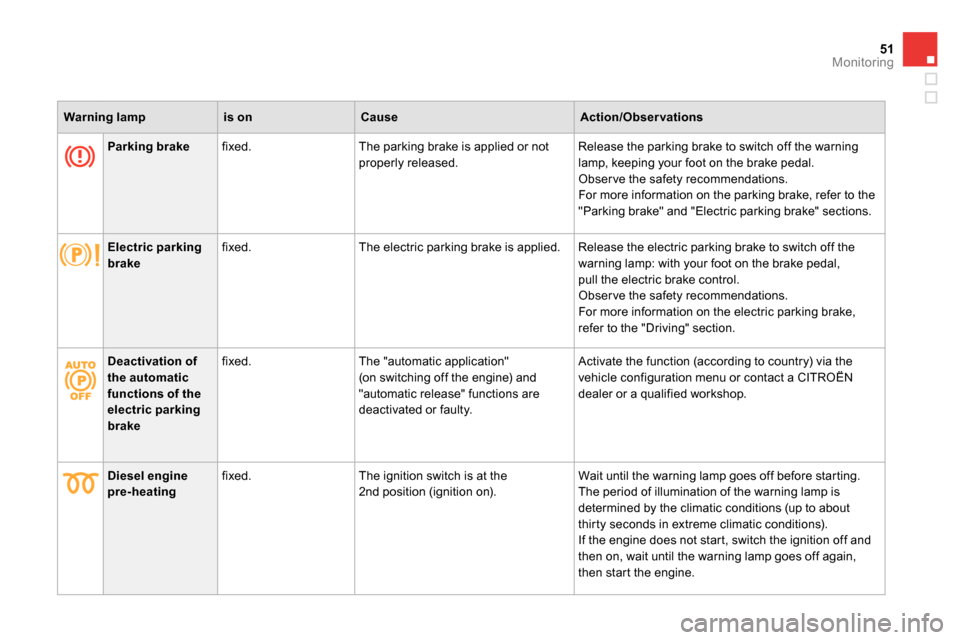

Warning lamp



is on



Cause



Action/Observations






Parking brake


fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Obser ve the safety recommendations.
For more information on the parking brake, refer to the
"Parking brake" and "Electric parking brake" sections.


Electric parking
brake


fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal,
pull the electric brake control.
Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the "Driving" section.


Deactivation of
the automatic
functions of the
electric parking
brake


fixed. The "automatic application"
(on switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop.




Diesel engine
pre-heating


fixed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp goes off before starting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme climatic conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Lighting dimmer


fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.



Passenger's
airbag system
fixed in the seat belt
and passenger's front
airbag warning lamps
display.
The control switch, located in the glove
box, has been placed in the "ON"
position.
The passenger's front airbag is activated.
In this case, do not install a "rear facing"
child seat. Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.





Automatic wiping


fixed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

Warning lamp



is on



Cause



Action/Observations




Stop & Start


fixed. When the vehicle stops (red lights,
traffic jams,...) the Stop & Start
system has put the engine into STOP
mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on special cases with STOP
mode and START mode, refer to the "Stop & Start"
section.


Parking space
sensors


fixed. The parking space sensors function
is selected. To start measurement, operate the direction indicator
on the side of the space to be measured, and do not
exceed 12 mph (20 km/h). A message is displayed
once the measurement has been completed.

53Monitoring




Passenger's
airbag system


fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display. The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is
deactivated. Set the control to the "ON"
position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rear-facing
position.

Warning lamp



is on



Cause



Action/Observations













Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

This information is displayed for a few seconds
when the ignition is switched on, at the same
time as the ser vice information.















Engine oil level indicator

The vehicle must be on level ground
and the engine must have been off
for more than 30 minutes for this level
check to be accurate.

Oil level correct

Oil level incorrect

This is indicated by the flashing of "OIL"

or the display of a specific message in
the instrument panel, coupled with the service
warning lamp and accompanied by an audible
signal.
If the low oil level is confirmed by a check
using the dipstick, the level must be topped up
to avoid damage to the engine.


Oil level indicator error

This is indicated by the flashing of "OIL--"

or the display of a specific message in the
instrument panel. Contact a CITROËN or a
qualified workshop.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of damage to
the engine),

- B
= min; top up the level via
the oil filler cap, using the
correct grade of oil for your
engine.




Dipstick

Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.

55Monitoring
This information is displayed for a few seconds
after switching on the ignition. It informs the
driver when the next ser vice is due,
in accordance with the manufacturer's
servicing schedule.
The point at which the ser vice is due is
calculated from the last ser vice indicator zero
reset. It is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.







Service indicator


Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the ser vice
operations comes on. The distance recorder
display line or a specific message in the
instrument panel central screen indicates the
distance remaining before the next ser vice is due.

For example:
1 700 miles (2 800 km) remain
before the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:

Less than 600 miles (1 000 km) remain
before the next service is due

Example:
560 miles (900 km) remain before
the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
to
indicate that a ser vice must be carried out
soon.
A few seconds after the ignition is switched on,
the spanner goes off
; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.


More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser vice information
appears in the instrument panel central screen.

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
.
The distance remaining may be
weighted by the time factor, depending
on the type of driving.
Therefore, the spanner may also come
on if you have exceeded the two year
service interval.









Service indicator zero reset

After each ser vice, the ser vice indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:



switch off the ignition,


press and hold the ".../000"
trip distance
recorder zero reset button,


switch on the ignition; the distance recorder
display begins a countdown,


when the screen indicates "=/0"
and the
spanner disappears, release the button. This operation cannot be carried
out while a reminder of the ser vicing
information is being displayed.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.


Recalling the service information

You can recall the ser vice information at any
time.



Briefly press the ".../000"
trip distance
recorder zero reset button.
The ser vice information is displayed for a
few seconds, in the total distance recorder
line or in the type 2 instrument panel
central screen.




Service overdue

For a few seconds after the ignition is switched on,
the spanner flashes
to indicate that the ser vice
must be carried out as soon as possible.

Example:
the ser vice is overdue by 180 miles
(300 km).
For a few seconds after the ignition is switched on,
the screen indicates:

57Monitoring





















Manual test in the type 2 instrument panel central screen

This function allows you to check the status of the vehicle systems (reminder of the "activated"/"deactivated" status of the configurable functions) and to
display the alerts log.



With the engine running, to start a manual
test, briefly press the ".../000"
button on
the instrument panel. The following information appears successively
in the instrument panel central screen:


- engine oil level indicator
(see corresponding section),

- ser vice indicator (see corresponding
section),

- under-inflation detection (if your vehicle
is fitted with this system; see the "Safety"
section),

- current warnings and alert messages,
if any (see corresponding section for the
warning lamp or system concerned),

- status of configurable functions
(see "Multifunction screens"). This information also appears every
time the ignition is switched on
(automatic test).

The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.

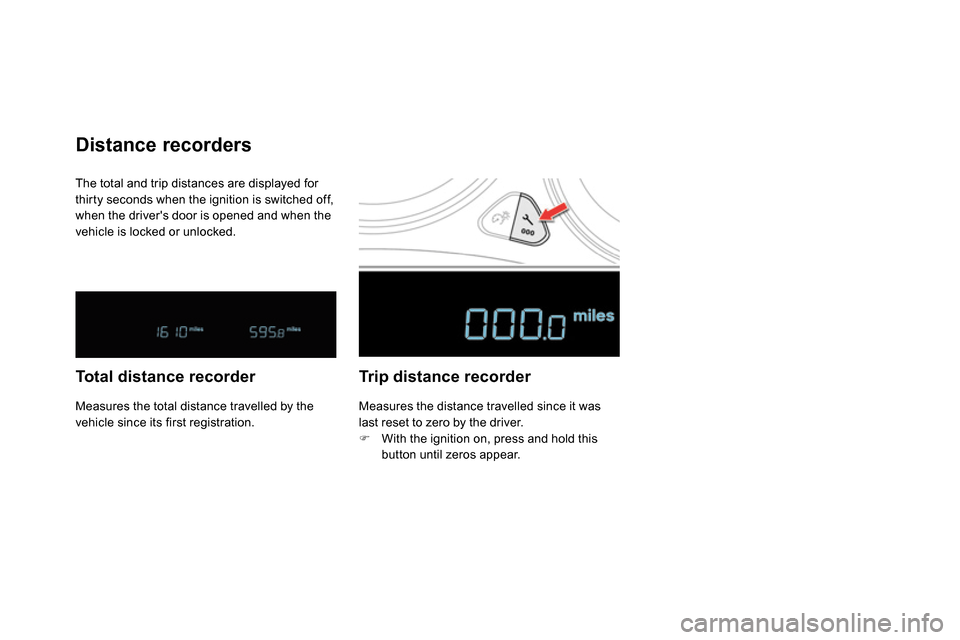

Distance recorders


Total distance recorder

Trip distance recorder

Measures the distance travelled since it was
last reset to zero by the driver.



With the ignition on, press and hold this
button until zeros appear.
Measures the total distance travelled by the
vehicle since its first registration.
