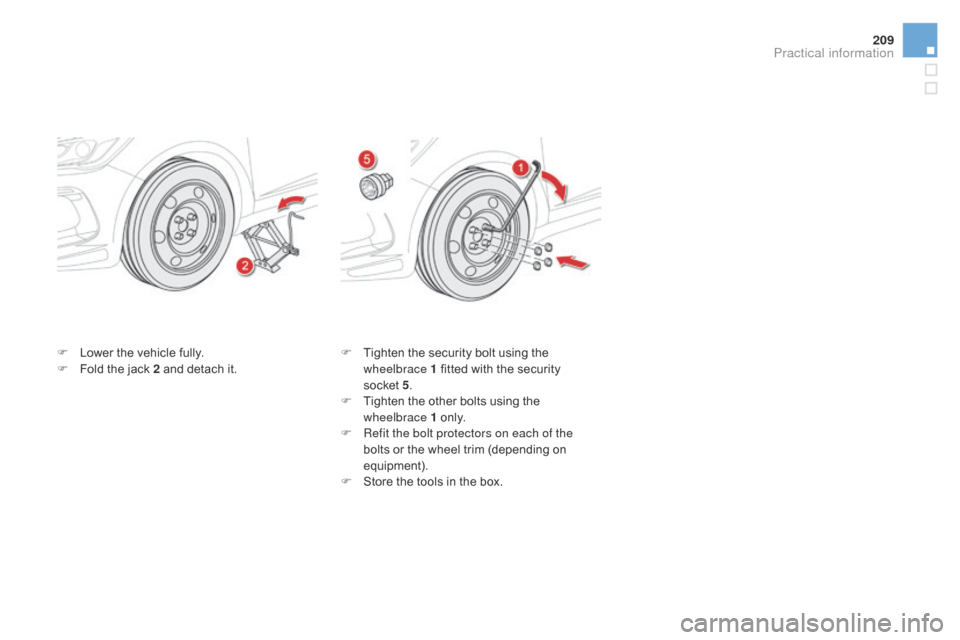

F Lower the vehicle fully.
F Fo ld the jack 2 and detach it. F Ti
ghten the security bolt using the
wheelbrace 1 fitted with the security
socket 5.
F
Ti

ghten the other bolts using the
wheelbrace 1 o n l y.
F
Re

fit the bolt protectors on each of the
bolts or the wheel trim (depending on
equipment).
F
St

ore the tools in the box.
Practical information

DS5_en_Chap08_info-pratiques_ed02-2015
Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Advice on installation
F If you have to fit the chains during a
journey, stop the vehicle on a flat sur face
on the side of the road.
F
Ap

ply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F
Fi

t the chains following the instructions
provided by the manufacturer.
F
Mov

e off gently and drive for a few
moments, without exceeding 30 mph
(50
k

m/h).
F
St

op your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.215/60 R16 9 mm
225/50 R17
235/45 R18 cannot be fitted with
snow chains
235/40 R19
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop. It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.

2 11
DS5_en_Chap08_info-pratiques_ed02-2015
Changing a bulb
Front lamps
Model with directional xenon
headlamps
1. daytime running lamps / sidelamps
( LEds).
2. dir

ectional main beam / dipped beam
headlamps (
d1S)

.
3.
dire

ction indicators (LE
ds)
.
4.
dire

ctional foglamps (LE
ds).
Model with halogen headlamps
1. Main beam headlamps (H1).
2. dip
ped beam headlamps (H7).
3.
day

time running lamps / sidelamps
(LE
ds

)* .
4.
dire

ction indicators (HY21).
5.
dire

ctional foglamps ( H11) .
For bulbs with lugs (type H7...) take
care to observe their correct installation
so as to ensure the best lighting
performance. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.
Light-emitting diodes (LEd)
For the replacement of this type of lamp, go to
a CITROËN dealer or a qualified workshop.
LED (light-emitting diode) replacement kits are
available from CITROËN dealers.
* LEDs: light-emitting diodes.
Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

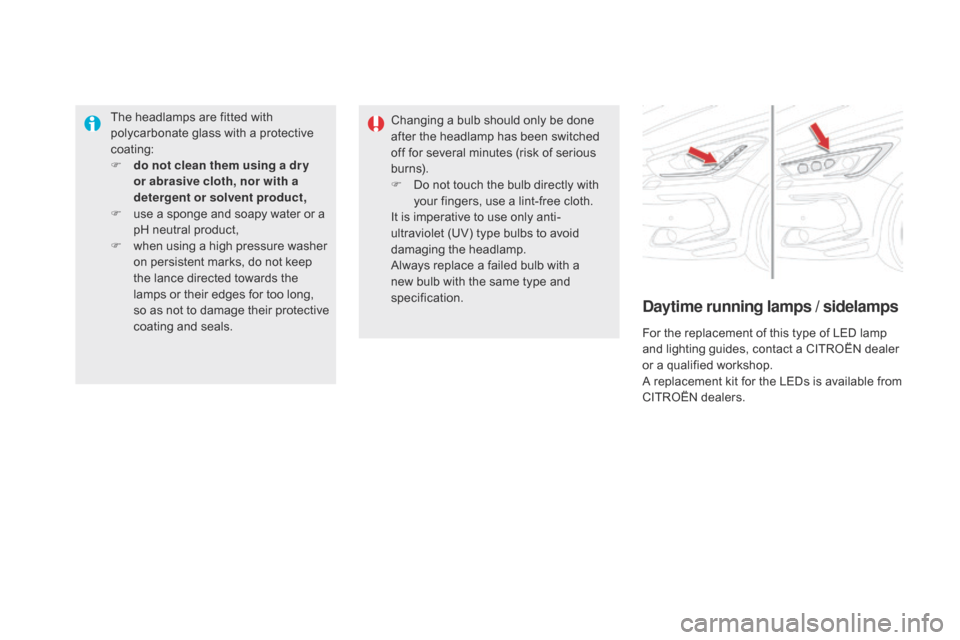

The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
do n
ot clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
us

e a sponge and soapy water or a
pH neutral product,
F
wh

en using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
Do n

ot touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
daytime running lamps / sidelamps
For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.

213
DS5_en_Chap08_info-pratiques_ed02-2015

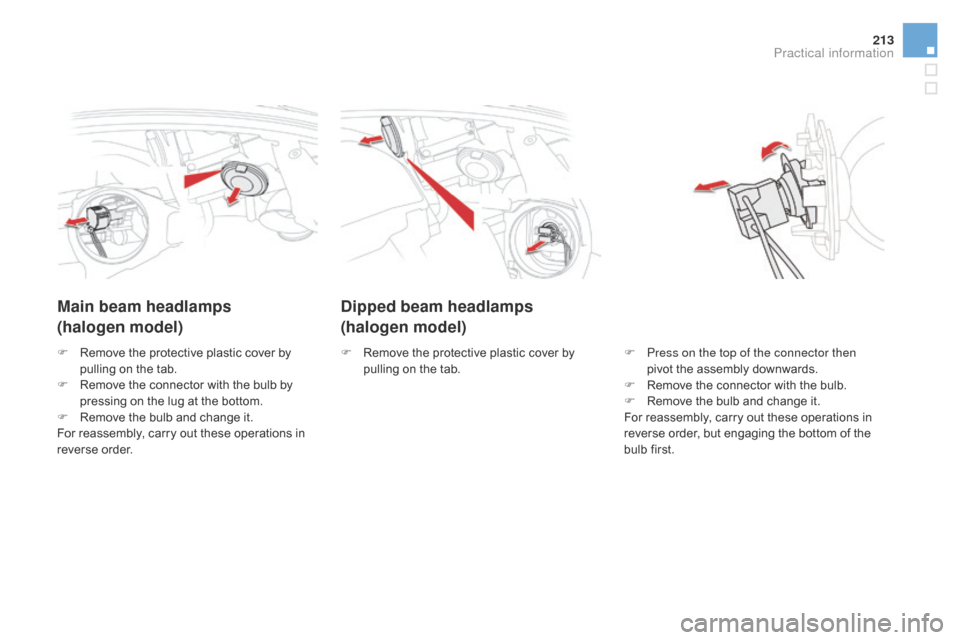

dipped beam headlamps
( halogen model)
Main beam headlamps
(halogen model)
F Press on the top of the connector then
p
ivot the assembly downwards.
F
Re

move the connector with the bulb.
F
Re

move the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.
F Re
move the protective plastic cover by
pulling on the tab.
F Re
move the protective plastic cover by
pulling on the tab.
F
Re

move the connector with the bulb by
pressing on the lug at the bottom.
F
Re

move the bulb and change it.
For reassembly, carry out these operations in
reverse order.
Practical information

DS5_en_Chap08_info-pratiques_ed02-2015
Front foglamps
F Remove the deflector under the body.
F Di sconnect the bulb connector.
F
Tu

rn the bulb a quarter of a turn, withdraw
and change it.
To refit, carry out these operations in reverse
o r d e r.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.
direction indicators
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
The direction indicator bulb is located below
the front lamp.
F
Tu

rn the bulb holder a quarter turn and pull
it out.
F
Re

move the bulb and change it. For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

215
DS5_en_Chap08_info-pratiques_ed02-2015
Integrated direction
indicator side repeatersdoor mirror spotlamps
You should contact a CITROËN dealer or a
qualified workshop f
or the replacement of the
light emitting diode - LED.
You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Practical information

DS5_en_Chap08_info-pratiques_ed02-2015
1. Sidelamps (light emitting diodes - LEds) .
2.
dire

ction indicators (PY21W amber).
3.
Re

versing lamps (P21W).
4.
Br

ake lamps (P21W).
5.
Fo

glamps (P21W).
Rear lamps
direction indicators and brake
l amps (on the wings)
F Open the boot then remove the access
c
ove r.
F
Di

sconnect the lamp connector.
F
Re

move the two lamp fixing nuts. F Ca
refully remove the lamp unit from
outside. The retaining clips unclip
automatically.
F
Tu

rn the bulb holder a quarter of a turn and
change the bulb.
For reassembly, carry out these operations in
reverse order.
Light emitting diodes-LEds
For replacement, contact a CITROËN
dealer or qualified workshop.

217
DS5_en_Chap08_info-pratiques_ed02-2015

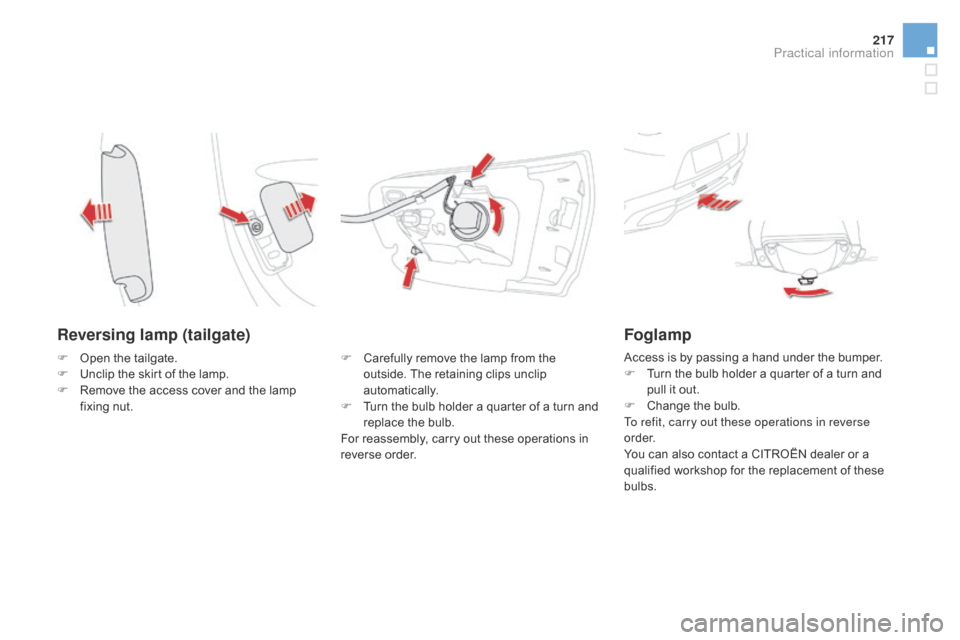

Reversing lamp (tailgate)
F Carefully remove the lamp from the
outside. The retaining clips unclip
automatically.
F
Tu

rn the bulb holder a quarter of a turn and
replace the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp
F Open the tailgate.
F Un clip the skirt of the lamp.
F
Re

move the access cover and the lamp
fixing nut. Access is by passing a hand under the bumper.
F Tu
rn the bulb holder a quarter of a turn and
pull it out.
F
Ch

ange the bulb.
To refit, carry out these operations in reverse
o r d e r.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Practical information

DS5_en_Chap08_info-pratiques_ed02-2015
Number plate lamps
F Insert a thin screwdriver into the slot
in the lens.
F
Pu

sh it outwards to unclip it.
F
Re

move the lens.
F
Pu

ll the bulb out and change it.
Third brake lamp
(light emitting diodes - LEds)
Contact a CITROËN dealer or qualified
workshop.
