Page 71 of 140
65
3
IN-CAR TECHNOLOGY
P a r k i n g a s s i s t a n c e
AUDIBLE REAR PARKING ASSISTANCE
The audible system consists of four
proximity sensors, installed in the rear
bumper.
It detects any obstacle which enters the
field: person, vehicle, tree, fence, behind the
vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it. Stop the assistance
Change to neutral.
O p e r a t i n g f a u l t
If this warning lamp or the service
warning lamp lights up on the
instrument panel, accompanied
by a message on the display,
contact your CITROËN dealer.
Good practice
In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.
E n g a g e r e v e r s e g e a r
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
This function will be deactivated
automatically if a trailer is being towed.
You are advised to obtain a towbar
recommended by CITROËN and have it
installed by a professional.
If anomalies are detected on engaging
reverse gear, the warning light comes on,
possibly accompanied by a message on the
display.
Page 72 of 140
66

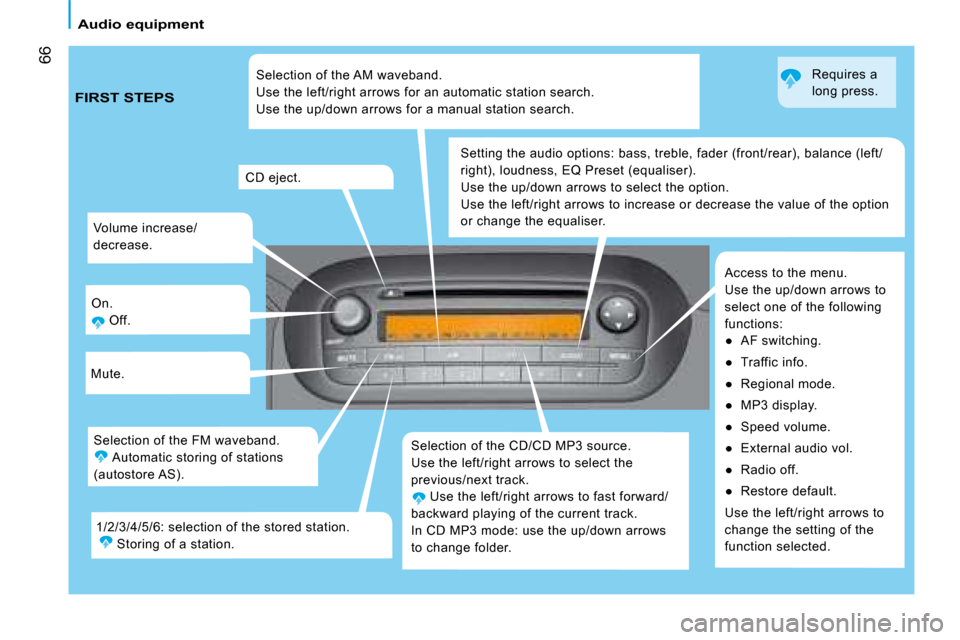

Audio equipment
Volume increase/
decrease.
On. Off.
Mute.
Selection of the CD/CD MP3 source.
Use the left/right arrows to select the
previous/next track. Use the left/right arrows to fast forward/
backward playing of the current track.
In CD MP3 mode: use the up/down arrows
to change folder. Setting the audio options: bass, treble, fader (fr
ont/rear), balance (left/
right), loudness, EQ Preset (equaliser).
Use the up/down arrows to select the option.
Use the left/right arrows to increase or decrease the value of the option
or change the equaliser.
Access to the menu.
Use the up/down arrows to
select one of the following
functions:
Page 73 of 140
67
3
IN-CAR TECHNOLOGY
Audio equipment
"AUDIO FUNCTIONS MENU"
R D S S y s t e m " A F S w i t c h i n g "
The RDS system (Radio Data System)
allows you to keep listening to the same
station, whatever the frequency it uses in
different areas where you may be driving.
The radio permanently searches for the
transmitter offering the best reception.
Press on the " " or " " button to activate
(ON) or deactivate (OFF) the RDS function.
When on the FM band, "AF" appears on the
display, if the RDS function is activated and
if the station broadcasts on RDS.
T r a f fi c I n f o r m a t i o n " T r a f fi c I n f o "
Any traffic news will be broadcast whatever
audio source you are currently listening to.
The EON system (Enhanced Other
Networks) links stations belonging to the
same network.
R e g i o n a l t r a c k i n g m o d e " R e g i o n a l M o d e "
Some stations, organised by network,
broadcast regional programmes in the
various regions that they serve. The regional
tracking mode allows you to prioritise
listening to the same programme.
Press on the " " or " " button to activate (ON)
or deactivate (OFF) the REG function.
When on the FM band, "LOC" is displayed,
if the REG function is activated and if the
station finds a local frequency.
MP3 Display "MP3 Display"
Press on the " " or " " button to display
the track number or the MP3 CD information
(Play/Album/Folder/File/Title/Time elapsed).
Automatic volume adjustment "Speed Volume"
Press on the " " or " " button to minimise
(LOW), maximise (HIGH) or deactivate
(OFF) the automatic volume adjustment
according to the speed of the vehicle.
It allows traffic information to be broadcast
from a station belonging to the same
network as the station being listened to.
The volume of traffic information is
independant of the volume of other audio
sources. You can adjust it using the volume
button whilst it is being broadcast; this will
be memorised for the next broadcast.
Press on the " " or " " button to activate
(ON) or deactivate (OFF) the TA function.
When on the FM band, "TA" appears on
the display if the TA function is activated
a n d " T P M " i f t h e s t a t i o n b r o a d c a s t s t r a f fi c
information.
External sound volume "External Audio Vol"
Press on the " " or " " button to
reduce (down to 0), increase (up to 40) or
deactivate (OFF) the volume of the external
source (e.g. hands-free kit).
P r o g r a m m e d s w i t c h o f f " R a d i o O f f "
Press on the " " or " " button to set
the time for switching off to "00 MIN" or
"20 MIN".
This countdown is recorded with the doors
closed, and the key in position STOP.
Default values "Restore Default"
Press on the " " or " " button to retain the
modified values (NO) or reset to the default
values (YES).
"Restoring" is displayed during the resetting
of the configuration values.
"MP3" is displayed if the function is activated
and if the CD contains tracks in MP3 format. Press the MENU button of the
radio system to access the
"Audio Functions" menu.
Press the " " or " " button
to select one of the audio
functions to be configured as
below.
Page 74 of 140
22
11
68
Audio equipment

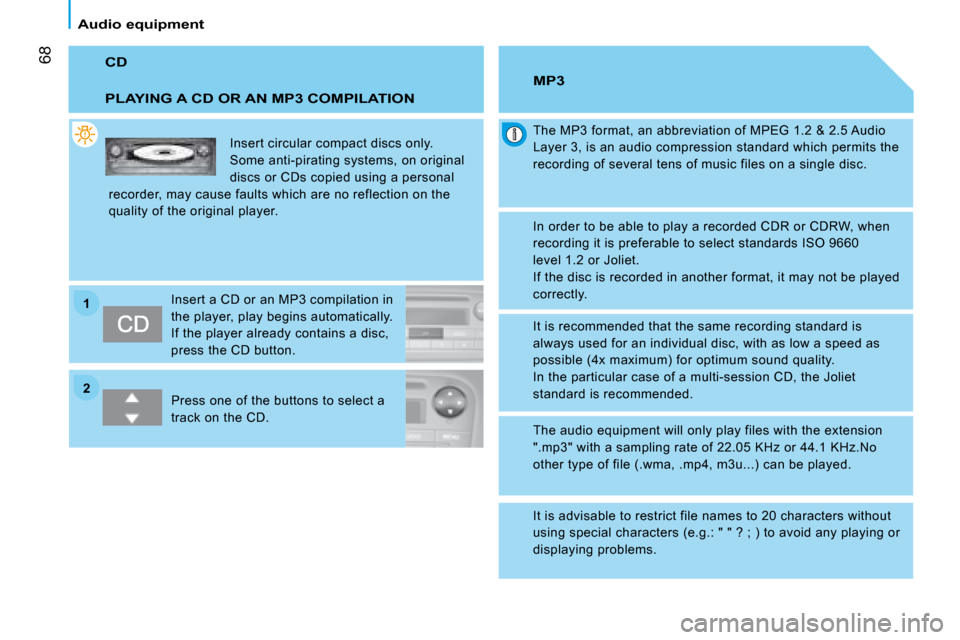

CD
PLAYING A CD OR AN MP3 COMPILATION
Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no reflection on the
quality of the original player.
Insert a CD or an MP3 compilation in
the player, play begins automatically.
If the player already contains a disc,
press the CD button.
Press one of the buttons to select a
track on the CD. The MP3 format, an abbreviation of MPEG 1.2 & 2.5
Audio
Layer 3, is an audio compression standard which per mits the
recording of several tens of music files on a singl e disc.
MP3
In order to be able to play a recorded CDR or CDRW , when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a s peed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z.No
other type of file (.wma, .mp4, m3u...) can be play ed.
It is advisable to restrict file names to 20 chara cters without
using special characters (e.g.: "
" ? ; ) to avoid any playing or
displaying problems.
Page 75 of 140
69
3
IN-CAR TECHNOLOGY
Mobile telephone with hands-free function
MOBILE TELEPHONE WITH HANDS-FREE FUNCTION
This new equipment uses Bluetooth®
wireless communication technology which
allows you to make hands-free telephone
calls safely from inside your vehicle, via your
Bluetooth ®
compatible mobile telephone. An incoming call is picked up by pressing
the button represented by a green
telephone. The sound of the telephone call
is transmitted via the vehicle’s audio system.
The microphone is incorporated in the
courtesy light console.
Hang up by pressing the button represented
by a red telephone.
First connection to the system
Turn the ignition key to position RUNNING.
Switch on your mobile telephone.
Activate the Bluetooth® function on your
mobile telephone and search for Bluetooth®
devices present around the telephone.
Follow the instructions on your mobile
telephone during the matching process and
the searching between the telephone and
the system.
Enter the connection code "1234" and
confirm.
Your mobile telephone is now connected in
Bluetooth® mode with the vehicle’s hands-
free system (matching).
Activation of the system
Once your mobile telephone has been
matched with the vehicle’s hands-free
system, simply ensure that:
- turn the ignition key to the RUNNING
position,
- your mobile telephone is switched on,
- the Bluetooth® function is activated on
your mobile telephone.
When the connection is established, an
audible signal is emitted and the message
"Phone" appears on the audio system’s
display, if it is on.
For further information, consult a CITROËN
dealer, as well as your mobile telephone
manual.
Page 76 of 140
70
Mobile telephone with hands-free function
M a n a g i n g i n c o m i n g c a l l s
When an incoming call arrives, the message
"Phone" appears on the audio display, if the
radio is on.
Simple call
To accept a call, press the green
button.
Dual call
To accept a second call while already on the
phone, press the green button once.
To switch back to the first call, press the
green button again.
To refuse the second call while already on
the phone, press the red button.
To end the call, press the red button again.
To refuse or finish a call, press
the red button.
To switch communication between the
system and the mobile telephone (private
mode) and vice-versa, press the green
button .
M a n a g i n g o u t g o i n g c a l l s
With the keypad
Enter the number of the person you are
calling on the mobile telephone keypad.
Press the "Call" button of the mobile
telephone.
Depending on the mobile telephone model,
the call will be automatically transferred to
hands-free mode, otherwise press the green
button.
To redial the last number dialled, hold
down the green button until the number is
redialled.
With voice commands
Press the green button.
Wait for the sound signal and/or the display
of the message "Phone" on the audio
display.
Say the voice identity of the person to call.
The system repeats the voice identity for
confirmation and automatically makes the
call.
If the voice identity repeated by the system
is not correct, press the red button to cancel
and restart the procedure.
D e l e t i n g t h e s y s t e m
To delete the contents of the system’s
memory, press the green and red buttons at
the same time for over two seconds.
This operation deletes all of the matched
mobile telephones, as well as all of the
telephone numbers recorded in the memory.
For the next hands-free communication,
you must restart the procedure for the first
connection to the system (matching).
Good practice
You can match up to three mobile
telephones in the system.
For safety reasons and because
matching operations require prolonged
attention on the part of the driver, matching
operations between the mobile telephone
and the Bluetooth® hands-free kit must be
carried out with the vehicle stationary, and
the ignition switched on.
To use voice commands, you must
have already recorded and linked a
voice identity to the telephone number to
be called; refer to your mobile telephone
handbook.
The management of the second call
by the system is only possible if the
function is activated on the mobile
telephone.
Page 77 of 140
71
4
ERGONOMICS and COMFORT
Seats
FRONT SEATS
Head restraints
Head restraint height adjustment: to raise or
lower the head restraint, slide it by pressing
the lug.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, release the
base of the rod to press the tab and raise
the head restraint to the highest position.
To refit the head restraint, press the tab of
the lug and engage the head restraint rods
in the openings keeping them in line with the
seat back.
Never drive with the head restraints
removed. They must be in place and
adjusted correctly.
Page 78 of 140
72
Seats
Seat cushion height
To adjust the height of the driver ’s seat
cushion, pull the control upwards as many
times as necessary to raise.
To lower, push the control downwards as
many times as necessary.
Forwards-backwards adjustment Heated seat control
Press the control.
The temperature is controlled automatically.
Pressing a second time stops operation.
Lift the control bar and slide the seat
forwards or backwards to the required
position.
Lumbar support
Seat back angle
Turn the control to adjust the angle of the
seat back. Turn the control.
Page 79 of 140
73
4
ERGONOMICS and COMFORT
Seats

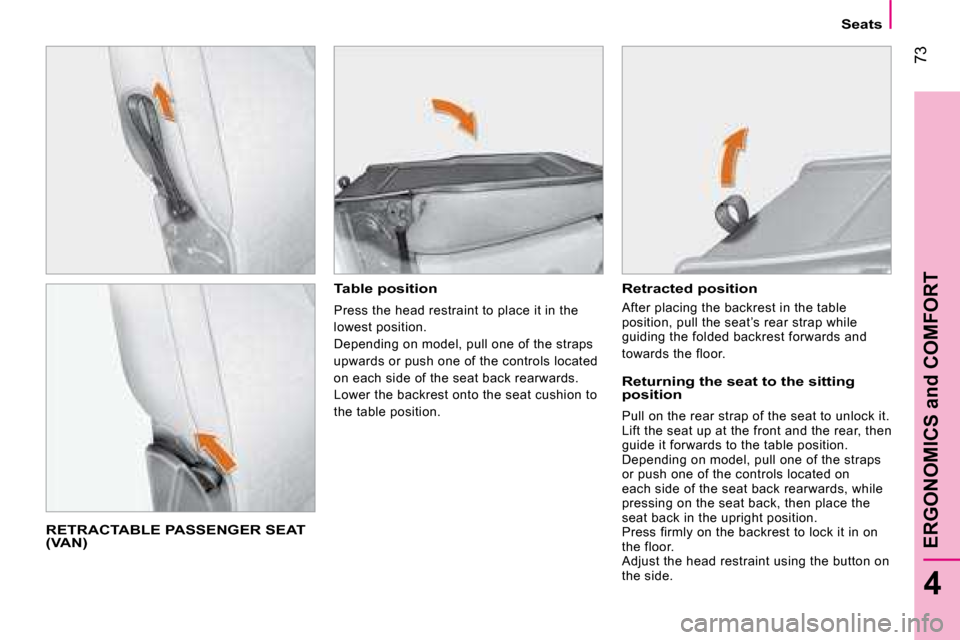

RETRACTABLE PASSENGER SEAT (VAN)
Table position
Press the head restraint to place it in the
lowest position.
Depending on model, pull one of the straps
upwards or push one of the controls located
on each side of the seat back rearwards.
Lower the backrest onto the seat cushion to
the table position.
Retracted position
After placing the backrest in the table
position, pull the seat’s rear strap while
guiding the folded backrest forwards and
towards the floor.
Returning the seat to the sitting position
Pull on the rear strap of the seat to unlock it.Lift the seat up at the front and the rear, then guide it forwards to the table position.Depending on model, pull one of the straps or push one of the controls located on each side of the seat back rearwards, while pressing on the seat back, then place the seat back in the upright position.Press firmly on the backrest to lock it in on the floor. Adjust the head restraint using the button on
the side.
Page 80 of 140
74
Seats

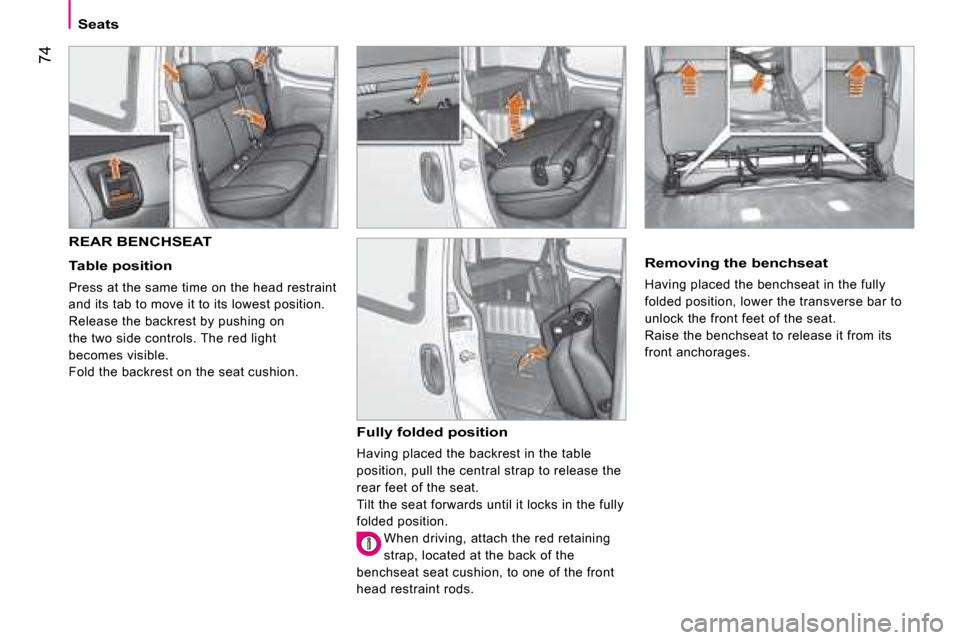

REAR BENCHSEAT
Table position
Press at the same time on the head restraint
and its tab to move it to its lowest position.
Release the backrest by pushing on
the two side controls. The red light
becomes visible.
Fold the backrest on the seat cushion.
Fully folded position
Having placed the backrest in the table
position, pull the central strap to release the
rear feet of the seat.
Tilt the seat forwards until it locks in the fully
folded position.
When driving, attach the red retaining
strap, located at the back of the
benchseat seat cushion, to one of the front
head restraint rods.
Removing the benchseat
Having placed the benchseat in the fully
folded position, lower the transverse bar to
unlock the front feet of the seat.
Raise the benchseat to release it from its
front anchorages.
