Page 61 of 140
55
2
Dimensions
TECHNICAL DATA
Combi (in mm)
StandardRaised
L Overall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7821 803
A Wheelbase 2 513
B Front overhang 855866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front tracks 1 464
F Width of rear tracks 1 465
G Height of load sill 527544
I L e n g t h o f i n t e r i o r fl o o r (rear benchseat in place) 743
L e n g t h o f i n t e r i o r fl o o r (rear benchseat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Interior width between wheel arches 1 046
Page 62 of 140
56
Engines
DIESEL
ENGINE
1.4 HDi 70 hp
Gearbox
ManualElectronic
Gears 5
EU standard maximum power (kW) 50
Cubic capacity (cm 3
) 1 399
Bore x stroke (mm) 73,7 x 82
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 160
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
Engine oil capacity (in litres) 3,8
Page 63 of 140
57
2
Engines
TECHNICAL DATA
PETROL ENGINE
1.4 l 75 hp
Gearbox Manual
Gears
5
EU standard maximum power (kW) 54
Cubic capacity (cm 3
) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (Nm) 118
Max torque engine speed (rpm) 2 600
Fuel Unleaded petrol
Engine oil capacity (in litres) 3,0
Page 64 of 140
58
Engines

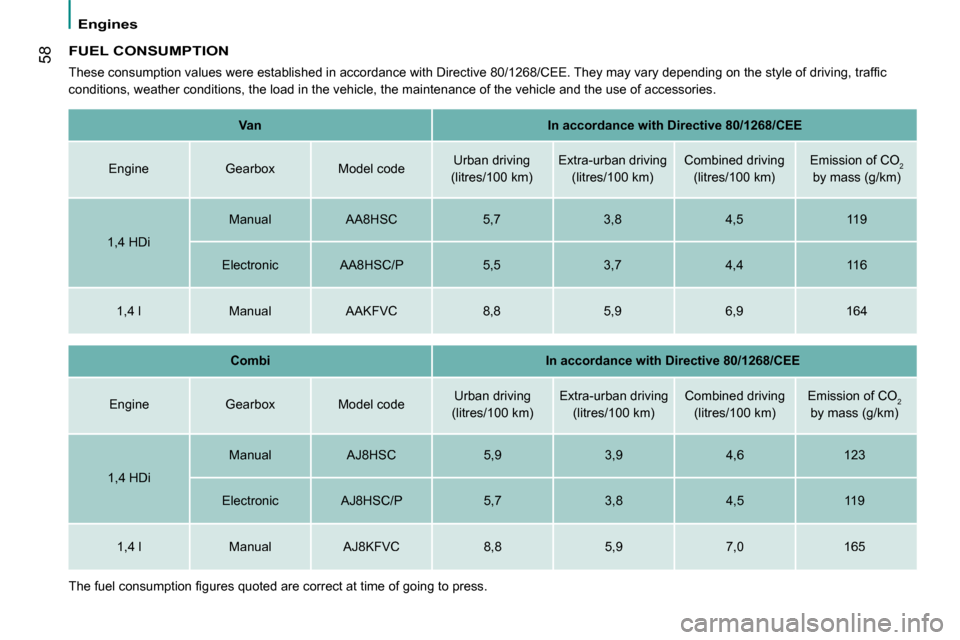

FUEL CONSUMPTION
T h e s e c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h D i r e c t i v e 8 0 / 1 2 6 8 / C E E . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c
conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of accessories.
VanIn accordance with Directive 80/1268/CEE
Engine Gearbox Model code Urban driving
(litres/100 km)
Extra-urban driving
(litres/100 km)
Combined driving
(litres/100 km)
Emission of CO2by mass (g/km)
1,4 HDi
ManualAA8HSC5,73,84,5119
ElectronicAA8HSC/P5,53,74,4116
1,4 lManualAAKFVC8,85,96,9164
CombiIn accordance with Directive 80/1268/CEE
EngineGearboxModel code Urban driving
(litres/100 km)
Extra-urban driving
(litres/100 km)
Combined driving
(litres/100 km)
Emission of CO2by mass (g/km)
1,4 HDi
ManualAJ8HSC5,93,94,6123
ElectronicAJ8HSC/P5,73,84,5119
1,4 lManualAJ8KFVC8,85,97,0165
T h e f u e l c o n s u m p t i o n fi g u r e s q u o t e d a r e c o r r e c t a t t i m e o f g o i n g t o p r e s s .
Page 65 of 140
59
2
Weights
TECHNICAL DATA

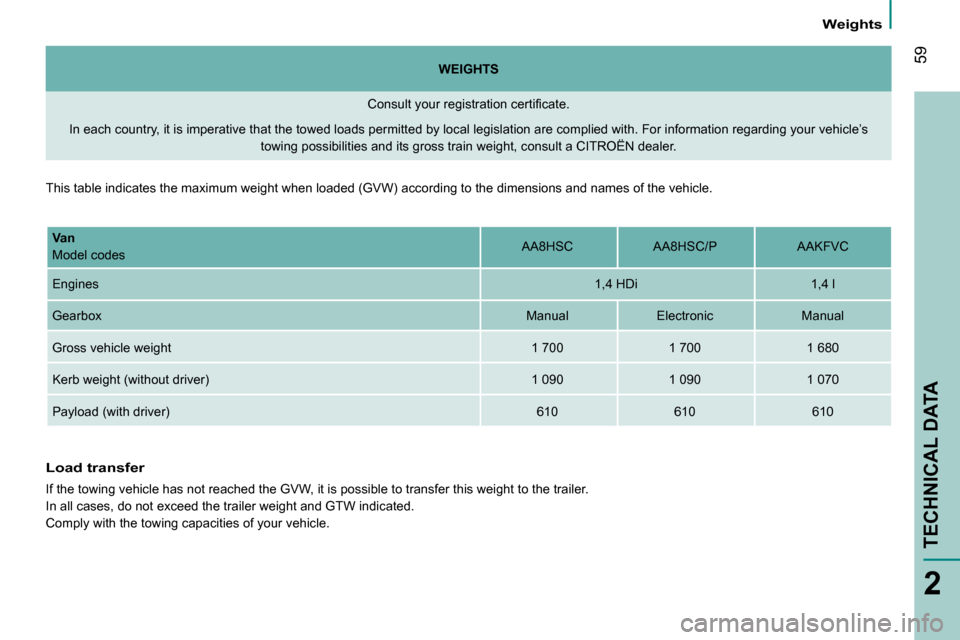

WEIGHTS
C o n s u l t y o u r r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that the towed loads p ermitted by local legislation are complied with. For informati on regarding your vehicle’s
towing possibilities and its gross train weight, consult a C ITROËN dealer.
This table indicates the maximum weight when loaded (GVW) acco rding to the dimensions and names of the vehicle.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW in dicated.
Comply with the towing capacities of your vehicle.
Van
Model codes AA8HSCAA8HSC/PAAKFVC
Engines 1,4 HDi1,4 l
Gearbox Manual Electronic Manual
Gross vehicle weight 1 7001 7001 680
Kerb weight (without driver) 1 0901 0901 070
Payload (with driver) 610610610
Page 66 of 140
60
Weights

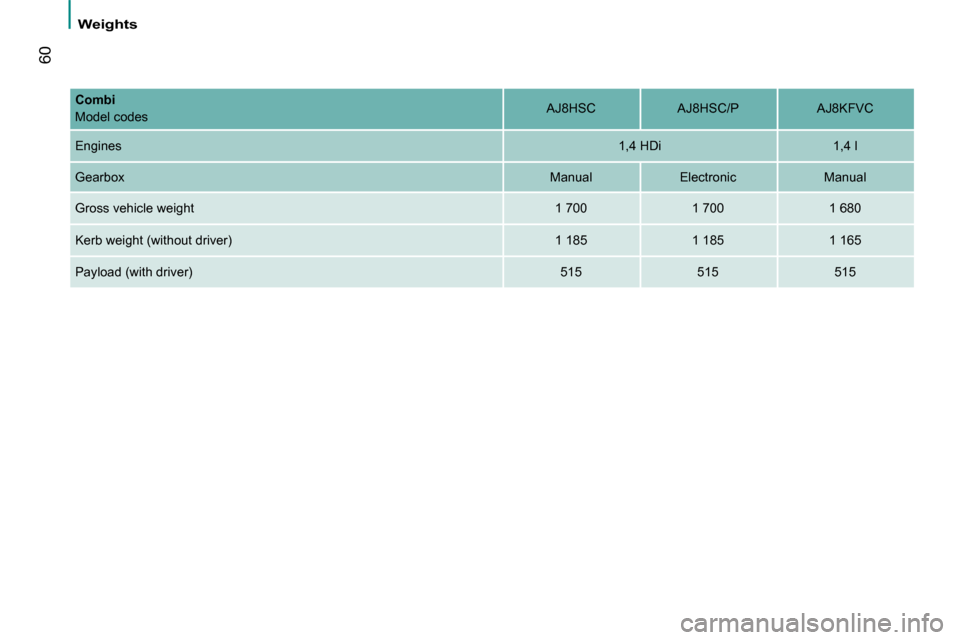

Combi
Model codes AJ8HSCAJ8HSC/PAJ8KFVC
Engines 1,4 HDi1,4 l
Gearbox Manual Electronic Manual
Gross vehicle weight 1 7001 7001 680
Kerb weight (without driver) 1 1851 1851 165
Payload (with driver) 515515515
Page 67 of 140
61
3
IN-CAR TECHNOLOGY
Trip computer
TRIP COMPUTER
The TRIP button, located at the end of
the wipers stalk, provides access to the
following information: - Range,
- Route A,
- Average consumption A,
- Current consumption A,
- Average speed A,
- Trip duration A. If TRIP B is activated on
MENU :
- Route B,
- Average consumption B,
- Average speed B,
- Trip duration B.
Press the MENU ESC button for over
2 seconds to return to the main screen.
Zero reset
Press the TRIP for over 2 seconds to reset
the displayed values to zero.
Level 1 display:
- Speed (Speed bleep).
- Hour (Setting of the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger air bag).
Refer to the corresponding line in the configuration-personalisation table on the following pages.
Page 68 of 140
62
Menu
MENU Eight languages are offered: Italian, English,
German, French, Spanish, Portuguese,
Dutch and Turkish.
As a safety precaution, the menus can
only be accessed when the ignition is off
(engine off).
Refer to the corresponding line in the
configuration-personalisation table on the
following pages.
This button enables you to:
- scroll up through a menu,
- increase a value.
This button enables you to:
- scroll down through a menu,
- decrease a value.
Menu... Press...
Sub-menu...
Press... Select...
Confirm
and exit
Enables you to...
1 Speed Bleep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.
Decrease
OFF
2 Activate
Trip B ON Activate
Display a second route "Trip B".
OFF
Deactivate
C o n fi g u r a t i o n - P e r s o n a l i s a t i o n
Level 2 and 3 displays:
The control panel located to the left of
the steering wheel provides access to
the display menus, which allow you to
personalise some of your equipment.
This button enables
you to:
- access the menus and sub-menus,
- confirm your selections within a menu,
- exit from the menus.
A long press enables you to return to the
welcome screen.
Page 69 of 140
63
3
IN-CAR TECHNOLOGY
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...
3 Set the time Hours
Increase
Set the clock.
Decrease
Format 24 hour
Select the clock display mode.
12 hour
4 Set the date Year/Month/Day Increase
Set the date.
Decrease
5 See radio ON
Display the name of the station.
Display the CD track number.
OFF
6 Autoclose While moving ON
Activate/Deactivate the
automatic locking of the doors
above 12 mph (20 km/h)
OFF
7 Measurement
unit Distances
Km
Select the distance display unit.
Mi(les)
Temperature °C
Select the temperature display
unit.
°F
Consumption km/l
Select the consumption display
unit.
l/100 km
8 Language List of languages
available
Select the display language.
9
Volume of
announcements Increase Increase/decrease the volume
of signals and warnings (the
volume changes immediately
when the button is pressed).
Decrease
Page 70 of 140
64
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...
10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease
11 Service (Km/Miles
before oil
change) Display the kilometres/miles
remaining before the next oil
change.
Display the oil level.
12 Bag
(passenger
air bag) ON
Yes
Activate the passenger air bag.
No
OFF Yes
Disarm the passenger air bag.
No
13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.
