Sièges arrière de deuxième rangée: fonctionnalité (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

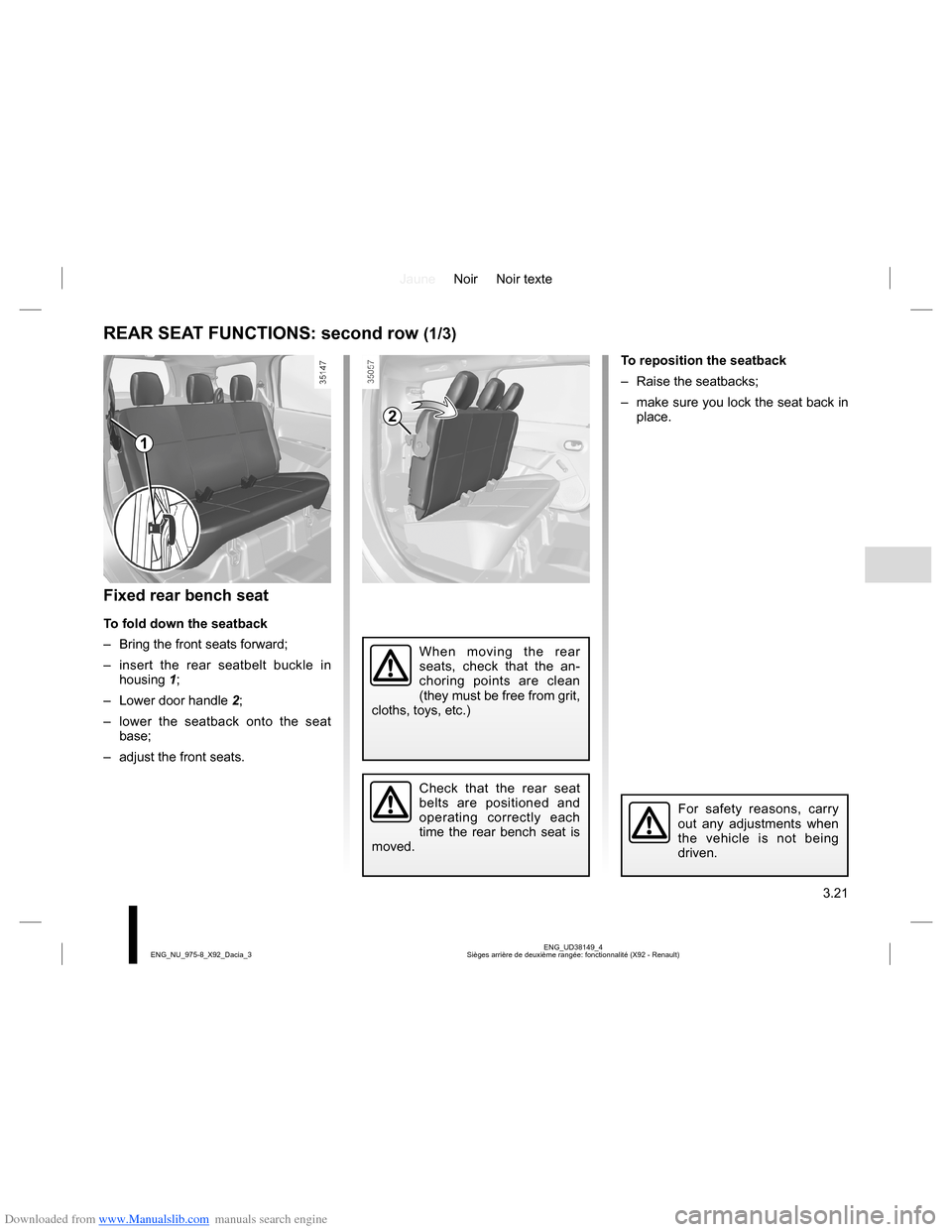

REAR SEAT FUNCTIONS: second row (1/3)
Fixed rear bench seat
To fold down the seatback
– Bring the front seats forward;
– insert the rear seatbelt buckle in
housing 1;
– Lower door handle 2;
– lower the seatback onto the seat
base;
– adjust the front seats.To reposition the seatback
– Raise the seatbacks;
– make sure you lock the seat back in
place.
When moving the rear
seats, check that the an-
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
2
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.22
ENG_UD38149_4
Sièges arrière de deuxième rangée: fonctionnalité (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
Rear bench seat with folding
seat back and seat cushion
To fold down the seat A or bench
seat B
– Bring the front seats forward;
– insert the rear seatbelt buckle in
housing 1;
– lower the headrests (refer to the in-
formation on the “Rear headrests” in
Section 3);
– lower handle 2;
– lower the seatback onto the seat
base;
– raise the seat until vertical;
– adjust the front seats, making sure
they are properly locked in place.When moving the rear
seats, check that the an-
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
2
A
B

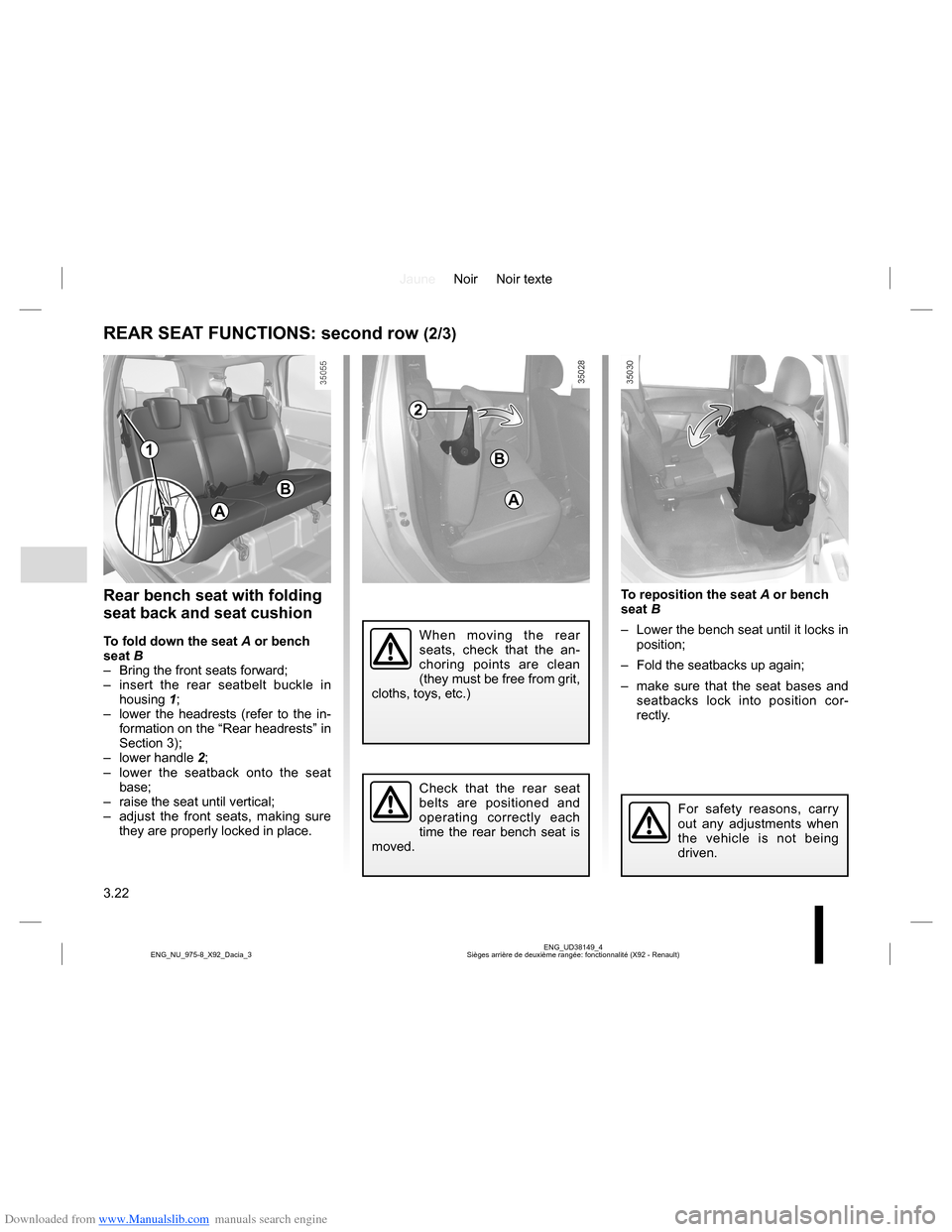

REAR SEAT FUNCTIONS: second row (2/3)
A
B
1
To reposition the seat A or bench
seat B
– Lower the bench seat until it locks in
position;
– Fold the seatbacks up again;
– make sure that the seat bases and
seatbacks lock into position cor-
rectly.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.23
ENG_UD38149_4
Sièges arrière de deuxième rangée: fonctionnalité (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
REAR SEAT FUNCTIONS: second row (3/3)
Accessing the third row rear
seats
– Lower handle 2;
– lower the seatback onto the seat
base;
– raise the seat until vertical.
To put the seat back into its initial po-
sition, perform the same procedure in
reverse.
Make sure that the seat-
back is correctly locked. If
necessary, remove any ob-
stacles behind the seats.
Repeat the above until the seat is
locked correctly.To avoid all risk of injury,
ensure that nobody is close
to the moving parts.
Restriction of use
If a passenger is occupying one of
the second row seats, do not drive
with the other second row seat
folded down.
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
2

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.24
ENG_UD38165_6
Sièges arrière de troisième rangée: fonctionnalité (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

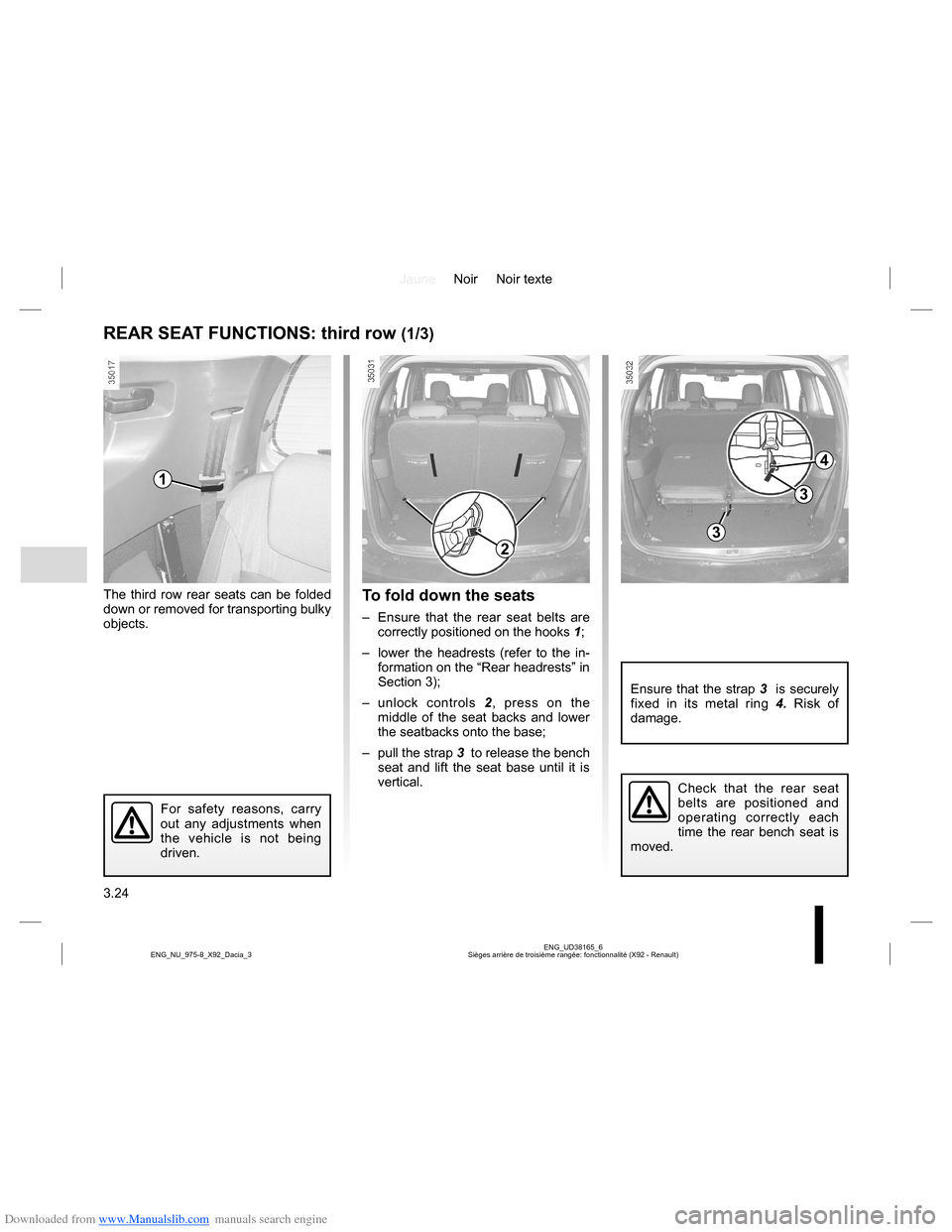

REAR SEAT FUNCTIONS: third row (1/3)
The third row rear seats can be folded
down or removed for transporting bulky
objects.To fold down the seats
– Ensure that the rear seat belts are
correctly positioned on the hooks 1;
– lower the headrests (refer to the in-
formation on the “Rear headrests” in
Section 3);
– unlock controls 2, press on the
middle of the seat backs and lower
the seatbacks onto the base;
– pull the strap 3 to release the bench
seat and lift the seat base until it is
vertical.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1
2
2
3
3
4
Ensure that the strap 3 is securely
fixed in its metal ring 4. Risk of
damage.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.25
ENG_UD38165_6
Sièges arrière de troisième rangée: fonctionnalité (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
REAR SEAT FUNCTIONS: third row (2/3)
5
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
To reposition the seats
– Ensure that the rear seat belts are
correctly positioned on the hooks 1;
– Lower the seat base until it locks in
position;
– unlock the controls 2 while pressing
on the top of the seat back and raise
the seat backs using the straps 5;
– Make sure that the seat base and
seatbacks lock into position cor-
rectly.
11
5
2
When moving the rear
seats, check that the an-
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
No person or animal should
be on the third row rear
seats if the luggage com-
partment cover is not re-
moved.
Restriction of use
If a passenger is one one of the third
row seats, do not drive with one of
the seat backs or a second row seat
folded down.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.26
ENG_UD38165_6
Sièges arrière de troisième rangée: fonctionnalité (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

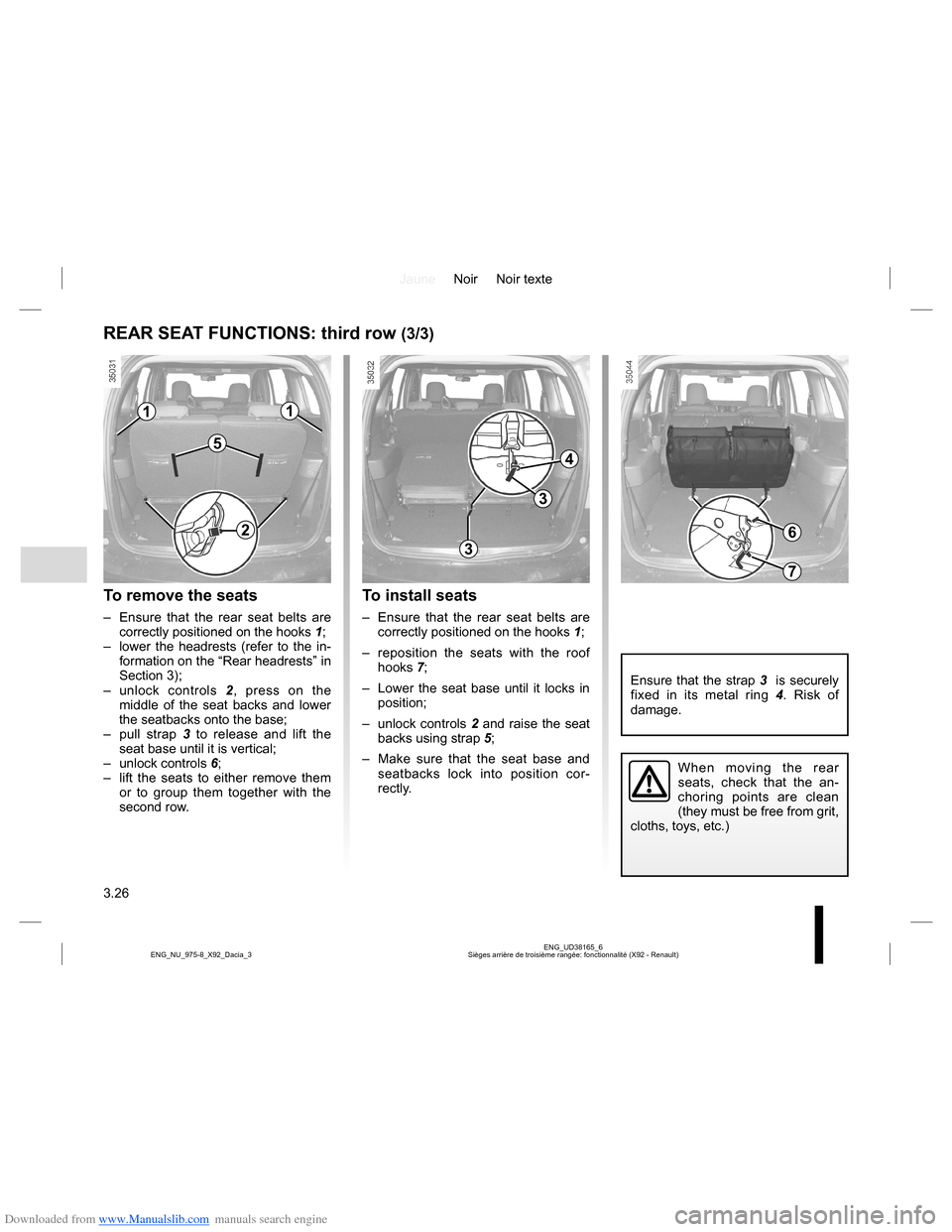

To remove the seats
– Ensure that the rear seat belts are
correctly positioned on the hooks 1;
– lower the headrests (refer to the in-
formation on the “Rear headrests” in
Section 3);
– unlock controls 2, press on the
middle of the seat backs and lower
the seatbacks onto the base;
– pull strap 3 to release and lift the
seat base until it is vertical;
– unlock controls 6;
– lift the seats to either remove them
or to group them together with the
second row.
To install seats
– Ensure that the rear seat belts are
correctly positioned on the hooks 1;
– reposition the seats with the roof
hooks 7;
– Lower the seat base until it locks in
position;
– unlock controls 2 and raise the seat
backs using strap 5;
– Make sure that the seat base and
seatbacks lock into position cor-
rectly.
3
3
Ensure that the strap 3 is securely
fixed in its metal ring 4. Risk of
damage.
4
7
6
When moving the rear
seats, check that the an-
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
2
11
REAR SEAT FUNCTIONS: third row (3/3)
5

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.27
ENG_UD26647_2
Mise en cinéma des sièges arrière (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

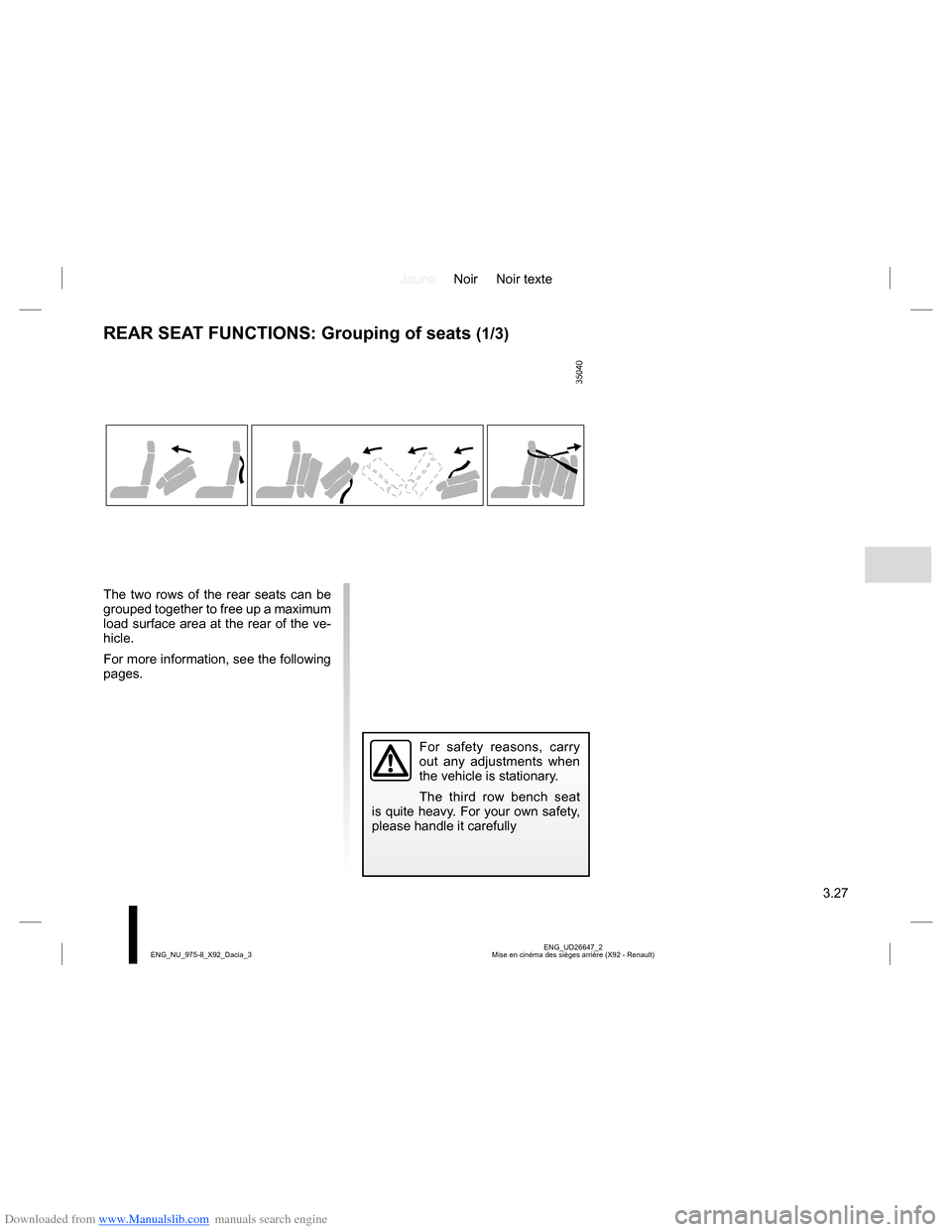

REAR SEAT FUNCTIONS: Grouping of seats (1/3)
The two rows of the rear seats can be
grouped together to free up a maximum
load surface area at the rear of the ve-
hicle.
For more information, see the following
pages.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The third row bench seat
is quite heavy. For your own safety,
please handle it carefully

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.28
ENG_UD26647_2
Mise en cinéma des sièges arrière (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

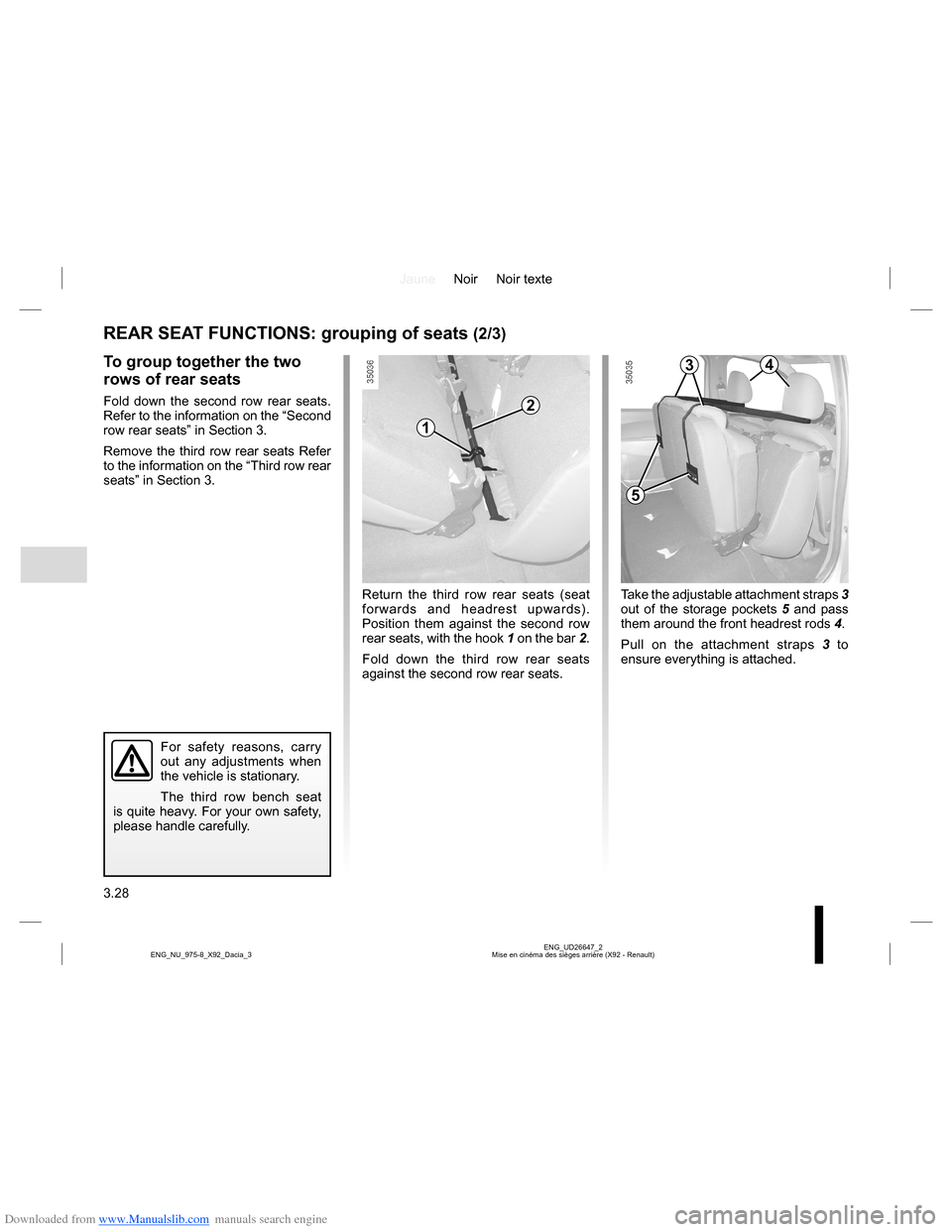

REAR SEAT FUNCTIONS: grouping of seats (2/3)
To group together the two
rows of rear seats
Fold down the second row rear seats.
Refer to the information on the “Second
row rear seats” in Section 3.
Remove the third row rear seats Refer
to the information on the “Third row rear
seats” in Section 3.
Return the third row rear seats (seat
forwards and headrest upwards).
Position them against the second row
rear seats, with the hook 1 on the bar 2.
Fold down the third row rear seats
against the second row rear seats.Take the adjustable attachment straps 3
out of the storage pockets 5 and pass
them around the front headrest rods 4.
Pull on the attachment straps 3 to
ensure everything is attached.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The third row bench seat
is quite heavy. For your own safety,
please handle carefully.
1
2
3
5
4

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.29
ENG_UD26647_2
Mise en cinéma des sièges arrière (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

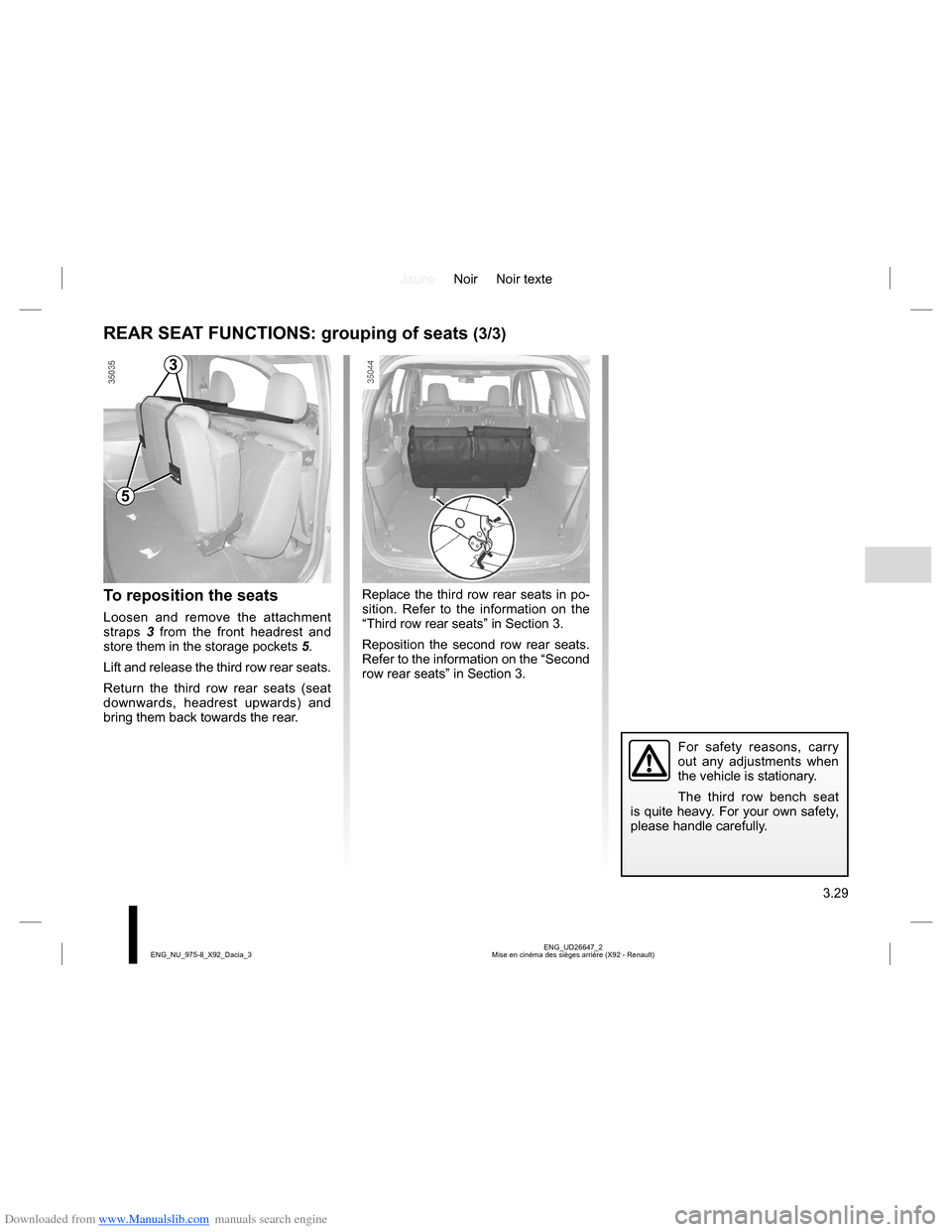

REAR SEAT FUNCTIONS: grouping of seats (3/3)
To reposition the seats
Loosen and remove the attachment
straps 3 from the front headrest and
store them in the storage pockets 5.
Lift and release the third row rear seats.
Return the third row rear seats (seat
downwards, headrest upwards) and
bring them back towards the rear.Replace the third row rear seats in po-
sition. Refer to the information on the
“Third row rear seats” in Section 3.
Reposition the second row rear seats.
Refer to the information on the “Second
row rear seats” in Section 3.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The third row bench seat
is quite heavy. For your own safety,
please handle carefully.
3
5

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.30
ENG_UD24450_1
Coffre à bagages (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

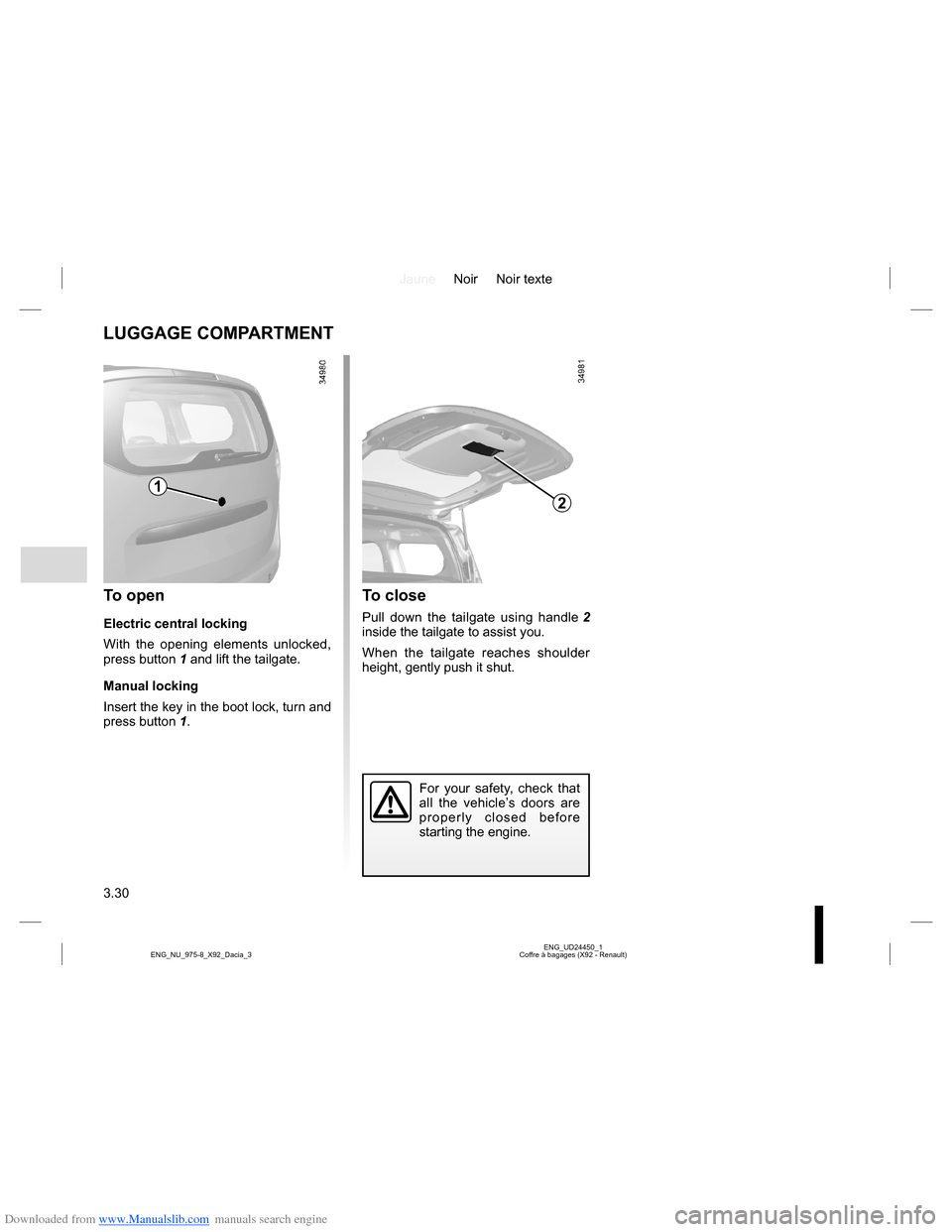

LUGGAGE COMPARTMENT
To open
Electric central locking
With the opening elements unlocked,
press button 1 and lift the tailgate.
Manual locking
Insert the key in the boot lock, turn and
press button 1.
1
2
To close
Pull down the tailgate using handle 2
inside the tailgate to assist you.
When the tailgate reaches shoulder
height, gently push it shut.
For your safety, check that
all the vehicle’s doors are
properly closed before
starting the engine.
