DACIA LODGY 2013 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.11
ENG_UD38061_4
Eclairage intérieur (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
INTERIOR LIGHTING
Courtesy lights
Press switch 1 of 3 for:
– continuous lighting;
– lighting operated by opening just the
driver’s door, or by opening one of
the four doors, depending on the ve-
hicle. The light only goes out when
the doors are correctly closed;
– no lighting.
Map reading light
Depending on the vehicle, press the
switch 2.
3
Unlocking and opening the doors or
luggage compartment switches on
the timed courtesy lights.
2
1
Boot light 4
The light 4 comes on when the boot is
opened.
4

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.12
ENG_UD24444_1
Pare-soleil - Poignée de maintien (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

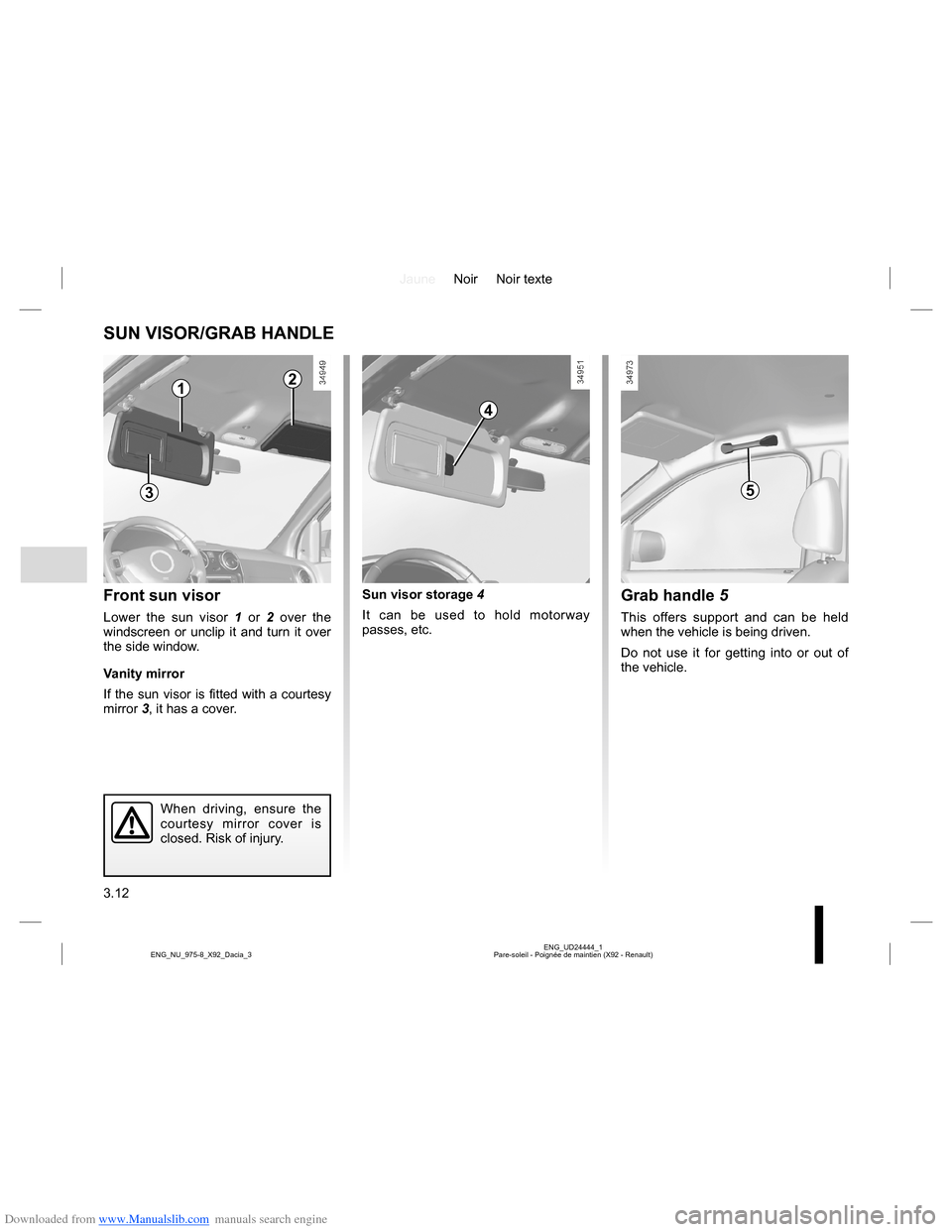

SUN VISOR/GRAB HANDLE
Sun visor storage 4
It can be used to hold motorway
passes, etc.Grab handle 5
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
5
4
3
21
Front sun visor
Lower the sun visor 1 or 2 over the
windscreen or unclip it and turn it over
the side window.
Vanity mirror
If the sun visor is fitted with a courtesy
mirror 3, it has a cover.
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.13
ENG_UD38168_4
Rangements / Aménagements (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

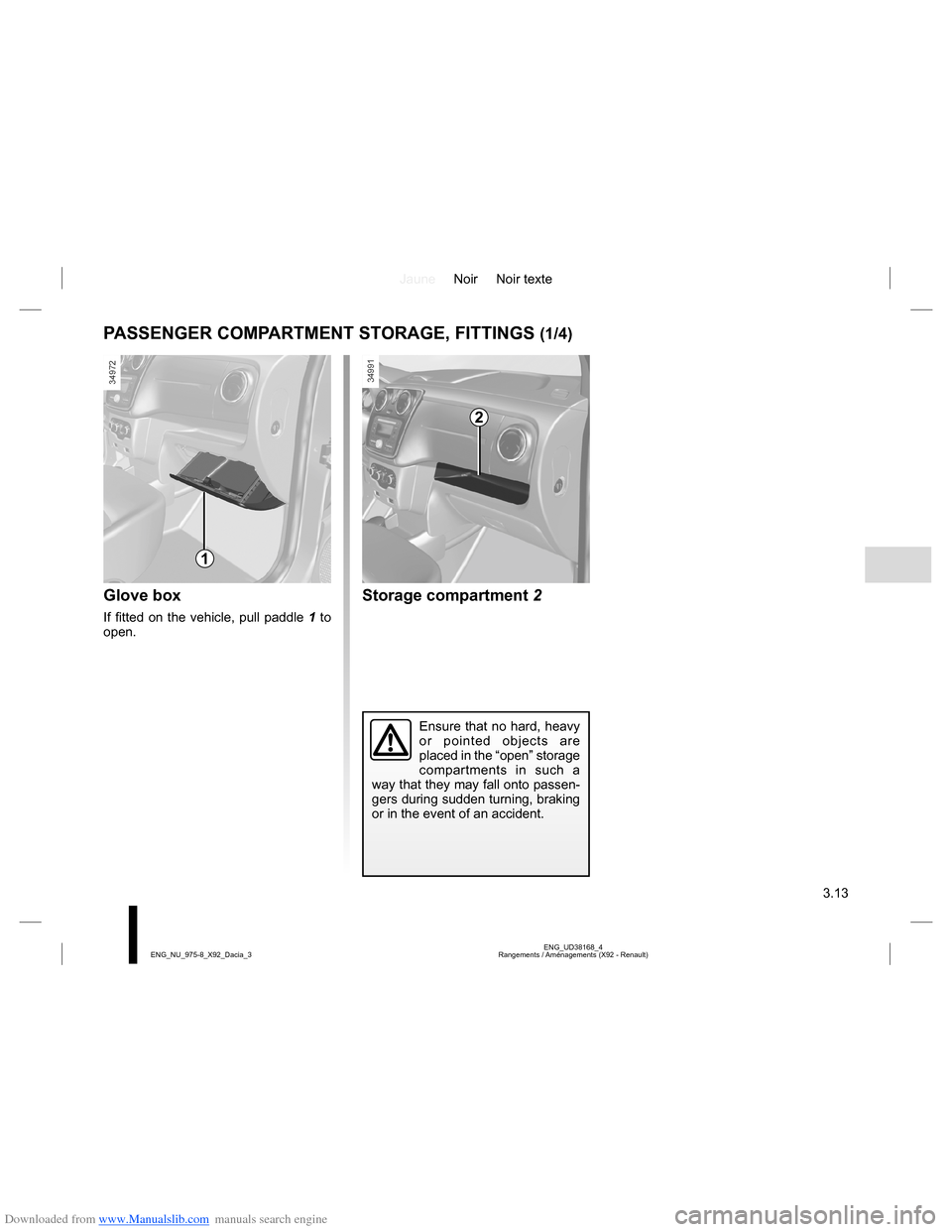

PASSENGER COMPARTMENT STORAGE, FITTINGS (1/4)
Glove box
If fitted on the vehicle, pull paddle 1 to
open.
Storage compartment 2
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
1
2

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.14
ENG_UD38168_4
Rangements / Aménagements (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

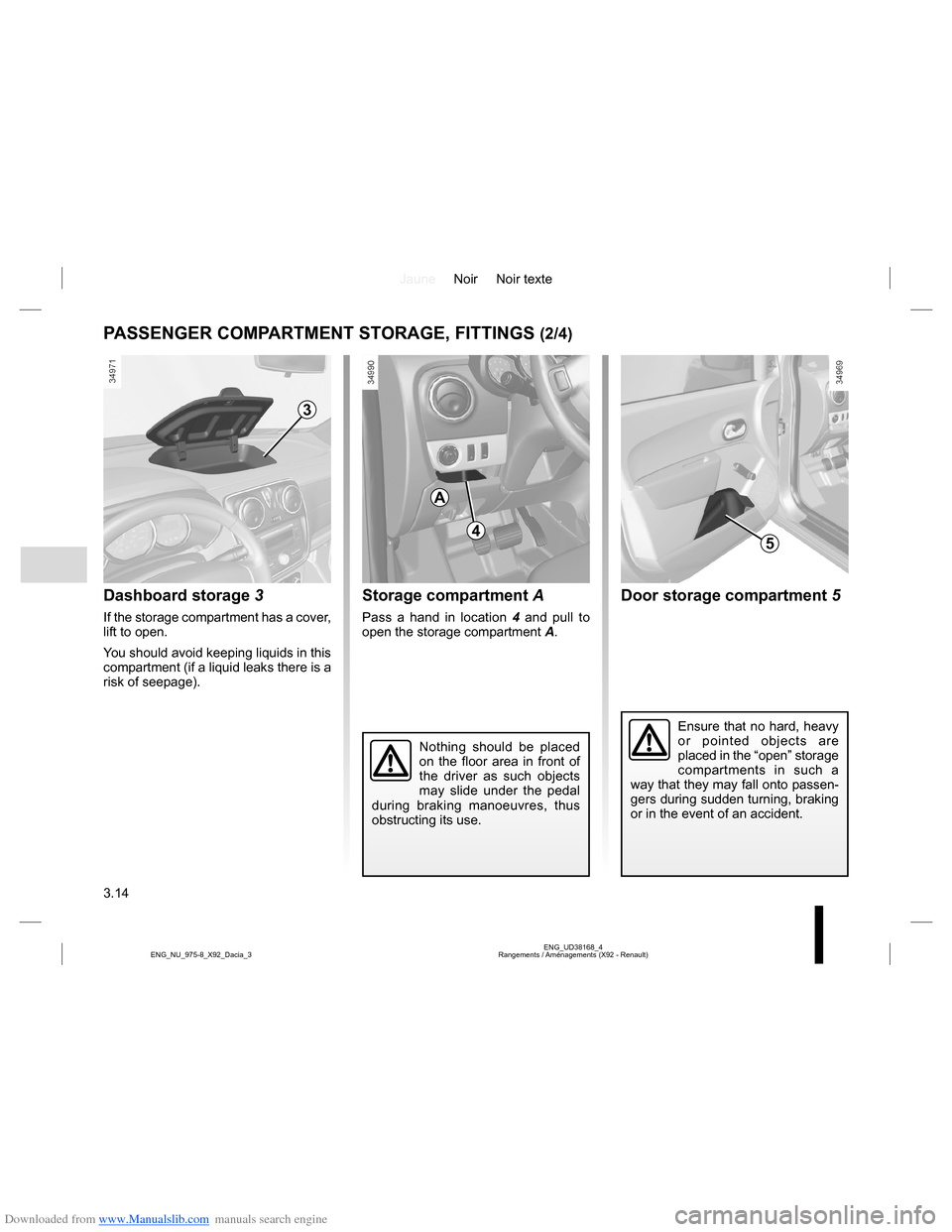

PASSENGER COMPARTMENT STORAGE, FITTINGS (2/4)
Dashboard storage 3
If the storage compartment has a cover,
lift to open.
You should avoid keeping liquids in this
compartment (if a liquid leaks there is a
risk of seepage).
Storage compartment A
Pass a hand in location 4 and pull to
open the storage compartment A.
3
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
4
A
5
Door storage compartment 5

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.15
ENG_UD38168_4
Rangements / Aménagements (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

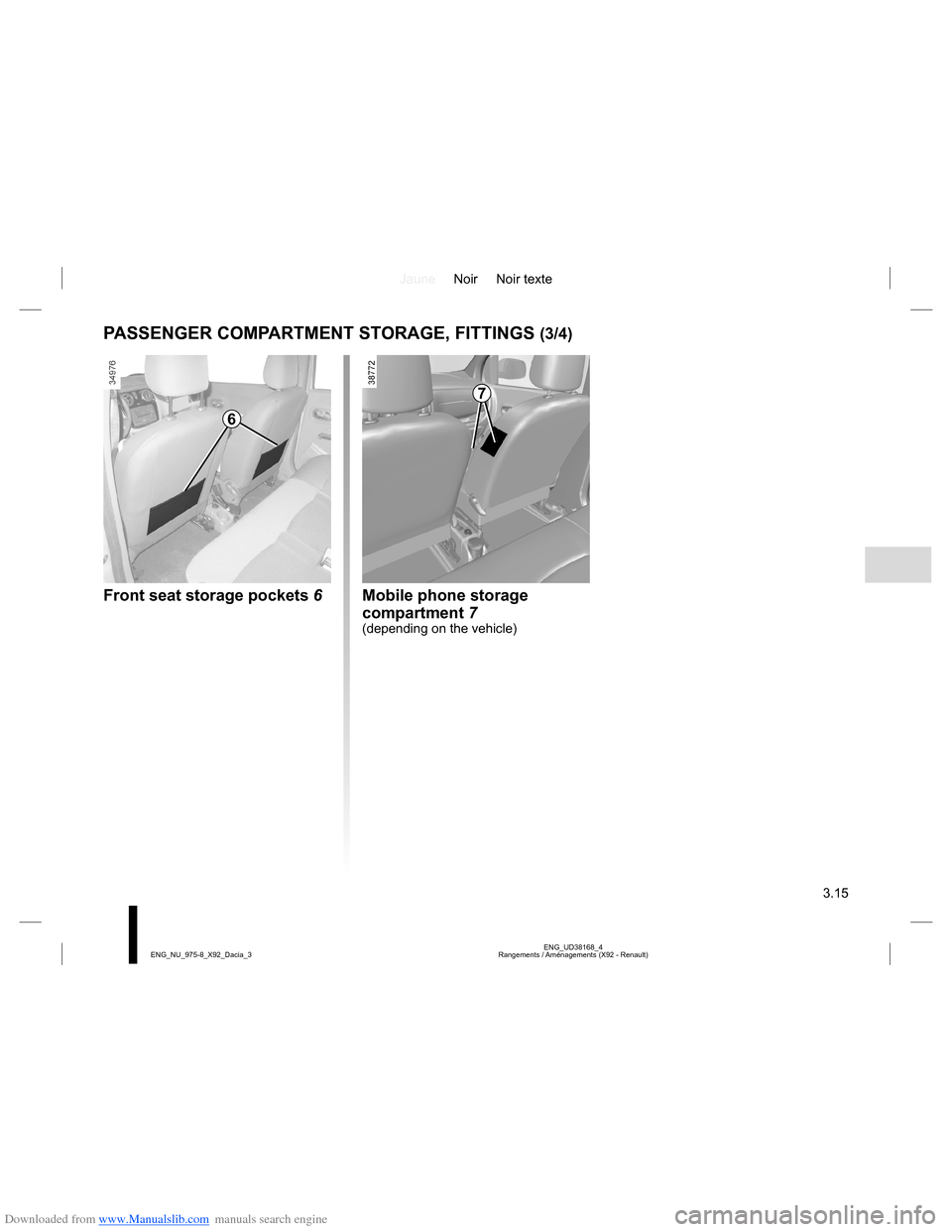

PASSENGER COMPARTMENT STORAGE, FITTINGS (3/4)
Front seat storage pockets 6
6
Mobile phone storage
compartment 7
(depending on the vehicle)
7

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.16
ENG_UD38168_4
Rangements / Aménagements (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
PASSENGER COMPARTMENT STORAGE, FITTINGS (4/4)
Storage compartment 8
6
11
Storage compartment 12
12
10
9
8
Cup holder 9, 10 and 11

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.17
ENG_UD38163_3
Cendriers, Allume-cigares, Prise d’accessoires (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

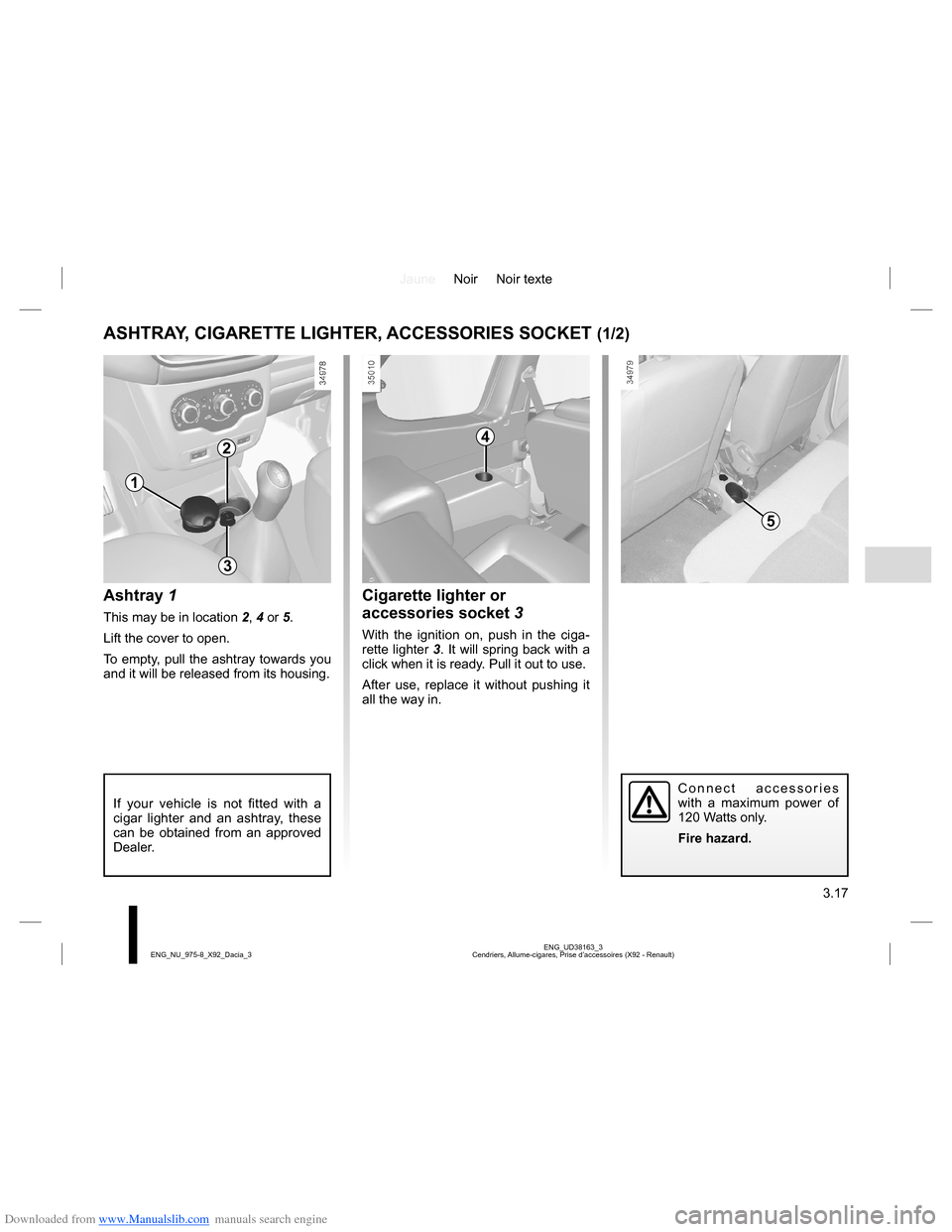

ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET (1/2)
Cigarette lighter or
accessories socket 3
With the ignition on, push in the ciga-
rette lighter 3. It will spring back with a
click when it is ready. Pull it out to use.
After use, replace it without pushing it
all the way in.
1
2
3
5
Ashtray 1
This may be in location 2, 4 or 5.
Lift the cover to open.
To empty, pull the ashtray towards you
and it will be released from its housing.
4
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.18
ENG_UD38163_3
Cendriers, Allume-cigares, Prise d’accessoires (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

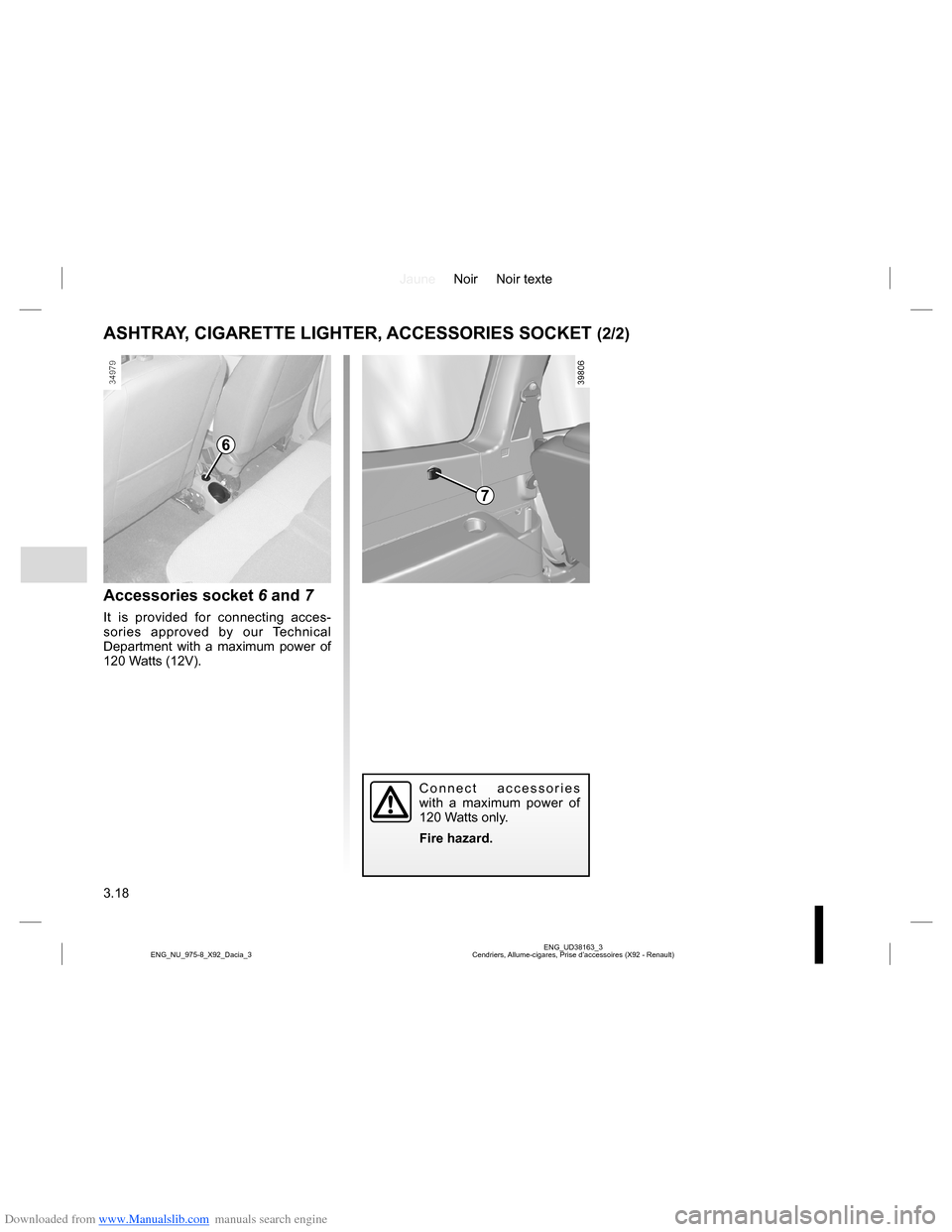

ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET (2/2)
Accessories socket 6 and 7
It is provided for connecting acces-
sories approved by our Technical
Department with a maximum power of
120 Watts (12V).
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.
6
7

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.19
ENG_UD37235_4
Appuis-tête arrière (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

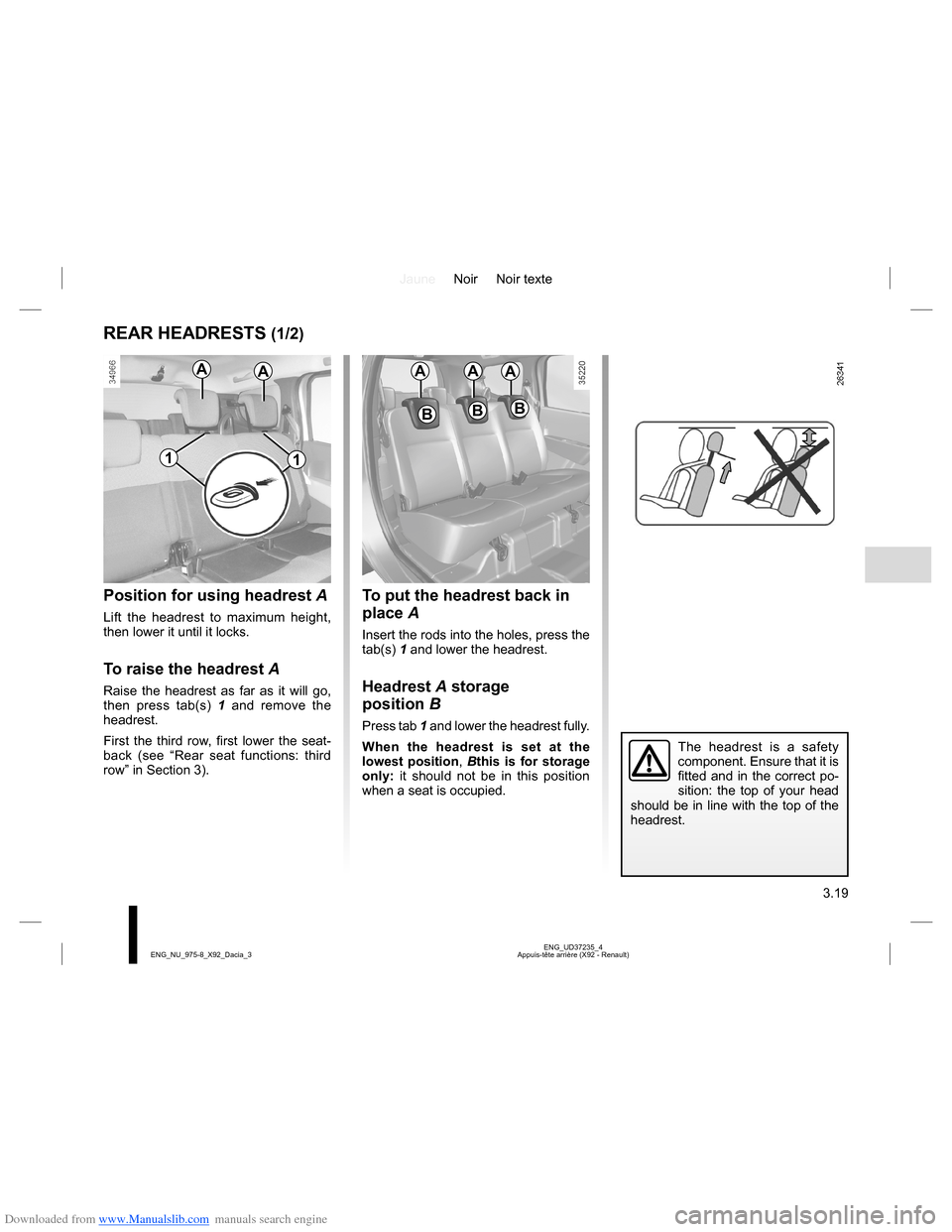

REAR HEADRESTS (1/2)
Position for using headrest A
Lift the headrest to maximum height,
then lower it until it locks.
To raise the headrest A
Raise the headrest as far as it will go,
then press tab(s) 1 and remove the
headrest.
First the third row, first lower the seat-
back (see “Rear seat functions: third
row” in Section 3).
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
11
To put the headrest back in
place A
Insert the rods into the holes, press the
tab(s) 1 and lower the headrest.
Headrest A storage
position B
Press tab 1 and lower the headrest fully.
When the headrest is set at the
lowest position, Bthis is for storage
only: it should not be in this position
when a seat is occupied.
AAA
BBB
AA

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.20
ENG_UD37235_4
Appuis-tête arrière (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
To adjust the height of the
headrest C
(depending on vehicle)
Press lock tab 2 and simultaneously
slide the headrest to the required po-
sition.
To raise the headrest C
Press lock tab 2 and remove the head-
rest.
To put the headrest back in
place C
Insert the rods into the holes, press lock
tab 2 and lower the headrest.
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
REAR HEADRESTS (2/2)
C
2
