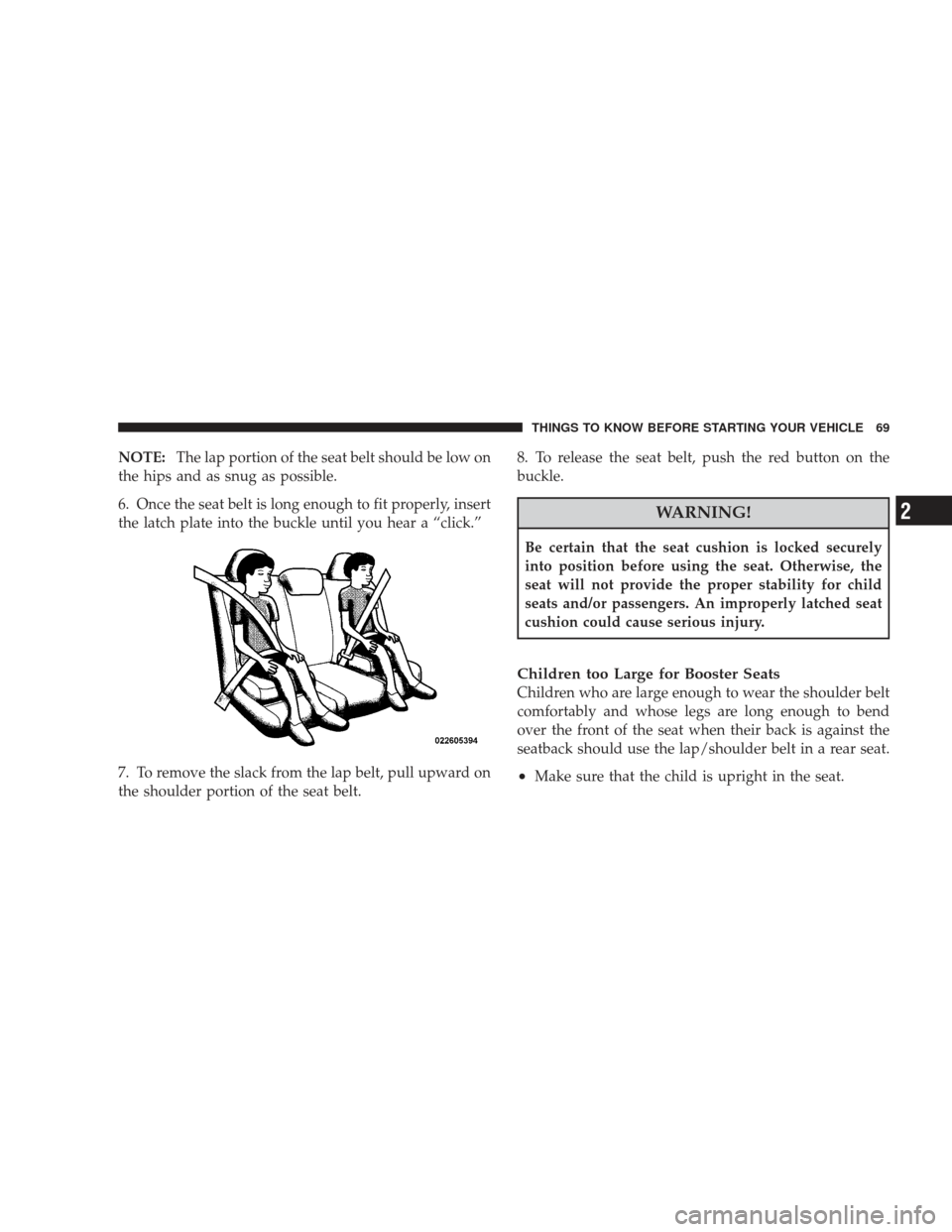

NOTE:The lap portion of the seat belt should be low on
the hips and as snug as possible.
6. Once the seat belt is long enough to fit properly, insert
the latch plate into the buckle until you hear a “click.”
7. To remove the slack from the lap belt, pull upward on
the shoulder portion of the seat belt. 8. To release the seat belt, push the red button on the
buckle.
WARNING!
Be certain that the seat cushion is locked securely
into position before using the seat. Otherwise, the
seat will not provide the proper stability for child
seats and/or passengers. An improperly latched seat
cushion could cause serious injury.
Children too Large for Booster Seats
Children who are large enough to wear the shoulder belt
comfortably and whose legs are long enough to bend
over the front of the seat when their back is against the
seatback should use the lap/shoulder belt in a rear seat.
•Make sure that the child is upright in the seat.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69
2

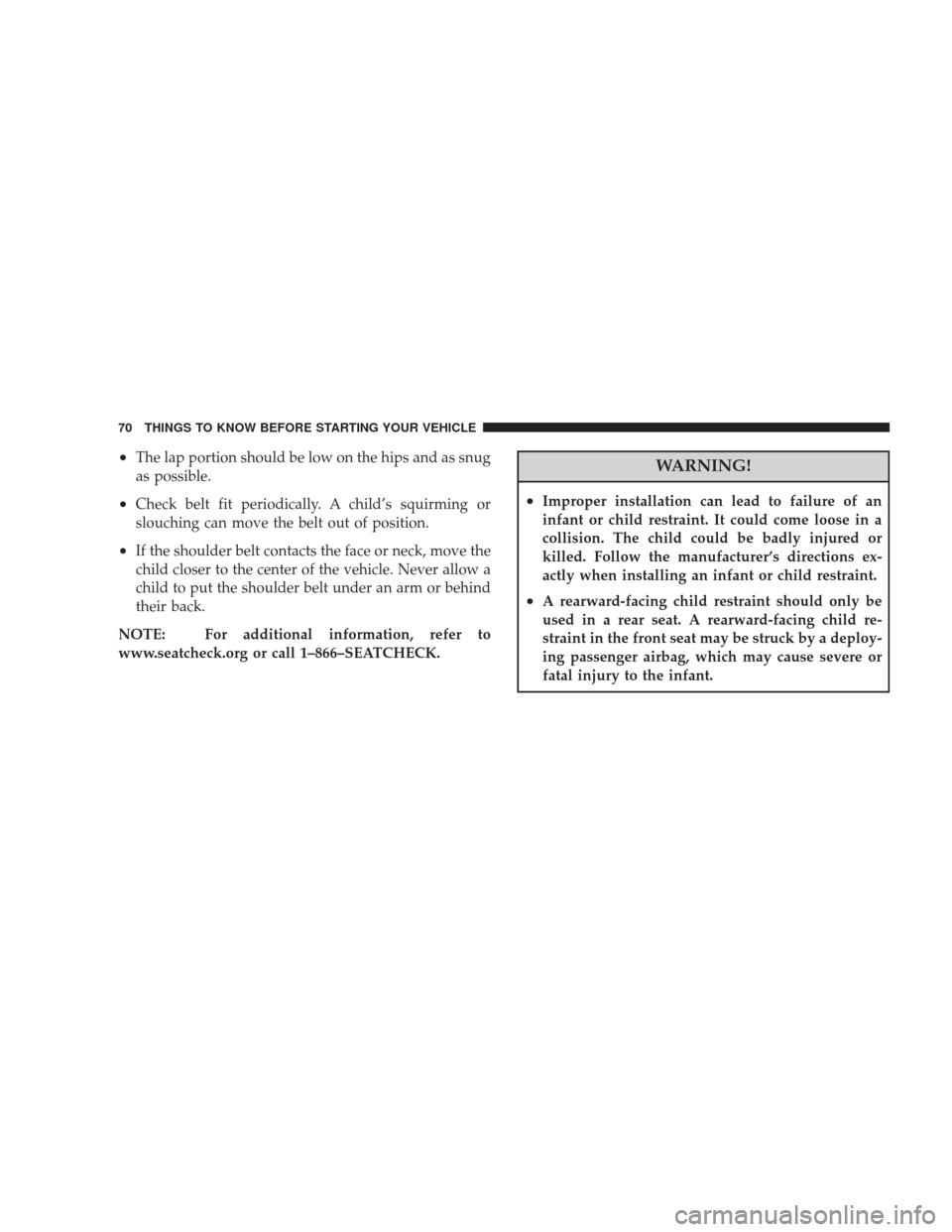

•The lap portion should be low on the hips and as snug
as possible.
•Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.
•If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.
NOTE: For additional information, refer to
www.seatcheck.org or call 1–866–SEATCHECK.
WARNING!
•Improper installation can lead to failure of an
infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex-
actly when installing an infant or child restraint.
•A rearward-facing child restraint should only be
used in a rear seat. A rearward-facing child re-
straint in the front seat may be struck by a deploy-
ing passenger airbag, which may cause severe or
fatal injury to the infant.
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

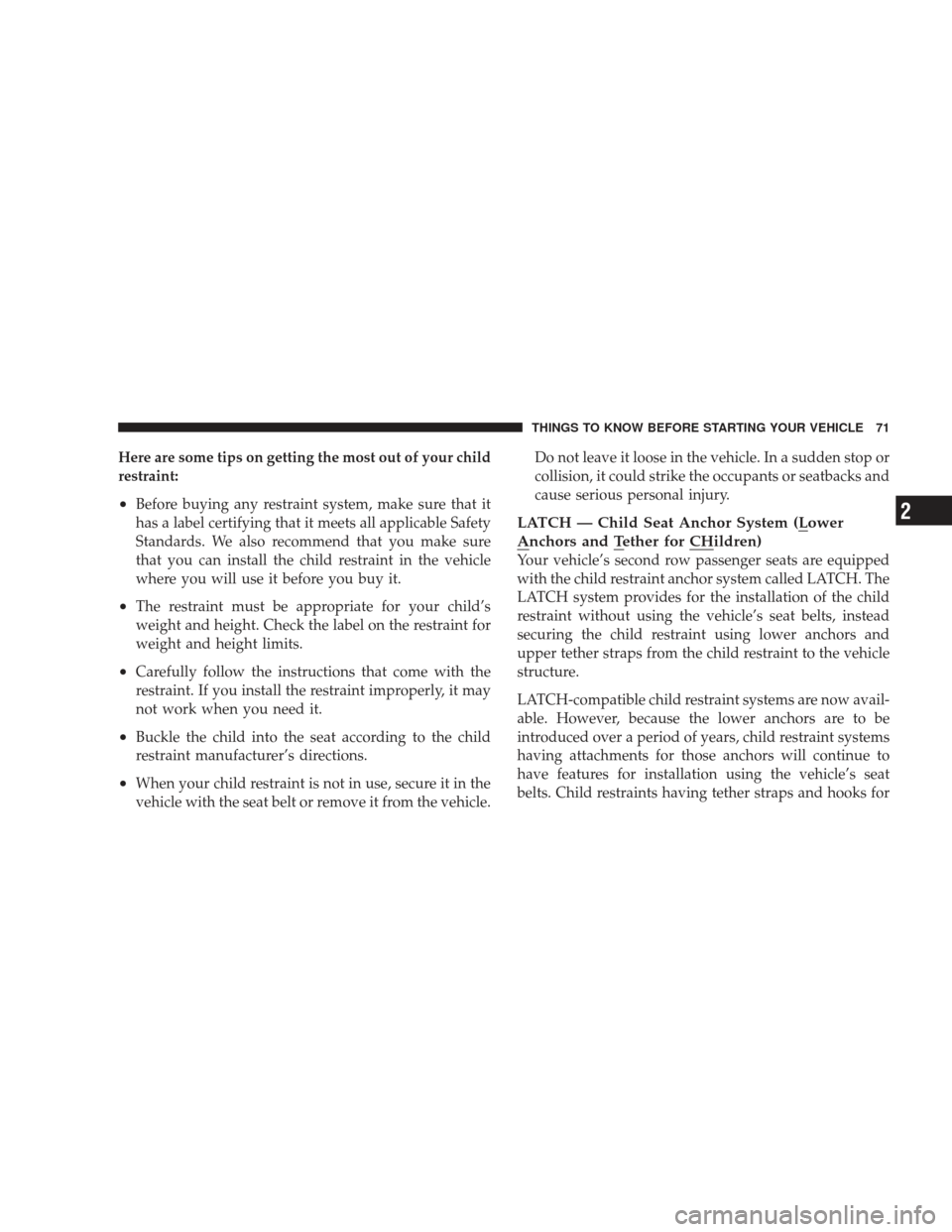

Here are some tips on getting the most out of your child
restraint:
•Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.
•The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.
•Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
•Buckle the child into the seat according to the child
restraint manufacturer’s directions.
•When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seatbacks and
cause serious personal injury.
LATCH — Child Seat Anchor System (Lower
Anchors and Tether for CHildren)
Your vehicle’s second row passenger seats are equipped
with the child restraint anchor system called LATCH. The
LATCH system provides for the installation of the child
restraint without using the vehicle’s seat belts, instead
securing the child restraint using lower anchors and
upper tether straps from the child restraint to the vehicle
structure.
LATCH-compatible child restraint systems are now avail-
able. However, because the lower anchors are to be
introduced over a period of years, child restraint systems
having attachments for those anchors will continue to
have features for installation using the vehicle’s seat
belts. Child restraints having tether straps and hooks for
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71
2

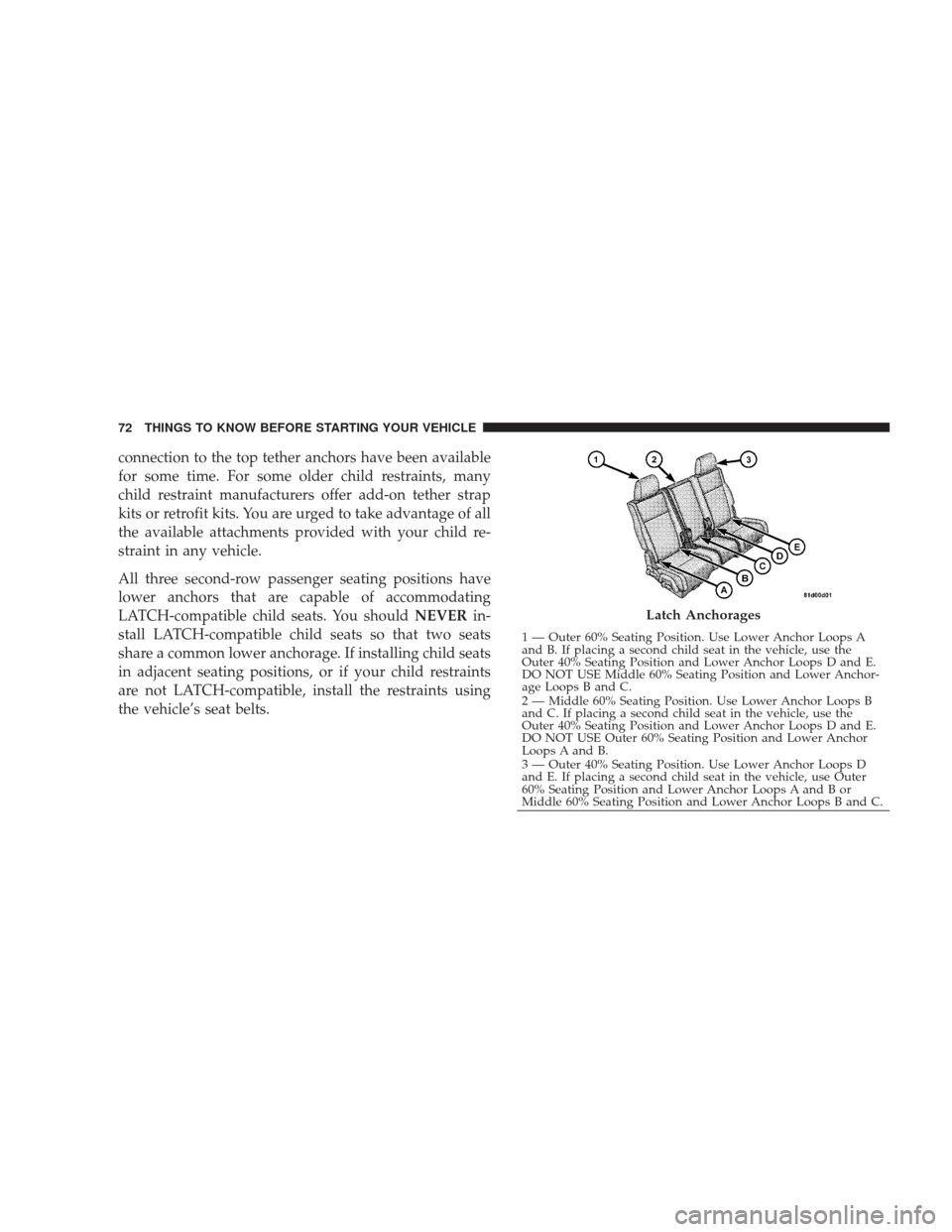

connection to the top tether anchors have been available
for some time. For some older child restraints, many
child restraint manufacturers offer add-on tether strap
kits or retrofit kits. You are urged to take advantage of all
the available attachments provided with your child re-
straint in any vehicle.
All three second-row passenger seating positions have
lower anchors that are capable of accommodating
LATCH-compatible child seats. You shouldNEVERin-
stall LATCH-compatible child seats so that two seats
share a common lower anchorage. If installing child seats
in adjacent seating positions, or if your child restraints
are not LATCH-compatible, install the restraints using
the vehicle’s seat belts.
Latch Anchorages
1 — Outer 60% Seating Position. Use Lower Anchor Loops A
and B. If placing a second child seat in the vehicle, use the
Outer 40% Seating Position and Lower Anchor Loops D and E.
DO NOT USE Middle 60% Seating Position and Lower Anchor-
age Loops B and C.
2 — Middle 60% Seating Position. Use Lower Anchor Loops B
and C. If placing a second child seat in the vehicle, use the
Outer 40% Seating Position and Lower Anchor Loops D and E.
DO NOT USE Outer 60% Seating Position and Lower Anchor
Loops A and B.
3 — Outer 40% Seating Position. Use Lower Anchor Loops D
and E. If placing a second child seat in the vehicle, use Outer
60% Seating Position and Lower Anchor Loops A and B or
Middle 60% Seating Position and Lower Anchor Loops B and C.
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

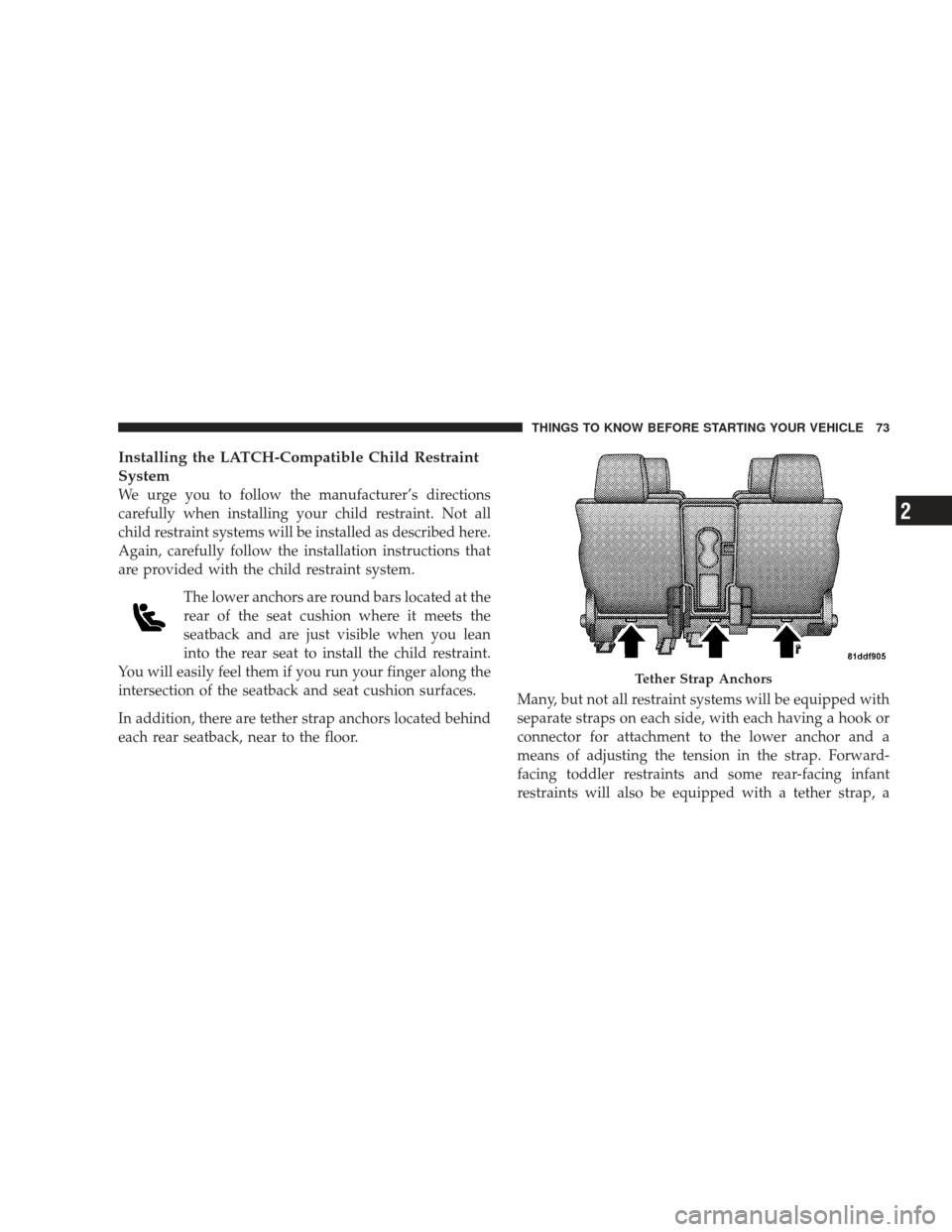

Installing the LATCH-Compatible Child Restraint
System
We urge you to follow the manufacturer’s directions
carefully when installing your child restraint. Not all
child restraint systems will be installed as described here.
Again, carefully follow the installation instructions that
are provided with the child restraint system.The lower anchors are round bars located at the
rear of the seat cushion where it meets the
seatback and are just visible when you lean
into the rear seat to install the child restraint.
You will easily feel them if you run your finger along the
intersection of the seatback and seat cushion surfaces.
In addition, there are tether strap anchors located behind
each rear seatback, near to the floor. Many, but not all restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector for attachment to the lower anchor and a
means of adjusting the tension in the strap. Forward-
facing toddler restraints and some rear-facing infant
restraints will also be equipped with a tether strap, a
Tether Strap Anchors
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73
2

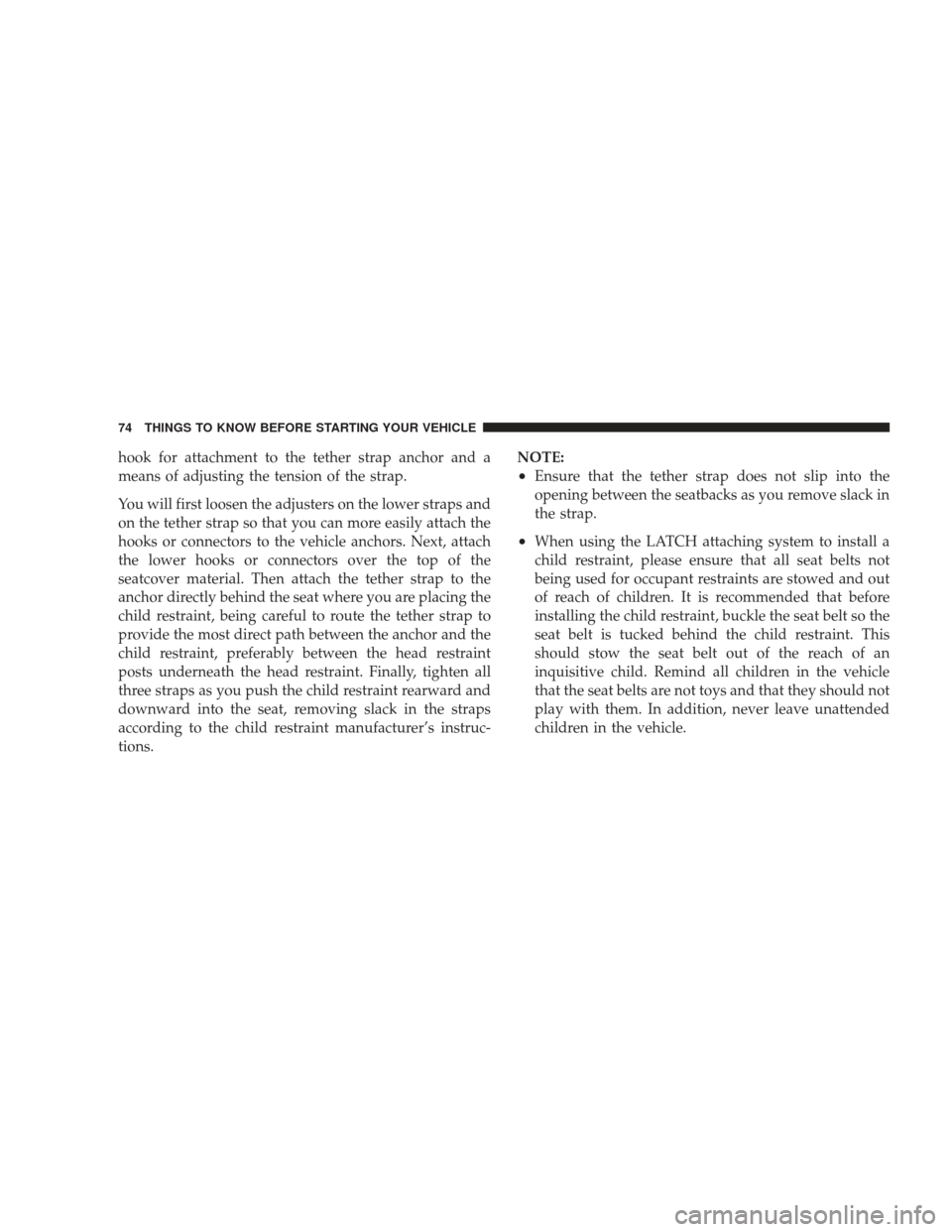

hook for attachment to the tether strap anchor and a
means of adjusting the tension of the strap.
You will first loosen the adjusters on the lower straps and
on the tether strap so that you can more easily attach the
hooks or connectors to the vehicle anchors. Next, attach
the lower hooks or connectors over the top of the
seatcover material. Then attach the tether strap to the
anchor directly behind the seat where you are placing the
child restraint, being careful to route the tether strap to
provide the most direct path between the anchor and the
child restraint, preferably between the head restraint
posts underneath the head restraint. Finally, tighten all
three straps as you push the child restraint rearward and
downward into the seat, removing slack in the straps
according to the child restraint manufacturer’s instruc-
tions.NOTE:
•Ensure that the tether strap does not slip into the
opening between the seatbacks as you remove slack in
the strap.
•When using the LATCH attaching system to install a
child restraint, please ensure that all seat belts not
being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint. This
should stow the seat belt out of the reach of an
inquisitive child. Remind all children in the vehicle
that the seat belts are not toys and that they should not
play with them. In addition, never leave unattended
children in the vehicle.
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

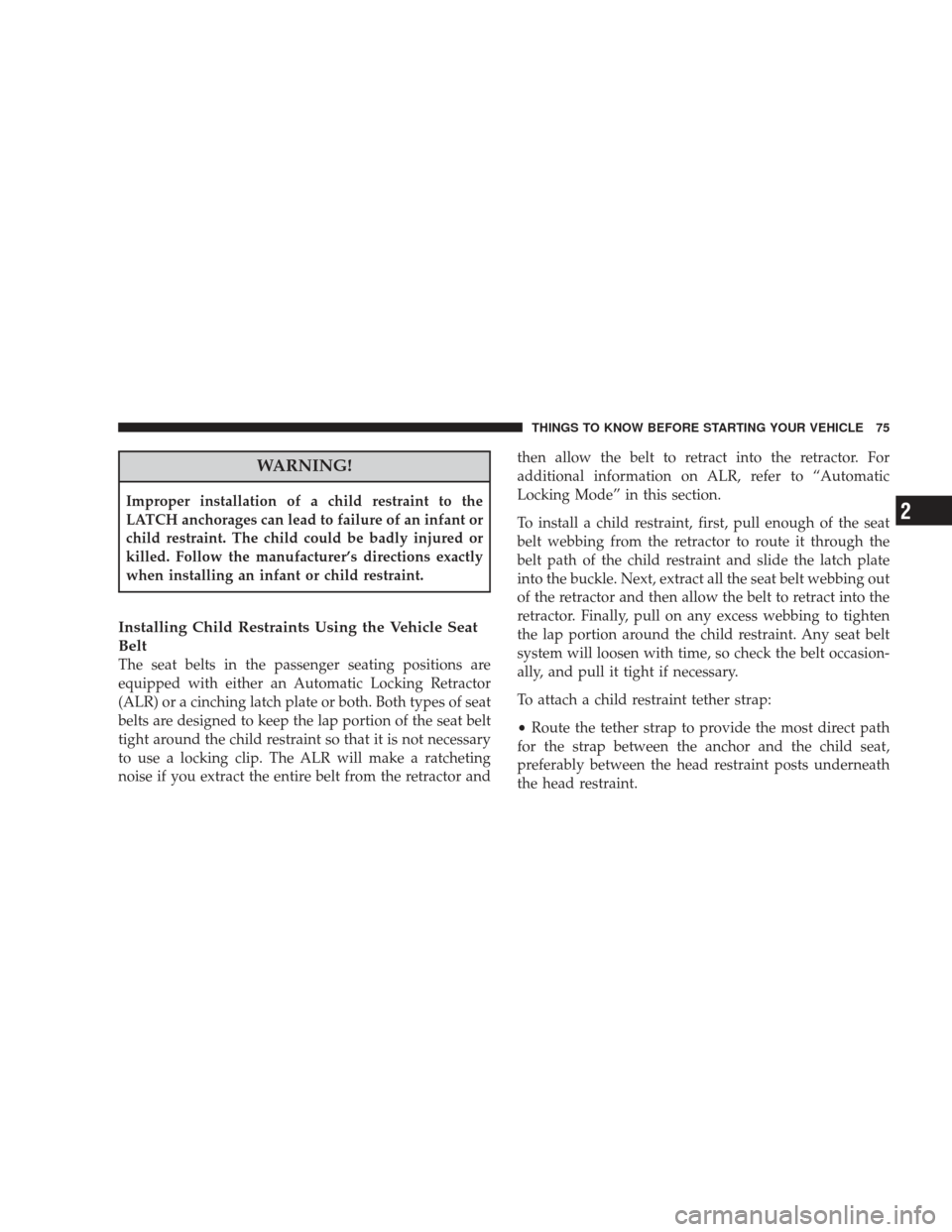

WARNING!
Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.
Installing Child Restraints Using the Vehicle Seat
Belt
The seat belts in the passenger seating positions are
equipped with either an Automatic Locking Retractor
(ALR) or a cinching latch plate or both. Both types of seat
belts are designed to keep the lap portion of the seat belt
tight around the child restraint so that it is not necessary
to use a locking clip. The ALR will make a ratcheting
noise if you extract the entire belt from the retractor andthen allow the belt to retract into the retractor. For
additional information on ALR, refer to “Automatic
Locking Mode” in this section.
To install a child restraint, first, pull enough of the seat
belt webbing from the retractor to route it through the
belt path of the child restraint and slide the latch plate
into the buckle. Next, extract all the seat belt webbing out
of the retractor and then allow the belt to retract into the
retractor. Finally, pull on any excess webbing to tighten
the lap portion around the child restraint. Any seat belt
system will loosen with time, so check the belt occasion-
ally, and pull it tight if necessary.
To attach a child restraint tether strap:
•
Route the tether strap to provide the most direct path
for the strap between the anchor and the child seat,
preferably between the head restraint posts underneath
the head restraint.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75
2

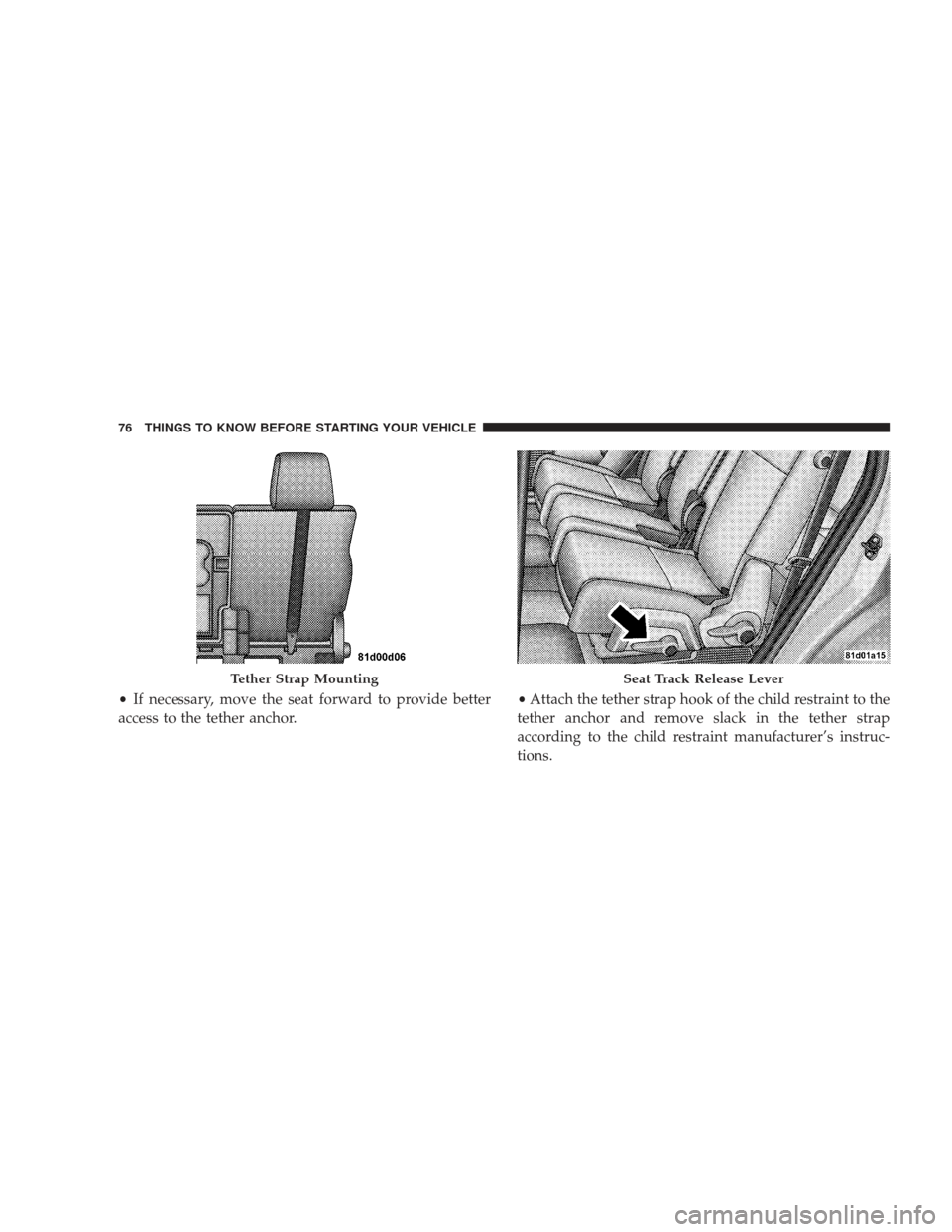

•If necessary, move the seat forward to provide better
access to the tether anchor. •
Attach the tether strap hook of the child restraint to the
tether anchor and remove slack in the tether strap
according to the child restraint manufacturer’s instruc-
tions.
Tether Strap MountingSeat Track Release Lever
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

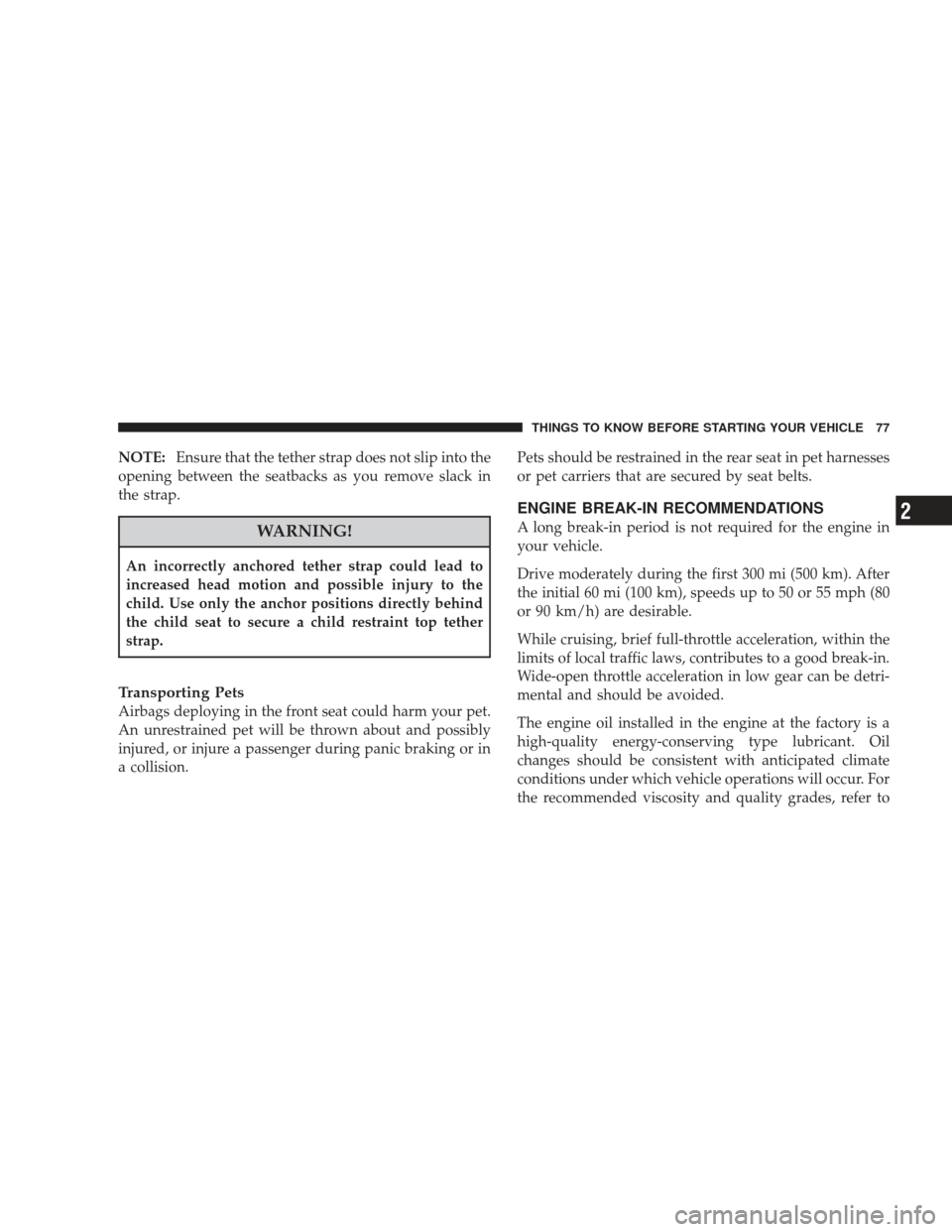

NOTE:Ensure that the tether strap does not slip into the
opening between the seatbacks as you remove slack in
the strap.
WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.
Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision. Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine in
your vehicle.
Drive moderately during the first 300 mi (500 km). After
the initial 60 mi (100 km), speeds up to 50 or 55 mph (80
or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration, within the
limits of local traffic laws, contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy-conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. For
the recommended viscosity and quality grades, refer to
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77
2

“Maintenance Procedures” in Section 7. NON-
DETERGENT OR STRAIGHT MINERAL OILS MUST
NEVER BE USED.
A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered as a normal part of the break-in and not
interpreted as an indication of difficulty.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
• Be sure everyone in your vehicle is in a seat and using
a seat belt properly.
• On seven passenger models, do not drive the vehicle
with the second row passenger seat in the easy
entry/exit position (seat cushion flipped upward and
seat moved forward), as this position is only intended
for entering and exiting the third row seats. Failure to
follow this warning may result in personal injury.
• On seven passenger models, do not allow a passenger
to sit in a third row seat with the second row seat-
back(s) folded flat. In a collision, the passenger could
slide underneath the seat belt and be seriously or
even fatally injured.

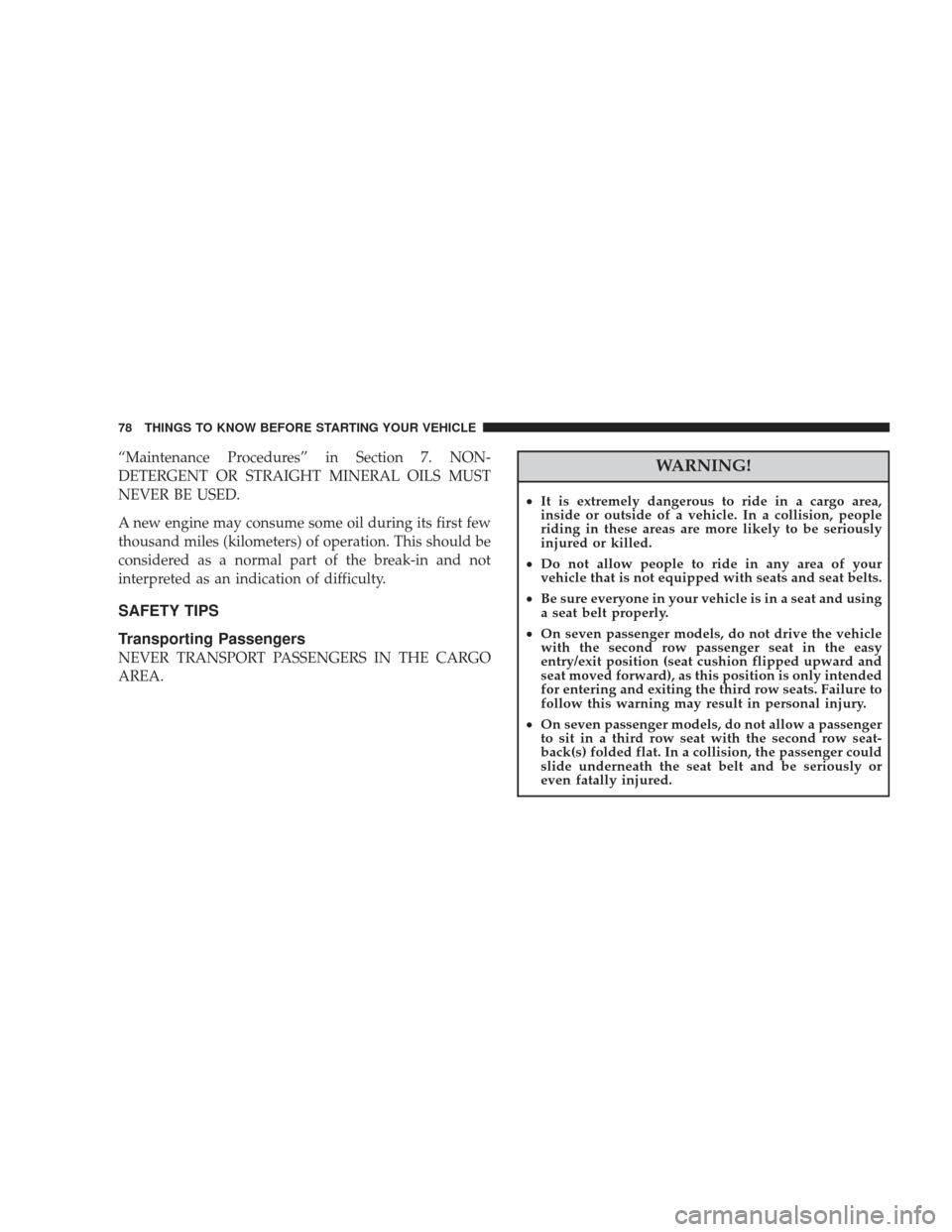

78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
