²Carefully tuck the front, followed by the rear, then side
edges of the cup holder into the center console.
FUSES (POWER DISTRIBUTION CENTERS)
Fuses (Front Power Distribution Center)
A power distribution center is located in the engine
compartment. This center contains fuses and relays.
Cavity Car-
tridge
FuseMini
FuseDescription
1ÐÐÐ
2ÐÐÐ
3 Ð 15 Amp
BlueAdjustable Pedals - if
equipped
4 Ð 20 Amp
YellowAC Clutch/Horn
5ÐÐÐ
6 Ð 15 Amp
BlueFront Control Module
(FCM)
7 Ð 20 Amp
YellowFog Lights
8 Ð 15 Amp
BlueLights ± License, Park,
Side Marker, Stop, Turn
9 Ð 15 Amp
BlueFront Control Module
(FCM)
10 Ð 5 Amp
OrangePowertrain Control
Module (PCM)/Starter
Front Power Distribution Center
320 MAINTAINING YOUR VEHICLE

Cavity Car-
tridge
FuseMini
FuseDescription

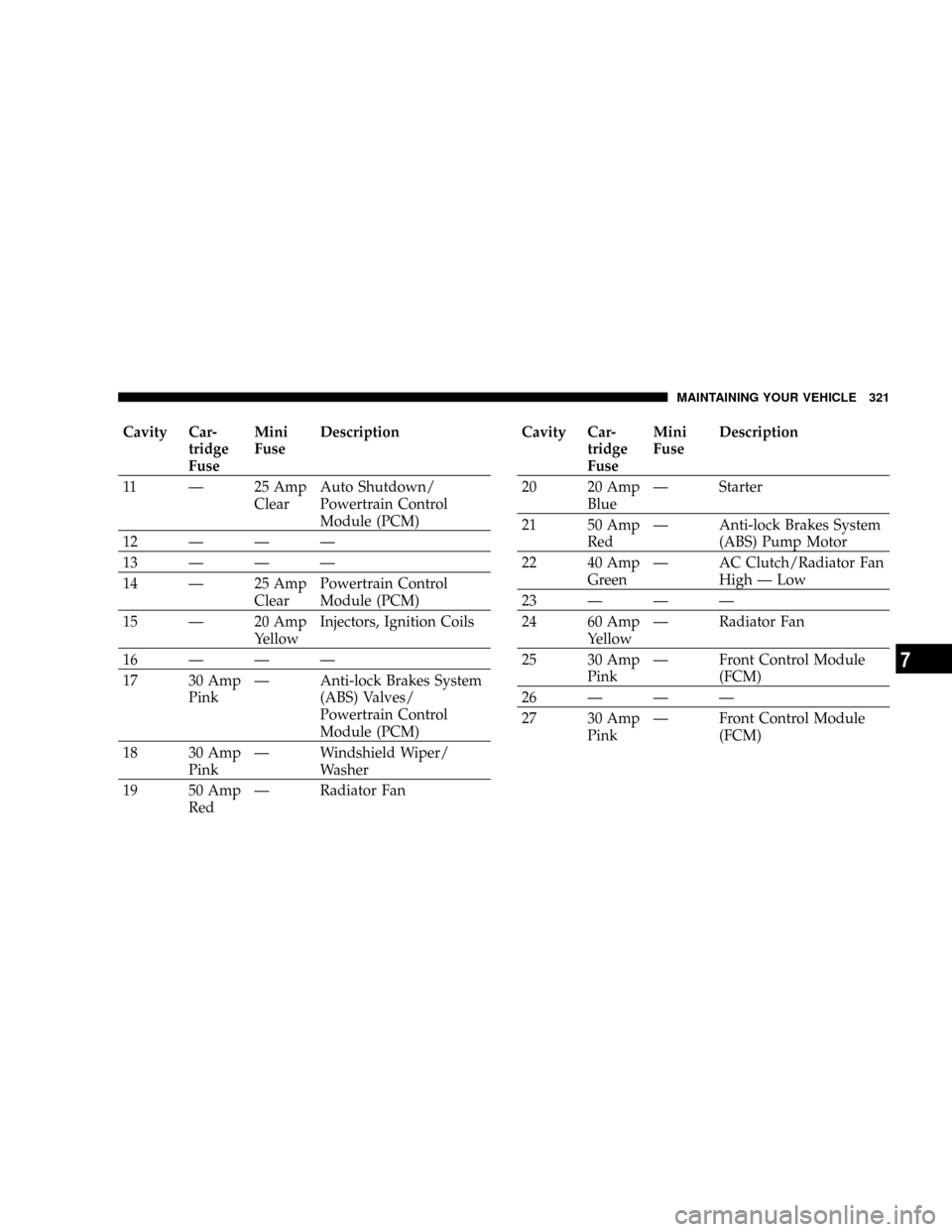

11 Ð 25 Amp
ClearAuto Shutdown/
Powertrain Control
Module (PCM)
12ÐÐÐ
13ÐÐÐ
14 Ð 25 Amp
ClearPowertrain Control
Module (PCM)
15 Ð 20 Amp
YellowInjectors, Ignition Coils
16ÐÐÐ
17 30 Amp
PinkÐ Anti-lock Brakes System
(ABS) Valves/
Powertrain Control
Module (PCM)
18 30 Amp
PinkÐ Windshield Wiper/
Washer
19 50 Amp
RedÐ Radiator FanCavity Car-
tridge
FuseMini
FuseDescription
20 20 Amp
BlueÐ Starter
21 50 Amp
RedÐ Anti-lock Brakes System
(ABS) Pump Motor
22 40 Amp
GreenÐ AC Clutch/Radiator Fan
High Ð Low
23ÐÐÐ
24 60 Amp
YellowÐ Radiator Fan
25 30 Amp
PinkÐ Front Control Module
(FCM)
26ÐÐÐ
27 30 Amp
PinkÐ Front Control Module
(FCM)
MAINTAINING YOUR VEHICLE 321
7

CAUTION!
²When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribu-
tion Center, and possibly result in a electrical
system failure.
²When replacing a blown fuse, it is important to
use only a fuse having the correct amperage
rating. The use of a fuse with a rating other than
indicated may result in a dangerous electrical
system overload. If a properly rated fuse contin-
ues to blow, it indicates a problem in the circuit
that must be corrected.
Fuses (Rear Power Distribution Center)
There is also a power distribution center located under a
hinged access cover in the load floor in the cargo area.
This center contains fuses and relays.
Rear Power Distribution Center
322 MAINTAINING YOUR VEHICLE

Cavity Car-
tridge
FuseMini
FuseDescription

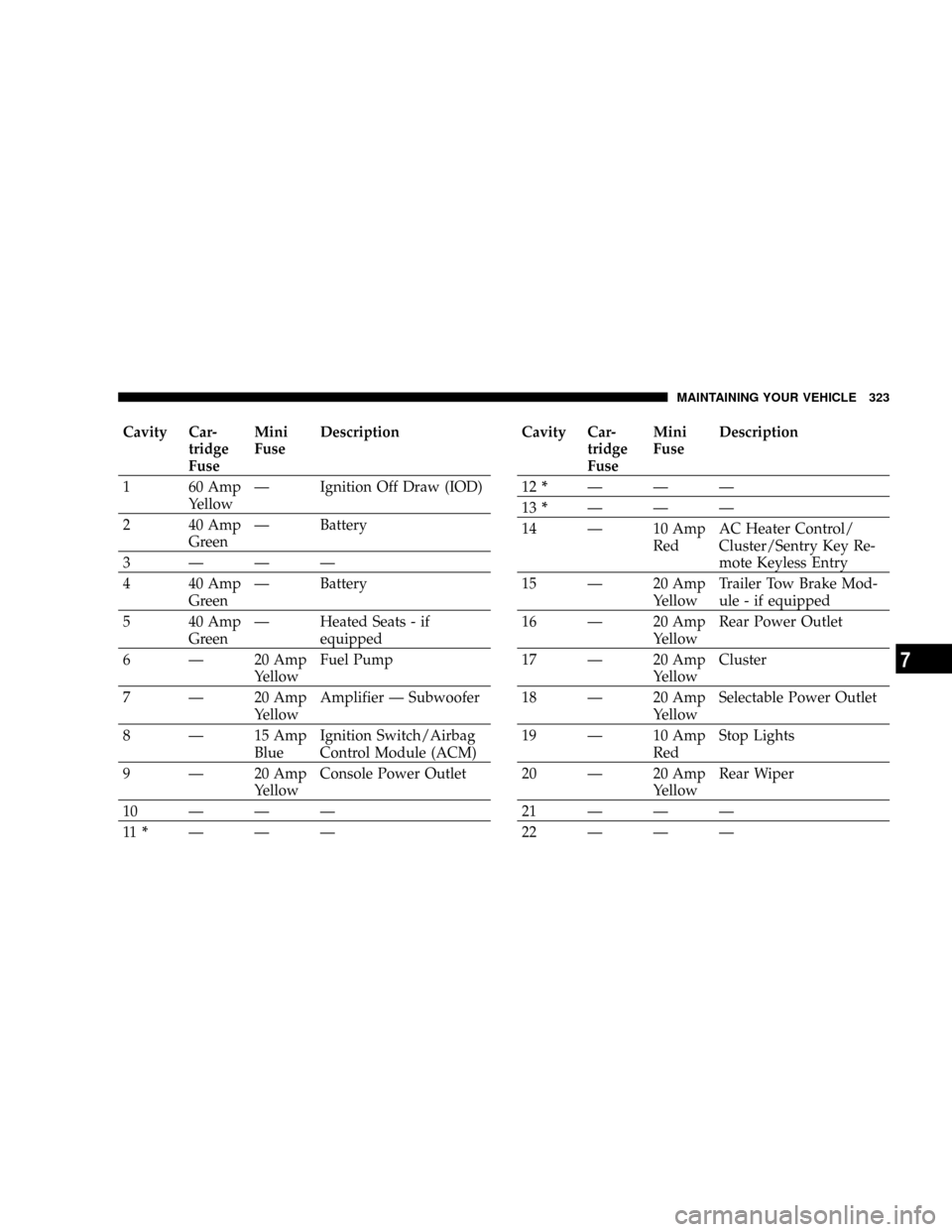

1 60 Amp
YellowÐ Ignition Off Draw (IOD)
2 40 Amp
GreenÐ Battery
3ÐÐÐ
4 40 Amp
GreenÐ Battery
5 40 Amp
GreenÐ Heated Seats - if
equipped
6 Ð 20 Amp
YellowFuel Pump
7 Ð 20 Amp
YellowAmplifier Ð Subwoofer
8 Ð 15 Amp
BlueIgnition Switch/Airbag
Control Module (ACM)
9 Ð 20 Amp
YellowConsole Power Outlet
10ÐÐÐ
11*ÐÐÐCavity Car-
tridge
FuseMini
FuseDescription
12*ÐÐÐ
13*ÐÐÐ
14 Ð 10 Amp
RedAC Heater Control/
Cluster/Sentry Key Re-
mote Keyless Entry
15 Ð 20 Amp
YellowTrailer Tow Brake Mod-
ule - if equipped
16 Ð 20 Amp
YellowRear Power Outlet
17 Ð 20 Amp
YellowCluster
18 Ð 20 Amp
YellowSelectable Power Outlet
19 Ð 10 Amp
RedStop Lights
20 Ð 20 Amp
YellowRear Wiper
21ÐÐÐ
22ÐÐÐ
MAINTAINING YOUR VEHICLE 323
7

Cavity Car-
tridge
FuseMini
FuseDescription

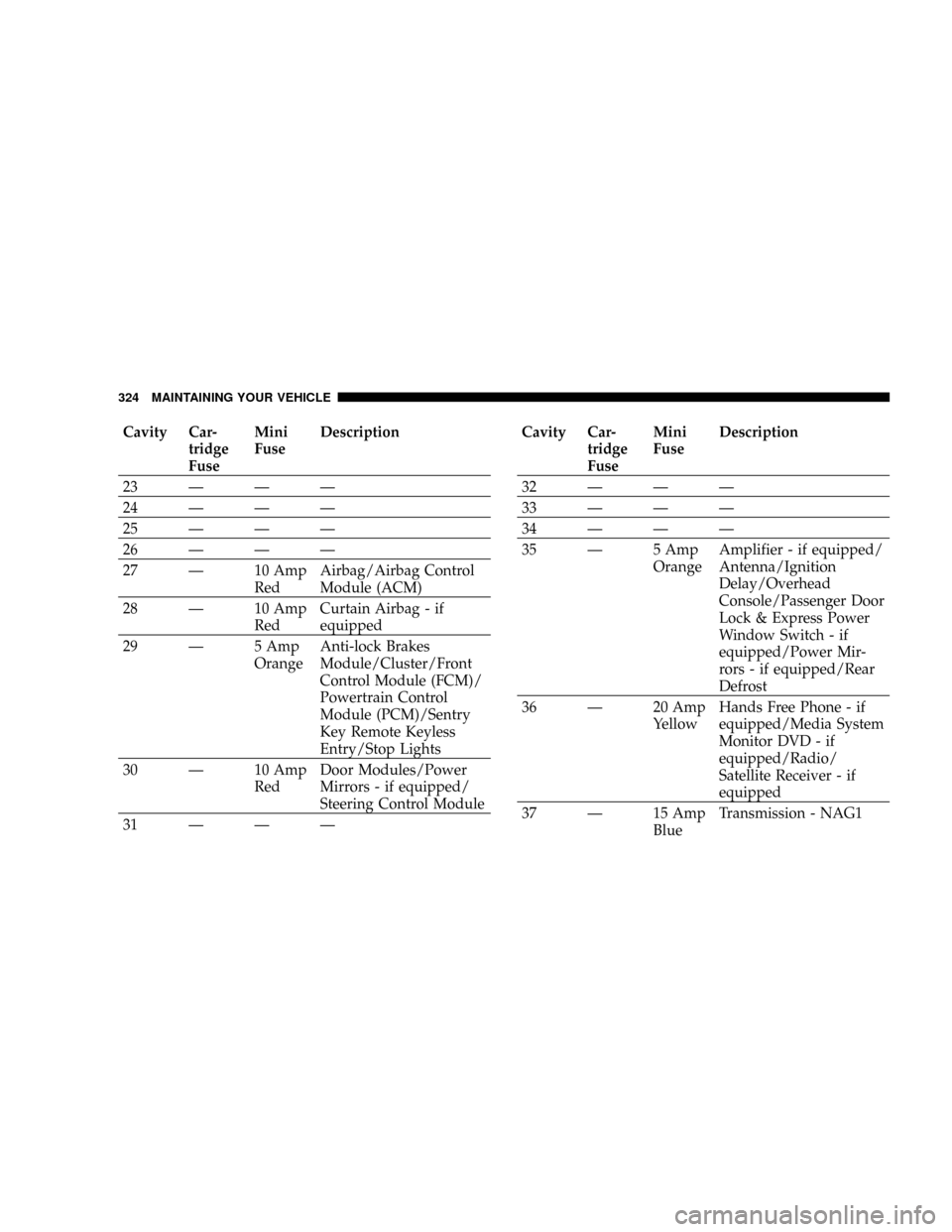

23ÐÐÐ
24ÐÐÐ
25ÐÐÐ
26ÐÐÐ
27 Ð 10 Amp
RedAirbag/Airbag Control
Module (ACM)
28 Ð 10 Amp
RedCurtain Airbag - if
equipped
29 Ð 5 Amp
OrangeAnti-lock Brakes
Module/Cluster/Front
Control Module (FCM)/
Powertrain Control
Module (PCM)/Sentry
Key Remote Keyless
Entry/Stop Lights
30 Ð 10 Amp
RedDoor Modules/Power
Mirrors - if equipped/
Steering Control Module
31ÐÐÐCavity Car-
tridge
FuseMini
FuseDescription
32ÐÐÐ
33ÐÐÐ
34ÐÐÐ
35 Ð 5 Amp
OrangeAmplifier - if equipped/
Antenna/Ignition
Delay/Overhead
Console/Passenger Door
Lock & Express Power
Window Switch - if
equipped/Power Mir-
rors - if equipped/Rear
Defrost
36 Ð 20 Amp
YellowHands Free Phone - if
equipped/Media System
Monitor DVD - if
equipped/Radio/
Satellite Receiver - if
equipped
37 Ð 15 Amp
BlueTransmission - NAG1
324 MAINTAINING YOUR VEHICLE

Cavity Car-
tridge
FuseMini
FuseDescription

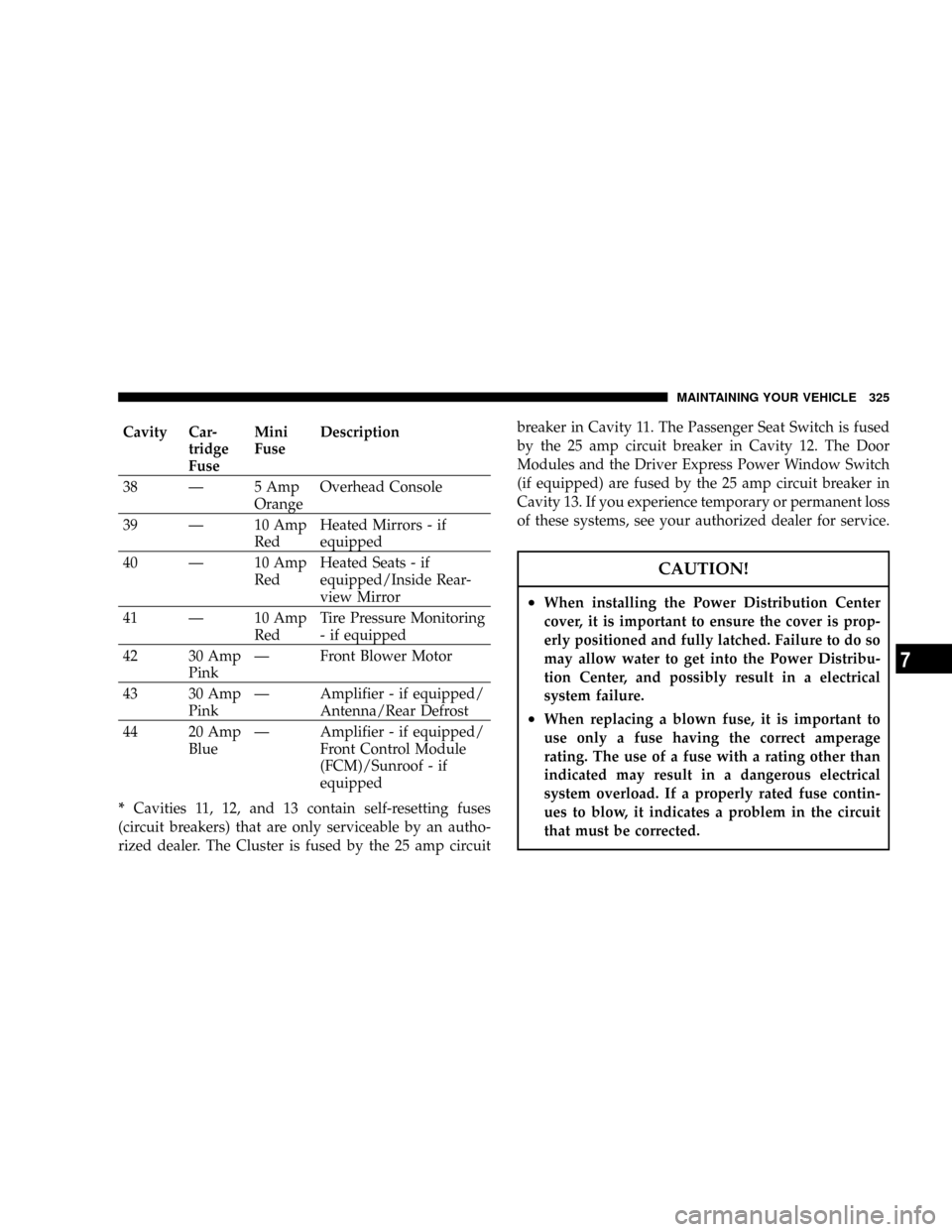

38 Ð 5 Amp
OrangeOverhead Console
39 Ð 10 Amp
RedHeated Mirrors - if
equipped
40 Ð 10 Amp
RedHeated Seats - if
equipped/Inside Rear-
view Mirror
41 Ð 10 Amp
RedTire Pressure Monitoring
- if equipped
42 30 Amp
PinkÐ Front Blower Motor
43 30 Amp
PinkÐ Amplifier - if equipped/
Antenna/Rear Defrost
44 20 Amp
BlueÐ Amplifier - if equipped/
Front Control Module
(FCM)/Sunroof - if
equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The Cluster is fused by the 25 amp circuitbreaker in Cavity 11. The Passenger Seat Switch is fused
by the 25 amp circuit breaker in Cavity 12. The Door
Modules and the Driver Express Power Window Switch
(if equipped) are fused by the 25 amp circuit breaker in
Cavity 13. If you experience temporary or permanent loss
of these systems, see your authorized dealer for service.
CAUTION!
²When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribu-
tion Center, and possibly result in a electrical
system failure.
²When replacing a blown fuse, it is important to
use only a fuse having the correct amperage
rating. The use of a fuse with a rating other than
indicated may result in a dangerous electrical
system overload. If a properly rated fuse contin-
ues to blow, it indicates a problem in the circuit
that must be corrected.
MAINTAINING YOUR VEHICLE 325
7

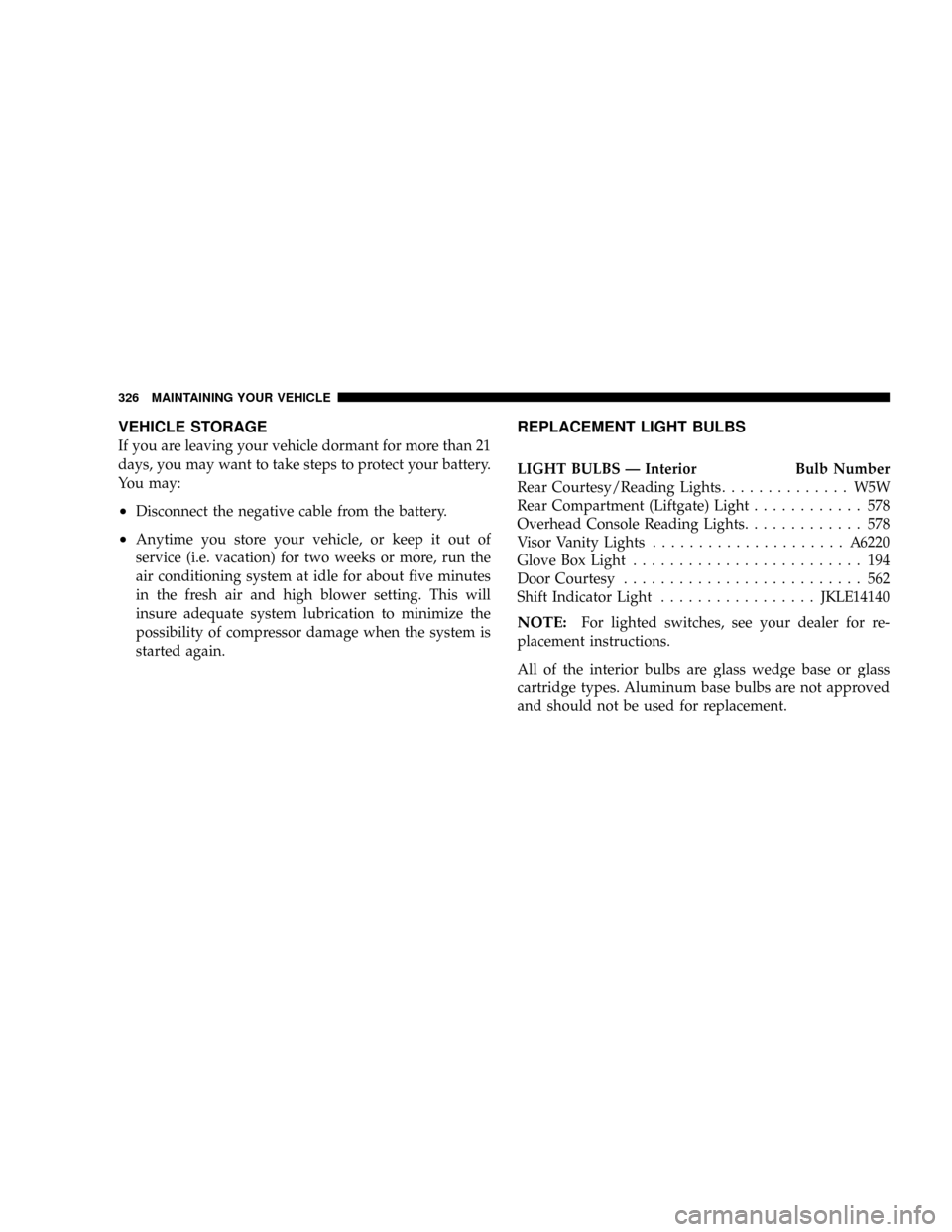

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take steps to protect your battery.
You may:
²Disconnect the negative cable from the battery.
²Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
insure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT LIGHT BULBS
LIGHT BULBS Ð Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Liftgate) Light............ 578
Overhead Console Reading Lights............. 578
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194
Door Courtesy.......................... 562
Shift Indicator Light.................JKLE14140
NOTE:For lighted switches, see your dealer for re-
placement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
326 MAINTAINING YOUR VEHICLE

LIGHT BULBS Ð Exterior Bulb Number
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Light...................3457A
Front Fog LightÐIf Equipped. . . 9145/H10 (Serviced at
Dealer)
Front Side Marker........194NA (Serviced at Dealer)
Tail/Stop/Turn Light...............3157KP27/7W
Rear Side Marker................3757APY27/7W
Backup Light......................921/W16W
Center High Mount Stop Light (CHMSL)....... LED
License.............................. W5W

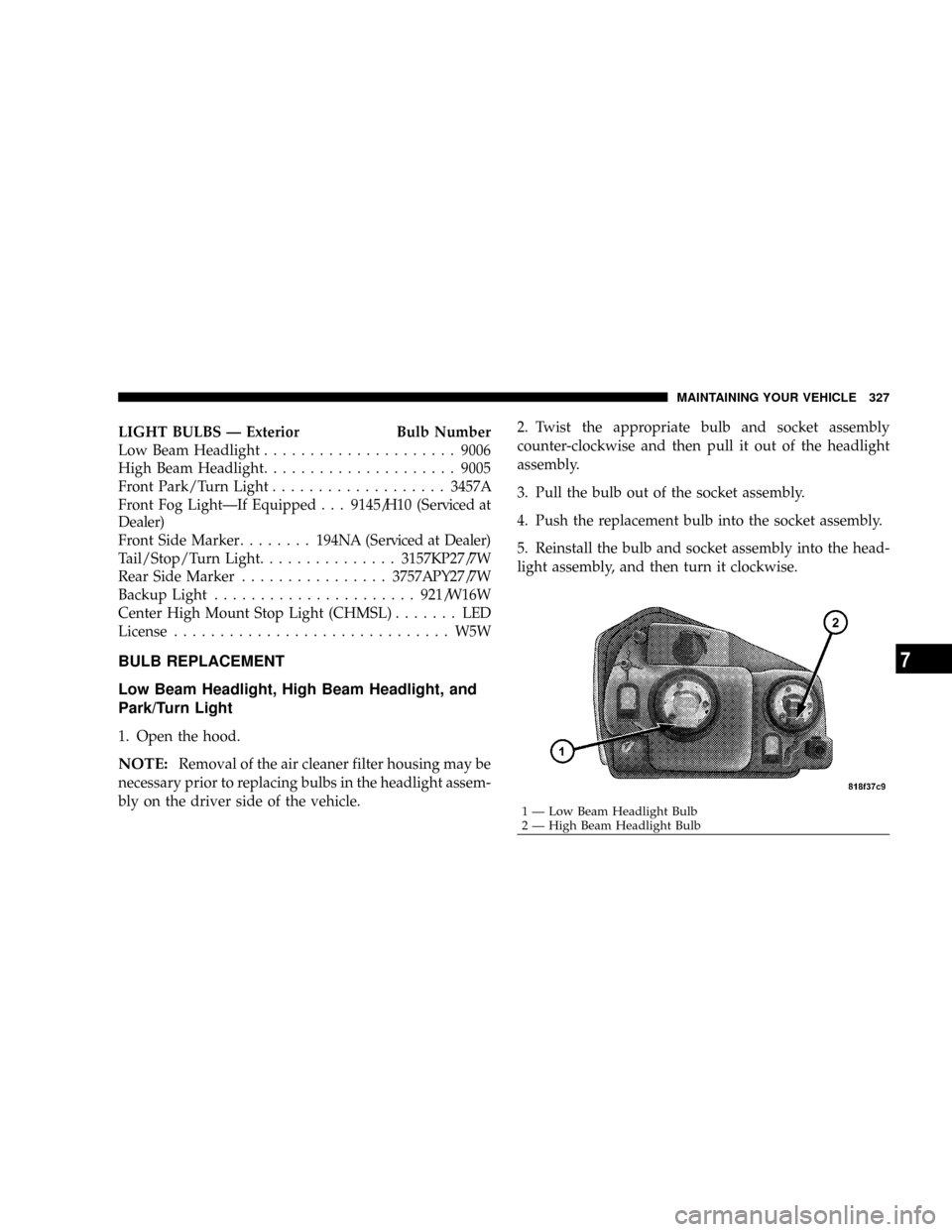

BULB REPLACEMENT
Low Beam Headlight, High Beam Headlight, and
Park/Turn Light
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlight assem-
bly on the driver side of the vehicle.2. Twist the appropriate bulb and socket assembly
counter-clockwise and then pull it out of the headlight
assembly.
3. Pull the bulb out of the socket assembly.
4. Push the replacement bulb into the socket assembly.
5. Reinstall the bulb and socket assembly into the head-
light assembly, and then turn it clockwise.
1 Ð Low Beam Headlight Bulb
2 Ð High Beam Headlight BulbMAINTAINING YOUR VEHICLE 327
7

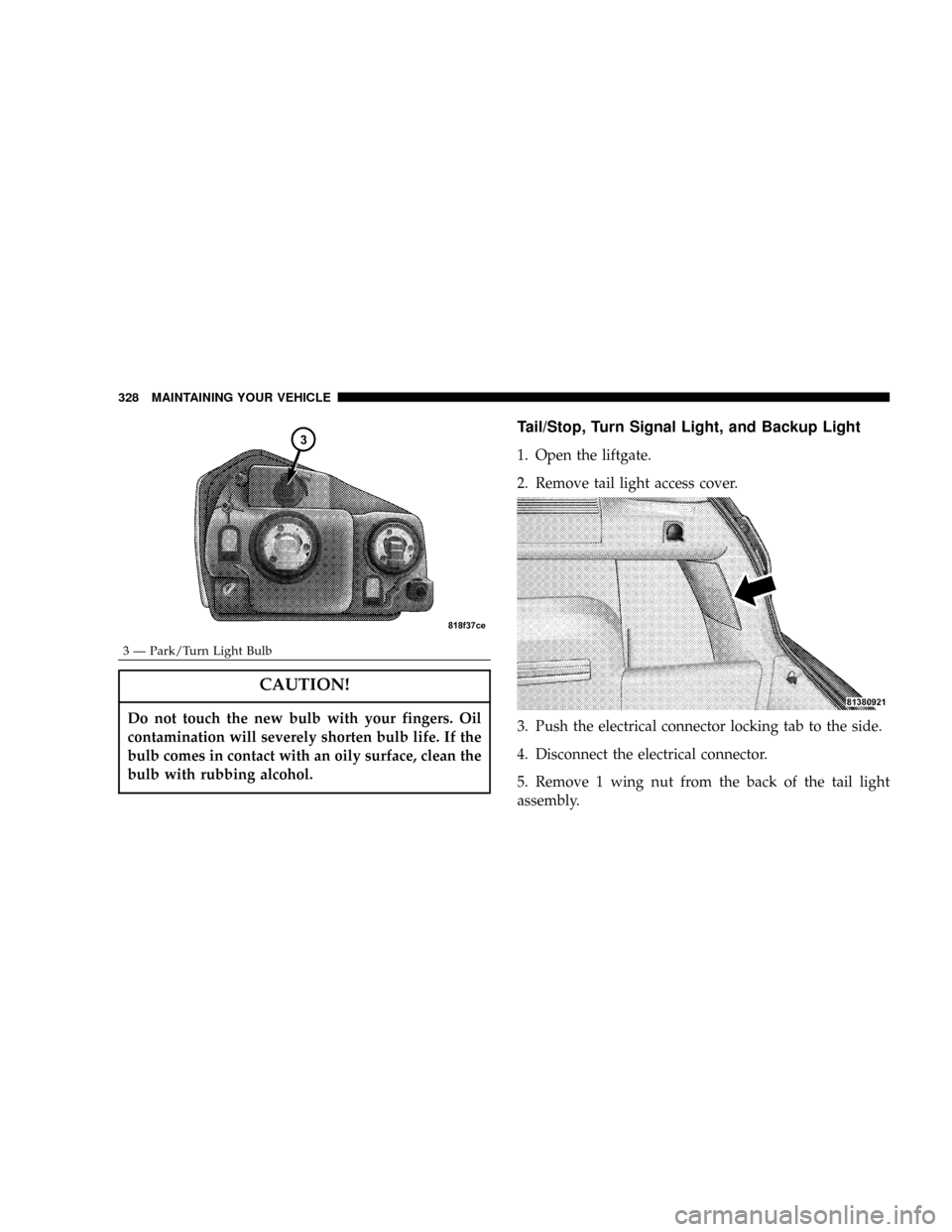

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
Tail/Stop, Turn Signal Light, and Backup Light
1. Open the liftgate.
2. Remove tail light access cover.
3. Push the electrical connector locking tab to the side.
4. Disconnect the electrical connector.
5. Remove 1 wing nut from the back of the tail light
assembly.
3 Ð Park/Turn Light Bulb
328 MAINTAINING YOUR VEHICLE

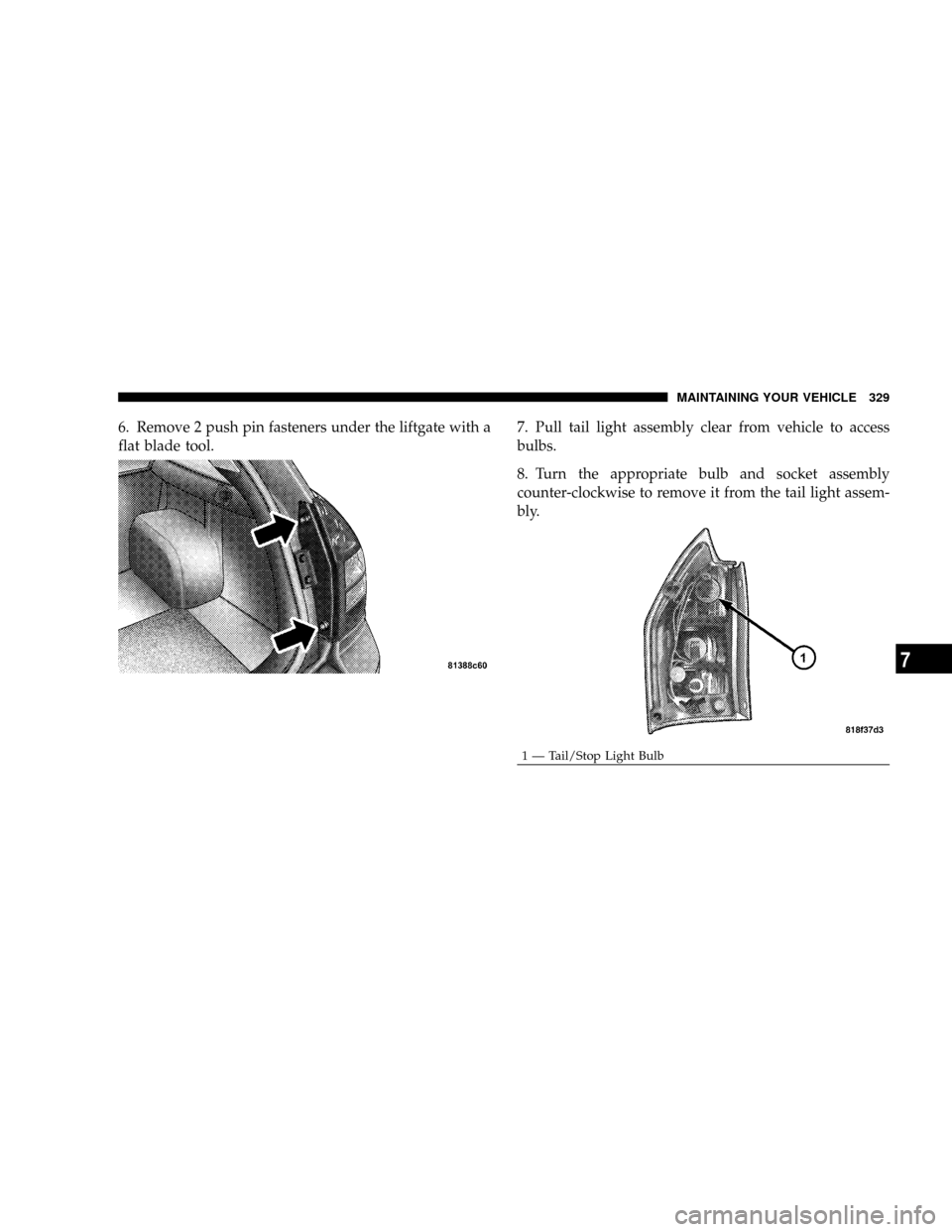

6. Remove 2 push pin fasteners under the liftgate with a
flat blade tool.7. Pull tail light assembly clear from vehicle to access
bulbs.
8. Turn the appropriate bulb and socket assembly
counter-clockwise to remove it from the tail light assem-
bly.
1 Ð Tail/Stop Light BulbMAINTAINING YOUR VEHICLE 329
