(c) Tighten the collar-to-transaxle bolts to 108
N´m (80 ft. lbs.) torque.
(d) Final torque the collar-to-oil pan bolts to 54
N´m (40 ft. lbs.) torque.
(11) Install both front axle driveshafts. Refer to
Group 3, Differential and Driveline for the correct
procedures.
(12) Connect vehicle speed sensor connector (Fig.
50).
(13) Install right lateral bending brace and tighten
bolts to 81 N´m (60 ft. lbs.) torque.
(14) Lower vehicle.
(15) Connect transaxle cooler lines and tighten
clamps (Fig. 46).
(16) Connect torque converter clutch solenoid and
neutral safety/back-up lamp switch connectors.
(17) Install transaxle dipstick tube.
(18) Install gear shift cable to bracket and connect
to shift lever (Fig. 47).
(19) Install transaxle kickdown cable to bracket
and lever as shown in (Fig. 48).
(20) Install battery lower tray and battery, and
tighten battery hold down clamp to secure battery.
(21) Install the air cleaner/throttle body assy. as
follows:
(a) Connect the accelerator, transaxle kickdown,
and speed control (if equipped) cables to the air
cleaner/throttle body assy.
(b) Install assy into position and tighten fasten-
ers to 14 N´m (120 in. lbs.) torque.
(c) Connect the Throttle Position Sensor (TPS)
and Idle Air Control (IAC) connectors.
(d) Connect proportional purge solenoid (PPS)
and crankcase vent hose from throttle body.
(22) Fill transaxle with a suitable amount of
ATF+4.
(23) Road test vehicle.
(24) Check for leaks, inspect fluid level, and adjust
as necessary.
PUMP OIL SEAL
The pump oil seal can be replaced without remov-
ing the pump and reaction shaft support assembly
from the transaxle case.
REMOVAL
(1) Screw seal remover Tool C-3981-B into seal
(Fig. 56), then tighten screw portion of tool to with-
draw the seal.
INSTALLATION
(1) To install a new seal, place seal in opening of
the pump housing (lip side facing inward). Using Tool
C-4193 and Handle Tool C-4171, drive new seal into
housing until tool bottoms (Fig. 57).
Fig. 56 Remove Pump Oil Seal
1 ± PUMP OIL SEAL
2 ± OIL SEAL REMOVER TOOL C-3981-B
3 ± OIL PUMP
Fig. 57 Install Pump Oil Seal
1 ± OIL PUMP
2 ± OIL SEAL INSTALLER TOOL C-4193
3 ± SPECIAL TOOL HANDLE C-4171
21 - 88 TRANSAXLEPL
REMOVAL AND INSTALLATION (Continued)

DISASSEMBLY AND ASSEMBLY
TRANSAXLE
DISASSEMBLY

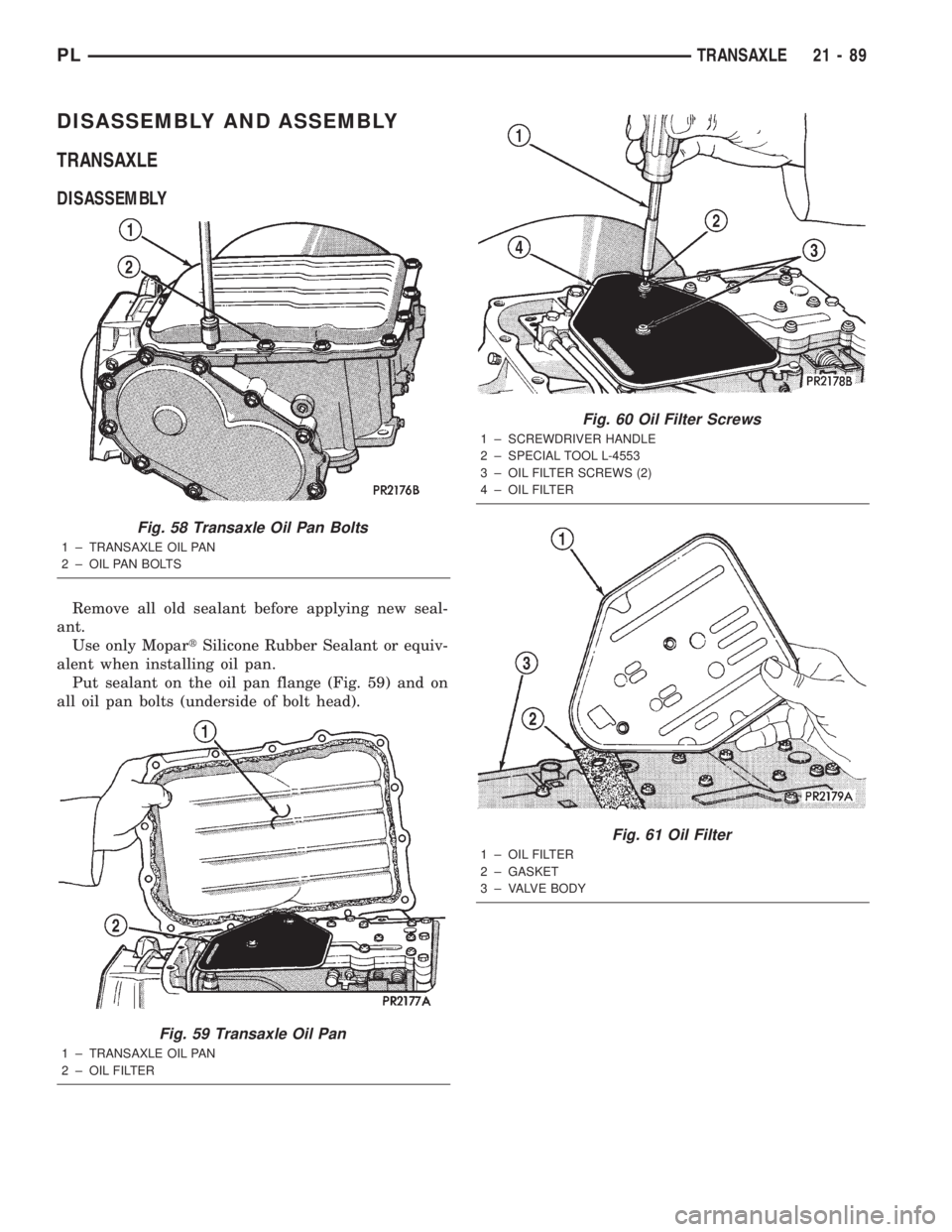

Remove all old sealant before applying new seal-
ant.
Use only MopartSilicone Rubber Sealant or equiv-
alent when installing oil pan.
Put sealant on the oil pan flange (Fig. 59) and on
all oil pan bolts (underside of bolt head).
Fig. 58 Transaxle Oil Pan Bolts
1 ± TRANSAXLE OIL PAN
2 ± OIL PAN BOLTS
Fig. 59 Transaxle Oil Pan
1 ± TRANSAXLE OIL PAN
2 ± OIL FILTER
Fig. 60 Oil Filter Screws
1 ± SCREWDRIVER HANDLE
2 ± SPECIAL TOOL L-4553
3 ± OIL FILTER SCREWS (2)
4 ± OIL FILTER
Fig. 61 Oil Filter
1 ± OIL FILTER
2 ± GASKET
3 ± VALVE BODY
PLTRANSAXLE 21 - 89

Remove neutral starting and back-up lamp switch.
Measuring input shaft end play before disassembly
will usually indicate if a thrust washer change is
required (Fig. 66). The #3 thrust washer is located
between input and output shafts.
Move input shaft in and out to obtain end play
reading. End play specifications are 0.19 to 1.50 mm
(0.008 to 0.060 inch).
Record indicator reading for reference when reas-
sembling the transaxle.
Remove Number 6 thrust washer from sun
gear driving shell.

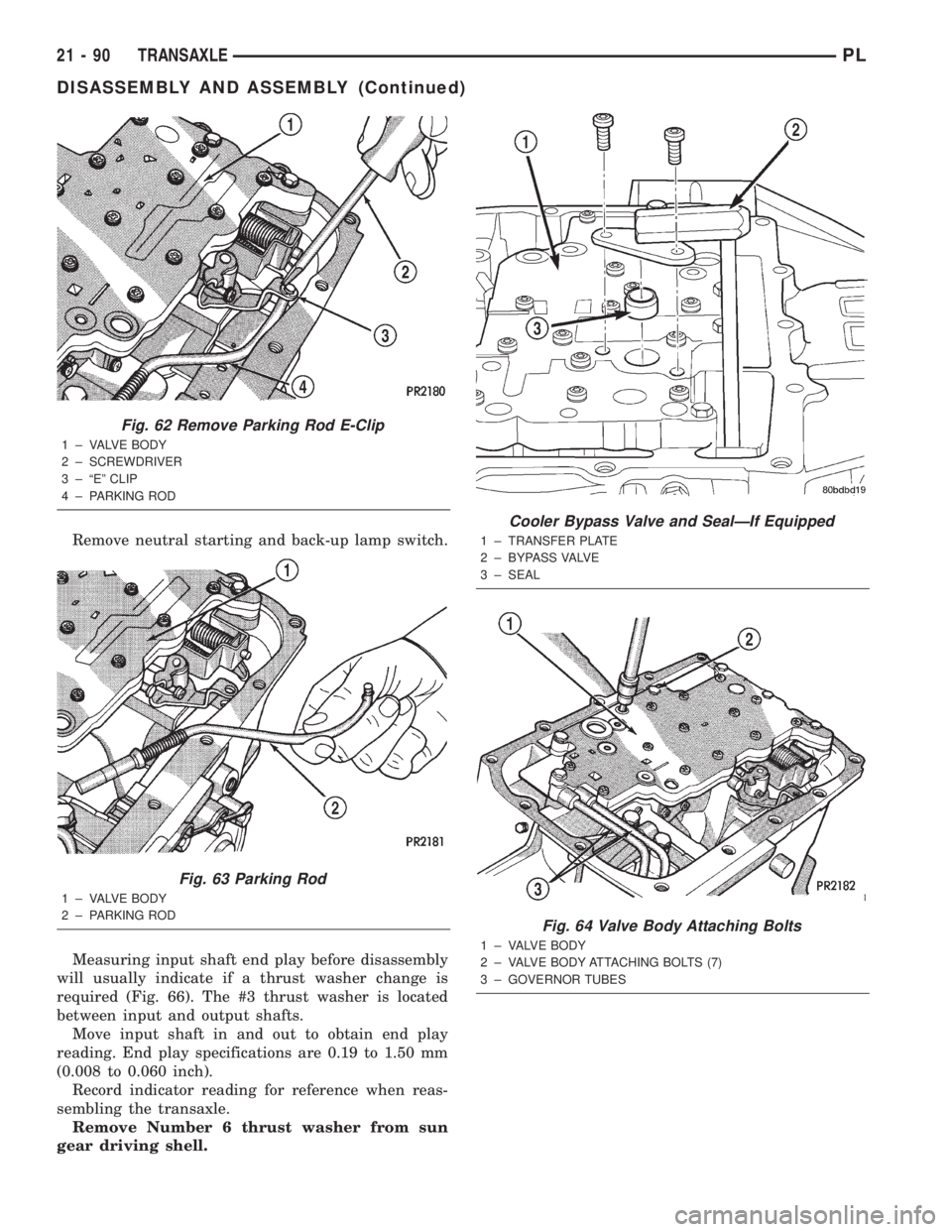

Fig. 62 Remove Parking Rod E-Clip
1 ± VALVE BODY
2 ± SCREWDRIVER
3 ± ªEº CLIP
4 ± PARKING ROD
Fig. 63 Parking Rod
1 ± VALVE BODY
2 ± PARKING ROD
Cooler Bypass Valve and SealÐIf Equipped
1 ± TRANSFER PLATE
2 ± BYPASS VALVE
3 ± SEAL
Fig. 64 Valve Body Attaching Bolts
1 ± VALVE BODY
2 ± VALVE BODY ATTACHING BOLTS (7)
3 ± GOVERNOR TUBES
21 - 90 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

ASSEMBLY
When rebuilding, reverse the above procedure.
VALVE BODY
NOTE: Tighten all valve body screws to 5 N´m (40
in. lbs.)CAUTION: Do not clamp any portion of valve body
or transfer plate in a vise. Any slight distortion of
the aluminum body or transfer plate will result in
sticking valves, excessive leakage, or both. When
removing or installing valves or plugs, slide them in
or out carefully. Do not use force.
NOTE: TAG ALL SPRINGS AS THEY ARE
REMOVED FOR REASSEMBLY IDENTIFICATION.

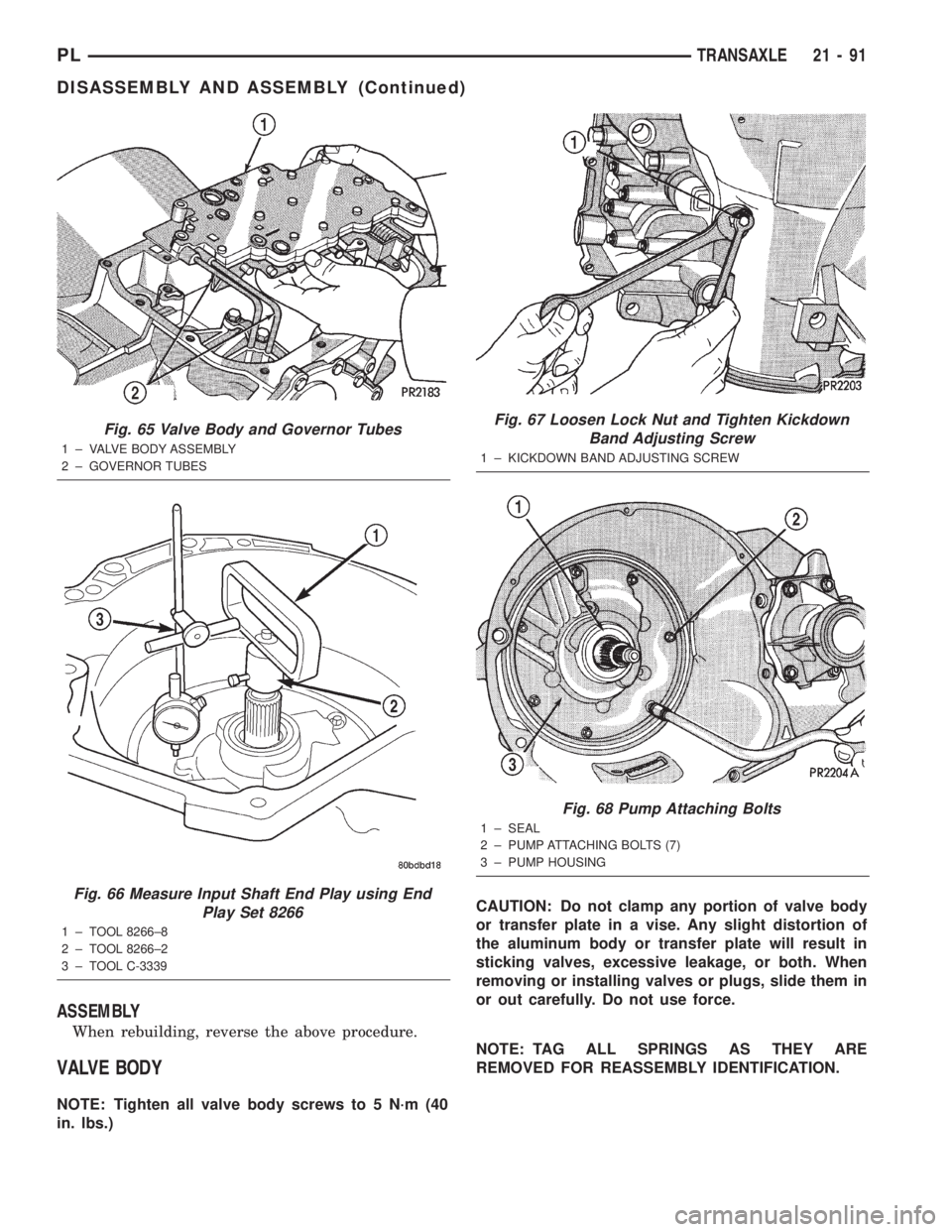

Fig. 65 Valve Body and Governor Tubes
1 ± VALVE BODY ASSEMBLY
2 ± GOVERNOR TUBES
Fig. 66 Measure Input Shaft End Play using End
Play Set 8266
1 ± TOOL 8266±8
2 ± TOOL 8266±2
3 ± TOOL C-3339
Fig. 67 Loosen Lock Nut and Tighten Kickdown
Band Adjusting Screw
1 ± KICKDOWN BAND ADJUSTING SCREW
Fig. 68 Pump Attaching Bolts
1 ± SEAL
2 ± PUMP ATTACHING BOLTS (7)
3 ± PUMP HOUSING
PLTRANSAXLE 21 - 91
DISASSEMBLY AND ASSEMBLY (Continued)

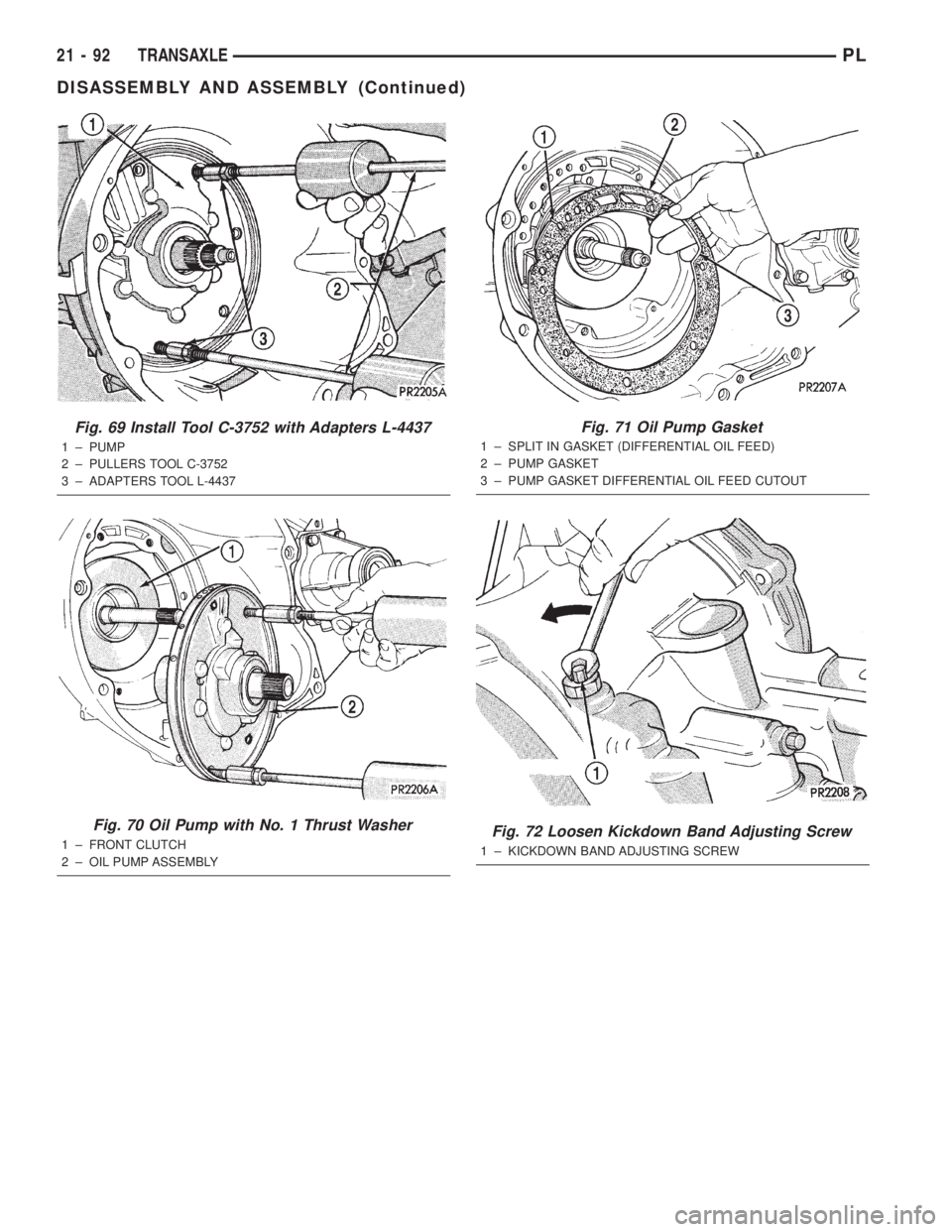

Fig. 69 Install Tool C-3752 with Adapters L-4437
1 ± PUMP
2 ± PULLERS TOOL C-3752
3 ± ADAPTERS TOOL L-4437
Fig. 70 Oil Pump with No. 1 Thrust Washer
1 ± FRONT CLUTCH
2 ± OIL PUMP ASSEMBLY
Fig. 71 Oil Pump Gasket
1 ± SPLIT IN GASKET (DIFFERENTIAL OIL FEED)
2 ± PUMP GASKET
3 ± PUMP GASKET DIFFERENTIAL OIL FEED CUTOUT

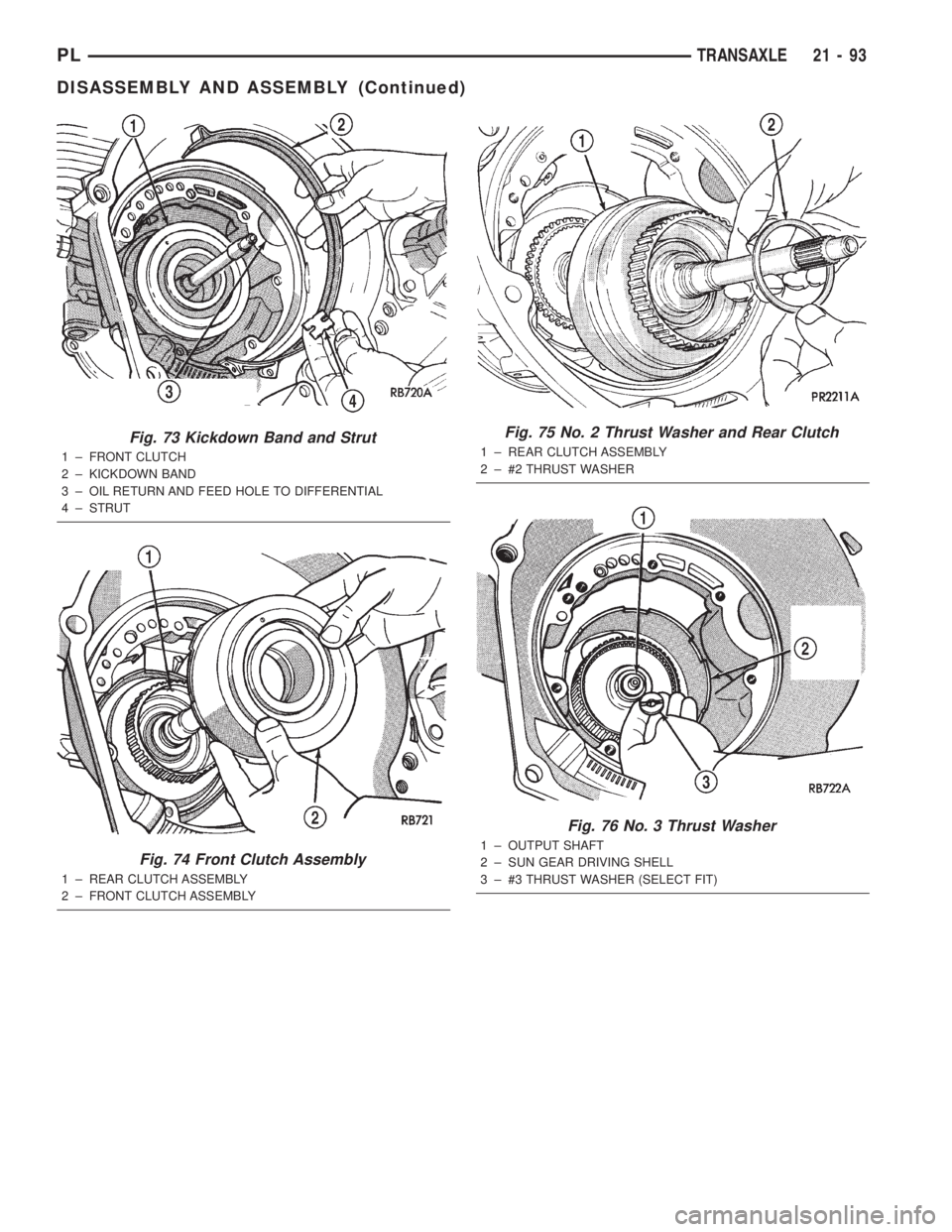

Fig. 72 Loosen Kickdown Band Adjusting Screw
1 ± KICKDOWN BAND ADJUSTING SCREW
21 - 92 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

Fig. 73 Kickdown Band and Strut
1 ± FRONT CLUTCH
2 ± KICKDOWN BAND
3 ± OIL RETURN AND FEED HOLE TO DIFFERENTIAL
4 ± STRUT
Fig. 74 Front Clutch Assembly
1 ± REAR CLUTCH ASSEMBLY
2 ± FRONT CLUTCH ASSEMBLY
Fig. 75 No. 2 Thrust Washer and Rear Clutch
1 ± REAR CLUTCH ASSEMBLY
2 ± #2 THRUST WASHER
Fig. 76 No. 3 Thrust Washer
1 ± OUTPUT SHAFT
2 ± SUN GEAR DRIVING SHELL
3 ± #3 THRUST WASHER (SELECT FIT)
PLTRANSAXLE 21 - 93
DISASSEMBLY AND ASSEMBLY (Continued)

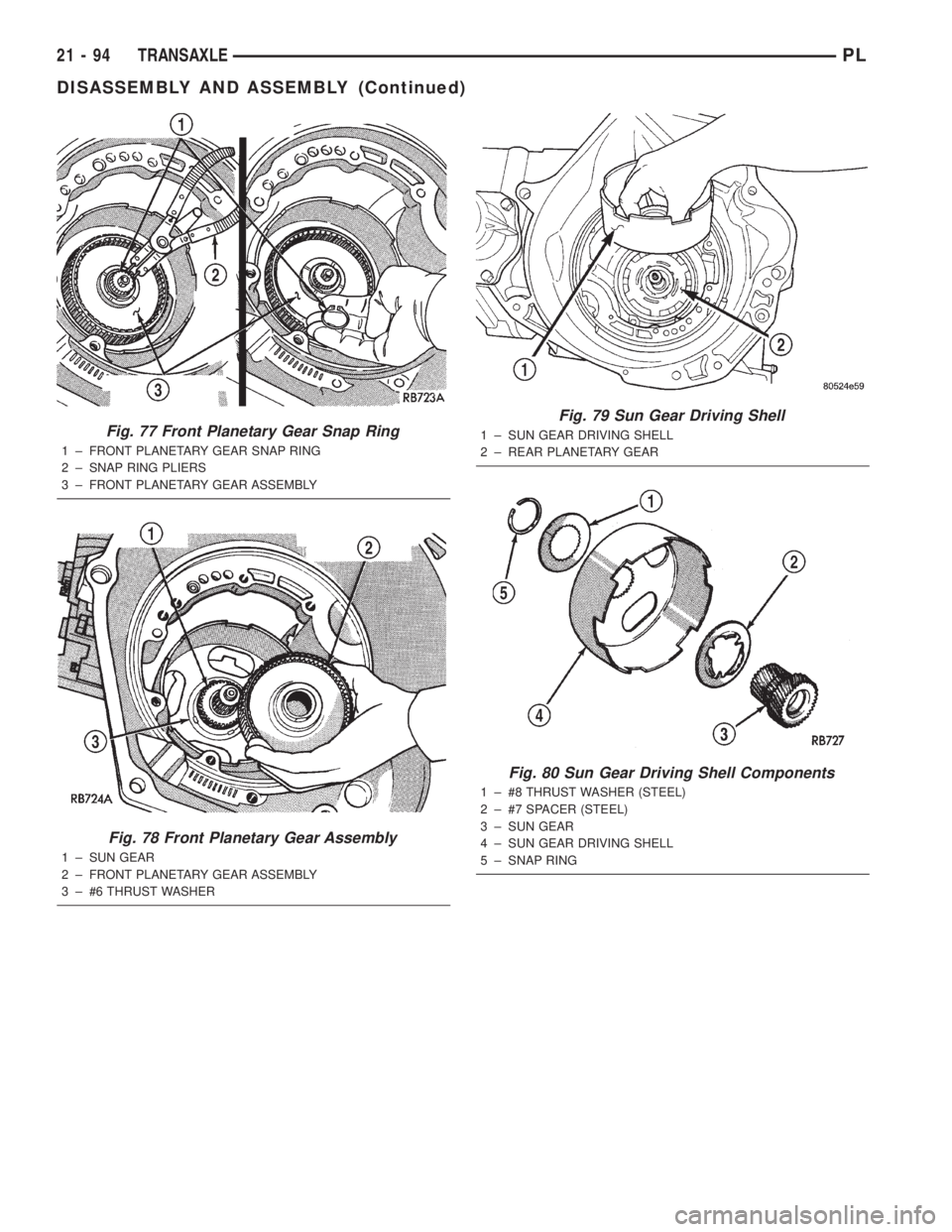

Fig. 77 Front Planetary Gear Snap Ring
1 ± FRONT PLANETARY GEAR SNAP RING
2 ± SNAP RING PLIERS
3 ± FRONT PLANETARY GEAR ASSEMBLY
Fig. 78 Front Planetary Gear Assembly
1 ± SUN GEAR
2 ± FRONT PLANETARY GEAR ASSEMBLY
3 ± #6 THRUST WASHER
Fig. 79 Sun Gear Driving Shell
1 ± SUN GEAR DRIVING SHELL
2 ± REAR PLANETARY GEAR
Fig. 80 Sun Gear Driving Shell Components
1 ± #8 THRUST WASHER (STEEL)
2 ± #7 SPACER (STEEL)
3 ± SUN GEAR
4 ± SUN GEAR DRIVING SHELL
5 ± SNAP RING
21 - 94 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

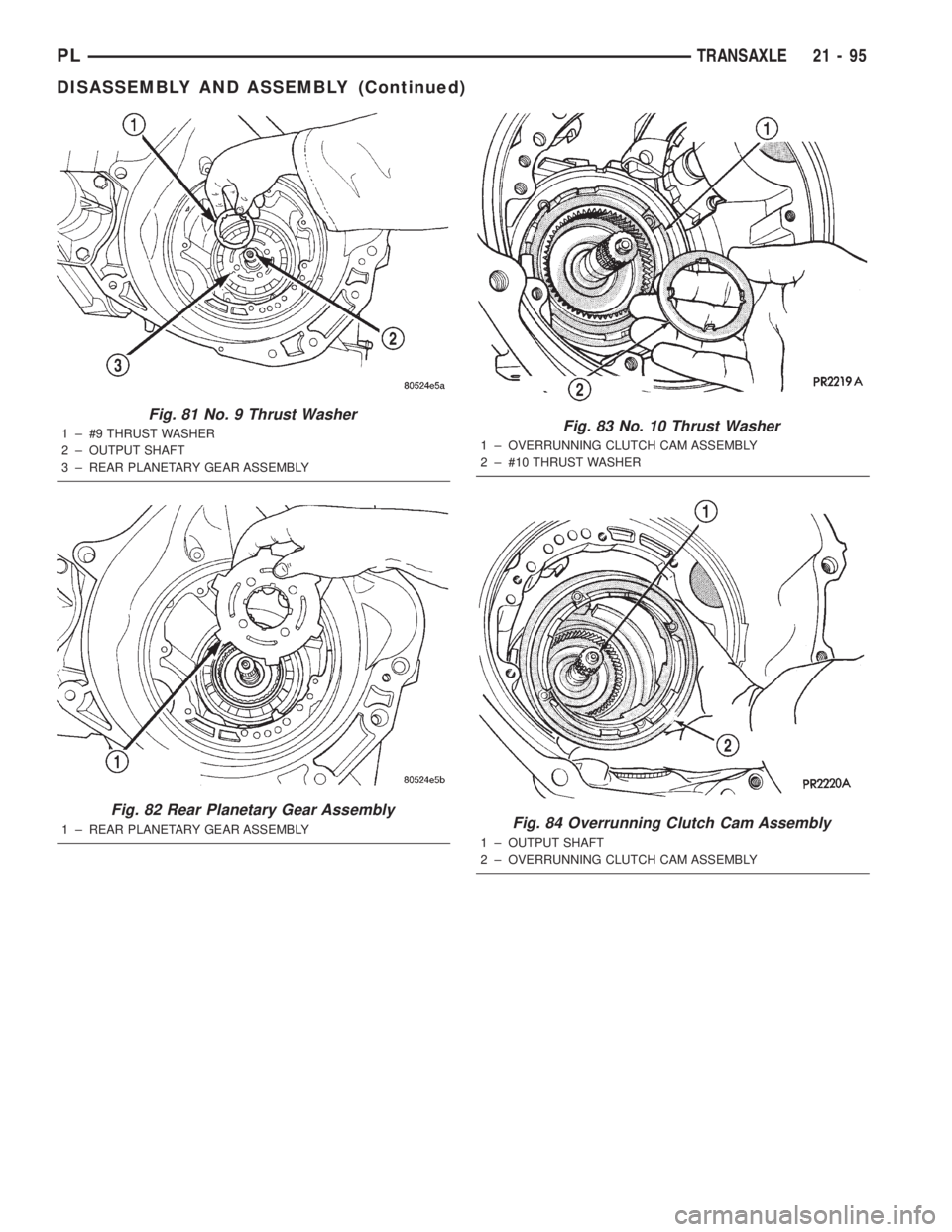

Fig. 81 No. 9 Thrust Washer
1 ± #9 THRUST WASHER
2 ± OUTPUT SHAFT
3 ± REAR PLANETARY GEAR ASSEMBLY
Fig. 82 Rear Planetary Gear Assembly
1 ± REAR PLANETARY GEAR ASSEMBLY
Fig. 83 No. 10 Thrust Washer
1 ± OVERRUNNING CLUTCH CAM ASSEMBLY
2 ± #10 THRUST WASHER
Fig. 84 Overrunning Clutch Cam Assembly
1 ± OUTPUT SHAFT
2 ± OVERRUNNING CLUTCH CAM ASSEMBLY
PLTRANSAXLE 21 - 95
DISASSEMBLY AND ASSEMBLY (Continued)

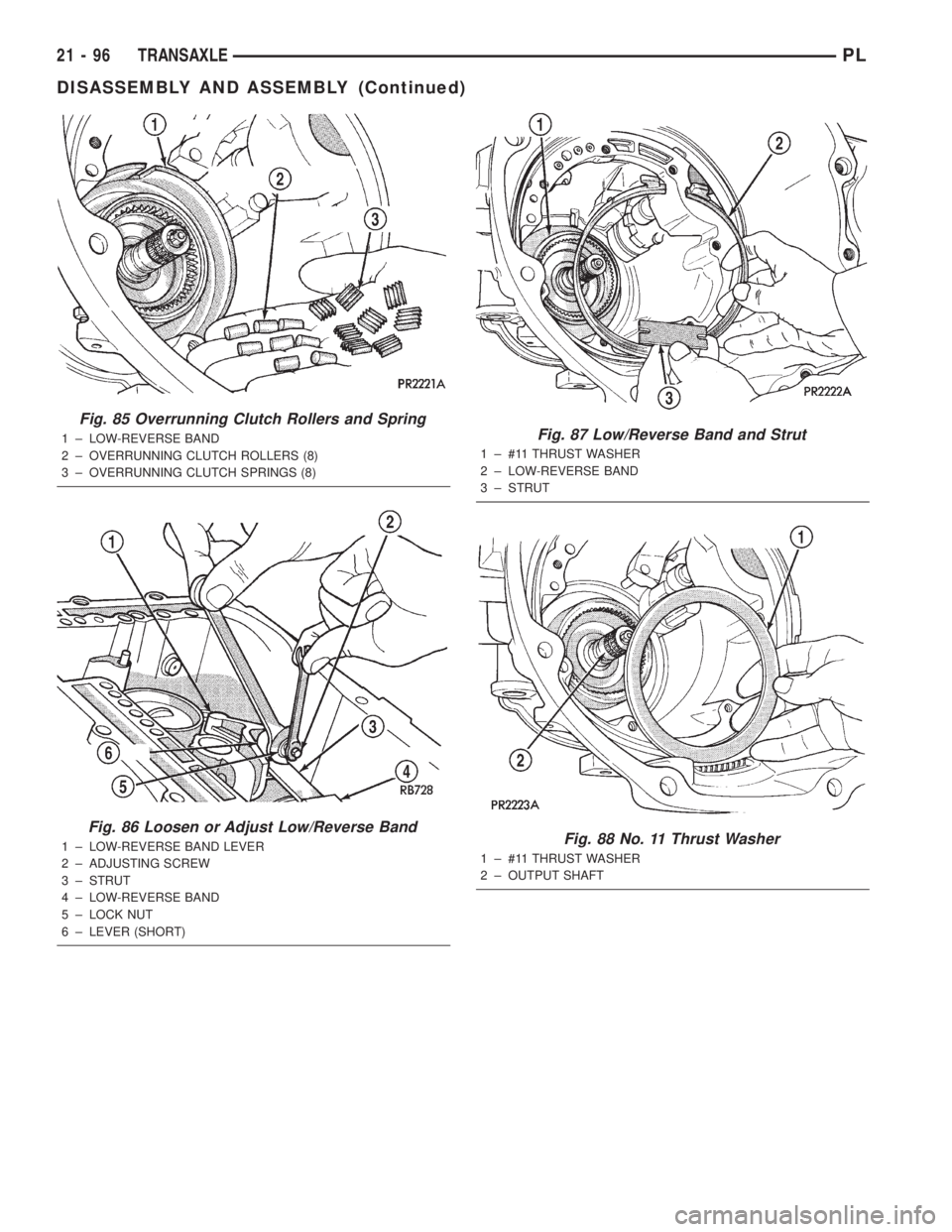

Fig. 85 Overrunning Clutch Rollers and Spring
1 ± LOW-REVERSE BAND
2 ± OVERRUNNING CLUTCH ROLLERS (8)
3 ± OVERRUNNING CLUTCH SPRINGS (8)
Fig. 86 Loosen or Adjust Low/Reverse Band
1 ± LOW-REVERSE BAND LEVER
2 ± ADJUSTING SCREW
3 ± STRUT
4 ± LOW-REVERSE BAND
5 ± LOCK NUT
6 ± LEVER (SHORT)
Fig. 87 Low/Reverse Band and Strut
1 ± #11 THRUST WASHER
2 ± LOW-REVERSE BAND
3 ± STRUT
Fig. 88 No. 11 Thrust Washer
1 ± #11 THRUST WASHER
2 ± OUTPUT SHAFT
21 - 96 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

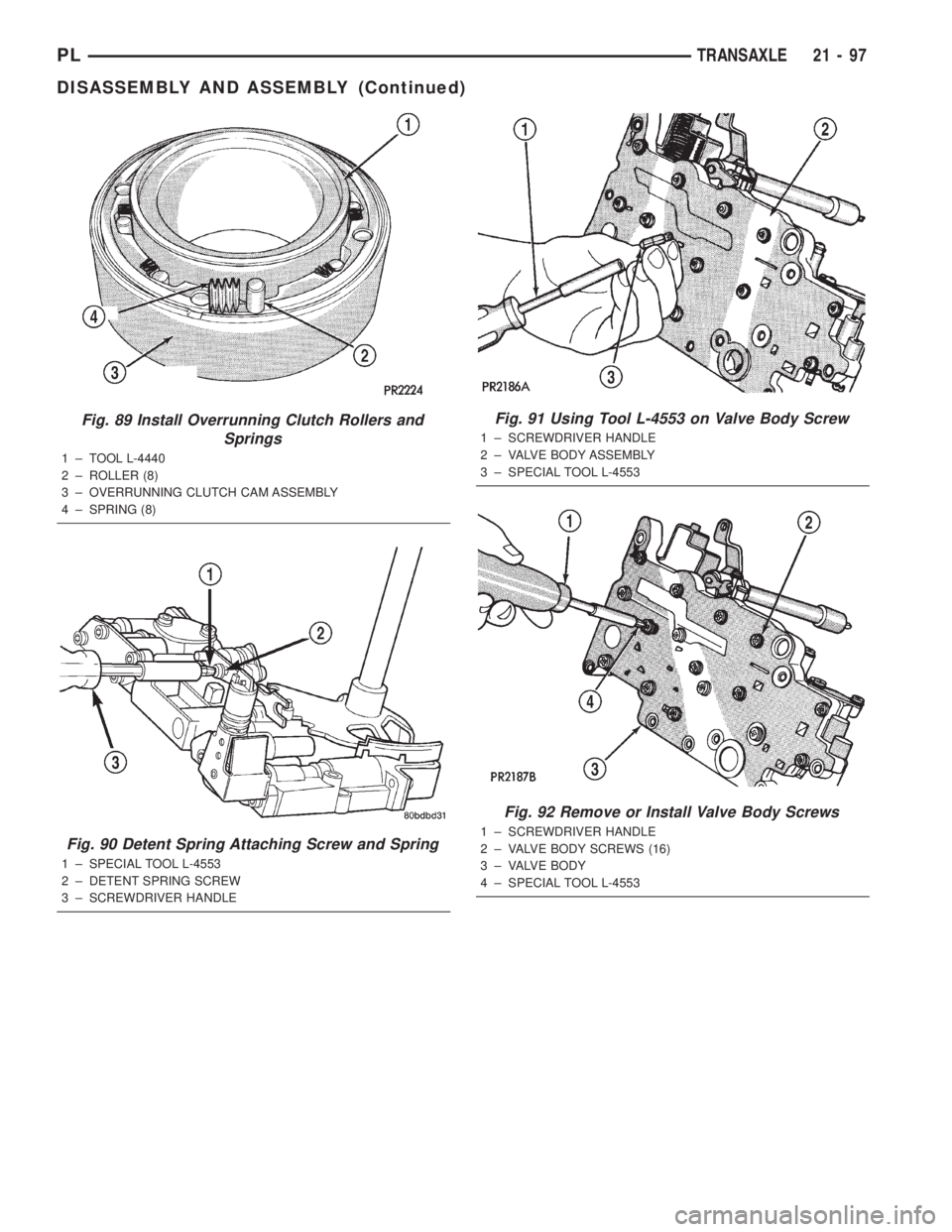

Fig. 89 Install Overrunning Clutch Rollers and
Springs
1 ± TOOL L-4440
2 ± ROLLER (8)
3 ± OVERRUNNING CLUTCH CAM ASSEMBLY
4 ± SPRING (8)
Fig. 90 Detent Spring Attaching Screw and Spring
1 ± SPECIAL TOOL L-4553
2 ± DETENT SPRING SCREW
3 ± SCREWDRIVER HANDLE
Fig. 91 Using Tool L-4553 on Valve Body Screw
1 ± SCREWDRIVER HANDLE
2 ± VALVE BODY ASSEMBLY
3 ± SPECIAL TOOL L-4553
Fig. 92 Remove or Install Valve Body Screws
1 ± SCREWDRIVER HANDLE
2 ± VALVE BODY SCREWS (16)
3 ± VALVE BODY
4 ± SPECIAL TOOL L-4553
PLTRANSAXLE 21 - 97
DISASSEMBLY AND ASSEMBLY (Continued)
