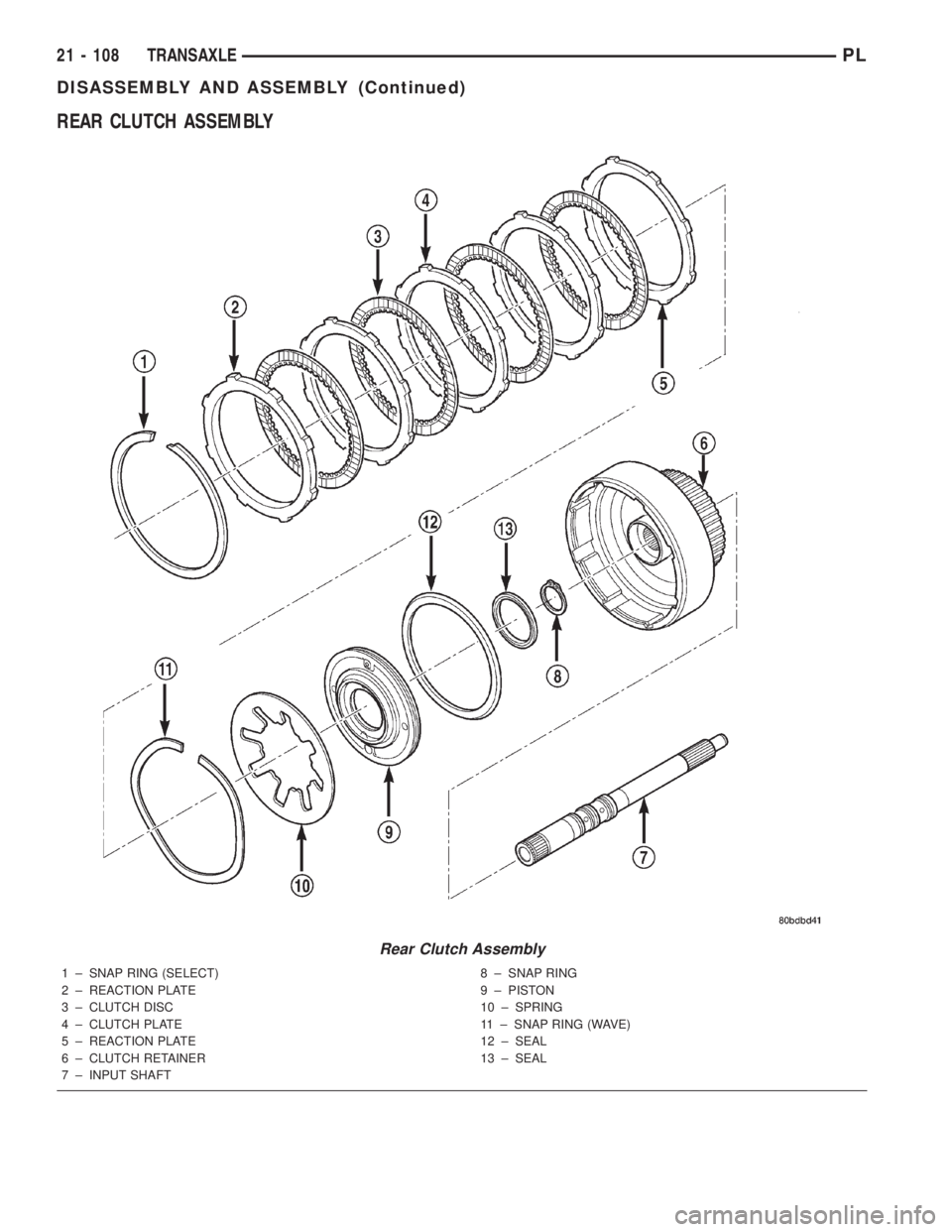

REAR CLUTCH ASSEMBLY
Rear Clutch Assembly
1 ± SNAP RING (SELECT)
2 ± REACTION PLATE
3 ± CLUTCH DISC
4 ± CLUTCH PLATE
5 ± REACTION PLATE
6 ± CLUTCH RETAINER
7 ± INPUT SHAFT8 ± SNAP RING
9 ± PISTON
10 ± SPRING
11 ± SNAP RING (WAVE)
12 ± SEAL
13 ± SEAL
21 - 108 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

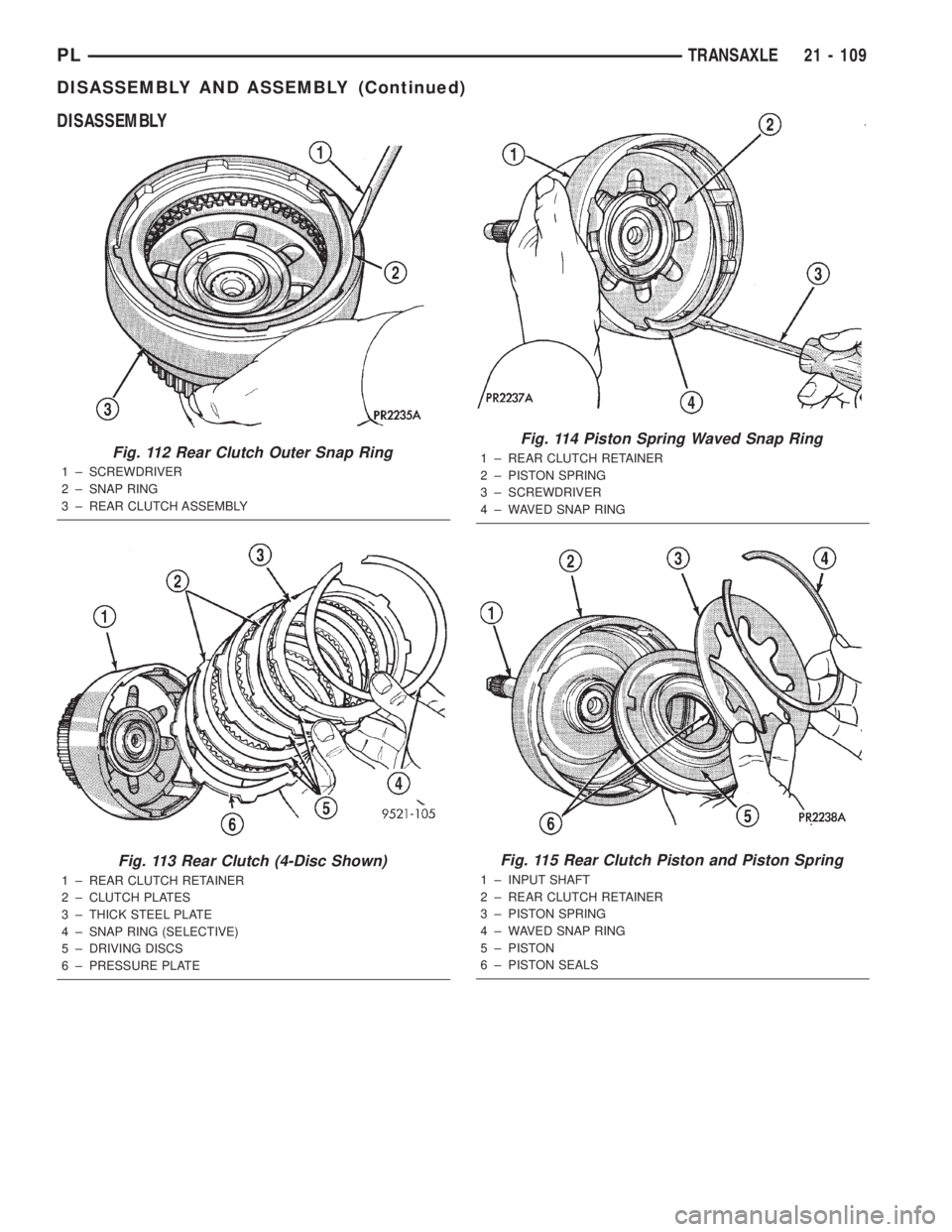

DISASSEMBLY
Fig. 112 Rear Clutch Outer Snap Ring
1 ± SCREWDRIVER
2 ± SNAP RING
3 ± REAR CLUTCH ASSEMBLY
Fig. 113 Rear Clutch (4-Disc Shown)
1 ± REAR CLUTCH RETAINER
2 ± CLUTCH PLATES
3 ± THICK STEEL PLATE
4 ± SNAP RING (SELECTIVE)
5 ± DRIVING DISCS
6 ± PRESSURE PLATE
Fig. 114 Piston Spring Waved Snap Ring
1 ± REAR CLUTCH RETAINER
2 ± PISTON SPRING
3 ± SCREWDRIVER
4 ± WAVED SNAP RING
Fig. 115 Rear Clutch Piston and Piston Spring
1 ± INPUT SHAFT
2 ± REAR CLUTCH RETAINER
3 ± PISTON SPRING
4 ± WAVED SNAP RING
5 ± PISTON
6 ± PISTON SEALS
PLTRANSAXLE 21 - 109
DISASSEMBLY AND ASSEMBLY (Continued)

Press out input shaft, if required.
ASSEMBLY
To reassemble, reverse the above procedure.
MEASURING PLATE CLEARANCE
FRONT PLANETARY AND ANNULUS
GEAR-RECONDITION

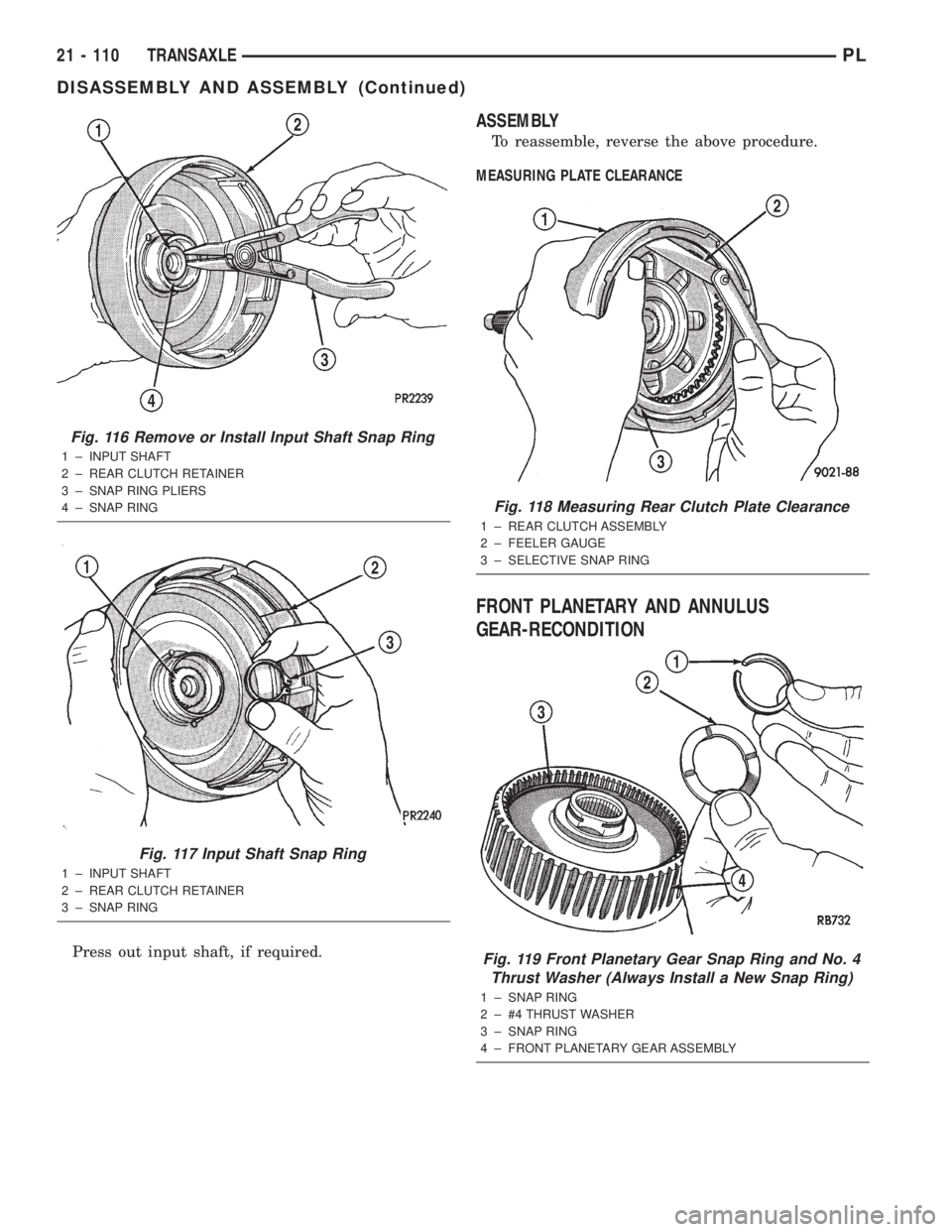

Fig. 116 Remove or Install Input Shaft Snap Ring
1 ± INPUT SHAFT
2 ± REAR CLUTCH RETAINER
3 ± SNAP RING PLIERS
4 ± SNAP RING
Fig. 117 Input Shaft Snap Ring
1 ± INPUT SHAFT
2 ± REAR CLUTCH RETAINER
3 ± SNAP RING
Fig. 118 Measuring Rear Clutch Plate Clearance
1 ± REAR CLUTCH ASSEMBLY
2 ± FEELER GAUGE
3 ± SELECTIVE SNAP RING
Fig. 119 Front Planetary Gear Snap Ring and No. 4
Thrust Washer (Always Install a New Snap Ring)
1 ± SNAP RING
2 ± #4 THRUST WASHER
3 ± SNAP RING
4 ± FRONT PLANETARY GEAR ASSEMBLY
21 - 110 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

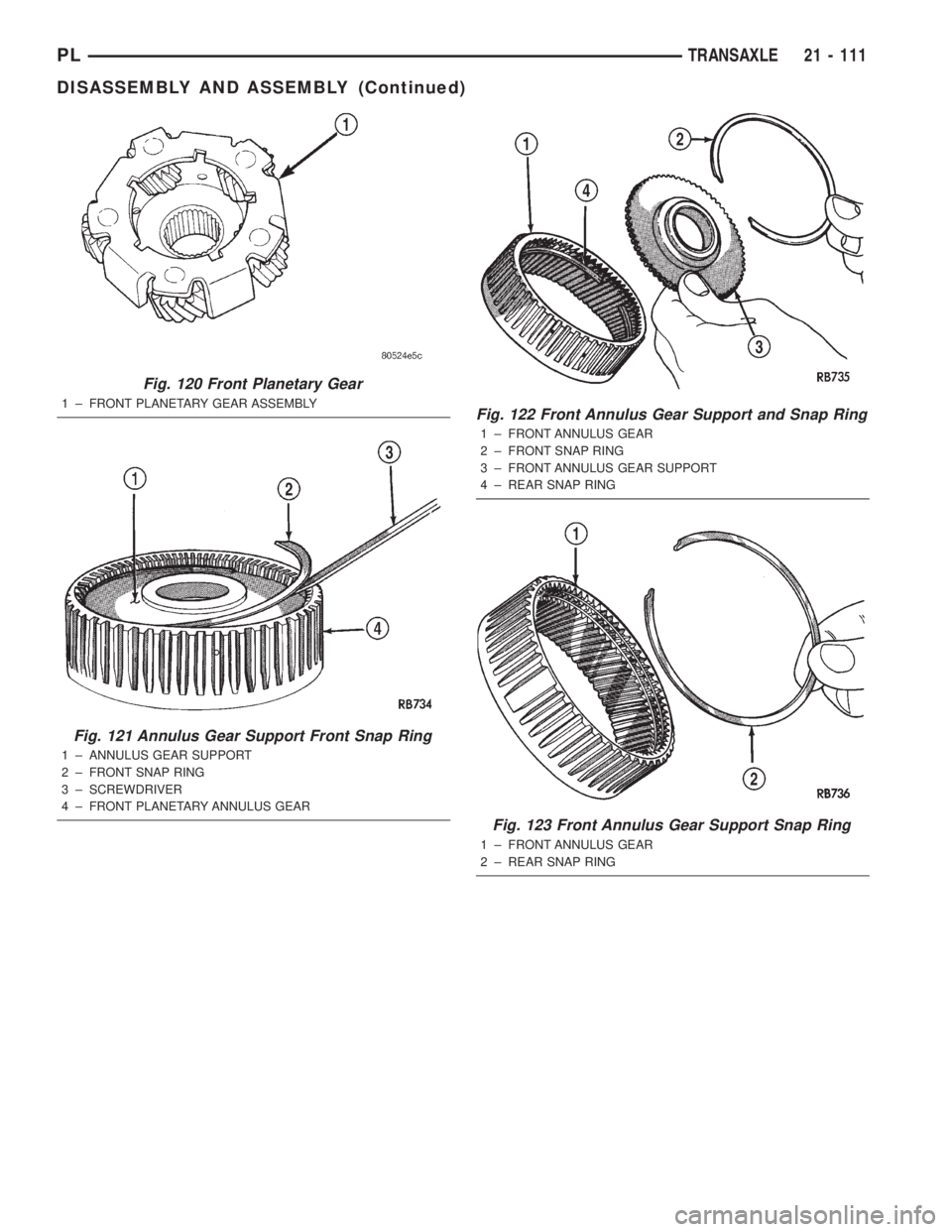

Fig. 120 Front Planetary Gear
1 ± FRONT PLANETARY GEAR ASSEMBLY
Fig. 121 Annulus Gear Support Front Snap Ring
1 ± ANNULUS GEAR SUPPORT
2 ± FRONT SNAP RING
3 ± SCREWDRIVER
4 ± FRONT PLANETARY ANNULUS GEAR
Fig. 122 Front Annulus Gear Support and Snap Ring
1 ± FRONT ANNULUS GEAR
2 ± FRONT SNAP RING
3 ± FRONT ANNULUS GEAR SUPPORT
4 ± REAR SNAP RING
Fig. 123 Front Annulus Gear Support Snap Ring
1 ± FRONT ANNULUS GEAR
2 ± REAR SNAP RING
PLTRANSAXLE 21 - 111
DISASSEMBLY AND ASSEMBLY (Continued)

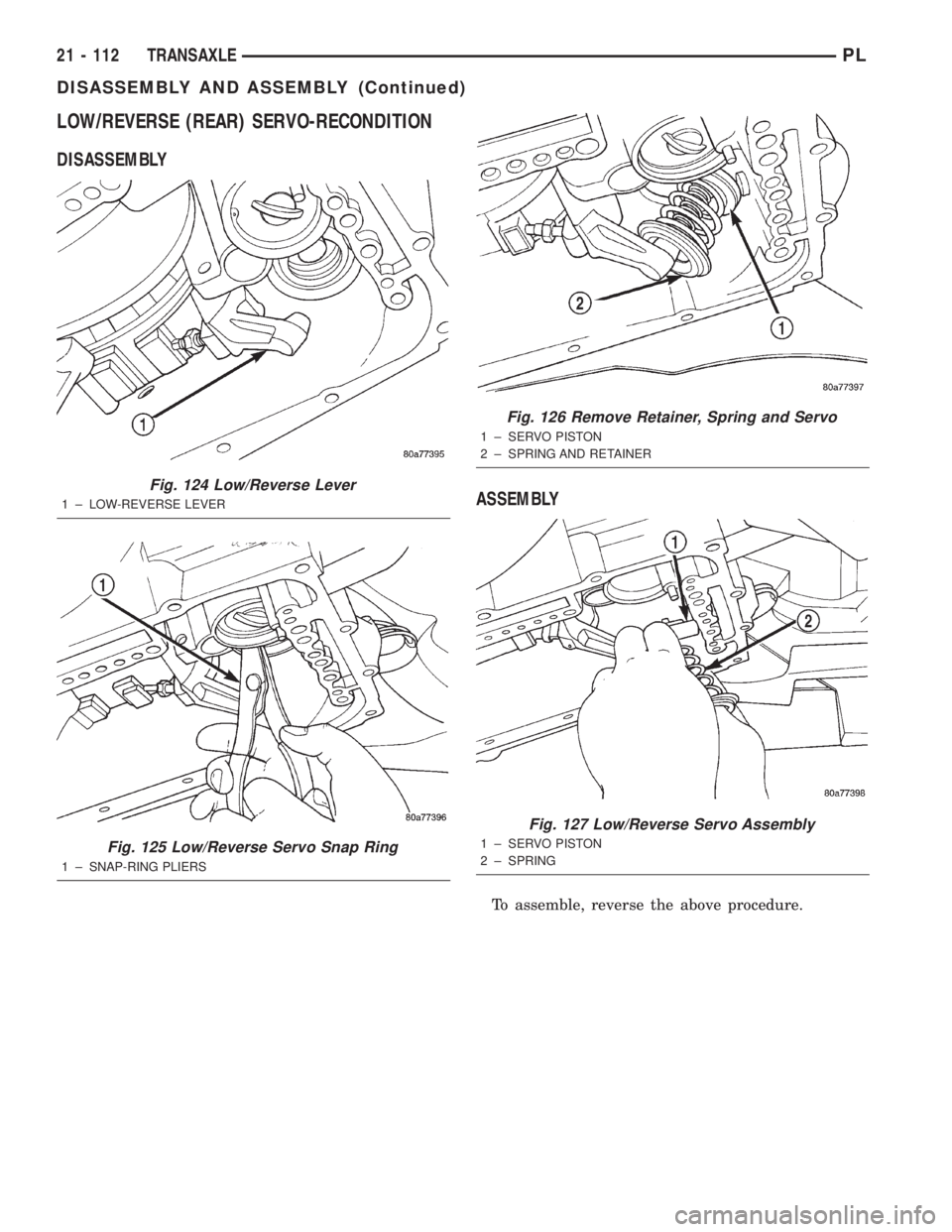

LOW/REVERSE (REAR) SERVO-RECONDITION
DISASSEMBLY
ASSEMBLY
To assemble, reverse the above procedure.
Fig. 124 Low/Reverse Lever
1 ± LOW-REVERSE LEVER
Fig. 125 Low/Reverse Servo Snap Ring
1 ± SNAP-RING PLIERS
Fig. 126 Remove Retainer, Spring and Servo
1 ± SERVO PISTON
2 ± SPRING AND RETAINER
Fig. 127 Low/Reverse Servo Assembly
1 ± SERVO PISTON
2 ± SPRING
21 - 112 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

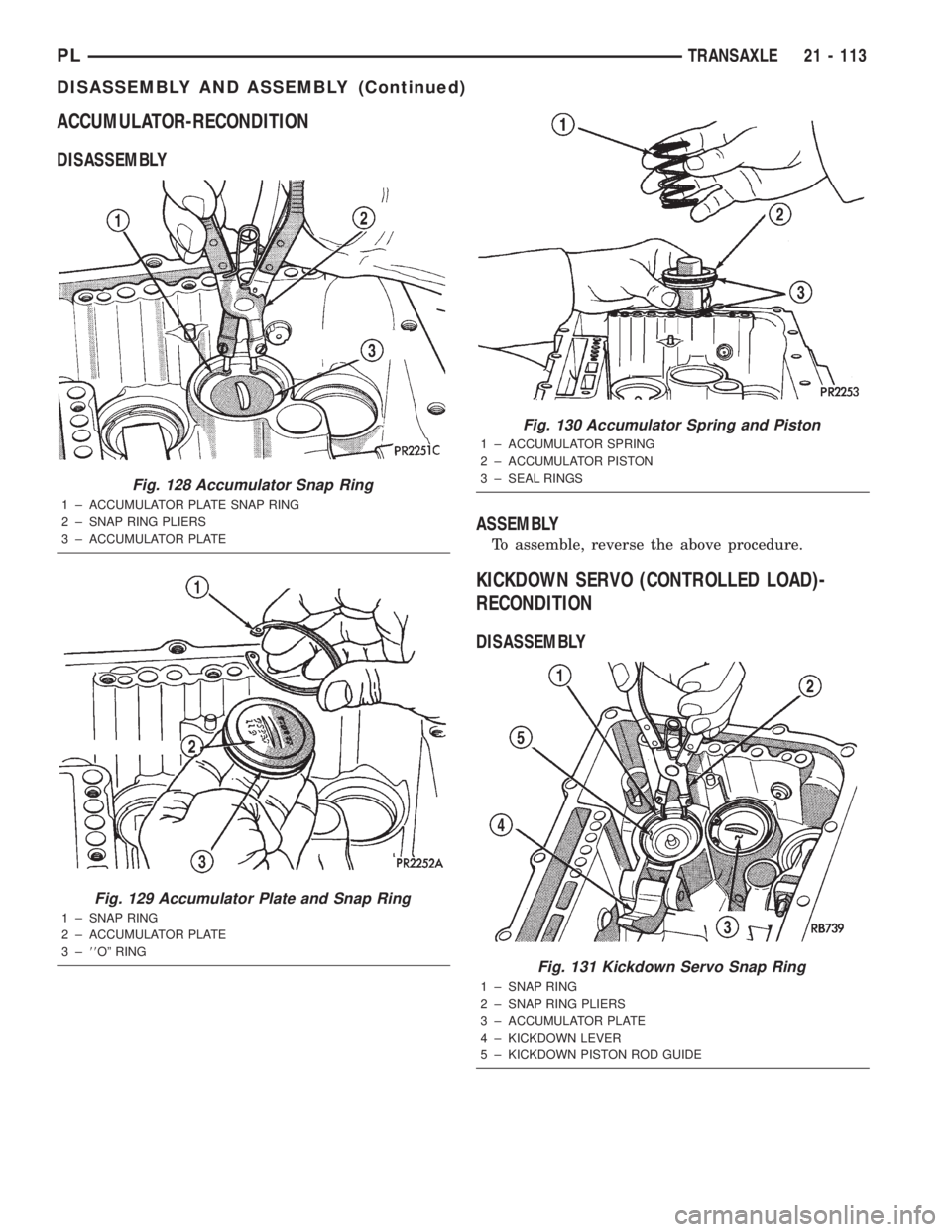

ACCUMULATOR-RECONDITION
DISASSEMBLY
ASSEMBLY
To assemble, reverse the above procedure.
KICKDOWN SERVO (CONTROLLED LOAD)-
RECONDITION
DISASSEMBLY
Fig. 128 Accumulator Snap Ring
1 ± ACCUMULATOR PLATE SNAP RING
2 ± SNAP RING PLIERS
3 ± ACCUMULATOR PLATE
Fig. 129 Accumulator Plate and Snap Ring
1 ± SNAP RING
2 ± ACCUMULATOR PLATE
3±88Oº RING
Fig. 130 Accumulator Spring and Piston
1 ± ACCUMULATOR SPRING
2 ± ACCUMULATOR PISTON
3 ± SEAL RINGS
Fig. 131 Kickdown Servo Snap Ring
1 ± SNAP RING
2 ± SNAP RING PLIERS
3 ± ACCUMULATOR PLATE
4 ± KICKDOWN LEVER
5 ± KICKDOWN PISTON ROD GUIDE
PLTRANSAXLE 21 - 113
DISASSEMBLY AND ASSEMBLY (Continued)

ASSEMBLY
To assemble, reverse the above procedure.
TRANSFER SHAFT REPAIR
DISASSEMBLY

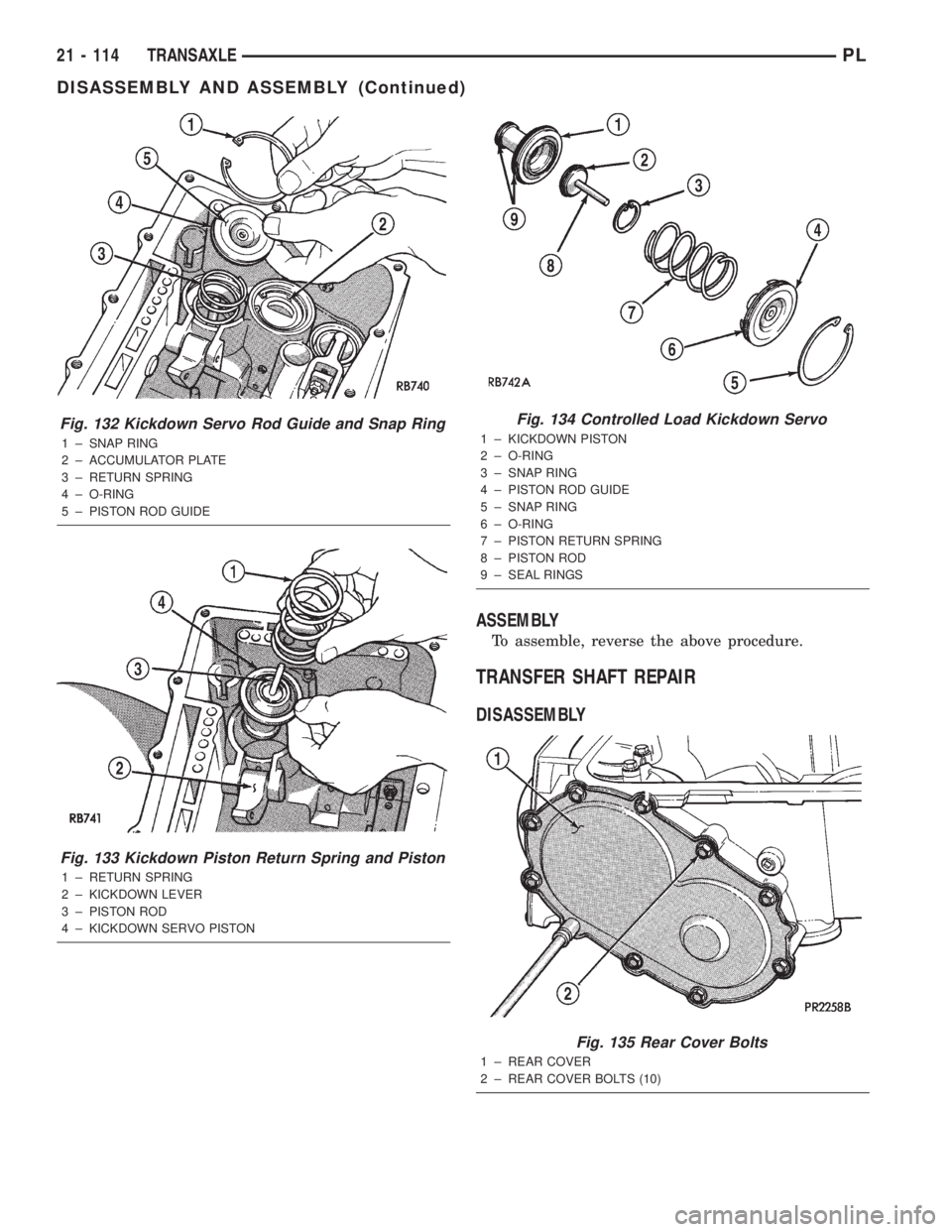

Fig. 132 Kickdown Servo Rod Guide and Snap Ring
1 ± SNAP RING
2 ± ACCUMULATOR PLATE
3 ± RETURN SPRING
4 ± O-RING
5 ± PISTON ROD GUIDE
Fig. 133 Kickdown Piston Return Spring and Piston
1 ± RETURN SPRING
2 ± KICKDOWN LEVER
3 ± PISTON ROD
4 ± KICKDOWN SERVO PISTON
Fig. 134 Controlled Load Kickdown Servo
1 ± KICKDOWN PISTON
2 ± O-RING
3 ± SNAP RING
4 ± PISTON ROD GUIDE
5 ± SNAP RING
6 ± O-RING
7 ± PISTON RETURN SPRING
8 ± PISTON ROD
9 ± SEAL RINGS
Fig. 135 Rear Cover Bolts
1 ± REAR COVER
2 ± REAR COVER BOLTS (10)
21 - 114 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

NOTE: Remove old sealant before applying new
sealant. Use MoparTRTV sealant, or equivalent,
when installing cover.
STIRRUP AND STRAP REMOVAL
NOTE: A stirrup and retaining strap is attached to
the transfer gear. The stirrup prevents the transfer
gear retaining nut from turning and backing off the
transfer shaft. The strap is used to hold the stirrup
to the transfer gear and prevent the stirrup retain-
ing bolts from backing out.
(1) Using a punch, bend tabs on strap flat against
transfer gear.
(2) Remove bolts holding retaining strap to stir-
rup.
(3) Remove strap from transfer gear and stirrup.
(4) Remove stirrup from transfer gear.
Fig. 136 Remove or Install Rear Cover
1 ± OUTPUT SHAFT GEAR
2 ± USE MOPAR SILICONE RUBBER ADHESIVE SEALER
3 ± REAR COVER
4 ± TRANSFER SHAFT GEAR
Fig. 137 Remove Transfer Shaft Gear Retaining Nut
1 ± TRANSFER SHAFT GEAR
2 ± SCREW (2)
3 ± OUTPUT SHAFT GEAR
4 ± SPECIAL TOOL L-4434
Fig. 138 Transfer Shaft Gear Nut and Washer
1 ± OUTPUT SHAFT GEAR
2 ± TRANSFER SHAFT GEAR
3 ± WASHER
4 ± NUT
PLTRANSAXLE 21 - 115
DISASSEMBLY AND ASSEMBLY (Continued)

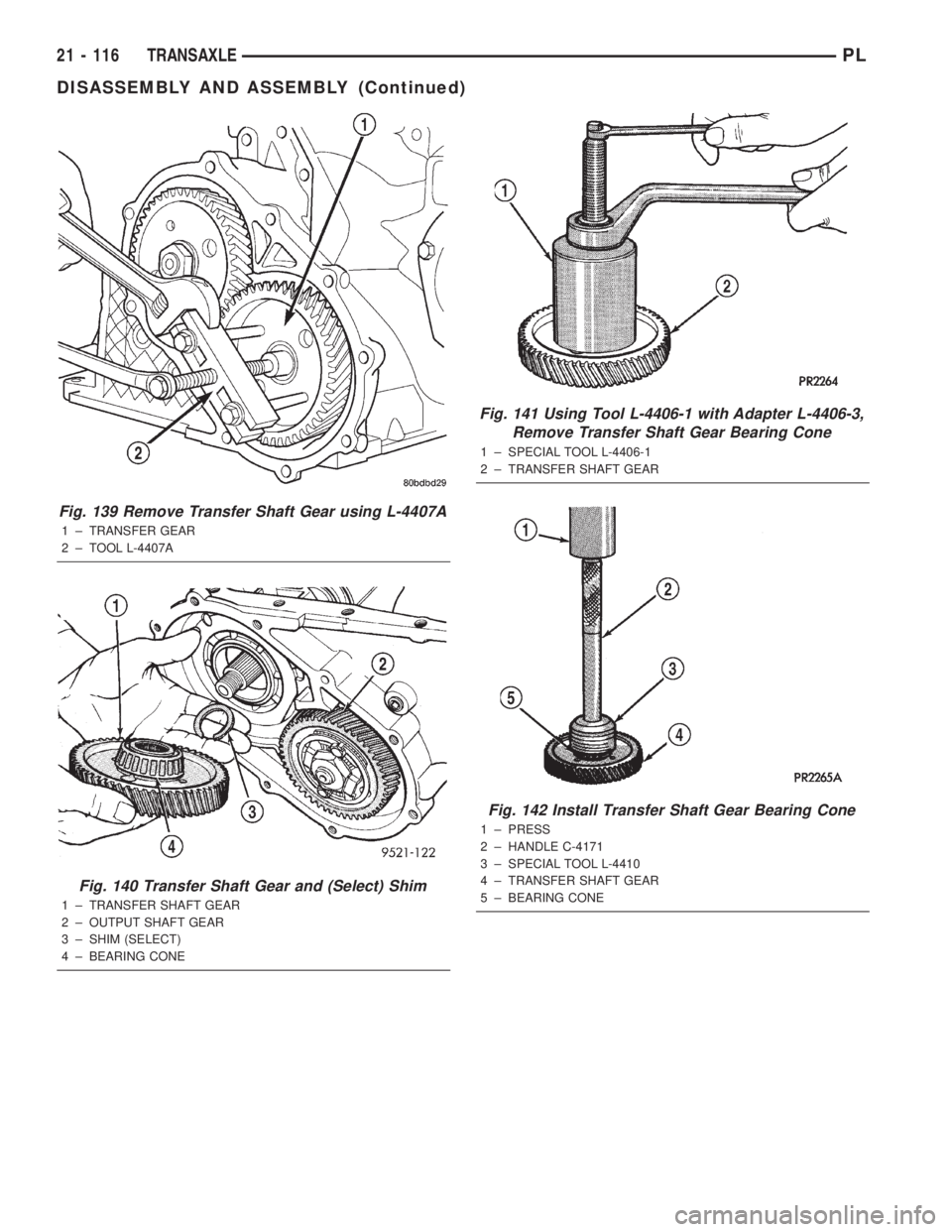

Fig. 139 Remove Transfer Shaft Gear using L-4407A
1 ± TRANSFER GEAR
2 ± TOOL L-4407A
Fig. 140 Transfer Shaft Gear and (Select) Shim
1 ± TRANSFER SHAFT GEAR
2 ± OUTPUT SHAFT GEAR
3 ± SHIM (SELECT)
4 ± BEARING CONE
Fig. 141 Using Tool L-4406-1 with Adapter L-4406-3,
Remove Transfer Shaft Gear Bearing Cone
1 ± SPECIAL TOOL L-4406-1
2 ± TRANSFER SHAFT GEAR
Fig. 142 Install Transfer Shaft Gear Bearing Cone
1 ± PRESS
2 ± HANDLE C-4171
3 ± SPECIAL TOOL L-4410
4 ± TRANSFER SHAFT GEAR
5 ± BEARING CONE
21 - 116 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

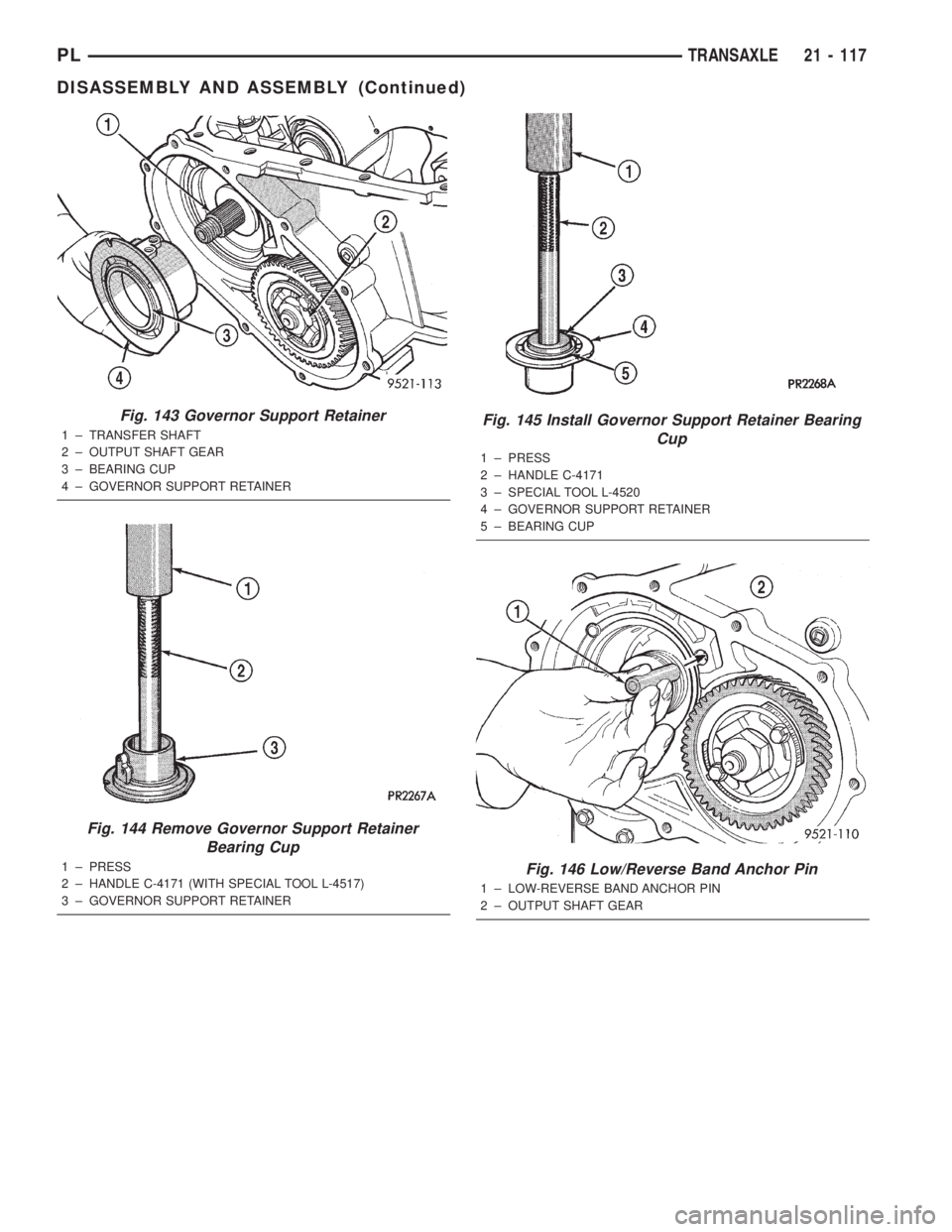

Fig. 143 Governor Support Retainer
1 ± TRANSFER SHAFT
2 ± OUTPUT SHAFT GEAR
3 ± BEARING CUP
4 ± GOVERNOR SUPPORT RETAINER
Fig. 144 Remove Governor Support Retainer
Bearing Cup
1 ± PRESS
2 ± HANDLE C-4171 (WITH SPECIAL TOOL L-4517)
3 ± GOVERNOR SUPPORT RETAINER
Fig. 145 Install Governor Support Retainer Bearing
Cup
1 ± PRESS
2 ± HANDLE C-4171
3 ± SPECIAL TOOL L-4520
4 ± GOVERNOR SUPPORT RETAINER
5 ± BEARING CUP
Fig. 146 Low/Reverse Band Anchor Pin
1 ± LOW-REVERSE BAND ANCHOR PIN
2 ± OUTPUT SHAFT GEAR
PLTRANSAXLE 21 - 117
DISASSEMBLY AND ASSEMBLY (Continued)
