DODGE NEON 2000 Service Repair Manual

Spllice Location Fig.
S222 Near Right Instrument
Panel Speaker T/O20
S223 Near Right Instrument
Panel Speaker T/O20
S224 Near Right Instrument
Panel Speaker T/O20
S225 Near Instrument Cluster
T/O20
S226 In C103, C104 and C305
T/O20
S240 Near Driver Power
Window Motor T/O26
S241 Near Driver Power
Window Motor T/O26
S242 Near Driver Power Mirror
T/O26
S251 Near Left Visor/Vanity
Lamp T/O21
S252 Near Left Visor/Vanity
Lamp T/O21
S301 Near Fuel Pump Module
T/ON/SSpllice Location Fig.
S302 Near Right Door Opening 23
S303 Near Right Door Opening 23
S304 Near Right Door Opening 23
S305 Under Rear Seat 22
S306 Under Rear Seat 23
S307 Near Right Rear Door
Opening23
S308 Near Left Rear Door
Opening22
S309 Near Rear Window
Defogger Ground T/O24
S310 Near G302 T/O 25
S311 Near G301 and G303
T/O24
S312 Near Center High
Mounted Stop Lamp T/O27
S351 Near Sunroof Motor T/O N/S
S352 Near Sunroof Switch T/O N/S
8W - 95 - 14 8W - 95 SPLICE LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

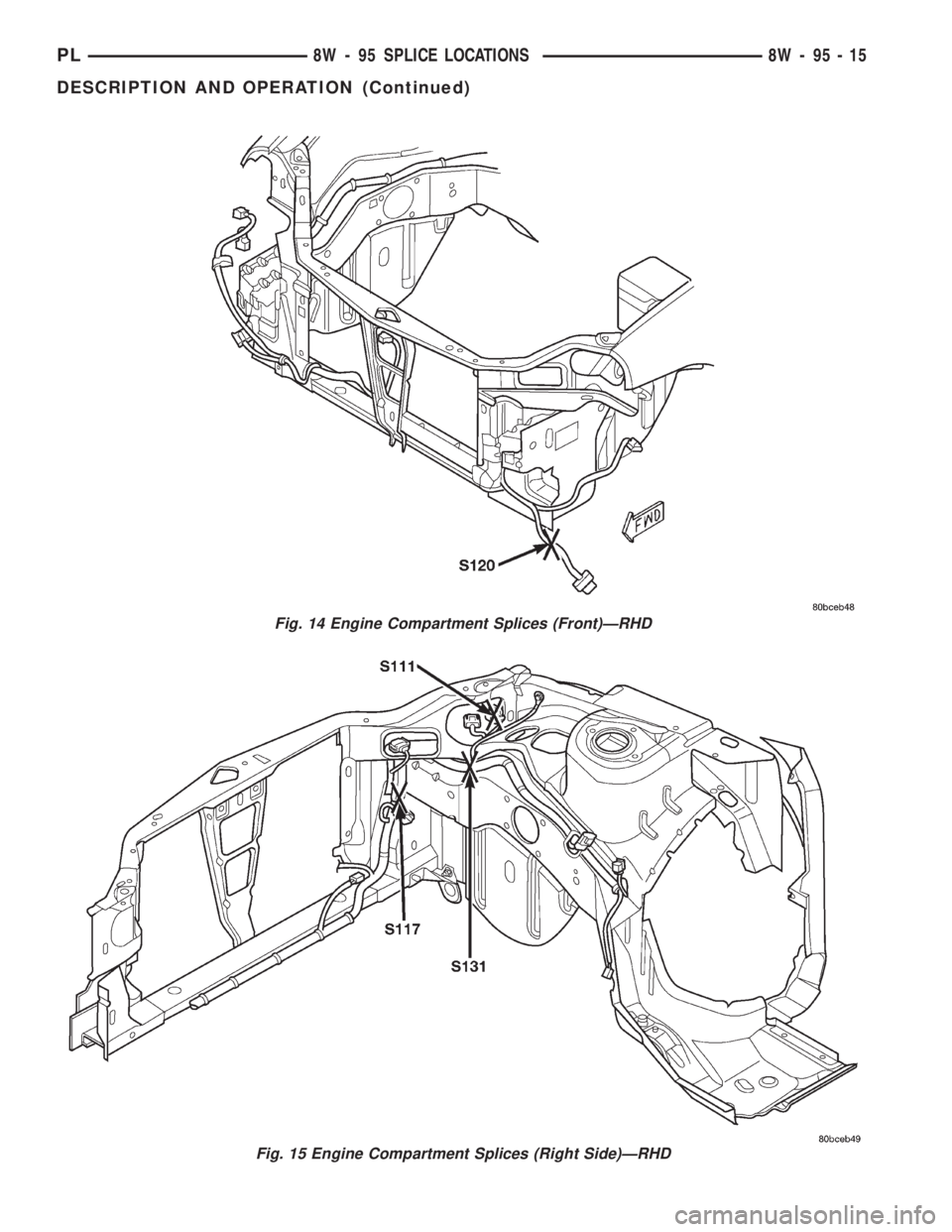

Fig. 14 Engine Compartment Splices (Front)ÐRHD
Fig. 15 Engine Compartment Splices (Right Side)ÐRHD
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 15
DESCRIPTION AND OPERATION (Continued)

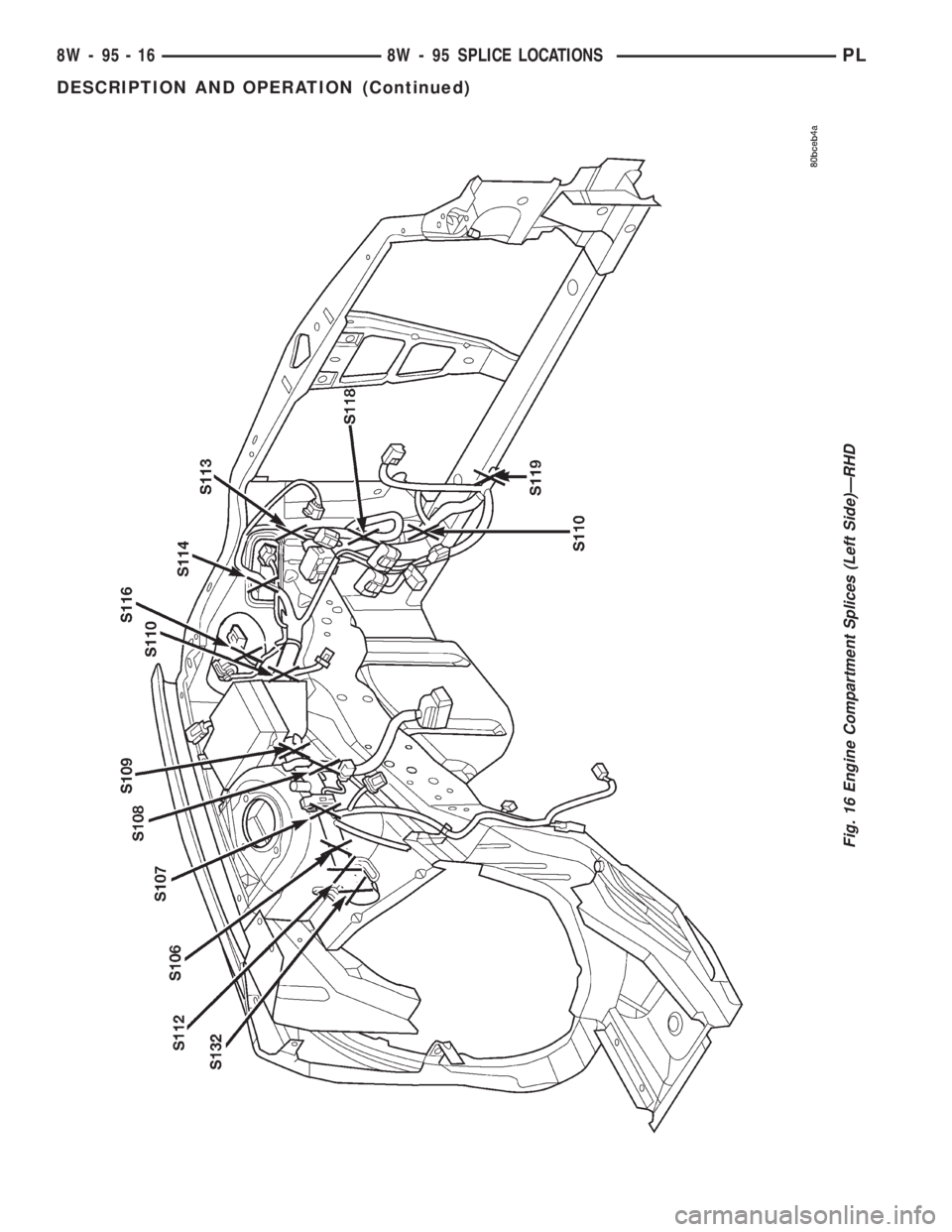

Fig. 16 Engine Compartment Splices (Left Side)ÐRHD
8W - 95 - 16 8W - 95 SPLICE LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Fig. 17 Engine SplicesÐRHD
Fig. 18 Engine SplicesÐRHD
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 17
DESCRIPTION AND OPERATION (Continued)

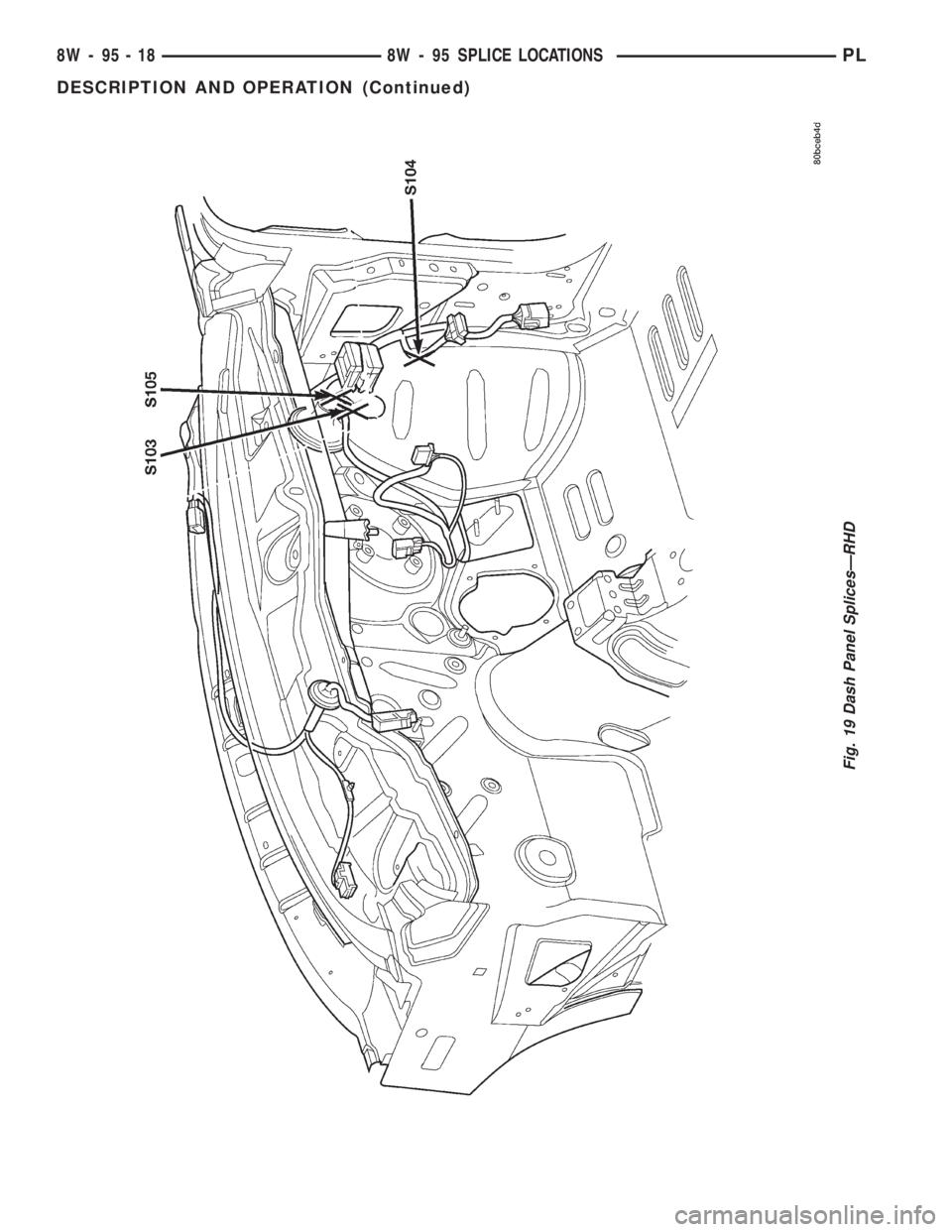

Fig. 19 Dash Panel SplicesÐRHD
8W - 95 - 18 8W - 95 SPLICE LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

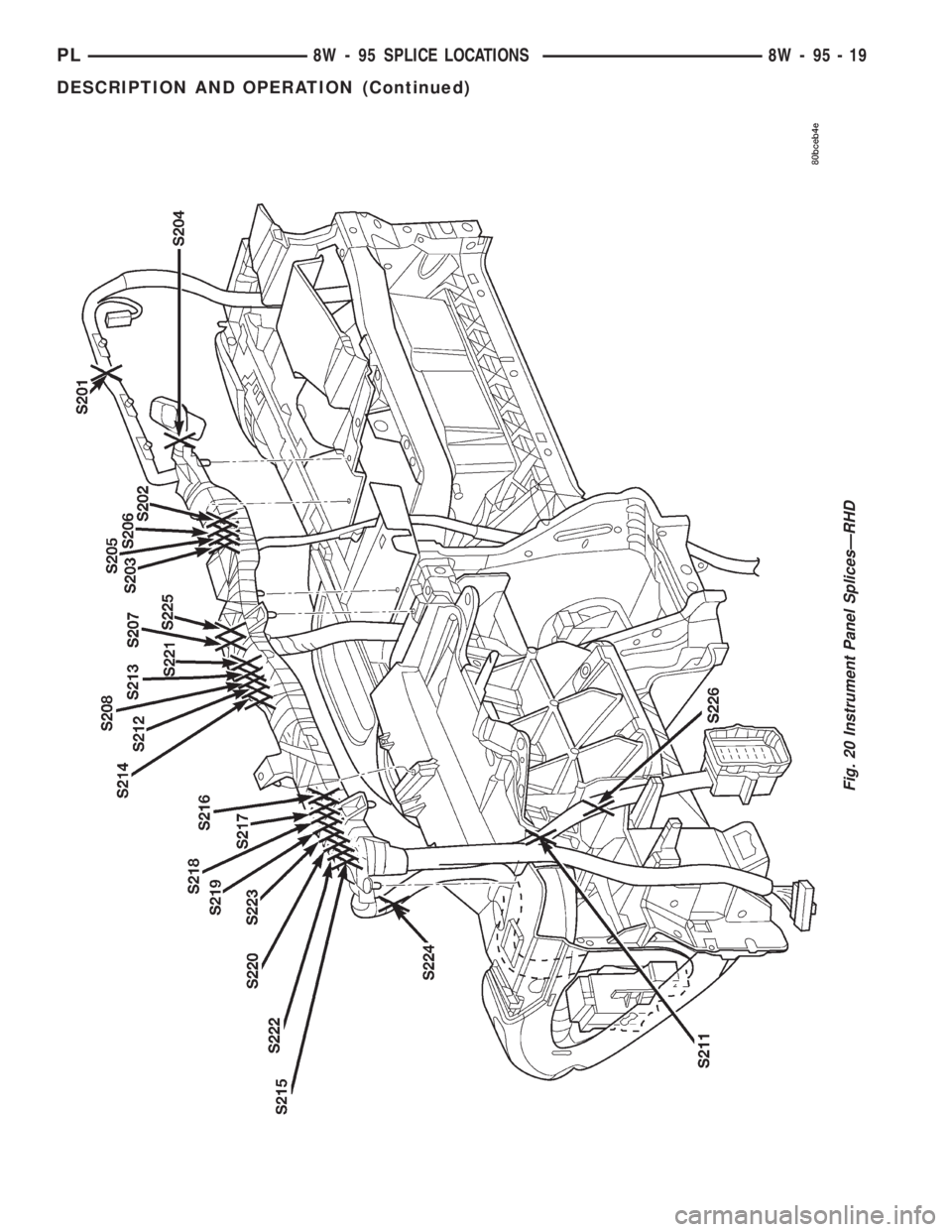

Fig. 20 Instrument Panel SplicesÐRHD
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 19
DESCRIPTION AND OPERATION (Continued)

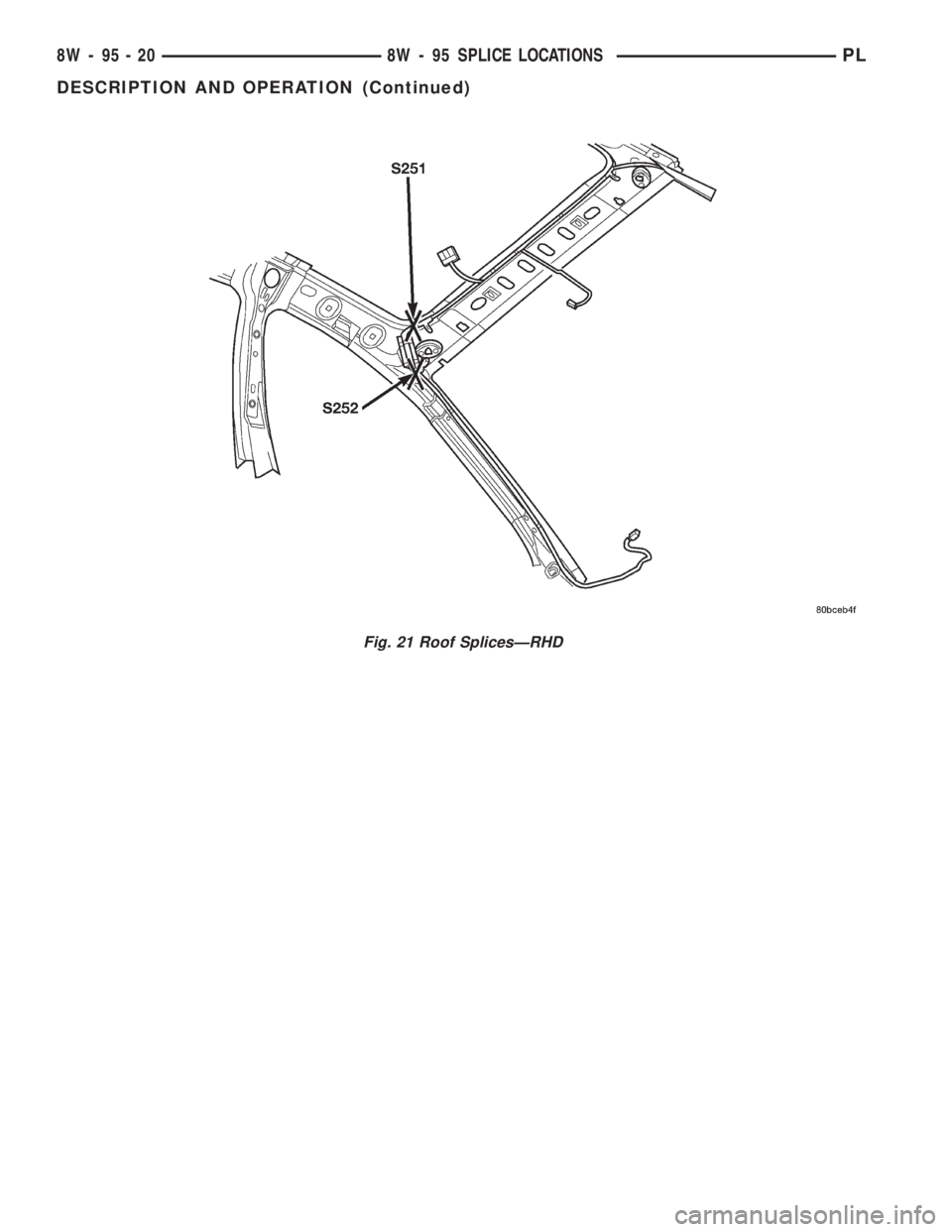

Fig. 21 Roof SplicesÐRHD
8W - 95 - 20 8W - 95 SPLICE LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Fig. 22 Body SplicesÐRHD
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 21
DESCRIPTION AND OPERATION (Continued)

Fig. 23 Body SplicesÐRHD
8W - 95 - 22 8W - 95 SPLICE LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

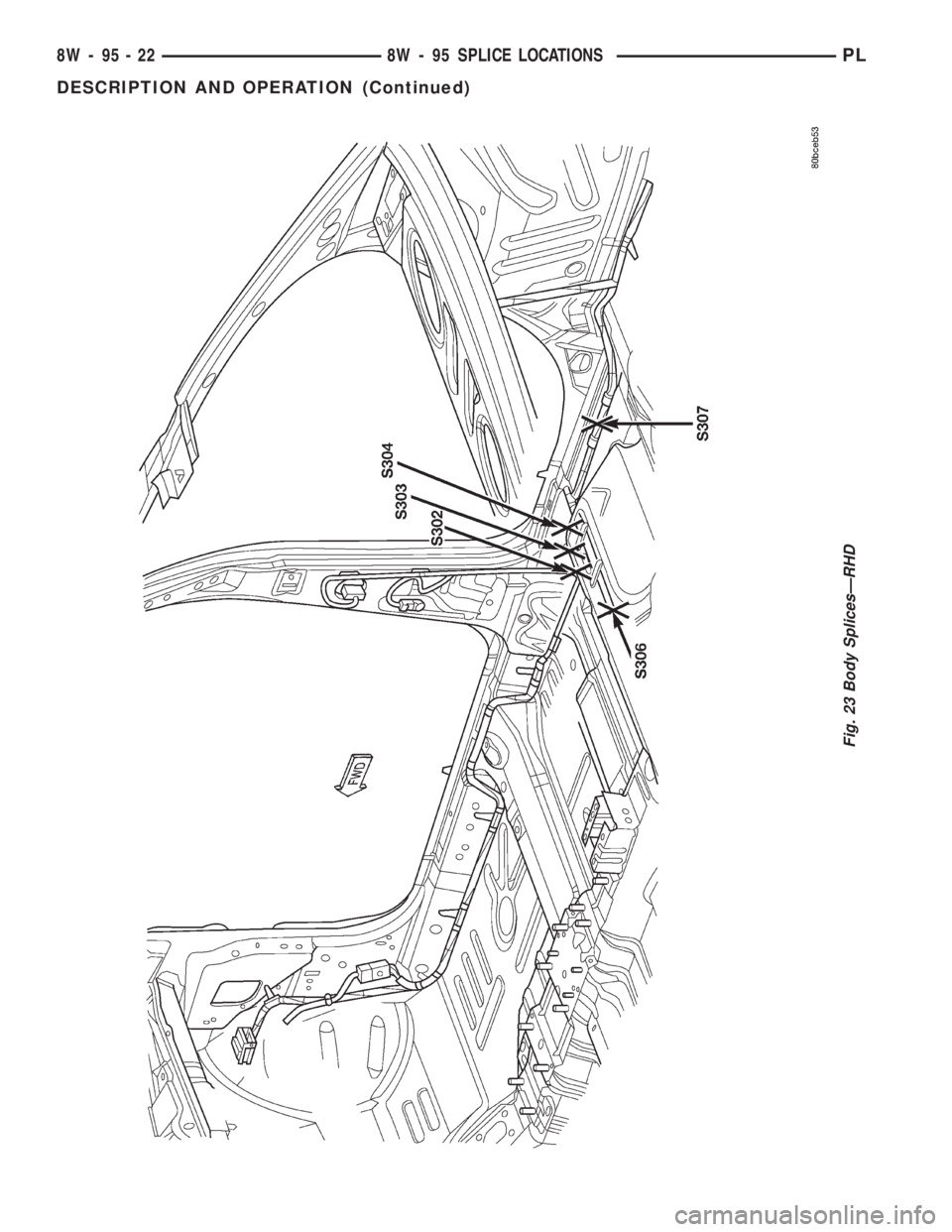

Fig. 24 Body SplicesÐRHD
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 23
DESCRIPTION AND OPERATION (Continued)
