Fig. 4 5.2-5.9 LITER ENGINE
8W - 90 - 10 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

Fig. 5 3.9 LITER ENGINE
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 11
CONNECTOR/GROUND LOCATIONS (Continued)

Fig. 6 8.0 LITER ENGINE
8W - 90 - 12 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

Fig. 7 GENERATOR (GAS ENGINE)
Fig. 8 GENERATOR (DIESEL ENGINE)
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 13
CONNECTOR/GROUND LOCATIONS (Continued)

Fig. 9 IGNITION COIL (GAS ENGINE)
8W - 90 - 14 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

Fig. 10 DIESEL COMPONENTS
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 15
CONNECTOR/GROUND LOCATIONS (Continued)

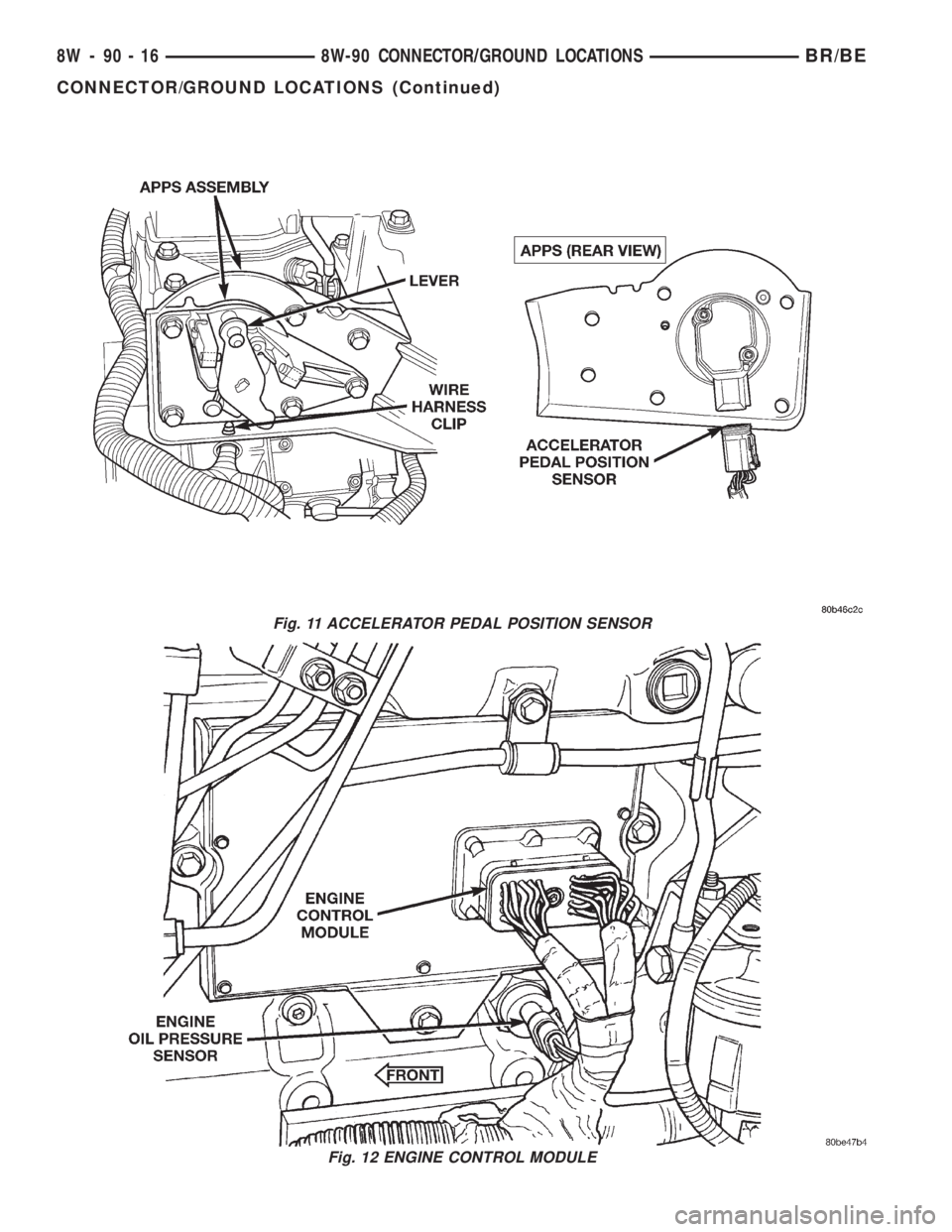

Fig. 11 ACCELERATOR PEDAL POSITION SENSOR
Fig. 12 ENGINE CONTROL MODULE
8W - 90 - 16 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

Fig. 13 TRANSMISSION CONNECTORS
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 17
CONNECTOR/GROUND LOCATIONS (Continued)

Fig. 14 LEFT SIDE ENGINE COMPARTMENT
8W - 90 - 18 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

Fig. 15 UNDER HOOD
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 19
CONNECTOR/GROUND LOCATIONS (Continued)
