DODGE RAM 2001 Service Repair Manual

Fig. 16 UNDER HOOD
8W - 90 - 20 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

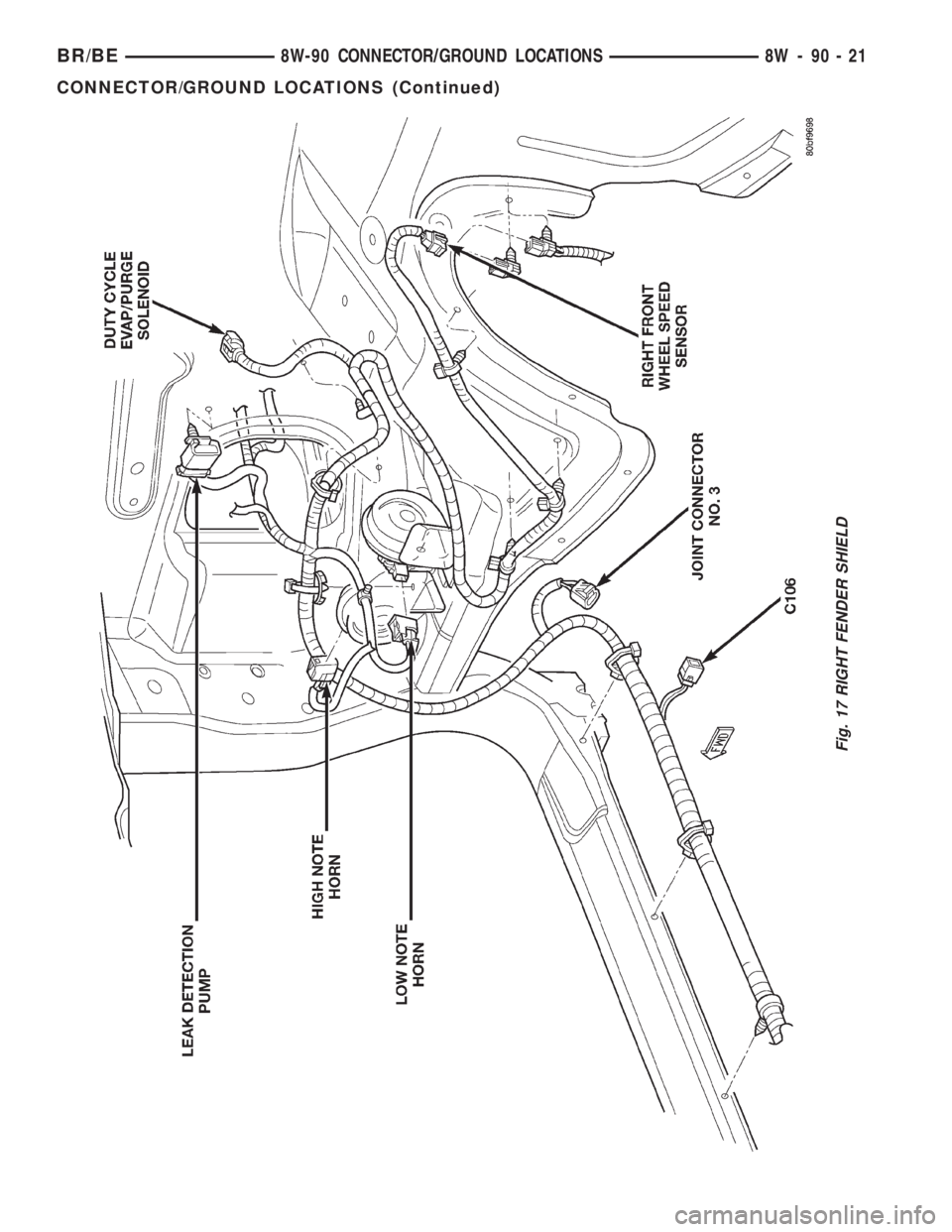

Fig. 17 RIGHT FENDER SHIELD
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 21
CONNECTOR/GROUND LOCATIONS (Continued)

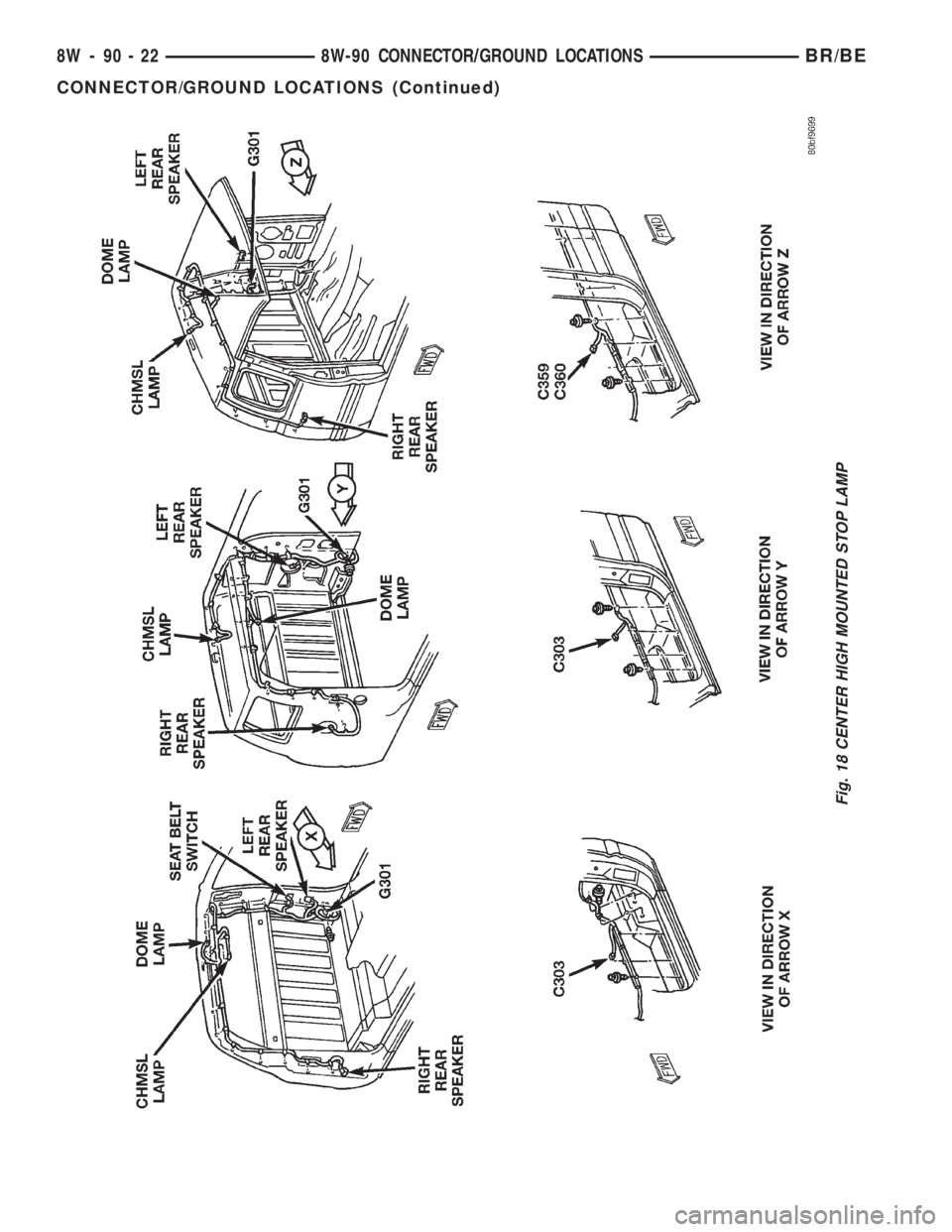

Fig. 18 CENTER HIGH MOUNTED STOP LAMP
8W - 90 - 22 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

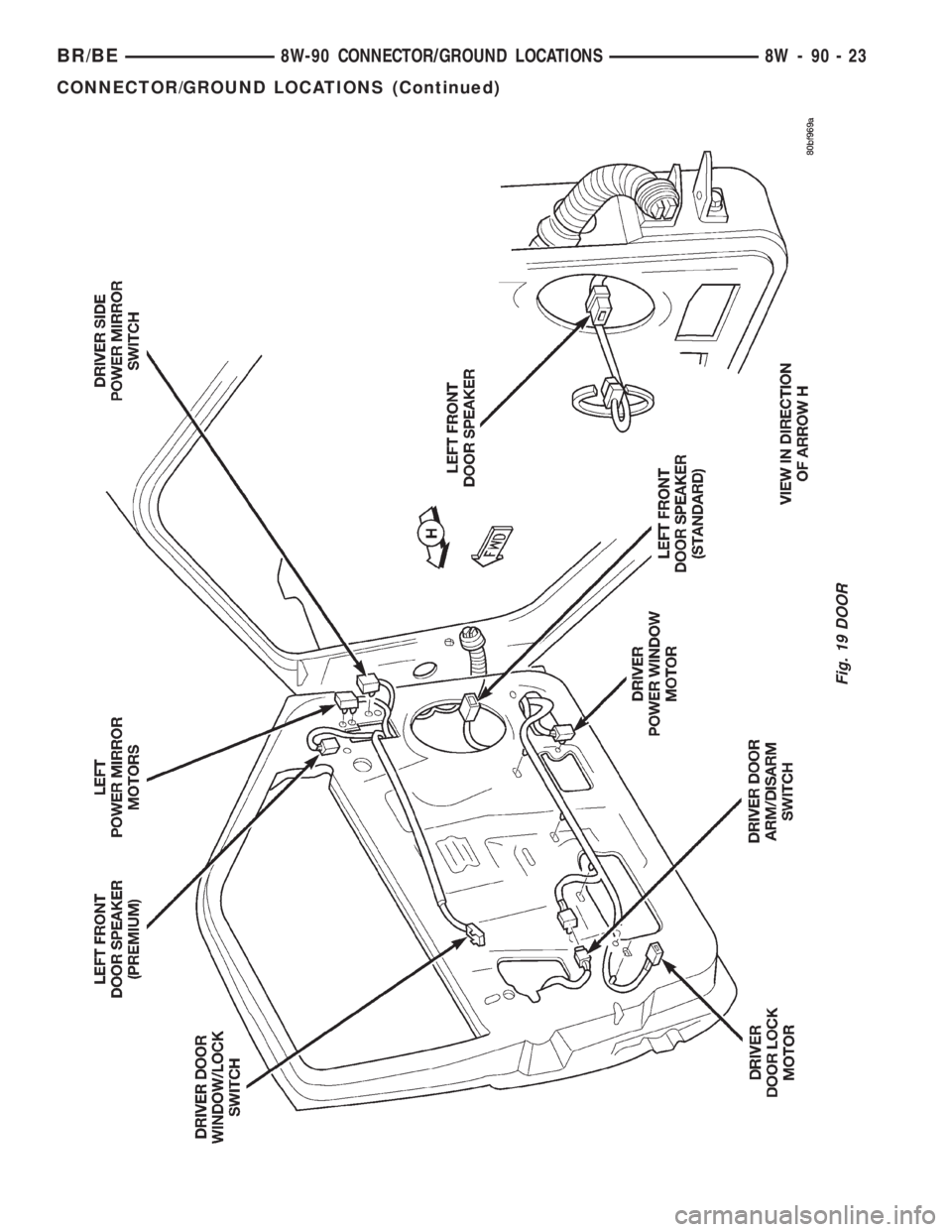

Fig. 19 DOOR
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 23
CONNECTOR/GROUND LOCATIONS (Continued)

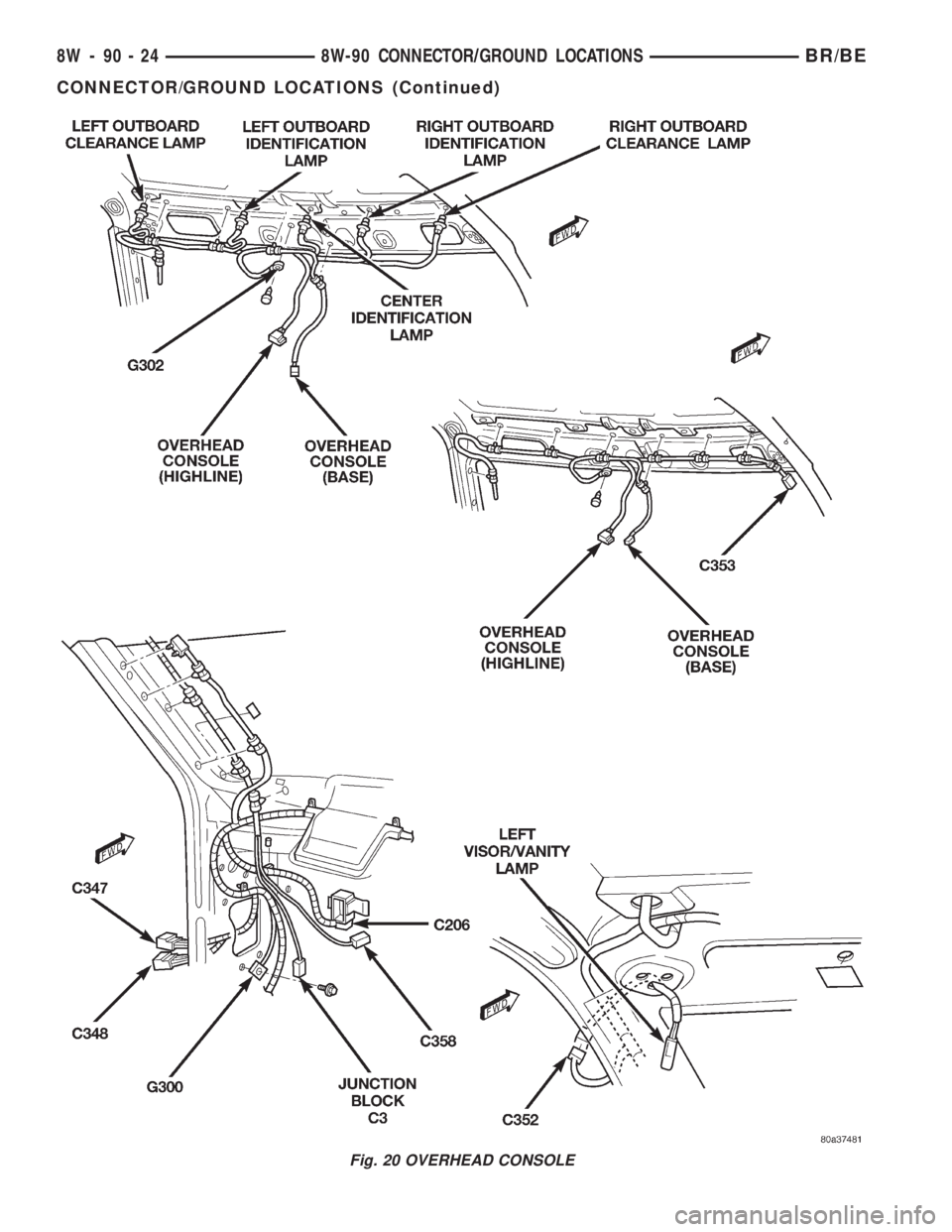

Fig. 20 OVERHEAD CONSOLE
8W - 90 - 24 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

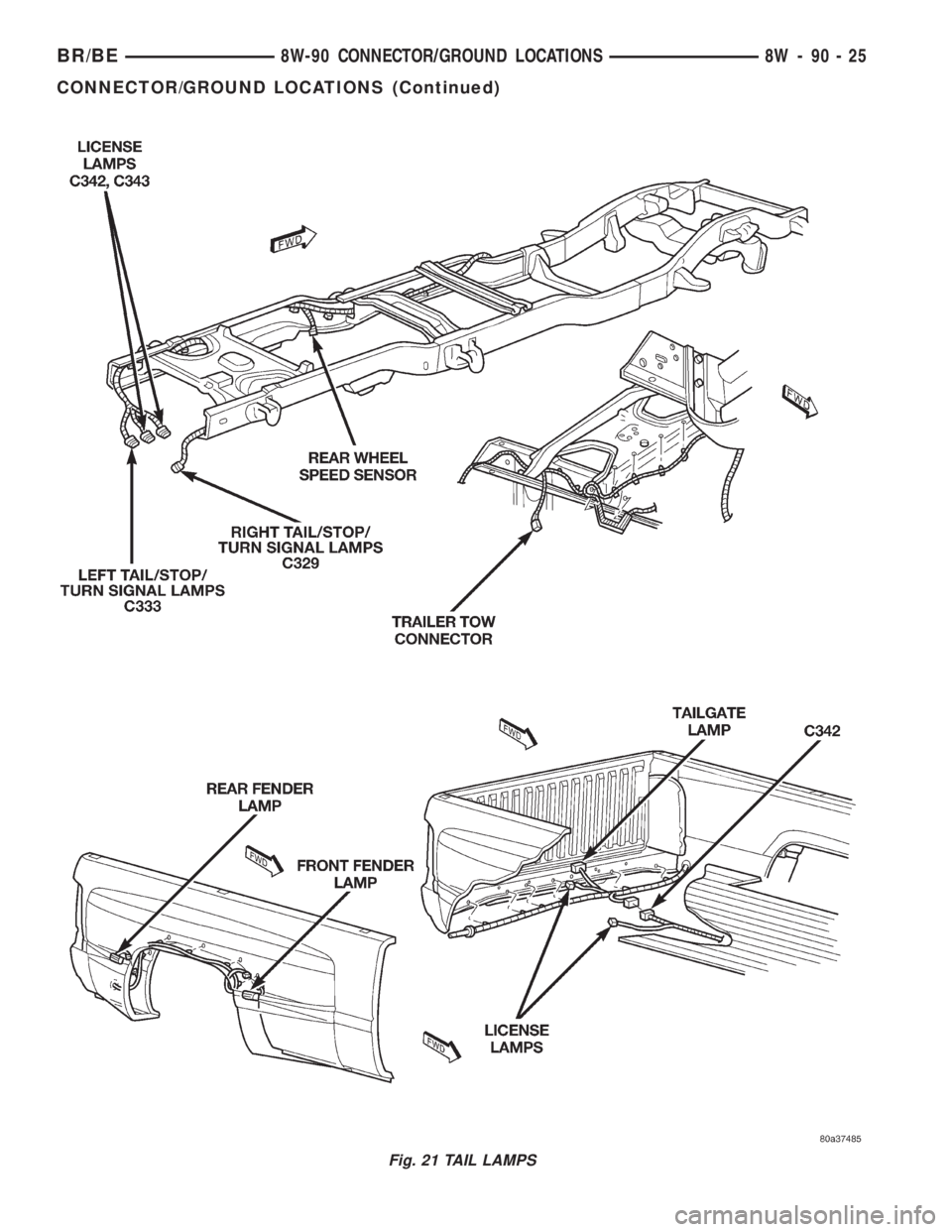

Fig. 21 TAIL LAMPS
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 25
CONNECTOR/GROUND LOCATIONS (Continued)

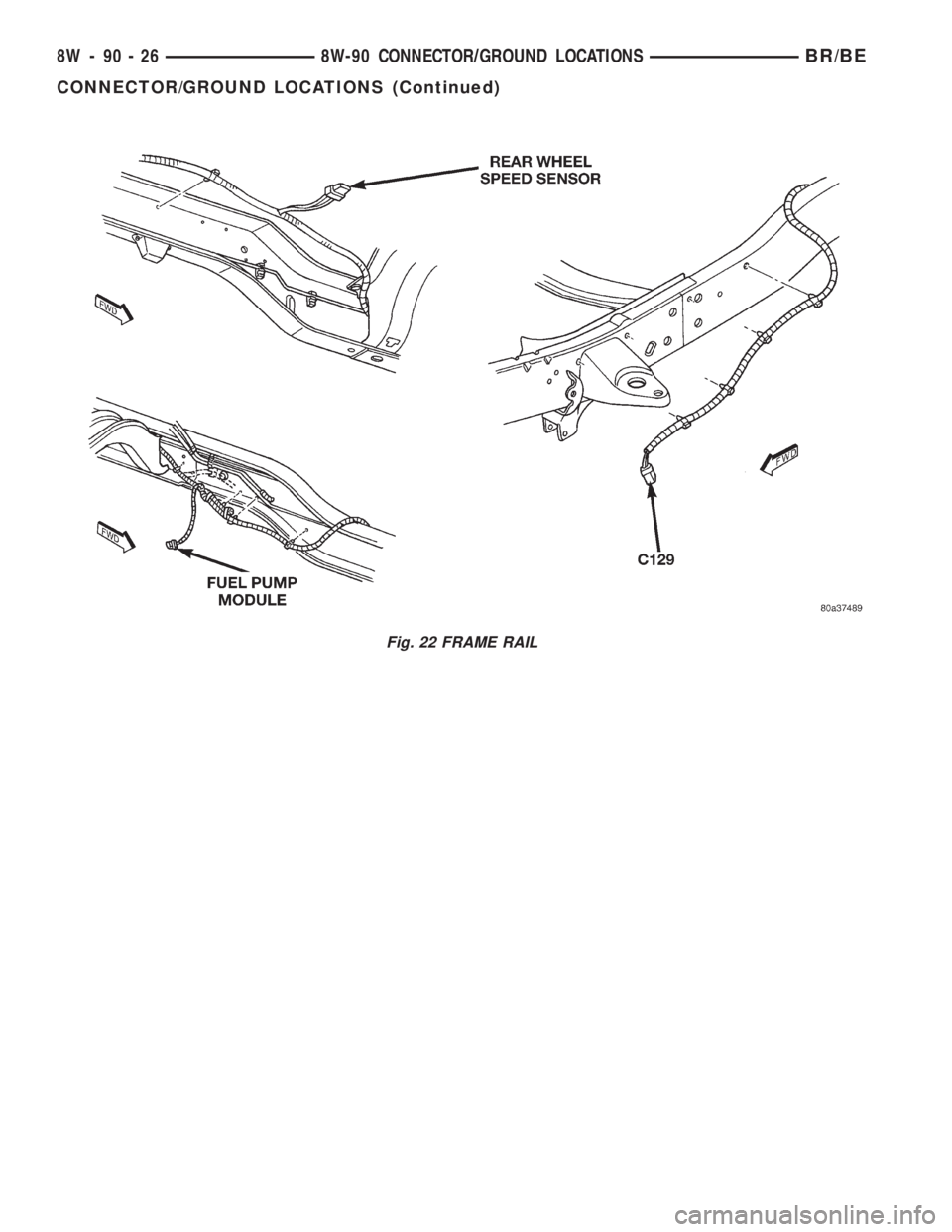

Fig. 22 FRAME RAIL
8W - 90 - 26 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

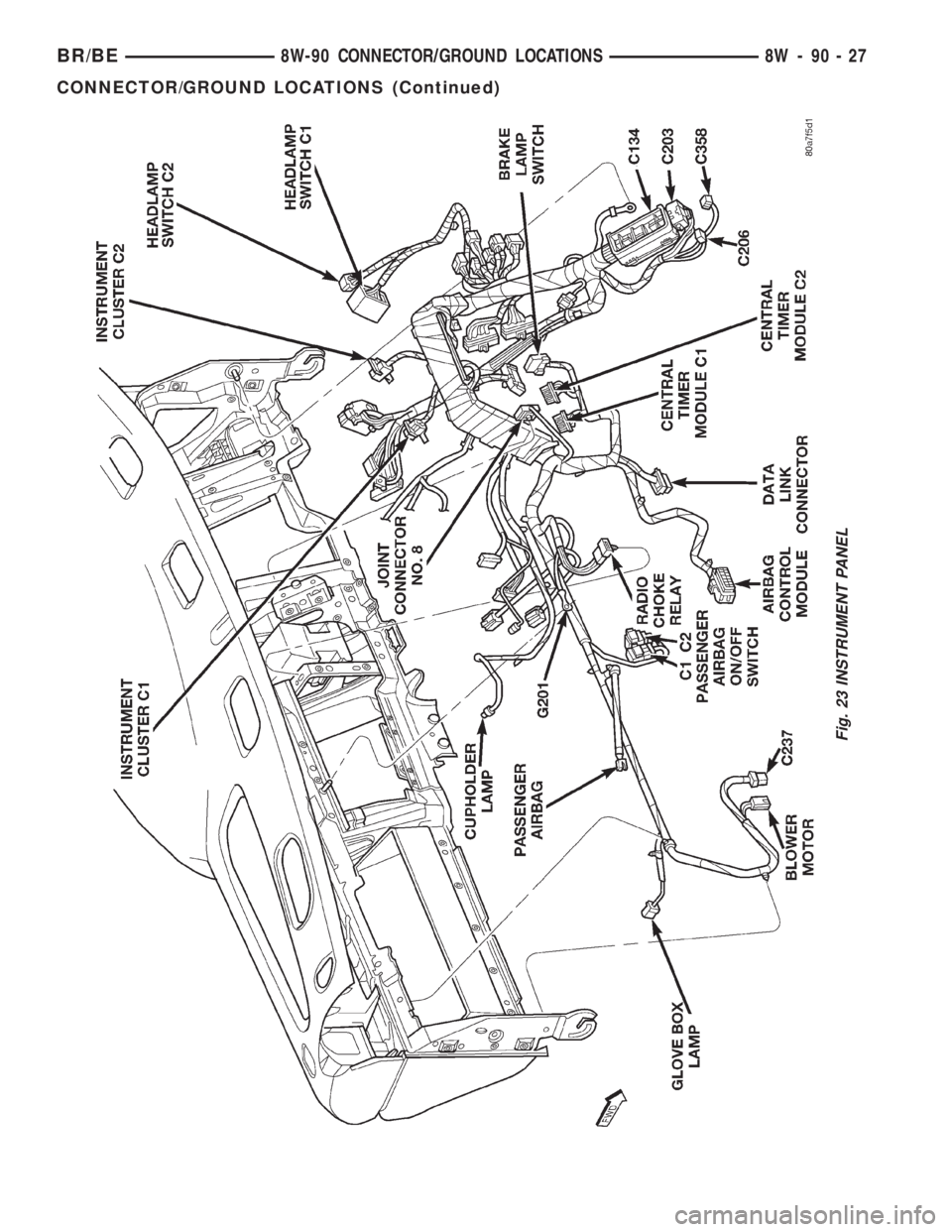

Fig. 23 INSTRUMENT PANEL
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 27
CONNECTOR/GROUND LOCATIONS (Continued)

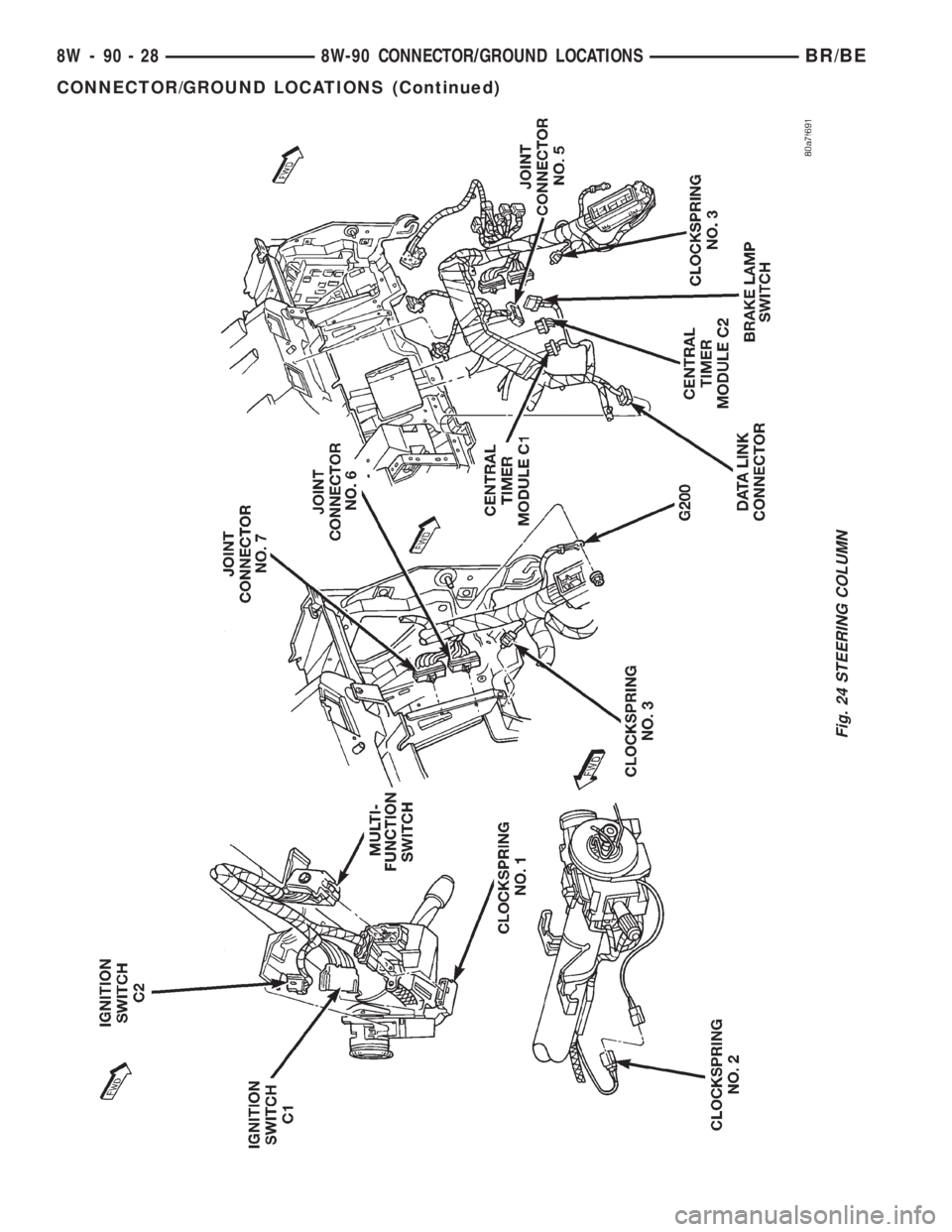

Fig. 24 STEERING COLUMN
8W - 90 - 28 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)

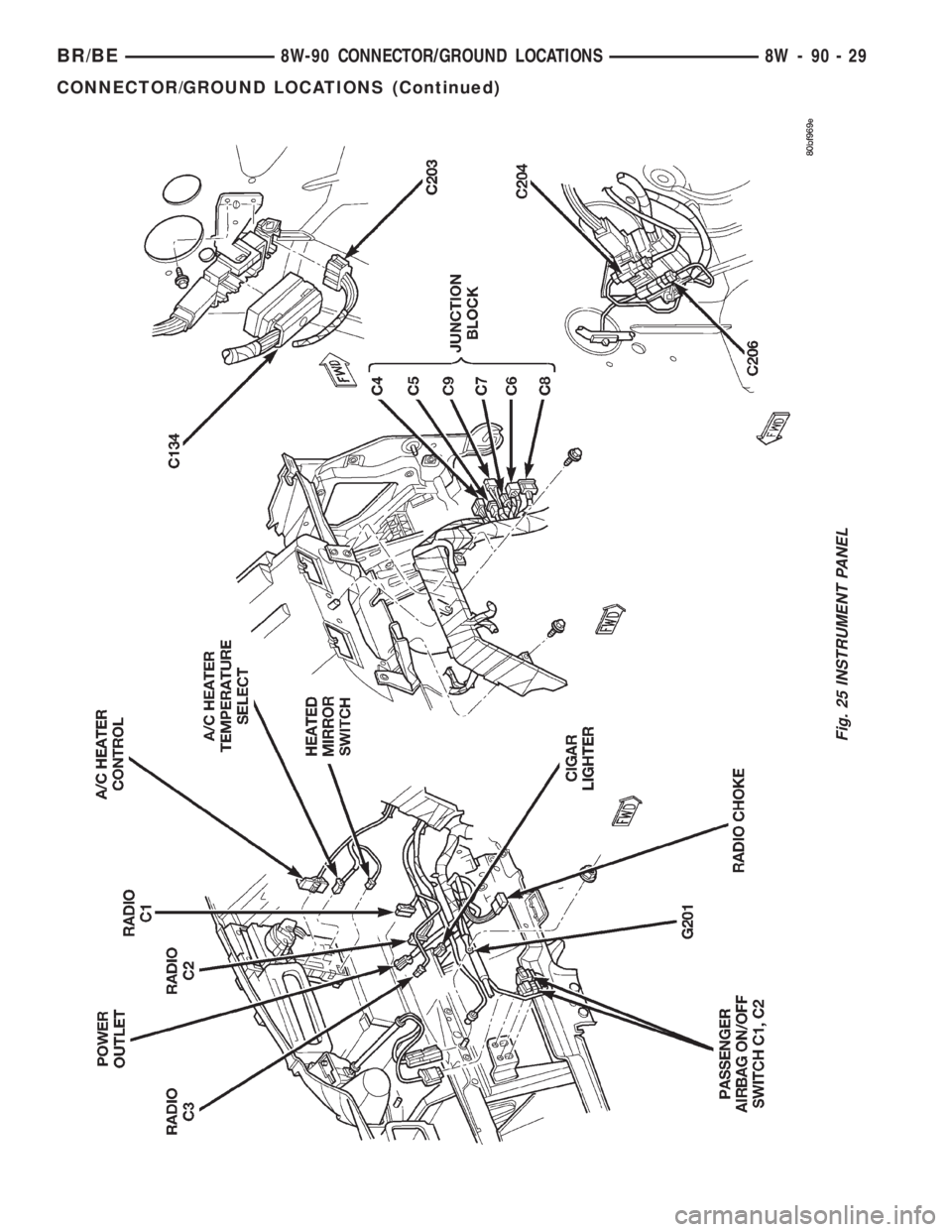

Fig. 25 INSTRUMENT PANEL
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 29
CONNECTOR/GROUND LOCATIONS (Continued)
