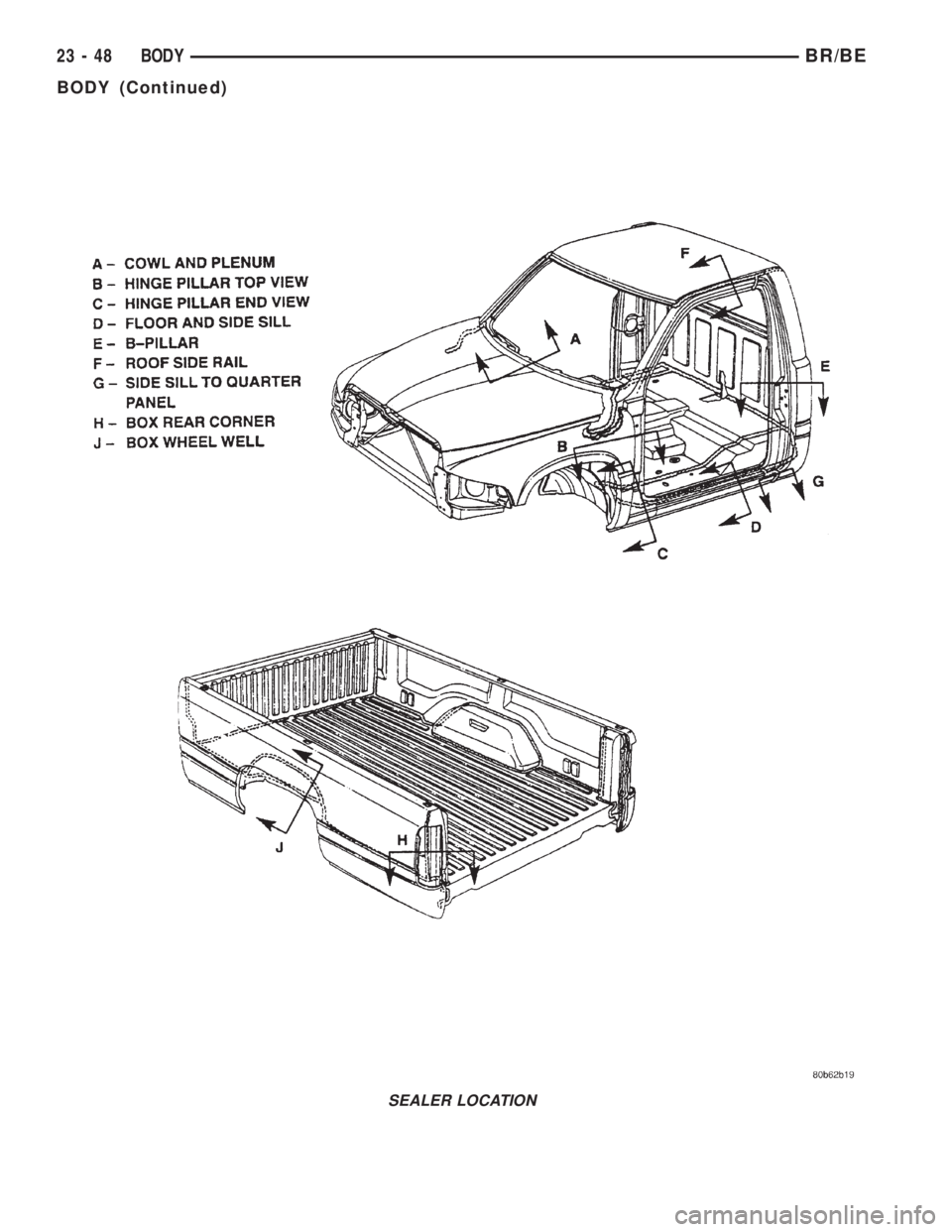

SEALER LOCATION
23 - 48 BODYBR/BE
BODY (Continued)

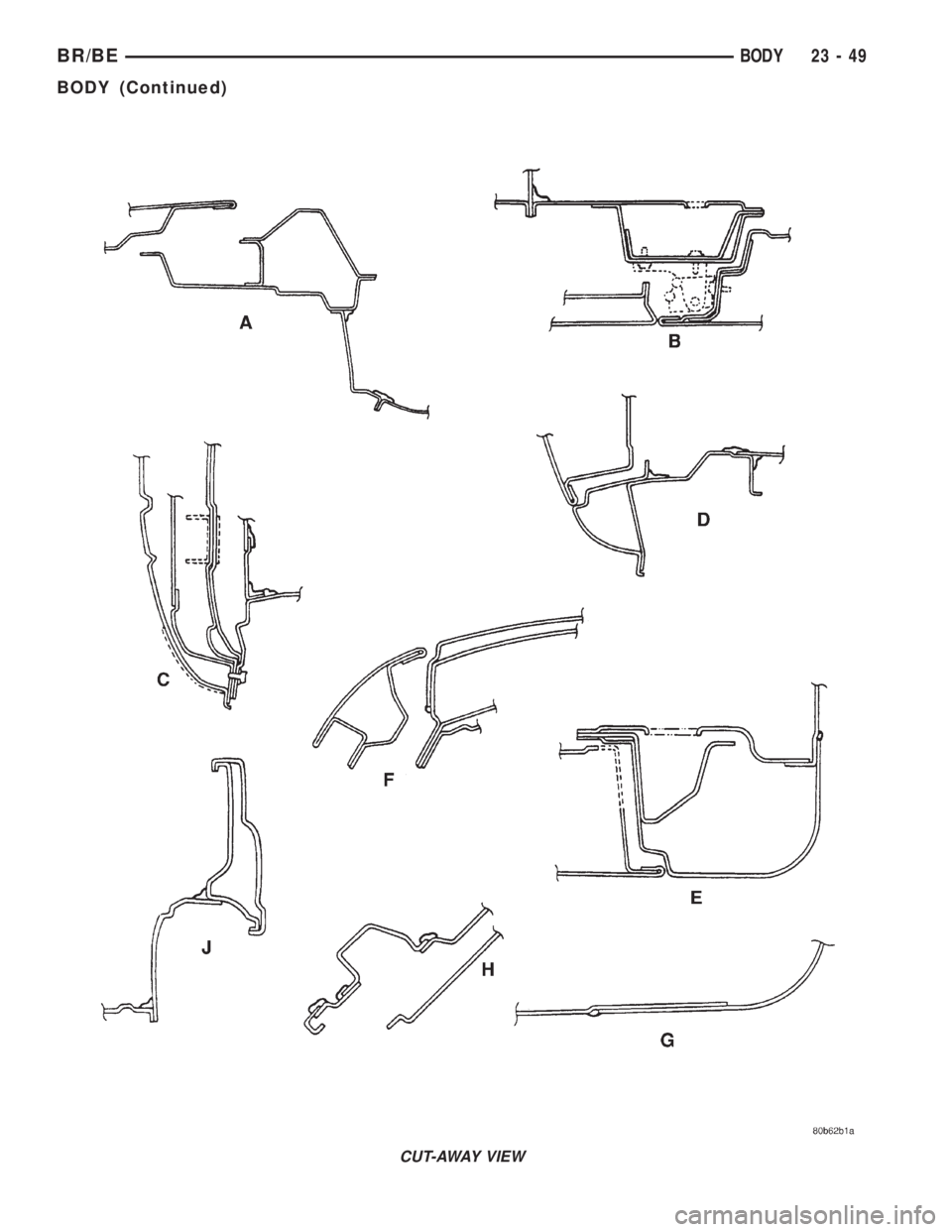

CUT-AWAY VIEW
BR/BEBODY 23 - 49
BODY (Continued)

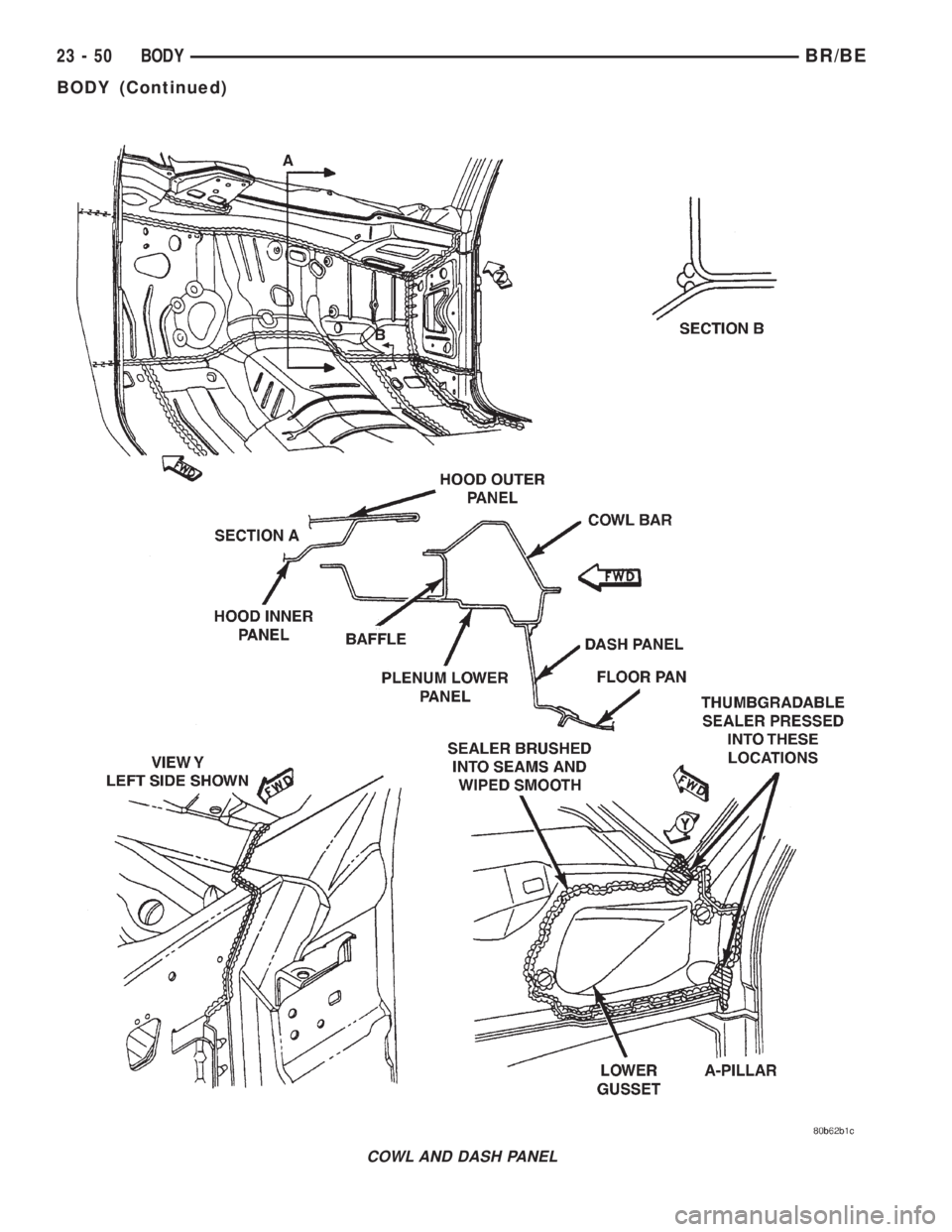

COWL AND DASH PANEL
23 - 50 BODYBR/BE
BODY (Continued)

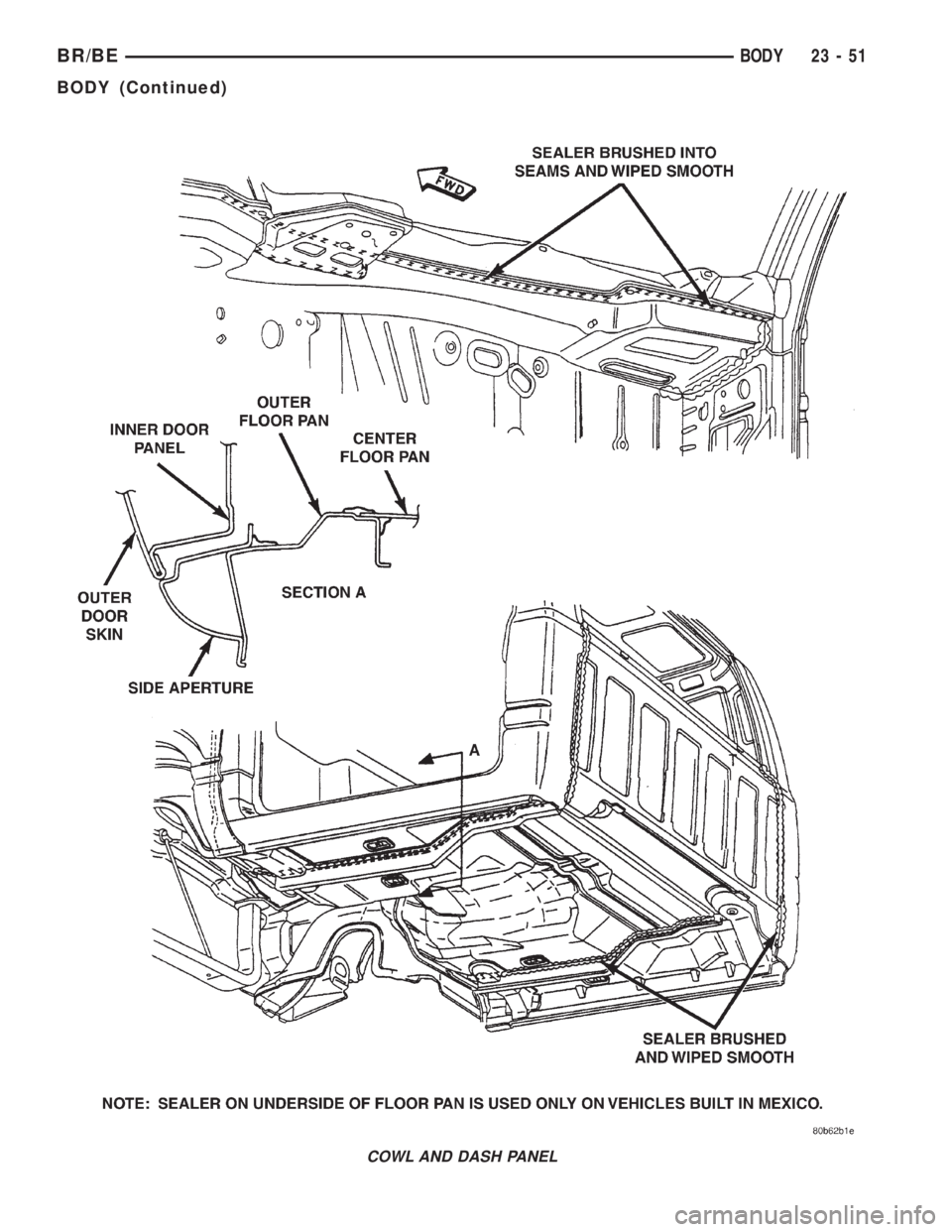

COWL AND DASH PANEL
BR/BEBODY 23 - 51
BODY (Continued)

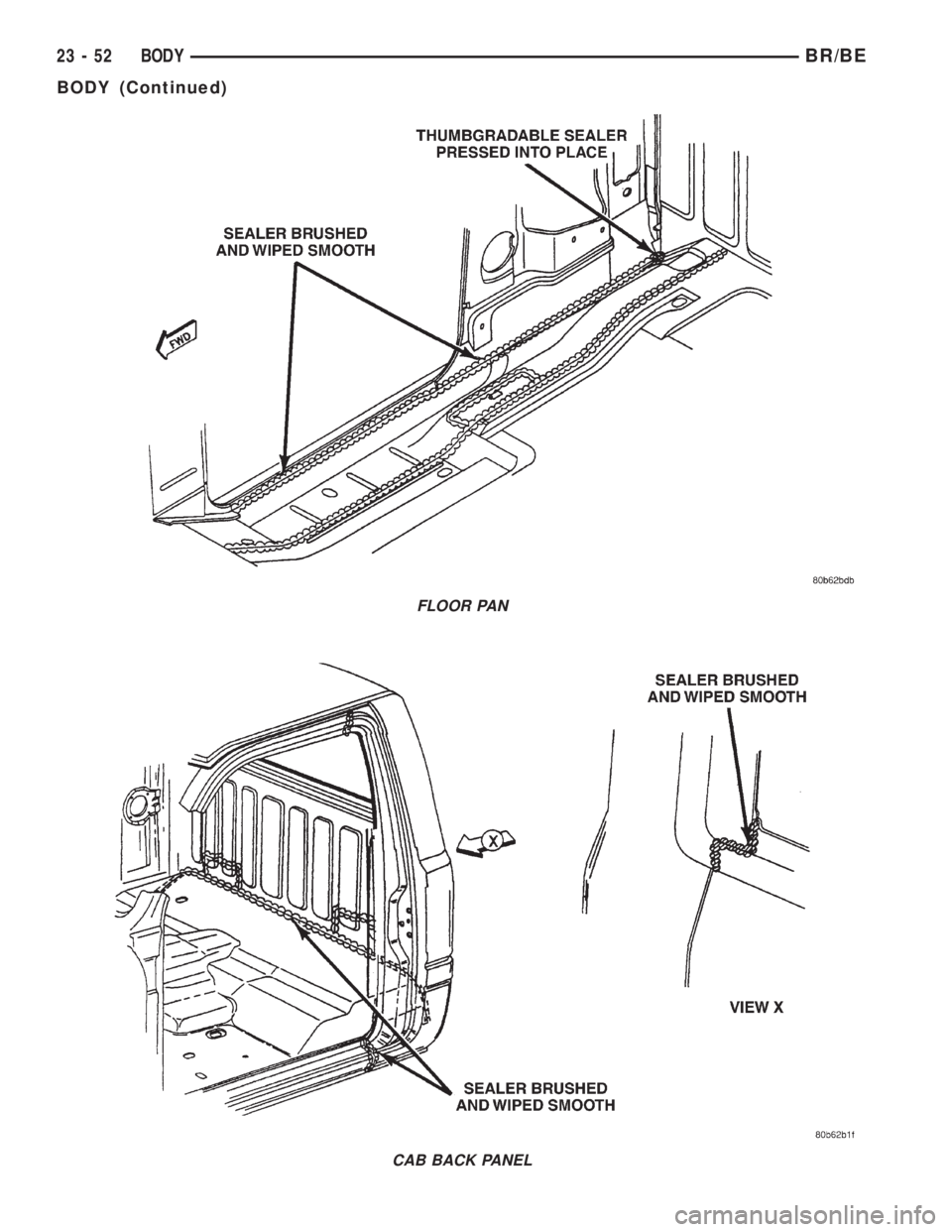

FLOOR PAN
CAB BACK PANEL
23 - 52 BODYBR/BE
BODY (Continued)

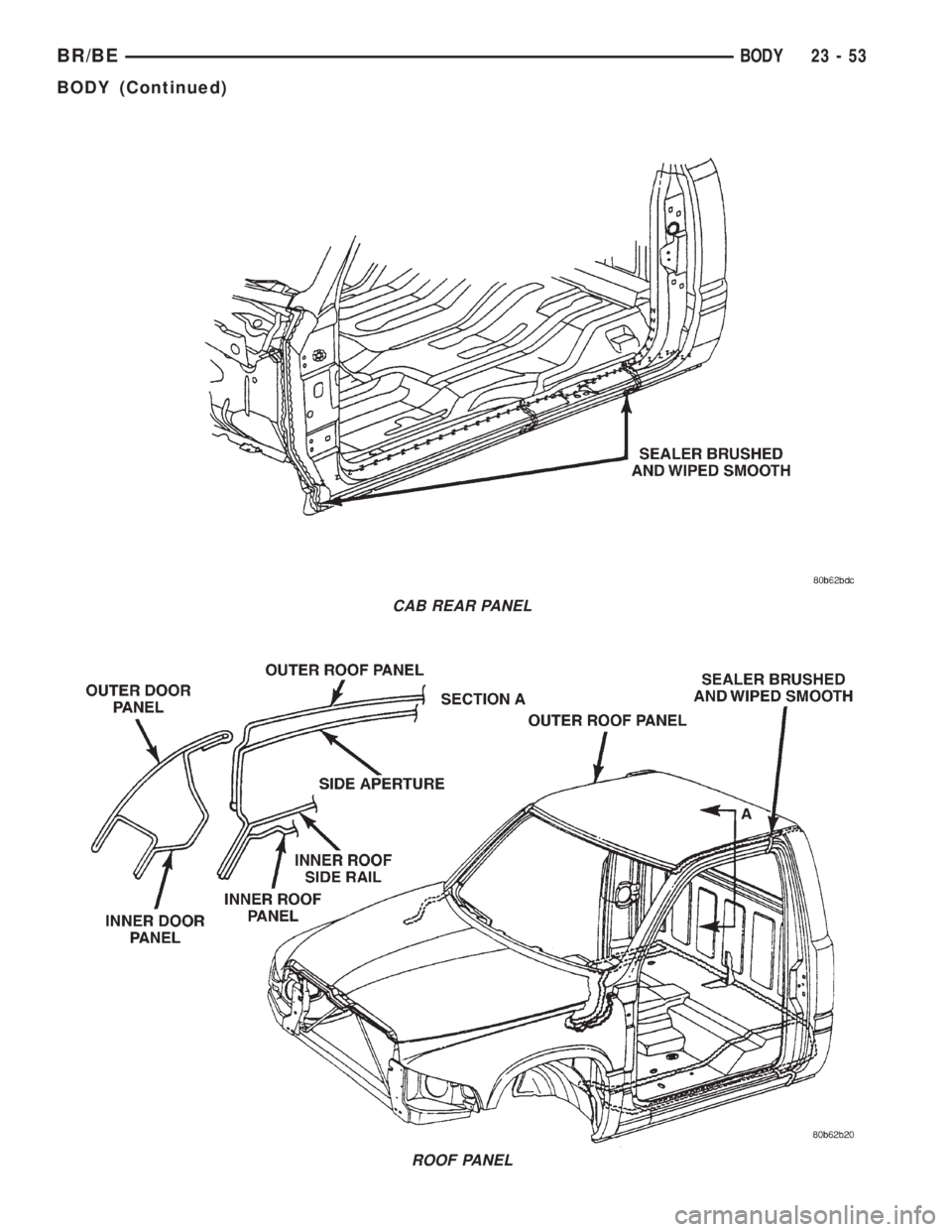

CAB REAR PANEL
ROOF PANEL
BR/BEBODY 23 - 53
BODY (Continued)

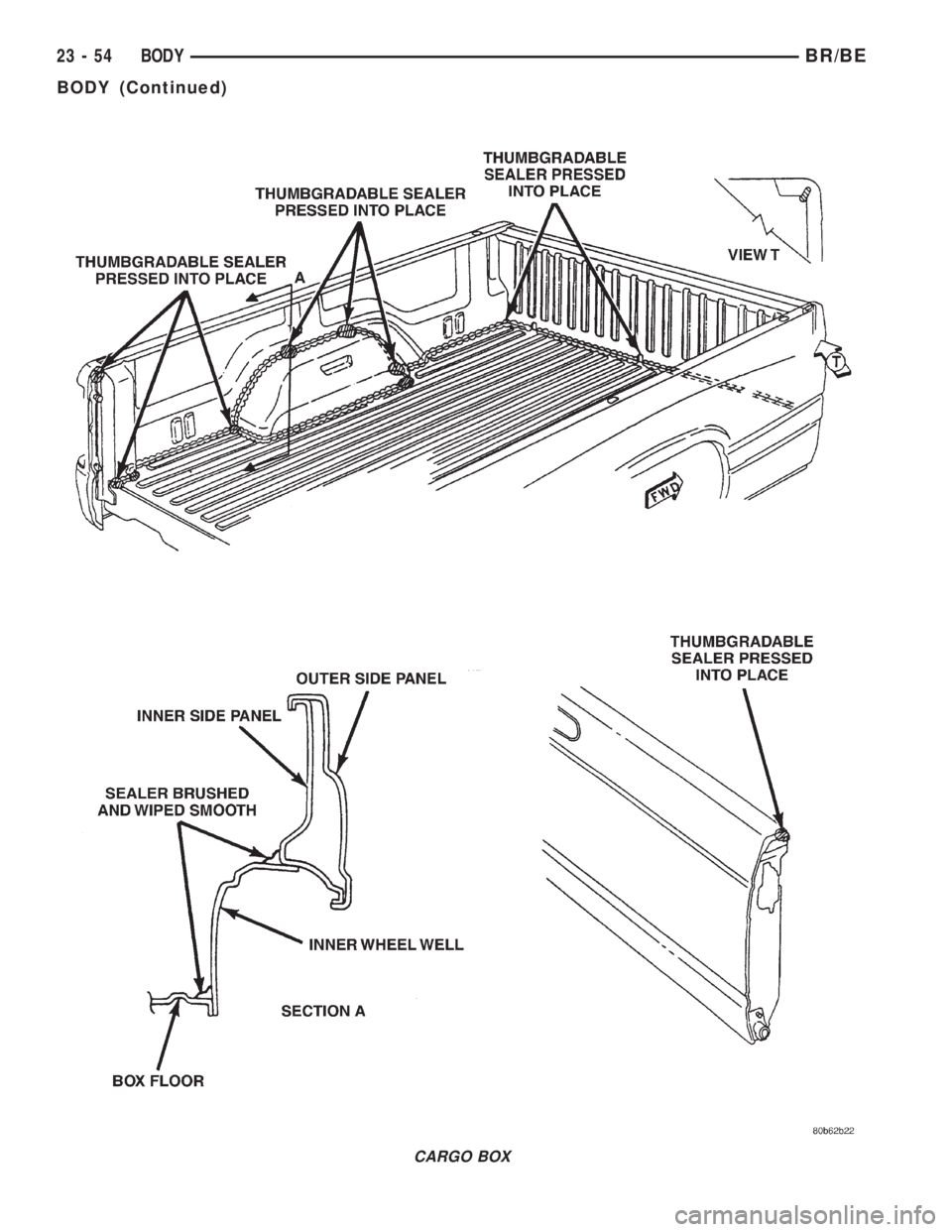

CARGO BOX
23 - 54 BODYBR/BE
BODY (Continued)

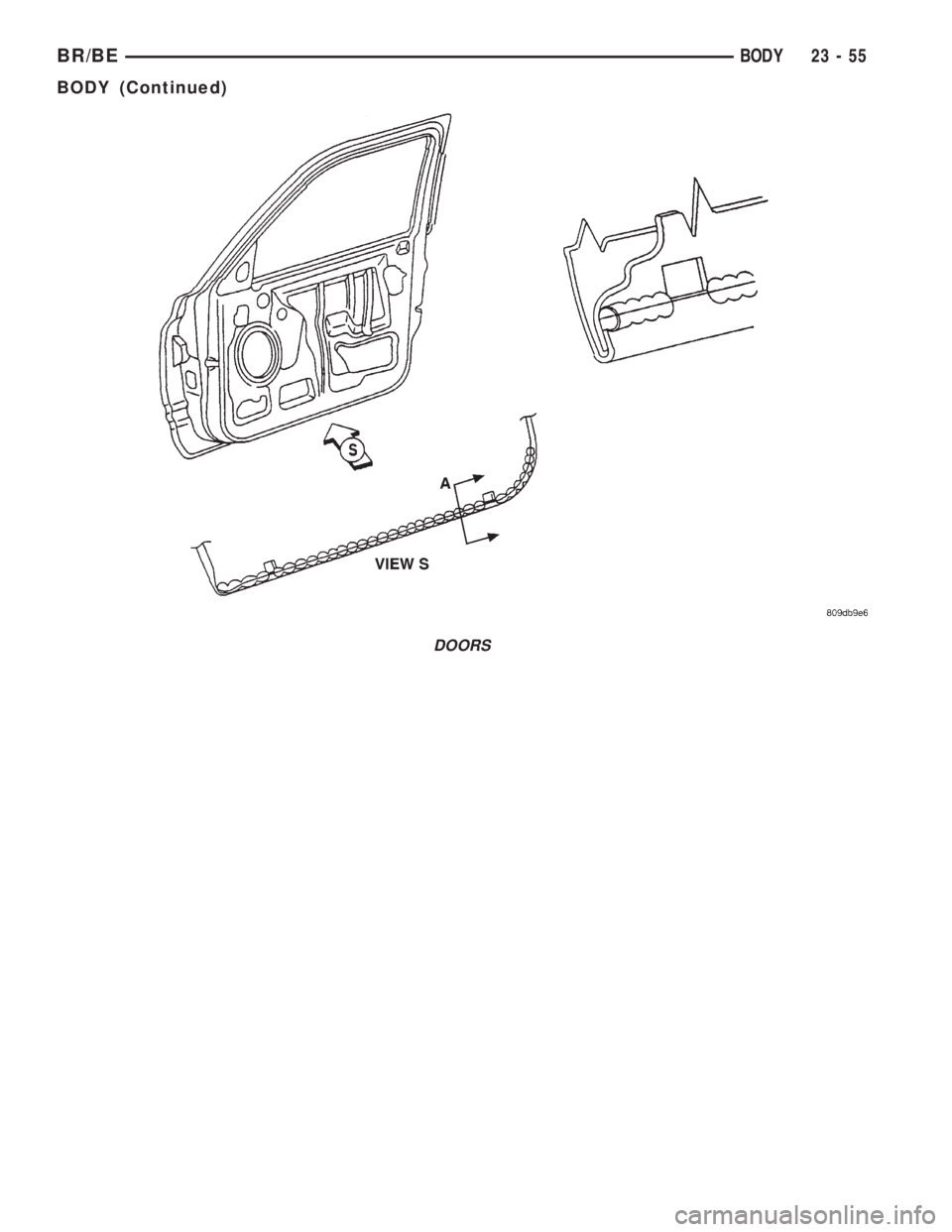

DOORS
BR/BEBODY 23 - 55
BODY (Continued)

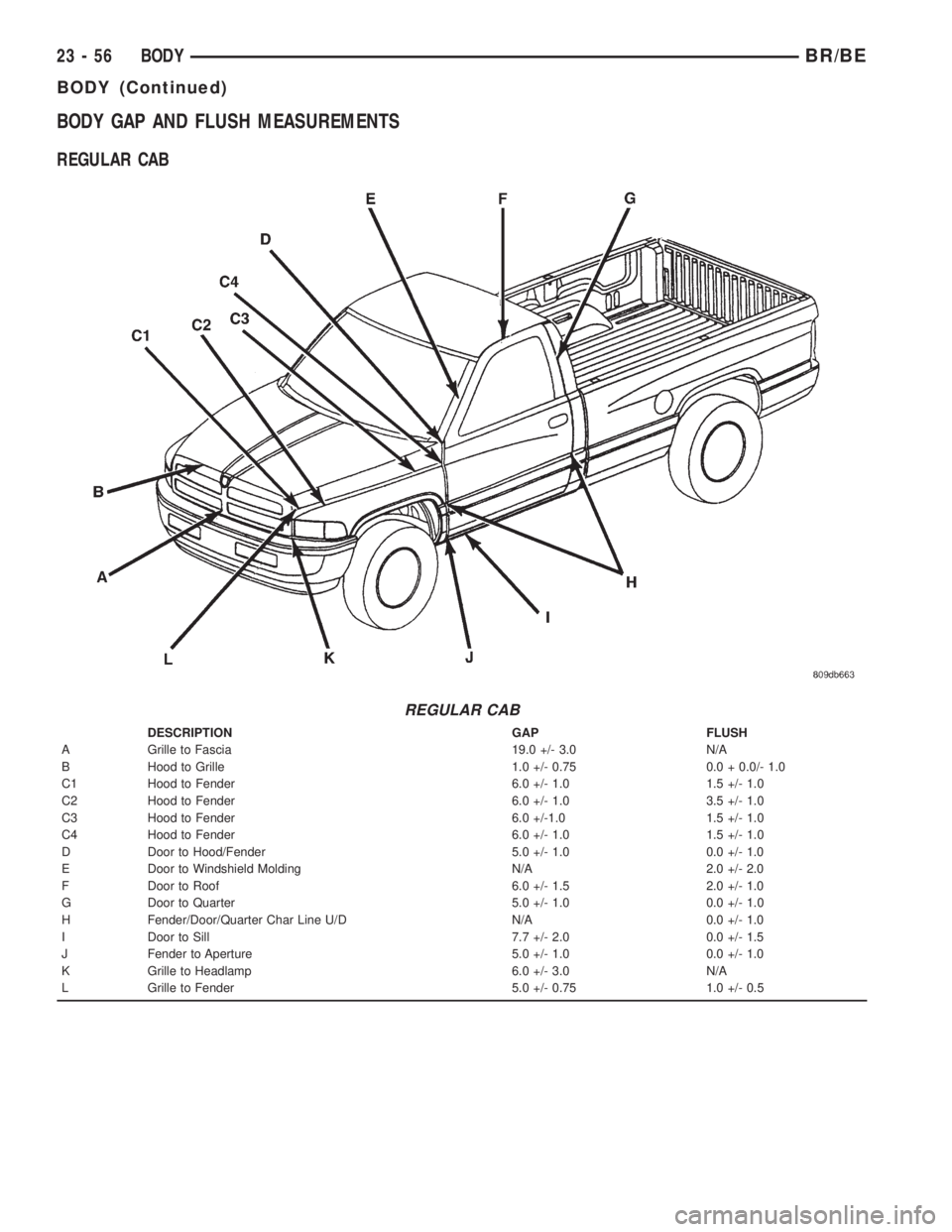

BODY GAP AND FLUSH MEASUREMENTS
REGULAR CAB
REGULAR CAB
DESCRIPTION GAP FLUSH
A Grille to Fascia 19.0 +/- 3.0 N/A
B Hood to Grille 1.0 +/- 0.75 0.0 + 0.0/- 1.0
C1 Hood to Fender 6.0 +/- 1.0 1.5 +/- 1.0
C2 Hood to Fender 6.0 +/- 1.0 3.5 +/- 1.0
C3 Hood to Fender 6.0 +/-1.0 1.5 +/- 1.0
C4 Hood to Fender 6.0 +/- 1.0 1.5 +/- 1.0
D Door to Hood/Fender 5.0 +/- 1.0 0.0 +/- 1.0
E Door to Windshield Molding N/A 2.0 +/- 2.0
F Door to Roof 6.0 +/- 1.5 2.0 +/- 1.0
G Door to Quarter 5.0 +/- 1.0 0.0 +/- 1.0
H Fender/Door/Quarter Char Line U/D N/A 0.0 +/- 1.0
I Door to Sill 7.7 +/- 2.0 0.0 +/- 1.5
J Fender to Aperture 5.0 +/- 1.0 0.0 +/- 1.0
K Grille to Headlamp 6.0 +/- 3.0 N/A
L Grille to Fender 5.0 +/- 0.75 1.0 +/- 0.5
23 - 56 BODYBR/BE
BODY (Continued)

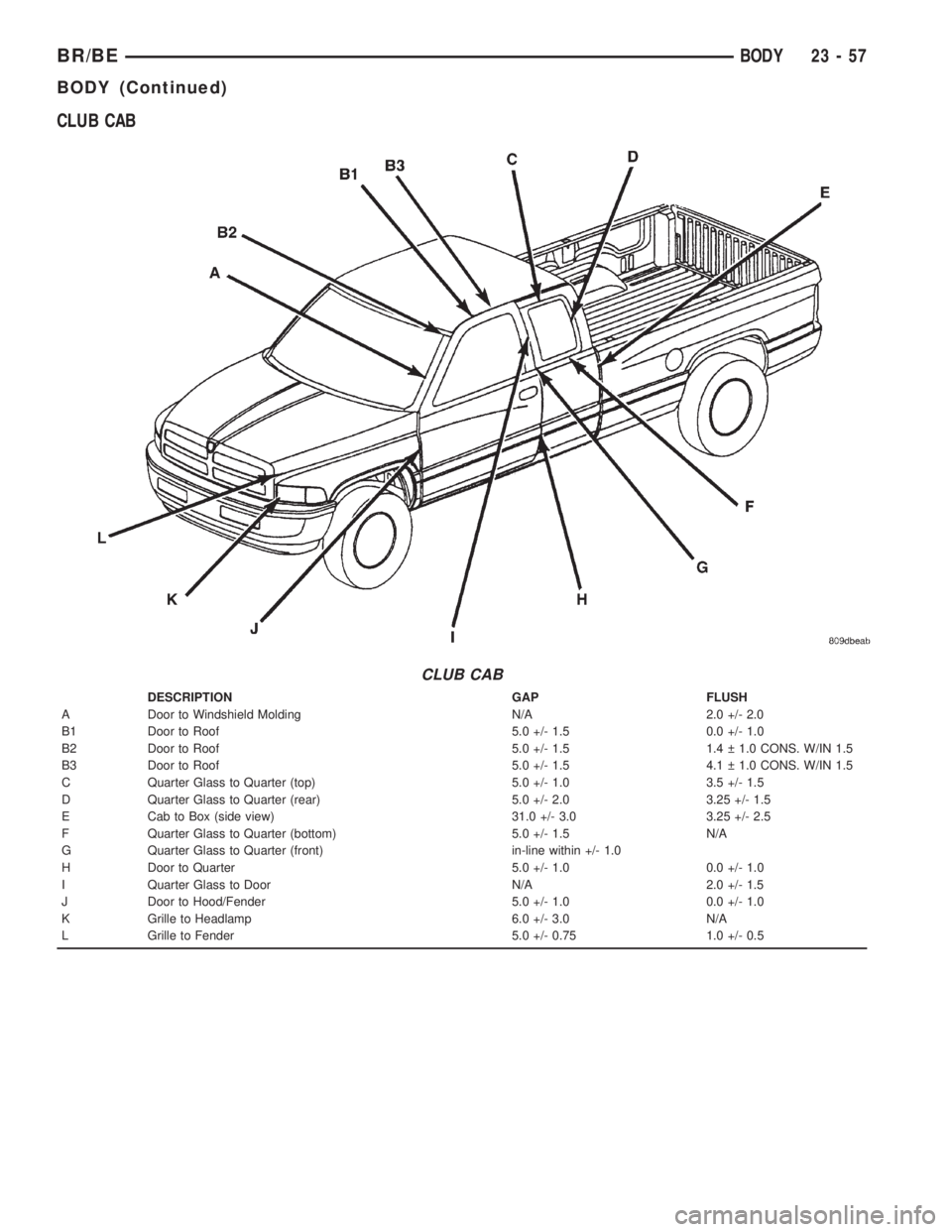

CLUB CAB
CLUB CAB
DESCRIPTION GAP FLUSH
A Door to Windshield Molding N/A 2.0 +/- 2.0
B1 Door to Roof 5.0 +/- 1.5 0.0 +/- 1.0
B2 Door to Roof 5.0 +/- 1.5 1.4   1.0 CONS. W/IN 1.5
B3 Door to Roof 5.0 +/- 1.5 4.1   1.0 CONS. W/IN 1.5
C Quarter Glass to Quarter (top) 5.0 +/- 1.0 3.5 +/- 1.5
D Quarter Glass to Quarter (rear) 5.0 +/- 2.0 3.25 +/- 1.5
E Cab to Box (side view) 31.0 +/- 3.0 3.25 +/- 2.5
F Quarter Glass to Quarter (bottom) 5.0 +/- 1.5 N/A
G Quarter Glass to Quarter (front) in-line within +/- 1.0
H Door to Quarter 5.0 +/- 1.0 0.0 +/- 1.0
I Quarter Glass to Door N/A 2.0 +/- 1.5
J Door to Hood/Fender 5.0 +/- 1.0 0.0 +/- 1.0
K Grille to Headlamp 6.0 +/- 3.0 N/A
L Grille to Fender 5.0 +/- 0.75 1.0 +/- 0.5
BR/BEBODY 23 - 57
BODY (Continued)
