Page 361 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 5.(K451) MDS SOLENOID NO.1 CONTROL CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Measure the resistance between ground and the (K451) MDS Solenoid
No.1 Control circuit in the MDS Solenoid No.1 harn

Page 362 of 5267

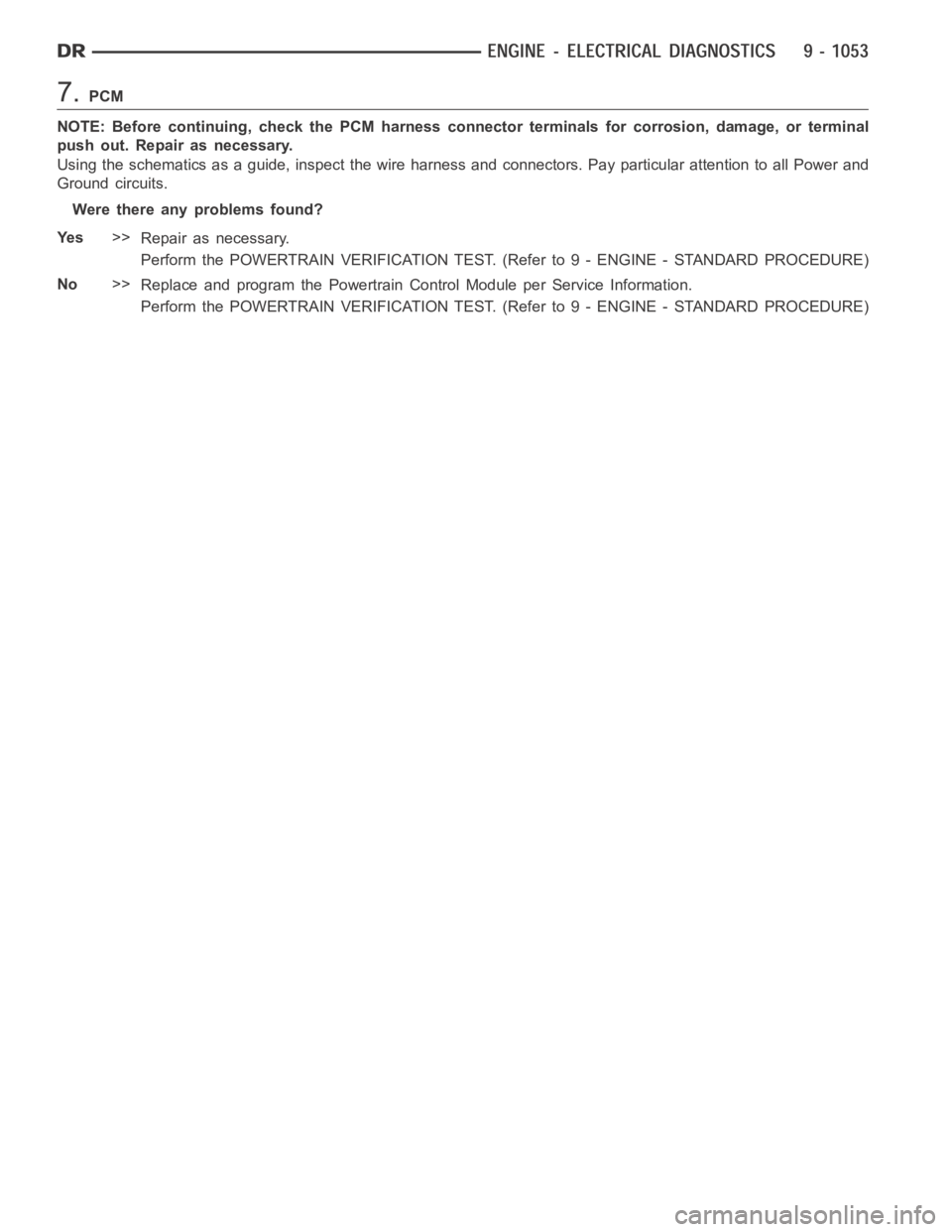

DODGE RAM SRT-10 2006  Service Repair Manual 7.PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and

Page 363 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual P3402–CYLINDER 1 DEACTIVATION CONTROL PERFORMANCE

Page 364 of 5267

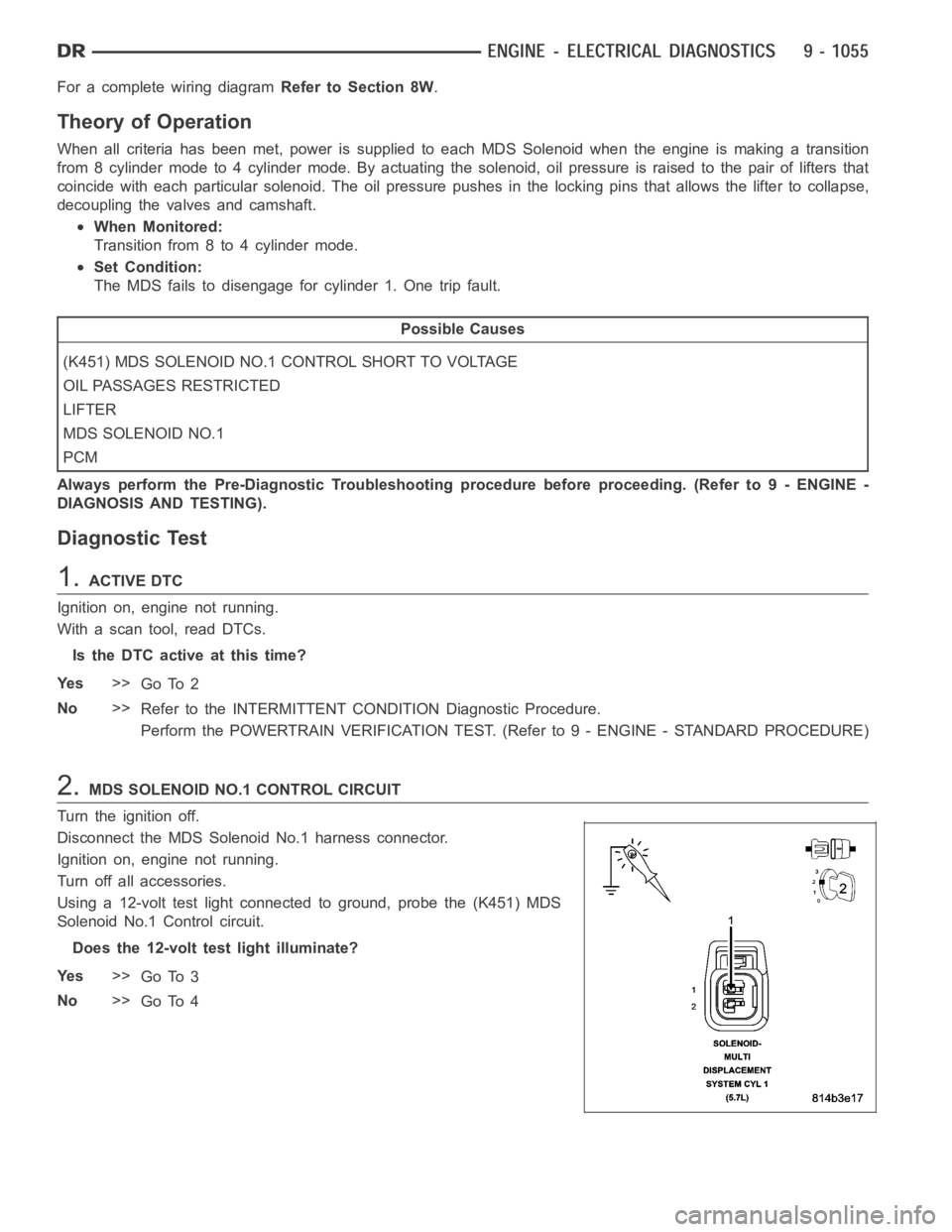

DODGE RAM SRT-10 2006  Service Repair Manual For a complete wiring diagramRefer to Section 8W.
Theory of Operation
When all criteria has been met, power is supplied to each MDS Solenoid when the engine is making a transition
from 8 cylinder mode

Page 365 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 3.(K451) MDS SOLENOID NO.1 CONTROL CIRCUIT SHORTED TO VOLTAGE
Turn the ignition off.
Disconnect the C3 PCM harness connector.
Turn the ignition on.
Measure the volage on (K451) MDS Solenoid No.1 Contr

Page 366 of 5267

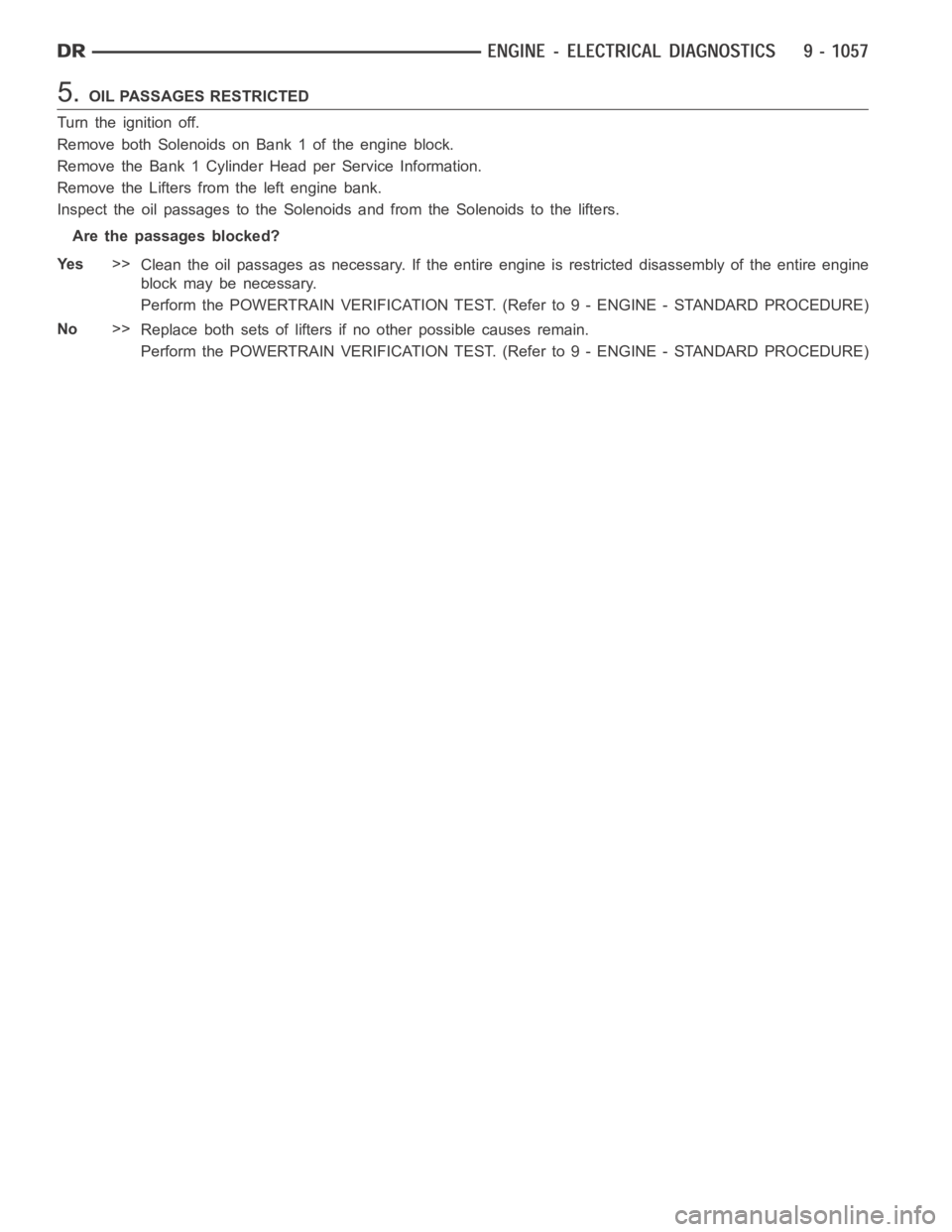

DODGE RAM SRT-10 2006  Service Repair Manual 5.OIL PASSAGES RESTRICTED
Turn the ignition off.
Remove both Solenoids on Bank 1 of the engine block.
Remove the Bank 1 Cylinder Head per Service Information.
Remove the Lifters from the left engine b

Page 367 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual P3425-MDS SOLENOID 4 CIRCUIT

Page 368 of 5267

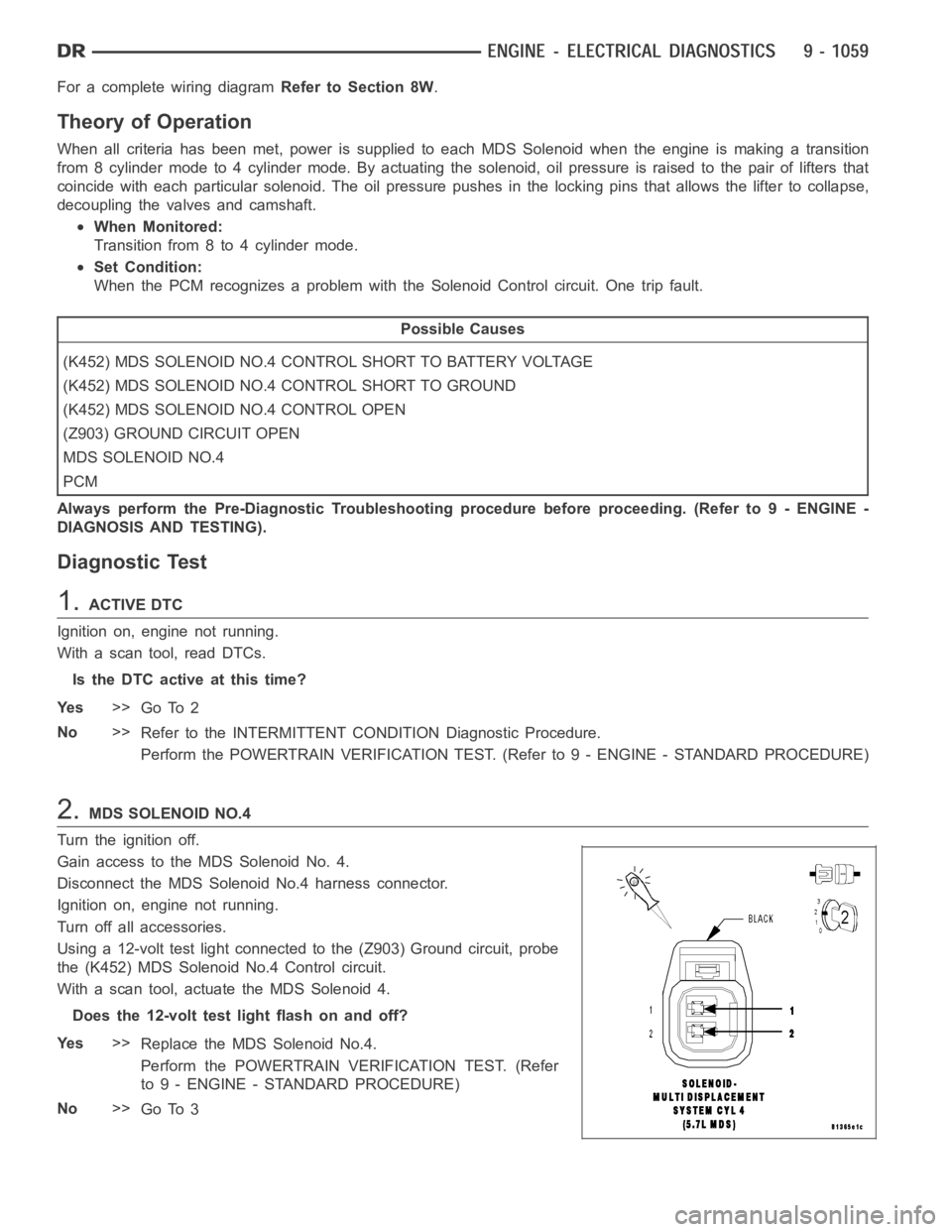

DODGE RAM SRT-10 2006  Service Repair Manual For a complete wiring diagramRefer to Section 8W.
Theory of Operation
When all criteria has been met, power is supplied to each MDS Solenoid when the engine is making a transition
from 8 cylinder mode

Page 369 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 3.(Z903) GROUND CIRCUIT OPEN
Turn the ignition off.
Using a 12-volt test light connected to the 12-volts, probe the (Z903)
Ground circuit in the MDS Solenoid No.4 harness connector.
Does the test ligh

Page 370 of 5267

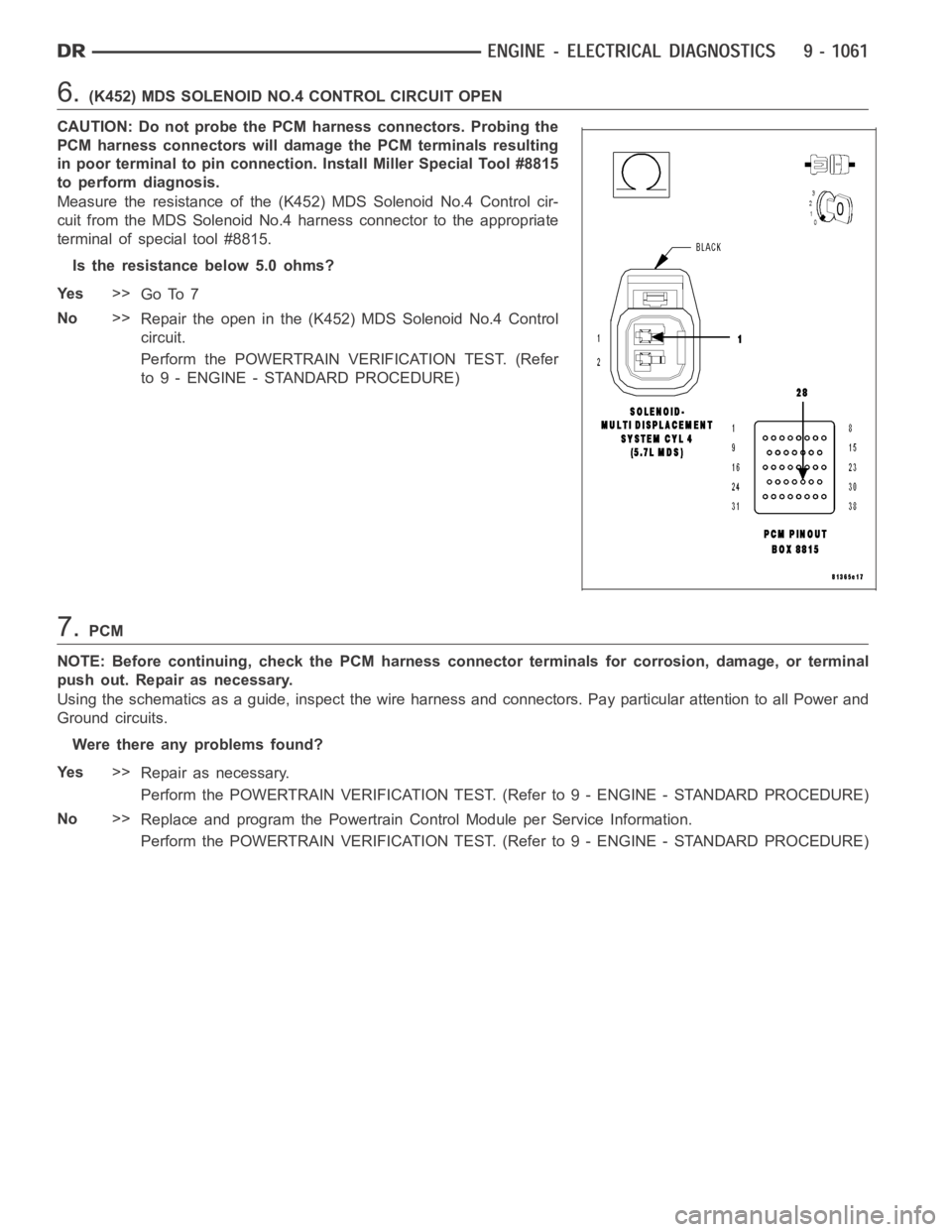

DODGE RAM SRT-10 2006  Service Repair Manual 6.(K452) MDS SOLENOID NO.4 CONTROL CIRCUIT OPEN
CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin con
