DODGE RAM SRT-10 2006  Service Repair Manual P3497-MDS RATIONALITY BANK 2
For a complete wiring diagramRefer to Section 8W.
Theory of Operation
When all criteria has been met, power is supplied to each MDS Solenoid when the engine is making a tr

Page 392 of 5267

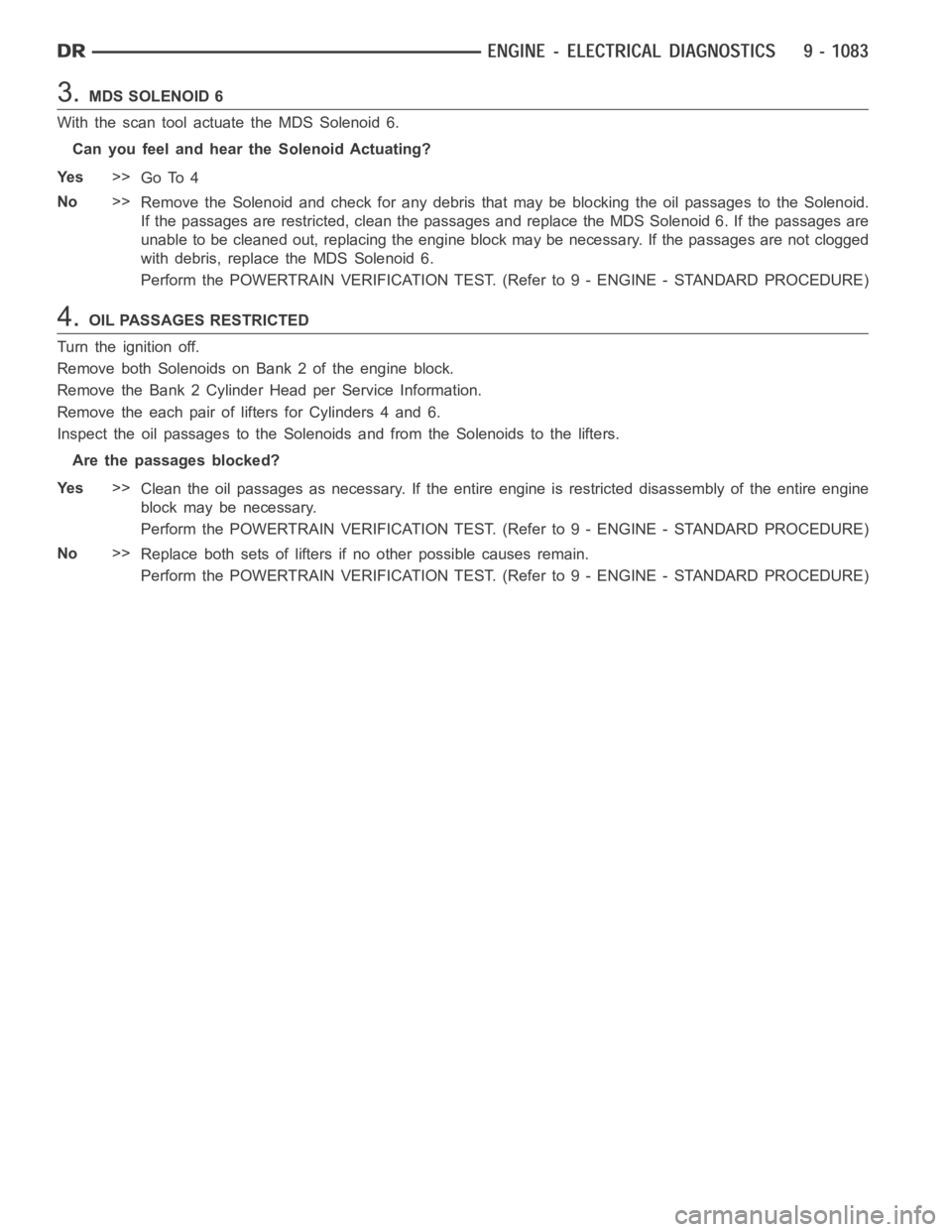

DODGE RAM SRT-10 2006  Service Repair Manual 3.MDS SOLENOID 6
With the scan tool actuate the MDS Solenoid 6.
Can you feel and hear the Solenoid Actuating?
Ye s>>
Go To 4
No>>
Remove the Solenoid and check for any debris that may be blocking the

Page 393 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual U0001-CAN C BUS
For a complete wiring diagramRefer to Section 8W.

Page 394 of 5267

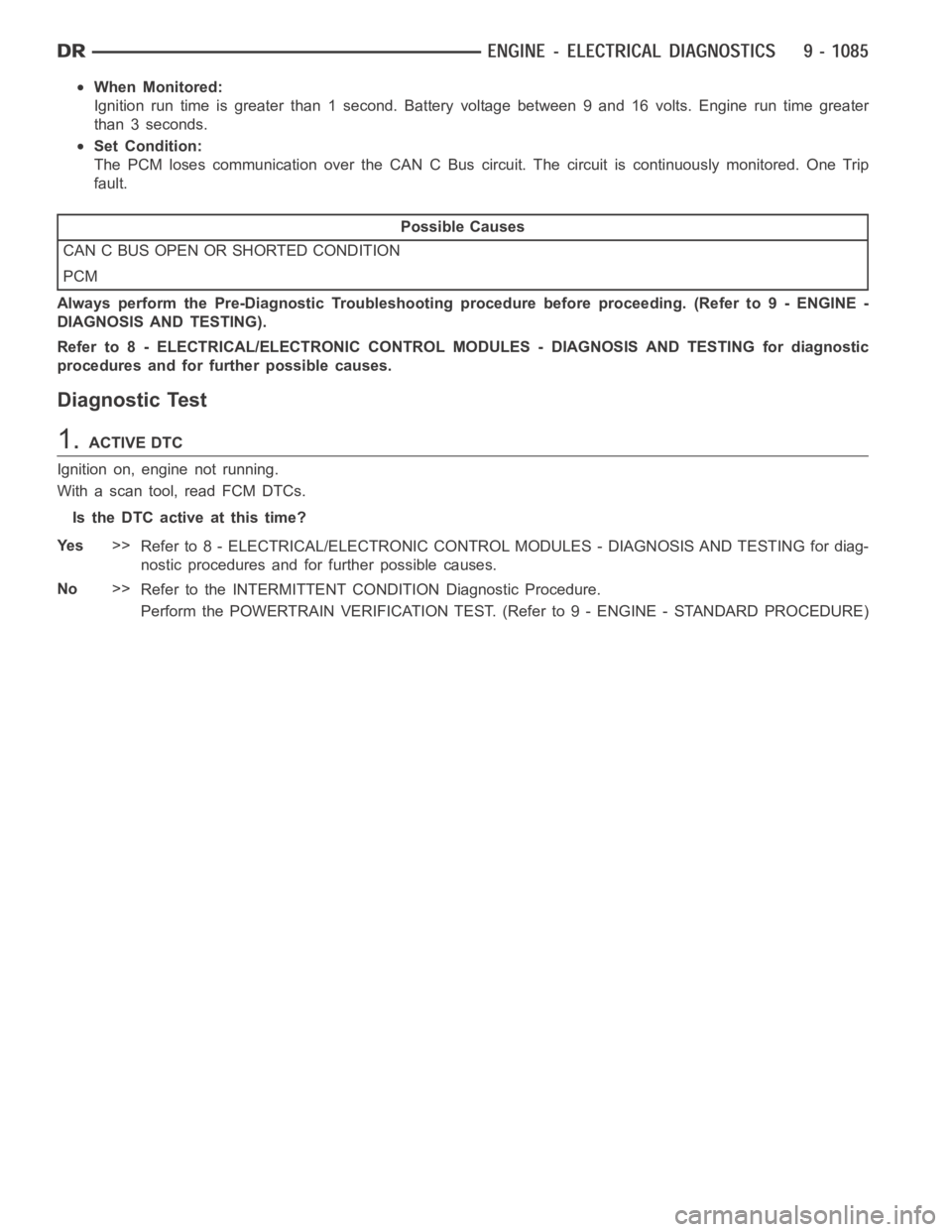

DODGE RAM SRT-10 2006  Service Repair Manual When Monitored:
Ignition run time is greater than 1 second. Battery voltage between 9 and 16volts. Engine run time greater
than 3 seconds.
Set Condition:
The PCM loses communication over the CAN C Bus

Page 395 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual U0101-LOST COMMUNICATION WITH TCM
For a complete wiring diagramRefer to Section 8W.
When Monitored:
Ignition run time is greater than 1 second. Battery voltage between 9 and 16volts. Engine run time g

Page 396 of 5267

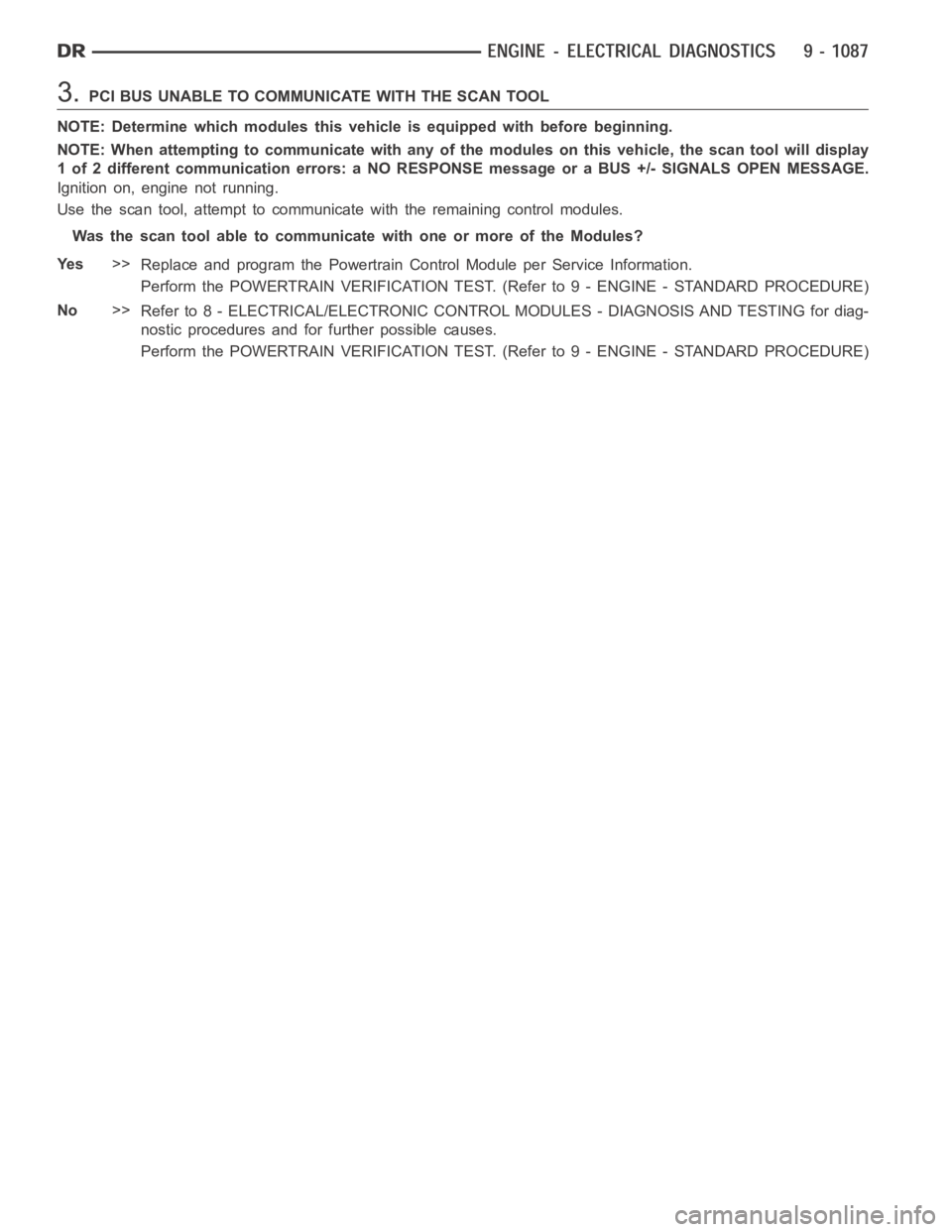

DODGE RAM SRT-10 2006  Service Repair Manual 3.PCI BUS UNABLE TO COMMUNICATE WITH THE SCAN TOOL
NOTE: Determine which modules this vehicle is equipped with before beginning.
NOTE: When attempting to communicate with any of the modules on this ve

Page 397 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual U0121-LOST COMMUNICATION WITH ANTI-LOCK BRAKE MODULE
For a complete wiring diagramRefer to Section 8W.

Page 398 of 5267

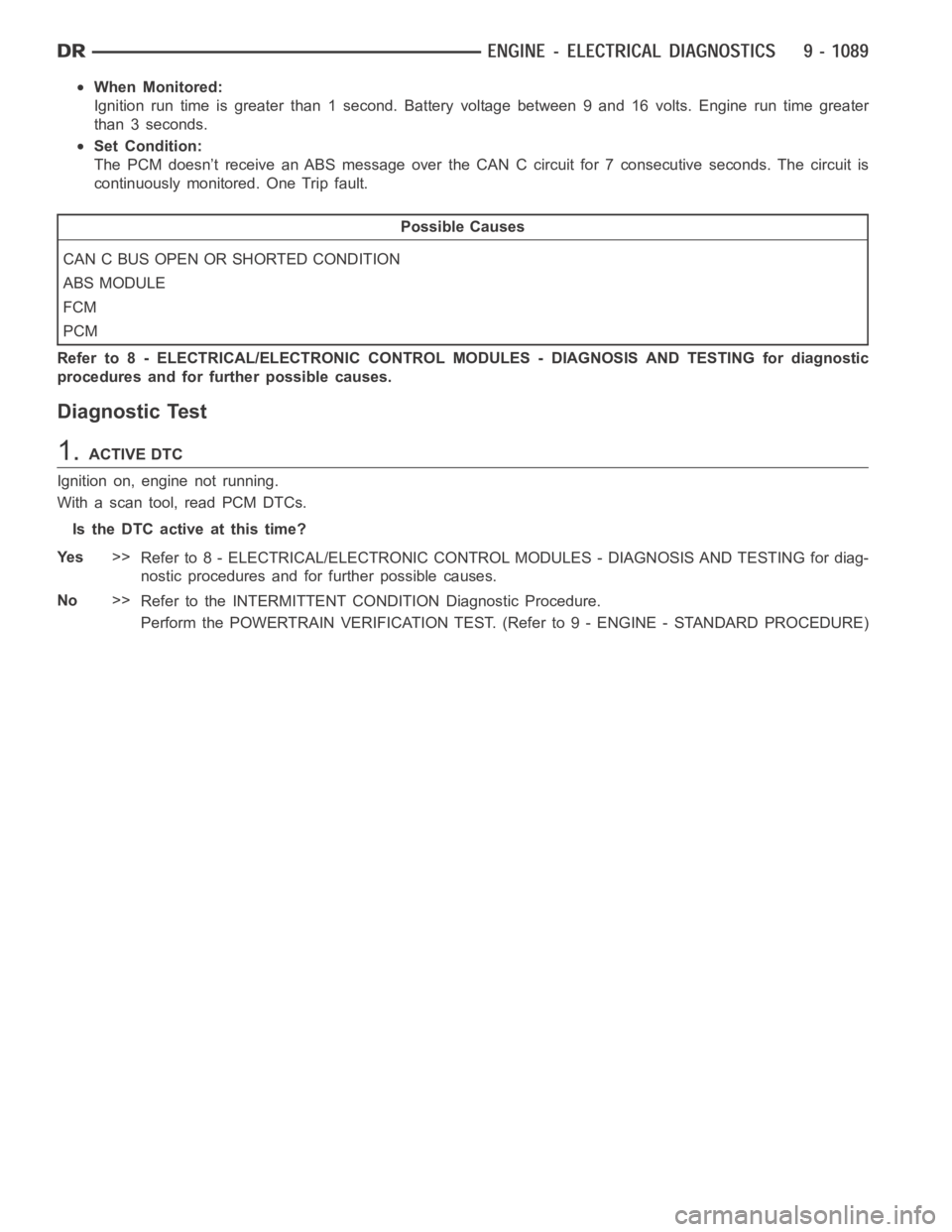

DODGE RAM SRT-10 2006  Service Repair Manual When Monitored:
Ignition run time is greater than 1 second. Battery voltage between 9 and 16volts. Engine run time greater
than 3 seconds.
Set Condition:
The PCM doesn’t receive an ABS message over

Page 399 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual U0141-LOST COMMUNICATIONWITH FRONT CONTROL MODULE
For a complete wiring diagramRefer to Section 8W.

Page 400 of 5267

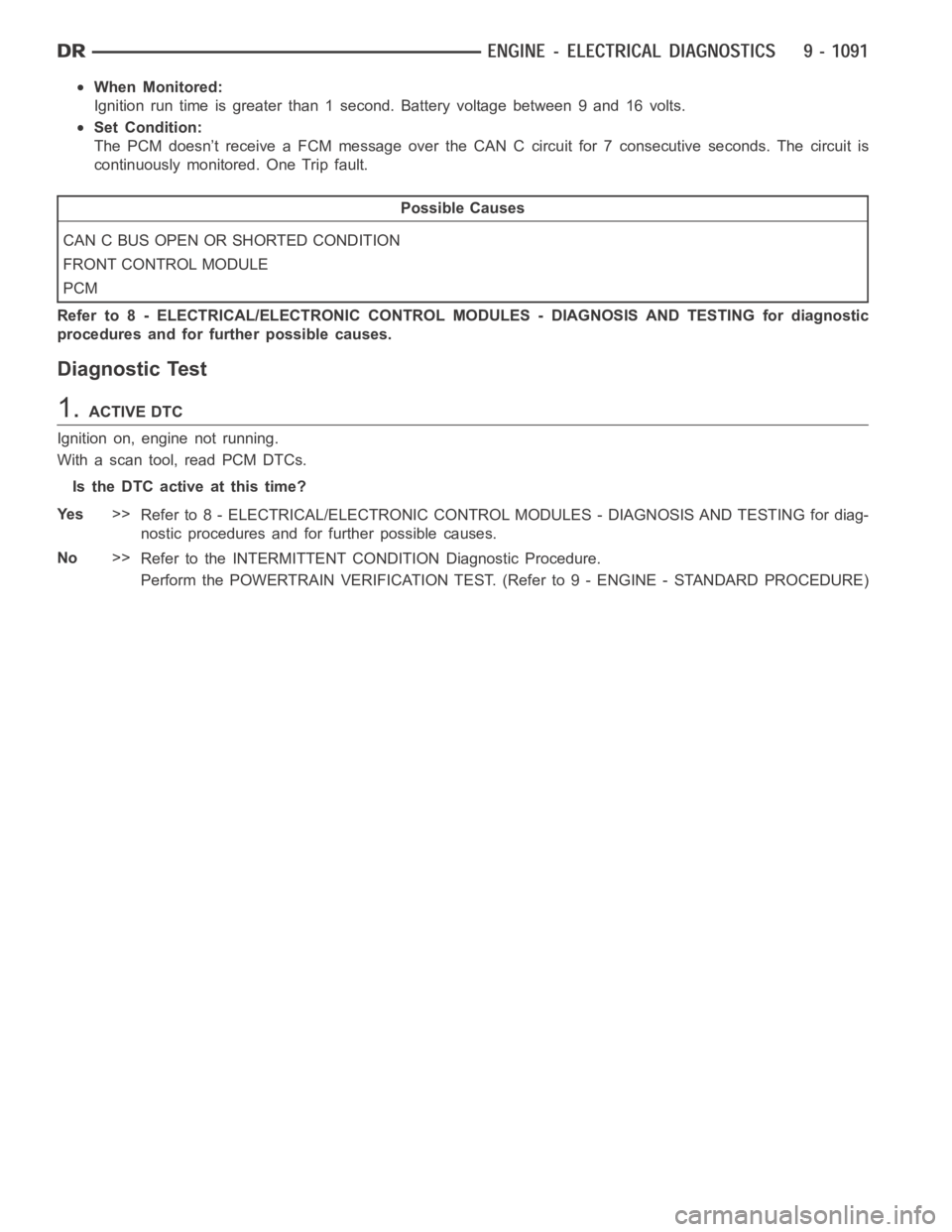

DODGE RAM SRT-10 2006  Service Repair Manual When Monitored:
Ignition run time is greater than 1 second. Battery voltage between 9 and 16volts.
Set Condition:
The PCM doesn’t receive a FCM message over the CAN C circuit for 7 consecutive secon
