DODGE RAM SRT-10 2006  Service Repair Manual POWERTRAIN VERIFICATION TEST
For a complete wiring diagramRefer to Section 8W.
Diagnostic Test
1.SELECTING THE PROPER VERIFICATION TEST
The following verification test are for different repairs. Selec

Page 452 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 23. If thelift foot setsare continually used, a speed control overshoot/undershoot condition will develop.
24. To
unlearnthe overshoot/undershoot condition, the vehicle operator has to press and relea

Page 453 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual NOTE: If this vehicle is equipped with an Electronic Throttle Control system, and the APP Sensors, PCM, or
Throttle Body Assembly have been replaced, use the scan tool to perform theETC RELEARN functi

Page 454 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual

Page 455 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual page page
ENGINE - ELECTRICAL DIAGNOSTICS -
DIESEL
DIAGNOSIS AND TESTING
PRE-DIAGNOSTIC TROUBLESHOOTING
PROCEDURE............................. 1150
POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL).......

Page 456 of 5267

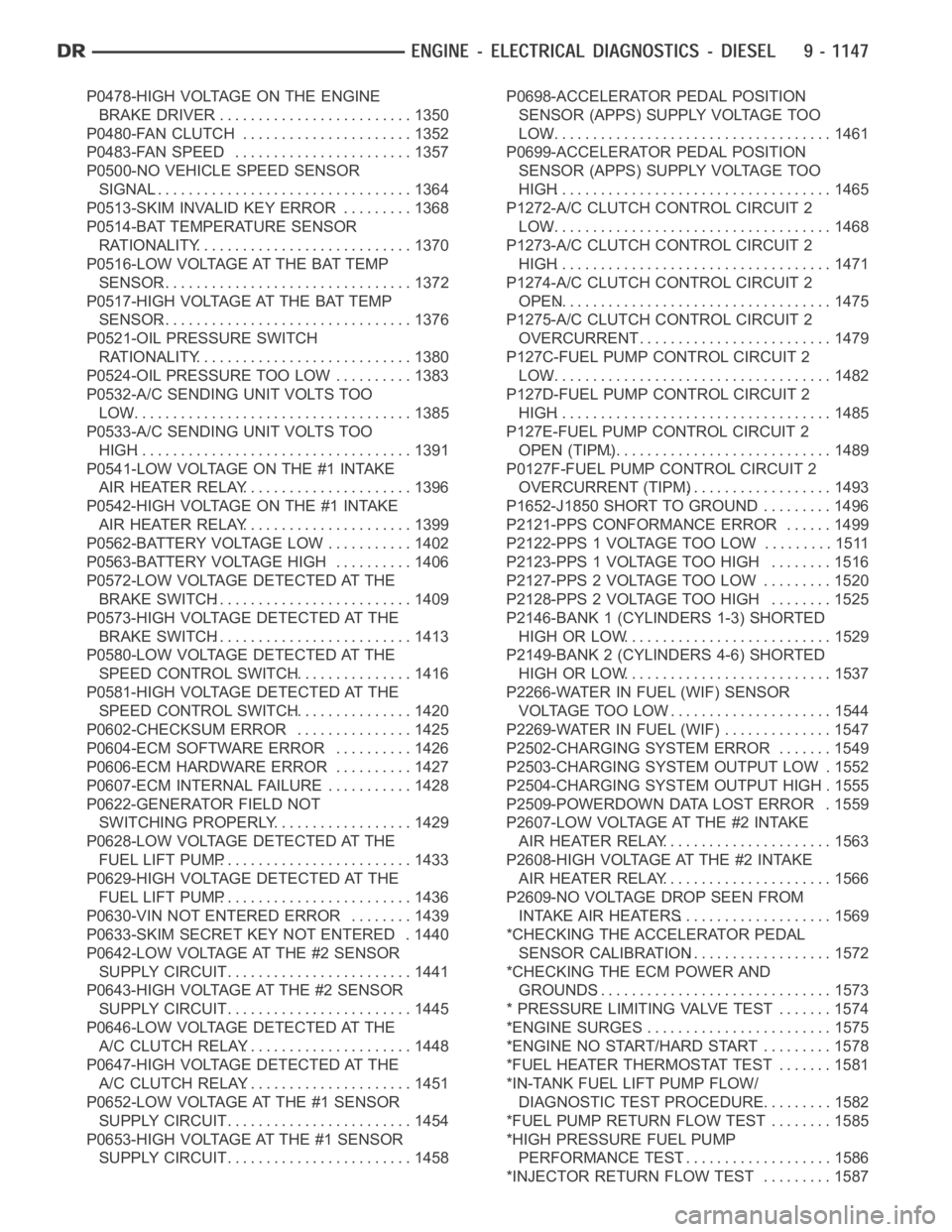

DODGE RAM SRT-10 2006  Service Repair Manual P0478-HIGH VOLTAGE ON THE ENGINE
BRAKE DRIVER.......................... 1350
P0480-FAN CLUTCH ...................... 1352
P0483-FAN SPEED ....................... 1357
P0500-NO VEHICLE SPEED SENSOR
SIG

Page 457 of 5267

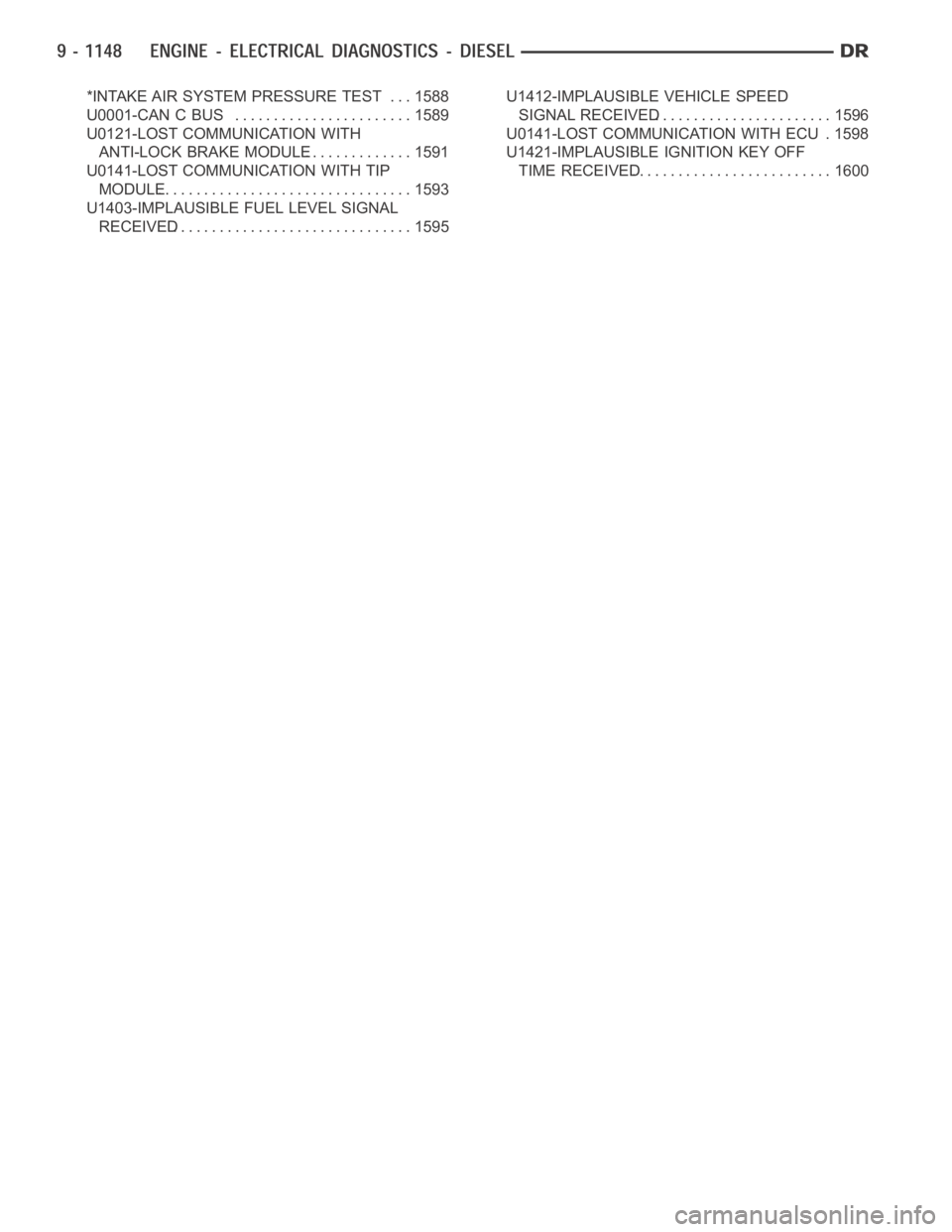

DODGE RAM SRT-10 2006  Service Repair Manual *INTAKE AIR SYSTEM PRESSURE TEST . . . 1588
U0001-CAN C BUS ....................... 1589
U0121-LOST COMMUNICATION WITH
ANTI-LOCK BRAKE MODULE.............. 1591
U0141-LOST COMMUNICATION WITH TIP
MODUL

Page 458 of 5267

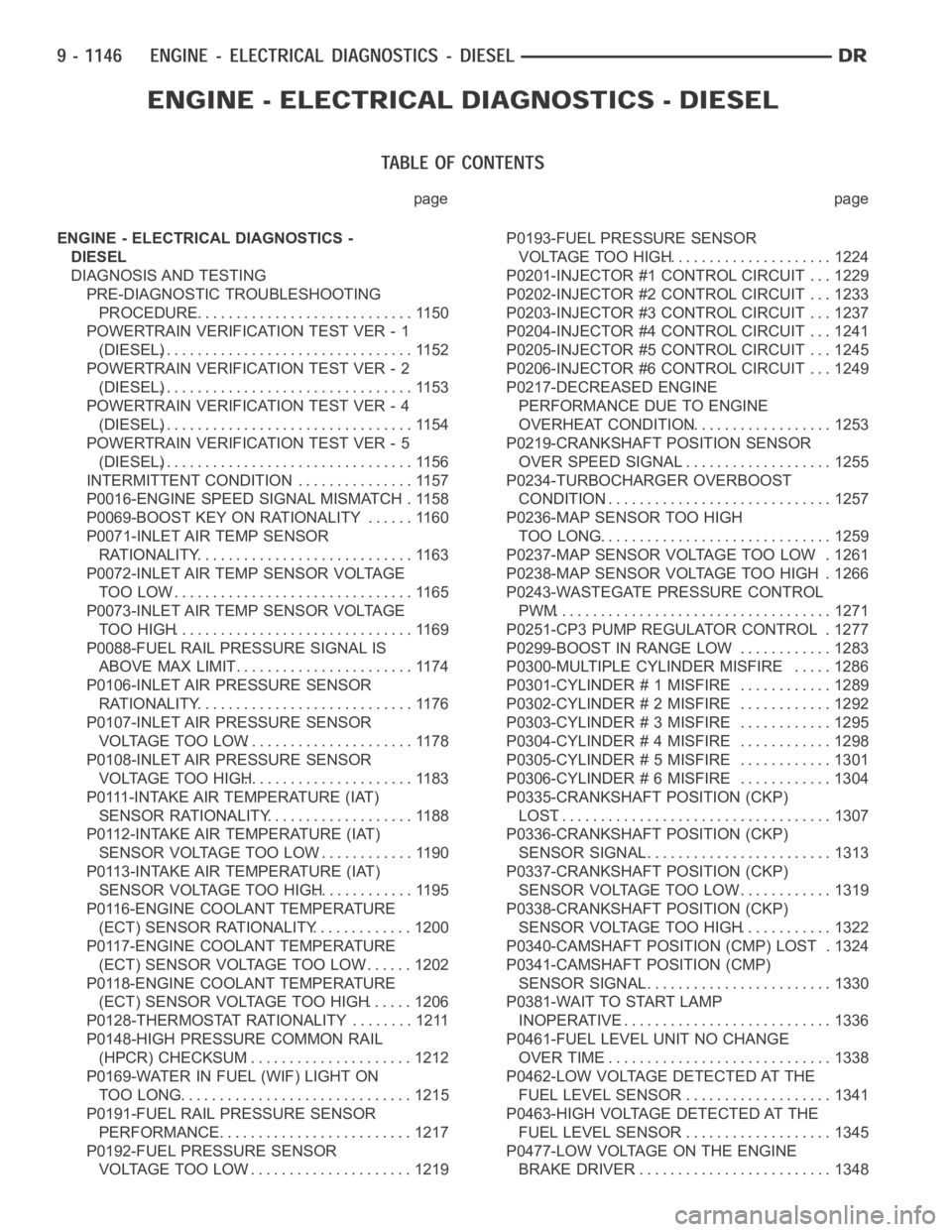

DODGE RAM SRT-10 2006  Service Repair Manual ENGINE - ELECTRICAL DIAGNOSTICS - DIESEL
DIAGNOSIS AND TESTING

Page 459 of 5267

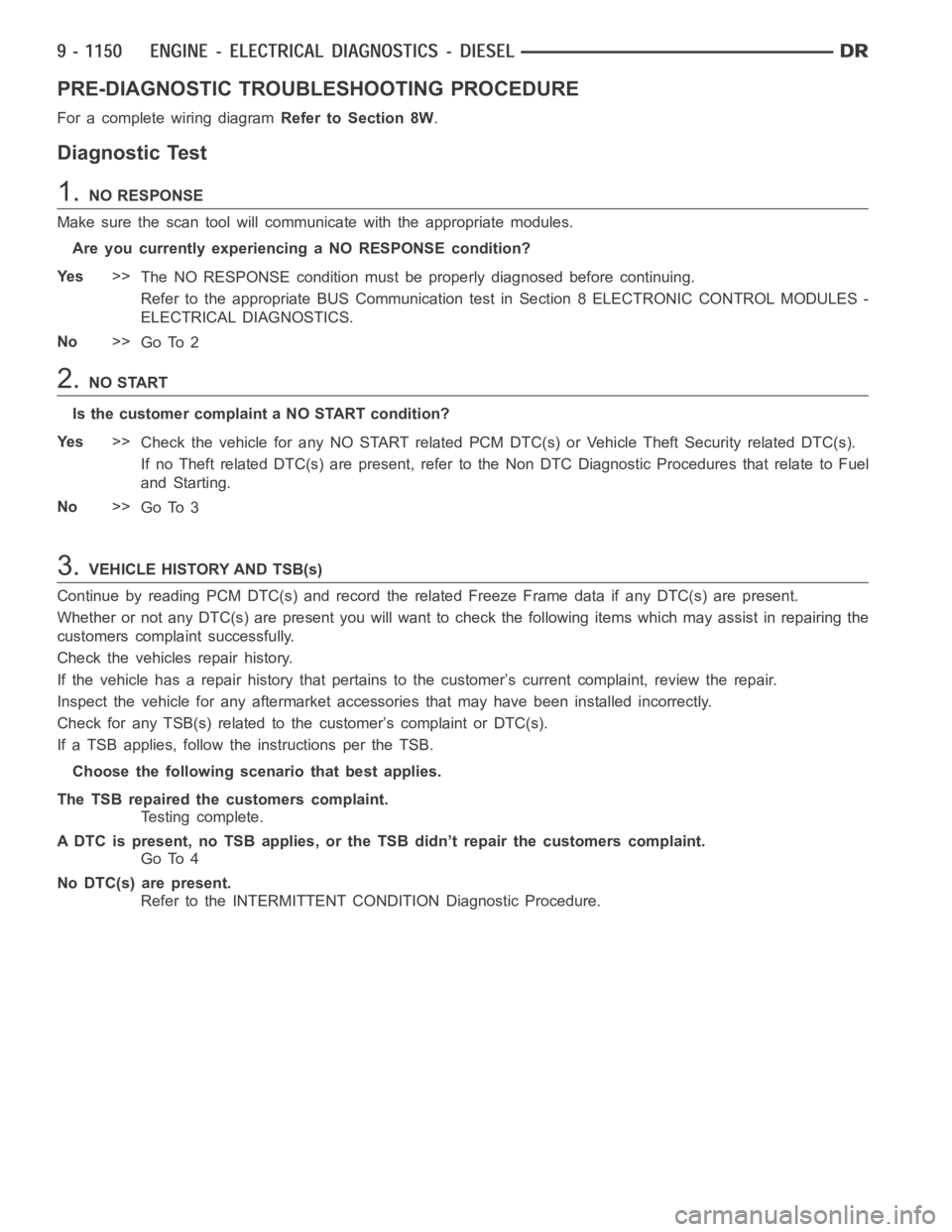

DODGE RAM SRT-10 2006  Service Repair Manual PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE
For a complete wiring diagramRefer to Section 8W.
Diagnostic Test
1.NO RESPONSE
Make sure the scan tool will communicate with the appropriate modules.
Are you

Page 460 of 5267

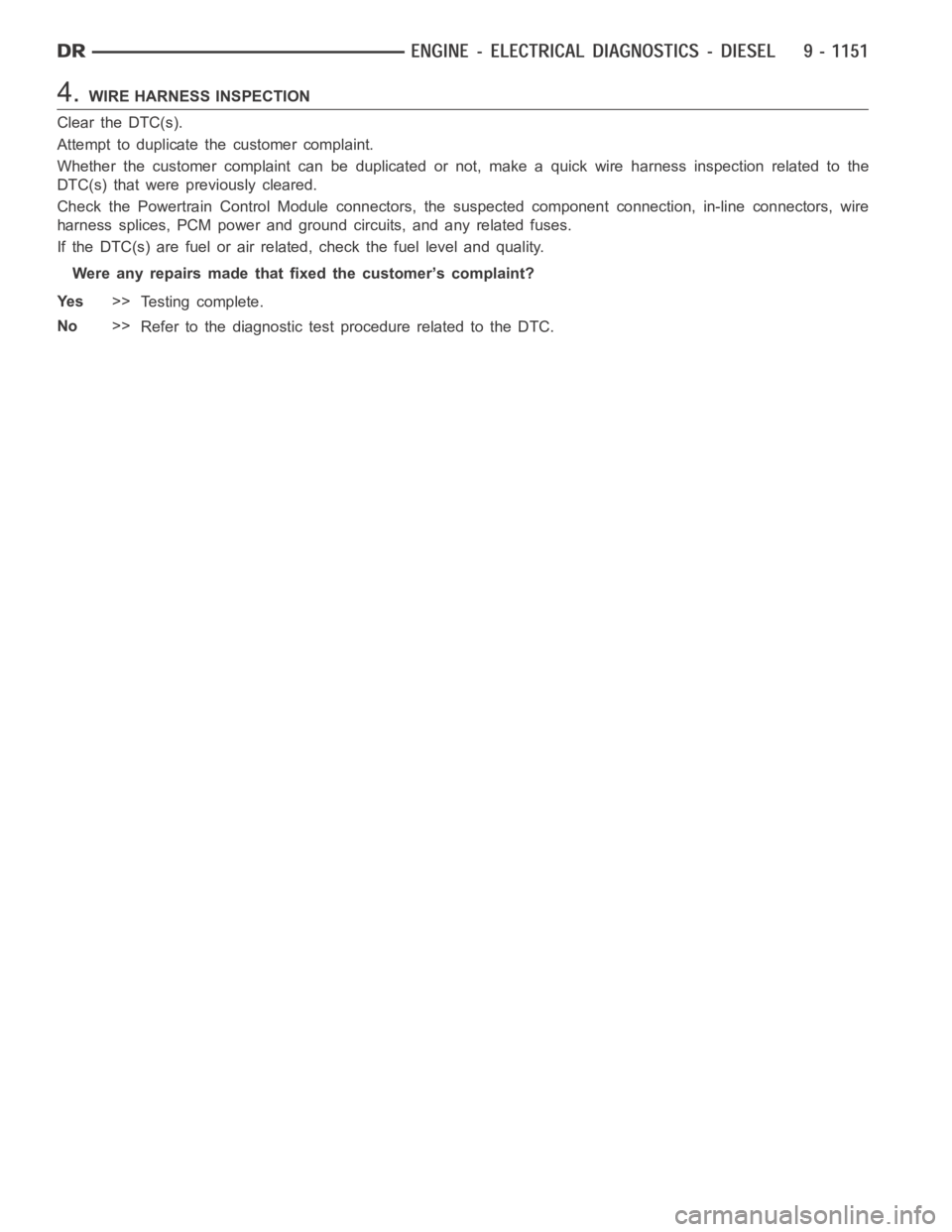

DODGE RAM SRT-10 2006  Service Repair Manual 4.WIRE HARNESS INSPECTION
Clear the DTC(s).
Attempt to duplicate the customer complaint.
Whether the customer complaint can be duplicated or not, make a quick wire harness inspection related to the
DT
