DODGE RAM SRT-10 2006 Service Repair Manual

NOTE:
All measurements are in mm. O/F = Over Flush. U/F = Under Flush.
DIMENSION DESCRIPTION GAP FLUSH
1 Tailgate to outer box
(Up/Down surface only)— 0.0 ± 1.5
Parallel within 1.0
2 Cab Back to box front 31.0 ± 5.0
Parallel within 3.0—
3 Fuel door to outer box 5.0 ± 1.5
Parallel within 1.00.0 ± 1.5
4 Cab to box side 31.0 ± 5.0
Parallel within 3.04.0 ± 2.5 (Standard Cab)
O/F 5.0 ± 2.5 (Quad Cab)
5 Cab to box character line alignment — Up/Down 0.0 ± 3.0
6 Tailgate to outer box 5.0 ± 2.0
Parallel within 1.0U/F 1.5 ± 1.5
7 Bumper to outer box 24.75 ± 5.0 (F/A)
23.75±5.0(C/C)
Parallel within 5.0—
8 Tailgate to outer box character line
adjustment— Up/Down 0.0 ± 1.5
9 Bumper to tailgate 30.25 ± 3.0
Parallel within 4.0—
Fig. 3 GAP & FLUSH - PICKUP BOX

NOTE:
All measurements are in mm. O/F = Over Flush. U/F = Under Flush.
DIMENSION DESCRIPTION GAP FLUSH

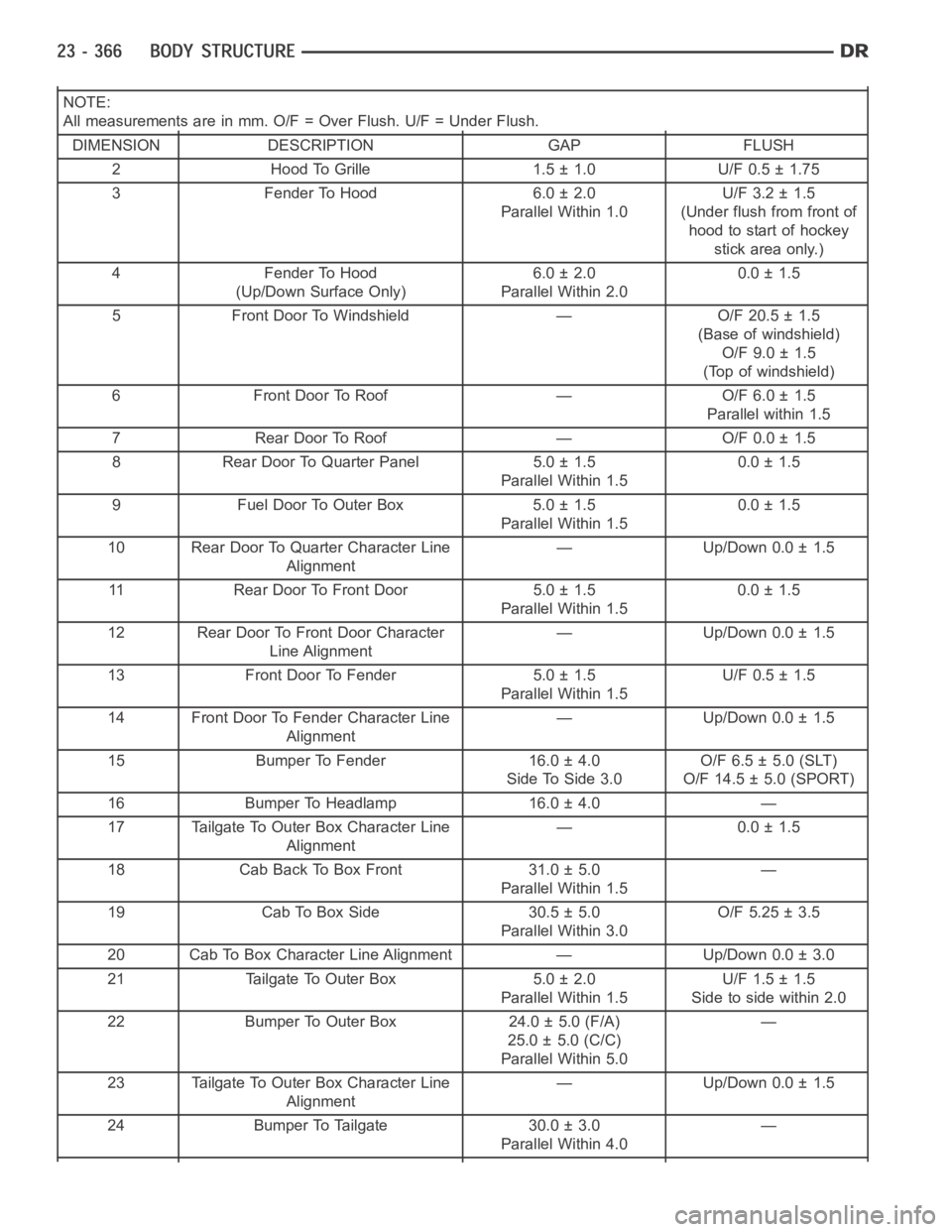

1 Bumper To Grille 19.0 ± 4.0 —
Fig. 4 MEGA CAB - GAP & FLUSH

NOTE:
All measurements are in mm. O/F = Over Flush. U/F = Under Flush.
DIMENSION DESCRIPTION GAP FLUSH
2 Hood To Grille 1.5 ± 1.0 U/F 0.5 ± 1.75
3 Fender To Hood 6.0 ± 2.0
Parallel Within 1.0U/F 3.2 ± 1.5
(Under flush from front of
hood to start of hockey
stick area only.)
4 Fender To Hood
(Up/Down Surface Only)6.0 ± 2.0
Parallel Within 2.00.0 ± 1.5
5 Front Door To Windshield — O/F 20.5 ± 1.5
(Base of windshield)
O/F 9.0 ± 1.5
(Top of windshield)
6 Front Door To Roof — O/F 6.0 ± 1.5
Parallel within 1.5
7 Rear Door To Roof — O/F 0.0 ± 1.5
8 Rear Door To Quarter Panel 5.0 ± 1.5
Parallel Within 1.50.0 ± 1.5
9 Fuel Door To Outer Box 5.0 ± 1.5
Parallel Within 1.50.0 ± 1.5
10 Rear Door To Quarter Character Line
Alignment— Up/Down 0.0 ± 1.5
11 Rear Door To Front Door 5.0 ± 1.5
Parallel Within 1.50.0 ± 1.5
12 Rear Door To Front Door Character
Line Alignment— Up/Down 0.0 ± 1.5
13 Front Door To Fender 5.0 ± 1.5
Parallel Within 1.5U/F 0.5 ± 1.5
14 Front Door To Fender Character Line
Alignment— Up/Down 0.0 ± 1.5
15 Bumper To Fender 16.0 ± 4.0
Side To Side 3.0O/F 6.5 ± 5.0 (SLT)
O/F 14.5 ± 5.0 (SPORT)
16 Bumper To Headlamp 16.0 ± 4.0 —
17 Tailgate To Outer Box Character Line
Alignment— 0.0 ± 1.5
18 Cab Back To Box Front 31.0 ± 5.0
Parallel Within 1.5—
19 Cab To Box Side 30.5 ± 5.0
Parallel Within 3.0O/F 5.25 ± 3.5
20 Cab To Box Character Line Alignment — Up/Down 0.0 ± 3.0
21 Tailgate To Outer Box 5.0 ± 2.0
Parallel Within 1.5U/F 1.5 ± 1.5
Side to side within 2.0
22 Bumper To Outer Box 24.0 ± 5.0 (F/A)
25.0 ± 5.0 (C/C)
Parallel Within 5.0—
23 Tailgate To Outer Box Character Line
Alignment— Up/Down 0.0 ± 1.5
24 Bumper To Tailgate 30.0 ± 3.0
Parallel Within 4.0—

OPENING DIMENSIONS
SPECIFICATIONS
BODY OPENING DIMENSIONS INDEX
DESCRIPTION FIGURE
WINDSHIELD OPENING 5
DOOR OPENING - STANDARD CAB 6
DOOR OPENINGS - QUAD CAB 7
REAR WINDOW OPENING 8
ENGINE COMPARTMENT/FRONT STRUCTURE 9
REAR DOOR OPENING - MEGA CAB 10
Fig. 5 WINDSHIELD OPENING

Fig. 6 DOOR OPENING - STANDARD CAB
Fig. 7 DOOR OPENINGS - QUAD CAB

Fig. 8 REAR WINDOW OPENING
Fig. 9 ENGINE COMPARTMENT/FRONT STRUCTURE

SEALER LOCATIONS
SPECIFICATIONS
INDEX
DESCRIPTION FIGURE
LOWER WINDSHIELD PILLAR, LOWER PLENUM AND COWL BAR 11
DASH PANEL, LOWER PLENUM AND COWL SIDE PANEL 12
LOWER DASH PANEL, LOWER COWL SIDE AND FLOOR PAN SUPPORT 13
ROOF PANEL, OUTER BODY SIDE APERTURE AND BACKLITE 14
CAB BACK, BODY SIDE APERTURE - REAR AND BACKLITE LOWER CORNER 15
LOWER DASH PANEL AND FLOOR PAN 16
FLOOR PAN AND BODY SIDE APERTURE 17
FRONT FLOOR PAN AND REAR PAN 18
FLOOR PAN TO CAB BACK 19
PICKUP BOX 20
MEGA CAB
FLOOR PAN ASSEMBLY - MEGA CAB 21
MISCELLANEOUS UNDERBODY - MEGA CAB 22
DASH AND FRONT STRUCTURE - MEGA CAB 23
ROOF WITHOUT SUNROOF (1 OF 2) - MEGA CAB 24
ROOF WITHOUT SUNROOF (2 OF 2) - MEGA CAB 25
ROOF WITH SUNROOF - MEGA CAB 26
CAB COMPLETE (1 OF 2) - MEGA CAB 27
Fig. 10 REAR DOOR OPENING - MEGA CAB

DESCRIPTION FIGURE
CAB COMPLETE (2 OF 2) - MEGA CAB 28
FLOOR PAN - MEGA CAB 29
BODY SIDE APERTURE/FLOOR PAN - MEGA CAB 30
BODY SIDE APERTURE/CAB BACK - MEGA CAB 31
BODY SIDE APERTURE/ROOF - MEGA CAB 32
C-PILLAR/ROOF MEGA CAB 33
Fig. 11 LOWER WINDSHIELD PILLAR

Fig. 12 DASH PANEL

Fig. 13 LOWER DASH PANEL
