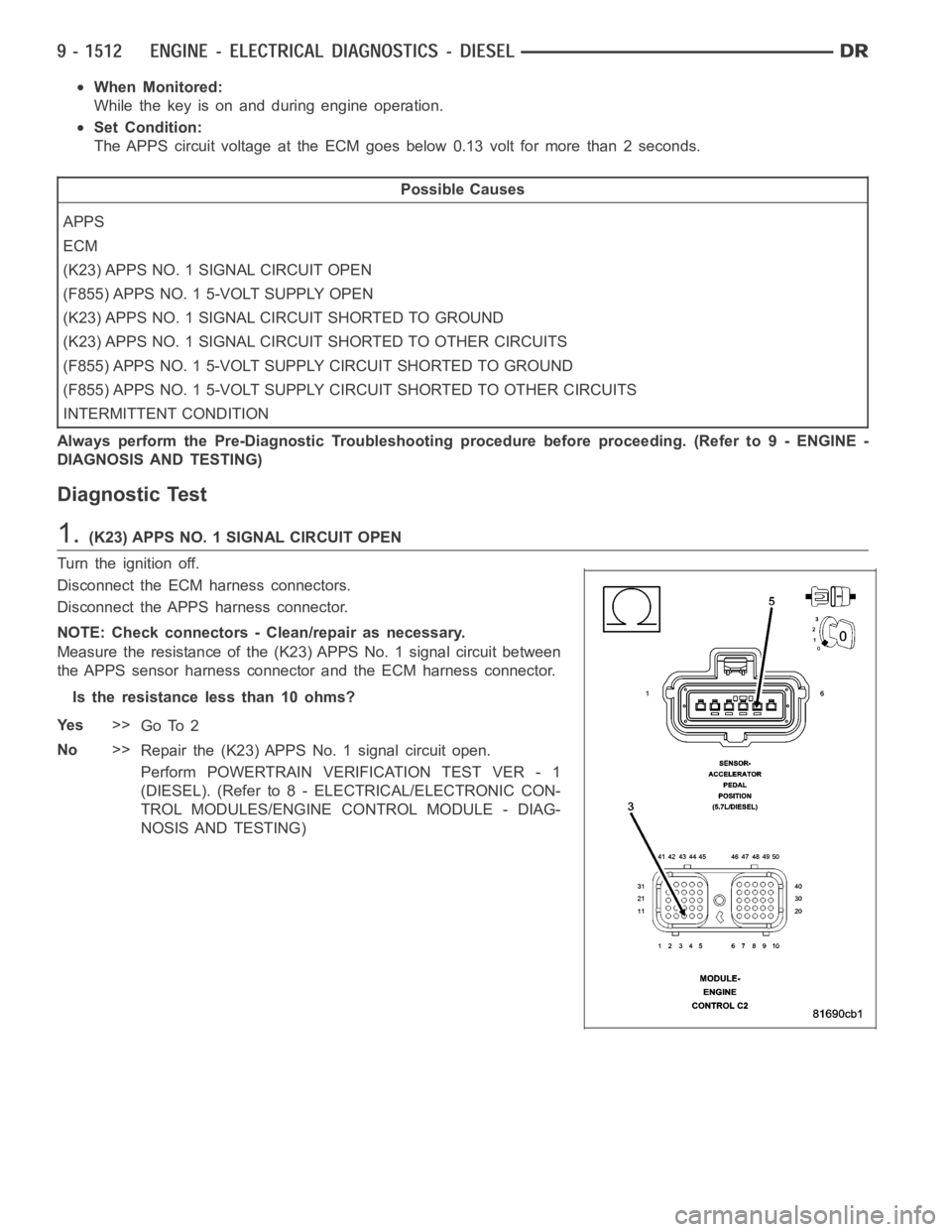

When Monitored:
While the key is on and during engine operation.
Set Condition:
The APPS circuit voltage at the ECM goes below 0.13 volt for more than 2 seconds.
Possible Causes
APPS
ECM
(K23) APPS NO. 1 SIGNAL CIRCUIT OPEN
(F855) APPS NO. 1 5-VOLT SUPPLY OPEN
(K23) APPS NO. 1 SIGNAL CIRCUIT SHORTED TO GROUND
(K23) APPS NO. 1 SIGNAL CIRCUIT SHORTED TO OTHER CIRCUITS
(F855) APPS NO. 1 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(F855) APPS NO. 1 5-VOLT SUPPLY CIRCUIT SHORTED TO OTHER CIRCUITS
INTERMITTENT CONDITION
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1.(K23) APPS NO. 1 SIGNAL CIRCUIT OPEN
Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the APPS harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance of the (K23) APPS No. 1 signal circuit between
the APPS sensor harness connector and the ECMharness connector.
Is the resistance less than 10 ohms?
Ye s>>
Go To 2
No>>
Repair the (K23) APPS No. 1 signal circuit open.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
Page 822 of 5267

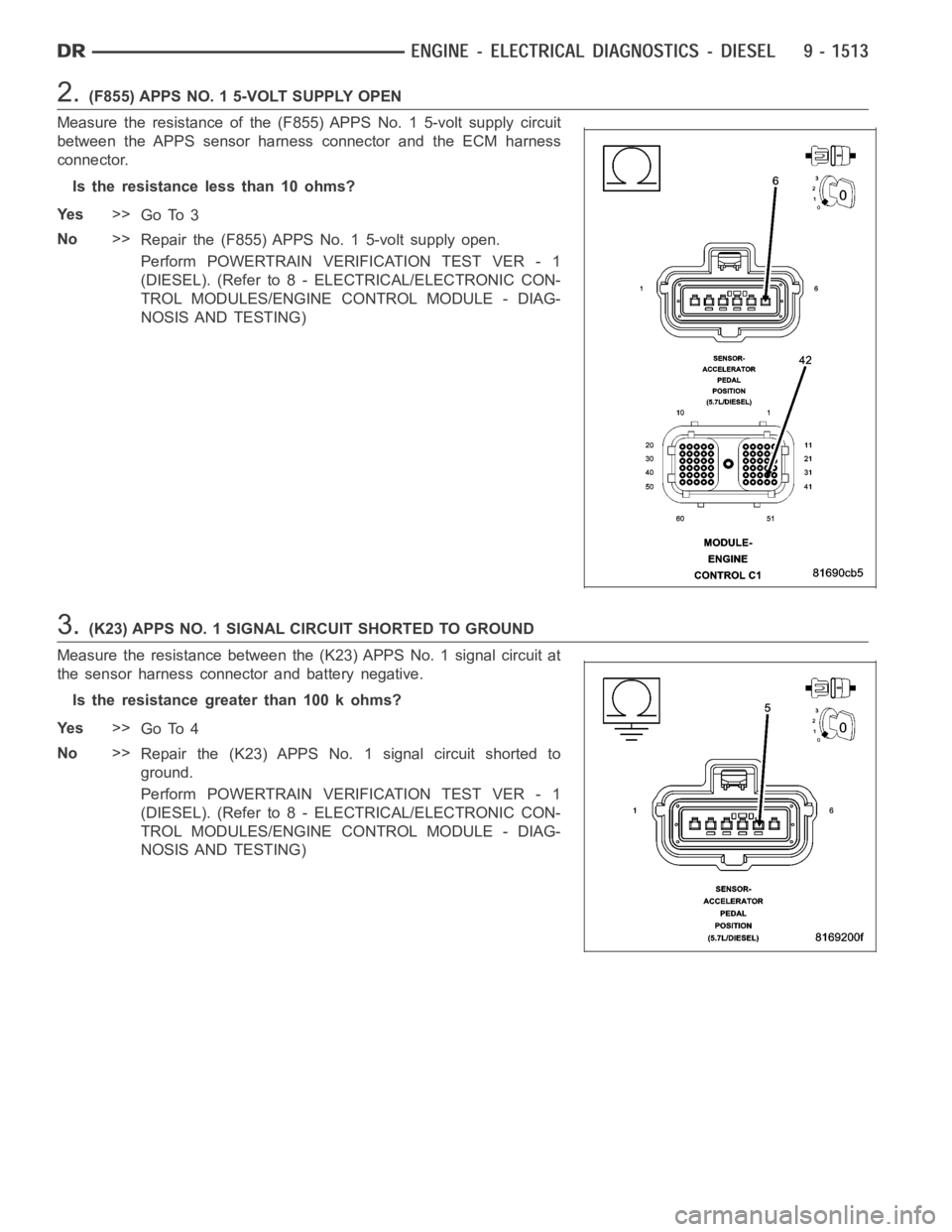

2.(F855) APPS NO. 1 5-VOLT SUPPLY OPEN
Measure the resistance of the (F855) APPS No. 1 5-volt supply circuit
between the APPS sensor harness connector and the ECM harness
connector.
Is the resistance less than 10 ohms?
Ye s>>
Go To 3
No>>
Repair the (F855) APPS No. 1 5-volt supply open.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
3.(K23) APPS NO. 1 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between the (K23) APPS No. 1 signal circuit at
the sensor harness connector and battery negative.
Is the resistance greater than 100 k ohms?
Ye s>>
Go To 4
No>>
Repair the (K23) APPS No. 1 signal circuit shorted to
ground.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
Page 823 of 5267

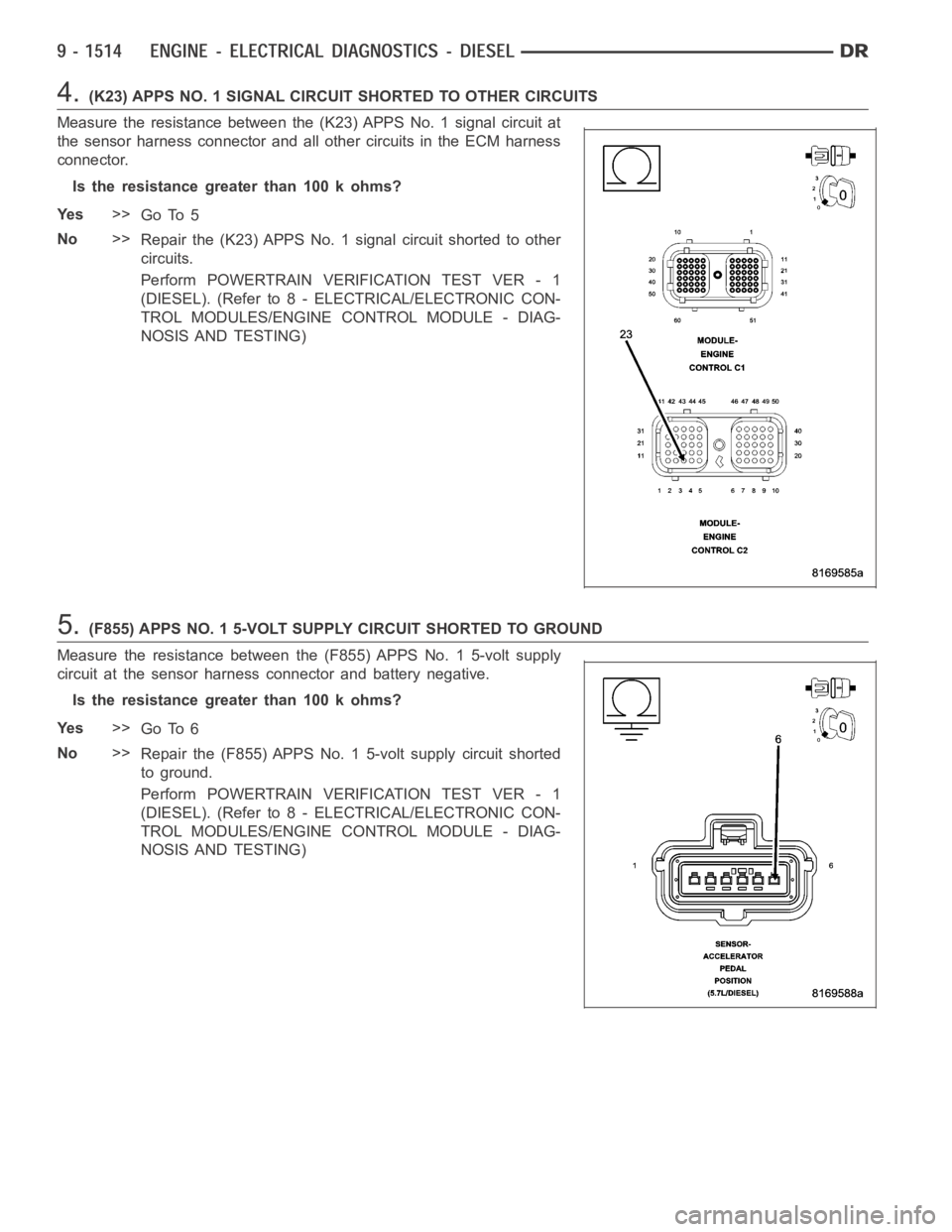

4.(K23) APPS NO. 1 SIGNAL CIRCUIT SHORTED TO OTHER CIRCUITS
Measure the resistance between the (K23) APPS No. 1 signal circuit at
the sensor harness connector and all other circuits in the ECM harness
connector.
Is the resistance greater than 100 k ohms?
Ye s>>
Go To 5
No>>
Repair the (K23) APPS No. 1 signal circuit shorted to other
circuits.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
5.(F855) APPS NO. 1 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between the (F855) APPS No. 1 5-volt supply
circuit at the sensor harness connector and battery negative.
Is the resistance greater than 100 k ohms?
Ye s>>
Go To 6
No>>
Repair the (F855) APPS No. 1 5-volt supply circuit shorted
to ground.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
Page 824 of 5267

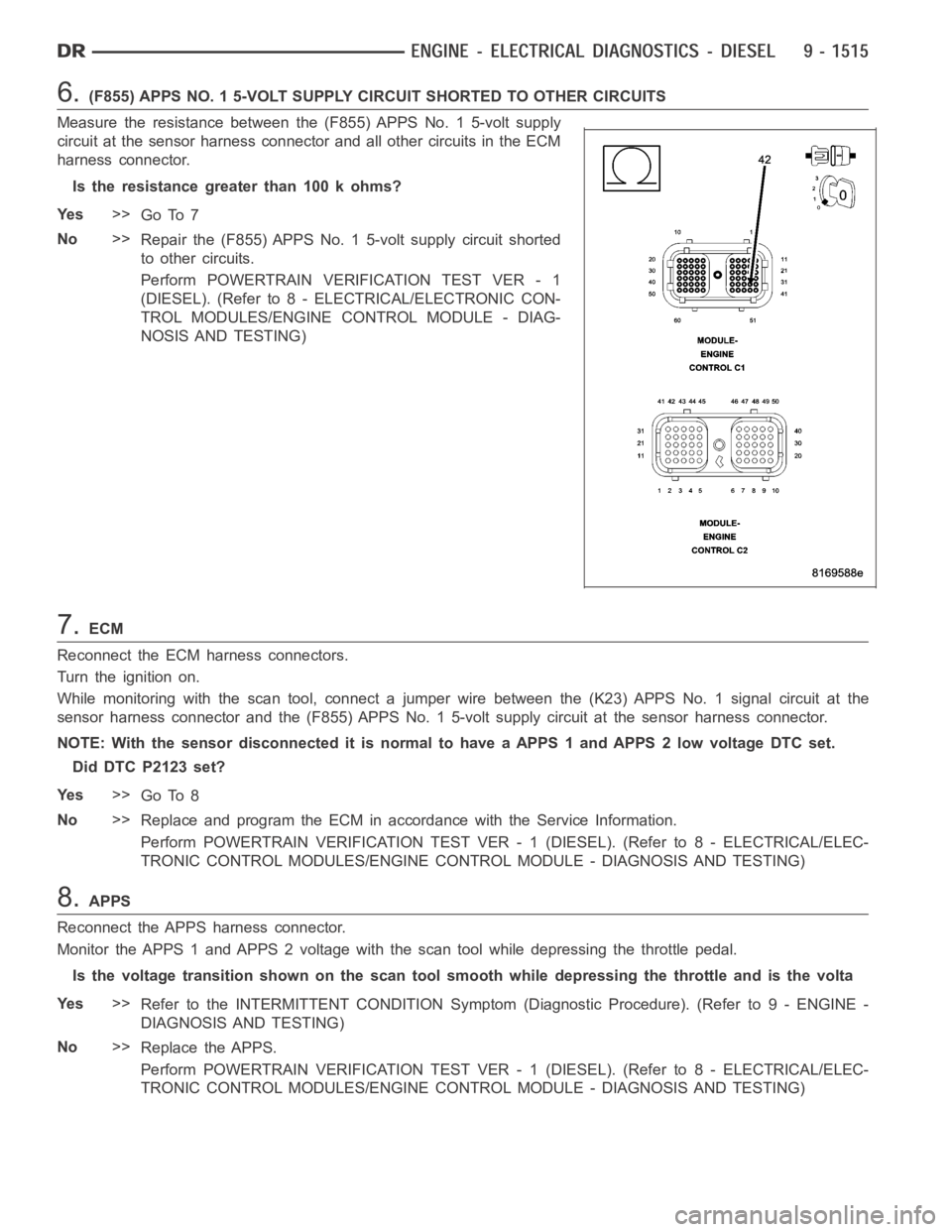

6.(F855) APPS NO. 1 5-VOLT SUPPLY CIRCUIT SHORTED TO OTHER CIRCUITS
Measure the resistance between the (F855) APPS No. 1 5-volt supply
circuit at the sensor harness connector and all other circuits in the ECM
harness connector.
Is the resistance greater than 100 k ohms?
Ye s>>
Go To 7
No>>
Repair the (F855) APPS No. 1 5-volt supply circuit shorted
to other circuits.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
7.ECM
Reconnect the ECM harness connectors.
Turn the ignition on.
While monitoring with the scan tool, connect a jumper wire between the (K23) APPS No. 1 signal circuit at the
sensor harness connector and the (F855) APPS No. 1 5-volt supply circuit atthe sensor harness connector.
NOTE: With the sensor disconnected it is normal to have a APPS 1 and APPS 2 lowvoltage DTC set.
Did DTC P2123 set?
Ye s>>
Go To 8
No>>
Replace and program the ECM in accordance with the Service Information.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
8.APPS
Reconnect the APPS harness connector.
Monitor the APPS 1 and APPS 2 voltage with the scan tool while depressing thethrottle pedal.
Is the voltage transition shown on the scan tool smooth while depressing thethrottleandisthevolta
Ye s>>
Refer to the INTERMITTENT CONDITION Symptom (Diagnostic Procedure). (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No>>
Replace the APPS.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
Page 825 of 5267
P2123-PPS 1 VOLTAGE TOO HIGH
For a complete wiring diagramRefer to Section 8W.
Page 826 of 5267

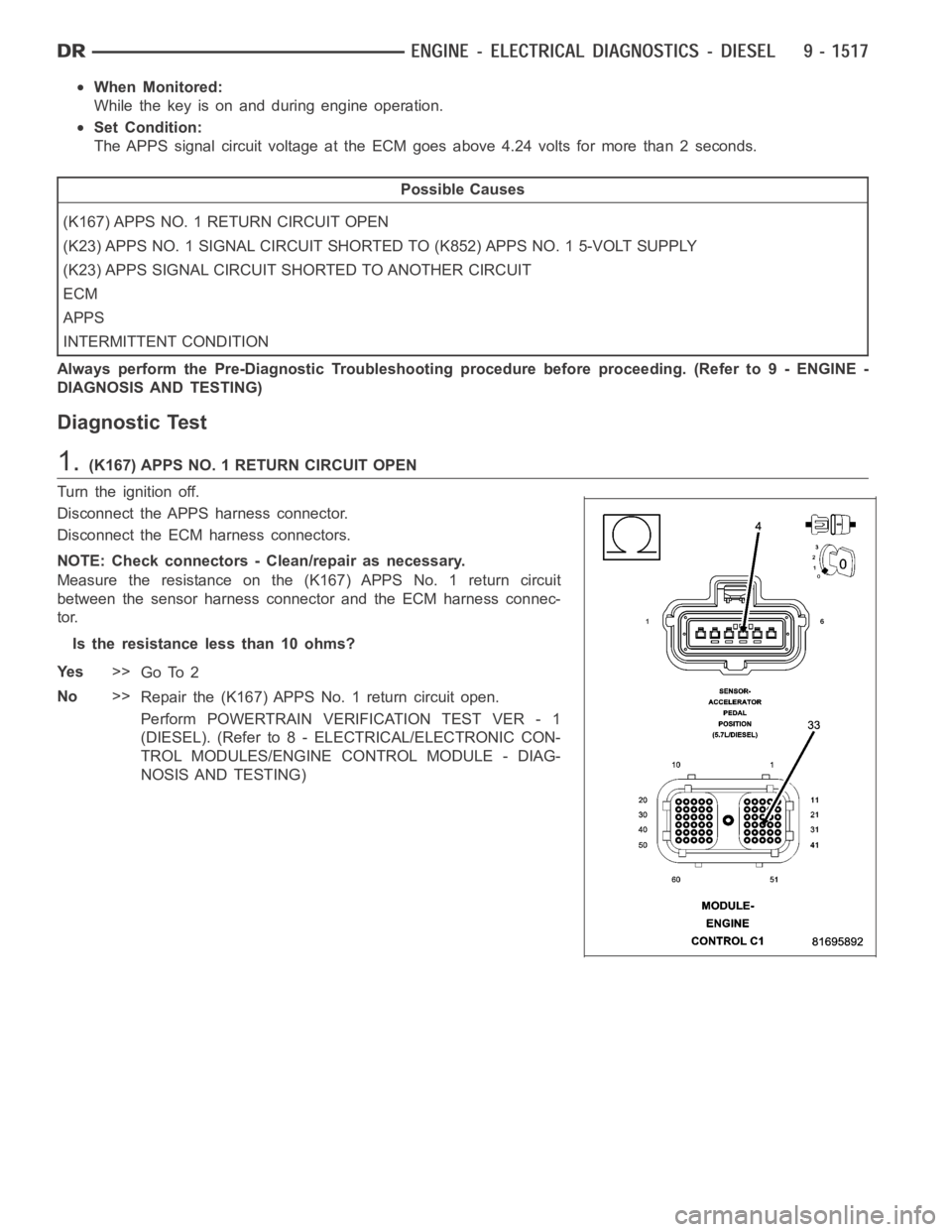

When Monitored:
While the key is on and during engine operation.
Set Condition:
The APPS signal circuit voltage at the ECM goes above 4.24 volts for more than 2 seconds.
Possible Causes
(K167) APPS NO. 1 RETURN CIRCUIT OPEN
(K23) APPS NO. 1 SIGNAL CIRCUIT SHORTED TO (K852) APPS NO. 1 5-VOLT SUPPLY
(K23) APPS SIGNAL CIRCUIT SHORTED TO ANOTHER CIRCUIT
ECM
APPS
INTERMITTENT CONDITION
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1.(K167) APPS NO. 1 RETURN CIRCUIT OPEN
Turn the ignition off.
Disconnect the APPS harness connector.
Disconnect the ECM harness connectors.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance on the (K167) APPS No. 1 return circuit
between the sensor harness connector and the ECM harness connec-
tor.
Is the resistance less than 10 ohms?
Ye s>>
Go To 2
No>>
Repair the (K167) APPS No. 1 return circuit open.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
Page 827 of 5267

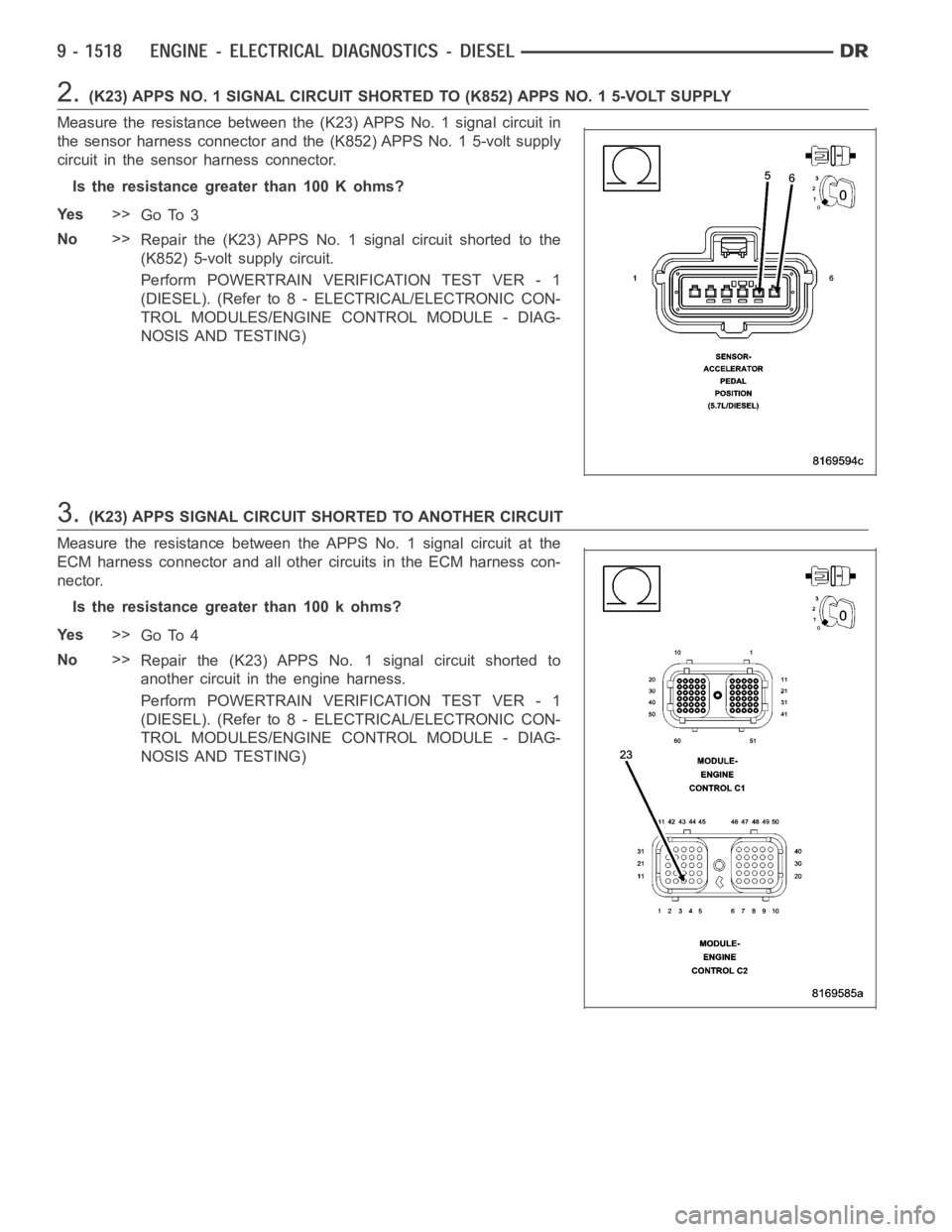

2.(K23) APPS NO. 1 SIGNAL CIRCUIT SHORTED TO (K852) APPS NO. 1 5-VOLT SUPPLY
Measure the resistance between the (K23) APPS No. 1 signal circuit in
the sensor harness connector and the (K852) APPS No. 1 5-volt supply
circuit in the sensor harness connector.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 3
No>>
Repair the (K23) APPS No. 1 signal circuit shorted to the
(K852) 5-volt supply circuit.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
3.(K23) APPS SIGNAL CIRCUIT SHORTED TO ANOTHER CIRCUIT
Measure the resistance between the APPS No. 1 signal circuit at the
ECM harness connector and all other circuits in the ECM harness con-
nector.
Is the resistance greater than 100 k ohms?
Ye s>>
Go To 4
No>>
Repair the (K23) APPS No. 1 signal circuit shorted to
another circuit in the engine harness.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
Page 828 of 5267

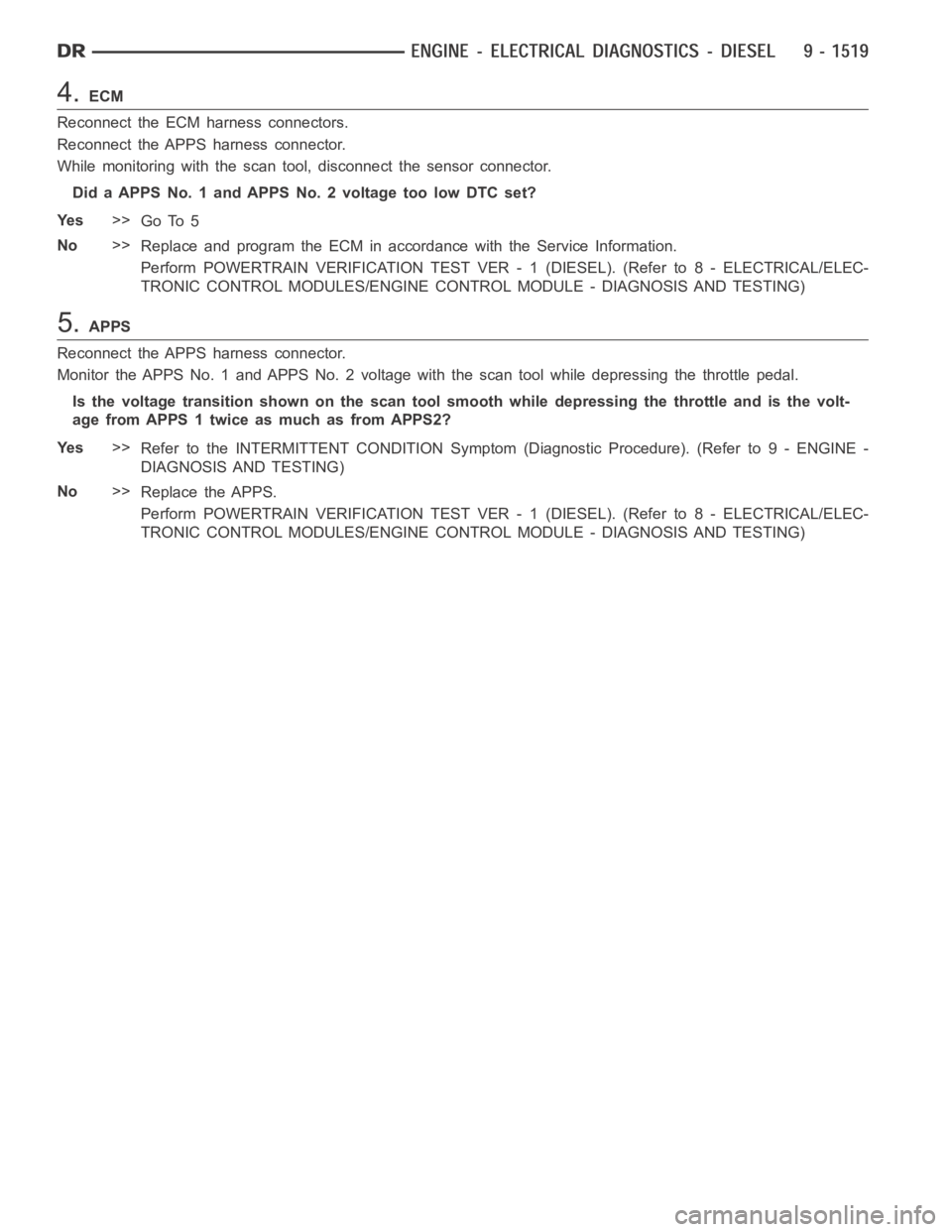

4.ECM
Reconnect the ECM harness connectors.
Reconnect the APPS harness connector.
While monitoring with the scan tool, disconnect the sensor connector.
Did a APPS No. 1 and APPS No. 2 voltage too low DTC set?
Ye s>>
Go To 5
No>>
Replace and program the ECM in accordance with the Service Information.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
5.APPS
Reconnect the APPS harness connector.
Monitor the APPS No. 1 and APPS No. 2 voltage with the scan tool while depressing the throttle pedal.
Is the voltage transition shown on the scan tool smooth while depressing thethrottleandisthevolt-
age from APPS 1 twice as much as from APPS2?
Ye s>>
Refer to the INTERMITTENT CONDITION Symptom (Diagnostic Procedure). (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No>>
Replace the APPS.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
Page 829 of 5267
P2127-PPS 2 VOLTAGE TOO LOW
For a complete wiring diagramRefer to Section 8W.
Page 830 of 5267

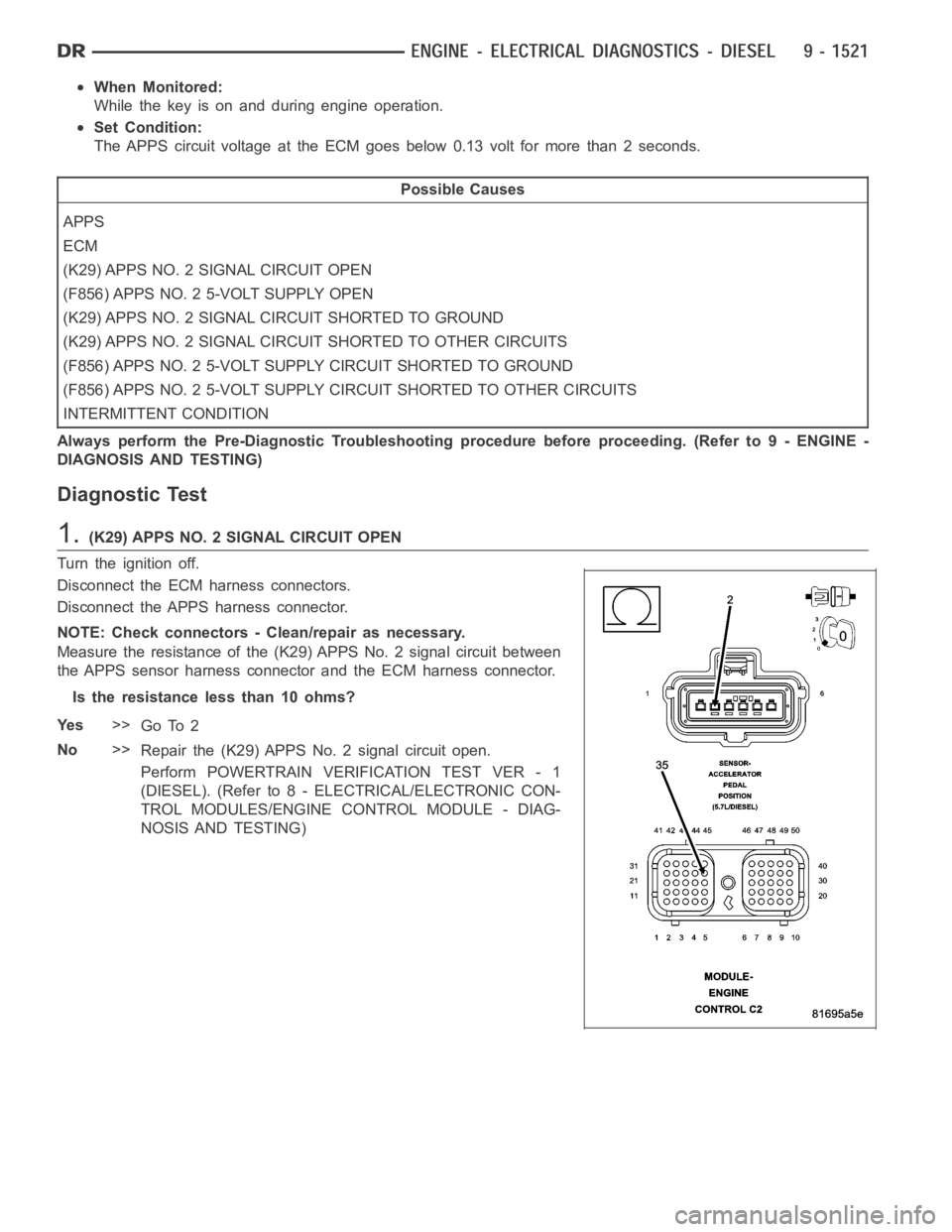

When Monitored:
While the key is on and during engine operation.
Set Condition:
The APPS circuit voltage at the ECM goes below 0.13 volt for more than 2 seconds.
Possible Causes
APPS
ECM
(K29) APPS NO. 2 SIGNAL CIRCUIT OPEN
(F856) APPS NO. 2 5-VOLT SUPPLY OPEN
(K29) APPS NO. 2 SIGNAL CIRCUIT SHORTED TO GROUND
(K29) APPS NO. 2 SIGNAL CIRCUIT SHORTED TO OTHER CIRCUITS
(F856) APPS NO. 2 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(F856) APPS NO. 2 5-VOLT SUPPLY CIRCUIT SHORTED TO OTHER CIRCUITS
INTERMITTENT CONDITION
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1.(K29) APPS NO. 2 SIGNAL CIRCUIT OPEN
Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the APPS harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance of the (K29) APPS No. 2 signal circuit between
the APPS sensor harness connector and the ECMharness connector.
Is the resistance less than 10 ohms?
Ye s>>
Go To 2
No>>
Repair the (K29) APPS No. 2 signal circuit open.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
