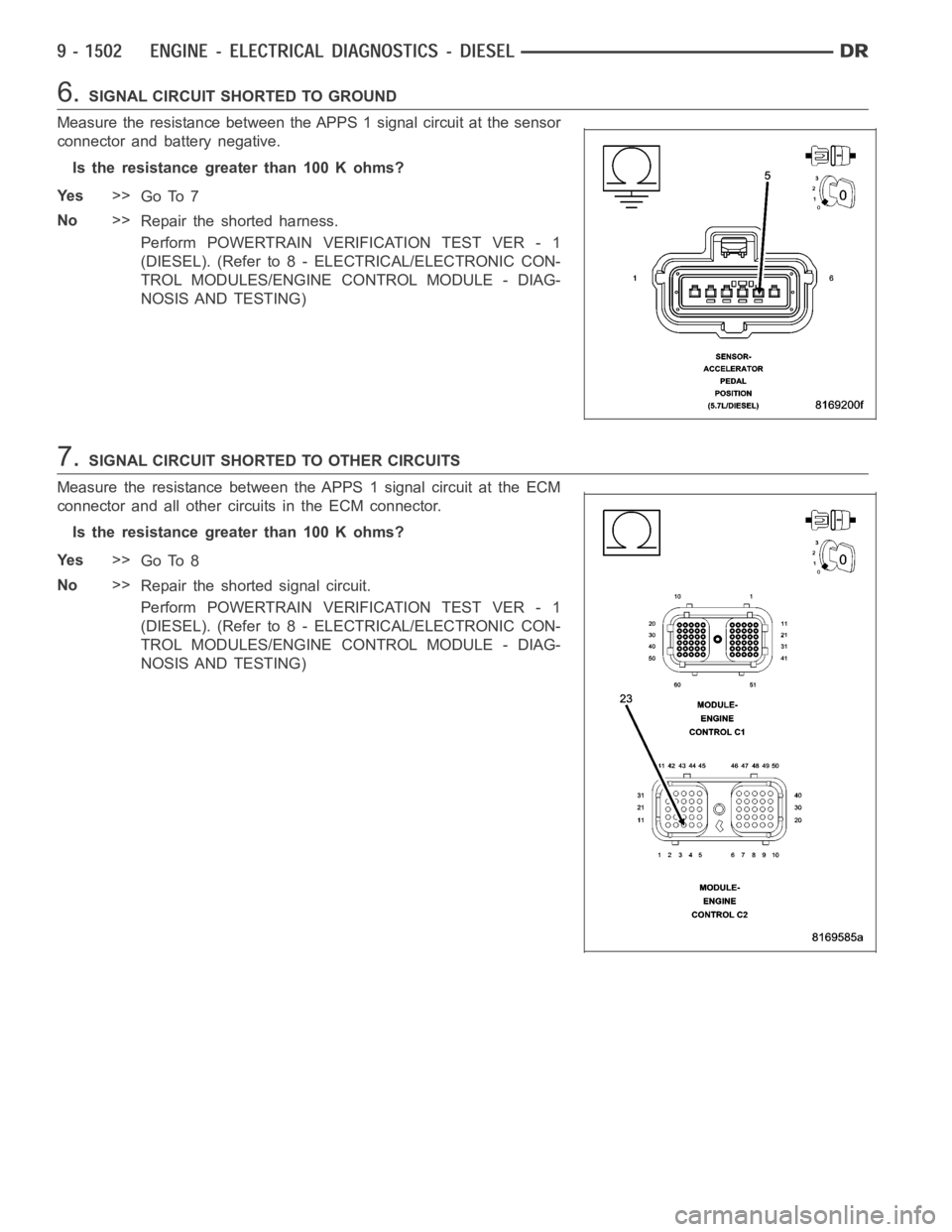

6.SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between the APPS 1 signal circuit at the sensor
connector and battery negative.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 7
No>>
Repair the shorted harness.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
7.SIGNAL CIRCUIT SHORTED TO OTHER CIRCUITS
Measure the resistance between the APPS 1 signal circuit at the ECM
connector and all other circuits in the ECM connector.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 8
No>>
Repair the shorted signal circuit.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)

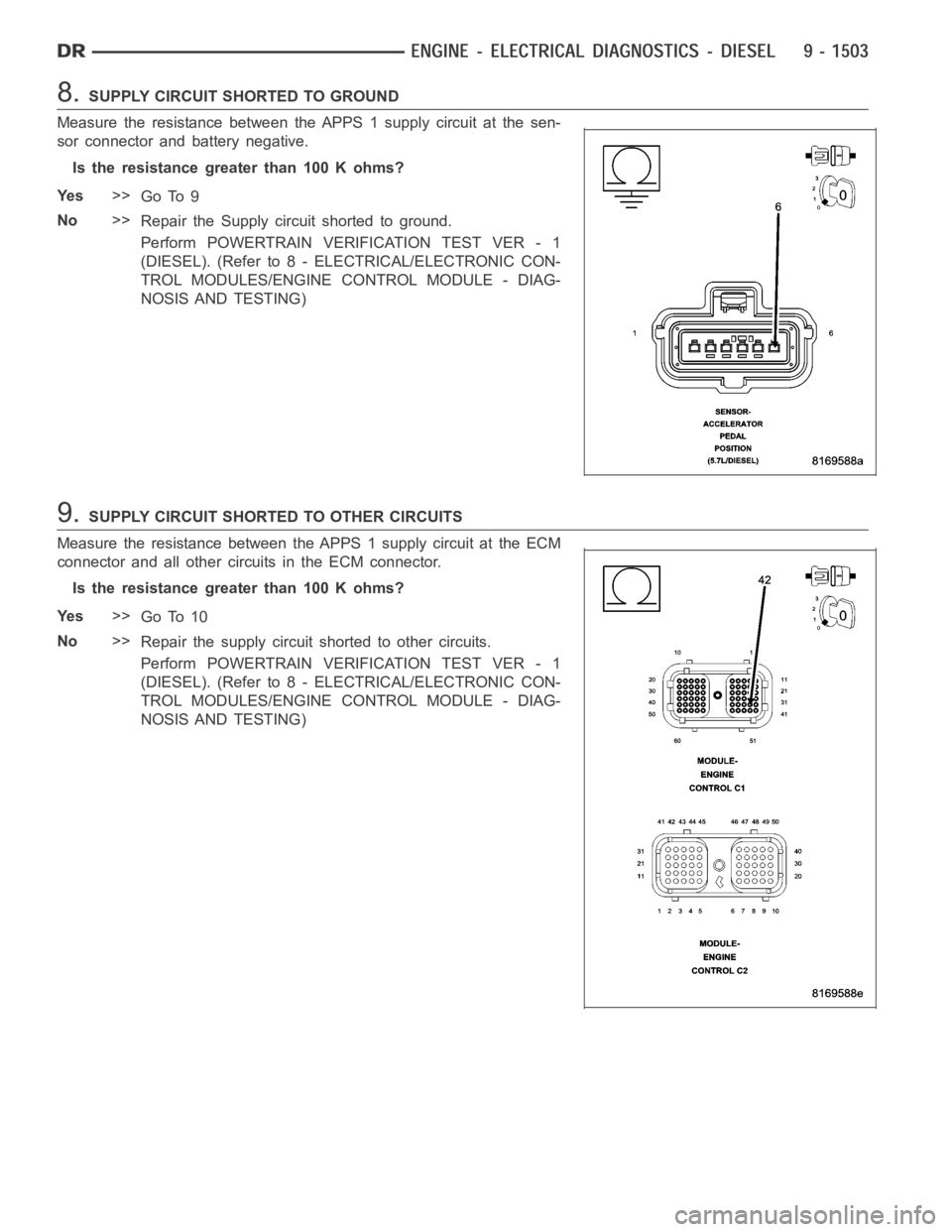

8.SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between the APPS 1 supply circuit at the sen-
sor connector and battery negative.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 9
No>>
Repair the Supply circuit shorted to ground.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
9.SUPPLY CIRCUIT SHORTED TO OTHER CIRCUITS
Measure the resistance between the APPS 1 supply circuit at the ECM
connector and all other circuits in the ECM connector.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 10
No>>
Repair the supply circuit shorted to other circuits.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)

10.RETURN CIRCUIT OPEN
Measure the resistance on the APPS 1 return circuit between the sen-
sor connector and the ECM connector.
Is the resistance less than 10 ohms?
Ye s>>
Go To 11
No>>
Repair the open return circuit.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
11 .SIGANAL CIRCUIT SHORTED TO SUPPLY CIRCUIT
Measure the resistance between the APPS 1 signal circuit in the sensor
connector and the PPS 1 supply circuit in the sensor connector.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 12
No>>
Repair the signal circuit shorted to the supply.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)

12.RETURN CIRCUIT SHORTED TO OTHER CIRCUITS
Measure the resistance between the APPS 1 return circuit at the ECM
connector and all other circuits in the ECM connector.
Ye s>>
Go To 13
No>>
Repair the return circuit shorted to other circuits.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
13.OPEN SIGNAL CIRCUIT
Measure the resistance of the APPS 2 signal circuit between the APPS
sensor connector and the ECM connector.
Ye s>>
Go To 14
No>>
Repair or Replace the harness.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)

14.OPEN SUPPLY CIRCUIT
Measure the resistance of the APPS 2 supply circuit between the APPS
sensor connector and the ECM connector.
Is the resistance less than 10 ohms?
Ye s>>
Go To 15
No>>
Repair or replace the open harness.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
15.SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between the APPS 2 signal circuit at the sensor
connector and battery negative.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 16
No>>
Repair the shorted harness.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)

16.SIGNAL CIRCUIT SHORTED TO OTHER CIRCUITS
Measure the resistance between the APPS 2 signal circuit at the ECM
connector and all other circuits in the ECM connector.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 17
No>>
Repair the shorted signal circuit.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
17.SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between the APPS 2 supply circuit at the sen-
sor connector and battery negative.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 18
No>>
Repair the Supply circuit shorted to ground.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)

18.SUPPLY CIRCUIT SHORTED TO OTHER CIRCUITS
Measure the resistance between the APPS 2 supply circuit at the ECM
connector and all other circuits in the ECM connector.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 19
No>>
Repair the supply circuit shorted to other circuits.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
19.RETURN CIRCUIT OPEN
Measure the resistance on the APPS 2 return circuit between the sen-
sor connector and the ECM connector.
Is the resistance less than 10 ohms?
Ye s>>
Go To 20
No>>
Repair the open return circuit.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)

20.SIGANAL CIRCUIT SHORTED TO SUPPLY CIRCUIT
Measure the resistance between the APPS 2 signal circuit in the sensor
connector and the PPS 2 supply circuit in the sensor connector.
Is the resistance greater than 100 K ohms?
Ye s>>
Go To 21
No>>
Repair the signal circuit shorted to the supply.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)
21.RETURN CIRCUIT SHORTED TO OTHER CIRCUITS
Measure the resistance between the APPS 2 return circuit at the ECM
connector and all other circuits in the ECM connector.
Ye s>>
Go To 22
No>>
Repair the return circuit shorted to other circuits.
Perform POWERTRAIN VERIFICATION TEST VER - 1
(DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/ENGINE CONTROL MODULE - DIAG-
NOSIS AND TESTING)

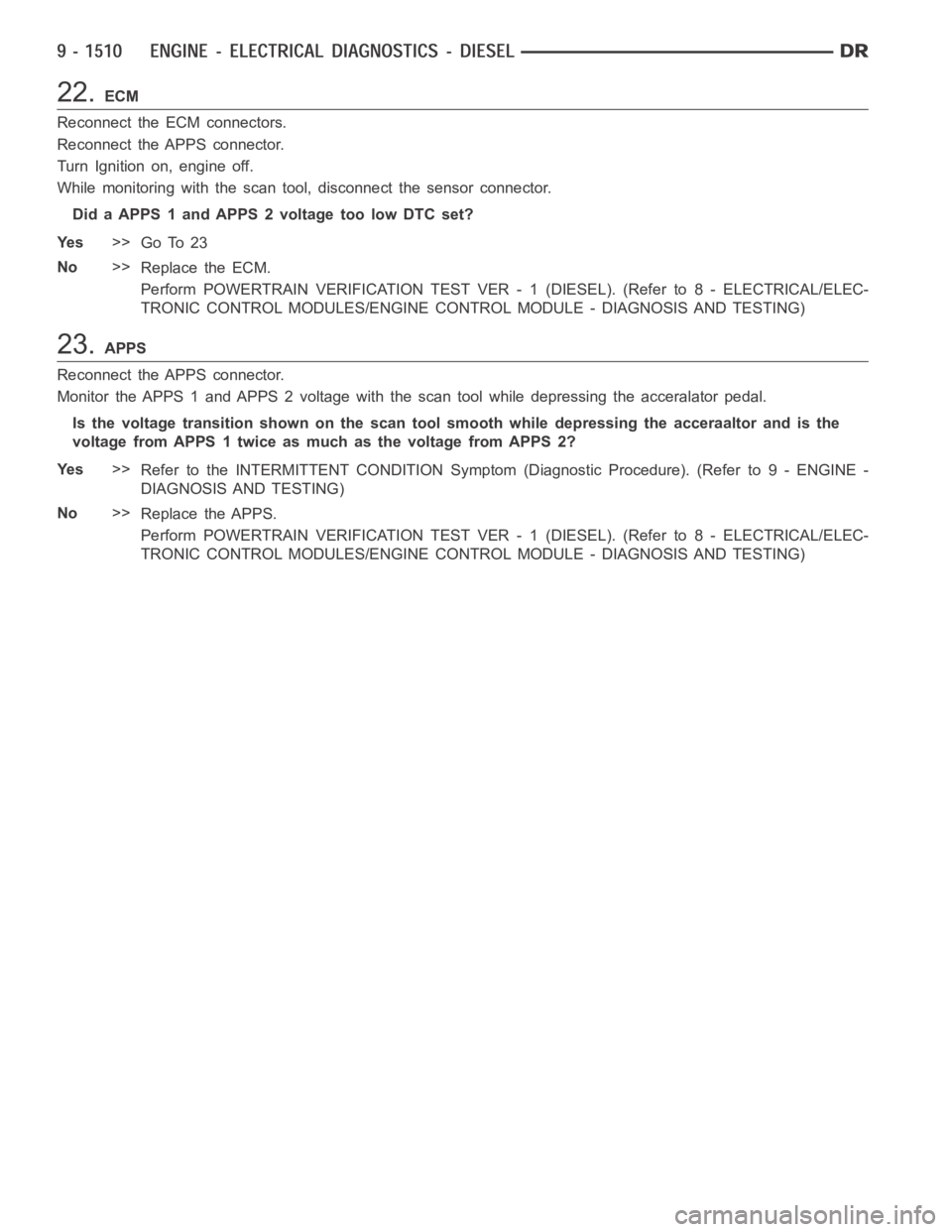

22.ECM
Reconnect the ECM connectors.
Reconnect the APPS connector.
Turn Ignition on, engine off.
While monitoring with the scan tool, disconnect the sensor connector.
Did a APPS 1 and APPS 2 voltage too low DTC set?
Ye s>>
Go To 23
No>>
Replace the ECM.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
23.APPS
Reconnect the APPS connector.
Monitor the APPS 1 and APPS 2 voltage with the scan tool while depressing theacceralator pedal.
Is the voltage transition shown on the scan tool smooth while depressing the acceraaltor and is the
voltage from APPS 1 twice as much as the voltage from APPS 2?
Ye s>>
Refer to the INTERMITTENT CONDITION Symptom (Diagnostic Procedure). (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No>>
Replace the APPS.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)

P2122-PPS 1 VOLTAGE TOO LOW
For a complete wiring diagramRefer to Section 8W.
