280 Practical hintsWhat to do if ...
5
Problem
Possible cause / result
Suggested solutions
/
The yellow water separator indi-
cator lamp
1 lights up while the
ignition is on.
1 Only vehicles with a diesel engine.
The water that has collected in the water sep-
arator has reached the maximum level.
\1Drain the water separator
(\2page 317).
\1Have the water separator drained at
an authorized Sprinter Dealer.
W
The yellow washer fluid level in-
dicator lamp for the windshield
washer / headlamp cleaning sys-
tem lights up after the engine is
started or while the vehicle is in
motion.
The windshield washer fluid level is too low.
\1Check the fluid level in the reservoir
and add windshield washer fluid if
necessary (\2page 193).
<
The red seat belt telltale lights up
for approximately 6 seconds
when the ignition is switched on.
A signal also sounds.
The telltale reminds you to fasten your seat
belt.
\1Fasten your seat belt.
.
The yellow bulb indicator lamp
lights up while the ignition is on.
One of the bulbs of the exterior lighting or on
the trailer is malfunctioning.
\1Have the malfunction rectified as
soon as possible at an authorized
Sprinter Dealer.
9
The yellow “door open” indicator
lamp lights up while the vehicle
is in motion.
You are already driving at walking pace, even
though not all the doors or the hood are
closed.
\1Close the doors or the hood.

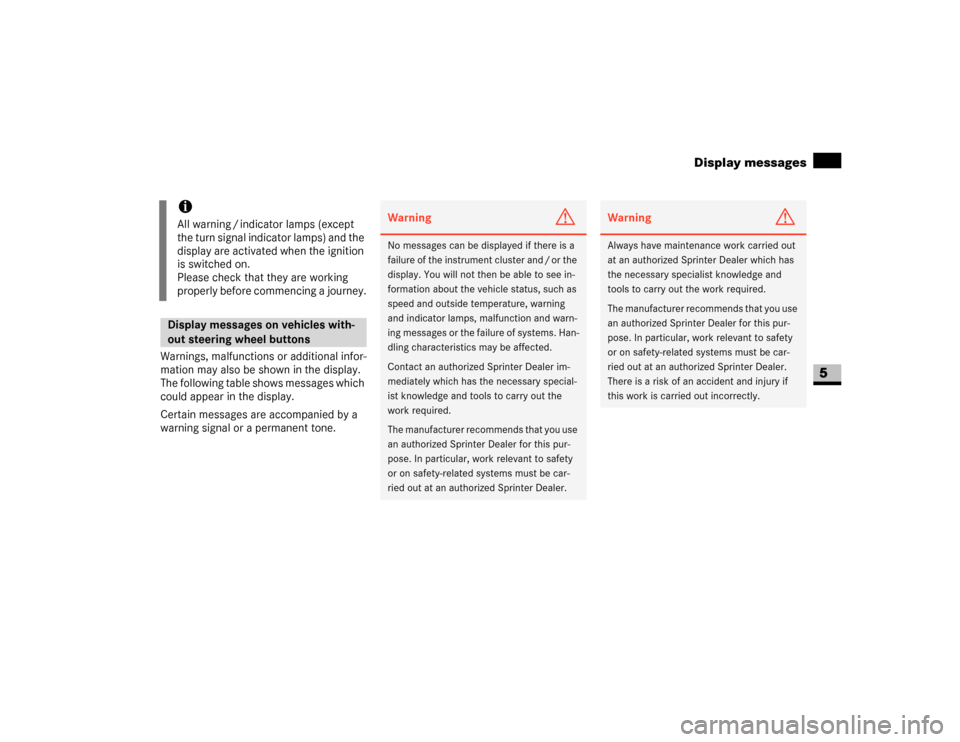

281 Practical hints
Display messages
5
Warnings, malfunctions or additional infor-
mation may also be shown in the display.
The following table shows messages which
could appear in the display.
Certain messages are accompanied by a
warning signal or a permanent tone.
iAll warning / indicator lamps (except
the turn signal indicator lamps) and the
display are activated when the ignition
is switched on.
Please check that they are working
properly before commencing a journey.Display messages on vehicles with-
out steering wheel buttons
Warning
G
No messages can be displayed if there is a
failure of the instrument cluster and / or the
display. You will not then be able to see in-
formation about the vehicle status, such as
speed and outside temperature, warning
and indicator lamps, malfunction and warn-
ing messages or the failure of systems. Han-
dling characteristics may be affected.
Contact an authorized Sprinter Dealer im-
mediately which has the necessary special-
ist knowledge and tools to carry out the
work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at an authorized Sprinter Dealer.
Warning
G
Always have maintenance work carried out
at an authorized Sprinter Dealer which has
the necessary specialist knowledge and
tools to carry out the work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.

282 Practical hintsDisplay messages
5
Display messages
Possible cause / result
Possible solution
N
There is insufficient or no oil in the engine.
There is a risk of engine damage.
\1Stop your vehicle as soon as it is safe
to do so.
\1Switch off the engine.
\1Check the engine oil level using the
dipstick (\2page 189).
\1If the oil level is correct, have the
malfunction rectified immediately at
an authorized Sprinter Dealer.
\1If there is insufficient or no oil in the
engine, have the vehicle towed to an
authorized Sprinter Dealer.
NOThe message is displayed for 30 seconds.TPMSThe message is also displayed after
30 seconds.
The TPMS is malfunctioning.
\1Have the TPMS checked at an autho-
rized Sprinter Dealer as soon as pos-
sible.
The tire pressure monitor is not receiving
signals from one or more wheels because:
\4a wheel was replaced with the spare
wheel, which is not equipped with a
wheel electronics unit
\4the maximum temperature in one of the
wheel electronics units has been ex-
ceeded
\4one of the wheel electronics units is mal-
functioning
\1Have wheels with wheel electronics
units mounted at an authorized
Sprinter Dealer.

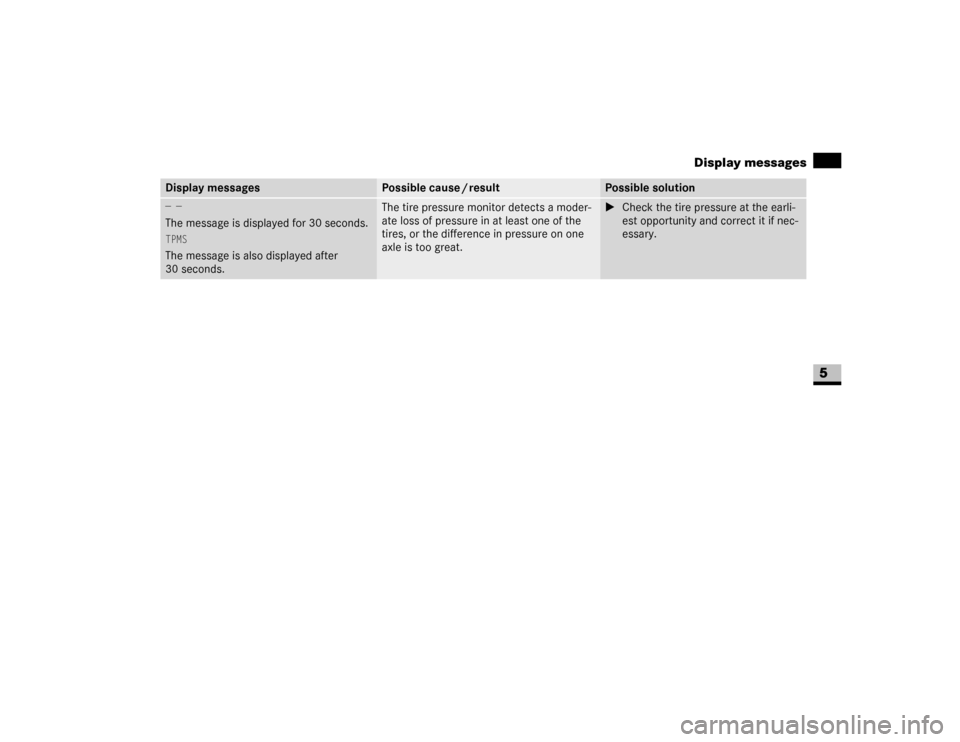

283 Practical hints
Display messages
5
— —The message is displayed for 30 seconds.TPMSThe message is also displayed after
30 seconds.
The tire pressure monitor detects a moder-
ate loss of pressure in at least one of the
tires, or the difference in pressure on one
axle is too great.
\1Check the tire pressure at the earli-
est opportunity and correct it if nec-
essary.
Display messages
Possible cause / result
Possible solution

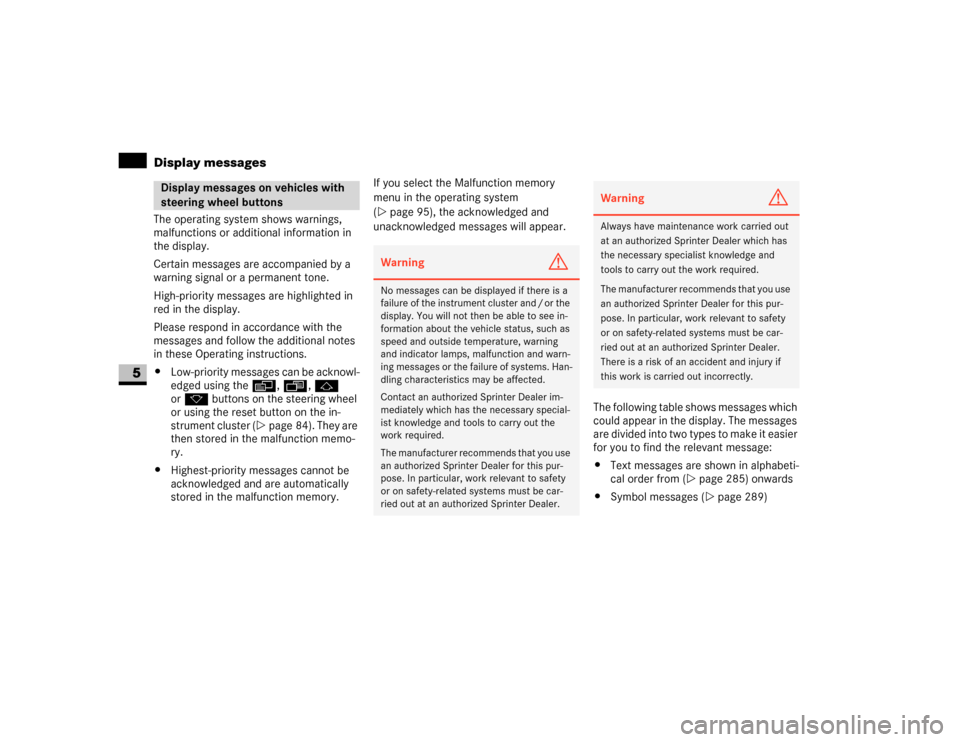

284 Practical hintsDisplay messages
5
The operating system shows warnings,
malfunctions or additional information in
the display.
Certain messages are accompanied by a
warning signal or a permanent tone.
High-priority messages are highlighted in
red in the display.
Please respond in accordance with the
messages and follow the additional notes
in these Operating instructions.
\4Low-priority messages can be acknowl-
edged using theè, ·, j
ork buttons on the steering wheel
or using the reset button on the in-
strument cluster (\2page 84). They are
then stored in the malfunction memo-
ry.
\4Highest-priority messages cannot be
acknowledged and are automatically
stored in the malfunction memory.If you select the Malfunction memory
menu in the operating system
(\2page 95), the acknowledged and
unacknowledged messages will appear.
The following table shows messages which
could appear in the display. The messages
are divided into two types to make it easier
for you to find the relevant message:
\4Text messages are shown in alphabeti-
cal order from (\2page 285) onwards
\4Symbol messages (\2page 289)Display messages on vehicles with
steering wheel buttons
Warning
G
No messages can be displayed if there is a
failure of the instrument cluster and / or the
display. You will not then be able to see in-
formation about the vehicle status, such as
speed and outside temperature, warning
and indicator lamps, malfunction and warn-
ing messages or the failure of systems. Han-
dling characteristics may be affected.
Contact an authorized Sprinter Dealer im-
mediately which has the necessary special-
ist knowledge and tools to carry out the
work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at an authorized Sprinter Dealer.
Warning
G
Always have maintenance work carried out
at an authorized Sprinter Dealer which has
the necessary specialist knowledge and
tools to carry out the work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.

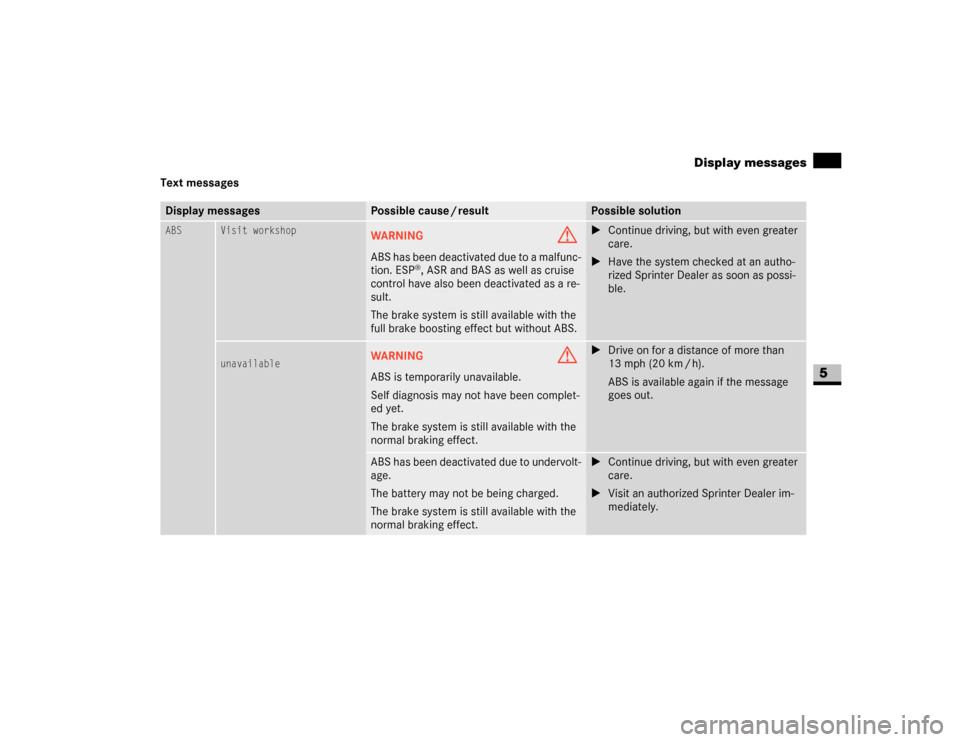

285 Practical hints
Display messages
5
Text messagesDisplay messages
Possible cause / result
Possible solution
ABS
Visit workshop
WARNING
G
ABS has been deactivated due to a malfunc-
tion. ESP
®, ASR and BAS as well as cruise
control have also been deactivated as a re-
sult.
The brake system is still available with the
full brake boosting effect but without ABS.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
unavailable
WARNING
G
ABS is temporarily unavailable.
Self diagnosis may not have been complet-
ed yet.
The brake system is still available with the
normal braking effect.
\1Drive on for a distance of more than
13 mph (20 km / h).
ABS is available again if the message
goes out.
ABS has been deactivated due to undervolt-
age.
The battery may not be being charged.
The brake system is still available with the
normal braking effect.
\1Continue driving, but with even greater
care.
\1Visit an authorized Sprinter Dealer im-
mediately.

286 Practical hintsDisplay messages
5
ESP
Visit workshop
WARNING
G
ESP
® has been deactivated due to a mal-
function. Cruise control is also switched off
as a result.
Vehicle stability is no longer automatically
controlled in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
unavailable
ESP
® has been deactivated due to under-
voltage. Cruise control is also switched off
as a result.
The battery may not be being charged.
Vehicle stability is no longer automatically
controlled in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
Tire pres.
Adjust pres.
The pressure is too low in one or more tires.
\1Check and correct tire inflation pressure
as required.
Tire pres.
monitor
inoperative
The TPMS is malfunctioning.
\1Have the TPMS checked at an autho-
rized Sprinter Dealer.
Tire pres. displayed
after driving
several minutes
The tire inflation pressure is being checked.
\1Drive the vehicle for a few minutes.
Display messages
Possible cause / result
Possible solution

287 Practical hints
Display messages
5
Tire pres.
monitor
currently
unavailable
The TPMS or Advanced TPMS* is unable to
monitor the tire pressure due to
\4a nearby radio interference source.
\4excessive wheel sensor temperatures.
\1As soon as the causes of the malfunc-
tion have been removed, the TPMS au-
tomatically becomes active again after a
few minutes of driving.
Tire pres.
monitor
inoperative
No wheel
sensors
There are wheels without appropriate wheel
sensors mounted (for example winter tires).
\1Have the TPMS checked at an autho-
rized Sprinter Dealer.
\1Have the wheel sensors installed by an
authorized Sprinter Dealer.
Wheel sens.
missing
One ore more sensors are malfunctioning
(for example battery discharged).
One or more wheels without appropriate
wheel sensors mounted (for example spare
tire)
\1Have the TPMS checked by an autho-
rized Sprinter Dealer.
\1Have the wheel sensors installed by an
authorized Sprinter Dealer.
The tire pressure for the respective tire is
shown in the multifunction display.
Slid. sunroof
open
You have the removed the key from the ig-
nition lock and the sliding sunroof is still
open.
\1If necessary, close the sliding sunroof
using the switch in the overhead control
panel (\2page 145).
Cruise cont.
Visit workshop
Cruise control is malfunctioning.
\1Have cruise control checked at an au-
thorized Sprinter Dealer.
Display messages
Possible cause / result
Possible solution

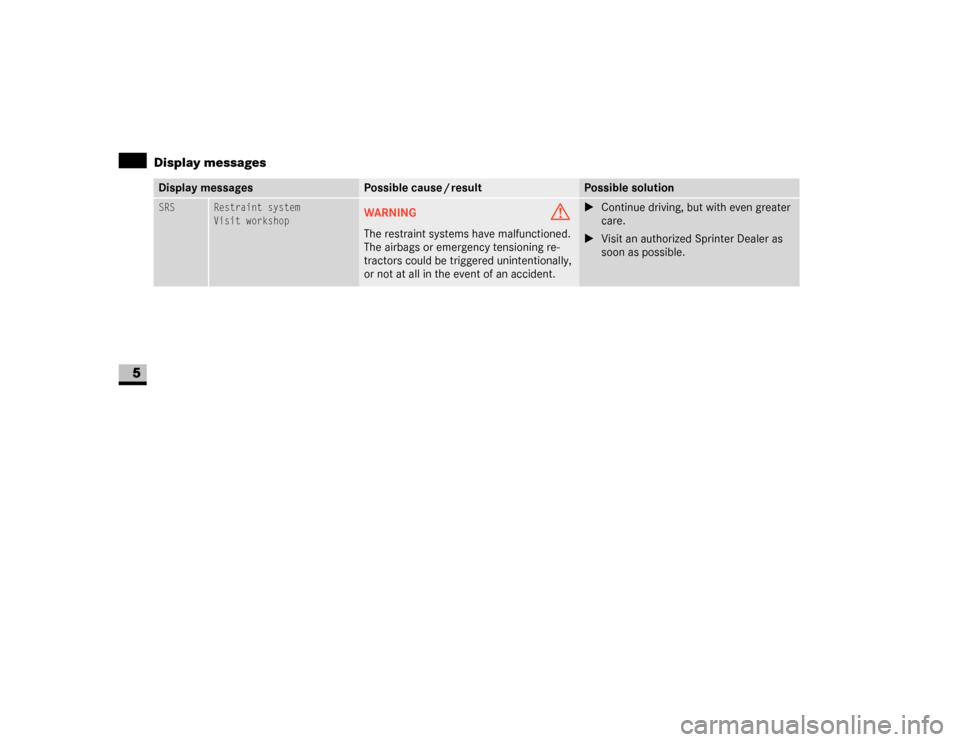

288 Practical hintsDisplay messages
5
SRS
Restraint system
Visit workshop
WARNING
G
The restraint systems have malfunctioned.
The airbags or emergency tensioning re-
tractors could be triggered unintentionally,
or not at all in the event of an accident.
\1Continue driving, but with even greater
care.
\1Visit an authorized Sprinter Dealer as
soon as possible.
Display messages
Possible cause / result
Possible solution

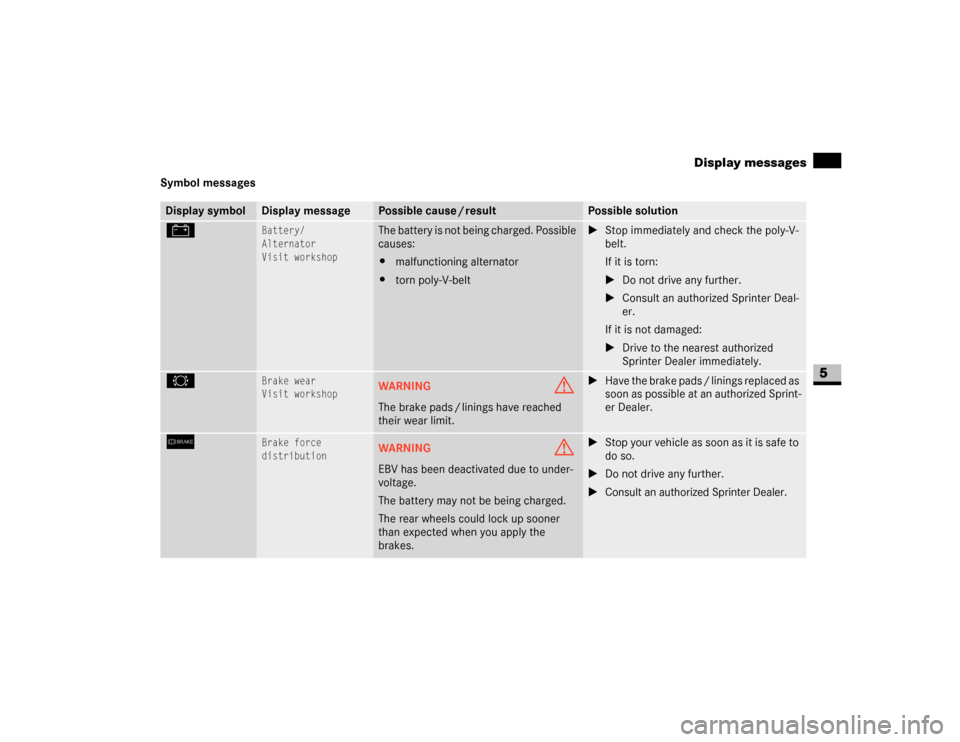

289 Practical hints
Display messages
5
Symbol messagesDisplay symbol
Display message
Possible cause / result
Possible solution
#

Battery/
Alternator
Visit workshop
The battery is not being charged. Possible
causes:
\4malfunctioning alternator
\4torn poly-V-belt
\1Stop immediately and check the poly-V-
belt.
If it is torn:
\1Do not drive any further.
\1Consult an authorized Sprinter Deal-
er.
If it is not damaged:
\1Drive to the nearest authorized
Sprinter Dealer immediately.
2

Brake wear
Visit workshop
WARNING
G
The brake pads / linings have reached
their wear limit.
\1Have the brake pads / linings replaced as
soon as possible at an authorized Sprint-
er Dealer.
6
Brake force
distribution
WARNING
G
EBV has been deactivated due to under-
voltage.
The battery may not be being charged.
The rear wheels could lock up sooner
than expected when you apply the
brakes.
\1Stop your vehicle as soon as it is safe to
do so.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
