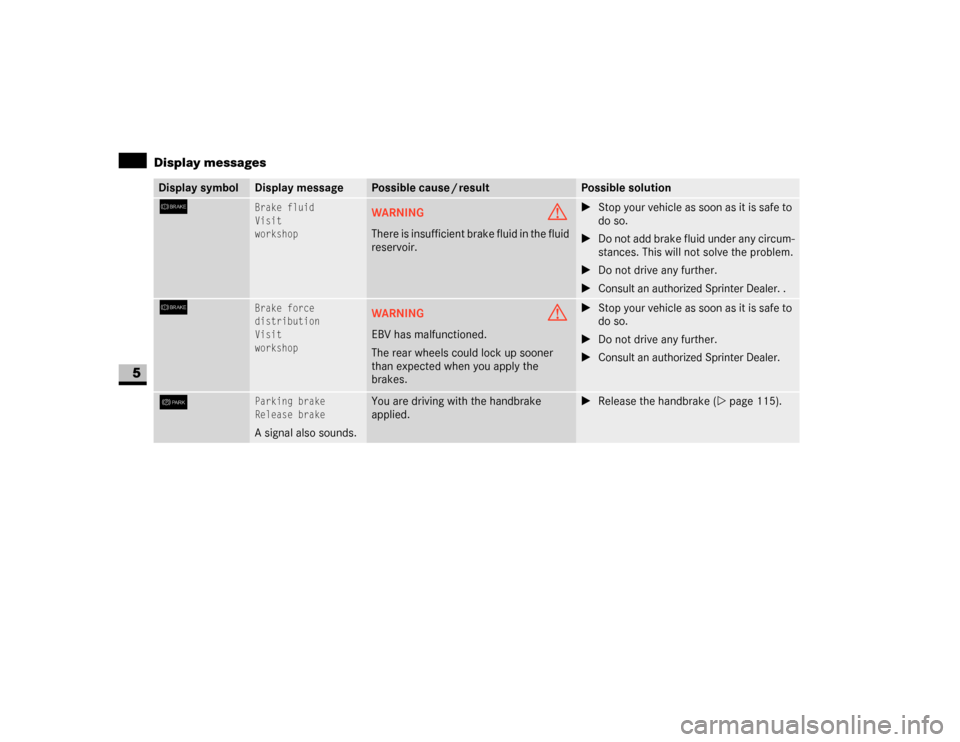

290 Practical hintsDisplay messages
5
6
Brake fluid
Visit
workshop
WARNING
G
There is insufficient brake fluid in the fluid
reservoir.
\1Stop your vehicle as soon as it is safe to
do so.
\1Do not add brake fluid under any circum-
stances. This will not solve the problem.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer. .
6
Brake force
distribution
Visit
workshop
WARNING
G
EBV has malfunctioned.
The rear wheels could lock up sooner
than expected when you apply the
brakes.
\1Stop your vehicle as soon as it is safe to
do so.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
7
Parking brake
Release brakeA signal also sounds.
You are driving with the handbrake
applied.
\1Release the handbrake (\2page 115).
Display symbol
Display message
Possible cause / result
Possible solution

291 Practical hints
Display messages
5
k
Visit
workshop
WARNING
G
ASR has been deactivated due to a mal-
function. Cruise control is also switched
off as a result.
The engine power output may then be
lower.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
WARNING
G
BAS has been deactivated due to a mal-
function.
The brake system continues to function
with the normal braking effect but with no
electronic support.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
k
unavailable
ASR as well as BAS have been switched
off due to undervoltage.
The battery may not be being charged.
The brake system is still available with
the normal braking effect.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
ì
Please enter PIN:
You have not yet entered your details in
the telephone.
\1Enter the PIN for your SIM card.
<
Seatbelt sys.
Visit
workshop
WARNING
G
The belt system has malfunctioned.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
Display symbol
Display message
Possible cause / result
Possible solution

292 Practical hintsDisplay messages
5
Z
Coolant
Stop, turn engine
off
The coolant temperature is too high.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
If the vehicle is switched off after being
subjected to extreme loads (for example
driving in mountainous terrain, trailer tow-
ing, etc.), this message may be displayed
when the ignition is switched on or the en-
gine is restarted. Run the engine for approx-
imately 1 minute at idling speed.
Consult an authorized Sprinter Dealer if the
message remains displayed.
H
Coolant
Check level
The coolant level is too low.
Never run the engine if the coolant level
is too low. The engine could overheat and
be damaged.
\1Add coolant (\2page 191).
\1If you are having to add coolant frequent-
ly, have the cooling system checked at
an authorized Sprinter Dealer.
.
Low beam left
The left-hand low-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
Low beam right
The right-hand low-beam headlamp is
malfunctioning.
\1Change the bulb as soon as possible.
Turn signal left
The left-hand turn signal is malfunctioning.
\1Change the bulb as soon as possible.
Turn signal right
The right-hand turn signal is malfunction-
ing.
\1Change the bulb as soon as possible.
Brake lamp left
The left-hand brake lamp is malfunction-
ing.
\1Change the bulb as soon as possible.
Display symbol
Display message
Possible cause / result
Possible solution

293 Practical hints
Display messages
5
.
Brake lamp right
The right-hand brake lamp is malfunctioning.
\1Change the bulb as soon as possible.
Third brake lamp
The third brake lamp is malfunctioning.
This message will only appear if all LEDs
have failed.
\1Visit an authorized Sprinter Dealer as
soon as possible.
High beam left
The left-hand high-beam headlamp is
malfunctioning.
\1Change the bulb as soon as possible.
High beam right
The right-hand high-beam headlamp is
malfunctioning.
\1Change the bulb as soon as possible.
License plate lamp
A license plate lamp is malfunctioning.
\1Change the bulb as soon as possible.
Foglamp front left
The left-hand front foglamp is malfunc-
tioning.
\1Change the bulb as soon as possible.
Foglamp front right
The right-hand front foglamp is malfunc-
tioning.
\1Change the bulb as soon as possible.
Rear foglamp
The rear foglamp is malfunctioning.
\1Change the bulb as soon as possible.
Parking lamp front
left
The front left-hand standing lamp/side
marker lamp is malfunctioning.
\1Change the bulb as soon as possible.
Parking lamp front
right
The front right-hand standing lamp/side
marker lamp is malfunctioning.
\1Change the bulb as soon as possible.
Reverse lamp
A reverse lamp is malfunctioning.
\1Change the bulb as soon as possible.
Tail lamp left
The left-hand tail lamp is malfunctioning.
\1Change the bulb as soon as possible.
Tail lamp right
The right-hand tail lamp is malfunctioning.
\1Change the bulb as soon as possible.
Perim. lamps
A perimeter lamp is malfunctioning.
\1Change the bulb as soon as possible.
Display symbol
Display message
Possible cause / result
Possible solution

294 Practical hintsDisplay messages
5
.
Additional ind.
lamps
An additional turn signal is malfunction-
ing.
\1Visit an authorized Sprinter Dealer as
soon as possible.
Cornering lamp left
The left-hand cornering lamp* is malfunc-
tioning.
\1Visit an authorized Sprinter Dealer as
soon as possible.
Cornering lamp right
The right-hand cornering lamp* is mal-
functioning.
\1Visit an authorized Sprinter Dealer as
soon as possible.
Trailer turn signal
left
The left-hand turn signal on the trailer is
malfunctioning.
\1Change the bulb as soon as possible.
Trailer turn signal
right
The right-hand turn signal on the trailer is
malfunctioning.
\1Change the bulb as soon as possible.
Trailer tail lamp
A trailer tail lamp or license plate lamp is
malfunctioning.
\1Change the bulb as soon as possible.
Switch off lights
You have forgotten to switch off the lights
when leaving the vehicle.
\1Switch off the lights.
Lights on automatic.
Remove key
Automatic headlamp mode is active
(\2page 78). The key is in the ignition
lock and the driver’s door is open.
\1Remove the key.
I
Replace key
Visit
workshop
The authorization to drive must be
checked.
\1Visit an authorized Sprinter Dealer.
Display symbol
Display message
Possible cause / result
Possible solution

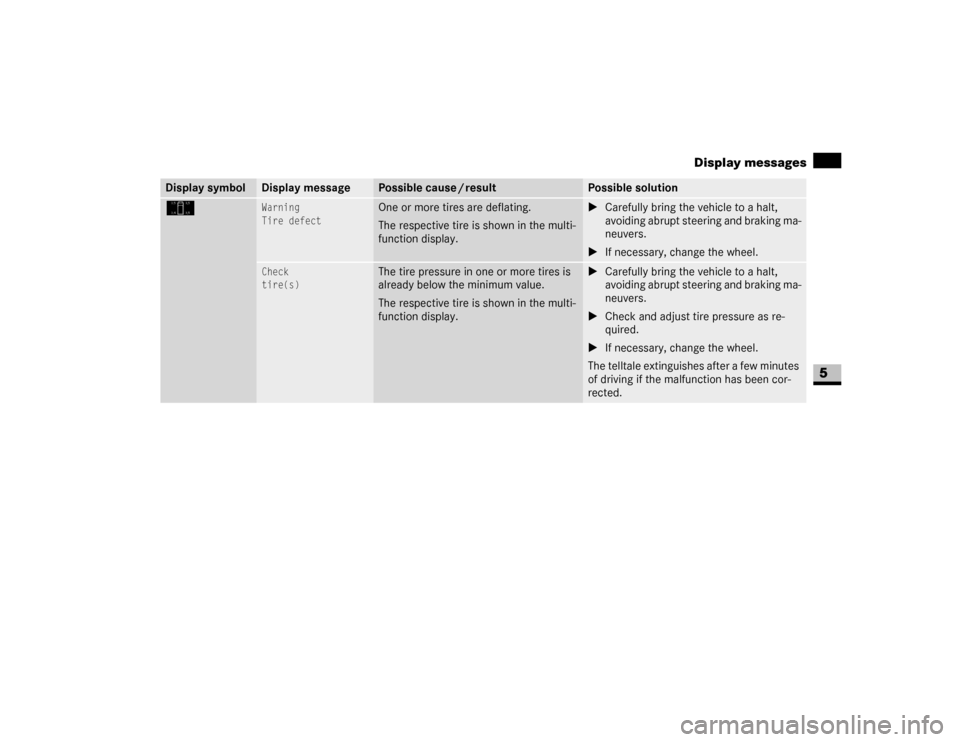

295 Practical hints
Display messages
5
C
Warning
Tire defect
One or more tires are deflating.
The respective tire is shown in the multi-
function display.
\1Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking ma-
neuvers.
\1If necessary, change the wheel.
Check
tire(s)
The tire pressure in one or more tires is
already below the minimum value.
The respective tire is shown in the multi-
function display.
\1Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking ma-
neuvers.
\1Check and adjust tire pressure as re-
quired.
\1If necessary, change the wheel.
The telltale extinguishes after a few minutes
of driving if the malfunction has been cor-
rected.
Display symbol
Display message
Possible cause / result
Possible solution

296 Practical hintsDisplay messages
5
N
Engine oil level
Stop, turn engine
off
There is insufficient or no oil in the en-
gine. There is a risk of engine damage.
\1Stop your vehicle as soon as it is safe to
do so.
\1Switch off the engine.
\1Check the engine oil level using the dip-
stick (\2page 189).
\1If the oil level is correct, have the mal-
function rectified immediately at an au-
thorized Sprinter Dealer.
\1If there is insufficient or no oil in the en-
gine, have the vehicle towed to an autho-
rized Sprinter Dealer.
Engine oil level
Check
oil level
The engine oil level has dropped to a crit-
ical level.
\1Check the engine oil level (\2page 188)
and add oil as necessary.
\1Have the engine checked for possible
leaks if you are having to add engine oil
more frequently than normal.
Engine oil
Add
1.0 quart(Canada:
liter
)
The engine oil level is too low.
\1Check the engine oil level (\2page 189)
the next time you refuel and add oil if
necessary.
Display symbol
Display message
Possible cause / result
Possible solution

297 Practical hints
Display messages
5
N
Engine oil level
Reduce
oil level
You have added too much engine oil.
There is a risk of damage to the engine or
the catalytic converter.
\1Check the engine oil level and have any
excess oil siphoned off at the nearest re-
fueling station (\2page 190).
The engine or the catalytic converter could
be damaged.
\1If the oil level is correct, have the mal-
function rectified as soon as possible at
an authorized Sprinter Dealer.
Oil sensor
Visit
workshop
The measuring system is malfunctioning.
\1Have the measuring system checked at
an authorized Sprinter Dealer.
Engine oil level
Not when eng. run-
ning
You are attempting to check the engine
oil level even though the engine is run-
ning.
\1Switch off the engine.
\1Check the engine oil level (\2page 187).
W
Reserve fuel
Drive to a
gas station
The fuel level has fallen into the reserve
range.
\1Refuel at the nearest gas station
(\2page 184).
Tank open
Check

filler cap
The fuel filler cap is not closed.
\1Close the fuel filler cap. A clicking sound
indicates that the fuel filler cap is closed.
\1If the malfunction continues to be indi-
cated, have it rectified immediately at an
authorized Sprinter Dealer.
Display symbol
Display message
Possible cause / result
Possible solution

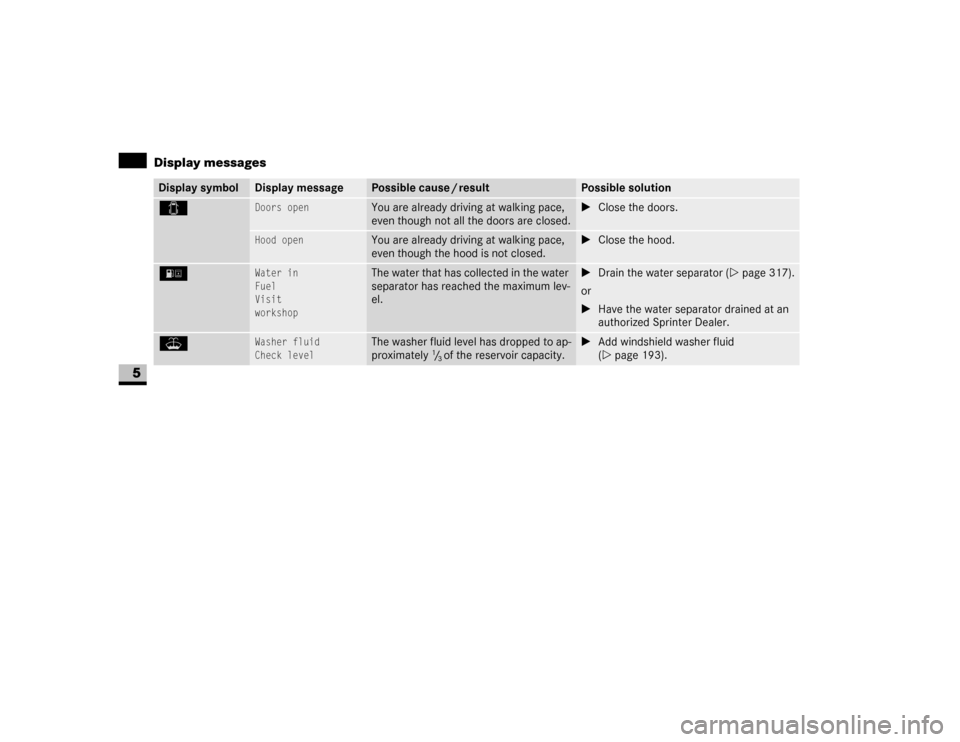

298 Practical hintsDisplay messages
5
9
Doors open
You are already driving at walking pace,
even though not all the doors are closed.
\1Close the doors.
Hood open
You are already driving at walking pace,
even though the hood is not closed.
\1Close the hood.
/
Water in
Fuel
Visit
workshop
The water that has collected in the water
separator has reached the maximum lev-
el.
\1Drain the water separator (\2page 317).
or
\1Have the water separator drained at an
authorized Sprinter Dealer.
W
Washer fluid
Check level
The washer fluid level has dropped to ap-
proximately
1/3 of the reservoir capacity.
\1Add windshield washer fluid
(\2page 193).
Display symbol
Display message
Possible cause / result
Possible solution

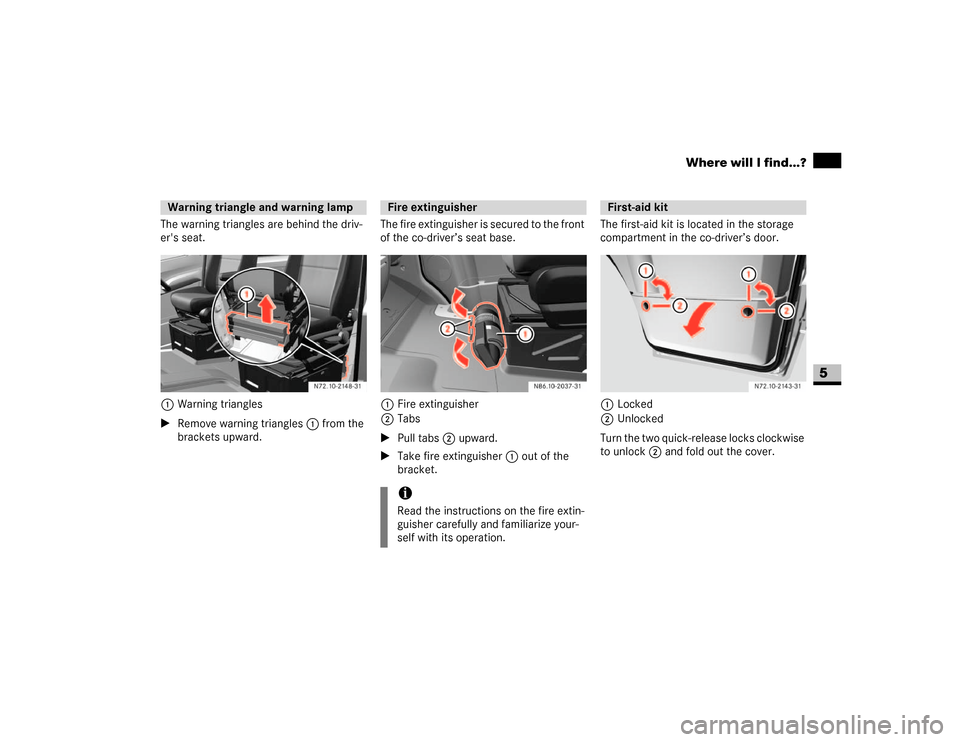

299 Practical hints
Where will I find...?
5
The warning triangles are behind the driv-
er's seat.
1Warning triangles
\1Remove warning triangles1 from the
brackets upward.The fire extinguisher is secured to the front
of the co-driver’s seat base.
1Fire extinguisher
2Tabs
\1Pull tabs2 upward.
\1Take fire extinguisher1 out of the
bracket.The first-aid kit is located in the storage
compartment in the co-driver’s door.
1Locked
2Unlocked
Turn the two quick-release locks clockwise
to unlock2 and fold out the cover.
Warning triangle and warning lamp
N72.10-2148-31
Fire extinguisheriRead the instructions on the fire extin-
guisher carefully and familiarize your-
self with its operation.
First-aid kit
