320 Practical hintsFlat tire
5
\3 Flat tireThe vehicle is either equipped with a spare
wheel or the Premium tire sealant*.
The spare wheel is located under the rear
end of the vehicle if the vehicle is not
equipped with Premium tire sealant*
(\2page 301).
When you replace a tire, the manufacturer
also recommends that you replace the tire
valve.\1Park the vehicle as far away as possible
from traffic and on a level, firm, and
non-slip surface.
\1Switch on the hazard warning lamps.
\1Apply the handbrake.
\1Engage first gear or reverse gear or
move the selector lever to positionP.
\1Any passengers should leave the vehi-
cle, ensuring that they are not endan-
gered as they do so.
\1Place the warning triangle or hazard
warning lamps at a suitable distance.
Observe legal requirements.Warning
G
Defective or worn tires, and tire pressures
that are either too high or too low, can cause
significant changes in the vehicle’s handling
and braking characteristics. There is an in-
creased risk of an accident.
Replace the tires, including the spare tire, at
least every 6 years, regardless of the degree
of treadwear. Check the tire pressure on the
spare wheel at regular intervals.
!
CAUTION
For safety reasons, the following tire
valves from the company Schrader
must be used on the vehicles:
\4TR 600 for vehicle model type 2500
\4TR 418 for vehicle model type 3500
Preparing the vehicle
Changing a wheelWarning
G
To avoid the risk of causing serious or fatal
injury, or damage to the vehicle, please bear
the following points in mind:
\4The jack is only designed to raise the ve-
hicle for a short time when changing a
wheel.
\4Position the jack under the appropriate
jacking point only (\2page 322). Check
that the jack is correctly seated under
the jacking point before raising the vehi-
cle.
\4The jack must be placed on a firm, flat
surface only.
\2\2
Page 322 of 393
321 Practical hints
Flat tire
5
Preparing the vehicle
Prepare the vehicle as described
(\2page 320).
\1Prevent the vehicle from rolling away
using chocks or similar.
On a level road:
\1Place the chocks in front of and behind
the wheel diagonally opposite to the
wheel that is to be changed.
\1Take the vehicle tool kit and the jack
from the footwell on the co-driver’s
side (\2page 300).
\1Remove the spare wheel from the
spare wheel bracket (\2page 301).
\1For wheels with wheel bolts remove the
wheel cover.
Wheel with wheel bolts\1Loosen the wheel bolts and nuts on the
wheel you wish to change about one
turn. Do not remove them.
As an extension for the wheel wrench,
use the shaft from the jack’s 3-part
pump lever that has the largest diame-
ter.
\4Before raising the vehicle, also secure it
against rolling away, for example using
chocks or similar. Never release the
handbrake while the vehicle is raised.
Make sure that the distance between
the underside of the tires and the
ground does not exceed 1.2 in (3 cm).
The vehicle could slip or topple off the
jack.
\4Do not reach under the raised vehicle
with your hands or feet.
\4Do not start the engine and avoid creat-
ing other vibrations while the vehicle is
jacked up. The vehicle could slip off the
jack.
Warning
G
The vehicle could slip off the jack on uphill
and downhill gradients.
To avoid the risk of causing serious or fatal
injury, or damage to the vehicle, do not
change wheels on uphill and downhill gradi-
ents.
N40.10-2162-31
Page 323 of 393
322 Practical hintsFlat tire
5
Hydraulic jack
\1Assemble the three-part pump lever for
the jack. 1Pressure release screw
\1Close pressure release screw1.
\1To do this, turn the flattened section on
the pump lever clockwise to the stop.
\1Insert the pump lever into the recess
on the jack and secure it by turning it
clockwise.\1Make sure that the jack is positioned
vertically under the jacking points de-
scribed below.
\1Raise the vehicle by pumping the lever
until the wheel is raised clear of the
ground.
Make sure that the distance between
the underside of the tires and the
ground does not exceed 1.2 in (3 cm).
Jacking point at the front axle
The vehicle jacking point is located under
the longitudinal member in front of the
front axle.
Jacking points at the rear axle
The vehicle jacking point is located under
the longitudinal member in front of the rear
axle. Vehicle model type 2500
Vehicle model type 3500
iNever turn pressure release screw1
more than 1 or 2 full turns. Hydraulic
fluid could otherwise escape.P58.10-2053-31
N40.10-2260-31
N40.10-2161-31
Page 324 of 393

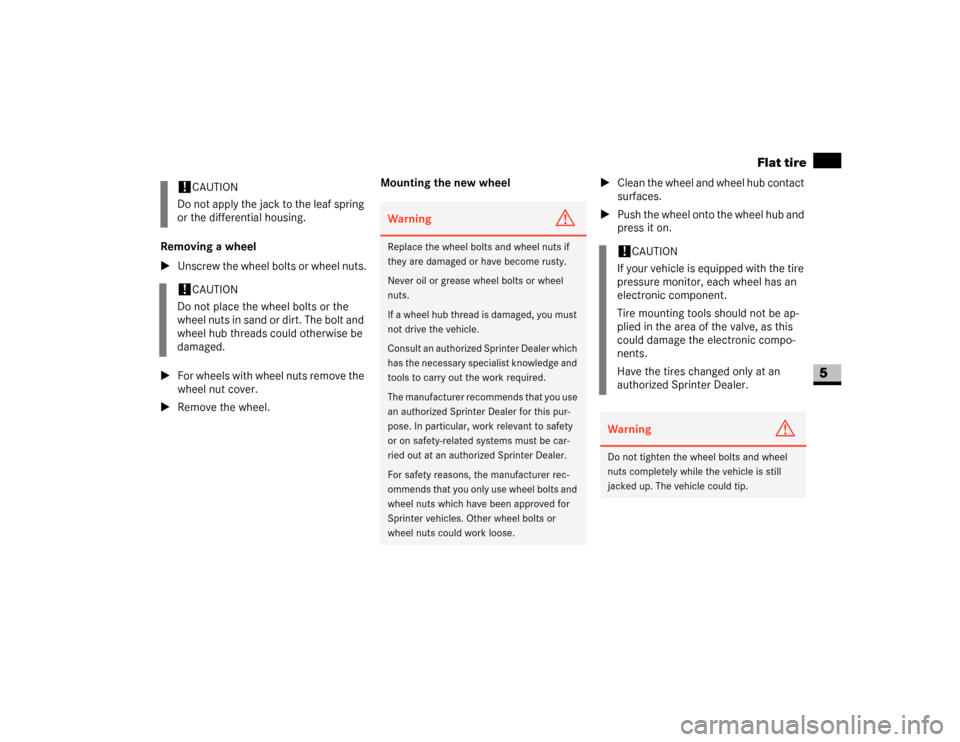

323 Practical hints
Flat tire
5
Removing a wheel
\1Unscrew the wheel bolts or wheel nuts. \1For wheels with wheel nuts remove the
wheel nut cover.
\1Remove the wheel.Mounting the new wheel\1Clean the wheel and wheel hub contact
surfaces.
\1Push the wheel onto the wheel hub and
press it on.
!
CAUTION
Do not apply the jack to the leaf spring
or the differential housing.
!
CAUTION
Do not place the wheel bolts or the
wheel nuts in sand or dirt. The bolt and
wheel hub threads could otherwise be
damaged.
Warning
G
Replace the wheel bolts and wheel nuts if
they are damaged or have become rusty.
Never oil or grease wheel bolts or wheel
nuts.
If a wheel hub thread is damaged, you must
not drive the vehicle.
Consult an authorized Sprinter Dealer which
has the necessary specialist knowledge and
tools to carry out the work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at an authorized Sprinter Dealer.
For safety reasons, the manufacturer rec-
ommends that you only use wheel bolts and
wheel nuts which have been approved for
Sprinter vehicles. Other wheel bolts or
wheel nuts could work loose.
!
CAUTION
If your vehicle is equipped with the tire
pressure monitor, each wheel has an
electronic component.
Tire mounting tools should not be ap-
plied in the area of the valve, as this
could damage the electronic compo-
nents.
Have the tires changed only at an
authorized Sprinter Dealer.
Warning
G
Do not tighten the wheel bolts and wheel
nuts completely while the vehicle is still
jacked up. The vehicle could tip.
Page 325 of 393
324 Practical hintsFlat tire
5
Wheels with centering by wheel bolts:
\1Screw in the wheel bolts and tighten
them finger-tight.
1Wheel bolt for light-alloy wheel
2Wheel bolt for steel wheelor wheels with wheel nuts:
For wheels with wheel nuts:
\1Center the wheel nut cover over the
wheel and push it onto the wheel.
\1Screw on the wheel nuts and tighten
them finger tight.
Lowering the vehicle
\1Slowly open the jack’s pressure release
screw one turn using the pump lever
(\2page 322) and lower the vehicle
slowly.
\1Put the jack to one side.Tightening torque pattern
1 – 6 Wheel bolts
\1Tighten all the wheel bolts and wheel
nuts evenly in the sequence indicated.
As an extension for the wheel wrench,
use the shaft from the jack’s 3-part
pump lever that has the largest diame-
ter.
iOn vehicles with light-alloy wheels, you
will find short wheel bolts suitable for
the steel spare wheel in the vehicle tool
kit.N40.10-2175-31
iScrew on the three wheel nuts that
hold the wheel nut cover first.
!
CAUTION
The tightening torque is:
\4for wheel bolts 177 lb-ft (240 Nm)
(steel wheel)/133 lb-ft (180 Nm)
(light-alloy wheel).
\4for wheel nuts 133 lb-ft (180 Nm)
Page 326 of 393

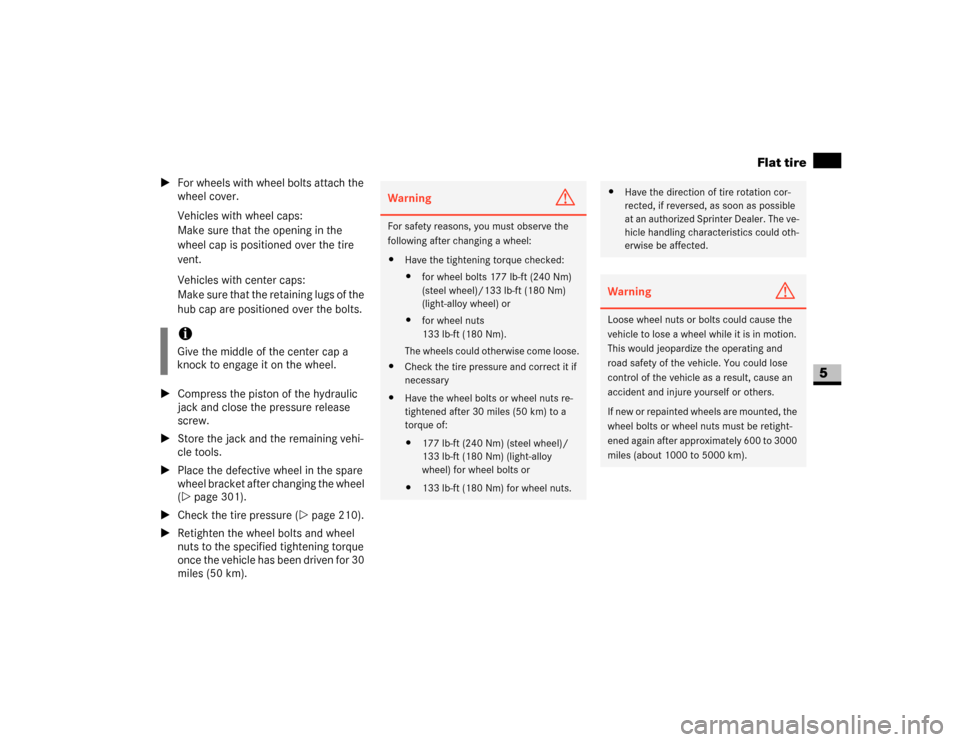

325 Practical hints
Flat tire
5
\1For wheels with wheel bolts attach the
wheel cover.
Vehicles with wheel caps:
Make sure that the opening in the
wheel cap is positioned over the tire
vent.
Vehicles with center caps:
Make sure that the retaining lugs of the
hub cap are positioned over the bolts.
\1Compress the piston of the hydraulic
jack and close the pressure release
screw.
\1Store the jack and the remaining vehi-
cle tools.
\1Place the defective wheel in the spare
wheel bracket after changing the wheel
(\2page 301).
\1Check the tire pressure (\2page 210).
\1Retighten the wheel bolts and wheel
nuts to the specified tightening torque
once the vehicle has been driven for 30
miles (50 km).
iGive the middle of the center cap a
knock to engage it on the wheel.
Warning
G
For safety reasons, you must observe the
following after changing a wheel:
\4Have the tightening torque checked:
\4for wheel bolts 177 lb-ft (240 Nm)
(steel wheel)/133 lb-ft (180 Nm)
(light-alloy wheel) or
\4for wheel nuts
133 lb-ft (180 Nm).
The wheels could otherwise come loose.
\4Check the tire pressure and correct it if
necessary
\4Have the wheel bolts or wheel nuts re-
tightened after 30 miles (50 km) to a
torque of:
\4177 lb-ft (240 Nm) (steel wheel)/
133 lb-ft (180 Nm) (light-alloy
wheel) for wheel bolts or
\4133 lb-ft (180 Nm) for wheel nuts.
\4Have the direction of tire rotation cor-
rected, if reversed, as soon as possible
at an authorized Sprinter Dealer. The ve-
hicle handling characteristics could oth-
erwise be affected.Warning
G
Loose wheel nuts or bolts could cause the
vehicle to lose a wheel while it is in motion.
This would jeopardize the operating and
road safety of the vehicle. You could lose
control of the vehicle as a result, cause an
accident and injure yourself or others.
If new or repainted wheels are mounted, the
wheel bolts or wheel nuts must be retight-
ened again after approximately 600 to 3000
miles (about 1000 to 5000 km).
Page 327 of 393

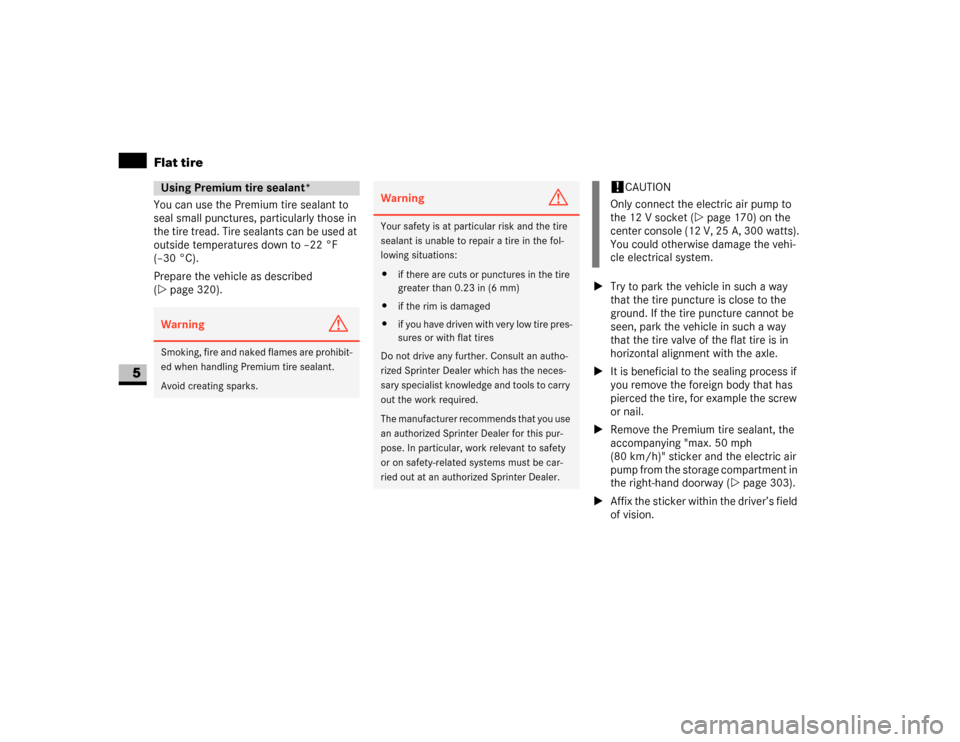

326 Practical hintsFlat tire
5
You can use the Premium tire sealant to
seal small punctures, particularly those in
the tire tread. Tire sealants can be used at
outside temperatures down to –22 °F
(–30 °C).
Prepare the vehicle as described
(\2page 320).\1Try to park the vehicle in such a way
that the tire puncture is close to the
ground. If the tire puncture cannot be
seen, park the vehicle in such a way
that the tire valve of the flat tire is in
horizontal alignment with the axle.
\1It is beneficial to the sealing process if
you remove the foreign body that has
pierced the tire, for example the screw
or nail.
\1Remove the Premium tire sealant, the
accompanying "max. 50 mph
(80 km/h)" sticker and the electric air
pump from the storage compartment in
the right-hand doorway (\2page 303).
\1Affix the sticker within the driver’s field
of vision.Using Premium tire sealant*Warning
G
Smoking, fire and naked flames are prohibit-
ed when handling Premium tire sealant.
Avoid creating sparks.
Warning
G
Your safety is at particular risk and the tire
sealant is unable to repair a tire in the fol-
lowing situations:
\4if there are cuts or punctures in the tire
greater than 0.23 in (6 mm)
\4if the rim is damaged
\4if you have driven with very low tire pres-
sures or with flat tires
Do not drive any further. Consult an autho-
rized Sprinter Dealer which has the neces-
sary specialist knowledge and tools to carry
out the work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at an authorized Sprinter Dealer.
!
CAUTION
Only connect the electric air pump to
the 12 V socket (\2page 170) on the
center console (12 V, 25 A, 300 watts).
You could otherwise damage the vehi-
cle electrical system.
Page 328 of 393

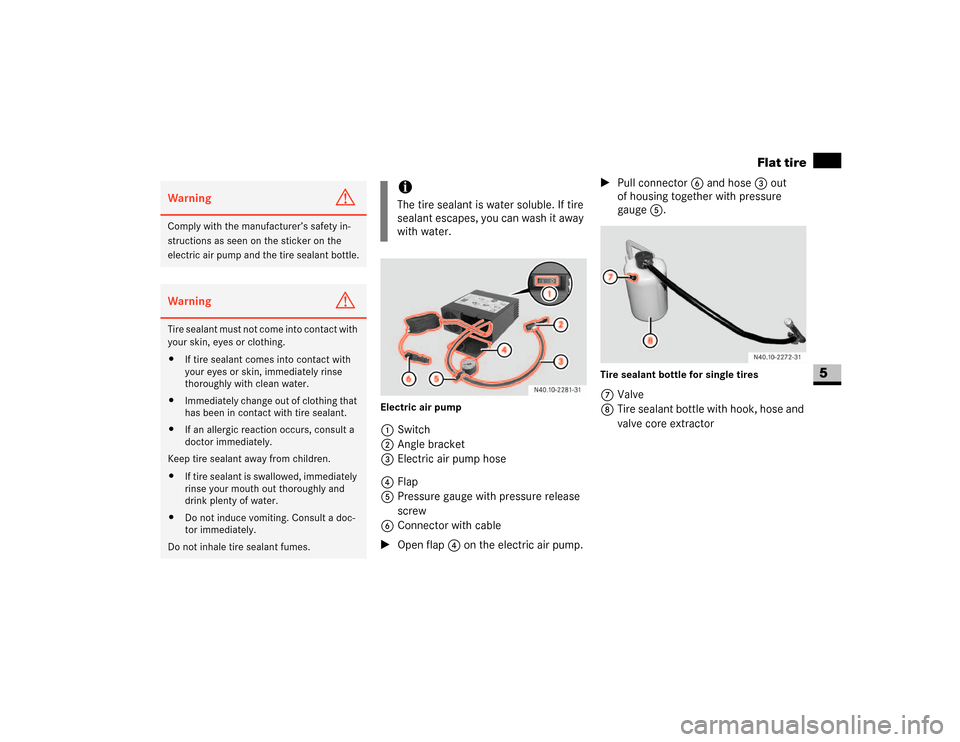

327 Practical hints
Flat tire
5
Electric air pump1Switch
2Angle bracket
3Electric air pump hose
4Flap
5Pressure gauge with pressure release
screw
6Connector with cable
\1Open flap4 on the electric air pump.\1Pull connector 6 and hose3 out
of housing together with pressure
gauge5.
Tire sealant bottle for single tires7Valve
8Tire sealant bottle with hook, hose and
valve core extractor
Warning
G
Comply with the manufacturer’s safety in-
structions as seen on the sticker on the
electric air pump and the tire sealant bottle.Warning
G
Tire sealant must not come into contact with
your skin, eyes or clothing.
\4If tire sealant comes into contact with
your eyes or skin, immediately rinse
thoroughly with clean water.
\4Immediately change out of clothing that
has been in contact with tire sealant.
\4If an allergic reaction occurs, consult a
doctor immediately.
Keep tire sealant away from children.
\4If tire sealant is swallowed, immediately
rinse your mouth out thoroughly and
drink plenty of water.
\4Do not induce vomiting. Consult a doc-
tor immediately.
Do not inhale tire sealant fumes.
iThe tire sealant is water soluble. If tire
sealant escapes, you can wash it away
with water.
Page 329 of 393
328 Practical hintsFlat tire
5
Tire sealant bottle for twin tires7Valve
8Tire sealant bottle with hook, hose and
angle brackets
\1Shake tire sealant bottle8.
\1Unscrew and remove the cap from
valve 7 on tire sealant bottle 8.
\1Press angle bracket 2 (\2page 327)
on hose 3 of the electric air pump all
the way onto valve 7 of tire sealant
bottle 8 and clamp it in place.The following steps may vary depending on
vehicle tires.
\4Single tires (\2page 328).
\4Twin tires, inner wheel (\2page 329)
\4Twin tires, outer wheel (\2page 331)
Single tire
9Hook
aKnob
bLever
cValve core extractor
dTire valve\1Pull knoba out of valve core extractor
c as far as the stop.
\1Unscrew and remove the valve cap
from tire valved on the flat tire.
\1Hook the tire sealant bottle into the up-
per vent hole in the wheel using
hook9.
\1Keep lever b pressed, connect valve
core extractorc firmly to tire valved
and release leverb.
\1Press knob a into the valve core of
tire valved, turning it gently as you do
so, until the shaft of valve core
extractorc engages.
\1Turn knoba counterclockwise until
the valve core is unscrewed.
\1Pull knoba out of valve core extractor
c as far as the stop.
\1This pulls the valve core into the valve
core extractor and seals it against the
valve core extractor stop.
\1Make sure that the pressure release
screw on pressure gauge 5 is closed.
\1Connect connector6 to the 12 V
socket (12 V, 25 A, 300 watts) on the
center console (\2page 170).
Page 330 of 393
329 Practical hints
Flat tire
5
\1Start the engine (\2page 111).
\1Press I on electric air pump switch1.
The electric air pump is switched on.
The tire sealant is then pumped into
the tire and the tire pressure is in-
creased. Allow the electric air pump to
run for at least 10 minutes until tire
sealant bottle 8 is completely empty
and a minimum tire pressure of
43.5 psi (3.0 bar) is achieved.
\1Inflate the tire using the electric air
pump until the recommended tire pres-
sure (\2page 210) is achieved.
\1Then press0 on electric air pump
switch1.
The electric air pump is switched off.
\1Slide knoba quickly to the stop in
valve core extractorc.
\1Turn knob a clockwise until the valve
core is firmly screwed into tire
valved.
\1Press leverb and remove valve core
extractorc from tire valved.
\1Screw the valve cap onto tire valved.
After filling with tire sealant (\2page 333).Twin tires, inner wheel
9Valve extension
aValve core extractor
\1Unscrew and remove the valve cap
from valve extension9 on the flat tire.
\1Screw valve core extractora clock-
wise all the way onto valve
extension9.
\1Continue to screw valve core
extractora about half a rotation to
loosen the valve extension.
\1Unscrew and remove the valve exten-
sion and valve core extractor counter-
clockwise from tire valve.
\1Unscrew and remove the valve exten-
sion from the valve core extractor.
!
CAUTION
Do not connect the electric air pump
connector to the cigarette lighter sock-
et or another 12 V socket. These are
not designed for operating the electric
air pump.
!
CAUTION
Do not run the electric air pump for
more than 20 minutes without a break,
otherwise it may overheat.
The air pump can be used again once it
has cooled down.
iDo not pull the valve core extractor
from the tire valve while the valve core
is unscrewed from the tire valve. Tire
sealant could otherwise escape onto
your hands.
The tire sealant is water soluble. If tire
sealant escapes, you can wash it away
with water.
