Page 1661 of 2321

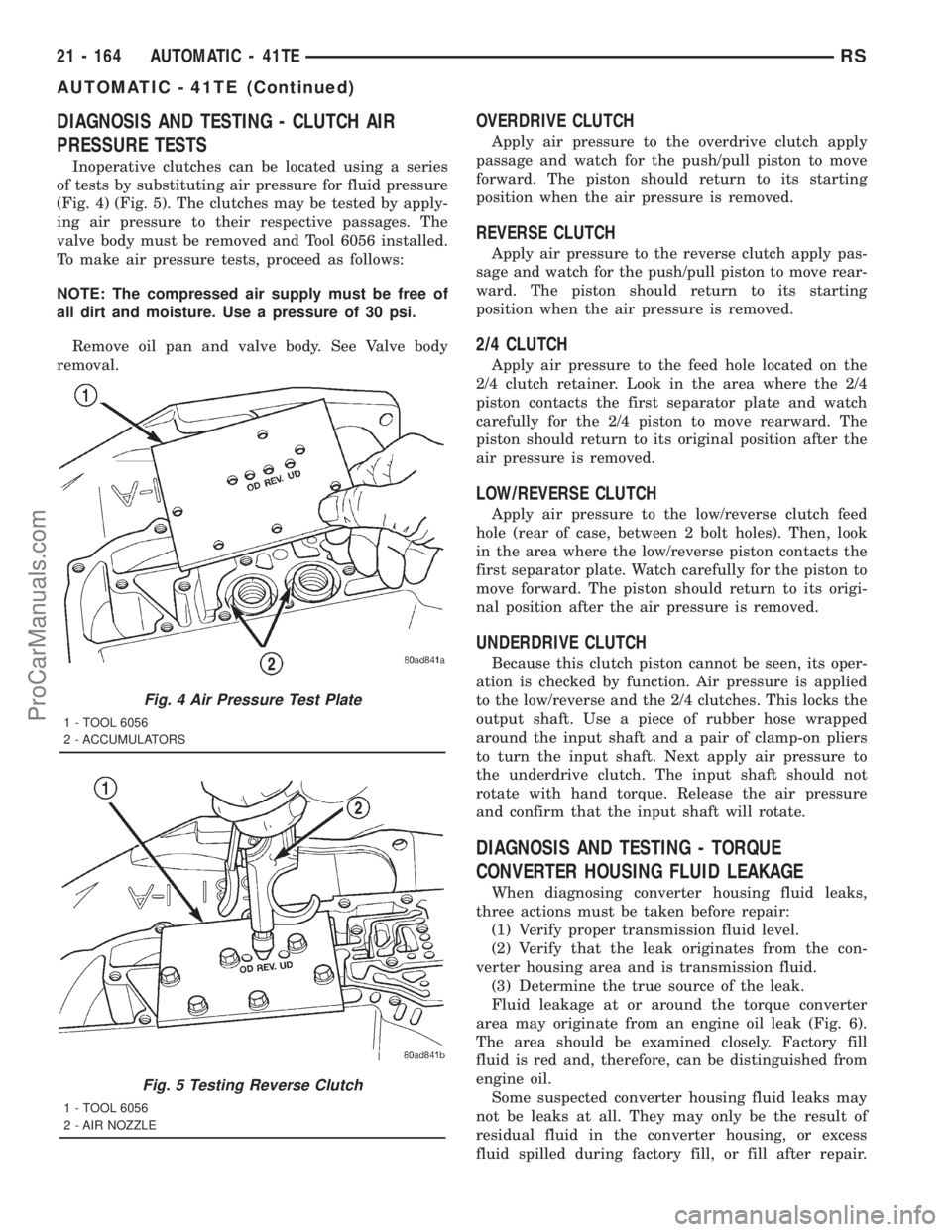

DODGE TOWN AND COUNTRY 2001  Service Manual DIAGNOSIS AND TESTING - CLUTCH AIR
PRESSURE TESTS
Inoperative clutches can be located using a series
of tests by substituting air pressure for fluid pressure
(Fig. 4) (Fig. 5). The clutches may be tes

Page 1662 of 2321

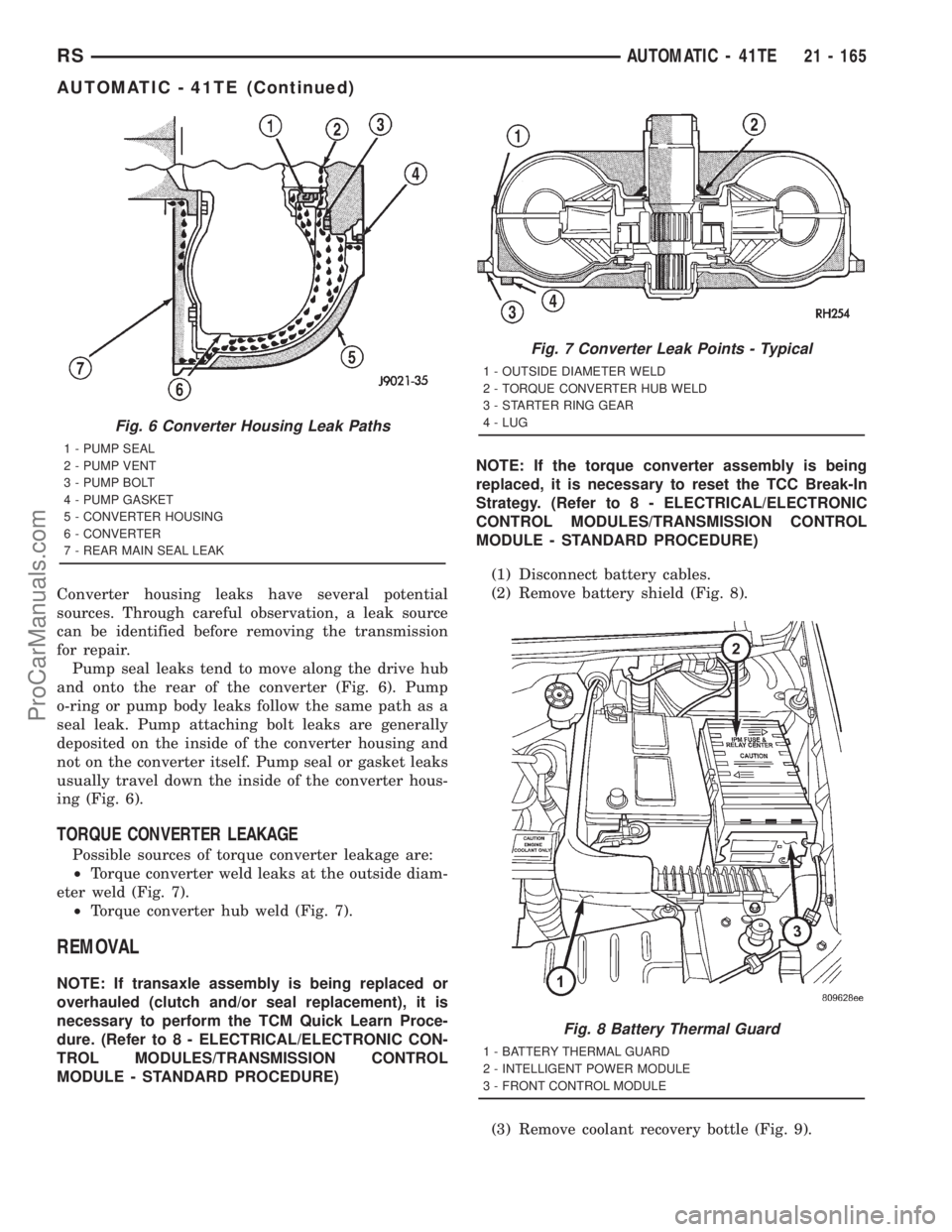

DODGE TOWN AND COUNTRY 2001  Service Manual Converter housing leaks have several potential
sources. Through careful observation, a leak source
can be identified before removing the transmission
for repair.
Pump seal leaks tend to move along the

Page 1663 of 2321

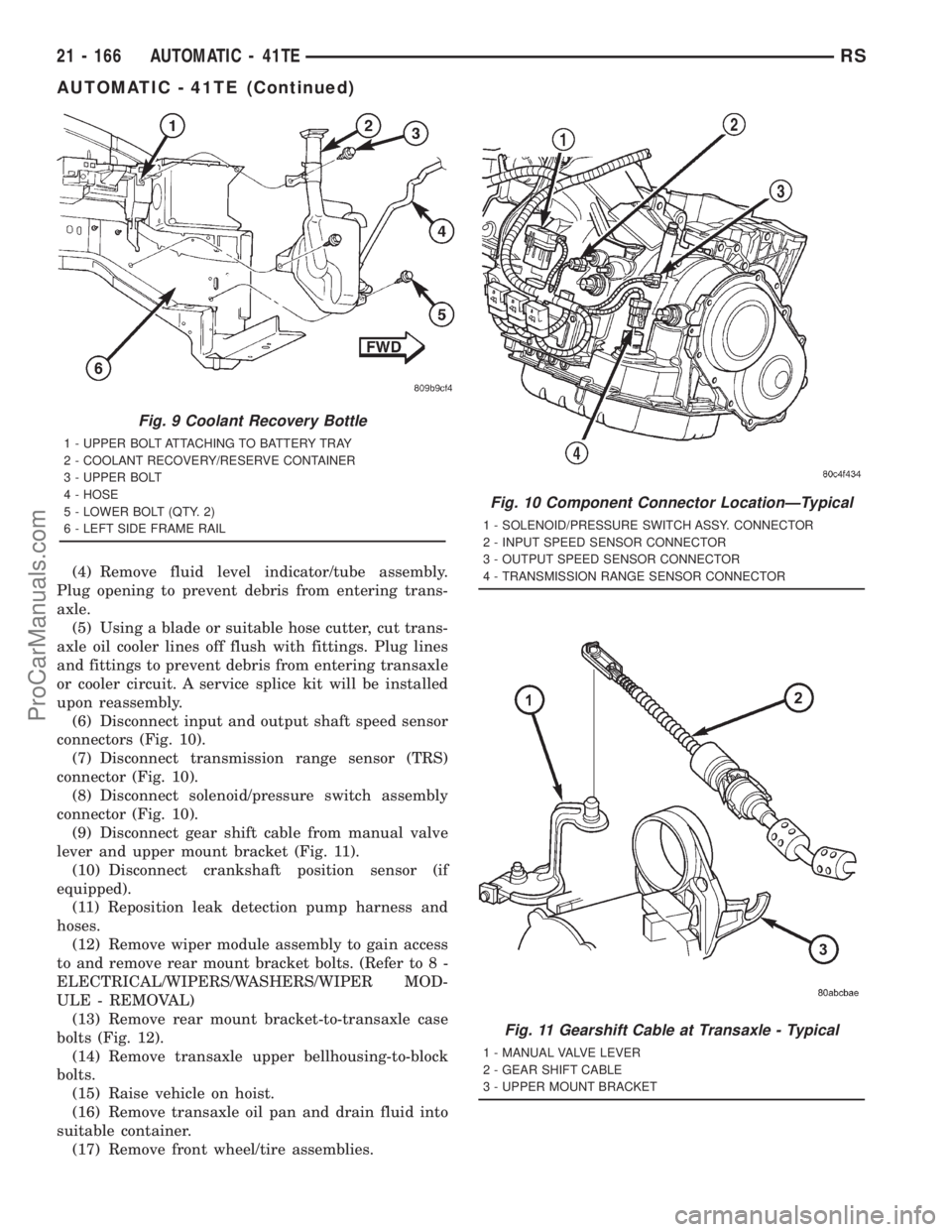

DODGE TOWN AND COUNTRY 2001  Service Manual (4) Remove fluid level indicator/tube assembly.
Plug opening to prevent debris from entering trans-
axle.
(5) Using a blade or suitable hose cutter, cut trans-
axle oil cooler lines off flush with fit

Page 1664 of 2321

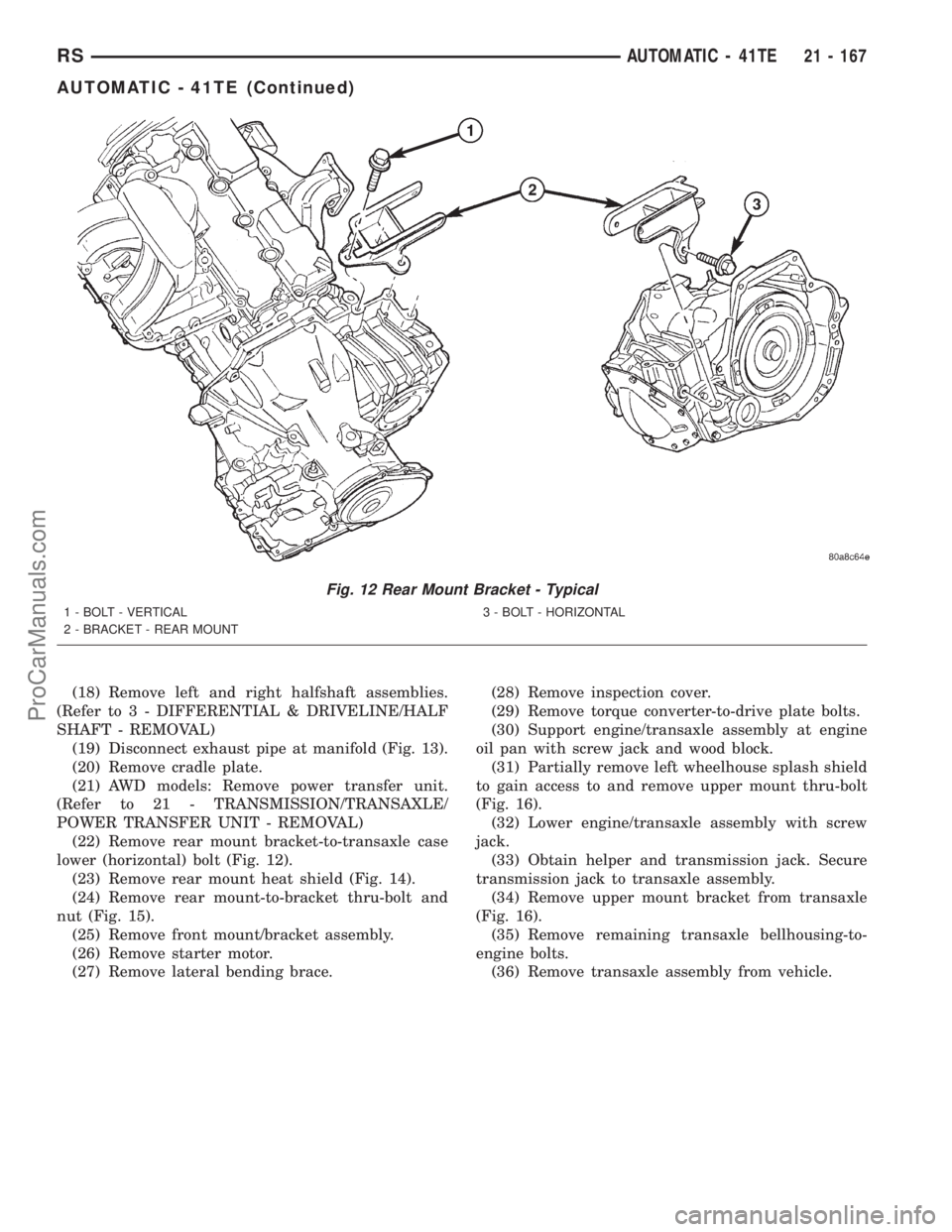

DODGE TOWN AND COUNTRY 2001  Service Manual (18) Remove left and right halfshaft assemblies.
(Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF
SHAFT - REMOVAL)
(19) Disconnect exhaust pipe at manifold (Fig. 13).
(20) Remove cradle plate.
(21) AWD mod

Page 1665 of 2321

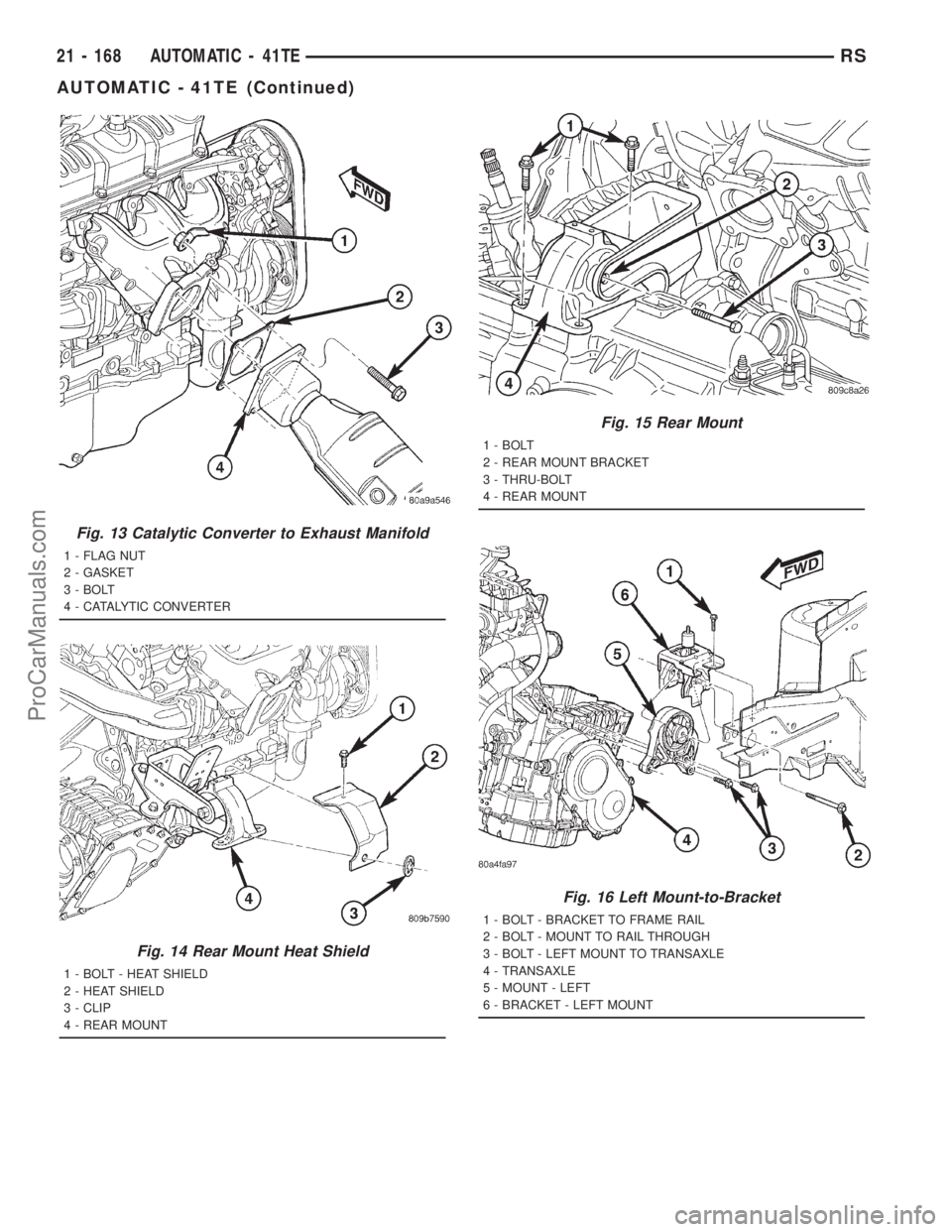

DODGE TOWN AND COUNTRY 2001  Service Manual Fig. 13 Catalytic Converter to Exhaust Manifold
1 - FLAG NUT
2 - GASKET
3 - BOLT
4 - CATALYTIC CONVERTER
Fig. 14 Rear Mount Heat Shield
1 - BOLT - HEAT SHIELD
2 - HEAT SHIELD
3 - CLIP
4 - REAR MOUNT
F

Page 1666 of 2321

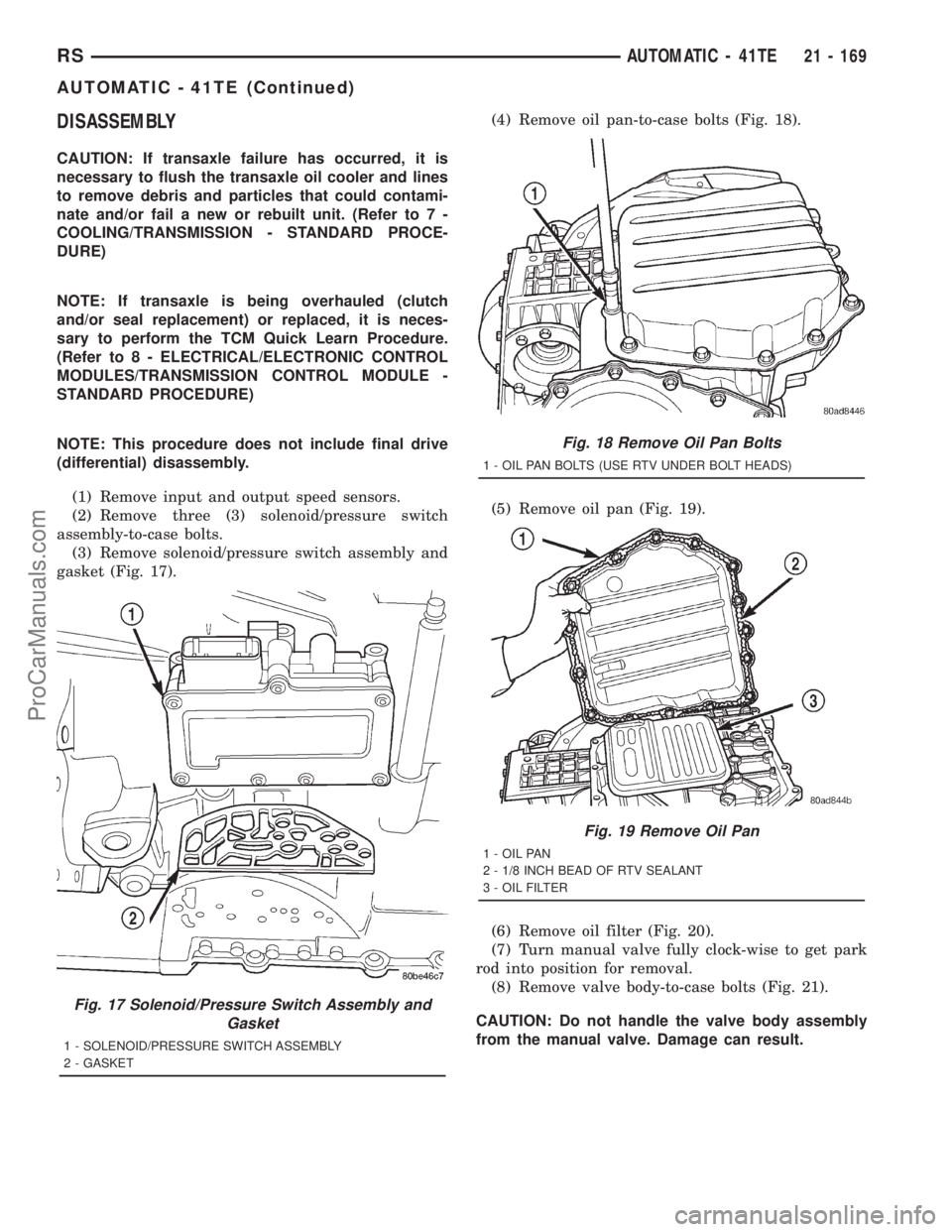

DODGE TOWN AND COUNTRY 2001  Service Manual DISASSEMBLY
CAUTION: If transaxle failure has occurred, it is
necessary to flush the transaxle oil cooler and lines
to remove debris and particles that could contami-
nate and/or fail a new or rebuilt

Page 1667 of 2321

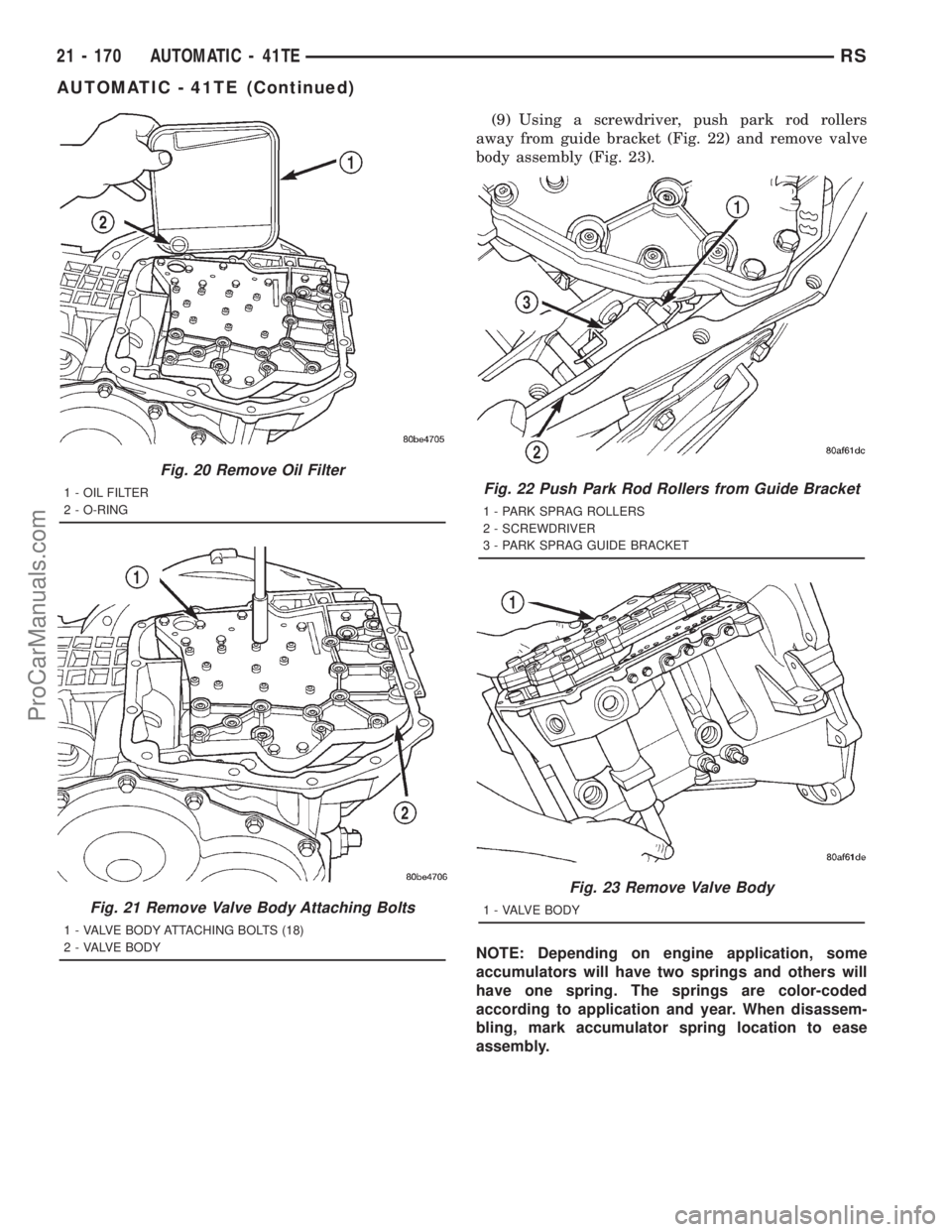

DODGE TOWN AND COUNTRY 2001  Service Manual (9) Using a screwdriver, push park rod rollers
away from guide bracket (Fig. 22) and remove valve
body assembly (Fig. 23).
NOTE: Depending on engine application, some
accumulators will have two spring

Page 1668 of 2321

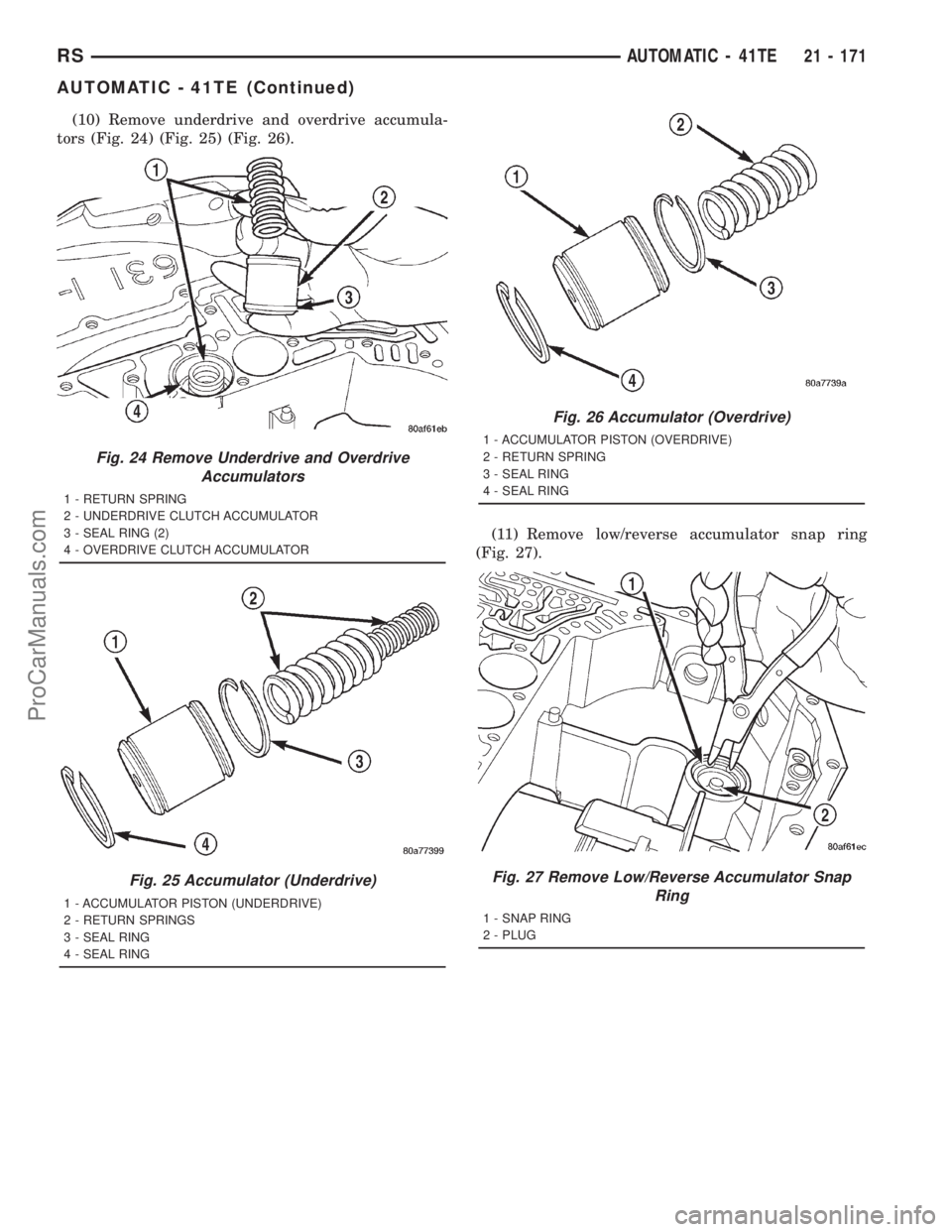

DODGE TOWN AND COUNTRY 2001  Service Manual (10) Remove underdrive and overdrive accumula-
tors (Fig. 24) (Fig. 25) (Fig. 26).
(11) Remove low/reverse accumulator snap ring
(Fig. 27).
Fig. 24 Remove Underdrive and Overdrive
Accumulators
1 - RET

Page 1669 of 2321

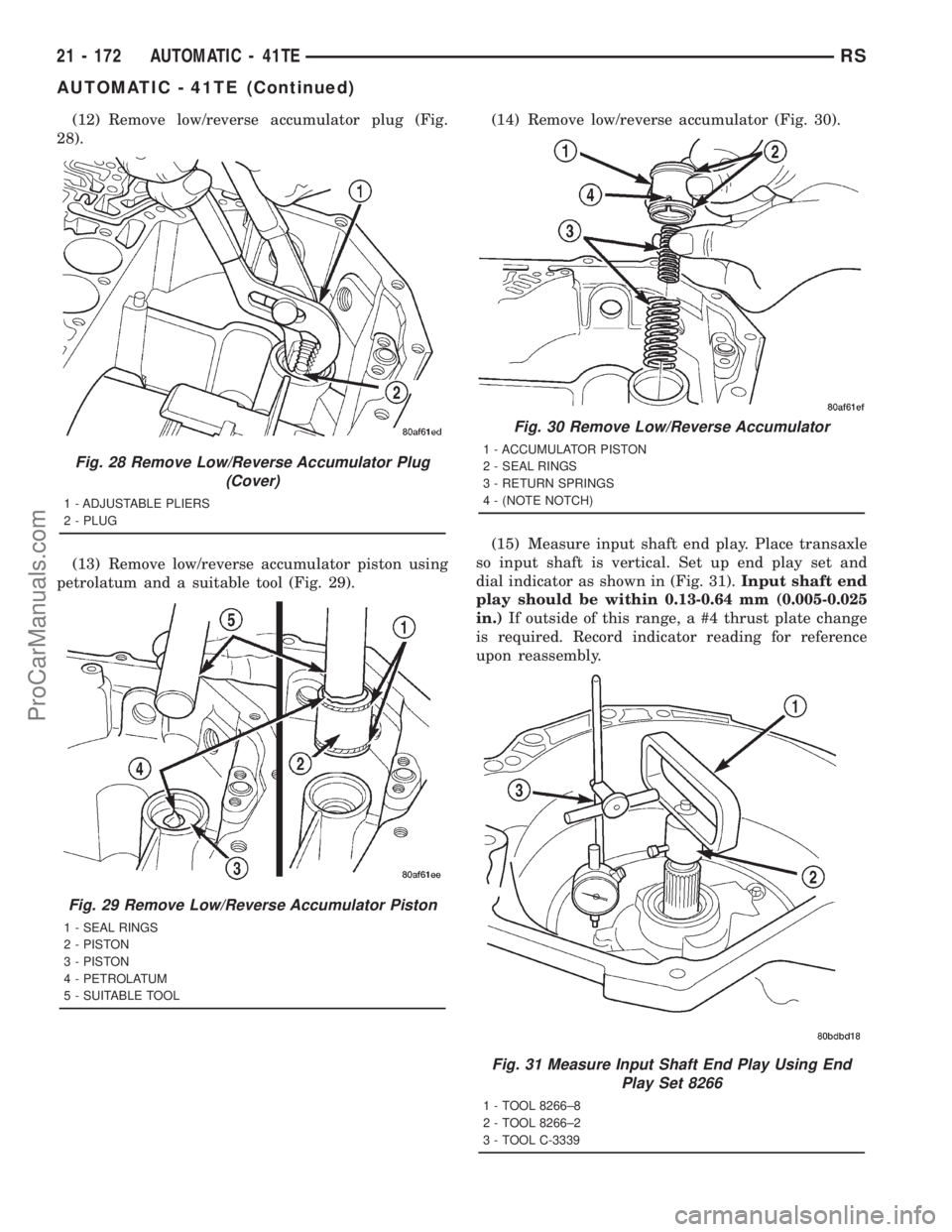

DODGE TOWN AND COUNTRY 2001  Service Manual (12) Remove low/reverse accumulator plug (Fig.
28).
(13) Remove low/reverse accumulator piston using
petrolatum and a suitable tool (Fig. 29).(14) Remove low/reverse accumulator (Fig. 30).
(15) Measur

Page 1670 of 2321

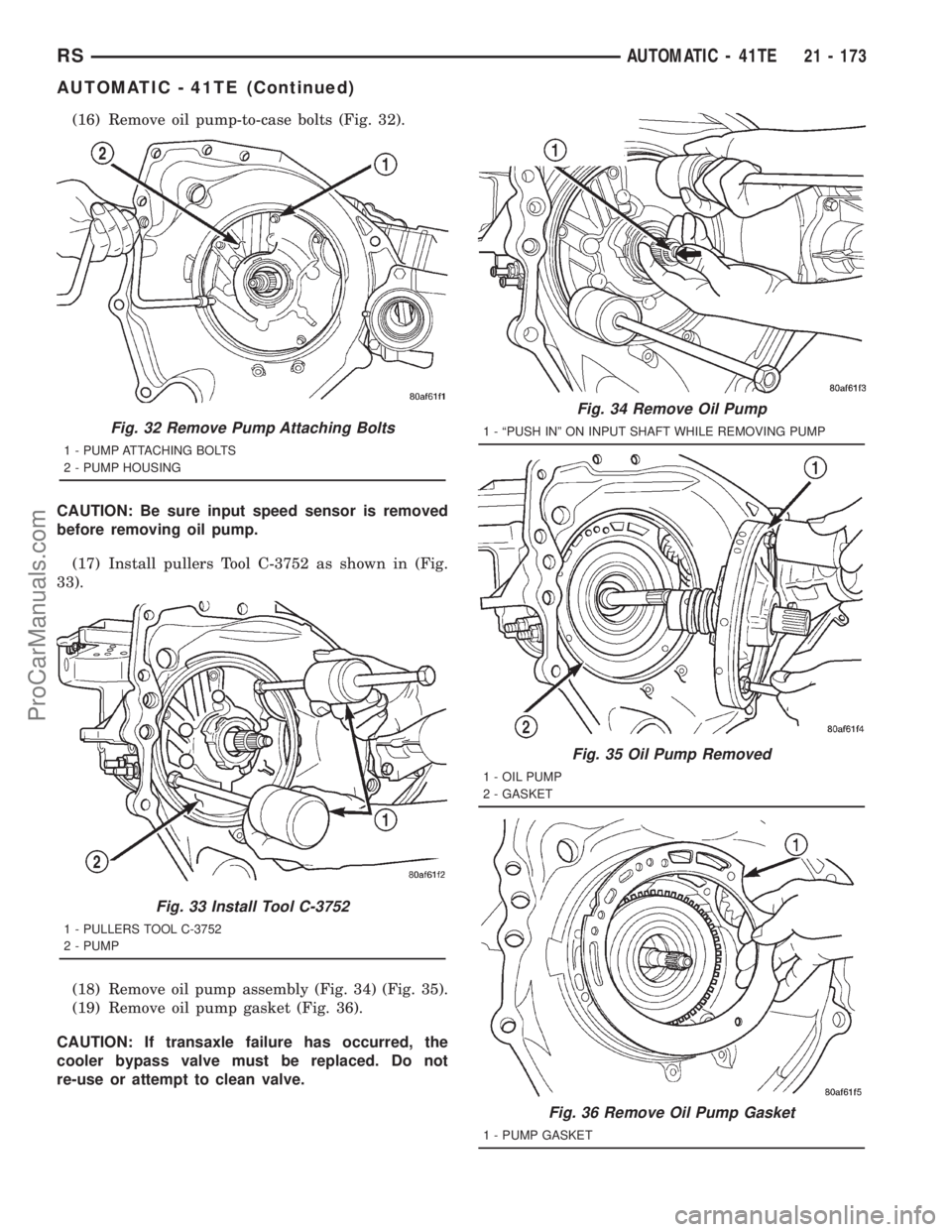

DODGE TOWN AND COUNTRY 2001  Service Manual (16) Remove oil pump-to-case bolts (Fig. 32).
CAUTION: Be sure input speed sensor is removed
before removing oil pump.
(17) Install pullers Tool C-3752 as shown in (Fig.
33).
(18) Remove oil pump asse
