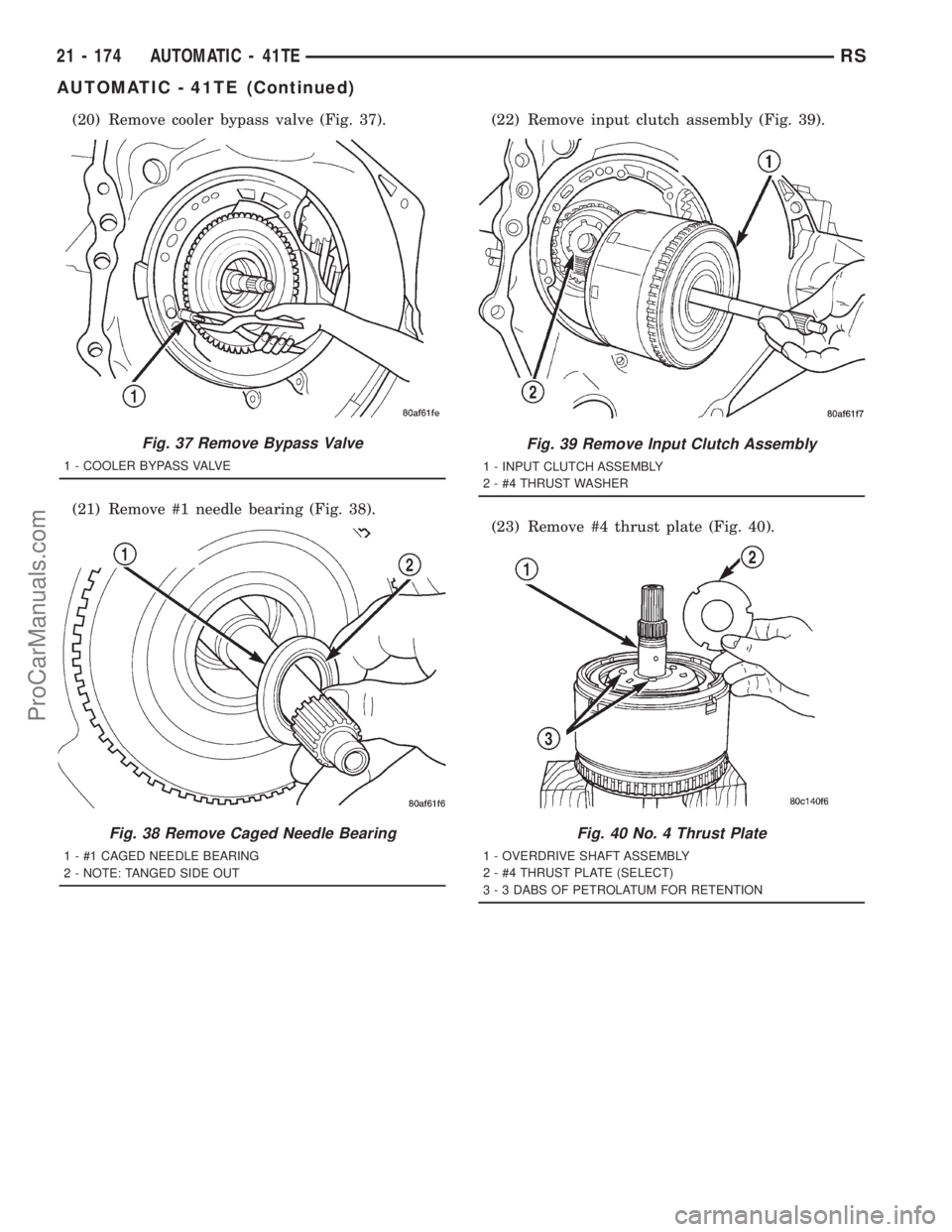

DODGE TOWN AND COUNTRY 2001  Service Manual (20) Remove cooler bypass valve (Fig. 37).
(21) Remove #1 needle bearing (Fig. 38).(22) Remove input clutch assembly (Fig. 39).
(23) Remove #4 thrust plate (Fig. 40).
Fig. 37 Remove Bypass Valve
1 - C

Page 1672 of 2321

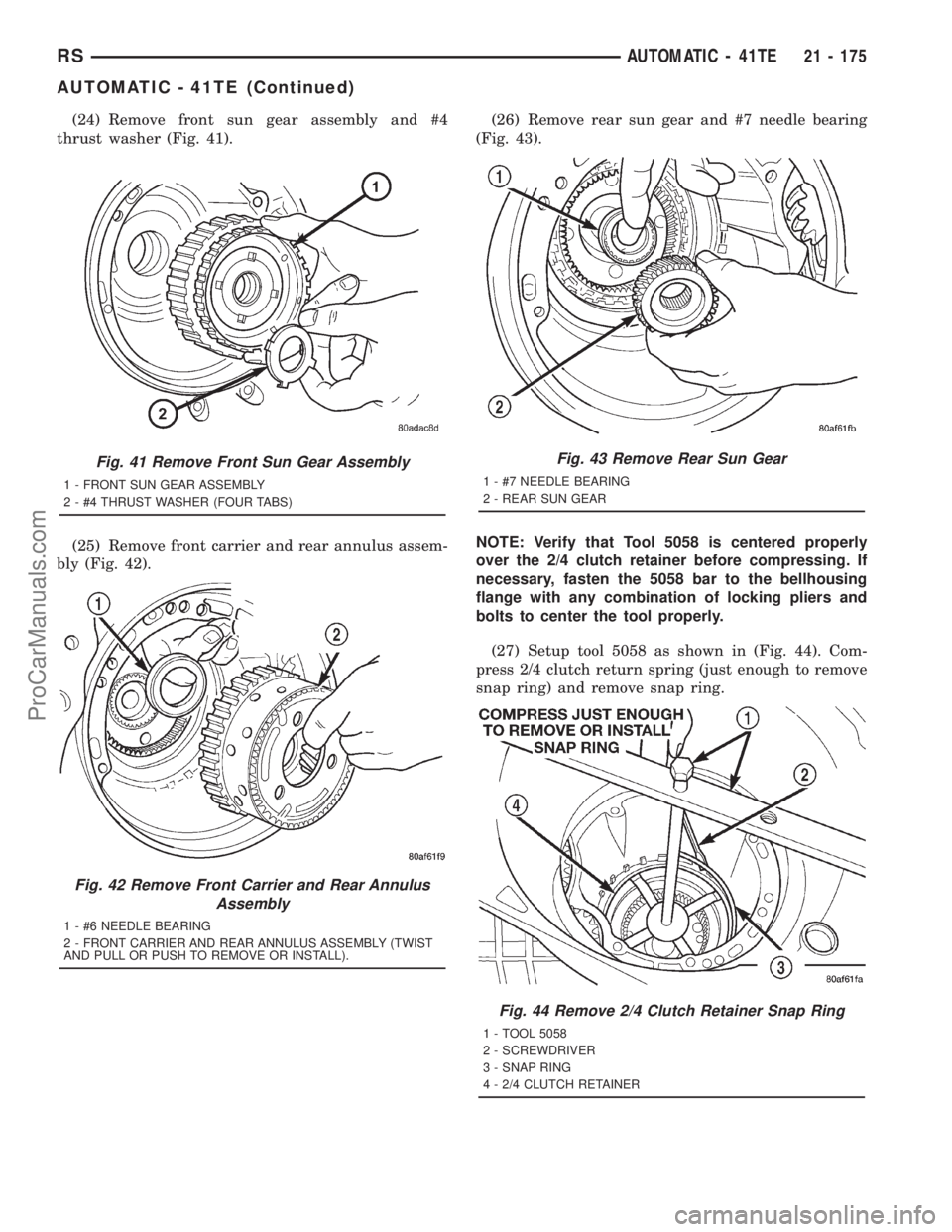

DODGE TOWN AND COUNTRY 2001  Service Manual (24) Remove front sun gear assembly and #4
thrust washer (Fig. 41).
(25) Remove front carrier and rear annulus assem-
bly (Fig. 42).(26) Remove rear sun gear and #7 needle bearing
(Fig. 43).
NOTE: Ver

Page 1673 of 2321

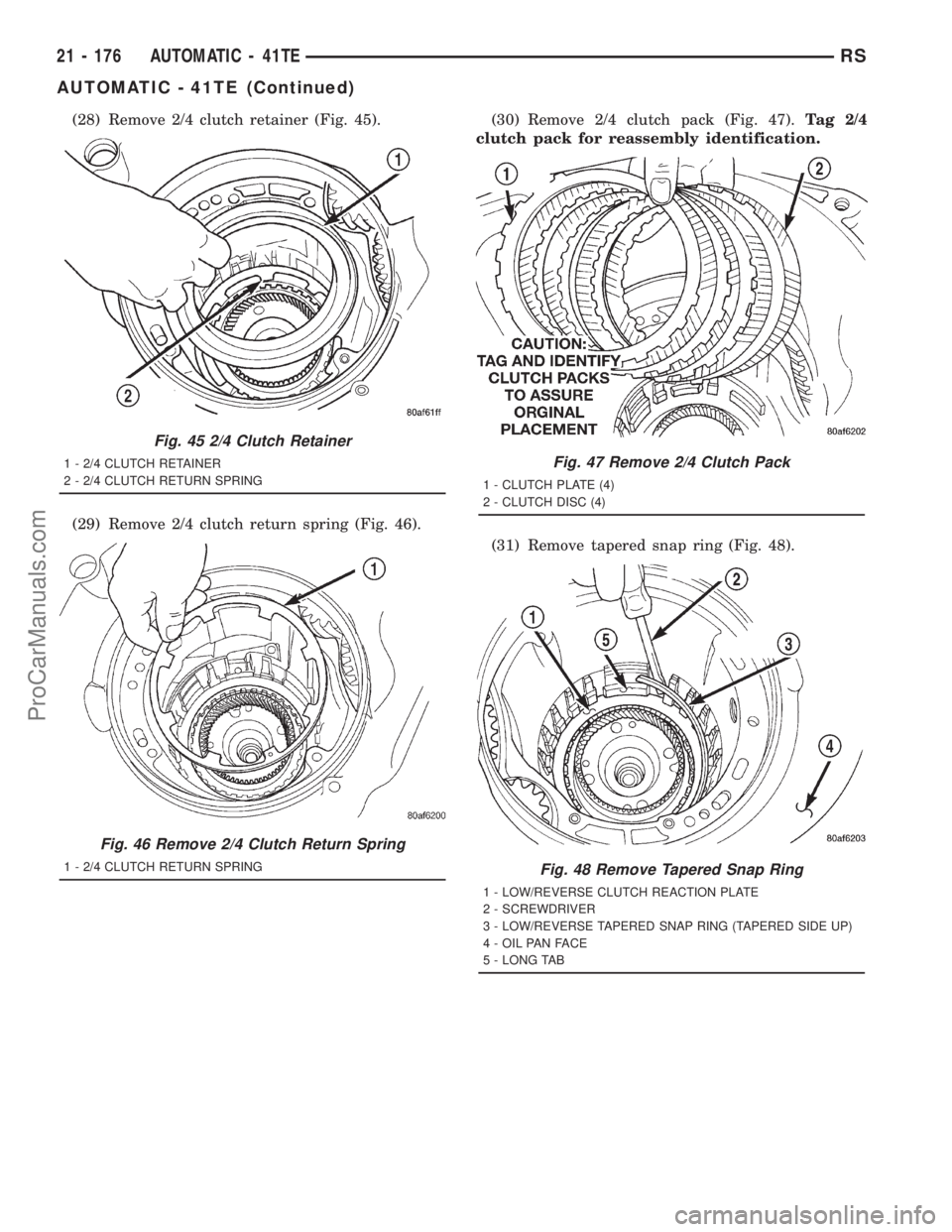

DODGE TOWN AND COUNTRY 2001  Service Manual (28) Remove 2/4 clutch retainer (Fig. 45).
(29) Remove 2/4 clutch return spring (Fig. 46).(30) Remove 2/4 clutch pack (Fig. 47).Tag 2/4
clutch pack for reassembly identification.
(31) Remove tapered s

Page 1674 of 2321

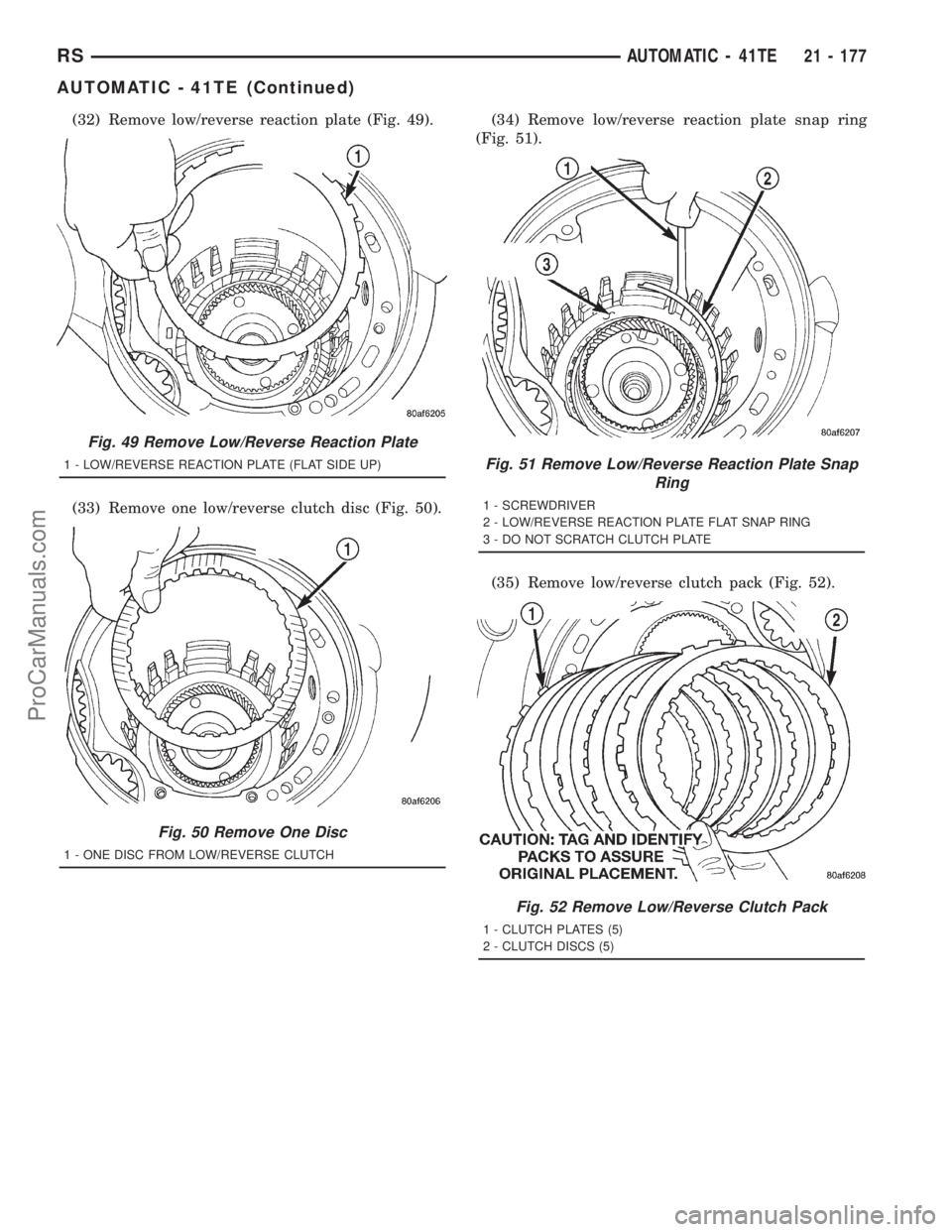

DODGE TOWN AND COUNTRY 2001  Service Manual (32) Remove low/reverse reaction plate (Fig. 49).
(33) Remove one low/reverse clutch disc (Fig. 50).(34) Remove low/reverse reaction plate snap ring
(Fig. 51).
(35) Remove low/reverse clutch pack (Fig

Page 1675 of 2321

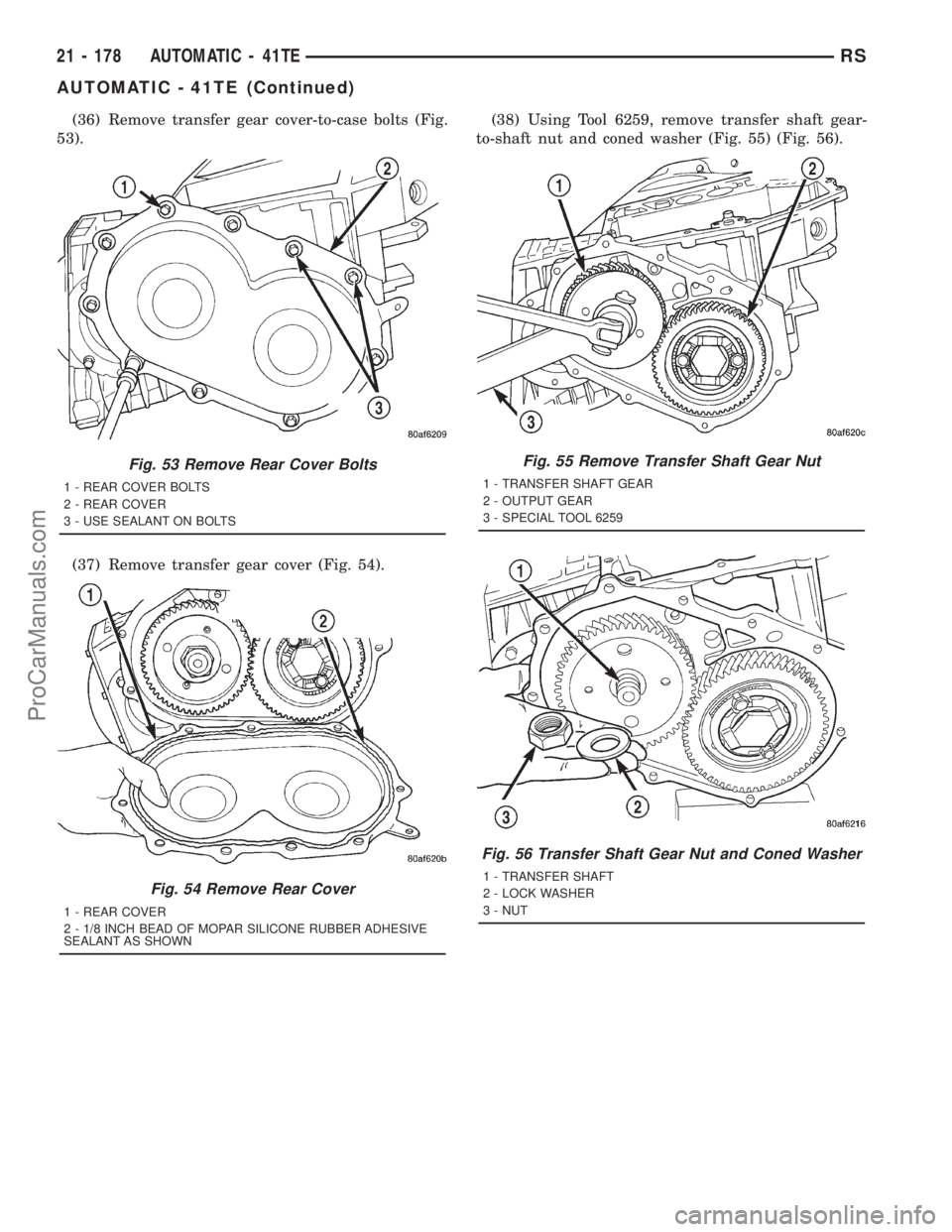

DODGE TOWN AND COUNTRY 2001  Service Manual (36) Remove transfer gear cover-to-case bolts (Fig.
53).
(37) Remove transfer gear cover (Fig. 54).(38) Using Tool 6259, remove transfer shaft gear-
to-shaft nut and coned washer (Fig. 55) (Fig. 56).

Page 1676 of 2321

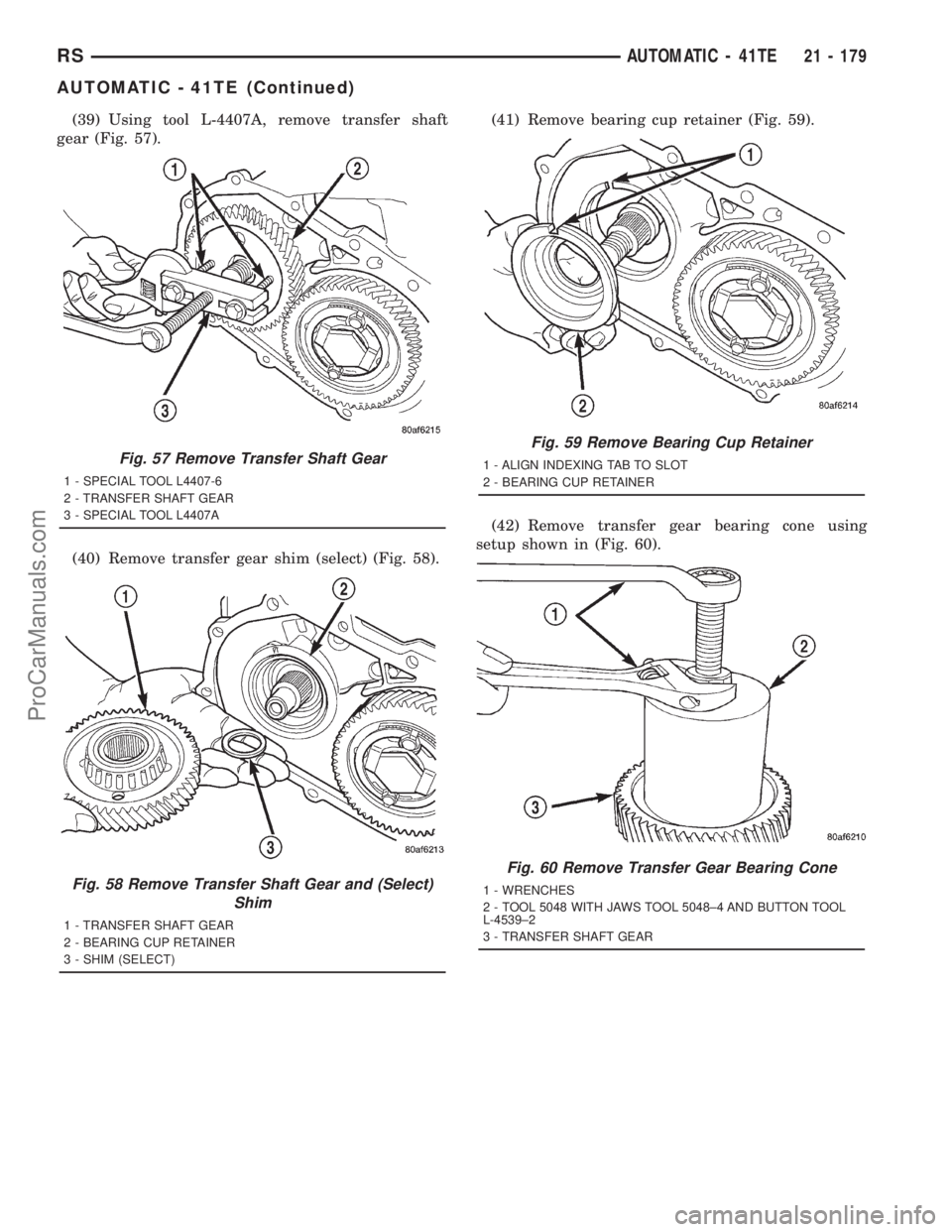

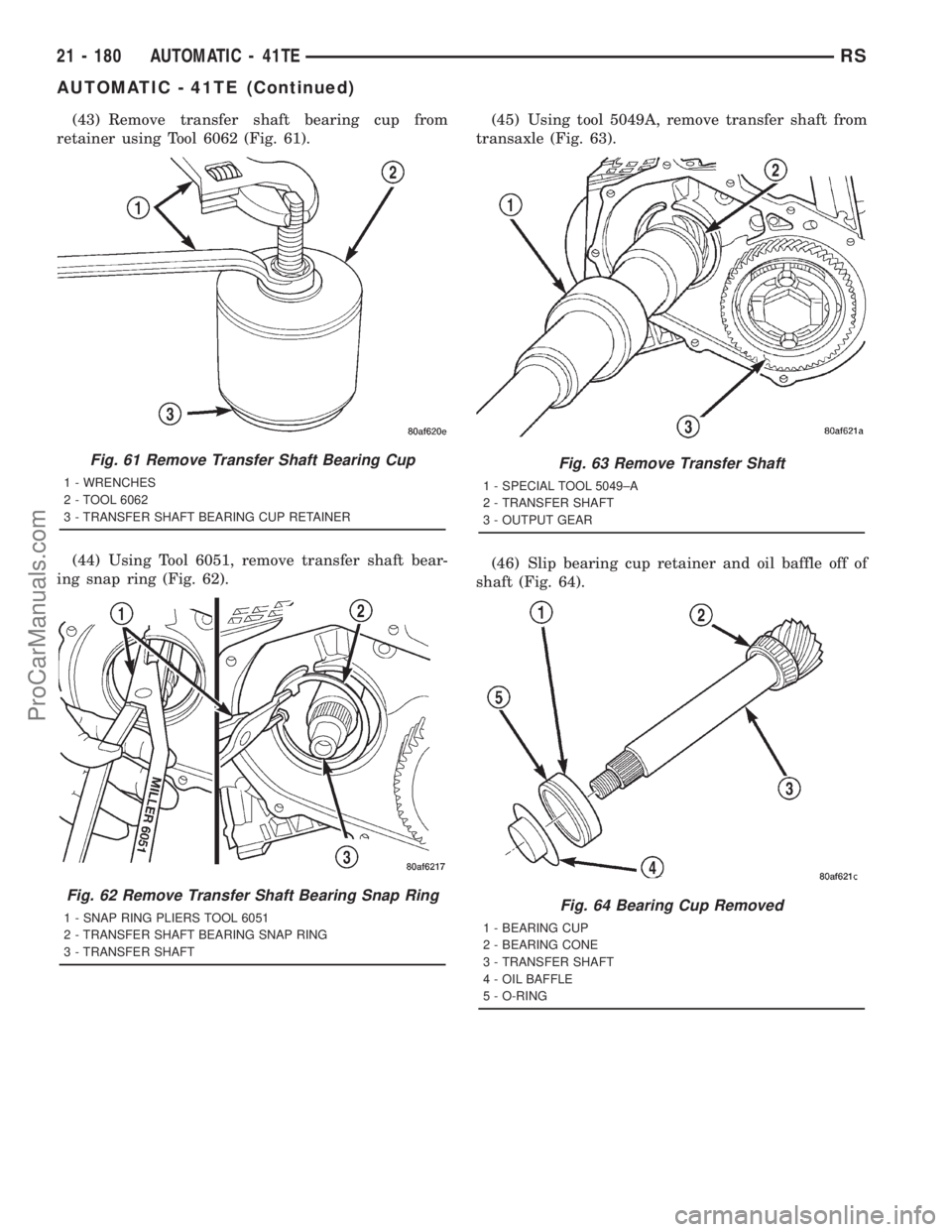

DODGE TOWN AND COUNTRY 2001  Service Manual (39) Using tool L-4407A, remove transfer shaft
gear (Fig. 57).
(40) Remove transfer gear shim (select) (Fig. 58).(41) Remove bearing cup retainer (Fig. 59).
(42) Remove transfer gear bearing cone usin

Page 1677 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual (43) Remove transfer shaft bearing cup from
retainer using Tool 6062 (Fig. 61).
(44) Using Tool 6051, remove transfer shaft bear-
ing snap ring (Fig. 62).(45) Using tool 5049A, remove transfer shaft f

Page 1678 of 2321

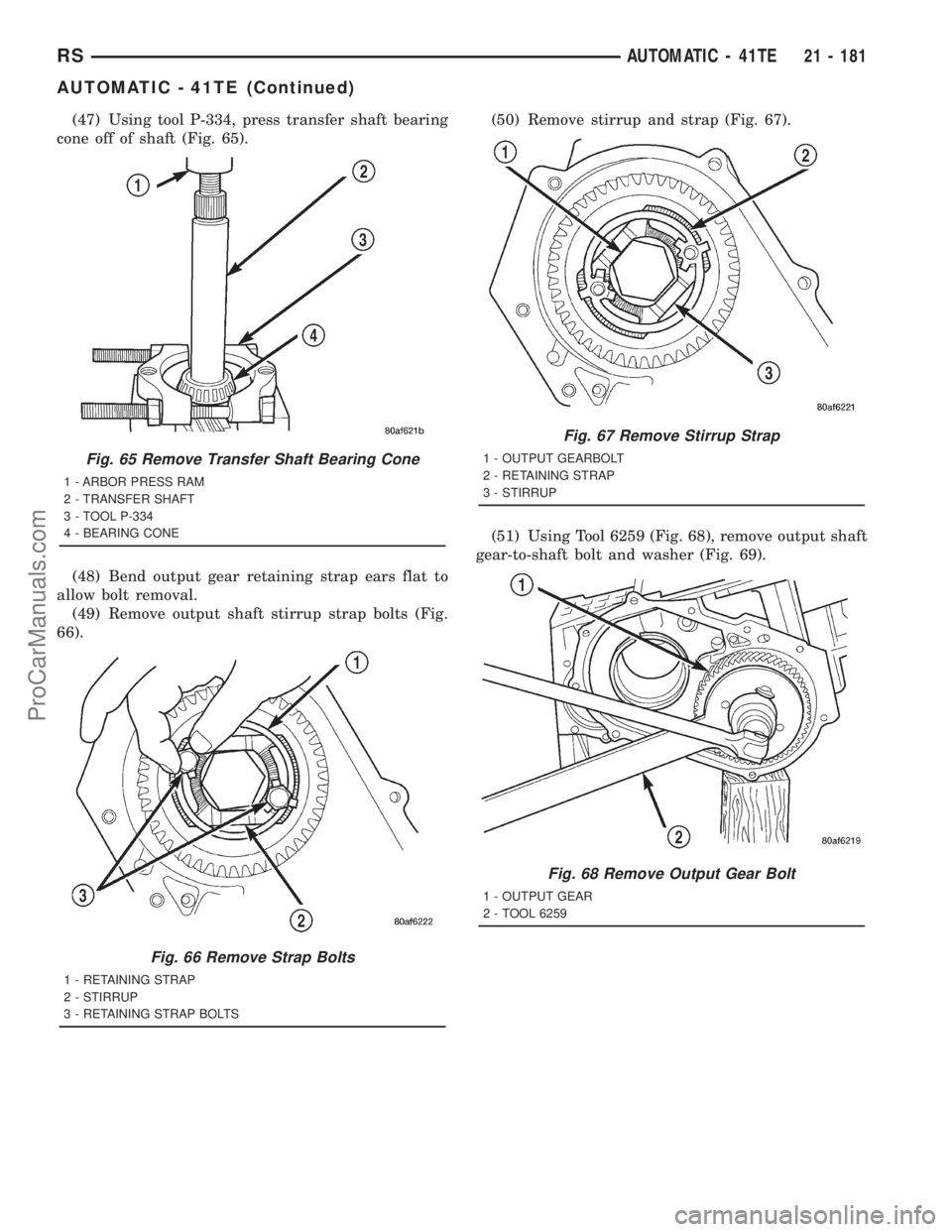

DODGE TOWN AND COUNTRY 2001  Service Manual (47) Using tool P-334, press transfer shaft bearing
cone off of shaft (Fig. 65).
(48) Bend output gear retaining strap ears flat to
allow bolt removal.
(49) Remove output shaft stirrup strap bolts (Fi

Page 1679 of 2321

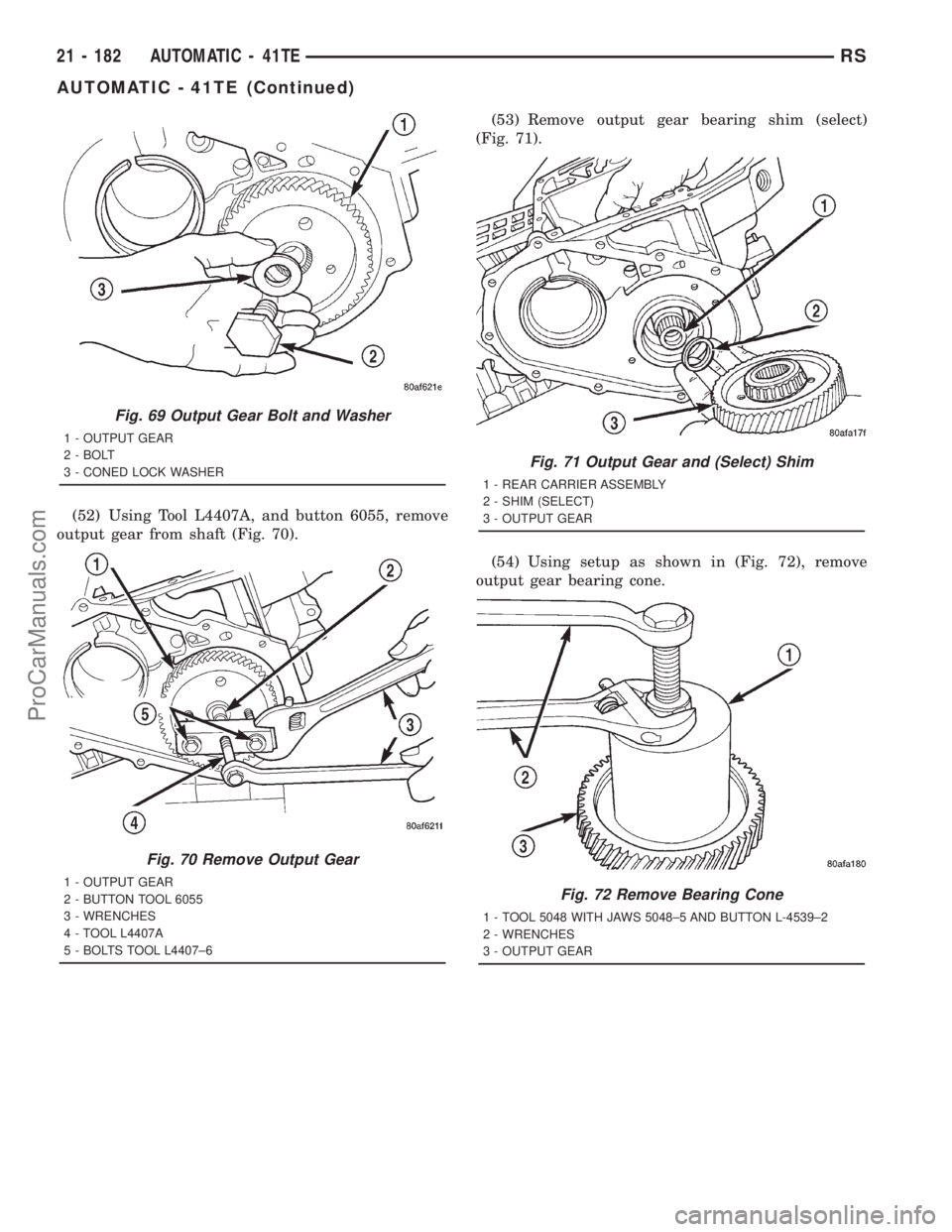

DODGE TOWN AND COUNTRY 2001  Service Manual (52) Using Tool L4407A, and button 6055, remove
output gear from shaft (Fig. 70).(53) Remove output gear bearing shim (select)
(Fig. 71).
(54) Using setup as shown in (Fig. 72), remove
output gear bea

Page 1680 of 2321

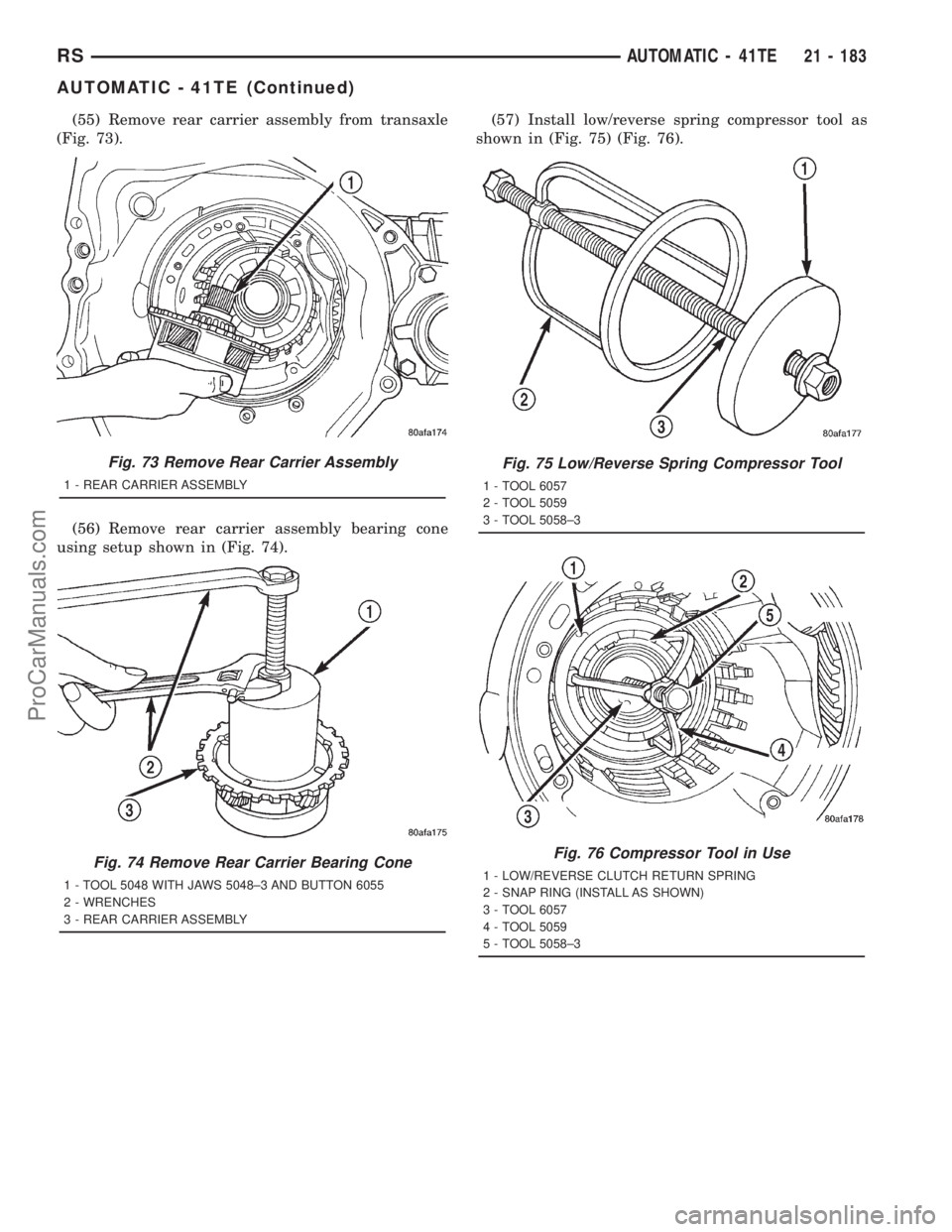

DODGE TOWN AND COUNTRY 2001  Service Manual (55) Remove rear carrier assembly from transaxle
(Fig. 73).
(56) Remove rear carrier assembly bearing cone
using setup shown in (Fig. 74).(57) Install low/reverse spring compressor tool as
shown in (F
