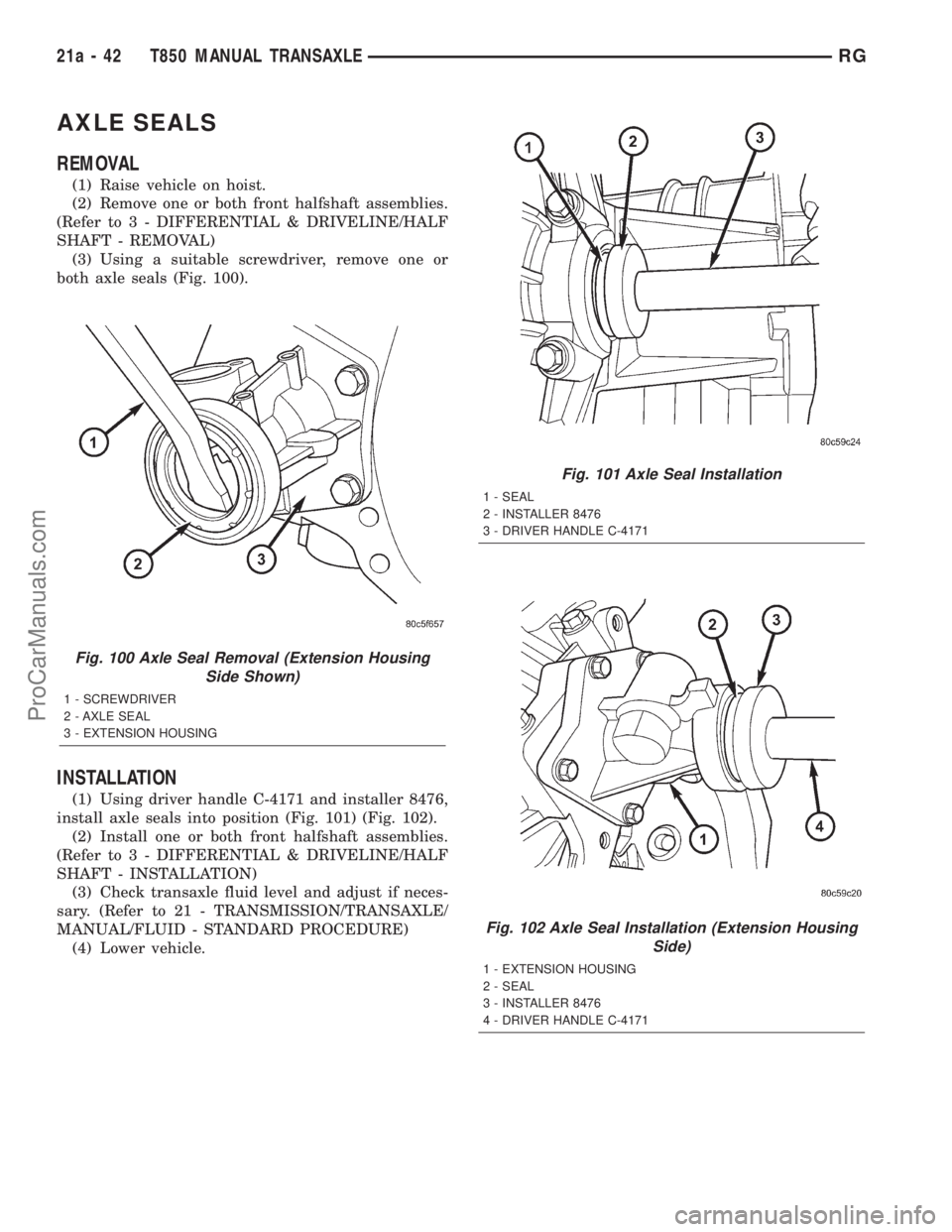

AXLE SEALS
REMOVAL
(1) Raise vehicle on hoist.
(2) Remove one or both front halfshaft assemblies.
(Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF
SHAFT - REMOVAL)
(3) Using a suitable screwdriver, remove one or
both axle seals (Fig. 100).
INSTALLATION
(1) Using driver handle C-4171 and installer 8476,
install axle seals into position (Fig. 101) (Fig. 102).
(2) Install one or both front halfshaft assemblies.
(Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF
SHAFT - INSTALLATION)
(3) Check transaxle fluid level and adjust if neces-
sary. (Refer to 21 - TRANSMISSION/TRANSAXLE/
MANUAL/FLUID - STANDARD PROCEDURE)
(4) Lower vehicle.
Fig. 100 Axle Seal Removal (Extension Housing
Side Shown)
1 - SCREWDRIVER
2 - AXLE SEAL
3 - EXTENSION HOUSING
Fig. 101 Axle Seal Installation
1 - SEAL
2 - INSTALLER 8476
3 - DRIVER HANDLE C-4171
Fig. 102 Axle Seal Installation (Extension Housing
Side)
1 - EXTENSION HOUSING
2 - SEAL
3 - INSTALLER 8476
4 - DRIVER HANDLE C-4171
21a - 42 T850 MANUAL TRANSAXLERG
ProCarManuals.com

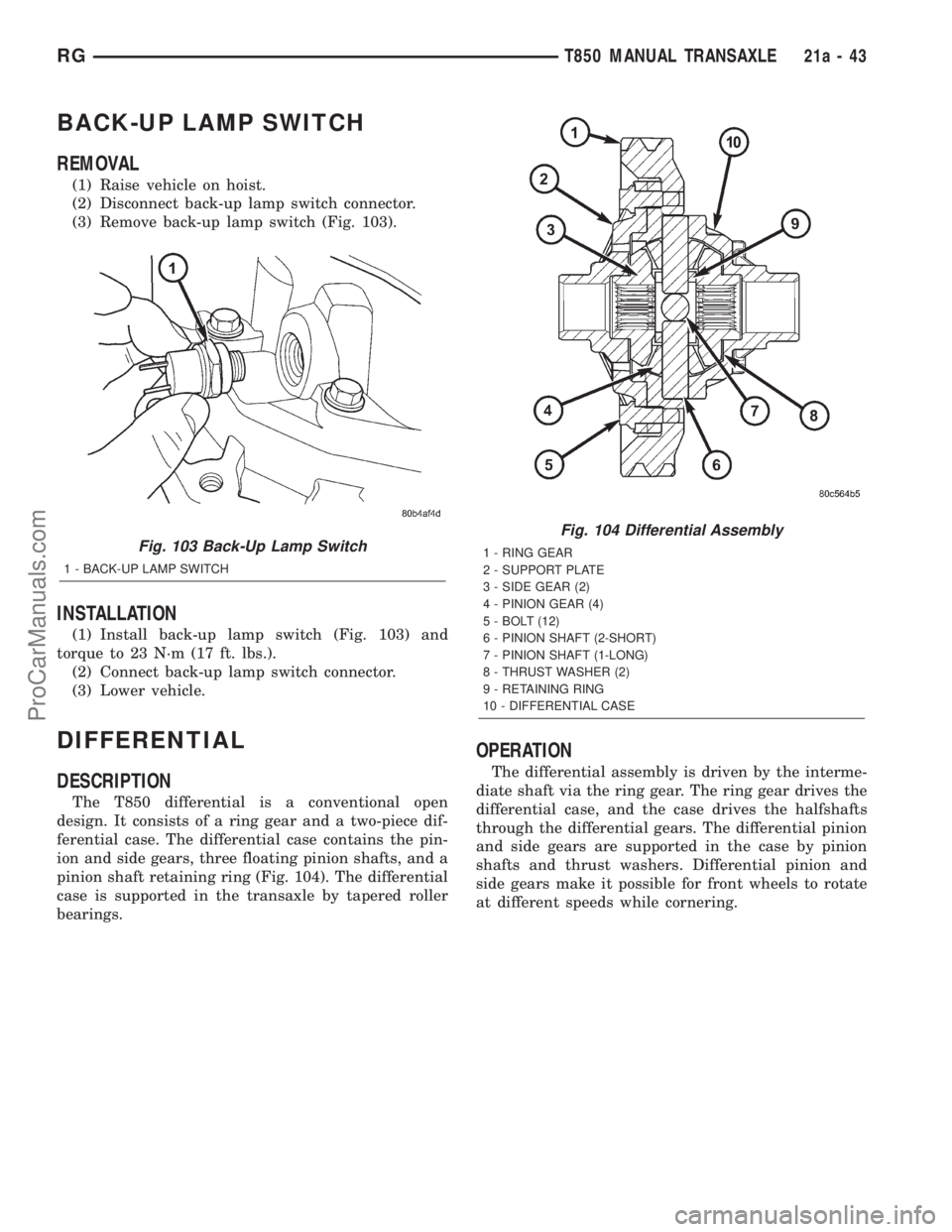

BACK-UP LAMP SWITCH
REMOVAL
(1) Raise vehicle on hoist.
(2) Disconnect back-up lamp switch connector.
(3) Remove back-up lamp switch (Fig. 103).
INSTALLATION
(1) Install back-up lamp switch (Fig. 103) and
torque to 23 N´m (17 ft. lbs.).
(2) Connect back-up lamp switch connector.
(3) Lower vehicle.
DIFFERENTIAL
DESCRIPTION
The T850 differential is a conventional open
design. It consists of a ring gear and a two-piece dif-
ferential case. The differential case contains the pin-
ion and side gears, three floating pinion shafts, and a
pinion shaft retaining ring (Fig. 104). The differential
case is supported in the transaxle by tapered roller
bearings.
OPERATION
The differential assembly is driven by the interme-
diate shaft via the ring gear. The ring gear drives the
differential case, and the case drives the halfshafts
through the differential gears. The differential pinion
and side gears are supported in the case by pinion
shafts and thrust washers. Differential pinion and
side gears make it possible for front wheels to rotate
at different speeds while cornering.
Fig. 103 Back-Up Lamp Switch
1 - BACK-UP LAMP SWITCH
Fig. 104 Differential Assembly
1 - RING GEAR
2 - SUPPORT PLATE
3 - SIDE GEAR (2)
4 - PINION GEAR (4)
5 - BOLT (12)
6 - PINION SHAFT (2-SHORT)
7 - PINION SHAFT (1-LONG)
8 - THRUST WASHER (2)
9 - RETAINING RING
10 - DIFFERENTIAL CASE
RGT850 MANUAL TRANSAXLE21a-43
ProCarManuals.com

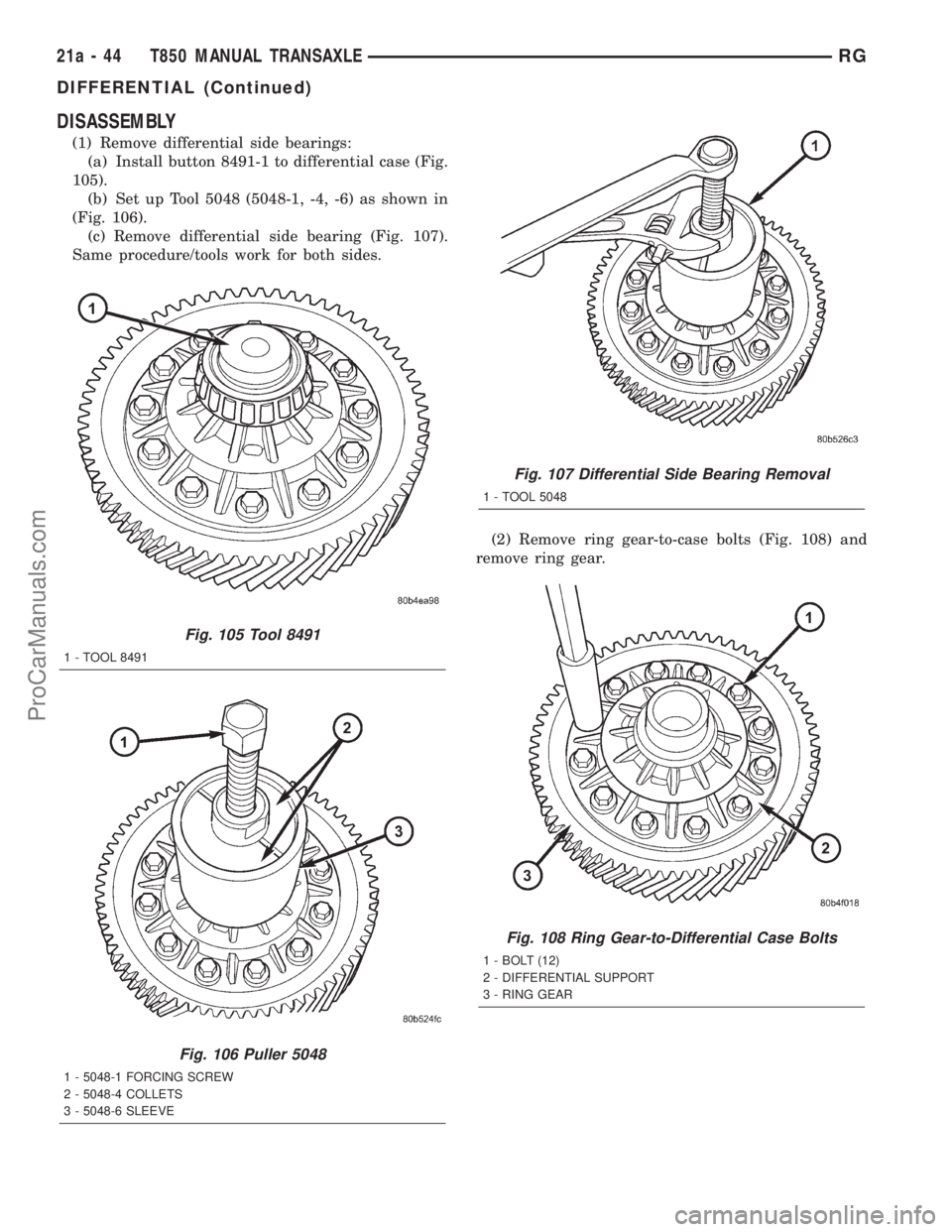

DISASSEMBLY
(1) Remove differential side bearings:
(a) Install button 8491-1 to differential case (Fig.
105).
(b) Set up Tool 5048 (5048-1, -4, -6) as shown in
(Fig. 106).
(c) Remove differential side bearing (Fig. 107).
Same procedure/tools work for both sides.
(2) Remove ring gear-to-case bolts (Fig. 108) and
remove ring gear.
Fig. 105 Tool 8491
1 - TOOL 8491
Fig. 106 Puller 5048
1 - 5048-1 FORCING SCREW
2 - 5048-4 COLLETS
3 - 5048-6 SLEEVE
Fig. 107 Differential Side Bearing Removal
1 - TOOL 5048
Fig. 108 Ring Gear-to-Differential Case Bolts
1 - BOLT (12)
2 - DIFFERENTIAL SUPPORT
3 - RING GEAR
21a - 44 T850 MANUAL TRANSAXLERG
DIFFERENTIAL (Continued)
ProCarManuals.com

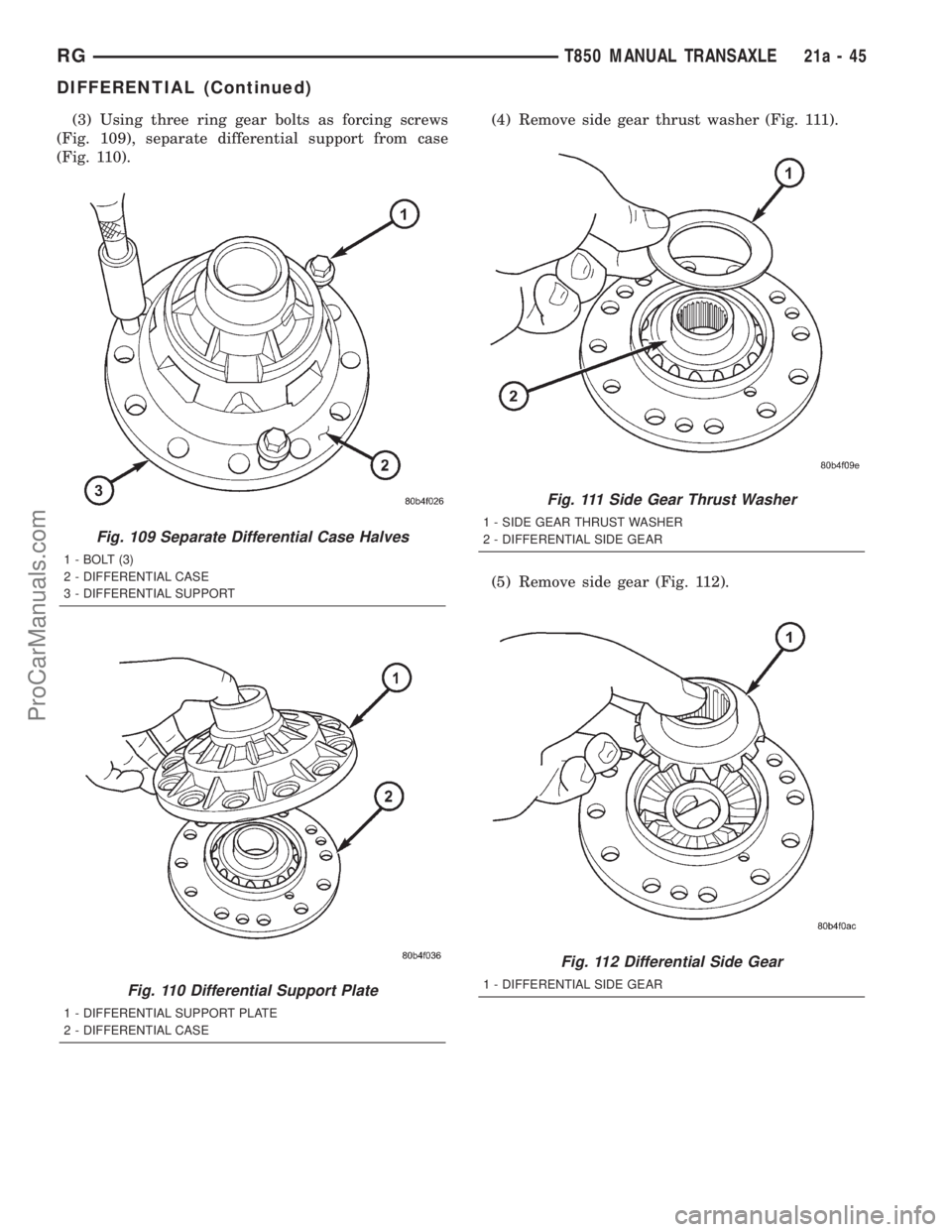

(3) Using three ring gear bolts as forcing screws
(Fig. 109), separate differential support from case
(Fig. 110).(4) Remove side gear thrust washer (Fig. 111).
(5) Remove side gear (Fig. 112).
Fig. 109 Separate Differential Case Halves
1 - BOLT (3)
2 - DIFFERENTIAL CASE
3 - DIFFERENTIAL SUPPORT
Fig. 110 Differential Support Plate
1 - DIFFERENTIAL SUPPORT PLATE
2 - DIFFERENTIAL CASE
Fig. 111 Side Gear Thrust Washer
1 - SIDE GEAR THRUST WASHER
2 - DIFFERENTIAL SIDE GEAR
Fig. 112 Differential Side Gear
1 - DIFFERENTIAL SIDE GEAR
RGT850 MANUAL TRANSAXLE21a-45
DIFFERENTIAL (Continued)
ProCarManuals.com

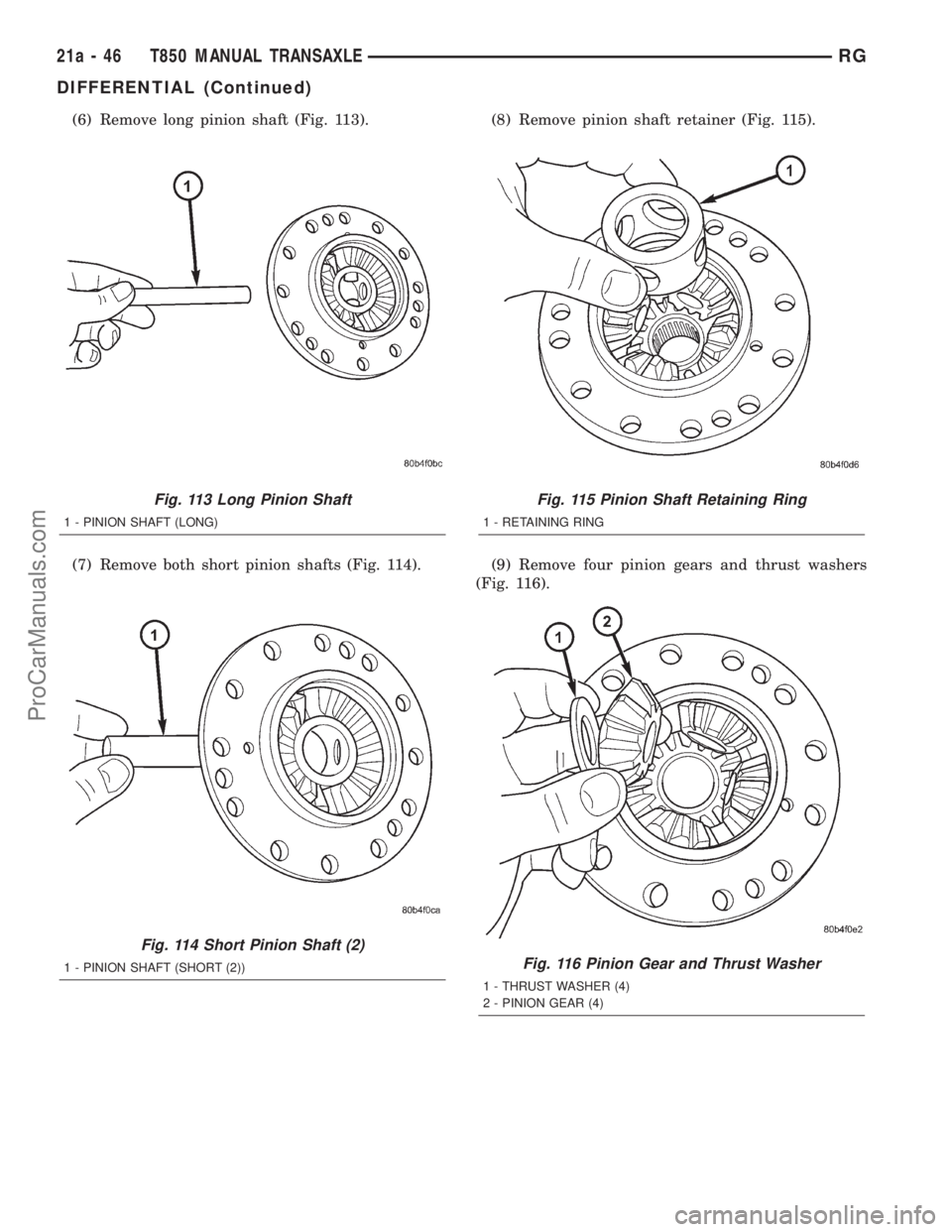

(6) Remove long pinion shaft (Fig. 113).
(7) Remove both short pinion shafts (Fig. 114).(8) Remove pinion shaft retainer (Fig. 115).
(9) Remove four pinion gears and thrust washers
(Fig. 116).
Fig. 113 Long Pinion Shaft
1 - PINION SHAFT (LONG)
Fig. 114 Short Pinion Shaft (2)
1 - PINION SHAFT (SHORT (2))
Fig. 115 Pinion Shaft Retaining Ring
1 - RETAINING RING
Fig. 116 Pinion Gear and Thrust Washer
1 - THRUST WASHER (4)
2 - PINION GEAR (4)
21a - 46 T850 MANUAL TRANSAXLERG
DIFFERENTIAL (Continued)
ProCarManuals.com

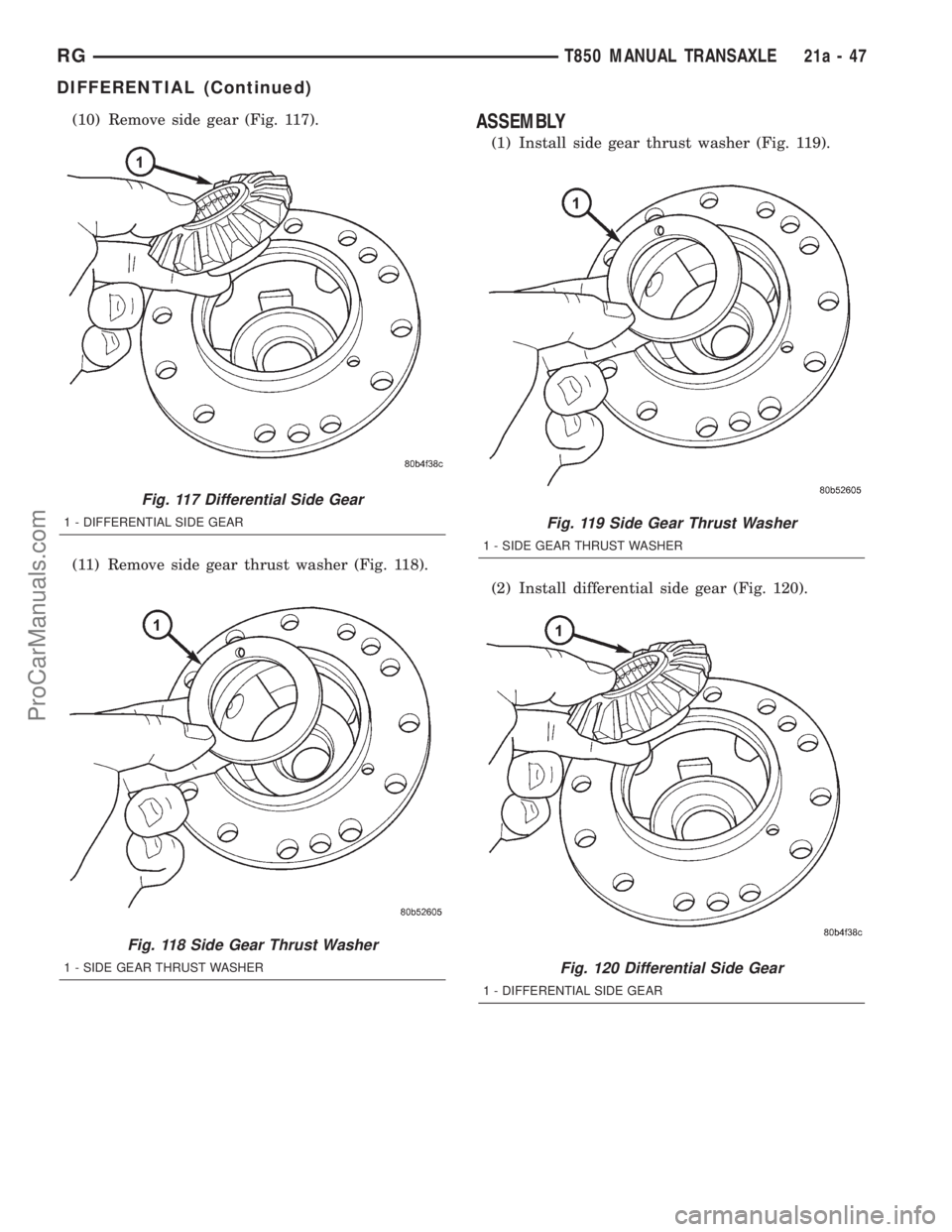

(10) Remove side gear (Fig. 117).
(11) Remove side gear thrust washer (Fig. 118).ASSEMBLY
(1) Install side gear thrust washer (Fig. 119).
(2) Install differential side gear (Fig. 120).
Fig. 117 Differential Side Gear
1 - DIFFERENTIAL SIDE GEAR
Fig. 118 Side Gear Thrust Washer
1 - SIDE GEAR THRUST WASHER
Fig. 119 Side Gear Thrust Washer
1 - SIDE GEAR THRUST WASHER
Fig. 120 Differential Side Gear
1 - DIFFERENTIAL SIDE GEAR
RGT850 MANUAL TRANSAXLE21a-47
DIFFERENTIAL (Continued)
ProCarManuals.com

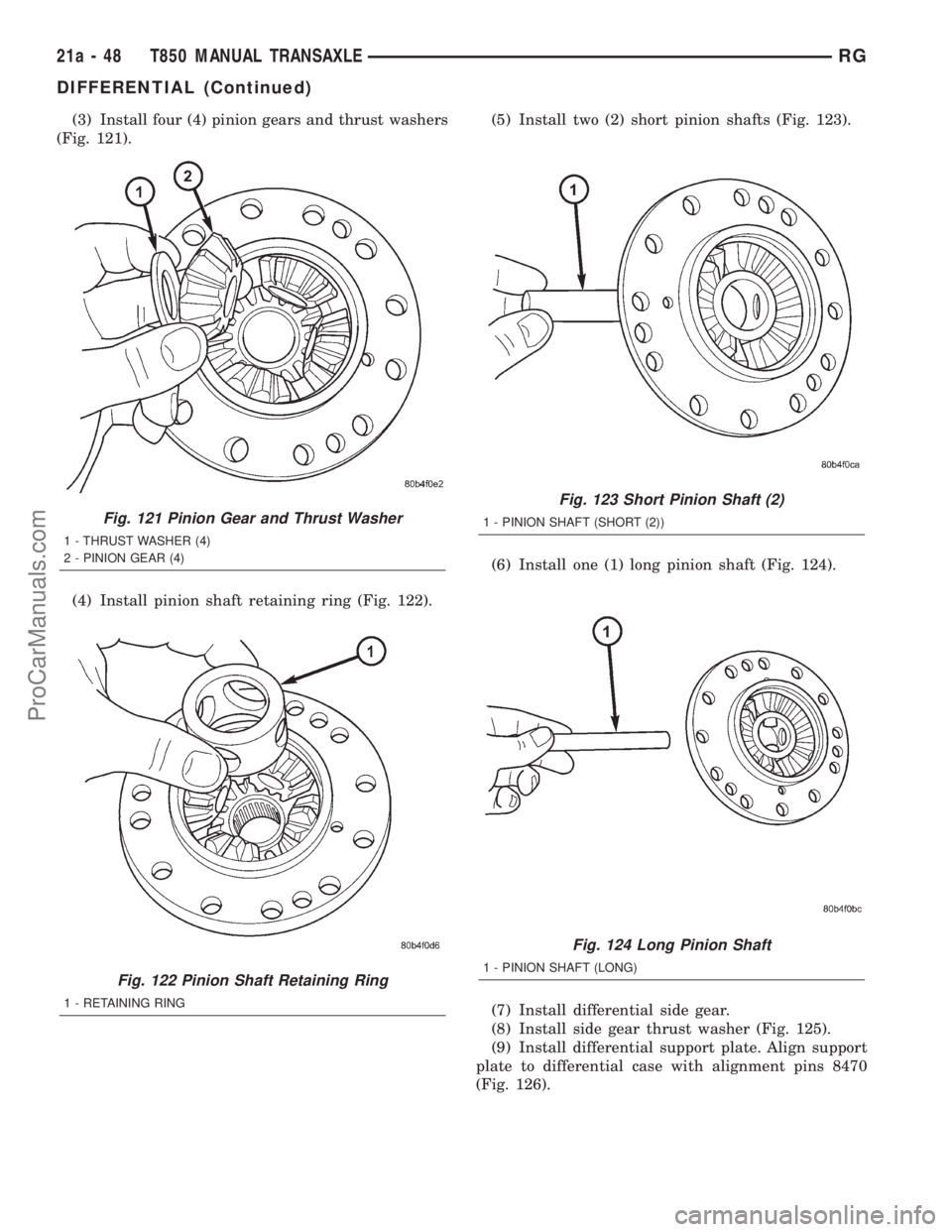

(3) Install four (4) pinion gears and thrust washers
(Fig. 121).
(4) Install pinion shaft retaining ring (Fig. 122).(5) Install two (2) short pinion shafts (Fig. 123).
(6) Install one (1) long pinion shaft (Fig. 124).
(7) Install differential side gear.
(8) Install side gear thrust washer (Fig. 125).
(9) Install differential support plate. Align support
plate to differential case with alignment pins 8470
(Fig. 126).
Fig. 121 Pinion Gear and Thrust Washer
1 - THRUST WASHER (4)
2 - PINION GEAR (4)
Fig. 122 Pinion Shaft Retaining Ring
1 - RETAINING RING
Fig. 123 Short Pinion Shaft (2)
1 - PINION SHAFT (SHORT (2))
Fig. 124 Long Pinion Shaft
1 - PINION SHAFT (LONG)
21a - 48 T850 MANUAL TRANSAXLERG
DIFFERENTIAL (Continued)
ProCarManuals.com

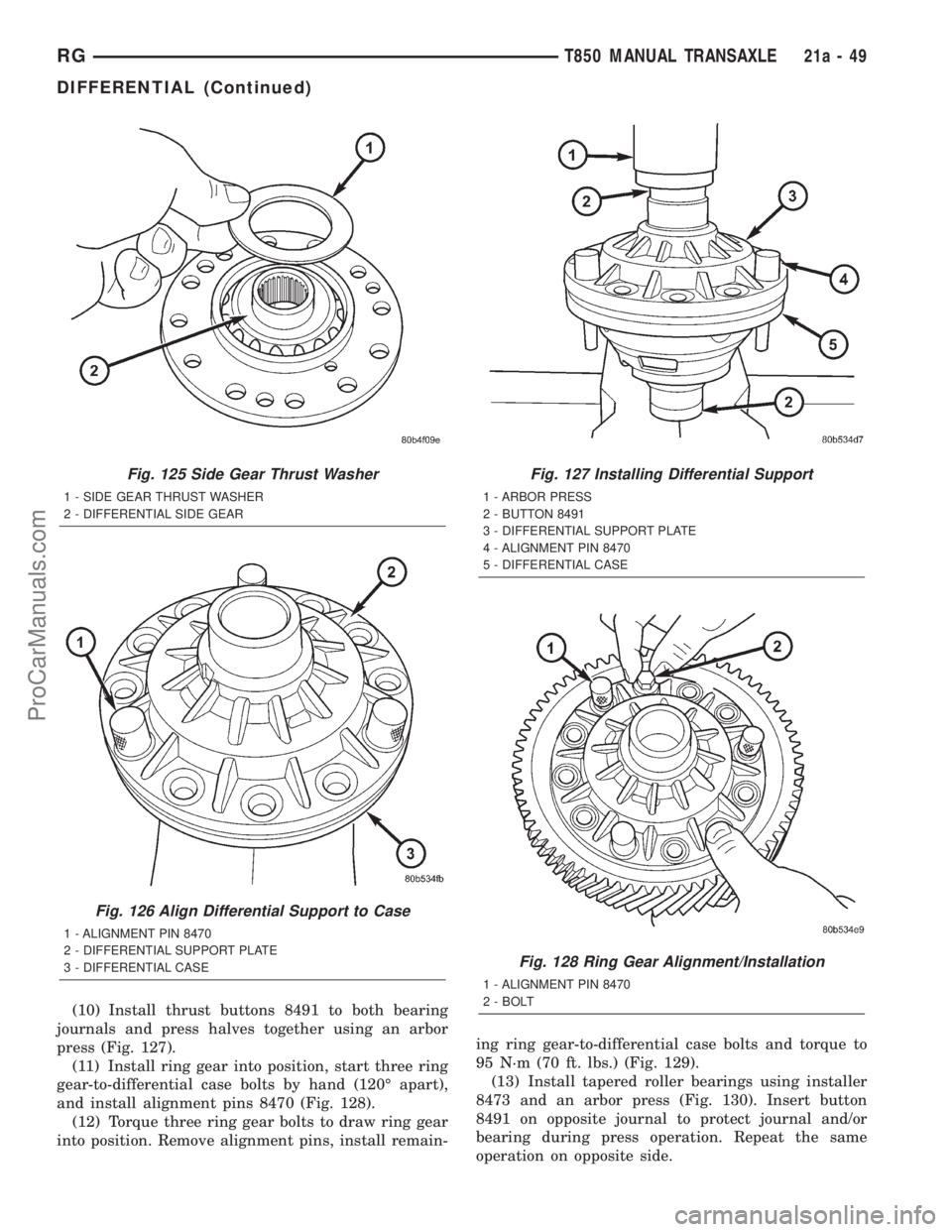

(10) Install thrust buttons 8491 to both bearing
journals and press halves together using an arbor
press (Fig. 127).
(11) Install ring gear into position, start three ring
gear-to-differential case bolts by hand (120É apart),
and install alignment pins 8470 (Fig. 128).
(12) Torque three ring gear bolts to draw ring gear
into position. Remove alignment pins, install remain-ing ring gear-to-differential case bolts and torque to
95 N´m (70 ft. lbs.) (Fig. 129).
(13) Install tapered roller bearings using installer
8473 and an arbor press (Fig. 130). Insert button
8491 on opposite journal to protect journal and/or
bearing during press operation. Repeat the same
operation on opposite side.
Fig. 125 Side Gear Thrust Washer
1 - SIDE GEAR THRUST WASHER
2 - DIFFERENTIAL SIDE GEAR
Fig. 126 Align Differential Support to Case
1 - ALIGNMENT PIN 8470
2 - DIFFERENTIAL SUPPORT PLATE
3 - DIFFERENTIAL CASE
Fig. 127 Installing Differential Support
1 - ARBOR PRESS
2 - BUTTON 8491
3 - DIFFERENTIAL SUPPORT PLATE
4 - ALIGNMENT PIN 8470
5 - DIFFERENTIAL CASE
Fig. 128 Ring Gear Alignment/Installation
1 - ALIGNMENT PIN 8470
2 - BOLT
RGT850 MANUAL TRANSAXLE21a-49
DIFFERENTIAL (Continued)
ProCarManuals.com

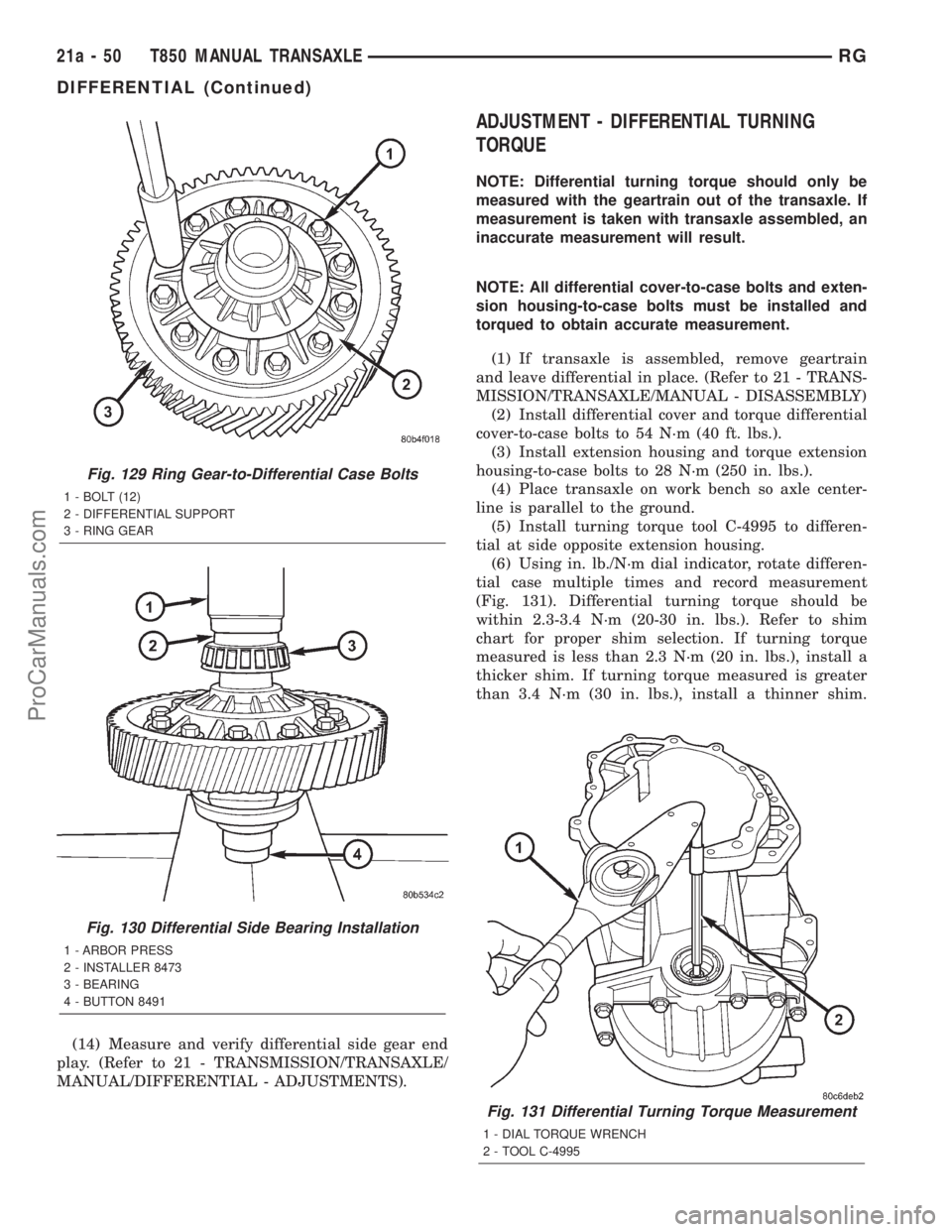

(14) Measure and verify differential side gear end
play. (Refer to 21 - TRANSMISSION/TRANSAXLE/
MANUAL/DIFFERENTIAL - ADJUSTMENTS).
ADJUSTMENT - DIFFERENTIAL TURNING
TORQUE
NOTE: Differential turning torque should only be
measured with the geartrain out of the transaxle. If
measurement is taken with transaxle assembled, an
inaccurate measurement will result.
NOTE: All differential cover-to-case bolts and exten-
sion housing-to-case bolts must be installed and
torqued to obtain accurate measurement.
(1) If transaxle is assembled, remove geartrain
and leave differential in place. (Refer to 21 - TRANS-
MISSION/TRANSAXLE/MANUAL - DISASSEMBLY)
(2) Install differential cover and torque differential
cover-to-case bolts to 54 N´m (40 ft. lbs.).
(3) Install extension housing and torque extension
housing-to-case bolts to 28 N´m (250 in. lbs.).
(4) Place transaxle on work bench so axle center-
line is parallel to the ground.
(5) Install turning torque tool C-4995 to differen-
tial at side opposite extension housing.
(6) Using in. lb./N´m dial indicator, rotate differen-
tial case multiple times and record measurement
(Fig. 131). Differential turning torque should be
within 2.3-3.4 N´m (20-30 in. lbs.). Refer to shim
chart for proper shim selection. If turning torque
measured is less than 2.3 N´m (20 in. lbs.), install a
thicker shim. If turning torque measured is greater
than 3.4 N´m (30 in. lbs.), install a thinner shim.
Fig. 129 Ring Gear-to-Differential Case Bolts
1 - BOLT (12)
2 - DIFFERENTIAL SUPPORT
3 - RING GEAR
Fig. 130 Differential Side Bearing Installation
1 - ARBOR PRESS
2 - INSTALLER 8473
3 - BEARING
4 - BUTTON 8491
Fig. 131 Differential Turning Torque Measurement
1 - DIAL TORQUE WRENCH
2 - TOOL C-4995
21a - 50 T850 MANUAL TRANSAXLERG
DIFFERENTIAL (Continued)
ProCarManuals.com

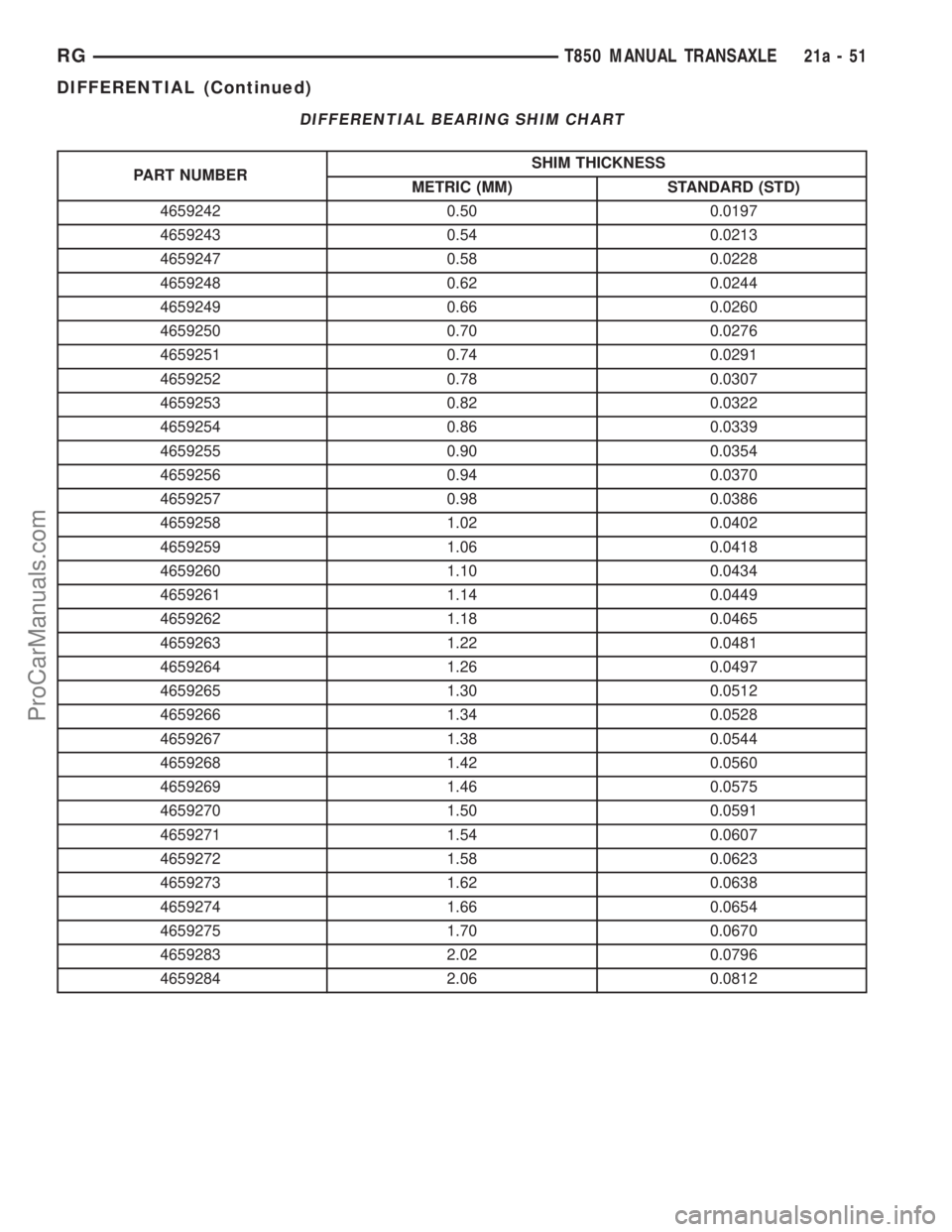

DIFFERENTIAL BEARING SHIM CHART
PART NUMBERSHIM THICKNESS
METRIC (MM) STANDARD (STD)
4659242 0.50 0.0197
4659243 0.54 0.0213
4659247 0.58 0.0228
4659248 0.62 0.0244
4659249 0.66 0.0260
4659250 0.70 0.0276
4659251 0.74 0.0291
4659252 0.78 0.0307
4659253 0.82 0.0322
4659254 0.86 0.0339
4659255 0.90 0.0354
4659256 0.94 0.0370
4659257 0.98 0.0386
4659258 1.02 0.0402
4659259 1.06 0.0418
4659260 1.10 0.0434
4659261 1.14 0.0449
4659262 1.18 0.0465
4659263 1.22 0.0481
4659264 1.26 0.0497
4659265 1.30 0.0512
4659266 1.34 0.0528
4659267 1.38 0.0544
4659268 1.42 0.0560
4659269 1.46 0.0575
4659270 1.50 0.0591
4659271 1.54 0.0607
4659272 1.58 0.0623
4659273 1.62 0.0638
4659274 1.66 0.0654
4659275 1.70 0.0670
4659283 2.02 0.0796
4659284 2.06 0.0812
RGT850 MANUAL TRANSAXLE21a-51
