ignition FIAT BARCHETTA 2003 1.G Owners Manual

ENGINE START-UP
Make sure the handbrake is pulled up; put the gear lever into neutral; press the clutch pedal down to the floor
without touching the accelerator, then turn the ignition key to AVVand release it as soon as the engine
starts.
2
MUST BE READ!
REFUELLING
Only refuel with unleaded petrol with octane rating (RON) no less than 95.


K
PARKING OVER INFLAMMABLE MATERIAL
When functioning normally, the catalytic converter reaches high temperatures. For this reason do not park
the car over inflammable material, grass, dry leaves, pine needles, etc.: fire hazard.
PROTECTING THE ENVIRONMENT
A system for continuously monitoring emission system components to ensure greater environmental protec-
tion is fitted in your car.
U

GETTING TO KNOW YOUR CAR
You should read this chapter sitting comfortably in
your new Fiat barchetta. This way you can see the parts
described in the manual at a glance and immediately
check what you have just read for yourself.
In short, you will become more familiar with your
Fiat barchetta and its controls and other features. Lat-
er, when you start the engine and join the traffic you
will make a host of other pleasant discoveries.
DASHBOARD ...................................................................... 7
INSTRUMENT PANEL ...................................................... 8
SYMBOLIS ............................................................................. 9
THE FIAT CODE SYSTEM ............................................... 11
ELECTRONIC ALARM ..................................................... 13
IGNITION SWITCH ......................................................... 17
INDIVIDUAL SETTINGS .................................................. 18
SEAT BELTS ......................................................................... 21
TRANSPORTING CHILDREN IN SAFETY ................ 24
PRETENSIONERS ............................................................... 27
INSTRUMENTS ................................................................... 28INDICATOR AND WARNING LIGHTS .................... 30
HEATING AND VENTILATION ................................... 34
MANUAL CLIMATE CONTROL SYSTEM ................. 36
STEERING COLUMN STALKS ....................................... 38
CONTROLS ......................................................................... 40
INTERIOR EQUIPMENT .................................................. 42
DOORS ................................................................................. 44
HOOD ................................................................................... 46
HARD TOP .......................................................................... 49
WIND STOP ........................................................................ 51
BONNET .............................................................................. 53
BOOT .................................................................................... 55
HEADLIGHTS ...................................................................... 55
ABS ......................................................................................... 56
AIRBAG ................................................................................. 58
EOBD SYSTEM .................................................................... 62
CELLULAR PHONE SETUP ............................................. 63
AT THE FILLING STATION ........................................... 64
PROTECTING THE ENVIRONMENT ......................... 66
For more detailed information, see “Index”.
6

11
fig. 4
P5S00624m
THE FIAT
CODE SYSTEM
To further protect your car from at-
tempted theft, it has been fitted with
an electronic engine immobiliser sys-
tem called Fiat CODE which is auto-
matically activated when the ignition
key is removed. The ignition keys, in
fact, are fitted with an electronic de-
vice that transmits a coded signal to
the Fiat CODE unit: only if this signal
is recognised can the engine be start-
ed. The coded signal is the password
with which the control unit recognis-
es the key and enables engine ignition. KEYS fig. 4
The car comes with three types of
the keys.
– key A, with a burgundy grip, is the
“master” key. Only one of these keys
is provided, and your Fiat Dealer-
ship needs it when it has to store the
codes of new keys replacing ones that
have been lost or damaged or when
storing duplicate key codes. Given its
importance, it should be kept in a safe
place (not in the car) and only be used
when absolutely necessary.
Any repair operations to the Fi-
at CODE system and to the en-
gine control unit cannot be car-
ried out if this key is lost.– key B(supplied with a duplicate)
with the blue grip, is the key which is
normally used for: starting the engine;
the doors; the glove compartment; the
tunnel-mounted console; the lock on
the boot opening lever.
– only one key C(with the blue grip)
is provided. This key is only used to
start the engine. It can be used by
garage and workshop staff for vehicle
handling.
A CODE card fig. 5bearing the fol-
lowing data is provided together with
the keys:
A- the electronic code to be used
for emergency starting (see “Emer-
gency Start-up” in “In an emergency”);
B- the mechanical key code to be
given to the Fiat Dealershipwhen
ordering duplicate keys;
C- the spaces for any remote con-
trol stickers when the car is fitted with
the “Electronic alarm” option.
fig. 5
P5S00625m

12
U.K. Vehicle onlyAt the behest of
the motor Insurance Companies he
CODE card for the emergency start-
ing and replacement of keys are not
provided. If you need assistance please
contact your nearest Fiat Dealer-
ship, or telephone Free Phone
0800717000.
The code numbers given on the
CODE card and the key with the bur-
gundy grip should be kept in a safe
place.
You should always keep the elec-
tronic code written on the CODE
card on you in case you need to per-
form an emergency startup.”
OPERATION
Each time you remove the ignition
key from theSTOPor PARKposi-
tion, the protection system blocks the
engine.
When the key is turned to MARat
engine startup:
1) If the code is recognised, the
warning lamp ¢on the instrument
panel will flash briefly; this means that
the protection system has recognisedthe key code and disabled the engine
immobiliser; turn the key toAVVto
start.
2)If the code is not recognised, the
warning lamp ¢will remain lit to-
gether with the warning lamp
U.
Should this happen, turn the key back
to STOPand then to MAR; if the en-
gine remains immobilised, try using the
other keys supplied with the car.
If you are still unable to start the en-
gine, use the emergency starting pro-
cedure (see “In an emergency”), and
take your car immediately to the near-
est Fiat Dealership.
When travelling with the ignition key
on MAR:
1)If the warning lamp ¢lights up
while the car is moving, it means that
the system is running a self-diagnosis
(e.g. due to a voltage drop). The first
time you stop you can test the system
as follows: switch the engine off by
turning the ignition key to STOP,
then turn the key back to MAR: the
warning lamp ¢will light up and
should go out in the space of about
one second. If the warning lamp fails to go out,
leave the key at STOPfor more than
30 seconds and repeat the procedure
described previously. If the problem
persists, contact your nearest Fiat
Dealership.
2)If the warning lamp ¢flashes it
means that the car is not protected by
the immobiliser. Contact your Fiat
Dealershipimmediately and get them
to store the codes of all the keys in the
memory.
The electronic compo-
nents inside the key may
be damaged if the key is
subjected to sharp knocks.
IMPORTANT Each key given with
the car has its own code, different
from all the others, which must be
stored in the memory of the system’s
control unit.

13
DUPLICATING KEYS
If you ask for extra keys, remember
that all the keys, both the new ones
and those you already possess, must
be stored in the memory (up to a
maximum of 7). Go directly to your
nearest Fiat Dealership, taking with
you the key with the burgundy grip, all
the other keys in your possession and
the CODE card.
The codes of any keys that are not
available when the new storage pro-
cedure is carried out will be deleted
from the memory to prevent any lost
or stolen keys being used to start the
car.OPERATION
The electronic alarm fitted to the Fi-
at Barchetta is controlled by the re-
ceiver fig. 6(Abutton, Bled) locat-
ed in the front ceiling light and is acti-
vated by the radio-frequency remote
control.
The alarm can be turned on only
when the ignition key has been turned
toSTOPor PARKand removed.
The electronic alarm control unit
contains a self-supplied siren which can
be deactivated.
To switch the electronic alarm
on: press button A-fig. 7briefly on
the remote control. You will hear a
beep and the direction indicators will
light up for approximately 3 seconds
(in the countries where this is al-
lowed). When the system is on, led A-
fig. 8on the central tunnel will flash.ELECTRONIC
ALARM
(where fitted)
The electronic alarm has the follow-
ing functions:
– remote central door locking/un-
locking;
– peripheral surveillance, detecting
any attempt to open the doors, the
bonnet or the boot;
– passenger compartment surveil-
lance.
The burgundy key, plus
all the other keys and the
CODE card must be
handed over to the new owner
when the vehicle is sold.
fig. 6
P5S10002m

14
To switch the electronic alarm
off: press button A-fig. 7on the re-
mote control again. You will hear two
beeps and the direction indicators will
flash twice (in the countries where this
is allowed).
Deactivating the volumetric sur-
veillance function. This function can
be deactivated before turning the elec-
tronic alarm on: turn the ignition key
from STOPto MAR and then back
to STOPin rapid succession and re-
move the key.
Led A-fig 8on the central tunnel will
light up for approximately 2 seconds
to confirm deactivation.
The passenger compartment pro-
tection function is reactivated (before
turning on the electronic alarm) if the
ignition key is turned toMARfor at
least 30 seconds or when the alarm
is turned on again.ALARM SELF-TEST
When you turn the electronic alarm
on you will hear a beep. If this beep
is followed (after 1 second) by a sec-
ond beep, check whether the doors,
bonnet and boot are closed. Then turn
the electronic alarm on again. If the sit-
uation persists, contact aFiat Deal-
ership. To operate an ignition switch pow-
ered electronic device (e.g. electric
window lifter) when the passenger
compartment protection function is
off, turn the key to MAR, operate the
device and turn the key back to
STOPwithin 30 seconds. The pas-
senger compartment protection func-
tion will not be activated in this way.
To exclude the siren: press the re-
mote control button for more than 4
seconds while turning the electronic
alarm on, then release the button. Five
beeps will confirm that the alarm is on
and the siren off.
fig. 7
P5S10001m
fig. 8
P5S10034m

17
HOW TO KNOW IF
THE ALARM HAS GONE OFF
If the car alarm was triggered while
you were away, led A-fig. 8on the
central tunnel will flash to identify the
reason for it:
Light on: remote control battery
flat.
1 flash: right door.
2 flashes: left door.
5 flashes: passenger compartment
sensors (movement inside the pas-
senger compartment).6 flashes: bonnet.
7 flashes: boot.
8 flashes: ignition tampered with.
9 flashes: alarm power supply cables
cut.
10 flashes: at least three different
causes.
The led will go out when the ignition
key is turned toMARor after 2 min-
utes.IGNITION SWITCH
The key can turn through four dif-
ferent positions fig. 11:
– STOP: engine off, key can be re-
moved and the steering column is
locked. Some of the electrical devices
(e.g. the radio) can be used.
– MAR: drive position. All electri-
cal devices can be used.
– AVV: starting the engine.
– PARK: engine off, parking lights
on, key can be removed and the steer-
ing column is locked. Press button A
to turn the key to the PARKposition.
fig. 11
P5S00626m

18
If the ignition switch has
been tampered with (e.g.
someone has tried to steal your
car), get a Fiat Dealership to make
sure it is still functioning properly
before you start driving again.
WARNING
Always remove the ignition
key when you get out of the
car. This will prevent anyone from
accidentally working the controls.
Remember to apply the handbrake
and, if the car is pointing uphill, first
gear. Put the car into reverse if it
is pointing downhill. Never leave
children in the car by themselves.
WARNING
STEERING COLUMN LOCK
To engage the lock: remove the
ignition key from either theSTOP or
PARKposition, and turn the steering
wheel until it locks.
To release: move the steering
wheel slightly as you are turning the
ignition key to MAR.INDIVIDUAL
SETTINGS
All seat adjustments must
be made when the car is
stationary.
WARNING
SEATS fig. 12
Moving the seat backwards
or forwards
Lift lever Aand push the seat for-
wards or backwards: you are in the
correct position for driving when your
hands are resting on the steering
wheel rim and your arms are slightly
bent.
fig. 12
P5S00627m
Never remove the ignition
key while the car is moving.
The steering wheel would auto-
matically lock as soon as you tried
to turn it. This also applies when
the vehicle is being towed.
WARNING

20

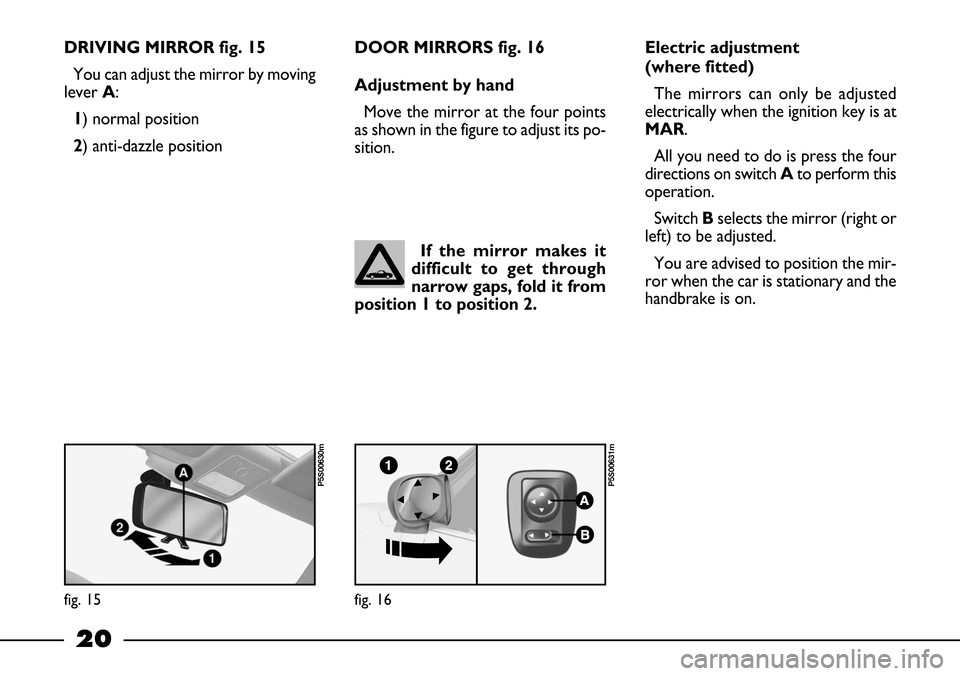

DRIVING MIRROR fig. 15
You can adjust the mirror by moving
lever A:
1) normal position
2) anti-dazzle positionDOOR MIRRORS fig. 16
Adjustment by hand
Move the mirror at the four points
as shown in the figure to adjust its po-
sition.
If the mirror makes it
difficult to get through
narrow gaps, fold it from
position 1 to position 2.Electric adjustment
(where fitted)
The mirrors can only be adjusted
electrically when the ignition key is at
MAR.
All you need to do is press the four
directions on switch Ato perform this
operation.
Switch Bselects the mirror (right or
left) to be adjusted.
You are advised to position the mir-
ror when the car is stationary and the
handbrake is on.
fig. 16
P5S00631m
fig. 15
P5S00630m

21

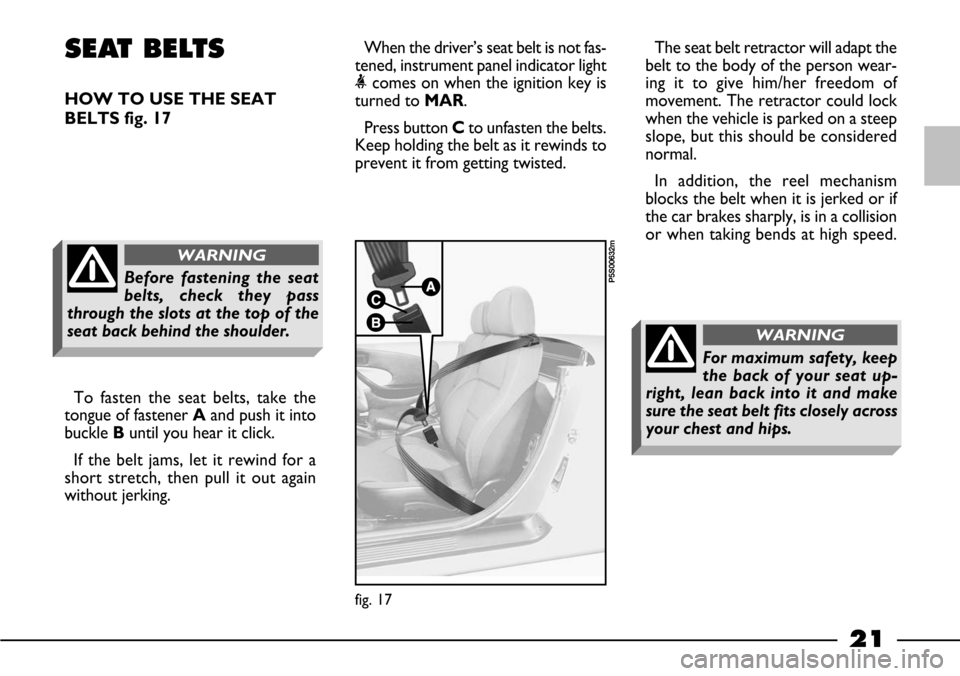

SEAT BELTS
HOW TO USE THE SEAT
BELTS fig. 17When the driver’s seat belt is not fas-
tened, instrument panel indicator light
turned to MAR.
Press button Cto unfasten the belts.
Keep holding the belt as it rewinds to
prevent it from getting twisted.The seat belt retractor will adapt the
belt to the body of the person wear-
ing it to give him/her freedom of
movement. The retractor could lock
when the vehicle is parked on a steep
slope, but this should be considered
normal.
In addition, the reel mechanism
blocks the belt when it is jerked or if
the car brakes sharply, is in a collision
or when taking bends at high speed.
To fasten the seat belts, take the
tongue of fastener Aand push it into
buckle Buntil you hear it click.
If the belt jams, let it rewind for a
short stretch, then pull it out again
without jerking.
Before fastening the seat
belts, check they pass
through the slots at the top of the
seat back behind the shoulder.
WARNING
For maximum safety, keep
the back of your seat up-
right, lean back into it and make
sure the seat belt fits closely across
your chest and hips.
WARNING
fig. 17
P5S00632m
