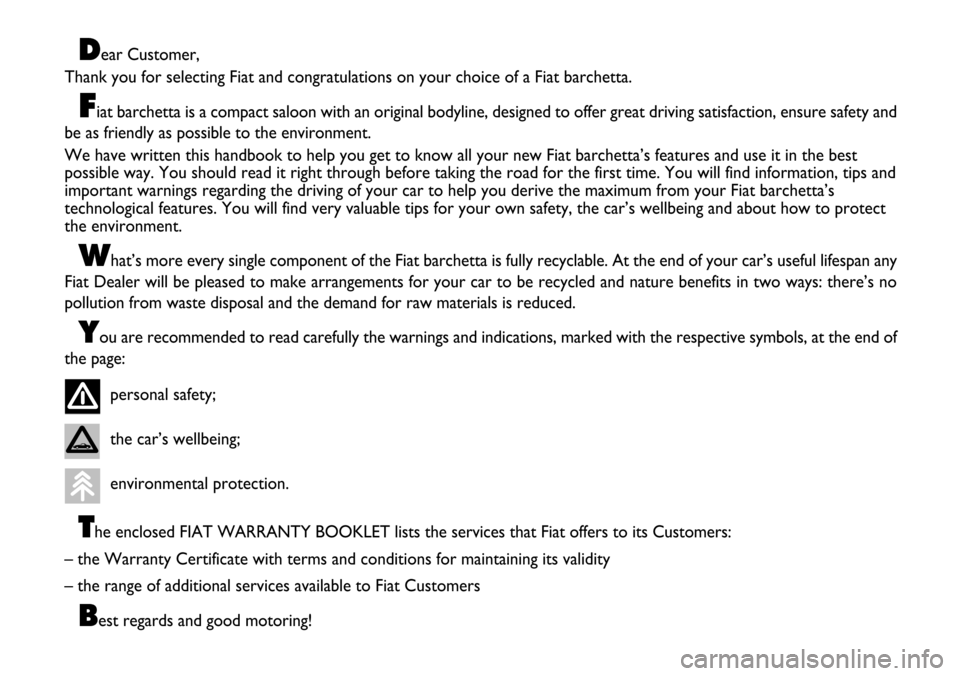

Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat barchetta.
Fiat barchetta is a compact saloon with an original bodyline, designed to offer great driving satisfaction, ensure safety and
be as friendly as possible to the environment.
We have written this handbook to help you get to know all your new Fiat barchetta’s features and use it in the best
possible way. You should read it right through before taking the road for the first time. You will find information, tips and
important warnings regarding the driving of your car to help you derive the maximum from your Fiat barchetta’s
technological features. You will find very valuable tips for your own safety, the car’s wellbeing and about how to protect
the environment.
What’s more every single component of the Fiat barchetta is fully recyclable. At the end of your car’s useful lifespan any
Fiat Dealer will be pleased to make arrangements for your car to be recycled and nature benefits in two ways: there’s no
pollution from waste disposal and the demand for raw materials is reduced.
You are recommended to read carefully the warnings and indications, marked with the respective symbols, at the end of
the page:
personal safety;
the car’s wellbeing;
environmental protection.
The enclosed FIAT WARRANTY BOOKLET lists the services that Fiat offers to its Customers:
– the Warranty Certificate with terms and conditions for maintaining its validity
– the range of additional services available to Fiat Customers
Best regards and good motoring!
Page 3 of 170

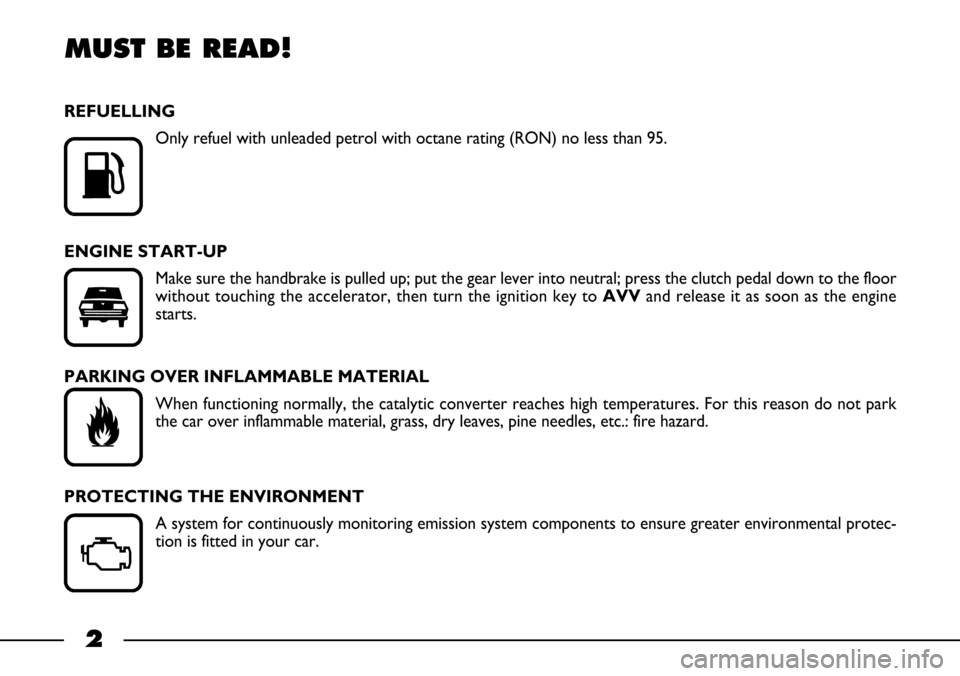

ENGINE START-UP
Make sure the handbrake is pulled up; put the gear lever into neutral; press the clutch pedal down to the floor
without touching the accelerator, then turn the ignition key to AVVand release it as soon as the engine
starts.
2
MUST BE READ!
REFUELLING
Only refuel with unleaded petrol with octane rating (RON) no less than 95.
K
PARKING OVER INFLAMMABLE MATERIAL
When functioning normally, the catalytic converter reaches high temperatures. For this reason do not park
the car over inflammable material, grass, dry leaves, pine needles, etc.: fire hazard.
PROTECTING THE ENVIRONMENT
A system for continuously monitoring emission system components to ensure greater environmental protec-
tion is fitted in your car.
U
Page 4 of 170
3

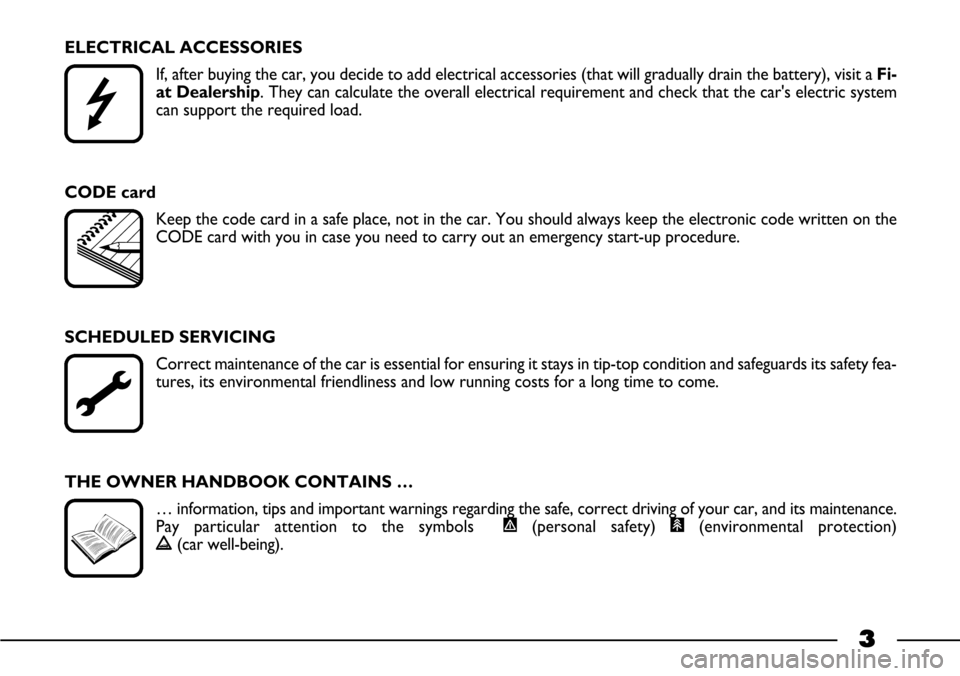

ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery), visit a Fi-
at Dealership. They can calculate the overall electrical requirement and check that the car's electric system
can support the required load.
CODE card
Keep the code card in a safe place, not in the car. You should always keep the electronic code written on the
CODE card with you in case you need to carry out an emergency start-up procedure.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS …
… information, tips and important warnings regarding the safe, correct driving of your car, and its maintenance.
Pay particular attention to the symbols "(personal safety) #(environmental protection)
â(car well-being).
Page 5 of 170
Page 6 of 170
5
CONTENTS
GETTING TO KNOW YOUR CAR
DRIVING YOUR CAR
IN AN EMERGENCY
CAR MAINTENANCE
TECHNICAL SPECIFICATIONS
ACCESSORY INSTALLATION
INDEX
Page 7 of 170
GETTING TO KNOW YOUR CAR
You should read this chapter sitting comfortably in
your new Fiat barchetta. This way you can see the parts
described in the manual at a glance and immediately
check what you have just read for yourself.
In short, you will become more familiar with your
Fiat barchetta and its controls and other features. Lat-
er, when you start the engine and join the traffic you
will make a host of other pleasant discoveries.
DASHBOARD ...................................................................... 7
INSTRUMENT PANEL ...................................................... 8
SYMBOLIS ............................................................................. 9
THE FIAT CODE SYSTEM ............................................... 11
ELECTRONIC ALARM ..................................................... 13
IGNITION SWITCH ......................................................... 17
INDIVIDUAL SETTINGS .................................................. 18
SEAT BELTS ......................................................................... 21
TRANSPORTING CHILDREN IN SAFETY ................ 24
PRETENSIONERS ............................................................... 27
INSTRUMENTS ................................................................... 28INDICATOR AND WARNING LIGHTS .................... 30
HEATING AND VENTILATION ................................... 34
MANUAL CLIMATE CONTROL SYSTEM ................. 36
STEERING COLUMN STALKS ....................................... 38
CONTROLS ......................................................................... 40
INTERIOR EQUIPMENT .................................................. 42
DOORS ................................................................................. 44
HOOD ................................................................................... 46
HARD TOP .......................................................................... 49
WIND STOP ........................................................................ 51
BONNET .............................................................................. 53
BOOT .................................................................................... 55
HEADLIGHTS ...................................................................... 55
ABS ......................................................................................... 56
AIRBAG ................................................................................. 58
EOBD SYSTEM .................................................................... 62
CELLULAR PHONE SETUP ............................................. 63
AT THE FILLING STATION ........................................... 64
PROTECTING THE ENVIRONMENT ......................... 66
For more detailed information, see “Index”.
6
Page 8 of 170
7

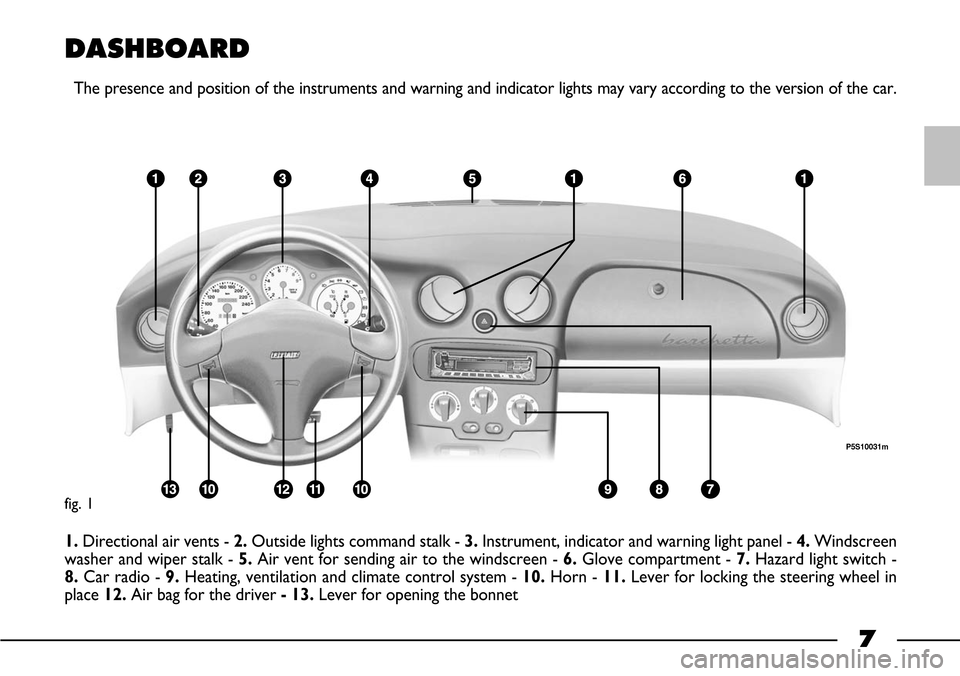

DASHBOARD
The presence and position of the instruments and warning and indicator lights may vary according to the version of the car.
1.Directional air vents -2.Outside lights command stalk - 3.Instrument, indicator and warning light panel - 4.Windscreen
washer and wiper stalk -5.Air vent for sending air to the windscreen - 6. Glove compartment -7.Hazard light switch -
8. Car radio - 9. Heating, ventilation and climate control system - 10.Horn - 11.Lever for locking the steering wheel in
place 12. Air bag for the driver - 13.Lever for opening the bonnet
fig. 1
P5S10031m
Page 9 of 170
8

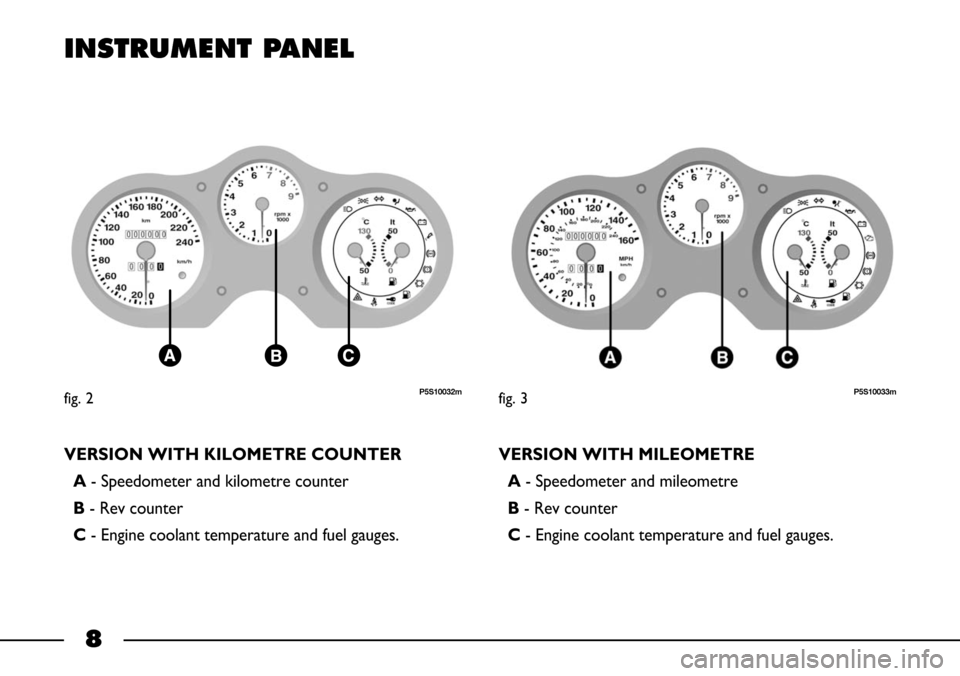

INSTRUMENT PANEL
VERSION WITH KILOMETRE COUNTER
A - Speedometer and kilometre counter
B- Rev counter
C - Engine coolant temperature and fuel gauges.
fig. 2P5S10032mfig. 3P5S10033m
VERSION WITH MILEOMETRE
A - Speedometer and mileometre
B- Rev counter
C- Engine coolant temperature and fuel gauges.
Page 10 of 170
Climate control tubing
Do not open.
Gas under high pressure. Belts and pulleys
Moving parts; keep limbs
and clothing away. Coil
High voltage.
9

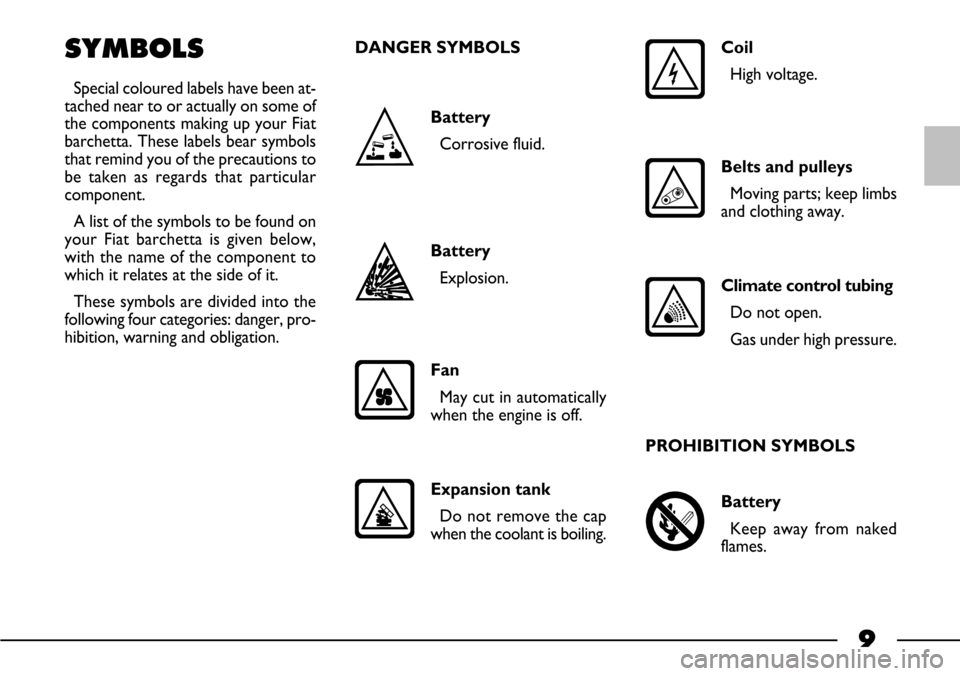

SYMBOLS
Special coloured labels have been at-
tached near to or actually on some of
the components making up your Fiat
barchetta. These labels bear symbols
that remind you of the precautions to
be taken as regards that particular
component.
A list of the symbols to be found on
your Fiat barchetta is given below,
with the name of the component to
which it relates at the side of it.
These symbols are divided into the
following four categories: danger, pro-
hibition, warning and obligation.DANGER SYMBOLS
Battery
Corrosive fluid.
Battery
Explosion.
Fan
May cut in automatically
when the engine is off.
Expansion tank
Do not remove the cap
when the coolant is boiling.
Battery
Keep away from naked
flames.
PROHIBITION SYMBOLS
