FIAT BRAVO 2007 2.G Owner's Guide
Manufacturer: FIAT, Model Year: 2007, Model line: BRAVO, Model: FIAT BRAVO 2007 2.GPages: 246, PDF Size: 3.75 MB
Page 31 of 246
30
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
See radio (Audio repetition)
With this function the display repeats in-
formation relevant to the sound system.
– Radio: selected radio station frequency
or RDS message, automatic tuning acti-
vation or AutoSTore;
– audio CD, MP3 CD: track number;
– CD Changer: CD number and track
number;
To activate (On) or to deactivate (Off)
sound system info displaying proceed as
follows:
– briefly press button MODE: On or Off
will flash on the display according to pre-
vious setting;
– press button
Õor Ôto select the re-
quired level;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.Autoclose (Automatic central
door locking when travelling)
When activated (On), this function locks
automatically the doors when the car
speed exceeds 20 km/h.
To activate or to deactivate this function
proceed as follows:
– briefly press button MODEto display
the submenu;
– briefly press button MODE: On or Off
will flash on the display according to pre-
vious setting;
– press button
Õor Ôto select the re-
quired level;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings;
– Press again button MODEfor long to
go back to the standard screen or to the
main menu according to the current menu
level.Units (Setting units)
With this function it is possible to set the
units through three submenus: “Dis-
tances”, “Consumption” and “Tempera-
ture”.
To set the required unit proceed as fol-
lows:
– briefly press button MODE, the display
will show the three submenus;
– press button
Õor Ôto scroll the three
submenus;
– select the required submenu and then
press briefly button MODE;
– if selecting “Distances”: pressing button
MODEbriefly, the display will show “km”
or “mi” according to previous setting;
– press button
Õor Ôto select the re-
quired level;
– if selecting “Consumption”: briefly press
button MODEthe display will show
“km/l”, “l/100km” or “mpg” according to
previous setting;
023-036 BRAVO GB 10-05-2007 10:05 Pagina 30
Page 32 of 246
31
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
If the distance unit set is “km” the fuel con-
sumption unit will be displayed in km/l or
l/100km.
If set unit is “mi” the display will show fu-
el consumption in “mpg”.
– press button
Õor Ôto select the re-
quired level;
– if selecting “Temperature”: pressing but-
ton MODEbriefly, the display will show
“°C” or “°F” according to previous set-
ting;
– press button
Õor Ôto select the re-
quired level;
After setting, briefly press button MODE
to go back to the submenu screen or
press the button for long to go back to the
main menu screen without storing set-
tings.
– press again button MODEfor long to
go back to the standard screen or to the
main menu according to the current menu
level.Language (Selecting the language)
Display messages can be shown (after set-
ting) in different languages: Italian, German,
English, Spanish, French, Portuguese and
Dutch.
To set the required language proceed as
follows:
– briefly press button MODE: the previ-
ously set “language” will flash on the dis-
play;
– press button Õor Ôto select the re-
quired level;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.Buzzer volume
(Setting the buzzer volume)
With this function the volume of the
buzzer accompanying any failure/warning
indication can be adjusted according to 8
levels.
To adjust the volume proceed as follows:
– briefly press button MODE: the previ-
ously set volume “level” will flash on the
display;
– press button Õor Ôfor setting;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.
023-036 BRAVO GB 10-05-2007 10:05 Pagina 31
Page 33 of 246
32
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Button vol.
(Adjusting the button volume)
With this function the volume of the
roger-beep accompanying the activation
of buttons MODE,
Õand Ôcan be ad-
justed according to 8 levels.
To adjust the volume proceed as follows:
– briefly press button MODE: the previ-
ously set volume “level” will flash on the
display;
– press button
Õor Ôfor setting;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.
Belt Buzzer
(S.B.R. buzzer reactivation)
This function can be only displayed after
Fiat Dealership has deactivated the S.B.R.
system (see paragraph “S.B.R. system” in
section “Safety devices”).Service (Scheduled Servicing)
Through this function it is possible to dis-
play information connected to proper car
servicing.
Proceed as follows:
– briefly press button MODE: service in
km or mi, according to previous setting,
will be displayed (see paragraph “Distance
unit”);
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.NoteThe “Service schedule” includes car
maintenance every 30,000 km (or 18,000
miles) or every year; this is shown auto-
matically, with the ignition key at MAR,
starting from 2,000 km (or equivalent val-
ue in miles) or 30 days from this deadline
and it is shown again every 200 km (or
equivalent value in miles). Below 200 km
servicing indications are displayed more
frequently. Servicing indication will be dis-
played in km or mi according to previous
setting. When a programmed maintenance
interval (coupon) is near to come, turning
the ignition key to MAR, the display will
show the message “Service” followed by
the number of km/mi or days to go before
car servicing. Contact a Fiat Dealership to
carry out any service operation provided
by the “Service schedule” and to reset the
display.
023-036 BRAVO GB 10-05-2007 10:05 Pagina 32
Page 34 of 246
33
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Passenger’s Bag
(Front passenger’s air bag
and side bag, where provided,
activation/deactivation)
This function shall be used to activate/de-
activate the front passenger’s air bag.
Proceed as follows:

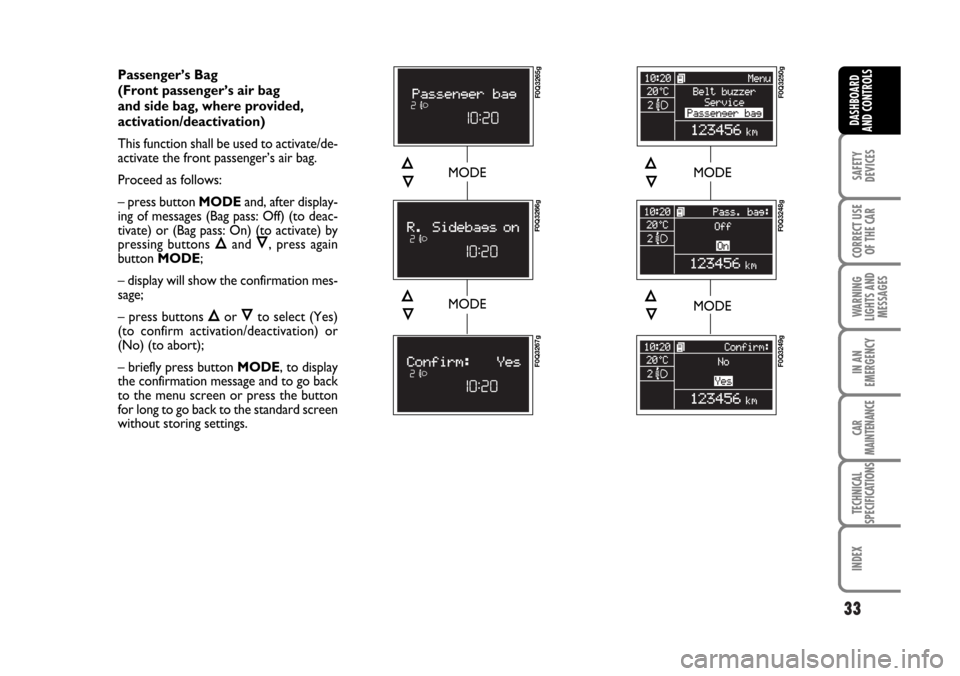

– press button MODEand, after display-
ing of messages (Bag pass: Off) (to deac-
tivate) or (Bag pass: On) (to activate) by
pressing buttons
Õand Ô, press again
button MODE;
– display will show the confirmation mes-
sage;
– press buttons
Õor Ôto select (Yes)
(to confirm activation/deactivation) or
(No) (to abort);
– briefly press button MODE, to display
the confirmation message and to go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.
MODEMODE
MODE
F0Q3250g
F0Q3248g
Õ
Ô
F0Q3249g
MODEÕ
Ô
F0Q3265g
F0Q3266g
Õ
Ô
F0Q3267g
Õ
Ô
023-036 BRAVO GB 10-05-2007 10:05 Pagina 33
Page 35 of 246
34
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Exit Menu
This is the last function that closes the cir-
cular setting cycle listed in the initial menu
screen.
Briefly press button MODEto go back to
the standard screen without storing set-
tings.
Press button
Ôto return to the first menu
option (Speed Beep).
TRIP COMPUTER
General features
The “Trip computer” displays information
(with ignition key at MAR), relating to the
operating status of the car. This function
comprises two separate and independent
trips: “Trip A” and “Trip B” concerning
the “complete mission” of the car (jour-
ney).
Both functions are resettable (reset - start
of new mission).“Trip A” shall be used to display the fig-
ures relating to:
– Range
– Trip distance
– Average consumption
– Instant consumption
– Average speed
– Travel time (driving time).
023-036 BRAVO GB 10-05-2007 10:06 Pagina 34
Page 36 of 246
35
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
“Trip B” displays the figures relating to:
– Trip distance B
– Average consumption B
– Average speed B
– Travel time B (driving time).
Note“Trip B” function can be excluded
(see paragraph “Trip B On/Off”). “Range”
and “Instant consumption” cannot be re-
set.Values displayed
Range
This value shows the distance in km (or
mi) that the car can still cover before
needing fuel, assuming that driving condi-
tions are kept unvaried. The display will
show “----” in the following cases:
– value lower than 50 km (or 30 mi)
– car left parked with engine running for
long.
IMPORTANT The variation of the auton-
omy value can be influenced by different
factors: driving style (see what is described
in paragraph “Driving style” in the chap-
ter “Start-up and driving”), type of route
(highways, urban, mountain, etc…), use
conditions of the car (load transported,
tire pressure, etc…). What was described
previously must be taken in consideration
when planning a trip.
Trip distance
This value shows the distance covered
from the start of the new mission.Average consumption
This value shows the average consump-
tion from the start of the new mission.
Instant consumption
Represents the indicative average of con-
sumptions from the beginning of the new
mission.
Average speed
This value shows the car average speed as
a function of the overall time elapsed since
the start of the new mission.
Travel time
This value shows the time elapsed since
the start of the new mission.
023-036 BRAVO GB 10-05-2007 10:06 Pagina 35
Page 37 of 246
36
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

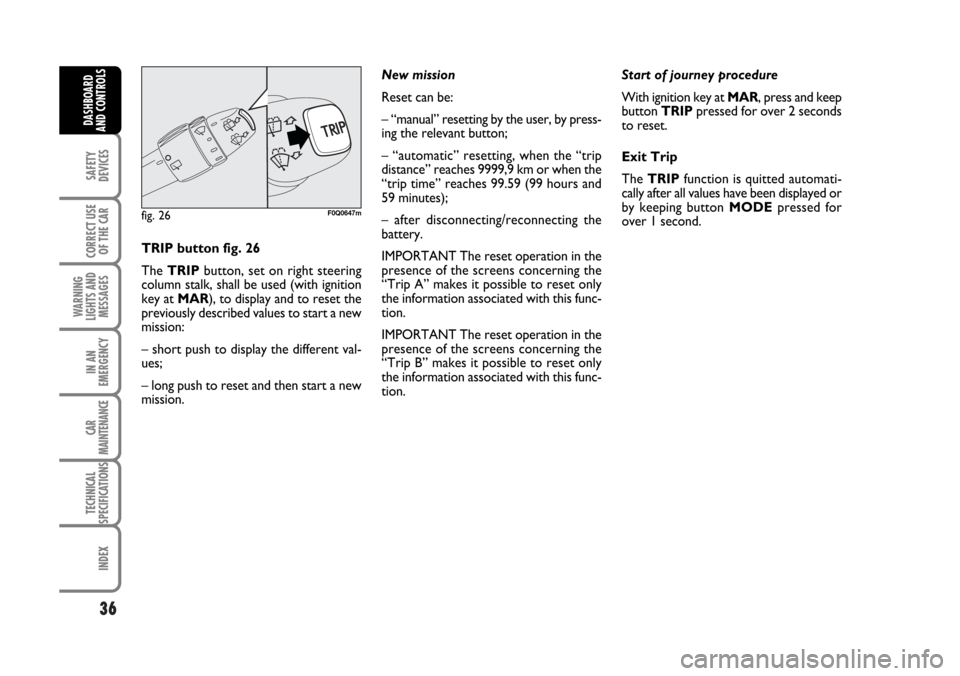

TRIP button fig. 26
The TRIPbutton, set on right steering
column stalk, shall be used (with ignition
key at MAR), to display and to reset the
previously described values to start a new
mission:
– short push to display the different val-
ues;
– long push to reset and then start a new
mission.New mission
Reset can be:
– “manual” resetting by the user, by press-
ing the relevant button;
– “automatic” resetting, when the “trip
distance” reaches 9999,9 km or when the
“trip time” reaches 99.59 (99 hours and
59 minutes);
– after disconnecting/reconnecting the
battery.
IMPORTANT The reset operation in the
presence of the screens concerning the
“Trip A” makes it possible to reset only
the information associated with this func-
tion.
IMPORTANT The reset operation in the
presence of the screens concerning the
“Trip B” makes it possible to reset only
the information associated with this func-
tion.
fig. 26F0Q0647m
Start of journey procedure
With ignition key at MAR, press and keep
button TRIPpressed for over 2 seconds
to reset.
Exit Trip
The TRIPfunction is quitted automati-
cally after all values have been displayed or
by keeping button MODEpressed for
over 1 second.
023-036 BRAVO GB 10-05-2007 10:06 Pagina 36
Page 38 of 246
37
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 27F0Q0654m
Fabric upholstery of your car
is purpose-made to withstand
common wear resulting from
normal use of the car. It is
however absolutely necessary to pre-
vent hard and/or prolonged scratch-
ing/scraping caused by clothing acces-
sories like metallic buckles, studs, “Vel-
cro” fixings, etc. that stressing locally
the fabric could break yarns and dam-
age the upholstery as a consequence.
Only make adjustments when
the car is stationary.
Once you have released the
lever, check that the seat is
firmly locked in the runners by
trying to move it back and
forth. Failure to lock the seat in place
could result in the seat moving sud-
denly and the driver losing control of
the car.
SEATS
MANUALLY ADJUSTABLE
FRONT SEATS fig. 27
Moving the seat backwards
or forwards
Lift the lever A(on the internal side of the
seat) and push the seat forwards or back-
wards: in driving position the arms should
rest on the rim of the steering wheel.
Seat height adjustment
Move repeatedly lever Bupwards or
downwards to achieve the required
height.
IMPORTANT Adjustment must be car-
ried out only seated in the seat.
Back rest angle adjustment
Turn the knob C.
Lumbar adjustment
(where provided)
To adjust, turn the knob D.
037-056 BRAVO GB 10-05-2007 9:00 Pagina 37
Page 39 of 246
38
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ELECTRICALLY ADJUSTABLE
FRONT SEATS (where provided)
fig. 28
Adjustment is possible when the ignition
key is at MARor within 1 minute with ig-
nition key at STOPor removed.
When opening one of the front doors, it
is possible to adjust the seat on the side
of the door opened for about 3 minutes
or until closing the door.Seat adjustment controls are the
following:
Multifunction control A:
❒to adjust height;
❒to move seat backwards or forwards.
Multifunction control B:
❒back rest angle adjustment;
❒lumbar adjustment.fig. 28F0Q0601m
Seat warming (where provided)
fig. 29
With ignition key at MAR, press buttons
Cto switch the seat warming on/off.
The led on the button will light up when
the function is on.
fig. 29F0Q0013m
037-056 BRAVO GB 10-05-2007 9:00 Pagina 38
Page 40 of 246
HEAD RESTRAINTS
FRONT
Head restraints are adjustable in height
and they lock automatically in the required
position.
❒to raise: raise the head restraint until
hearing the locking click.
❒to lower: press button A-fig. 30and
lower the head restraint.
On some versions, the front head re-
straints are equipped with an anti-whiplash
device, which is able to reduce the dis-
tance between the head and head restraint
in the case of rear impact, limiting damage
caused by whiplash.
If the front head restraint is anti-whiplash
type, the head restraint may move if pres-
sure is exercised on the back-rest through
the torso or hand. This behaviour is typ-
ical of the system and should not treated
as a malfunction.REAR
Car is can be equipped with two head
restraints for side seats and, according to
versions, also with a third head restraint
for the central seat.
To lift out head restraint: take it com-
pletely out from the seat back (position of
use) until hearing a click.
To bring it back to the original position
(non-use position): press button
A-fig. 31and lower the head restraint
down into its seat.
IMPORTANT Rear seat passengers shall
always set the head restraints in the po-
sition of use.fig. 30F0Q0655m
Remember that the head re-
straints should be adjusted
to support the back of your head and
not your neck. Only in this position
do they exert their protective action.
WARNING
To optimise head restraint
protective action, adjust the
seat back upright and keep your head
as close as possible to the head re-
straint.
WARNING
fig. 31F0Q0656m
39
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
037-056 BRAVO GB 10-05-2007 9:00 Pagina 39
