FIAT BRAVO 2007 2.G Service Manual

40
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
STEERING WHEEL
The steering wheel can be adjusted both
axially and in height.
Release the lever A-fig. 32pulling it to-
wards the steering wheel, then adjust it in
the most suitable position and lock it push-
ing the lever Afully forwards.
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
Any adjustment of the steer-
ing wheel position must be
carried out only with the car station-
ary and the engine turned off.
WARNING
REARVIEW MIRRORS
DRIVING MIRROR
The mirror is fitted with a safety device
that causes it to be released in the event
of a violent crash.
Using lever A-fig. 33the mirror can be
adjusted to two different positions: nor-
mal or antiglare.
fig. 32F0Q0657m
fig. 33F0Q0659m
037-056 BRAVO GB 10-05-2007 9:00 Pagina 40

41
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DOOR MIRRORS
Manual folding
When required (for example when the
mirror causes difficulty in narrow spaces)
it is possible to fold the mirror moving it
from position A-fig. 34to position B.
When driving the mirrors shall
always be in position A-fig. 34.
As the driver’s door mirror is
curved, it may slightly alter the
perception of distance.
Electric folding (where provided)
This operation is only possible with igni-
tion key at MAR.
Proceed as follows:
❒set selector A-fig. 36to home position
(no mirror selected);
❒to fold the mirror move the joystick
B-fig. 36 in side directions;
❒to bring mirrors back to driving posi-
tion press the joystick Bagain.
fig. 34F0Q00658mfig. 35F0Q0623mfig. 36F0Q0425m
Electrical adjustment
This operation is only possible with igni-
tion key at MAR.
Proceed as follows:
❒use switch A-fig. 35to select the mir-
ror required (left or right);
❒to adjust the mirror move the joystick
Bin the four directions.
037-056 BRAVO GB 10-05-2007 9:00 Pagina 41

42
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEATING/CLIMATE CONTROL SYSTEM

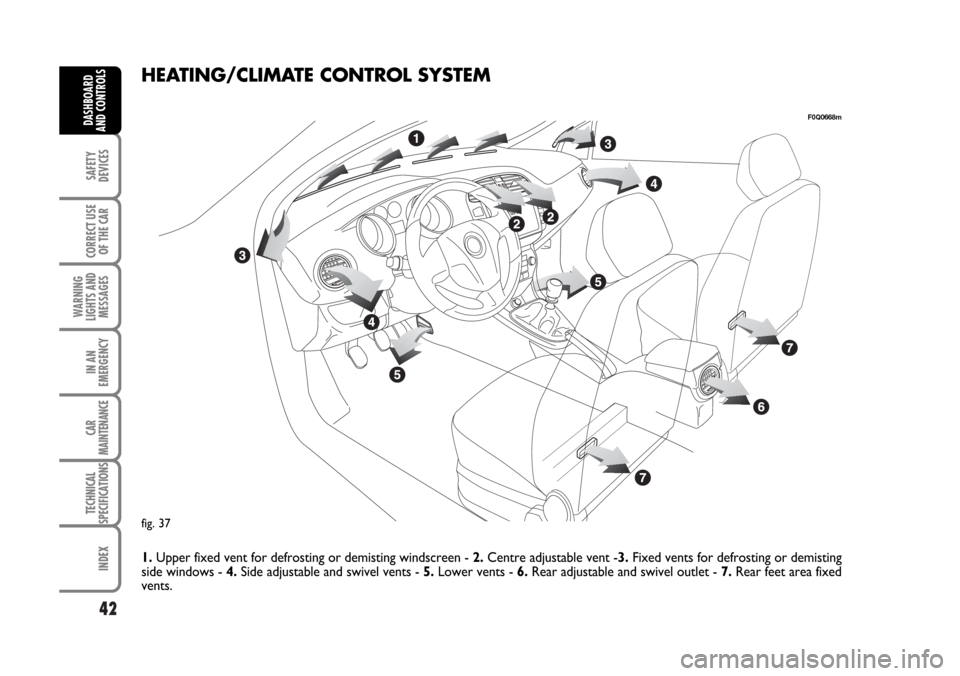

1.Upper fixed vent for defrosting or demisting windscreen - 2.Centre adjustable vent -3.Fixed vents for defrosting or demisting
side windows - 4.Side adjustable and swivel vents - 5.Lower vents - 6.Rear adjustable and swivel outlet - 7.Rear feet area fixed
vents.
fig. 37
F0Q0668m
037-056 BRAVO GB 10-05-2007 9:00 Pagina 42

43
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

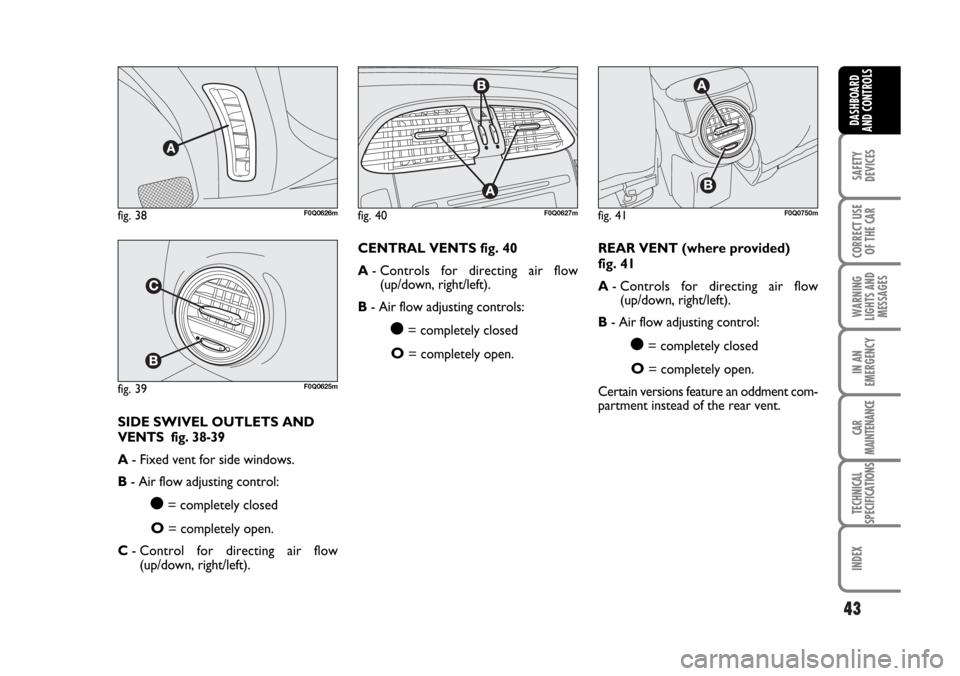

SIDE SWIVEL OUTLETS AND
VENTS fig. 38-39
A- Fixed vent for side windows.
B- Air flow adjusting control:
ç= completely closed
O= completely open.
C- Control for directing air flow
(up/down, right/left).CENTRAL VENTS fig. 40
A- Controls for directing air flow
(up/down, right/left).
B- Air flow adjusting controls:
ç= completely closed
O= completely open.REAR VENT (where provided)
fig. 41
A- Controls for directing air flow
(up/down, right/left).
B- Air flow adjusting control:ç= completely closed
O= completely open.
Certain versions feature an oddment com-
partment instead of the rear vent.
fig. 39F0Q0625m
fig. 40F0Q0627mfig. 41F0Q0750mfig. 38F0Q0626m
037-056 BRAVO GB 10-05-2007 9:00 Pagina 43

44
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEATING AND
VENTILATION

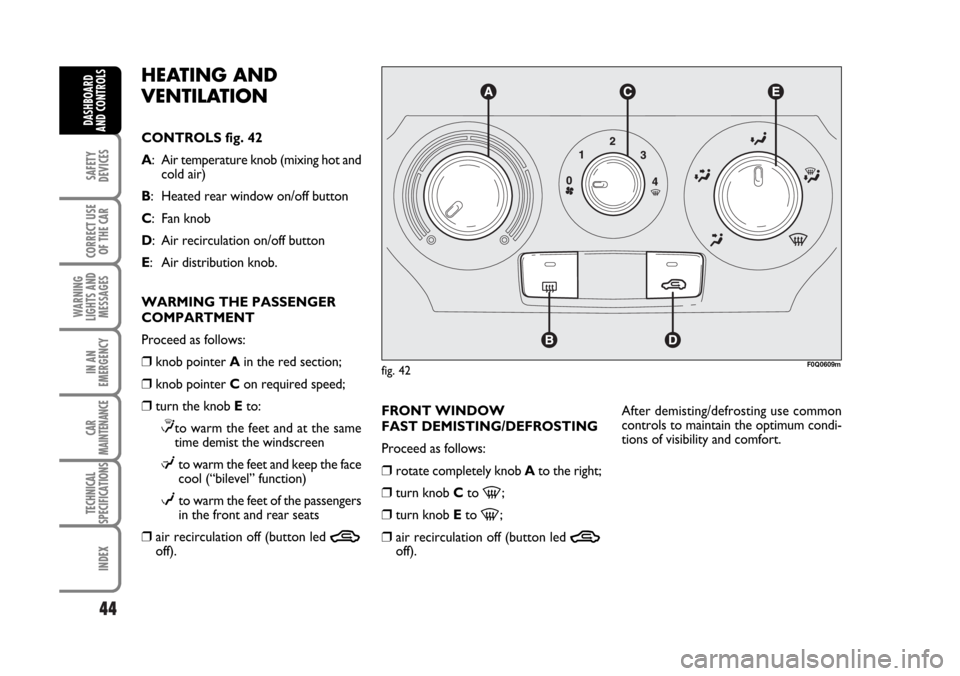

CONTROLS fig. 42
A: Air temperature knob (mixing hot and
cold air)
B: Heated rear window on/off button
C: Fan knob
D: Air recirculation on/off button
E: Air distribution knob.
WARMING THE PASSENGER
COMPARTMENT
Proceed as follows:
❒knob pointer Ain the red section;
❒knob pointer Con required speed;
❒turn the knob Eto:
≤to warm the feet and at the same
time demist the windscreen
μto warm the feet and keep the face
cool (“bilevel” function)
wto warm the feet of the passengers
in the front and rear seats
❒air recirculation off (button led Toff).FRONT WINDOW
FAST DEMISTING/DEFROSTING
Proceed as follows:
❒rotate completely knob Ato the right;
❒turn knob Cto -;
❒turn knob Eto -;
❒air recirculation off (button led Toff).After demisting/defrosting use common
controls to maintain the optimum condi-
tions of visibility and comfort.
F0Q0609mfig. 42
037-056 BRAVO GB 10-05-2007 9:00 Pagina 44

45
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Preventive demisting procedure
In the event of considerable outside mois-
ture and/or rain and/or considerable dif-
ferences in temperature inside and out-
side the passenger compartment, perform
the following preventive demisting proce-
dure:
❒air recirculation off (button led Toff);
❒knob Aturned to red section;
❒turn knob Cto 2ndspeed;
❒turn knob Eto -or to ≤if the win-
dows do not demist.
HEATED REAR WINDOW
AND DOOR MIRROR
DEMISTING/DEFROSTING
Pressing button
(turns on this function
which is shown by the turning on of the
led on the button
(.
This function is timed and switches off au-
tomatically after 20 minutes. To cut out
this function press again button
(.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.FAN SPEED ADJUSTMENT
To ventilate the passenger’s compartment
properly, proceed as follows:
❒Central and side vents: completely
open;
❒Knob pointer Aon blue section;
❒knob pointer Con required speed;
❒Knob pointer Eto ¥;
❒air recirculation off (button led Toff).
AIR RECIRCULATION
Pressing button
Tturns on this func-
tion which is shown by the turning on of
the led on the button. This function is par-
ticularly useful when the outside air is
heavily polluted (in a traffic jam, tunnel,
etc.). However, it is better not to use it
for long periods, especially if there are sev-
eral people in the car.
IMPORTANT The inside air recirculation
system makes it possible to reach the re-
quired “heating” or “cooling” conditions
faster. Do not use the air recirculation
function on rainy/cold days as it would
considerably increase the possibility of the
windows misting inside.SUPPLEMENTARY HEATER
(where provided)
This device heats up the passenger com-
partment more rapidly in cold weather
conditions with the engine coolant tem-
perature very low.
The additional heater is activated auto-
matically by starting the engine, turning
knob Ato the last red sector and oper-
ating the fan (knob C) on at least first
speed.
The radiator is turned off automatically
when conditions of comfort are achieved.
IMPORTANT heater activation is pre-
vented if the battery voltage is too low.
037-056 BRAVO GB 10-05-2007 9:00 Pagina 45

46
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
MANUAL CLIMATE
CONTROL SYSTEM
(where provided)
CONTROLS fig. 43
A: Air temperature knob (mixing hot and
cold air)
B: Heated rear window on/off button
C: Fan knob
D: Compressor on/off switch
E: Air recirculation on/off button
F: Air distribution knob.
WARMING THE PASSENGER
COMPARTMENT
Proceed as follows:
❒knob pointer Ain the red section;
❒knob pointer Con required speed;
❒turn knob Fto:
≤to warm the feet and at the same time
demist the windscreen
μto warm the feet and keep the face cool
(“bilevel” function)
wto warm the feet of the front and rear
passengers.
❒air recirculation off (button led Toff).
F0Q0610mfig. 43
037-056 BRAVO GB 10-05-2007 9:00 Pagina 46

47
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FRONT WINDOW
FAST DEMISTING/DEFROSTING
Proceed as follows:
❒press button ❄;
❒rotate completely knob Ato the right;
❒turn knob Cto -;
❒turn knob Fto -;
❒air recirculation off (button led Toff).
After demisting/defrosting use common
controls to maintain the optimum condi-
tions of visibility and comfort.
Preventive demisting procedure
In the event of considerable outside mois-
ture and/or rain and/or considerable dif-
ferences in temperature inside and out-
side the passenger compartment, perform
the following preventive demisting proce-
dure:
❒press button ❄;
❒air recirculation off (button led Toff);
❒knob Aturned to red section;
❒turn knob Cto 2ndspeed;
❒turn knob Fto -or to ≤if the win-
dows do not demist.Climate control system is very useful to
speed up demisting since it dehumidifies
the air. Set controls to demisting function
and switch on the climate control system
by pressing button
❄.
HEATED REAR WINDOW
AND DOOR MIRROR
DEMISTING/DEFROSTING
Pressing button
(turns on this function
which is shown by the turning on of the
led on the button
(.
This function is timed and switches off au-
tomatically after 20 minutes. To cut out
this function press again button
(.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.FAN SPEED ADJUSTMENT
To ventilate the passenger’s compartment
properly, proceed as follows:
❒Central and side vents: completely
open;
❒Knob pointer Aon blue section;
❒knob pointer Con required speed;
❒Knob pointer Fto ¥;
❒air recirculation off (button led Toff).
037-056 BRAVO GB 10-05-2007 9:00 Pagina 47

48
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
AIR RECIRCULATION
Pressing button
Tturns on this func-
tion which is shown by the turning on of
the led on the button.
This function is particularly useful when
the outside air is heavily polluted (in a traf-
fic jam, tunnel, etc.) However, it is better
not to use it for long periods, especially
if there are several people in the car.
IMPORTANT The inside air recirculation
system makes it possible to reach the re-
quired “heating” or “cooling” conditions
faster. Do not use the air recirculation
function on rainy/cold days as it would
considerably increase the possibility of the
windows misting inside.CLIMATE CONTROL (cooling)
Proceed as follows:
❒Knob pointer Aon blue section;
❒knob pointer Con required speed;
❒Knob pointer Fto ¥;
❒Press buttons ❄and T(button leds
on).
Cooling adjustment
Proceed as follows:
❒Turn off button T(button led off);
❒turn knob Ato the right to raise tem-
perature;
❒Turn knob Cto the left to reduce the
fan speed.SUPPLEMENTARY HEATER
(where provided)
This device heats up the passenger com-
partment more rapidly in cold weather
conditions with the engine coolant tem-
perature very low.
The additional heater is activated auto-
matically by starting the engine, turning
knob Ato the last red sector and oper-
ating the fan (knob C) on at least first
speed.
The radiator is turned off automatically
when conditions of comfort are achieved.
IMPORTANT heater activation is pre-
vented if the battery voltage is too low.
LOOKING AFTER THE SYSTEM
During winter, the climate control system
must be turned on at least once a month
for about 10 minutes. Before summer,
have the system checked at a Fiat Deal-
ership.
037-056 BRAVO GB 10-05-2007 9:00 Pagina 48

49
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0Q0611mfig. 44
AUTOMATIC
TWO-ZONE CLIMATE
CONTROL SYSTEM
(where provided)
DESCRIPTION
The car is fitted with a two-zone climate
control system which makes it possible to
separately adjust the air temperature on
the driver’s side and on the passenger’s
side.
The system is fitted with the AQS func-
tion (Air Quality System) that turns on in-
side air recirculation automatically when
the antipollution sensor detects the pres-
ence of outside polluted air (for example
when driving in the city, queues and tun-
nels).

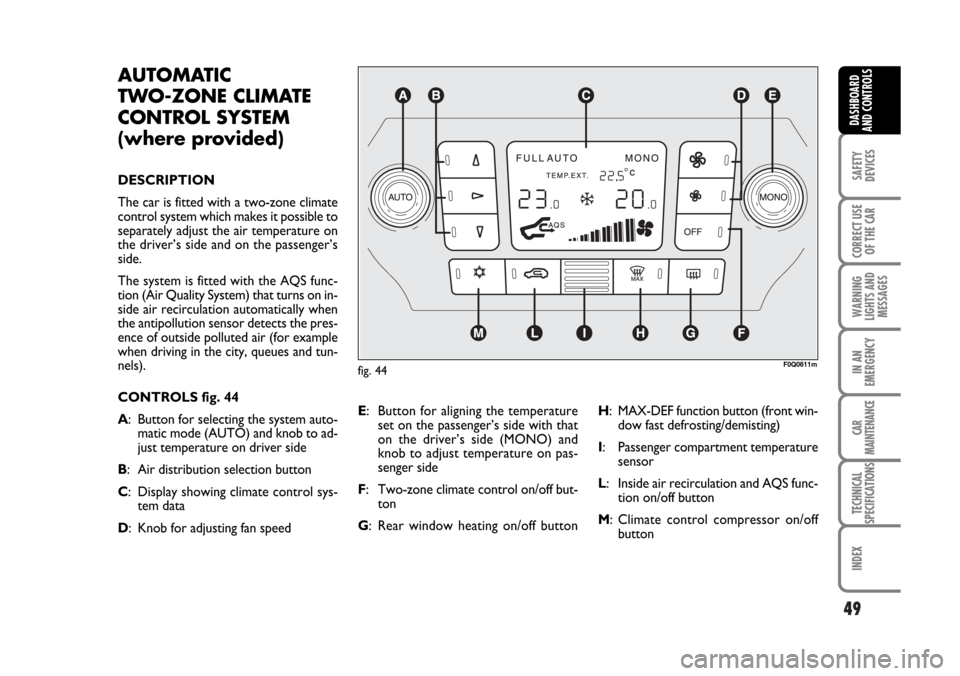

CONTROLS fig. 44
A: Button for selecting the system auto-
matic mode (AUTO) and knob to ad-
just temperature on driver side
B: Air distribution selection button
C: Display showing climate control sys-
tem data
D: Knob for adjusting fan speedE: Button for aligning the temperature
set on the passenger’s side with that
on the driver’s side (MONO) and
knob to adjust temperature on pas-
senger side
F: Two-zone climate control on/off but-
ton
G: Rear window heating on/off buttonH: MAX-DEF function button (front win-
dow fast defrosting/demisting)
I: Passenger compartment temperature
sensor
L: Inside air recirculation and AQS func-
tion on/off button
M: Climate control compressor on/off
button
037-056 BRAVO GB 10-05-2007 9:00 Pagina 49
