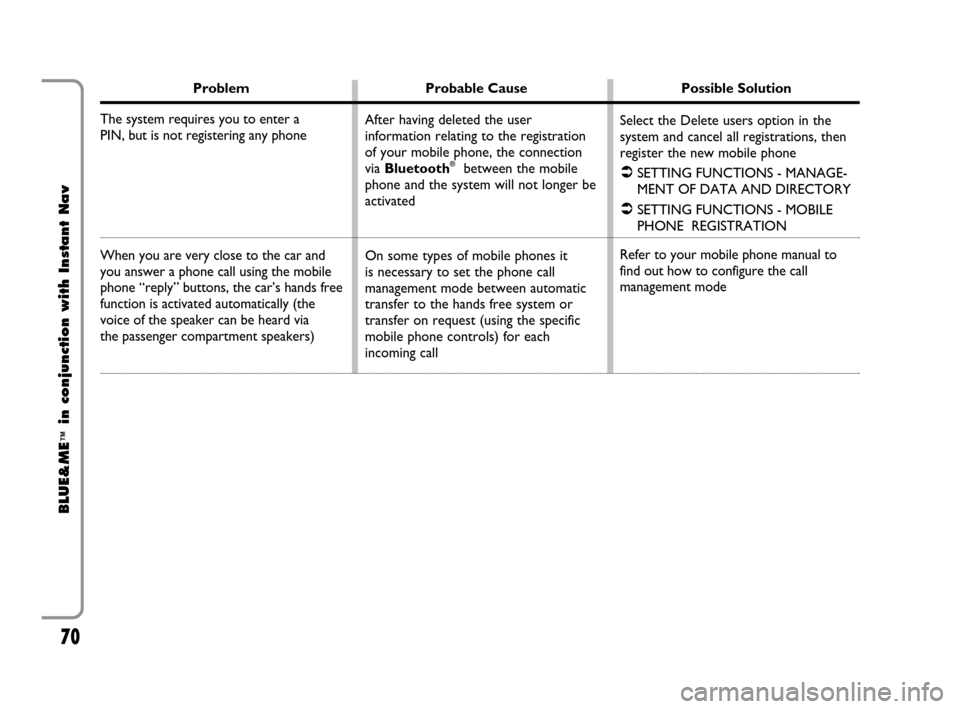

Page 71 of 90
70
BLUE&ME
™
in conjunction with Instant Nav
Problem Probable Cause Possible Solution
The system requires you to enter a
PIN, but is not registering any phone
When you are very close to the car and
you answer a phone call using the mobile
phone “reply” buttons, the car’s hands free
function is activated automatically (the
voice of the speaker can be heard via
the passenger compartment speakers)
Select the Delete users option in the
system and cancel all registrations, then
register the new mobile phone
SETTING FUNCTIONS - MANAGE-
MENT OF DATA AND DIRECTORY
SETTING FUNCTIONS - MOBILE
PHONE REGISTRATION
Refer to your mobile phone manual to
find out how to configure the call
management mode After having deleted the user
information relating to the registration
of your mobile phone, the connection
via Bluetooth
®between the mobile
phone and the system will not longer be
activated
On some types of mobile phones it
is necessary to set the phone call
management mode between automatic
transfer to the hands free system or
transfer on request (using the specific
mobile phone controls) for each
incoming call
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 70

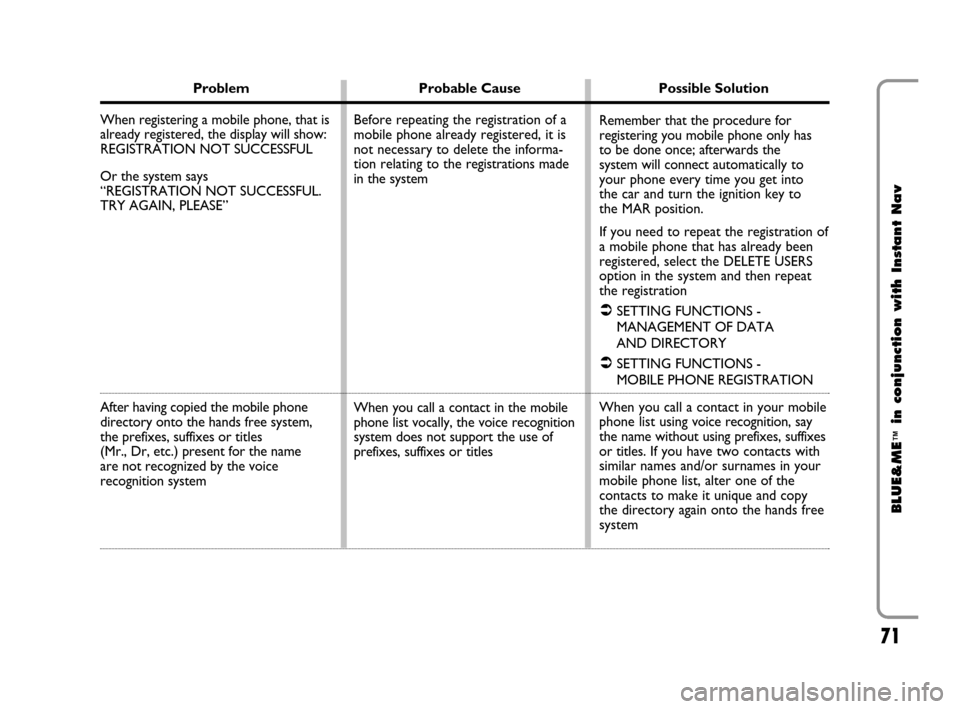

Page 72 of 90
71
BLUE&ME
™
in conjunction with Instant Nav
Problem Probable Cause Possible Solution
When registering a mobile phone, that is
already registered, the display will show:
REGISTRATION NOT SUCCESSFUL
Or the system says
“REGISTRATION NOT SUCCESSFUL.
TRY AGAIN, PLEASE”
After having copied the mobile phone
directory onto the hands free system,
the prefixes, suffixes or titles
(Mr., Dr, etc.) present for the name
are not recognized by the voice
recognition system
Before repeating the registration of a
mobile phone already registered, it is
not necessary to delete the informa-
tion relating to the registrations made
in the system
When you call a contact in the mobile
phone list vocally, the voice recognition
system does not support the use of
prefixes, suffixes or titlesRemember that the procedure for
registering you mobile phone only has
to be done once; afterwards the
system will connect automatically to
your phone every time you get into
the car and turn the ignition key to
the MAR position.
If you need to repeat the registration of
a mobile phone that has already been
registered, select the DELETE USERS
option in the system and then repeat
the registration
SETTING FUNCTIONS -
MANAGEMENT OF DATA
AND DIRECTORY
SETTING FUNCTIONS -
MOBILE PHONE REGISTRATION
When you call a contact in your mobile
phone list using voice recognition, say
the name without using prefixes, suffixes
or titles. If you have two contacts with
similar names and/or surnames in your
mobile phone list, alter one of the
contacts to make it unique and copy
the directory again onto the hands free
system
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 71
Page 73 of 90
72
BLUE&ME
™
in conjunction with Instant Nav
Problem Probable Cause Possible Solution
In some cases, it is not possible to
call phone numbers that contain
international dialling codes
(e.g. +39 Italy, +44 UK, +33 France etc.)
Replace the “+” at the start of the
country code with “00”
(e.g. +39 becomes 0039). When contacts and/or telephone
numbers are transferred from the
mobile phone to the hands free
system, on some mobile phones the
“+” sign is omitted
To consult the list of mobile phones and functions supported, consult the dedicated website www.fiat.com Blue&Me™section or
Customer Services on 800.3428.0000.
You will also find:
– a quick guide with advice on usage;
– a guide for using your mobile phone for registering;
– advice on connection to an iPod;
– the files in the 8 voice recognition languages available that can be downloaded onto the system (Italian, French, English, German,
Spanish, Portoguese, Dutch, Polish) as an alternative.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 72

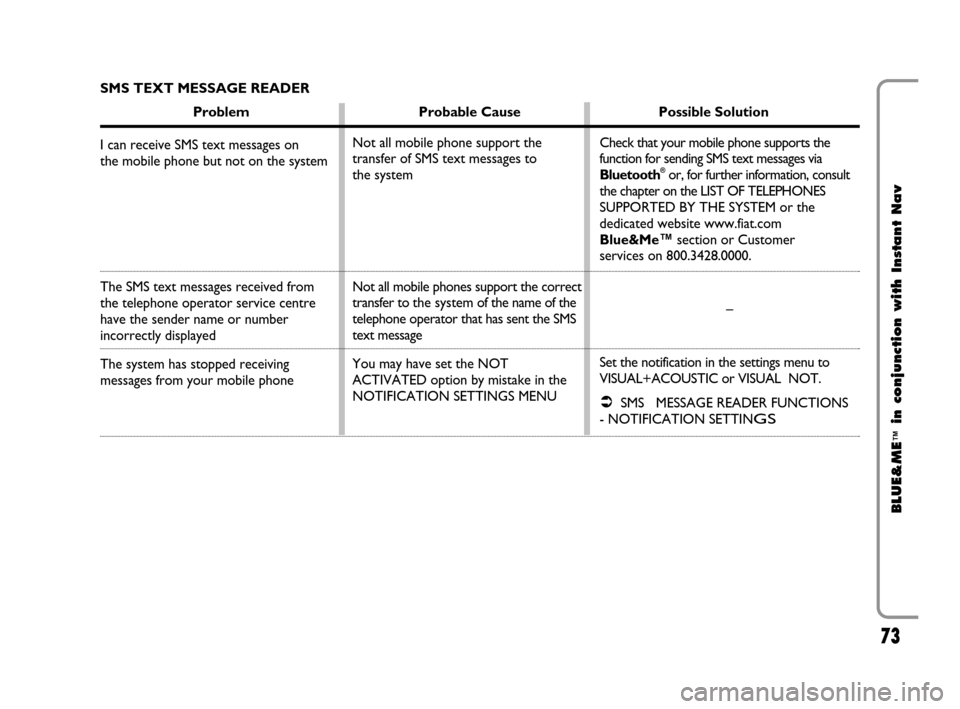

Page 74 of 90
73
BLUE&ME
™
in conjunction with Instant Nav
SMS TEXT MESSAGE READER
Problem Probable Cause Possible Solution
I can receive SMS text messages on
the mobile phone but not on the system
The SMS text messages received from
the telephone operator service centre
have the sender name or number
incorrectly displayed
The system has stopped receiving
messages from your mobile phone
Not all mobile phone support the
transfer of SMS text messages to
the system
Not all mobile phones support the correct
transfer to the system of the name of the
telephone operator that has sent the SMS
text message
You may have set the NOT
ACTIVATED option by mistake in the
NOTIFICATION SETTINGS MENUCheck that your mobile phone supports the
function for sending SMS text messages via
Bluetooth
®or, for further information, consult
the chapter on the LIST OF TELEPHONES
SUPPORTED BY THE SYSTEM or the
dedicated website www.fiat.com
Blue&Me™ section or Customer
services on 800.3428.0000.
–
Set the notification in the settings menu to
VISUAL+ACOUSTIC or VISUAL NOT.
SMS MESSAGE READER FUNCTIONS
- NOTIFICATION SETTIN
GS
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 73

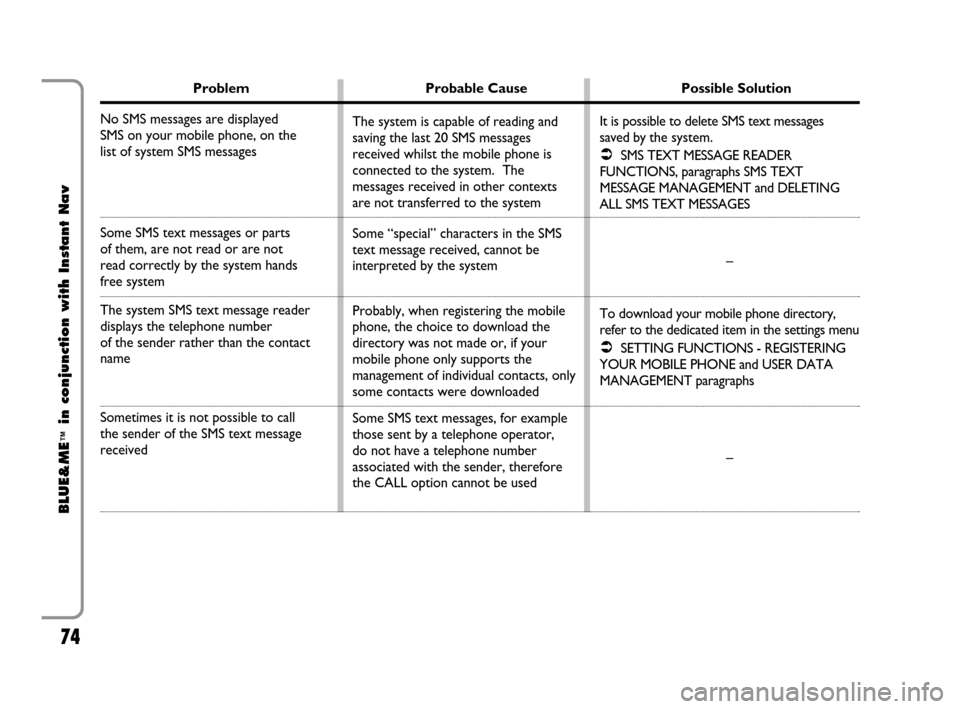

Page 75 of 90
74
BLUE&ME
™
in conjunction with Instant Nav
Problem Probable Cause Possible Solution
No SMS messages are displayed
SMS on your mobile phone, on the
list of system SMS messages
Some SMS text messages or parts
of them, are not read or are not
read correctly by the system hands
free system
The system SMS text message reader
displays the telephone number
of the sender rather than the contact
name
Sometimes it is not possible to call
the sender of the SMS text message
received
The system is capable of reading and
saving the last 20 SMS messages
received whilst the mobile phone is
connected to the system. The
messages received in other contexts
are not transferred to the system
Some “special” characters in the SMS
text message received, cannot be
interpreted by the system
Probably, when registering the mobile
phone, the choice to download the
directory was not made or, if your
mobile phone only supports the
management of individual contacts, only
some contacts were downloaded
Some SMS text messages, for example
those sent by a telephone operator,
do not have a telephone number
associated with the sender, therefore
the CALL option cannot be usedIt is possible to delete SMS text messages
saved by the system.
SMS TEXT MESSAGE READER
FUNCTIONS, paragraphs SMS TEXT
MESSAGE MANAGEMENT and DELETING
ALL SMS TEXT MESSAGES
–
To download your mobile phone directory,
refer to the dedicated item in the settings menu
SETTING FUNCTIONS - REGISTERING
YOUR MOBILE PHONE and USER DATA
MANAGEMENT paragraphs
–
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 74

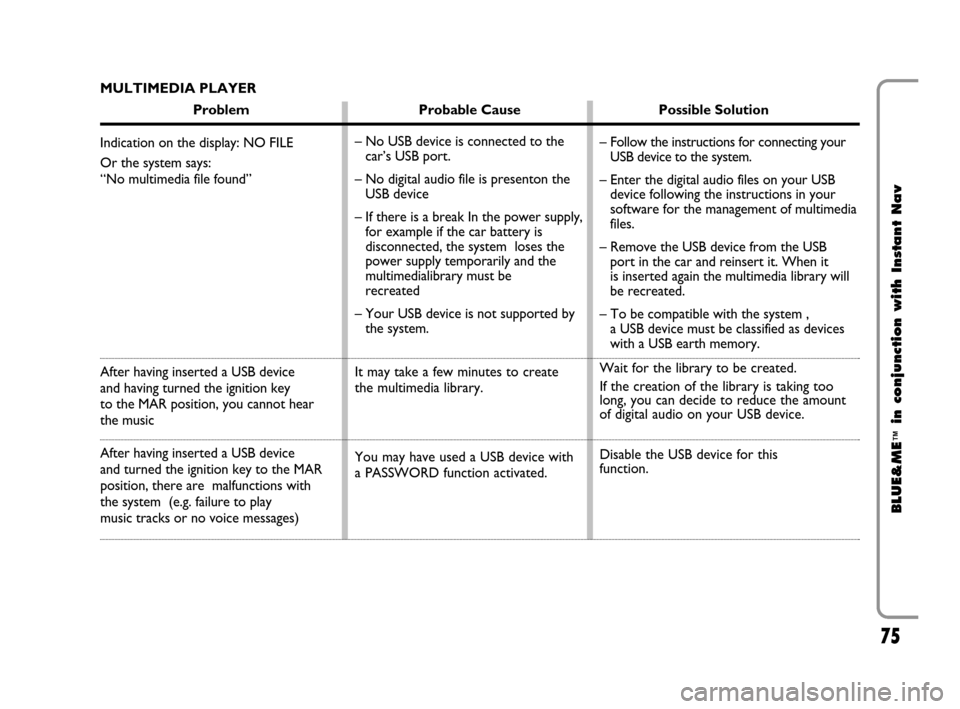

Page 76 of 90
75
BLUE&ME
™
in conjunction with Instant Nav
MULTIMEDIA PLAYER
Problem Probable Cause Possible Solution
Indication on the display: NO FILE
Or the system says:
“No multimedia file found”
After having inserted a USB device
and having turned the ignition key
to the MAR position, you cannot hear
the music
After having inserted a USB device
and turned the ignition key to the MAR
position, there are malfunctions with
the system (e.g. failure to play
music tracks or no voice messages)– No USB device is connected to the
car’s USB port.
– No digital audio file is presenton the
USB device
– If there is a break In the power supply,
for example if the car battery is
disconnected, the system loses the
power supply temporarily and the
multimedialibrary must be
recreated
– Your USB device is not supported by
the system.
It may take a few minutes to create
the multimedia library.
You may have used a USB device with
a PASSWORD function activated.– Follow the instructions for connecting your
USB device to the system.
– Enter the digital audio files on your USB
device following the instructions in your
software for the management of multimedia
files.
– Remove the USB device from the USB
port in the car and reinsert it. When it
is inserted again the multimedia library will
be recreated.
– To be compatible with the system ,
a USB device must be classified as devices
with a USB earth memory.
Wait for the library to be created.
If the creation of the library is taking too
long, you can decide to reduce the amount
of digital audio on your USB device.
Disable the USB device for this
function.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 75

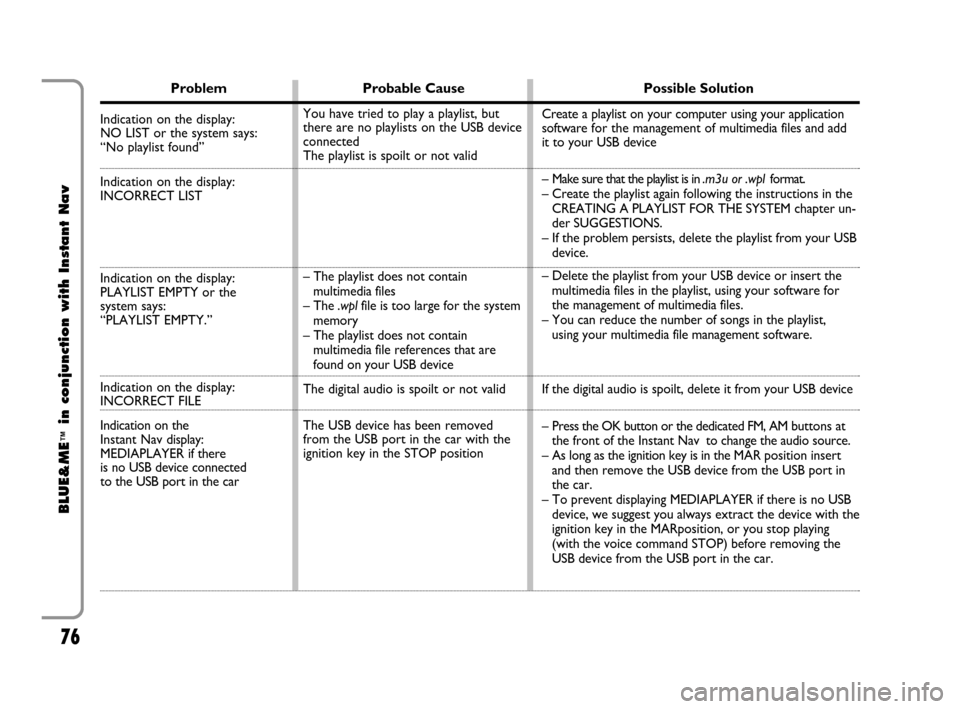

Page 77 of 90
76
BLUE&ME
™
in conjunction with Instant Nav
Problem Probable Cause Possible Solution
Indication on the display:
NO LIST or the system says:
“No playlist found”
Indication on the display:
INCORRECT LIST
Indication on the display:
PLAYLIST EMPTY or the
system says:
“PLAYLIST EMPTY.”
Indication on the display:INCORRECT FILE
Indication on the
Instant Nav display:
MEDIAPLAYER if there
is no USB device connected
to the USB port in the car
Create a playlist on your computer using your application
software for the management of multimedia files and add
it to your USB device
– Make sure that the playlist is in .m3u or .wplformat.
– Create the playlist again following the instructions in the
CREATING A PLAYLIST FOR THE SYSTEM chapter un-
der SUGGESTIONS.
– If the problem persists, delete the playlist from your USB
device.
– Delete the playlist from your USB device or insert the
multimedia files in the playlist, using your software for
the management of multimedia files.
– You can reduce the number of songs in the playlist,
using your multimedia file management software.
If the digital audio is spoilt, delete it from your USB device
– Press the OK button or the dedicated FM, AM buttons at
the front of the Instant Navto change the audio source.
– As long as the ignition key is in the MAR position insert
and then remove the USB device from the USB port in
the car.
– To prevent displaying MEDIAPLAYER if there is no USB
device, we suggest you always extract the device with the
ignition key in the MARposition, or you stop playing
(with the voice command STOP) before removing the
USB device from the USB port in the car. You have tried to play a playlist, but
there are no playlists on the USB device
connected
The playlist is spoilt or not valid
– The playlist does not contain
multimedia files
– The .wplfile is too large for the system
memory
– The playlist does not contain
multimedia file references that are
found on your USB device
The digital audio is spoilt or not valid
The USB device has been removed
from the USB port in the car with the
ignition key in the STOP position
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 76
Page 78 of 90
77
BLUE&ME
™
in conjunction with Instant Nav
Problem Probable Cause Possible Solution
Indication on the display:
PROTECTED
Or the system says:
“Contents protected”.
The system does not play all the
digital audio files in a playlist
The multimedia library does not indicate
all the digital audio files found on my
USB device
After having given a command, the system
says: “Command not available”, even if the
command is a voice command of the first
levelThe audio track that you have chosen
to listen to is protected by DRM and
cannot be played by the multimedia
player
Your playlist probably contains files
protected by DRM, that are not
played; or it contains references to
invalid multimedia files
– Your collection of music tracks
contains files protected by DRM,
which are skipped when playing
– Your collection of music tracks contains
more than 20,000 songs, which is the
maximum amount of files that can be
imported into the library.
– Your collection of music tracks found
on the USB device includes files em-
bedded more than 20 folders deep.
The digital audio files on these embed-
ded folders will not be imported into
the library.
Some commands are not available
whilst the track is paused or whilst the
CD player is playing–
For futher information, see the
“COMPATIBLE USB MEMORY DEVICES”
section
–
–
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 77
Page 79 of 90
78
BLUE&ME
™
in conjunction with Instant Nav
Problem Probable Cause Possible Solution
The same USB memory device
already inserted previously requires
more than 10 seconds to resume
playing on the system
To reset the USB memory device using
Microsoft®Windows®XP, click COMPUTER
RESOURCES in the START menu, right
click the USB memory device, select
PROPERTIES, select INSTRUMENTS, click the
“ScanDisk” button in the “Errors Check” area,
select the option “Correct file system errors
automatically” and click on START.
To avoid this problem in future, remove
the USB device using the “Safe removal of
hardware” option. The USB memory device has been
removed from your PC before it
was ready for this operation
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 78
Page 80 of 90

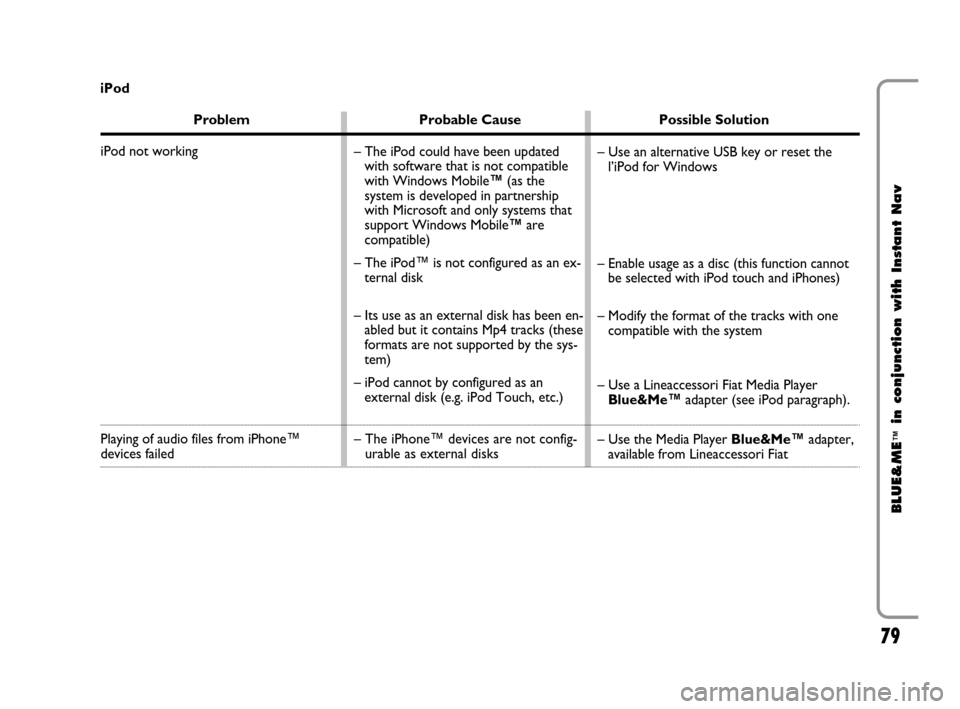

79
BLUE&ME
™
in conjunction with Instant Nav
Problem Probable Cause Possible Solution
iPod not working
Playing of audio files from iPhone™ devices failed – Use an alternative USB key or reset the
l’iPod for Windows
– Enable usage as a disc (this function cannot
be selected with iPod touch and iPhones)
– Modify the format of the tracks with one
compatible with the system
– Use a Lineaccessori Fiat Media Player
Blue&Me™adapter (see iPod paragraph).
– Use the Media Player Blue&Me™adapter,
available from Lineaccessori Fiat – The iPod could have been updated
with software that is not compatible
with Windows Mobile™(as the
system is developed in partnership
with Microsoft and only systems that
support Windows Mobile™are
compatible)
– The iPod™ is not configured as an ex-
ternal disk
– Its use as an external disk has been en-
abled but it contains Mp4 tracks (these
formats are not supported by the sys-
tem)
– iPod cannot by configured as an
external disk (e.g. iPod Touch, etc.)
– The iPhone™ devices are not config-
urable as external disks iPod
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 79
