When topping up take care
not to confuse the various
types of fluids: they are all in-
compatible with one another
and could seriously damage the car.
200
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

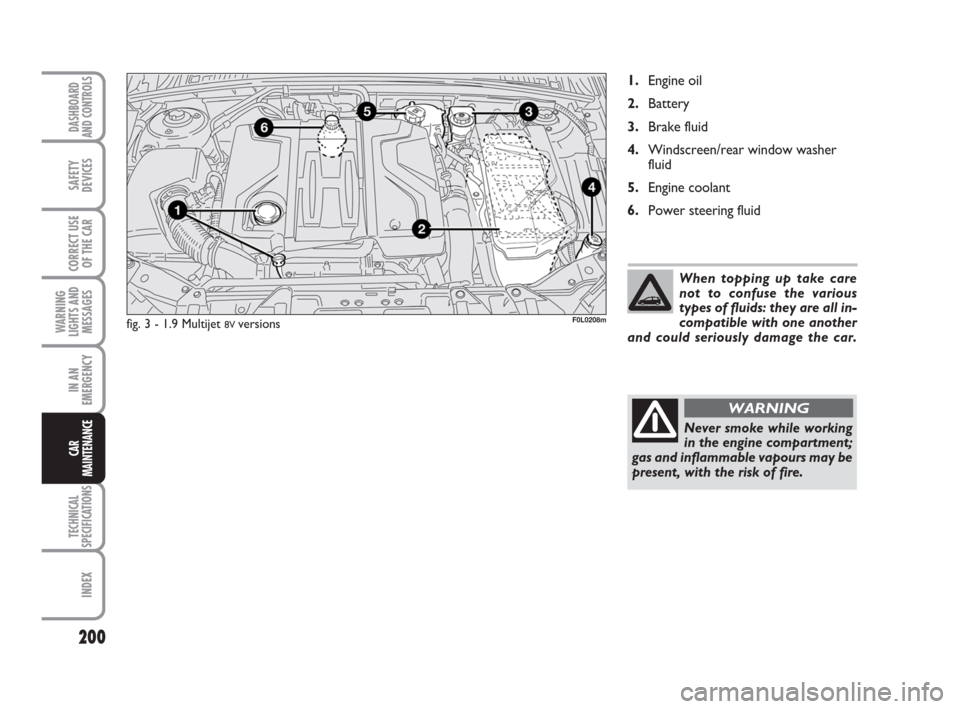

1.Engine oil
2.Battery
3.Brake fluid
4.Windscreen/rear window washer
fluid
5.Engine coolant
6.Power steering fluid
fig. 3 - 1.9 Multijet 8V versionsF0L0208m
Never smoke while working
in the engine compartment;
gas and inflammable vapours may be
present, with the risk of fire.
WARNING
193-216 Croma TRW GB 28-07-2009 12:15 Pagina 200
Page 202 of 258
201
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

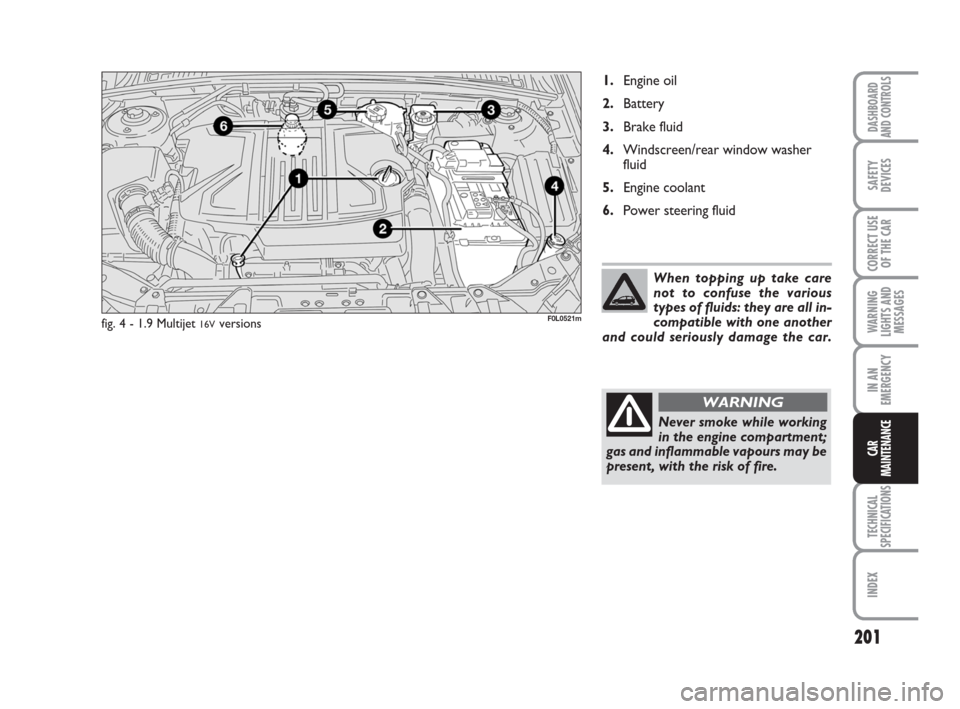

fig. 4 - 1.9 Multijet 16VversionsF0L0521m
When topping up take care
not to confuse the various
types of fluids: they are all in-
compatible with one another
and could seriously damage the car.
Never smoke while working
in the engine compartment;
gas and inflammable vapours may be
present, with the risk of fire.
WARNING
1.Engine oil
2.Battery
3.Brake fluid
4.Windscreen/rear window washer
fluid
5.Engine coolant
6.Power steering fluid
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 201
Page 203 of 258
202
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
1.Engine oil
2.Battery
3.Brake fluid
4.Windscreen/rear window washer
fluid
5.Engine coolant
6.Power steering fluid
fig. 5 - 2.4 Multijet 20VversionsF0L0317m
When topping up take care
not to confuse the various
types of fluids: they are all in-
compatible with one another
and could seriously damage the car.
Never smoke while working
in the engine compartment;
gas and inflammable vapours may be
present, with the risk of fire.
WARNING
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 202
Page 204 of 258
203
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
ENGINE OIL
Checking engine oil
Check the oil level a few minutes (about
5) after the engine has stopped, with the
car parked on level ground.
Remove the dipstick Aand clean it, put
it back in completely, remove it and check
that the level is within the MINand MAX
marks on the dipstick. The gap between
the MIN and MAXmarks corresponds
to about one litre of oil.
Topping up engine oil
If the oil level is near or even below the
MINmark, add oil through the filler neck
B, until reaching the MAXmark.
Oil level shall never exceed the MA mark.IMPORTANT If a routine check reveals
that the oil level is above the MAXmark,
contact Fiat Dealership to have the cor-
rect level restored.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level.
When the engine is hot, take
care when working inside the
engine compartment to avoid burns.
Remember that when the engine is
hot, fan may cut in: danger of injury.
Scarves, ties and other loose cloth-
ing might be pulled by moving parts.
WARNING
fig. 7 - 2.2 versions F0L0198m
fig. 8 - 1.9 Multijet 8V versions F0L0211m
fig. 9 - 1.9 Multijet 16V versions F0L0210m
fig. 10- 2.4 Multijet 20V versions F0L0316m
fig. 6 - 1.8 versions F0L0523m
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 203
Page 205 of 258
204
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
ENGINE COOLANT FLUID fig. 11
The coolant level shall be checked with
cold engine and shall not be lower than
the MINon the reservoir.
If the level is low, pour slowly a mixture
of 50% distilled water and 50%
PARAFLU UPby FL Seleniathrough
the filler neck A.
A 50-50 mixture of PARAFLU UPand
distilled water gives freeze protection to
–35°C.
For particularly hard climate conditions, we
recommend use of a 60% PARAFLU UP
and 40% demineralized water mixture. Used engine oil and filter con-
tain harmful substances for
the environment. Contact Fi-
at Dealership to have the oil
and filter changed.
Engine oil consumption
Max engine oil consumption is usually 400
grams every 1000 km.
When the car is new, the engine needs
to run in, therefore the engine oil con-
sumption can only be considered stabilised
after the first 5000 - 6000 km.
IMPORTANT The oil consumption de-
pends on driving style and the conditions
under which the car is used.
IMPORTANT Do not add oil with speci-
fications other than that already in the en-
gine.fig. 11F0L0194m
The cooling system uses
PARAFLU UP antifreeze. Do
not add fluid having different
specifications from that al-
ready existing. PARAFLU UP cannot be
mixed with other types of fluids. Should
other fluids be added, do not start the
engine and contact Fiat Dealership as
soon as possible.
Do not remove the reservoir
cap when the engine is hot:
you risk scalding yourself.
WARNING
The cooling system is pres-
surised. If necessary, replace
the cap only with another genuine
one, otherwise system efficiency could
be compromised.
WARNING
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 204
Page 206 of 258
205
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
POWER STEERING FLUID fig. 14
1.8 petrol and Multijet versions
Check that the fluid level in the reservoir
is at maximum level.
This operation shall be carried out with
the car on level surface, engine not run-
ning and cold.
Check that the fluid level is at the MAX
mark on the dipstick integral with reser-
voir cap A-fig. 14.
If the fluid level in the reservoir is below
the specified level, contact Fiat Dealership. WINDSCREEN/REAR
WINDOW/HEADLIGHT
WASHER FLUID
To top up, remove the cap A-fig. 12and
then pour a mixture of water and
TUTELA PROFESSIONAL SC 35, in
the following concentrations:
❒30% TUTELA PROFESSIONAL
SC 35 and 70% water in summer;
❒50% TUTELA PROFESSIONAL
SC 35 and 50% water in winter.
In case of temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL
SC 35.
Check level through the reservoir.
Proper dipstick shows the fluid level fig.
13in the windscreen washer reservoir.
fig. 12F0L0192mfig. 13F0L0193m
Do not travel with the wind-
screen washer reservoir
empty. The windscreen washer is fun-
damental for improving visibility.
WARNING
Certain commercial addi-
tives for windscreen washers
are inflammable. The engine com-
partment contains hot components
which may set it on fire.
WARNING
fig. 14 - Multijet -
1.8 petrol versionsF0L0212m
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 205
Page 207 of 258
206
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
BRAKE FLUID fig. 15
Unscrew cap A: check that the fluid level
in the reservoir is at maximum.
Fluid level in the reservoir shall not exceed
the MAXmark.
If fluid has to be added, it is suggested to
use the brake fluid in table "Fluids and lu-
bricants" (see chapter "Technical charac-
teristics").
NOTE Clean accurately the tank cap A
and the surrounding surface. 2.2 versions
Contact Fiat Dealership for topping up or
changing the power steering fluid.
Do not allow the power
steering fluid to touch the
hot parts of the engine: it is inflam-
mable.
WARNING
fig. 15F0L0196m
Make sure that the highly cor-
rosive brake fluid does not drip
onto the paintwork; if it does,
wash it off immediately with
water.
At plug opening, pay maximum attention
in order to prevent any impurities from
entering the tank.
For topping up, always use a funnel with
integrated filter with mesh equal to or
lower than 0.12 mm.
IMPORTANT Brake fluid absorbs mois-
ture, for this reason, if the vehicle is main-
ly used in areas with a high degree of at-
mospheric humidity, the fluid should be
replaced at more frequent intervals than
specified in the “Service schedule”.
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 206
Page 208 of 258
207
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
DIESEL FUEL FILTER
DRAINING THE CONDENSE
(Multijet versions)
AIR FILTER/POLLEN
FILTER
Air cleaner or pollen filter replacement
shall be carried out at a Fiat Dealership.
Brake fluid is poisonous and
highly corrosive. In the event
of accidental contact, wash the parts
involved immediately with neutral
soap and water, then rinse thor-
oughly. Call the doctor immediately
if the fluid is swallowed.
WARNING
0Symbol πon the container
indicates synthetic brake flu-
id, distinguishing it from the mineral
kind. Using mineral fluids irreversibly
damages the special braking system
rubber seals.
WARNING
The presence of water in the
fuel circuit can severely dam-
age the injection system and
make the engine misfire. If the
warning light cturns on, contact a Fi-
at Dealership as soon as possible to
have the bleeding operation carried
out. Should the warning light turn on
after refuelling, water has probably
been poured into the tank: turn the en-
gine off immediately and contact a Fi-
at Dealership.
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 207
Page 209 of 258
CHANGING THE BATTERY
If required, replace the battery with a gen-
uine spare part having the same specifi-
cations.
If a battery with different specifications is
fitted, the service intervals given in the
“Service schedule” in this section will no
longer be valid.
Refer to the instructions provided by the
battery manufacturer.
208
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
fig. 16F0L0191m
BATTERY
The battery is of the “Limited mainte-
nance” type: under normal conditions of
use the electrolyte does not need topping
up with distilled water.
CHECKING THE CHARGE fig. 16
The battery charge may be checked sat-
isfactorily through the inspection slot us-
ing the indicator A (where provided) and
acting according to the colour the indica-
tor shows.
If the battery does not fit a charge and
electrolyte level gauge, the corresponding
operations must be performed by spe-
cialised personnel only.
Refer to the table below or to the label
Bon the battery.
The liquid in the battery is
poisonous and corrosive.
Avoid contact with eyes and skin. Do
not bring naked flames or possible
sources of sparks near to the battery:
risk of fire and explosion.
WARNING
Running the battery with
low fluid level can damage
the battery beyond repair and could
also cause its explosion.
WARNING
Bright white colourTop up electrolyte Contact Fiat Dealership
Dark colour withoutLow charge level Charge the battery
green area in the centre(advisable to contact
Fiat Dealership)
Dark colour with Electrolyte level and charge No action
green area in the centresufficient
IMPORTANT Check the battery charge
once a year, preferably before the begin-
ning to winter, to prevent freezing of the
electrolyte. Perform this inspection more
frequently if the car is mainly used for
short distances or if electrical devices run-
ning with the key off are installed, partic-
ularly after-market.
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 208
Page 210 of 258
209
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
USEFUL ADVICE FOR
LENGTHENING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and length-
en its life, observe the following indica-
tions:
❒when you park the car, ensure the
doors, tailgate and bonnet are closed
properly;
❒the ceiling lights must be off. The car
is however provided with an auto-
matic system for switching off internal
lights;
❒do not keep accessories (e.g.: sound
system, hazard lights, etc.) switched on
for a long time when the engine is not
running;
❒before performing any operation on
the electrical system, disconnect the
battery negative cable;
❒battery terminals shall always be per-
fectly tightened. Incorrect fitting of electrical
and electronic accessories can
seriously damage the car. If af-
ter buying the car, you want
to install electric accessories which re-
quire permanent electric supply
(alarm, free-hand phone kit, etc.) con-
tact Fiat Dealership whose qualified
personnel, in addition to suggesting the
most suitable devices, will evaluate the
overall electric absorption, checking
whether the car electric system is ca-
pable of withstanding the load re-
quired, or whether it should be inte-
grated with a more powerful battery.
Batteries contain substances
that are very harmful for the
environment. You are advised
to have the battery changed
at a Fiat Dealership, which is properly
equipped for disposing of used batter-
ies respecting nature and the law.
If the car is left inactive for
long periods at cold, remove
the battery and store it in a warm
place to prevent freezing.
WARNING
When working on the bat-
tery or near it, always wear
the proper goggles.
WARNINGIMPORTANT A battery which is kept at
a charge of less than 50% (optical indica-
tor with dark colour without green area
in the middle) for any length of time will
be damaged by sulphation leading to a re-
duction in cranking power.
Moreover, this might lead to a higher risk
of the battery electrolyte freezing (this
may even occur at -10°C). If the car is in-
active for a long period of time, refer to
“Car inactivity”, in section “Correct use
of the car”.
If after buying the car, you want to install
electric accessories which require per-
manent electric supply (alarm, etc.) con-
tact Fiat Dealership whose qualified per-
sonnel, in addition to suggesting the most
suitable devices, will evaluate the overall
electric absorption, checking whether the
car’s electric system is capable of with-
standing the load required, or whether it
should be integrated with a more power-
ful battery.
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 209
