FIAT CROMA 2009 2.G Owners Manual

220
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE CODES - BODYWORK VERSIONS
Engine code Body version Body version (**)
1.8939A4000 194AXG1A 08C 194AXG1A 08D
2.2194A1000 194AXA1A 00C 194AXA1A 00D
2.2 a.t.194A1000 194AXA12 01C 194AXA12 01D
1.9 Multijet 8V (with DPF)939A1000 194AXB1B 02C 194AXB1B 02E
1.9 Multijet 8V (without DPF)939A1000 194AXB1B 02D 194AXB1B 02F
1.9 Multijet 8V (with DPF) (*)939A1000 194BXB1B CX 194BXB1B EX
1.9 Multijet 8V (without DPF) (*)939A1000 194BXB1B DX 194BXB1B FX
1.9 Multijet 8V120 HP pur-O2939A1000 194AXB1B 02G -
1.9 Multijet 8V 115 HP (*)939A7000 194AXE1B 06B 194AXE1B 06C
1.9 Multijet 8V115 HP (*) pur-O2939A7000 194AXB1B 06D -
1.9 Multijet 16V (with DPF)939A2000 194AXC1B 03E 194AXC1B 03G
1.9 Multijet 16V (without DPF)939A2000 194AXC1B 03F 194AXC1B 03H
1.9 Multijet 16Va.t. (with DPF)939A2000 194AXC12 04B 194AXC12 04C
1.9 Multijet 16V (with DPF) (*)939A2000 194BXC1B CX 194BXC1B EX
1.9 Multijet 16V (without DPF) (*)939A2000 194BXC12 BX 194BXC1B FX
1.9 Multijet 16V a.t.(with DPF) (*)939A2000 194BXC1B DX 194BXC12 CX
1.9 Multijet16V135 HP (*)939A8000 194AXF1B 07C 194AXF1B 07D
1.9 Multijet16Va.t.135 HP (*)939A8000 194AXF12 09B 194AXF12 09C
2.4 Multijet 20Va.t. (with DPF)939A3000 194AXD12 05B 194AXD12 05B
(*) Versions for specific markets.
(**) Body codes for versions/markets where provided.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 220

221
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE
1.8 2.2 2.2 a.t.
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
939A4000
Otto
4 in line
80.5 x 88.2
1796
10.5 : 1
103
140
6300
175
17.8
3800
BOSCH FQR 8 LEU2
Unleaded
petrol 95 RON
(Specification EN228)194A1000
Otto
4 in line
86 x 94.6
2198
10.0 : 1
108
147
5800
203
20.7
4000
AC DELCO HLR8STEX
Unleaded
petrol 95 RON
(Specification EN228)194A1000
Otto
4 in line
86 x 94.6
2198
10.0 : 1
108
147
5800
203
20.7
4000
AC DELCO HLR8STEX
Unleaded
petrol 95 RON
(Specification EN228)
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 221

222
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Fuel
(*) Versions for specific markets
1.9 Multijet 8V
939A1000
Diesel
4 in line
82 x 90.4
1910
18.0 : 1
88 (85*)
120 (115*)
4000
280
28.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)1.9 Multijet
16V
939A2000
Diesel
4 in line
82 x 90.4
1910
17.5 : 1
110 (100*)
150 (135*)
4000
320
32.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)1.9 Multijet
16Va.t.
939A2000
Diesel
4 in line
82 x 90.4
1910
17.5 : 1
110 (100*)
150 (135*)
4000
320
32.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)2.4 Multijet 20Va.t.
939A3000
Diesel
5 in line
82 x 90.4
2387
17.0 : 1
147
200
4000
400
40.8
2000
Diesel fuel for
motor vehicles
(Specification EN590)
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 222

223
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Multipoint electronic injectionDirect injection with electronically controlled
Multijet “Common Rail”,
turbosupercharger and intercooler
Modifications or repairs to the fuel system that are not carried out properly or do not take the system’s tech-
nical specifications into account can cause malfunctions leading to the risk of fire.
WARNING

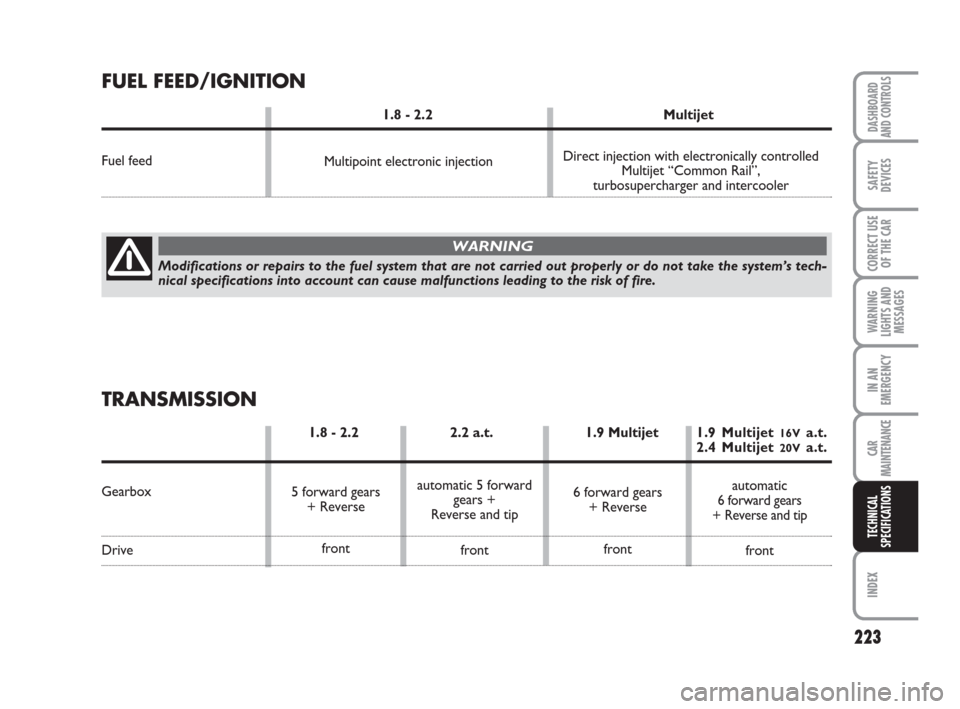

TRANSMISSION
1.8 - 2.2 2.2 a.t. 1.9 Multijet1.9 Multijet 16Va.t.2.4 Multijet 20Va.t.
Gearbox
Drive5 forward gears
+ Reverse
frontautomatic 5 forward
gears +
Reverse and tip
front6 forward gears
+ Reverse
frontautomatic
6 forward gears
+ Reverse and tip
front
FUEL FEED/IGNITION
1.8 - 2.2 Multijet
Fuel feed
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 223

224
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Disc, self-ventilating
Disc, self-ventilating
Controlled by hand lever,
it works on rear brakes

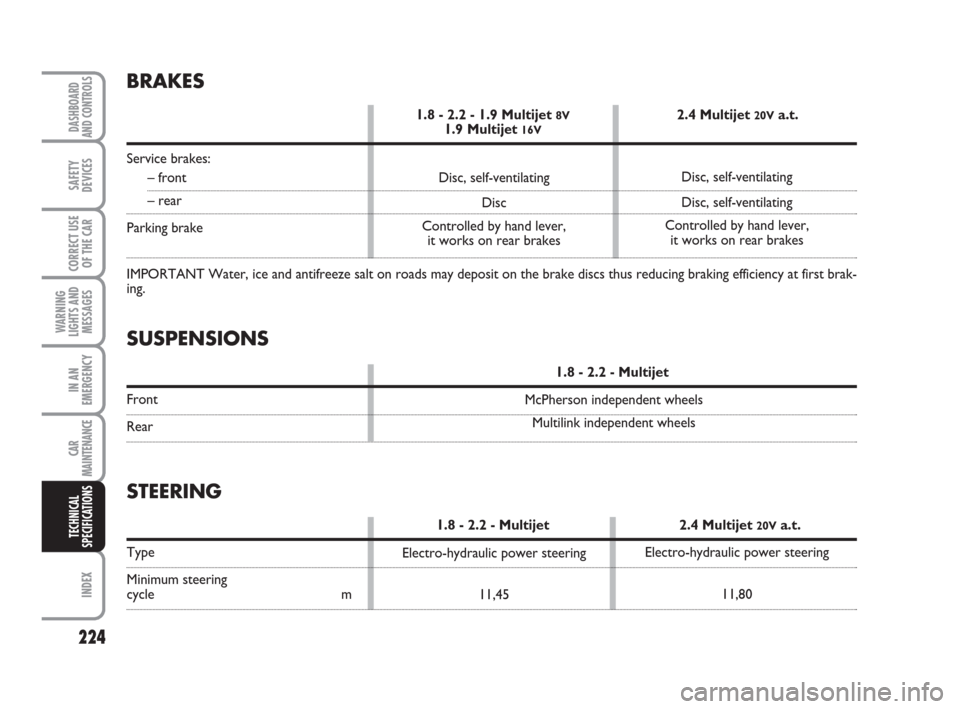

BRAKES
1.8 - 2.2 - 1.9 Multijet 8V2.4 Multijet 20Va.t.1.9 Multijet 16V
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first brak-
ing.
SUSPENSIONS
1.8 - 2.2 - Multijet
Front
RearMcPherson independent wheels
Multilink independent wheels Disc, self-ventilating
Disc
Controlled by hand lever,
it works on rear brakes
STEERING
1.8 - 2.2 - Multijet 2.4 Multijet 20Va.t.
Type
Minimum steering
cycle mElectro-hydraulic power steering
11,45Electro-hydraulic power steering
11,80
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 224

SPACE-SAVER SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
In order to guarantee the correct regula-
tion and stability of the vehicle, please con-
tact the Fiat Assistance Network.

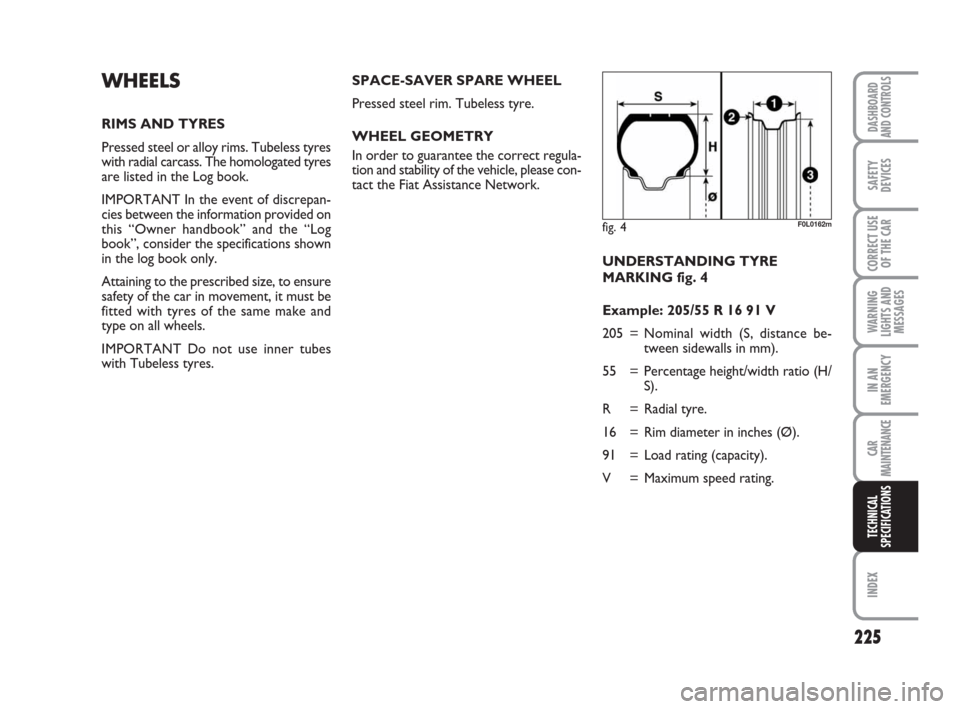

UNDERSTANDING TYRE
MARKING fig. 4
Example: 205/55 R 16 91 V
205 = Nominal width (S, distance be-
tween sidewalls in mm).
55 = Percentage height/width ratio (H/
S).
R = Radial tyre.
16 = Rim diameter in inches (Ø).
91 = Load rating (capacity).
V = Maximum speed rating.WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the car in movement, it must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
225
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
fig. 4F0L0162m
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 225

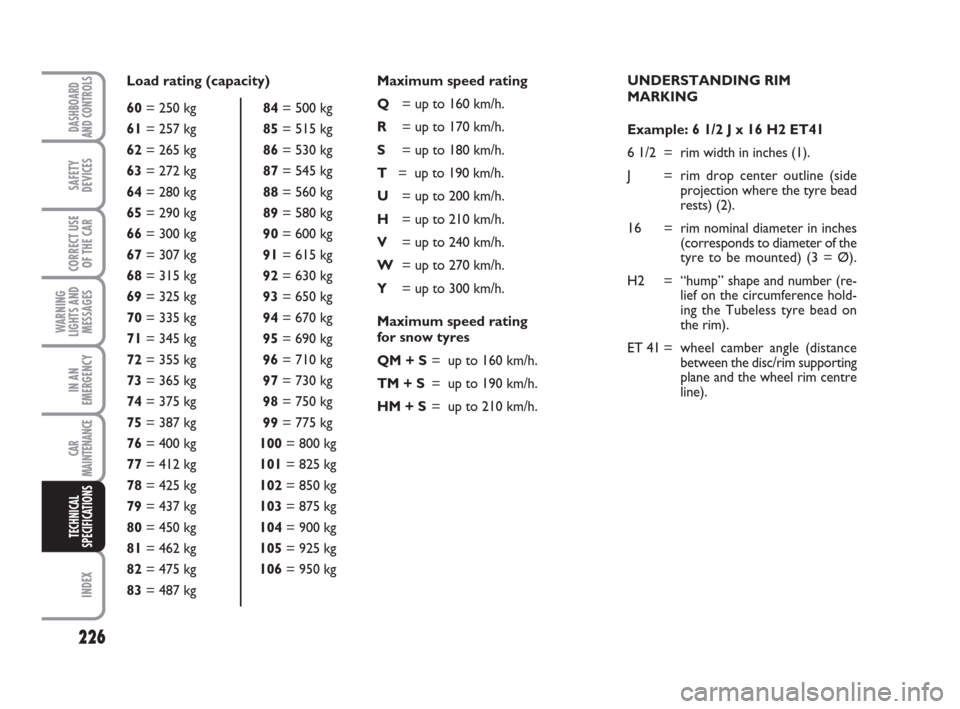

Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.UNDERSTANDING RIM
MARKING
Example: 6 1/2 J x 16 H2 ET41
6 1/2 = rim width in inches (1).
J = rim drop center outline (side
projection where the tyre bead
rests) (2).
16 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3 = Ø).
H2 = “hump” shape and number (re-
lief on the circumference hold-
ing the Tubeless tyre bead on
the rim).
ET 41 = wheel camber angle (distance
between the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86 = 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67 = 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94= 670 kg
71 = 345 kg 95= 690 kg
72= 355 kg 96 = 710 kg
73= 365 kg 97= 730 kg
74 = 375 kg 98= 750 kg
75= 387 kg
99= 775 kg
76 = 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106 = 950 kg
83= 487 kg
226
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 226

227
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

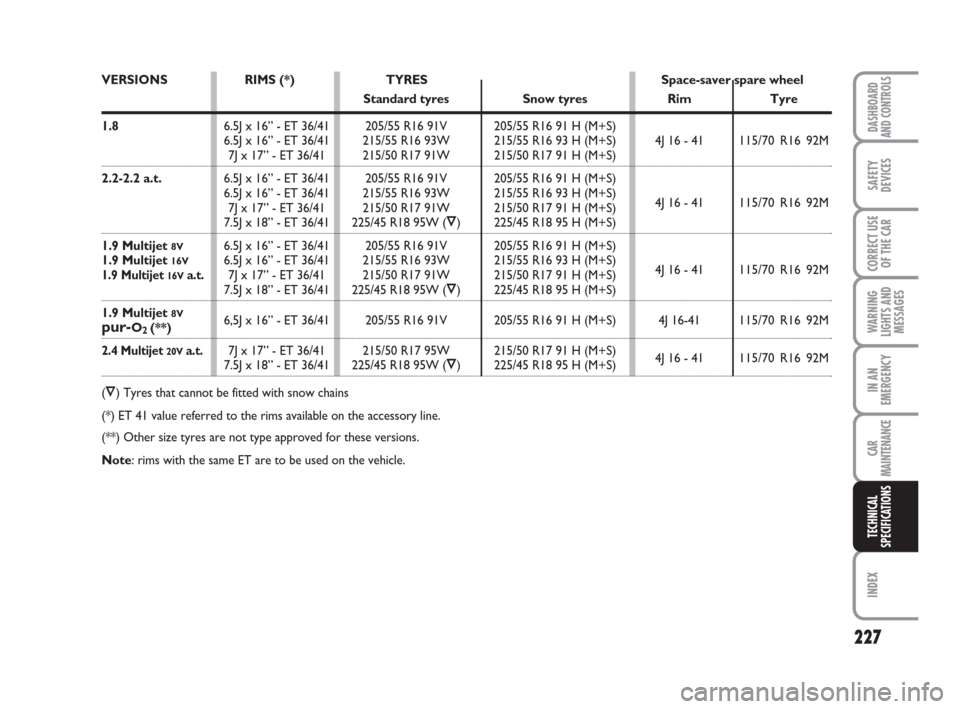

VERSIONS RIMS (*) TYRES Space-saver spare wheel
Standard tyres Snow tyres Rim Tyre
1.86.5J x 16” - ET 36/41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 36/41 215/55 R16 93W 215/55 R16 93 H (M+S) 4J 16 - 41115/70 R16 92M
7J x 17” - ET 36/41 215/50 R17 91W 215/50 R17 91 H (M+S)
2.2-2.2 a.t.6.5J x 16” - ET 36/41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 36/41 215/55 R16 93W 215/55 R16 93 H (M+S)
7J x 17” - ET 36/41 215/50 R17 91W 215/50 R17 91 H (M+S)4J 16 - 41 115/70 R16 92M
7.5J x 18” - ET 36/41 225/45 R18 95W (Ô) 225/45 R18 95 H (M+S)
1.9 Multijet
8V6.5J x 16” - ET 36/41 205/55 R16 91V 205/55 R16 91 H (M+S)
1.9 Multijet 16V6.5J x 16” - ET 36/41 215/55 R16 93W 215/55 R16 93 H (M+S)1.9 Multijet 16Va.t.7J x 17” - ET 36/41 215/50 R17 91W 215/50 R17 91 H (M+S)4J 16 - 41 115/70 R16 92M7.5J x 18” - ET 36/41 225/45 R18 95W (Ô) 225/45 R18 95 H (M+S)
1.9 Multijet
8V6,5J x 16” - ET 36/41 205/55 R16 91V 205/55 R16 91 H (M+S) 4J 16-41115/70 R16 92Mpur-O2 (**)
2.4 Multijet 20Va.t.7J x 17” - ET 36/41 215/50 R17 95W 215/50 R17 91 H (M+S)
4J 16 - 41 115/70 R16 92M7.5J x 18” - ET 36/41 225/45 R18 95W (Ô) 225/45 R18 95 H (M+S)
(Ô) Tyres that cannot be fitted with snow chains
(*) ET 41 value referred to the rims available on the accessory line.
(**) Other size tyres are not type approved for these versions.
Note: rims with the same ET are to be used on the vehicle.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 227

228
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

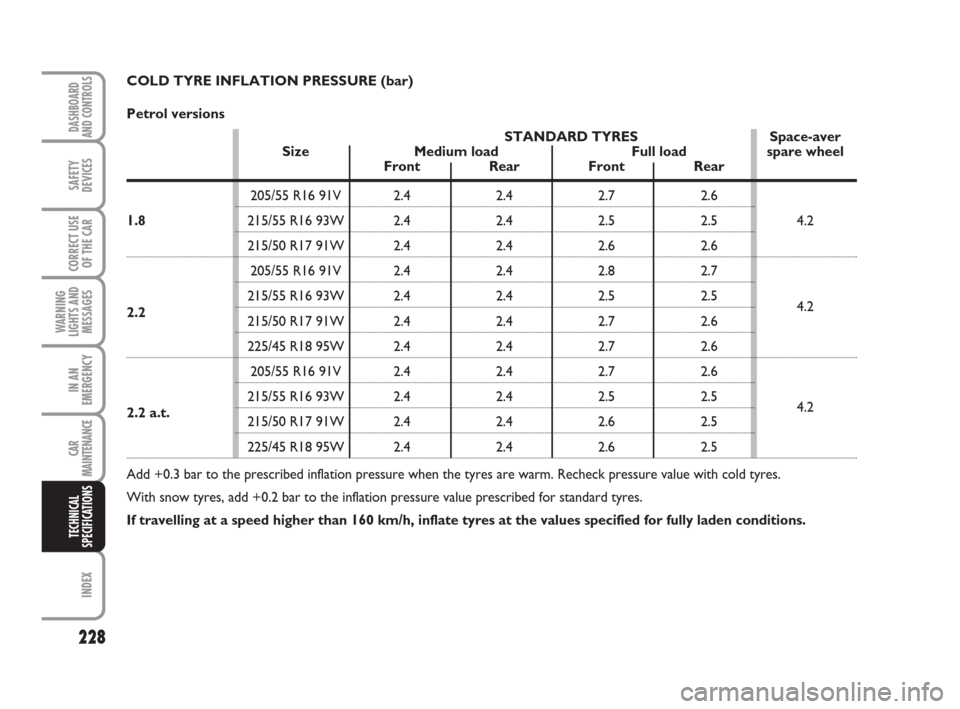

COLD TYRE INFLATION PRESSURE (bar)
Petrol versions
STANDARD TYRES Space-aver
Size Medium load Full load spare wheel
Front Rear Front Rear
205/55 R16 91V 2.4 2.4 2.7 2.6
1.8215/55 R16 93W 2.4 2.4 2.5 2.5 4.2
215/50 R17 91W 2.4 2.4 2.6 2.6
205/55 R16 91V 2.4 2.4 2.8 2.7
215/55 R16 93W 2.4 2.4 2.5 2.5
2.2
215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.7 2.6
205/55 R16 91V 2.4 2.4 2.7 2.6
215/55 R16 93W 2.4 2.4 2.5 2.5
2.2 a.t.
215/50 R17 91W 2.4 2.4 2.6 2.54.2
225/45 R18 95W 2.4 2.4 2.6 2.5
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
If travelling at a speed higher than 160 km/h, inflate tyres at the values specified for fully laden conditions.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 228

229
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

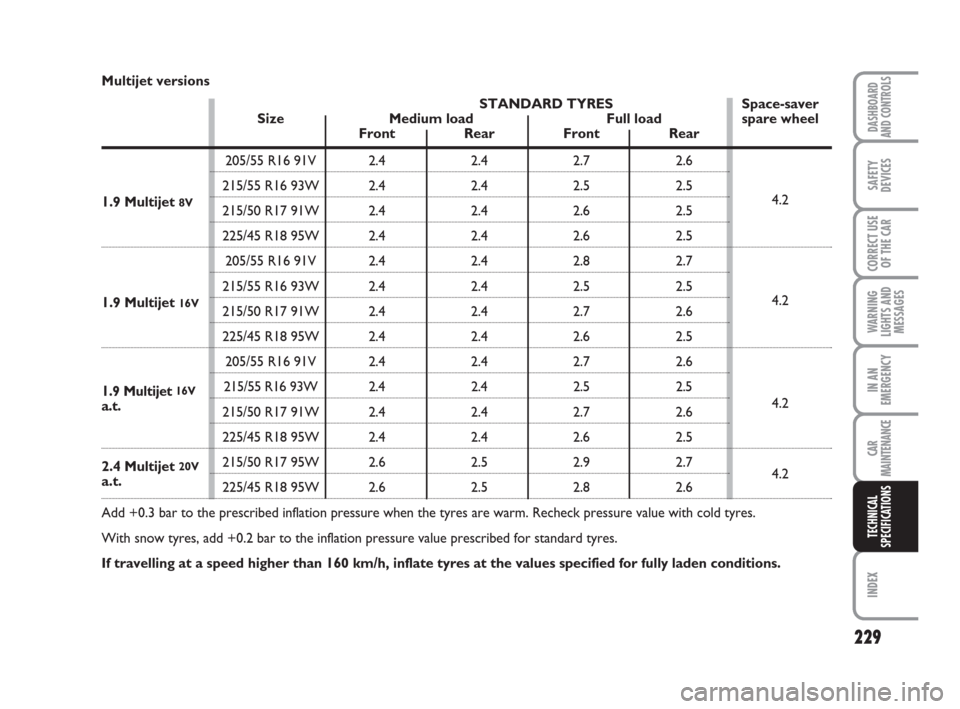

Multijet versions
STANDARD TYRES Space-saver
Size Medium load Full load spare wheel
Front Rear Front Rear
205/55 R16 91V 2.4 2.4 2.7 2.6
215/55 R16 93W 2.4 2.4 2.5 2.5
1.9 Multijet 8V215/50 R17 91W 2.4 2.4 2.6 2.54.2
225/45 R18 95W 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.8 2.7
215/55 R16 93W 2.4 2.4 2.5 2.5
1.9 Multijet 16V215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.7 2.6
1.9 Multijet 16V215/55 R16 93W 2.4 2.4 2.5 2.5
a.t.
215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.6 2.5
2.4 Multijet 20V215/50 R17 95W 2.6 2.5 2.9 2.7
4.2
a.t.
225/45 R18 95W 2.6 2.5 2.8 2.6
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
If travelling at a speed higher than 160 km/h, inflate tyres at the values specified for fully laden conditions.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 229
