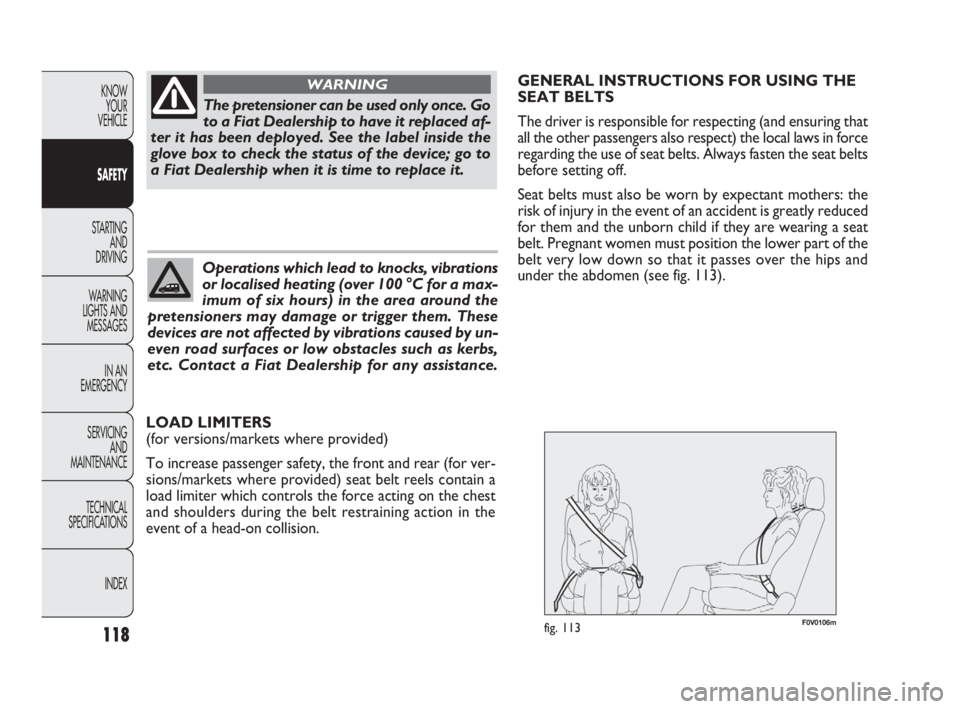

F0V0106mfig. 113118
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
The pretensioner can be used only once. Go
to a Fiat Dealership to have it replaced af-
ter it has been deployed. See the label inside the
glove box to check the status of the device; go to
a Fiat Dealership when it is time to replace it.
WARNING
Operations which lead to knocks, vibrations
or localised heating (over 100 °C for a max-
imum of six hours) in the area around the
pretensioners may damage or trigger them. These
devices are not affected by vibrations caused by un-
even road surfaces or low obstacles such as kerbs,
etc. Contact a Fiat Dealership for any assistance.
GENERAL INSTRUCTIONS FOR USING THE
SEAT BELTS
The driver is responsible for respecting (and ensuring that
all the other passengers also respect) the local laws in force
regarding the use of seat belts. Always fasten the seat belts
before setting off.
Seat belts must also be worn by expectant mothers: the
risk of injury in the event of an accident is greatly reduced
for them and the unborn child if they are wearing a seat
belt. Pregnant women must position the lower part of the
belt very low down so that it passes over the hips and
under the abdomen (see fig. 113).
LOAD LIMITERS
(for versions/markets where provided)
To increase passenger safety, the front and rear (for ver-
sions/markets where provided) seat belt reels contain a
load limiter which controls the force acting on the chest
and shoulders during the belt restraining action in the
event of a head-on collision.
115-132 DOBLO LUM EN 2e 7.0 21-05-2010 11:11 Pagina 118

132
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
If you are having the vehicle scrapped, have the airbag sys-
tem deactivated at a Fiat Dealership first. If the vehicle
changes ownership, the new owner must be informed of
the method of use of the airbags and the above warnings
and also be given this “Owner’s Handbook”.
Pretensioners, front airbags and front side bags are de-
ployed differently according to the type of collision. Non-
deployment of one or more of these devices does not
therefore indicate a system fault.
If the warning light ¬does not turn on
when the key is turned to MAR, or if it
stays on when travelling (together with the mes-
sage on the display on some versions), there could
be a failure in the restraint systems. If this is the
case, the airbags or pretensioners may not trigger
in the event of an accident or, less likely, they may
trigger accidentally. Before continuing your jour-
ney, contact a Fiat Dealership to have the system
checked immediately.
WARNING
The expiry dates of the pyrotechnic
charge and spiral contact are shown on
the label in the glove box. When these dates ap-
proach, go to a Fiat Dealership to have the parts
replaced.
WARNING
Never travel with objects on your lap, in
front of your chest or with a pipe, pencil,
etc. between your lips; serious injury may result
if the airbag is triggered.
WARNING
115-132 DOBLO LUM EN 2e 7.0 21-05-2010 11:11 Pagina 132

196
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
● ●●●●
● ●●●●
● ●●●●
● ●●●●
● ●●●●
●●
● ●●●●
● ●●●●
● ●●●●
●●
● ●●●●
●●
● ●●●●
DIESEL VERSIONS WITH DPF (1.3 Multijet – 1.6 Multijet – 2.0 Multijet)
Thousands of kilometres 35 70 105 140 175
Check tyre conditions/wear and adjust pressure if required
Check lighting system operation
(headlights, direction indicators, hazard lights, boot, passenger compartment,
glove box, instrument panel warning lights, etc.)
Check operation of windscreen wiper/washer system
and adjust nozzles if necessary
Check position/wear of the windscreen wiper blades.
Check condition and wear of front disc brake pads and brake pad wear indicator
Check condition and wear of rear drum brake linings
Visually inspect the conditions of: bodywork,
underbody protection, pipes and tubes
(exhaust – fuel – brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanliness of bonnet and boot locks, as well as cleanliness and
lubrication of linkages
Check and, if necessary, top up fluid levels (brakes/hydraulic clutch,
windscreen washer, battery, engine coolant, etc.)
Check tension of accessory drive belt
(versions without automatic tensioner)
Check the handbrake lever stroke and adjust it, if necessary.
Visually inspect the condition of accessory drive belt(s).
Check exhaust gas emissions/smokiness.
