technical specifications FIAT DUCATO 2010 Owner handbook (in English)

184
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0828mfig. 181
❒If at least 3 bar pressure is read, restore the correct
pressure specified in the paragraph „Inflation
pressure“ in the „Technical Specifications“ section
(with engine running and handbrake on) and restart.
❒drive with the utmost care to the nearest Fiat
Dealership.
You must inform the dealership that the
tyre has been repaired using the quick
tyre repair kit. Hand the leaflet over to the staff
who will be dealing with the the tyre treated
using the tyre repair kit.
WARNING
If different tyres from the ones supplied
with the vehicle are used, the repair
cannot be carried out. If the tyres are replaced,
it is advisable to use those approved by the
manufacturer. Contact a Fiat Dealership .
WARNING
❒Undo the cap for the tyre valve, extract the pipe
C-fig. 181 with the quick connector and connect it
directly to the valve of the tyre to be inflated.
❒Insert the pin in the nearest 12 V power socket and
start the engine.
❒Rotate the selector clockwise to the pressure
renewal position.
❒Activate the kit by pressing the on/off switch. Inflate
the tyre to the pressure specified in the „Inflation
pressure“ paragraph, in the „Technical Data“
chapter.
NOTE If the tyre has to be deflated, press the
dedicated button B illustrated in
fig. 182. For a more accurate reading, it is advisable to
check the pressure reading on the pressure gauge with
the compressor off and without moving the centre
selector from the pressure restoring position.
FOR CHECKING AND RESTORING
PRESSURE ONLY
The compressor can be also used solely for restoring
pressure.
❒Engage the handbrake
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 184

185
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

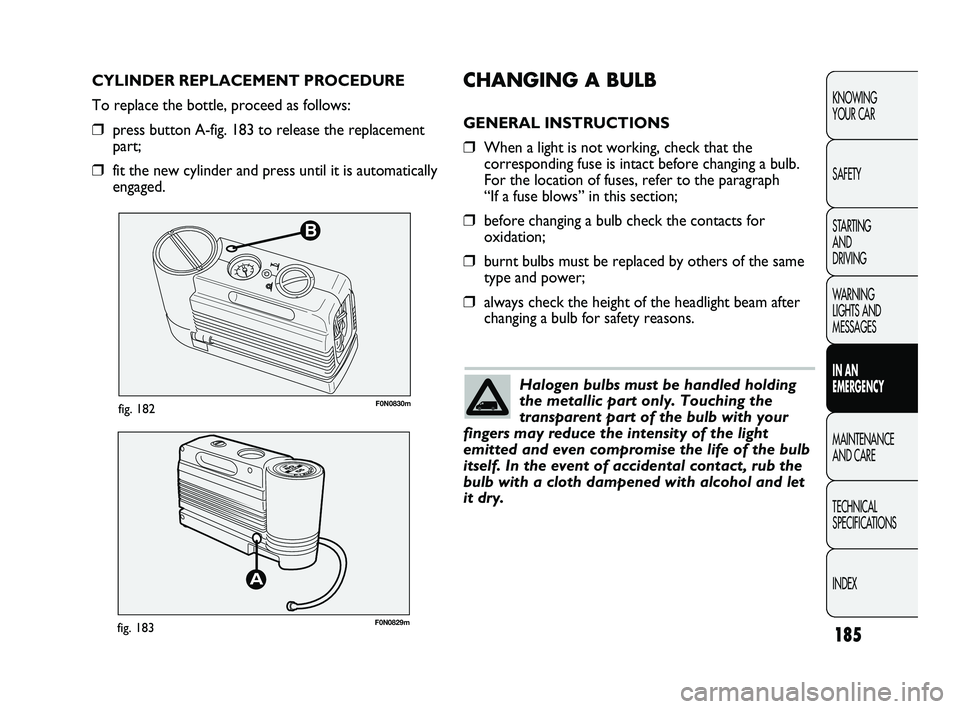

B
F0N0830mfig. 182
F0N0829mfig. 183
CHANGING A BULB
GENERAL INSTRUCTIONS
❒When a light is not working, check that the
corresponding fuse is intact before changing a bulb.
For the location of fuses, refer to the paragraph
“If a fuse blows” in this section;
❒before changing a bulb check the contacts for
oxidation;
❒burnt bulbs must be replaced by others of the same
type and power;
❒always check the height of the headlight beam after
changing a bulb for safety reasons. CYLINDER REPLACEMENT PROCEDURE
To replace the bottle, proceed as follows:
❒press button A-fig. 183 to release the replacement
part;
❒fit the new cylinder and press until it is automatically
engaged.
Halogen bulbs must be handled holding
the metallic part only. Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the light
emitted and even compromise the life of the bulb
itself. In the event of accidental contact, rub the
bulb with a cloth dampened with alcohol and let
it dry.
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 185

186
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0078mfig. 184
Changes or repairs to the electrical
system (electric control units) carried
out incorrectly and without due consideration
for the technical specifications of the system
can lead to malfunctioning and generate a fire
hazard.
WARNING
Halogen lamps contain gas under
pressure. Their breaking can cause
scattering of glass fragments.
WARNING
C Tubular bulbs: release them from their contacts to
remove.
D-E Halogen bulbs: to remove the bulb, release the clip
holding the bulb in place.
IMPORTANT The headlight inner surface might be
slightly misted: this should not be considered irregular
rather a natural phenomenon due to low temperature
and the air humidity level. Misting will disappear as soon
as the headlights are turned on. The presence of drops
inside the headlights indicates infiltration of water.
Contact a Fiat Dealership.

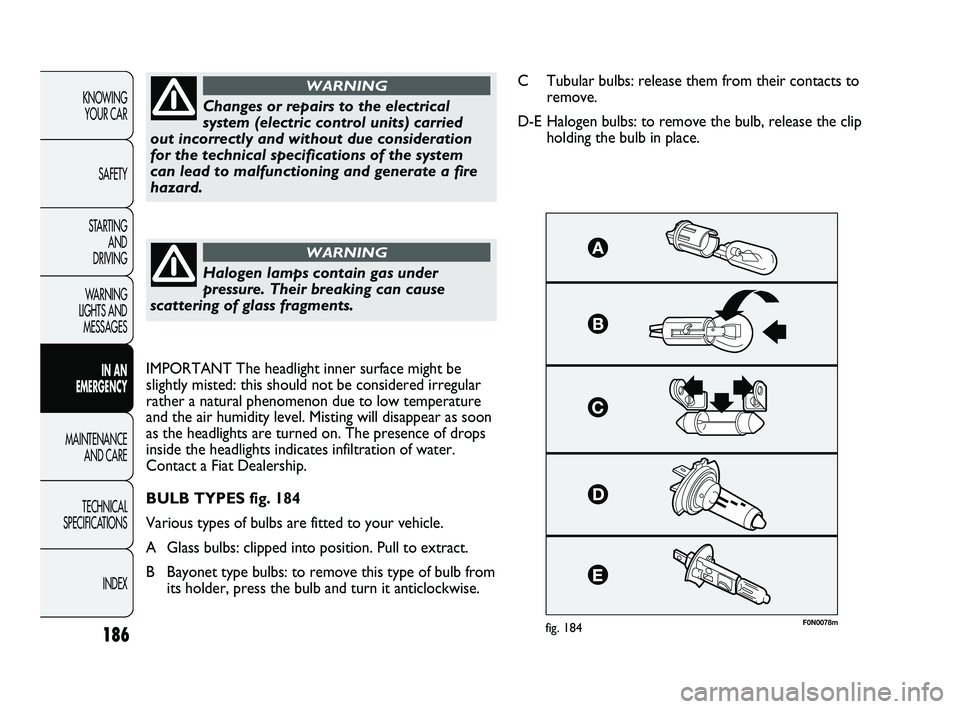

BULB TYPES fig. 184
Various types of bulbs are fitted to your vehicle.
A Glass bulbs: clipped into position. Pull to extract.
B Bayonet type bulbs: to remove this type of bulb from
its holder, press the bulb and turn it anticlockwise.
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 186

187
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
H1
H7
W5W
H1
PY21W
W16WF(*)/WY5W(▼)
PY21W
W5W
P21/5W
P21/5W
P21W
P21W
P21W
P21W
C5W
12V10W
12V10WD
D
A
–
B
A
B
A
B
B
B
–
–
–
A
C
C55W
55W
5W
55W
21W
16W(*)/5W(▼)
21W
5W
5W
5W
21W
21W
21W
21W
5W
10W
10W
(*) XL and recreational versions
(▼) all other versions

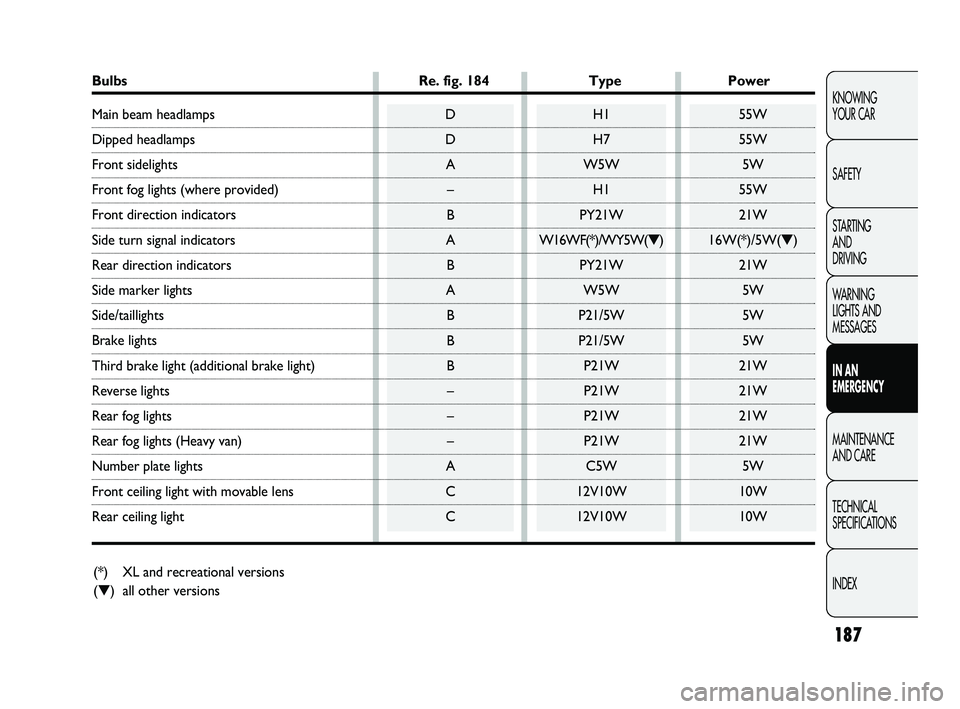

Bulbs Re. fig. 184 Type Power
Main beam headlamps
Dipped headlamps
Front sidelights
Front fog lights (where provided)
Front direction indicators
Side turn signal indicators
Rear direction indicators
Side marker lights
Side/taillights
Brake lights
Third brake light (additional brake light)
Reverse lights
Rear fog lights
Rear fog lights (Heavy van)
Number plate lights
Front ceiling light with movable lens
Rear ceiling light
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 187

188
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0079mfig. 185F0N0080mfig. 186
To replace the main beam bulb, remove plug A-fig. 186.
To replace the dipped beam/side light bulb, remove plug
B-fig. 186.
To replace the direction indicator bulb, remove bulb
holder C-fig. 186.
After replacement, refit the covers correctly, ensuring

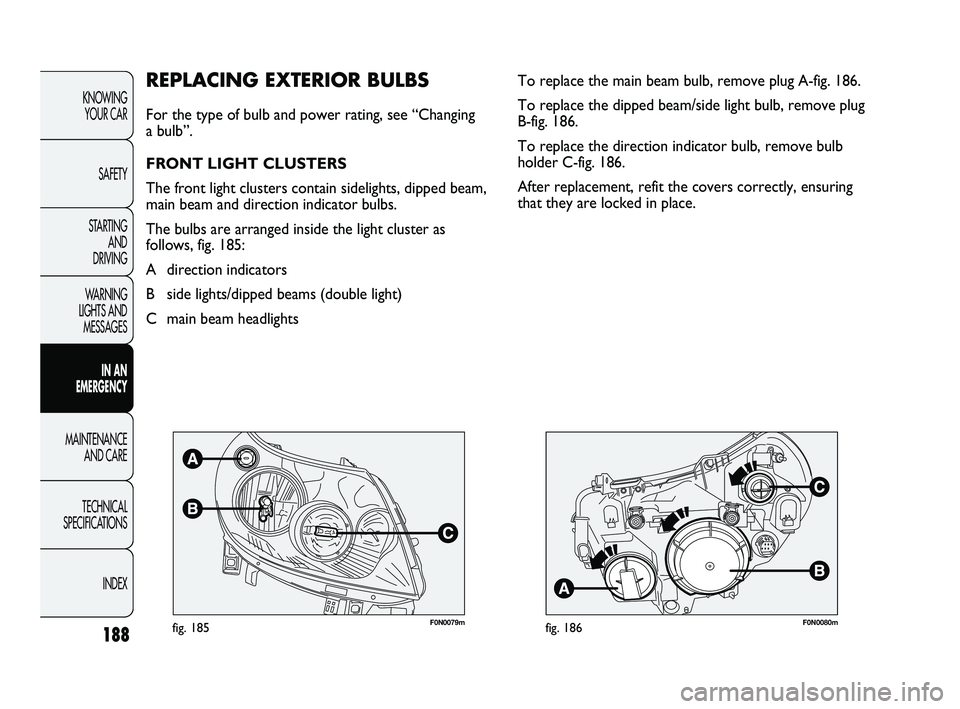

that they are locked in place.REPLACING EXTERIOR BULBS
For the type of bulb and power rating, see “Changing
a bulb”.
FRONT LIGHT CLUSTERS
The front light clusters contain sidelights, dipped beam,
main beam and direction indicator bulbs.
The bulbs are arranged inside the light cluster as
follows, fig. 185:
A direction indicators
B side lights/dipped beams (double light)
C main beam headlights
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 188

189
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0082mfig. 187F0N0083mfig. 188

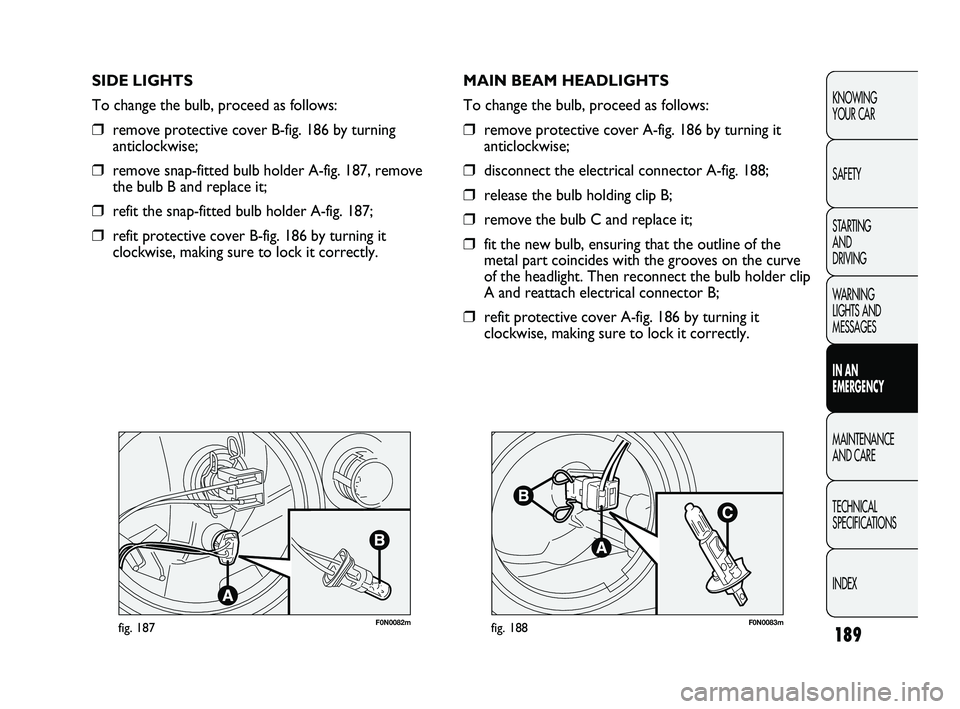

MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove protective cover A-fig. 186 by turning it
anticlockwise;
❒disconnect the electrical connector A-fig. 188;
❒release the bulb holding clip B;
❒remove the bulb C and replace it;
❒fit the new bulb, ensuring that the outline of the
metal part coincides with the grooves on the curve
of the headlight. Then reconnect the bulb holder clip
A and reattach electrical connector B;
❒refit protective cover A-fig. 186 by turning it
clockwise, making sure to lock it correctly. SIDE LIGHTS
To change the bulb, proceed as follows:
❒remove protective cover B-fig. 186 by turning
anticlockwise;
❒remove snap-fitted bulb holder A-fig. 187, remove
the bulb B and replace it;
❒refit the snap-fitted bulb holder A-fig. 187;
❒refit protective cover B-fig. 186 by turning it
clockwise, making sure to lock it correctly.
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 189

190
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0081mfig. 189

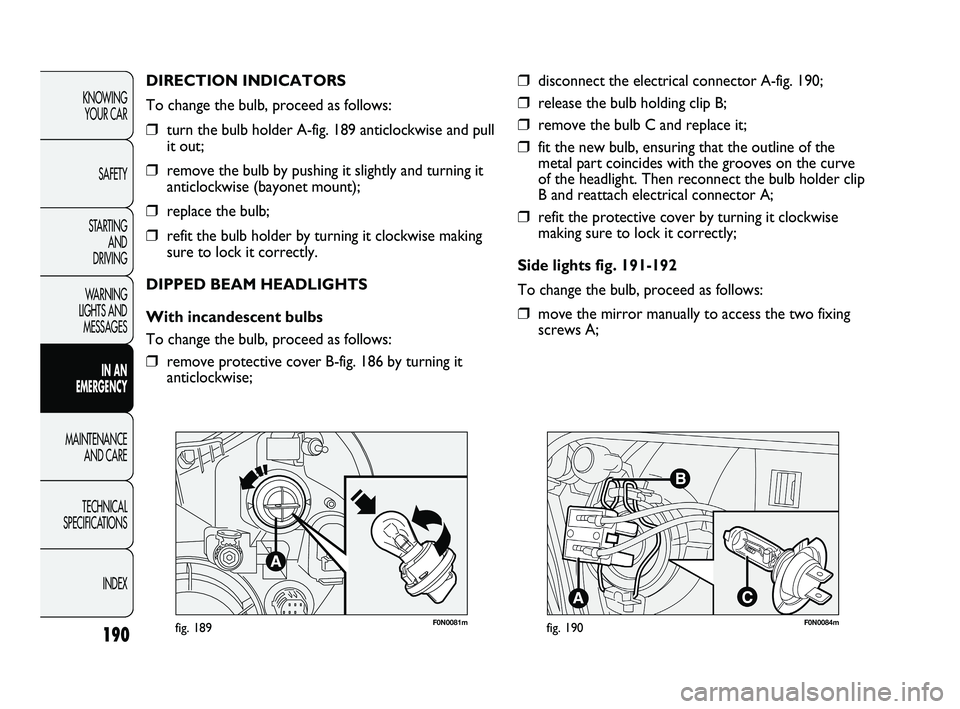

DIRECTION INDICATORS
To change the bulb, proceed as follows:
❒turn the bulb holder A-fig. 189 anticlockwise and pull
it out;
❒remove the bulb by pushing it slightly and turning it
anticlockwise (bayonet mount);
❒replace the bulb;
❒refit the bulb holder by turning it clockwise making
sure to lock it correctly.
DIPPED BEAM HEADLIGHTS
With incandescent bulbs
To change the bulb, proceed as follows:
❒remove protective cover B-fig. 186 by turning it
anticlockwise;
❒disconnect the electrical connector A-fig. 190;
❒release the bulb holding clip B;
❒remove the bulb C and replace it;
❒fit the new bulb, ensuring that the outline of the
metal part coincides with the grooves on the curve
of the headlight. Then reconnect the bulb holder clip
B and reattach electrical connector A;
❒refit the protective cover by turning it clockwise
making sure to lock it correctly;

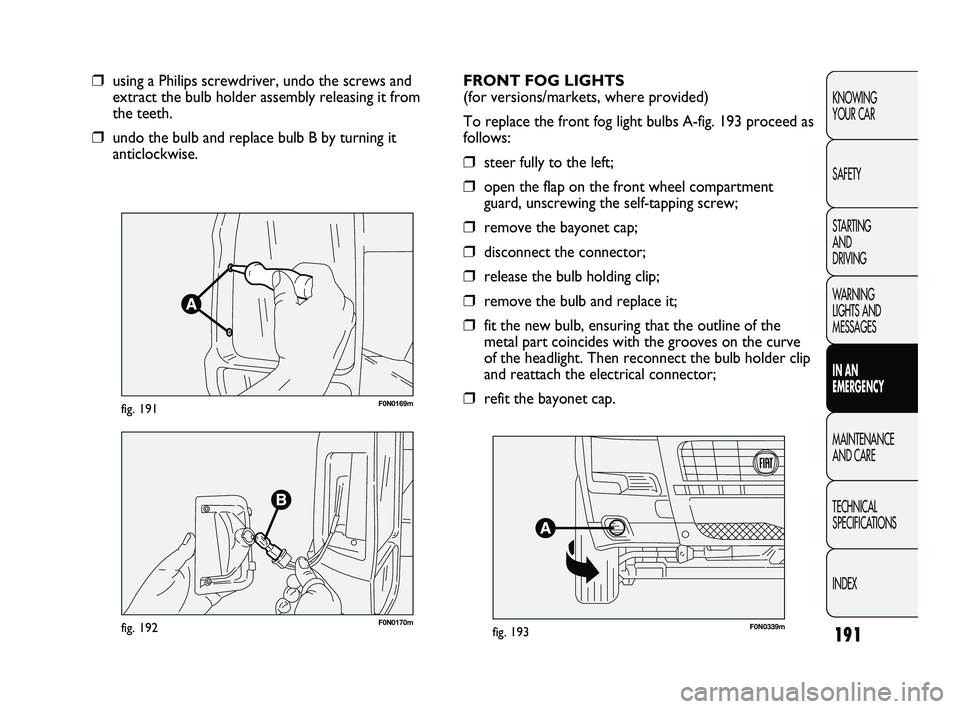

Side lights fig. 191-192
To change the bulb, proceed as follows:
❒move the mirror manually to access the two fixing
screws A;
F0N0084mfig. 190
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 190

191
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0169mfig. 191
❒using a Philips screwdriver, undo the screws and
extract the bulb holder assembly releasing it from
the teeth.
❒undo the bulb and replace bulb B by turning it
anticlockwise.
F0N0170mfig. 192
FRONT FOG LIGHTS
(for versions/markets, where provided)
To replace the front fog light bulbs A-fig. 193 proceed as
follows:
❒steer fully to the left;
❒open the flap on the front wheel compartment
guard, unscrewing the self-tapping screw;
❒remove the bayonet cap;
❒disconnect the connector;
❒release the bulb holding clip;
❒remove the bulb and replace it;
❒fit the new bulb, ensuring that the outline of the
metal part coincides with the grooves on the curve
of the headlight. Then reconnect the bulb holder clip
and reattach the electrical connector;
❒refit the bayonet cap.
F0N0339mfig. 193
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 191

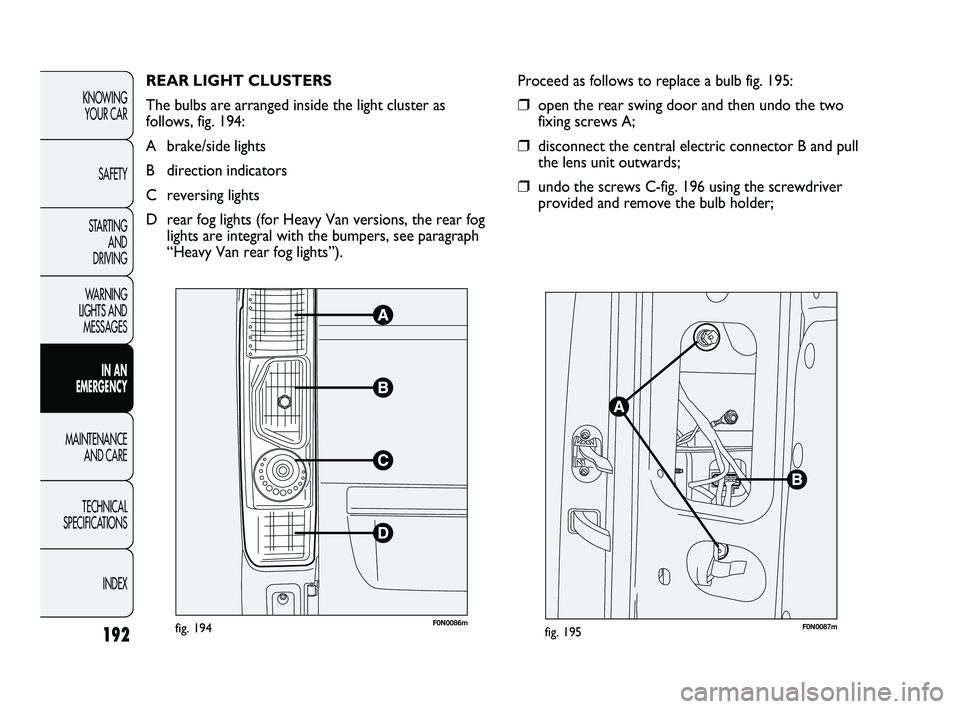

REAR LIGHT CLUSTERS
The bulbs are arranged inside the light cluster as
follows, fig. 194:
A brake/side lights
B direction indicators
C reversing lights
D rear fog lights (for Heavy Van versions, the rear fog
lights are integral with the bumpers, see paragraph
“Heavy Van rear fog lights”).
192
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0086mfig. 194
Proceed as follows to replace a bulb fig. 195:
❒open the rear swing door and then undo the two
fixing screws A;
❒disconnect the central electric connector B and pull
the lens unit outwards;

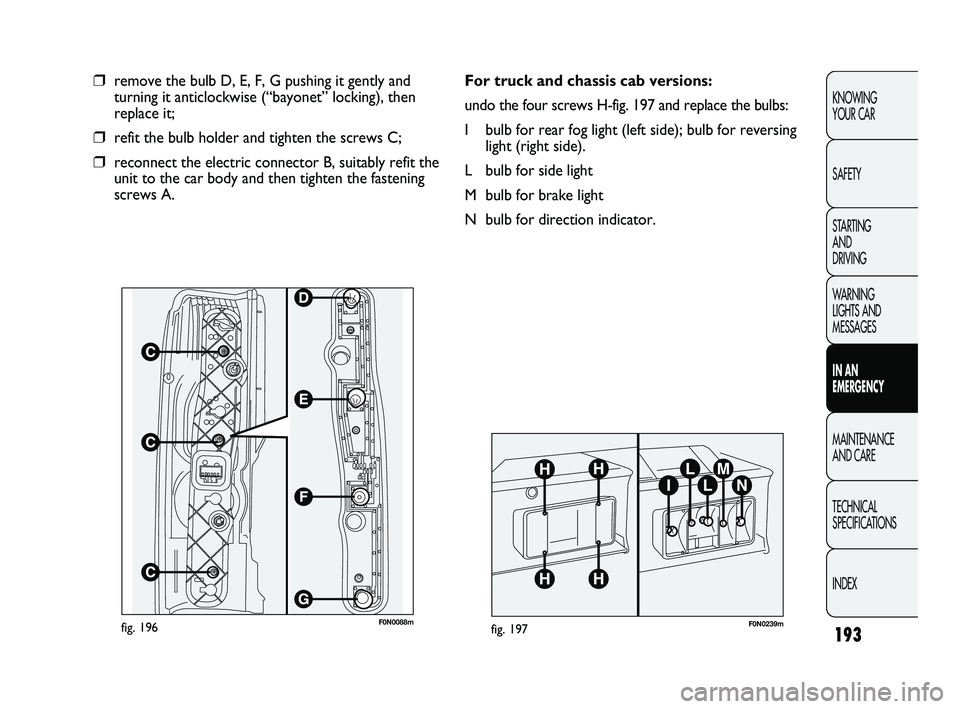

❒undo the screws C-fig. 196 using the screwdriver
provided and remove the bulb holder;
F0N0087mfig. 195
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 192

193
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0088mfig. 196
❒remove the bulb D, E, F, G pushing it gently and
turning it anticlockwise (“bayonet” locking), then
replace it;
❒refit the bulb holder and tighten the screws C;
❒reconnect the electric connector B, suitably refit the
unit to the car body and then tighten the fastening
screws A.
F0N0239mfig. 197
For truck and chassis cab versions:
undo the four screws H-fig. 197 and replace the bulbs:
I bulb for rear fog light (left side); bulb for reversing
light (right side).
L bulb for side light
M bulb for brake light
N bulb for direction indicator.
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 193
