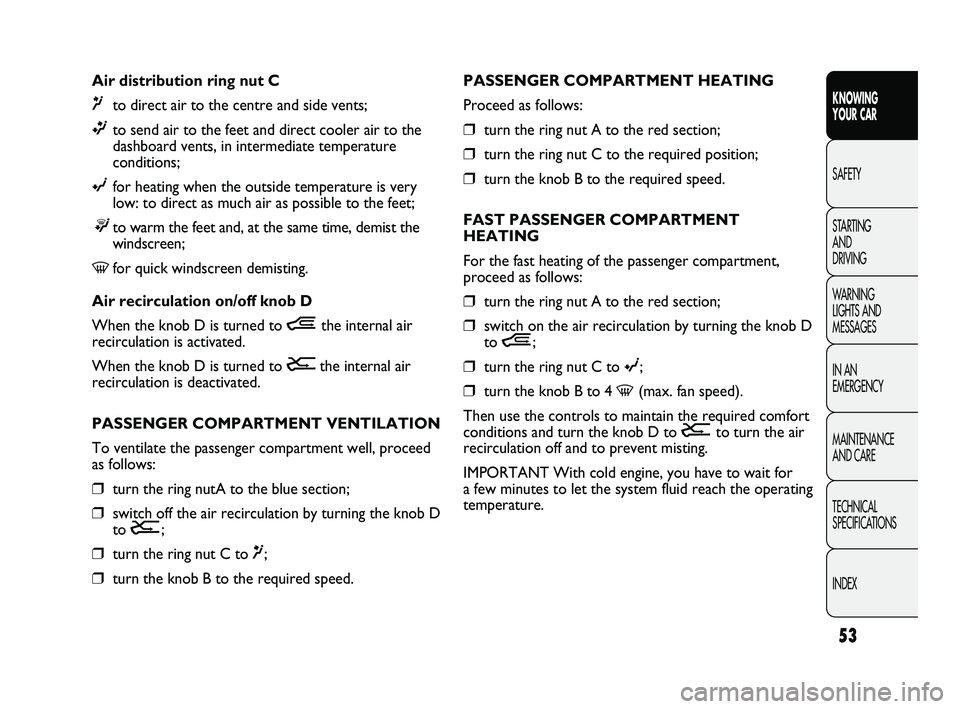

PASSENGER COMPARTMENT HEATING
Proceed as follows:
❒turn the ring nut A to the red section;
❒turn the ring nut C to the required position;
❒turn the knob B to the required speed.
FAST PASSENGER COMPARTMENT
HEATING
For the fast heating of the passenger compartment,
proceed as follows:
❒turn the ring nut A to the red section;
❒switch on the air recirculation by turning the knob D
to
Ò;
❒turn the ring nut C to ©;
❒turn the knob B to 4-(max. fan speed).
Then use the controls to maintain the required comfort
conditions and turn the knob D to
Úto turn the air
recirculation off and to prevent misting.
IMPORTANT With cold engine, you have to wait for
a few minutes to let the system fluid reach the operating
temperature. Air distribution ring nut C
¶to direct air to the centre and side vents;
ßto send air to the feet and direct cooler air to the
dashboard vents, in intermediate temperature
conditions;
©for heating when the outside temperature is very
low: to direct as much air as possible to the feet;
®to warm the feet and, at the same time, demist the
windscreen;
-for quick windscreen demisting.
Air recirculation on/off knob D
When the knob D is turned to
Òthe internal air
recirculation is activated.
When the knob D is turned to
Úthe internal air
recirculation is deactivated.
PASSENGER COMPARTMENT VENTILATION
To ventilate the passenger compartment well, proceed
as follows:
❒turn the ring nutA to the blue section;
❒switch off the air recirculation by turning the knob D
to
Ú;
❒turn the ring nut C to ¶;
❒turn the knob B to the required speed.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 53

54
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0185mfig. 54
Window demisting
In the event of considerable external moisture and/or rain
and/or large differences in temperature inside and outside
the passenger compartment, perform the following
preventive window demisting procedure:
❒turn the ring nut A to the red section;
❒switch off the air recirculation by turning the knob D
to
Ú;
❒turn the ring nut C to -or to ®if the windows
do not demist;
❒turn the knob B to the 2ndspeed.
HEATED REAR WINDSCREEN AND DOOR
MIRRORS DEMISTING/DEFROSTING fig. 55
(for versions/markets where provided)
Press the button A to activate this function; when this
function is on the warning light in the button comes on.
This function is timed and will turn off automatically
after 20 minutes. Press the button A again to switch the
function off.
IMPORTANT Do not apply stickers to the inside of the
rear window over the heating filaments to avoid damage
that might cause it to stop working properly. FRONT WINDOW FAST
DEMISTING/DEFROSTING (WINDSCREEN
AND SIDE WINDOWS)
Proceed as follows:
❒turn the ring nut A to the red section;
❒switch off the air recirculation by turning the knob D
to
Ú;
❒turn the ring nut C to -;
❒turn the knob B to 4 -(max. fan speed).
IMPORTANT To ensure fast demisting/defrosting,
if a supplementary heater is present (under the front or
rear seat for Panorama and Combi versions), if on, turn
off using button F (LED off) located on the control panel
fig. 54.
After demisting/defrosting, operate the controls to
restore the required comfort conditions.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 54

55
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0043mfig. 55

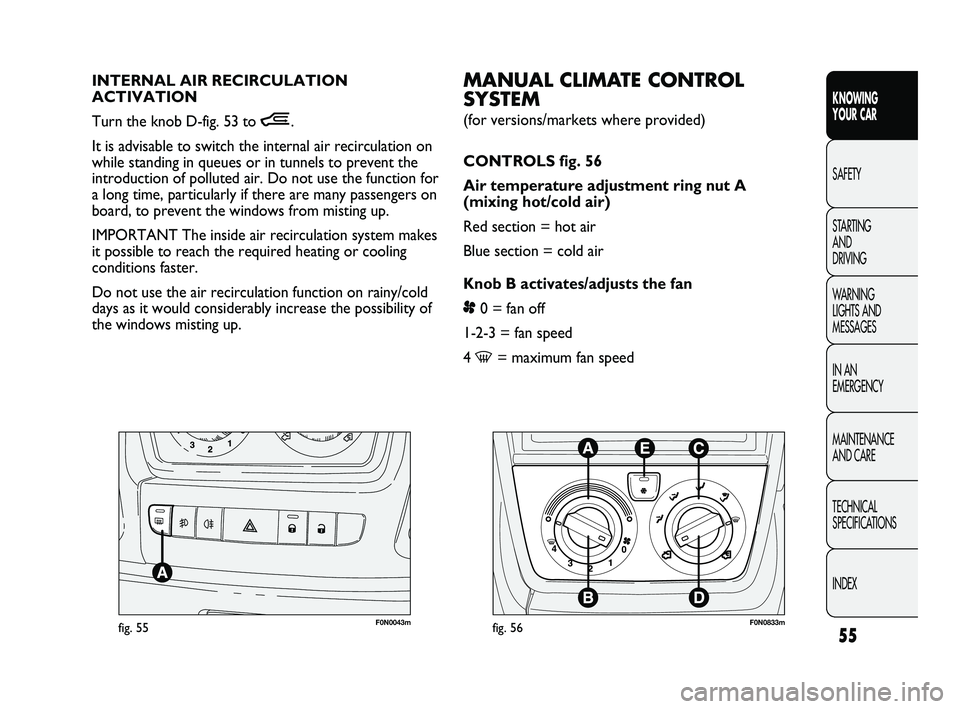

MANUAL CLIMATE CONTROL
SYSTEM
(for versions/markets where provided)
CONTROLS fig. 56
Air temperature adjustment ring nut A
(mixing hot/cold air)
Red section = hot air
Blue section = cold air
Knob B activates/adjusts the fan
p0 = fan off
1-2-3 = fan speed
4
-= maximum fan speed INTERNAL AIR RECIRCULATION
ACTIVATION
Turn the knob D-fig. 53 to
Ò.
It is advisable to switch the internal air recirculation on
while standing in queues or in tunnels to prevent the
introduction of polluted air. Do not use the function for
a long time, particularly if there are many passengers on
board, to prevent the windows from misting up.
IMPORTANT The inside air recirculation system makes
it possible to reach the required heating or cooling
conditions faster.
Do not use the air recirculation function on rainy/cold
days as it would considerably increase the possibility of
the windows misting up.
F0N0833mfig. 56
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 55

56
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

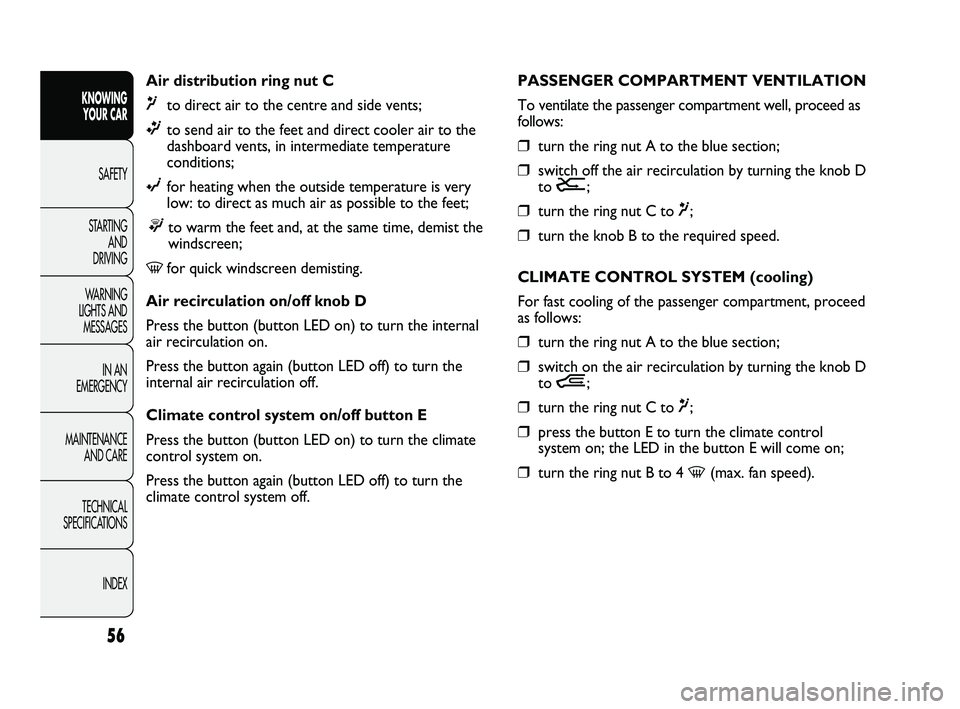

Air distribution ring nut C
¶to direct air to the centre and side vents;
ßto send air to the feet and direct cooler air to the
dashboard vents, in intermediate temperature
conditions;
©for heating when the outside temperature is very
low: to direct as much air as possible to the feet;
®to warm the feet and, at the same time, demist the
windscreen;
-for quick windscreen demisting.
Air recirculation on/off knob D
Press the button (button LED on) to turn the internal
air recirculation on.
Press the button again (button LED off) to turn the
internal air recirculation off.
Climate control system on/off button E
Press the button (button LED on) to turn the climate
control system on.
Press the button again (button LED off) to turn the
climate control system off.PASSENGER COMPARTMENT VENTILATION
To ventilate the passenger compartment well, proceed as
follows:
❒turn the ring nut A to the blue section;
❒switch off the air recirculation by turning the knob D
to
Ú;
❒turn the ring nut C to ¶;
❒turn the knob B to the required speed.
CLIMATE CONTROL SYSTEM (cooling)
For fast cooling of the passenger compartment, proceed
as follows:
❒turn the ring nut A to the blue section;
❒switch on the air recirculation by turning the knob D
to
Ò;
❒turn the ring nut C to ¶;
❒press the button E to turn the climate control
system on; the LED in the button E will come on;
❒turn the ring nut B to 4-(max. fan speed).
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 56

57
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
❒turn the ring nut C to ©;
❒turn the knob B to 4-(max. fan speed).
Then use the controls to maintain the required comfort
conditions and turn the knob D to
Úto turn the
internal air recirculation off (button LED off).
IMPORTANT With cold engine, you have to wait for
a few minutes to let the system fluid reach the operating
temperature.
FRONT WINDOW FAST DEMISTING/
DEFROSTING (WINDSCREEN AND SIDE
WINDOWS)
Proceed as follows:
❒turn the ring nut A to the red section;
❒turn the knob B to 4-(max. fan speed).
❒turn the ring nut C to -;
❒switch off the air recirculation by turning the knob D
to
Ú. Cooling adjustment
❒Turn the ring nut A to the right to increase the
temperature;
❒switch off the air recirculation by turning the knob D
to
Ú;
❒turn the ring nut B to reduce the fan speed.
IMPORTANT When the air conditioner compressor
button E is pressed, the function is only activated if at
least the first fan speed is selected (knob B).

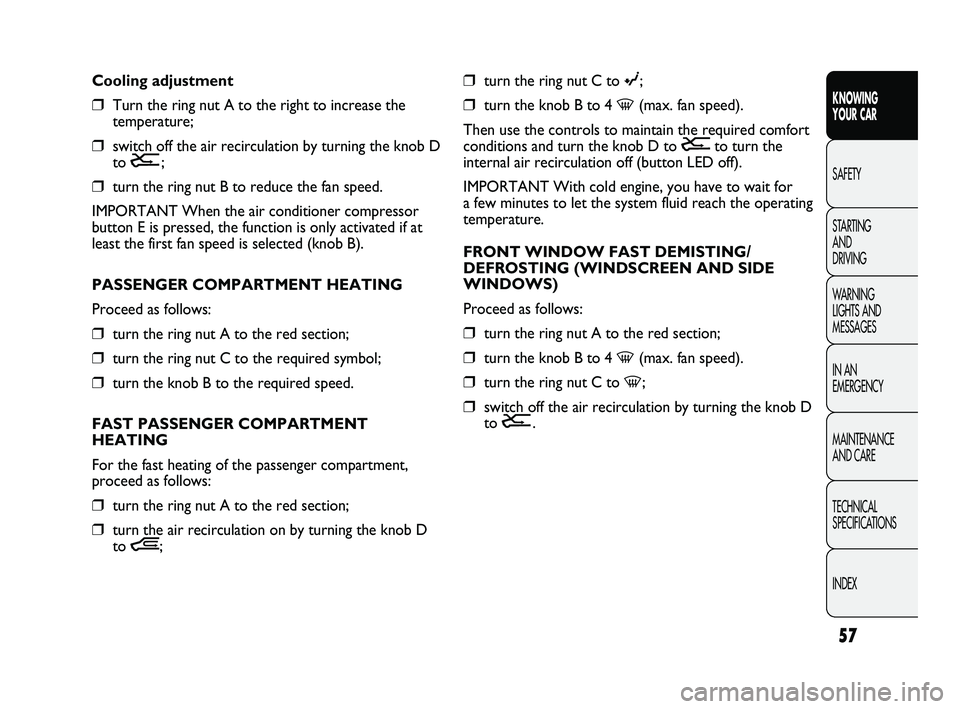

PASSENGER COMPARTMENT HEATING
Proceed as follows:
❒turn the ring nut A to the red section;
❒turn the ring nut C to the required symbol;
❒turn the knob B to the required speed.
FAST PASSENGER COMPARTMENT
HEATING
For the fast heating of the passenger compartment,
proceed as follows:
❒turn the ring nut A to the red section;
❒turn the air recirculation on by turning the knob D
to
Ò;
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 57

58
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0185mfig. 57
Window demisting
In the event of considerable external moisture and/or rain
and/or large differences in temperature inside and outside
the passenger compartment, perform the following
preventive window demisting procedure:
❒turn the ring nut A to the red section;
❒switch off the air recirculation by turning the knob D
to
Ú;
❒turn the ring nut C to -or to ®if the windows
do not demist;
❒turn the knob B to the 2ndspeed.
IMPORTANT The climate control system is very useful
for preventing the windows misting up in presence of
high humidity since it dehumidifies the air introduced

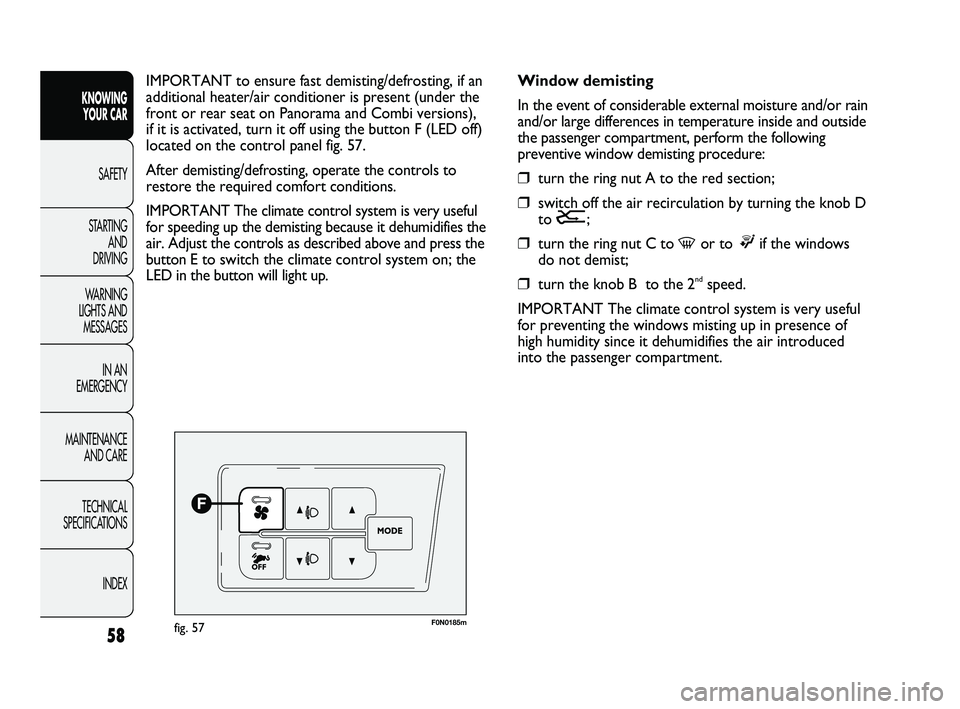

into the passenger compartment. IMPORTANT to ensure fast demisting/defrosting, if an
additional heater/air conditioner is present (under the
front or rear seat on Panorama and Combi versions),
if it is activated, turn it off using the button F (LED off)
located on the control panel fig. 57.
After demisting/defrosting, operate the controls to
restore the required comfort conditions.
IMPORTANT The climate control system is very useful
for speeding up the demisting because it dehumidifies the
air. Adjust the controls as described above and press the
button E to switch the climate control system on; the
LED in the button will light up.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 58

59
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0043mfig. 58
INTERNAL AIR RECIRCULATION
ACTIVATION
Turn the knob D to
Ò.
It is advisable to switch the internal air recirculation on
while standing in queues or in tunnels to prevent the
introduction of polluted air. Do not use the function for
a long time, particularly if there are many passengers on
board, to prevent the windows from misting up.
IMPORTANT The inside air recirculation system makes
it possible to reach the required heating or cooling
conditions faster.
Do not use the air recirculation function on rainy/cold
days as it would considerably increase the possibility of
the windows misting inside.
SYSTEM SERVICING
In winter, the climate control system must be turned on
at least once a month for about 10 minutes. Before
summer, have the system inspected at a Fiat Dealership. HEATED REAR WINDSCREEN AND DOOR
MIRRORS DEMISTING/DEFROSTING fig. 58
(for versions/markets where provided)
Press the button A to activate this function; when this
function is on the warning light in the button comes on.
This function is timed and will turn off automatically
after 20 minutes. Press the button A again to switch the
function off.
IMPORTANT Do not apply stickers on the inside of the
rear window over the heating filaments to avoid damage
that might cause it to stop working properly.
The system uses R134a refrigerant fluid
which does not pollute the environment
in the event of accidental leakage. Under
no circumstances should R12 fluid be used as it is
incompatible with the system components.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 59

60
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
The intake air temperature is always automatically
controlled according to the temperature set on the display
(except for when the system is off or in certain conditions
when the compressor is not running).
The system allows the following parameters and
functions to be set or altered manually: air temperature,
fan speed (continuous variation); air distribution in
seven positions; compressor enablement, fast
defrosting/demisting
function; air recirculation; switching off of the system;
CONTROLS fig. 59
A AUTO button for automatic control of all functions.
B Air distribution selection button.
C Display.
D MAX DEF function control button.AUTOMATIC CLIMATE CONTROL
SYSTEM
(for versions/markets, where provided)
GENERAL INFORMATION
The automatic climate control system adjusts the
temperature, the quantity and the distribution of the air
in the passenger compartment.
The temperature control is based on the “equivalent
temperature”: in other words, the system continuously
works to keep the comfort level inside the vehicle
constant and to compensate for possible variations in
outside conditions, including the sun’s rays detected by
a dedicated sensor. The automatically controlled
parameters and functions are:
❒air temperature at the vents;
❒air distribution at the vents;
❒fan speed (continuous air flow variation);
❒compressor activation (to cool/dehumidify the air);
❒air recirculation.
All functions may be changed manually. In other words,
you may select one or more functions and change the
parameters as required. Automatic control of the
manually changed functions will be suspended: the
system will override your settings only for safety-related
reasons (e.g. risk of misting up). Manual selections will
always take priority over automatic settings and will be
stored until the user switches the system back to
automatic operation by pressing the AUTO button again
expect for the cases in which the system will intervene
for particular, safety-related reasons. You can adjust one
function manually without affecting the automatic
control of the others.
F0N0831mfig. 59
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 60

61
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
E System off button.
F Compressor enabling/disabling button.
G Air recirculation control button.
H Fan speed increase/decrease control buttons.
I Temperature increase/decrease control knob.
USING THE CLIMATE CONTROL SYSTEM
The system can be started in different ways, but it is
advisable to start by pressing the AUTO button and
then turning the knob to set the temperature required
on the display. The system will start running
automatically in this way and the set temperature will be
reached as quickly as possible. The system will adjust
the temperature, the quantity and the distribution of the
air introduced into the passenger compartment and, by
managing the recirculation function, the activation of the
compressor. During fully automatic operation, the only
manual intervention required is the possible activation
of the following functions:
❒Òair recirculation, to keep it always on or off;
❒Zto speed up demisting/defrosting of the front
windows, rear window and door mirrors.During fully automatic system operation, you can change
the set temperature, air distribution and fan speed at
any time by using the relevant buttons or knobs: the
system will automatically change its settings to adjust to
the new requirements. During fully automatic operation
(FULL AUTO), the word FULL will disappear if the air
distribution and/or flow rate and/or engagement of the
compressor and/or recirculation settings are changed.
In this way, the functions will switch from automatic to
manual control until the AUTO button is pressed again.
With one or more functions turned on manually, the
adjustment of the intake air temperature continues to
be managed automatically, except with the compressor
switched off: if this is the case, the temperature of the
air introduced into the passenger compartment cannot
be lower than that of the outside air.
CONTROLS
Air temperature adjustment knob
air (l)
Turn the knob either clockwise or
anticlockwise to increase or lower the
requested temperature in the passenger
compartment.
The temperature set is shown on the display.
Turn the knob either fully to the right or fully to the left
to the extreme HI or LO position to turn the maximum
heating or maximum cooling functions on:
❒HI Function (maximum heating):
select by turning the temperature knob clockwise
beyond the maximum value (32 °C).
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 61

62
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

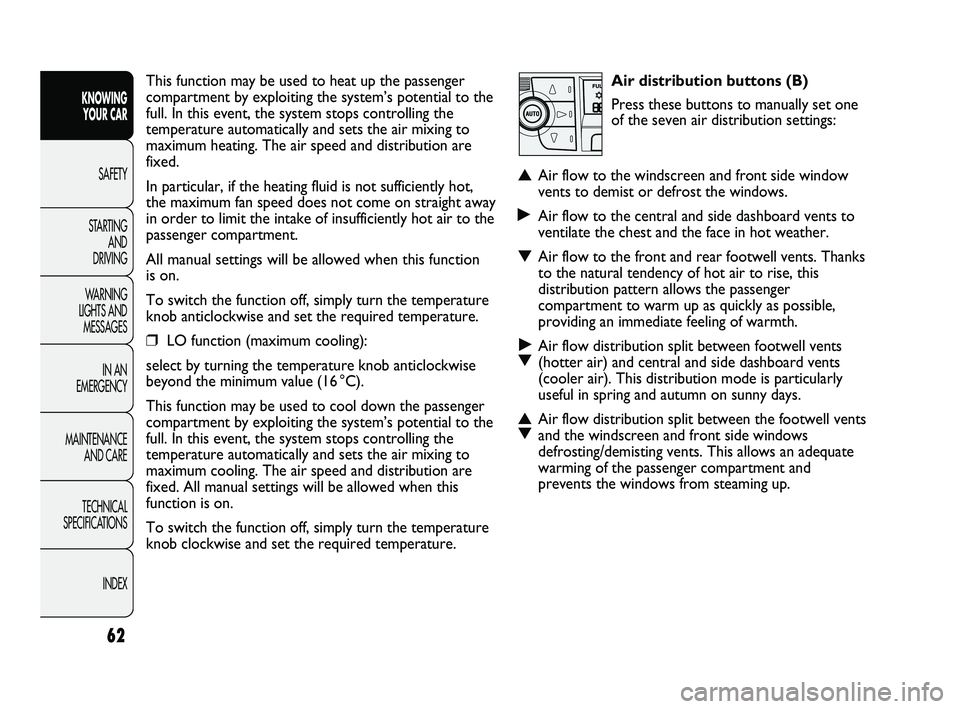

Air distribution buttons (B)
Press these buttons to manually set one
of the seven air distribution settings:
▲Air flow to the windscreen and front side window
vents to demist or defrost the windows.
˙Air flow to the central and side dashboard vents to
ventilate the chest and the face in hot weather.
▼Air flow to the front and rear footwell vents. Thanks
to the natural tendency of hot air to rise, this
distribution pattern allows the passenger
compartment to warm up as quickly as possible,
providing an immediate feeling of warmth.
˙
▼Air flow distribution split between footwell vents
(hotter air) and central and side dashboard vents
(cooler air). This distribution mode is particularly
useful in spring and autumn on sunny days.
▲
▼Air flow distribution split between the footwell vents
and the windscreen and front side windows
defrosting/demisting vents. This allows an adequate
warming of the passenger compartment and
prevents the windows from steaming up.
This function may be used to heat up the passenger
compartment by exploiting the system’s potential to the
full. In this event, the system stops controlling the
temperature automatically and sets the air mixing to
maximum heating. The air speed and distribution are
fixed.
In particular, if the heating fluid is not sufficiently hot,
the maximum fan speed does not come on straight away
in order to limit the intake of insufficiently hot air to the
passenger compartment.
All manual settings will be allowed when this function
is on.
To switch the function off, simply turn the temperature
knob anticlockwise and set the required temperature.
❒LO function (maximum cooling):
select by turning the temperature knob anticlockwise
beyond the minimum value (16 °C).
This function may be used to cool down the passenger
compartment by exploiting the system’s potential to the
full. In this event, the system stops controlling the
temperature automatically and sets the air mixing to
maximum cooling. The air speed and distribution are
fixed. All manual settings will be allowed when this
function is on.
To switch the function off, simply turn the temperature
knob clockwise and set the required temperature.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 62
