technical specifications FIAT DUCATO 2010 Owner handbook (in English)

73
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

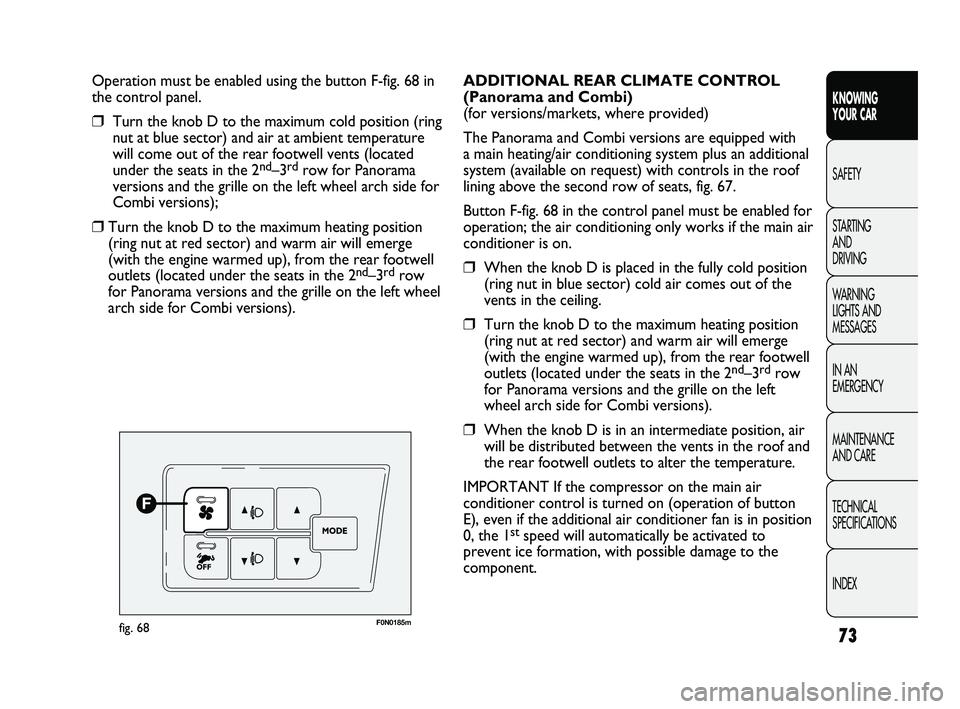

Operation must be enabled using the button F-fig. 68 in
the control panel.
❒Turn the knob D to the maximum cold position (ring
nut at blue sector) and air at ambient temperature
will come out of the rear footwell vents (located
under the seats in the 2
nd–3rdrow for Panorama
versions and the grille on the left wheel arch side for
Combi versions);
❒Turn the knob D to the maximum heating position
(ring nut at red sector) and warm air will emerge
(with the engine warmed up), from the rear footwell
outlets (located under the seats in the 2
nd–3rdrow
for Panorama versions and the grille on the left wheel
arch side for Combi versions).
F0N0185mfig. 68
ADDITIONAL REAR CLIMATE CONTROL
(Panorama and Combi)
(for versions/markets, where provided)
The Panorama and Combi versions are equipped with
a main heating/air conditioning system plus an additional
system (available on request) with controls in the roof
lining above the second row of seats, fig. 67.
Button F-fig. 68 in the control panel must be enabled for
operation; the air conditioning only works if the main air
conditioner is on.
❒When the knob D is placed in the fully cold position
(ring nut in blue sector) cold air comes out of the
vents in the ceiling.
❒Turn the knob D to the maximum heating position
(ring nut at red sector) and warm air will emerge
(with the engine warmed up), from the rear footwell
outlets (located under the seats in the 2
nd–3rdrow
for Panorama versions and the grille on the left
wheel arch side for Combi versions).
❒When the knob D is in an intermediate position, air
will be distributed between the vents in the roof and
the rear footwell outlets to alter the temperature.
IMPORTANT If the compressor on the main air
conditioner control is turned on (operation of button
E), even if the additional air conditioner fan is in position
0, the 1
stspeed will automatically be activated to
prevent ice formation, with possible damage to the
component.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 73

74
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0030mfig. 69F0N0032mfig. 71
F0N0031mfig. 70
MAIN BEAM HEADLIGHTS fig. 72
When the ring nut is in position 2pull the lever towards
the steering wheel (2
ndunstable position).
The warning light 1on the instrument panel will come on.
To turn the main beam headlights off, pull the lever again
towards the steering wheel (the dipped beams will turn
on again).
EXTERNAL LIGHTS
The left lever includes the controls for the exterior
lights.
The exterior lights can only be switched on when the
ignition key is in the ON position.
LIGHTS OFF fig. 69
Ring nut turned to position
O.
SIDE LIGHTS fig. 70
Turn the ring nut to position 6.
The warning light 3on the instrument panel comes on.
DIPPED HEADLIGHTS fig. 71
Turn the ring nut to position 2.
The warning light 3in the instrument panel comes on.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 74

75
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0033mfig. 72
F0N0034mfig. 73
Warning light For Dstart flashing in the instrument
panel.
Direction indicators are switched off automatically when
the steering wheel of the vehicle is straightened. FLASHING fig. 73
Pull the lever towards the steering wheel (1st unstable
position) regardless of the position of the ring nut. The
warning light 1on the instrument panel will come on.
PARKING LIGHTS
These lights can only be turned on with ignition key in
the STOP position or removed, by moving the left lever
ring nut first to
Oand then to 6or 2.
The warning light
3in the instrument panel comes on.
DIRECTION INDICATORS fig. 74
Place the lever in the (stable) position:
❒up (position 1): activation of right direction indicator;
❒down (position 2): activation of left direction
indicator.
F0N0035mfig. 74
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 75

76
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0036mfig. 75
Each time the lever is operated the lights will stay on
another 30 seconds, up to a maximum of 210 seconds;
when this time has elapsed, the lights will go out
automatically.
The warning light 3on the instrument panel will light
up and the corresponding message will appear in the
display (see “Warning lights and messages”) for as long
as the function is activated. The warning light comes on
when the lever is operated and stays on until the
function is automatically deactivated. Each movement of
the lever only increases the amount of time the lights
stay on.
Deactivation
Keep the lever pulled towards the steering wheel for
more than 2 seconds.
AUTOMATIC HEADLIGHT SENSOR
(dusk sensor)
(for versions/markets, where provided)
It detects variations in brightness outside the vehicle
depending on the light sensitivity setting: the greater the
sensitivity, the less outside light needed to activate the
exterior lights being turned on. The sensitivity of the
dusk sensor is adjusted by means of the “Setup menu”
for the display. Lane change function
If you wish to signal a lane change, place the left lever in
the unstable position for less than half a second. The
direction indicator on the side selected will flash five
times and then switch off automatically.
“FOLLOW ME HOME” DEVICE
This device allows the illumination of the space in front
of the vehicle for a preset time.
Activation fig. 75
With the ignition key in the OFF position or extracted,
pull the lever towards the steering wheel and operate
the lever within 2 minutes of switching the engine off.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 76

77
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0037mfig. 76
WINDOW WASHING
WINDSCREEN WASHER/WIPER
The device can operate only when the ignition key is in
the MAR-ON position. There are five different positions
for the right lever fig. 77: Activation fig. 76
Turn the ring nut to position 2A: this turns the side
lights and the dipped headlights on automatically
depending on the exterior brightness conditions.
Deactivation
The main beam headlights will go out followed by the
side lights after approximately
10 seconds, when the sensor is deactivated.
The sensor cannot detect the presence of fog: switch
the lights on manually in this case.
fig. 77F0N0038m
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 77

78
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0039mfig. 78

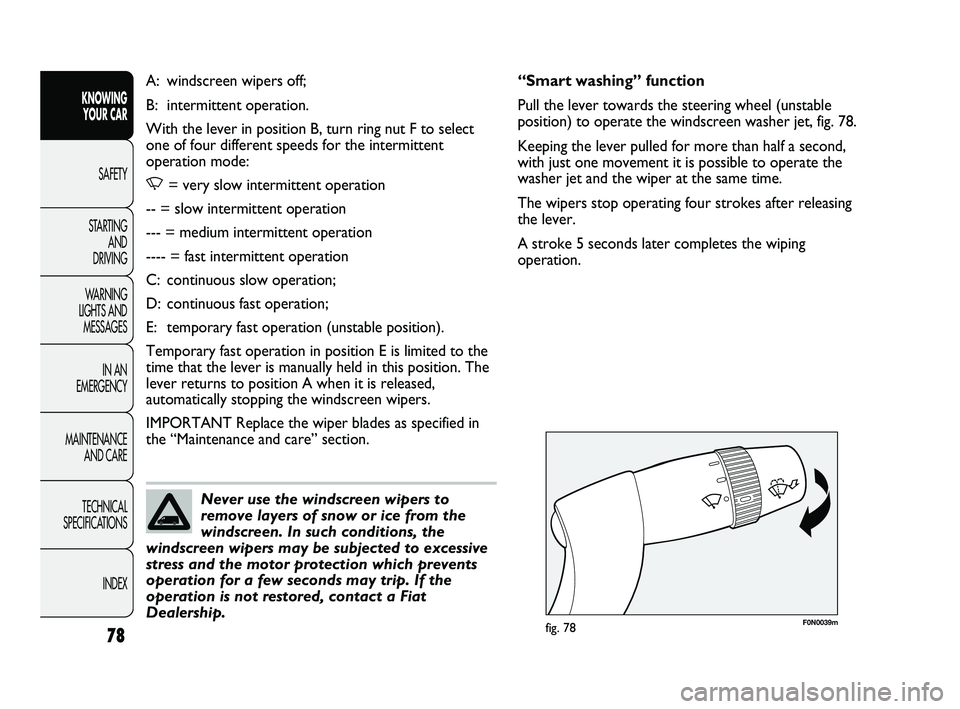

“Smart washing” function
Pull the lever towards the steering wheel (unstable
position) to operate the windscreen washer jet, fig. 78.
Keeping the lever pulled for more than half a second,
with just one movement it is possible to operate the
washer jet and the wiper at the same time.
The wipers stop operating four strokes after releasing
the lever.
A stroke 5 seconds later completes the wiping
operation. A: windscreen wipers off;
B: intermittent operation.
With the lever in position B, turn ring nut F to select
one of four different speeds for the intermittent
operation mode:
,= very slow intermittent operation
-- = slow intermittent operation
--- = medium intermittent operation
---- = fast intermittent operation
C: continuous slow operation;
D: continuous fast operation;
E: temporary fast operation (unstable position).
Temporary fast operation in position E is limited to the
time that the lever is manually held in this position. The
lever returns to position A when it is released,
automatically stopping the windscreen wipers.
IMPORTANT Replace the wiper blades as specified in
the “Maintenance and care” section.
Never use the windscreen wipers to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wipers may be subjected to excessive
stress and the motor protection which prevents
operation for a few seconds may trip. If the
operation is not restored, contact a Fiat
Dealership.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 78

79
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Deactivation fig. 77
Move the lever from position B or turn the ignition key
to OFF. The next time the vehicle is started (ignition
key in ON position), the sensor is not reactivated even
if the lever is still in position B. To activate the sensor,
move the lever to position A or C and then back to
position B or turn the ring nut for adjusting the
sensitivity. Rain sensor activation will be indicated by at
least one wiper “stroke” even if the windscreen is dry.
The rain sensor is capable of recognising the difference
between day and night and making the necessary
adjustments automatically. RAIN SENSOR
(for versions/markets where provided)
The rain sensor is located behind the rear view mirror
in contact with the windscreen and has the purpose of
automatically adjusting the frequency of the windscreen
wiper strokes depending on the intensity of the rain
during intermittent operation.
IMPORTANT Keep the glass in the sensor area clean.
Activation fig. 77
Move the right lever down by one click (position B).
The activation of the sensor is signalled by a “stroke” to
show that the command has been acquired.
Turn the control F to increase the rain sensor
sensitivity.
The increasing of the rain sensor sensitivity is signalled
by a “stroke” to show that the command has been
acquired.
If the windscreen washer is used with the rain sensor
activated, the normal washing cycle is performed, after
which the rain sensor resumes its normal automatic
operation.HEADLIGHT WASHERS
(for versions/markets where provided)
The headlight washers are “retractable”, i.e.: they are
located inside the front bumper and they are activated
when (with dipped beams on) the windscreen washer is
operated.
IMPORTANT Check the correct operation and
cleanliness of the jets at regular intervals.
Streaks of water may cause unnecessary
blade movements.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 79

80
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

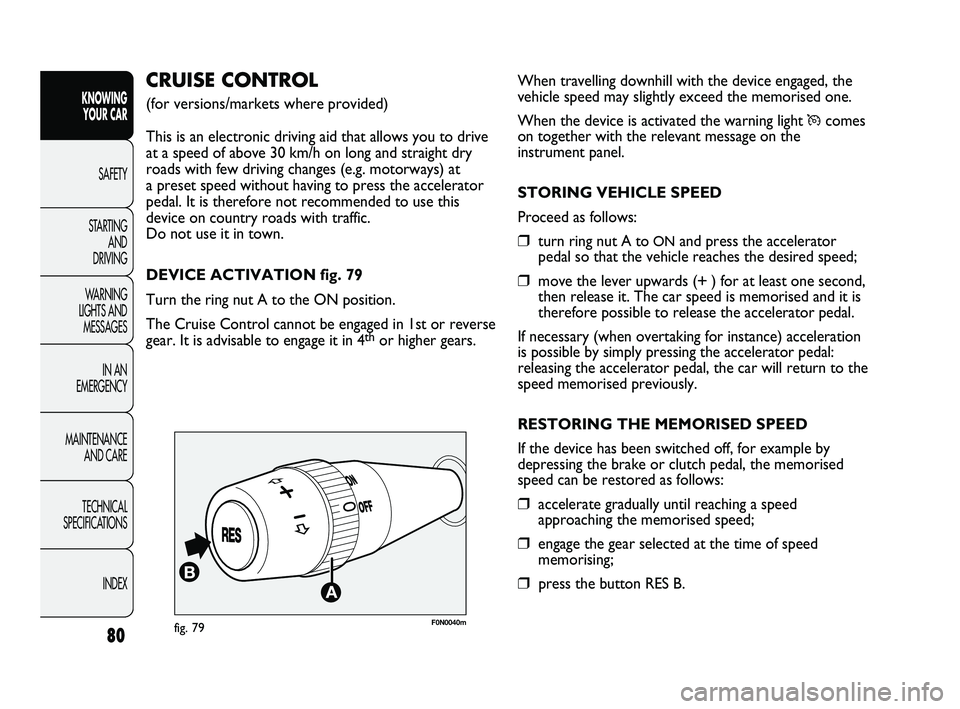

When travelling downhill with the device engaged, the
vehicle speed may slightly exceed the memorised one.
When the device is activated the warning light
Ücomes
on together with the relevant message on the
instrument panel.
STORING VEHICLE SPEED
Proceed as follows:
❒turn ring nut A toONand press the accelerator
pedal so that the vehicle reaches the desired speed;
❒move the lever upwards (+) for at least one second,
then release it. The car speed is memorised and it is
therefore possible to release the accelerator pedal.
If necessary (when overtaking for instance) acceleration
is possible by simply pressing the accelerator pedal:
releasing the accelerator pedal, the car will return to the
speed memorised previously.
RESTORING THE MEMORISED SPEED
If the device has been switched off, for example by
depressing the brake or clutch pedal, the memorised
speed can be restored as follows:
❒accelerate gradually until reaching a speed
approaching the memorised speed;
❒engage the gear selected at the time of speed
memorising;
❒press the button RES B.
F0N0040mfig. 79
CRUISE CONTROL
(for versions/markets where provided)
This is an electronic driving aid that allows you to drive
at a speed of above 30 km/h on long and straight dry
roads with few driving changes (e.g. motorways) at
a preset speed without having to press the accelerator
pedal. It is therefore not recommended to use this
device on country roads with traffic.
Do not use it in town.
DEVICE ACTIVATION fig. 79
Turn the ring nut A to the ON position.
The Cruise Control cannot be engaged in 1st or reverse
gear. It is advisable to engage it in 4
thor higher gears.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 80

81
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

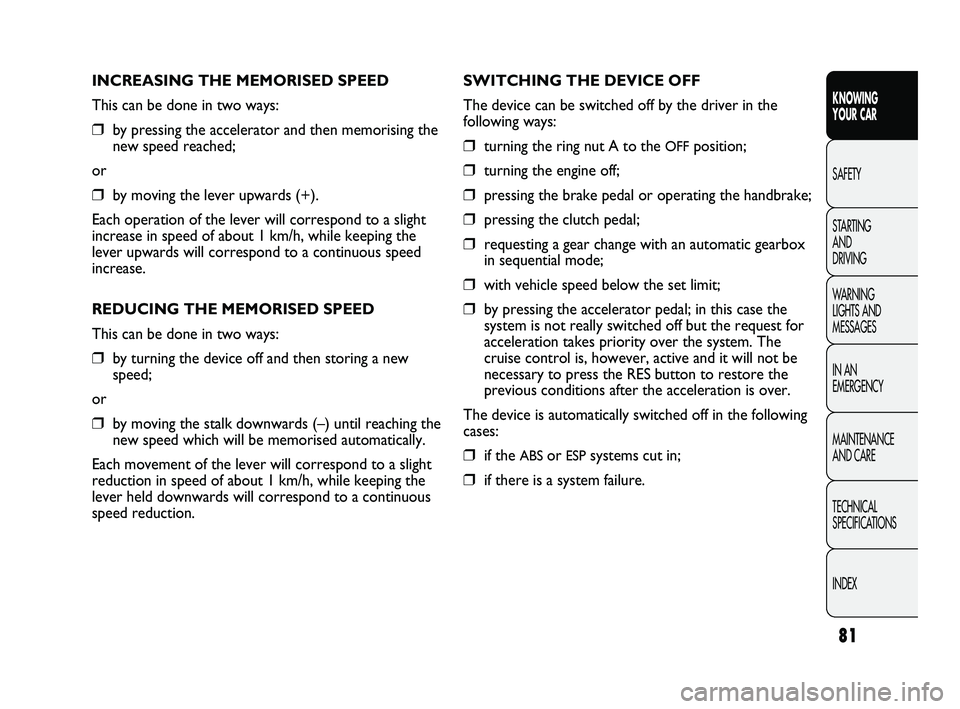

INCREASING THE MEMORISED SPEED
This can be done in two ways:
❒by pressing the accelerator and then memorising the
new speed reached;
or
❒by moving the lever upwards (+).
Each operation of the lever will correspond to a slight
increase in speed of about 1 km/h, while keeping the
lever upwards will correspond to a continuous speed
increase.
REDUCING THE MEMORISED SPEED
This can be done in two ways:
❒by turning the device off and then storing a new
speed;
or
❒by moving the stalk downwards (–) until reaching the
new speed which will be memorised automatically.
Each movement of the lever will correspond to a slight
reduction in speed of about 1 km/h, while keeping the
lever held downwards will correspond to a continuous
speed reduction.SWITCHING THE DEVICE OFF
The device can be switched off by the driver in the
following ways:
❒turning the ring nut A to the OFFposition;
❒turning the engine off;
❒pressing the brake pedal or operating the handbrake;
❒pressing the clutch pedal;
❒requesting a gear change with an automatic gearbox
in sequential mode;
❒with vehicle speed below the set limit;
❒by pressing the accelerator pedal; in this case the
system is not really switched off but the request for
acceleration takes priority over the system. The
cruise control is, however, active and it will not be
necessary to press the RES button to restore the
previous conditions after the acceleration is over.
The device is automatically switched off in the following
cases:
❒if the ABSor ESPsystems cut in;
❒if there is a system failure.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 81

82
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0041mfig. 80

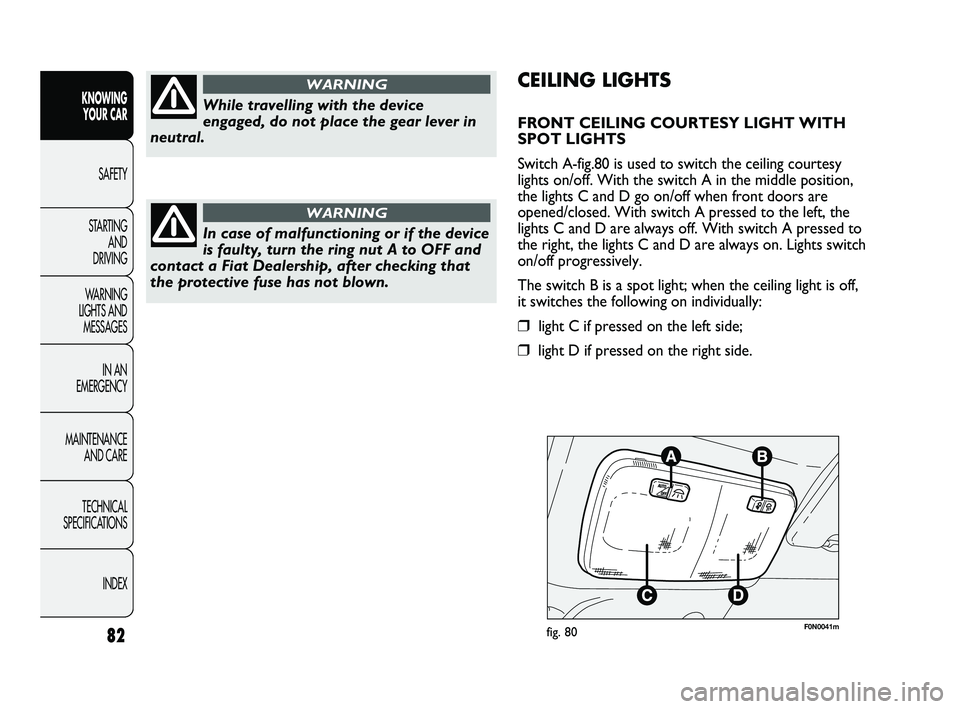

CEILING LIGHTS
FRONT CEILING COURTESY LIGHT WITH
SPOT LIGHTS
Switch A-fig.80 is used to switch the ceiling courtesy
lights on/off. With the switch A in the middle position,
the lights C and D go on/off when front doors are
opened/closed. With switch A pressed to the left, the
lights C and D are always off. With switch A pressed to
the right, the lights C and D are always on. Lights switch
on/off progressively.
The switch B is a spot light; when the ceiling light is off,
it switches the following on individually:
❒light C if pressed on the left side;
❒light D if pressed on the right side.
While travelling with the device
engaged, do not place the gear lever in
neutral.
WARNING
In case of malfunctioning or if the device
is faulty, turn the ring nut A to OFF and
contact a Fiat Dealership, after checking that
the protective fuse has not blown.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 82
