FIAT DUCATO 244 2005 3.G Service Manual 40GETTING TO KNOW YOUR VEHICLE
WATER IN DIESEL
FUEL (amber)
(diesel versions)
When there is water in the diesel fil-
ter. The light should come on when
the ignition key is turned to MAR and
go out a

Page 42 of 258

FIAT DUCATO 244 2005 3.G Service Manual 41GETTING TO KNOW YOUR VEHICLE
CRUISE CONTROL
(green)
When the cruise control is
on (ON button pressed).
GLOW PLUGS
(amber)
(diesel versions)
When the ignition key is turned to
MAR. The light will go

Page 43 of 258

FIAT DUCATO 244 2005 3.G Service Manual 42GETTING TO KNOW YOUR VEHICLE
Height adjustment
To raise the seat: move lever B-
fig. 46 (front seat part) or lever D-fig.
47(rear seat part) upwards and unload
your weight on the seat part to be
rai

Page 44 of 258

FIAT DUCATO 244 2005 3.G Service Manual 43GETTING TO KNOW YOUR VEHICLE
E
fig. 48
F0D0104m
Lumbar adjustment
This feature ensures better back sup-
port.
To adjust, turn the knob E-fig. 48.
Driver’s seat warming
Press button A-fig. 49under

Page 45 of 258

FIAT DUCATO 244 2005 3.G Service Manual 44GETTING TO KNOW YOUR VEHICLE
PANORAMA VERSIONS
Adjusting the reclining
passenger’s seat back
Turn knobA-fig. 52.
Reaching the third row seats
To reach the third row seats from
the side door, use t

Page 46 of 258

FIAT DUCATO 244 2005 3.G Service Manual 45GETTING TO KNOW YOUR VEHICLE
fig. 53
F0D0077m
Tilting the central seat back
(2nd- 3rd)
Pull lever  C-fig. 53upwards and tilt
the seat back forwards.
On the back of the central seat back-
rest there

Page 47 of 258

FIAT DUCATO 244 2005 3.G Service Manual 46GETTING TO KNOW YOUR VEHICLE
Adjusting the seat back angle
Use button A-fig. 56.
Height adjustment
Use button C-fig. 56to raise/low-
er the seat.
Moving the seat backwards
or forwards
Lift lever D-

Page 48 of 258

FIAT DUCATO 244 2005 3.G Service Manual 47GETTING TO KNOW YOUR VEHICLE
Adjusting the armrest
Use the small wheel A-fig. 59.
fig. 61
F0D0229m
fig. 60
F0D0230m
fig. 59
F0D0278m
COMBI VERSIONS
Tilting the bench seat
(last row)
To tilt the las

Page 49 of 258

FIAT DUCATO 244 2005 3.G Service Manual Lift lever A-fig. 62upwards to tilt
the seat back partly forward (fig. 63).
Then remove the head restraints,
take tongue B-fig. 64(behind the seat
back), pull the backrest slightly back-
wards and til

Page 50 of 258

FIAT DUCATO 244 2005 3.G Service Manual 49GETTING TO KNOW YOUR VEHICLE

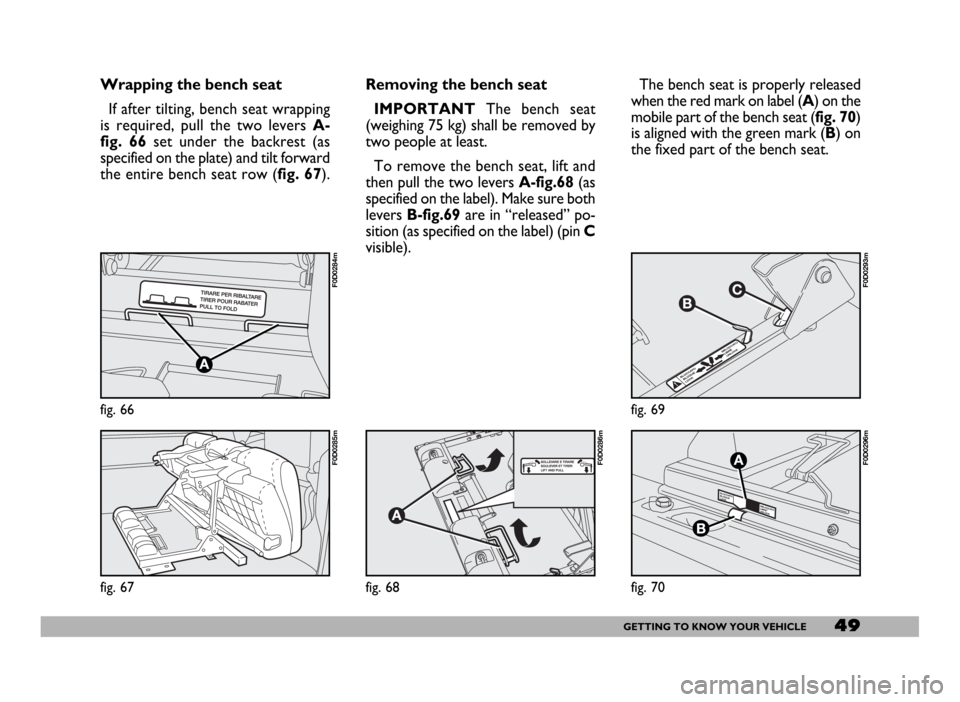

Wrapping the bench seat
If after tilting, bench seat wrapping
is required, pull the two levers A-
fig. 66set under the backrest (as
specified on the plate) and tilt forw
