WARNING
90) If the
warning light does not switch on when the key is turned to MAR-ON or if it stays on when driving (together
with the message on the display), there may be a fault in the restraint systems; in this case, the airbags or
pretensioners may not deploy in the event of an accident or, in a lower number of cases, they could deploy
erroneously. Before continuing, contact a Fiat Dealership immediately to have the system checked.
91) The failure of the
warning light is indicated by the
warning light flashing or, depending on the version, by the
symbol constantly on in the display. In this case, the
warning light may not indicate a fault in the restraint
systems. Before continuing, contact a Fiat Dealership immediately to have the system checked.
92) Deteriorated engine oil must be replaced as soon as possible after the
warning light comes on, and never
more than 500 km after it first switches on. Failure to observe the above indications may result in severe damage
to the engine and invalidate the warranty. Remember that when the warning light comes on, it does not mean that
the level of engine oil is low, so if it flashes you do not need to top up the engine oil.
93) If the
warning light flashes when driving, contact a Fiat Dealership.
127

IMPORTANT
21) If the
warning light switches on when driving, stop the engine immediately and contact an Fiat Dealership.
Warning lights on
panelWhat it means What to do
amberINJECTION/EOBD SYSTEM FAILURE
In normal conditions, when the ignition key is turned to
MAR-ON the warning light switches on, but it should
switch off as soon as the engine is started.
The operation of warning light
may be checked by
the traffic police using specific devices. Comply with the
laws and regulations of the country where you are
driving.
22)
If the warning light stays on or switches on when driving,
it means that the injection system is not working
properly; in particular, if the warning light comes on
constantly, this indicates a malfunction in the supply/
ignition system that could cause excessive exhaust
emissions, a possible loss of performance, poor
driveability and high fuel consumption.
On some versions, the display shows the dedicated
message.
The warning light switches off if the malfunction
disappears, but it is still stored by the system.Under these conditions, you may continue
travelling at a moderate speed without
demanding excessive effort from the
engine. Prolonged use of the car with the
warning light on constantly may cause
damage.
Contact a Fiat Dealership as soon as
possible.
128
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberABS FAILURE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light switches on to indicate a system fault.
In this case the braking system will work as normal, but
without the extra performance offered by the ABS.
The display shows the dedicated message.Drive carefully and contact a Fiat
Dealership as soon as possible.amberFUEL RESERVE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light switches on when there are about
10-12 litres of fuel (for versions with tank capacity
90-120 l) or 10 l (for versions with tank capacity 60 l)
remaining in the tank.
IMPORTANT The warning light will blink to indicate a
system fault. If this is the case, go to a Fiat Dealership to
have the system checked.
129

Warning lights on
panelWhat it means What to do
amberGLOW PLUG HEATING/GLOW PLUG HEATING
FAILURE
Glow plug preheating
This warning light switches on when the key is
turned to MAR-ON. It will switch off as soon as the
glow plugs have reached a preset temperature.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short
time.Start the engine as soon as the warning light
switches off.
Glow plug preheating failure
The warning light flashes if there is a fault in the
preheating system.
On some versions, the display shows the
dedicated message.Contact a Fiat Dealership as soon as possible.
Warning lights on
panelWhat it means What to do
amberWATER IN DIESEL FILTER
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light
switches on when there is
water in the diesel filter.
On some versions, the display shows the
dedicated message.
23)
130
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberVEHICLE PROTECTION SYSTEM FAILURE -
FIAT CODE
When the key is turned to MAR-ON the warning
light will flash only once and then switch off.
When the warning light comes on constantly, with
key at MAR-ON, this indicates:
❒a potential failure (refer to "The Fiat CODE
system" in the chapter "Knowing your vehicle").
❒a possible break-in attempt with an alarm; in this
case the warning light switches off after
approximately 10 seconds.
If, with the engine running, the
warning light
flashes, it means that the vehicle is not protected
by the engine immobiliser device.Contact a Fiat Dealership to have all the keys
stored in the memory.
amberREAR FOG LIGHTS
The warning light comes on when the rear fog
lights are turned on.
Warning lights on
panelWhat it means What to do
amberGENERIC FAILURE INDICATION
(Versions with multifunction display)
The warning light turns on in the following
circumstances:
❒If the fuel inertia cut-off switch is activated
131

Warning lights on
panelWhat it means What to do
❒Light failure (rear fog lamps, direction indicators,
brake lights, number plate lights, side lights,
daytime lights, main beam automatism, trailer
direction indicators, trailer side lights)The failure relating to these lights could be: one
or more blown bulbs, a blown protection fuse or
a break in the electrical connection.
❒Airbag warning light failure (generic failure
warning light flashing)In this case, the warning light may not indicate
any faults with the restraint systems. Before
continuing, contact a Fiat Dealership
immediately to have the system checked.
❒Rain sensor failure
❒Diesel filter sensor failure
❒Trailer connection failure
❒Audio system failure
❒Engine oil pressure sensor failure
❒Parking sensor failure.Contact a Fiat Dealership as soon as possible to
have the fault fixed.
132
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberDPF (PARTICULATE FILTER) CLEANING
UNDERWAY
(for versions/markets, where provided)
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light switches on constantly to inform
the driver that the DPF system needs to eliminate
the trapped pollutants (particulate) through the
regeneration process.
A dedicated message will appear on the display
when the warning light switches on (for versions/
markets, where provided).The warning light does not come on during
every DPF regeneration, but only when driving
conditions require that the driver is notified. The
warning light will switch off if the vehicle remains
in motion until regeneration has been
completed. On average, the process lasts 15
minutes.
The best conditions to complete the
regeneration process are reached by driving the
vehicle constantly at 60 km/h with engine speed
above 2000 rpm. When this warning light
comes on, it does not indicate a vehicle failure
and it should not therefore be taken to a
workshop.
24)94)
133

Warning lights on
panelWhat it means What to do
amberESC-ASR system/TRACTION PLUS failure
On certain versions a dedicated message is
displayed.
Flashing of the warning light while driving indicates
the intervention of the ESC system.If the warning light does not switch off, or stays
on when travelling, contact a Fiat Dealership.
Hill Holder system failure
The warning light will turn on when the Hill Holder
system is faulty.
On certain versions a dedicated message is
displayed.In this case, contact a Fiat Dealership as soon
as possible.amberWORN BRAKE PADS
The warning light switches on if the front brake
pads are worn.
On certain versions a dedicated message is
displayed.Have them replaced as soon as possible.
134
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

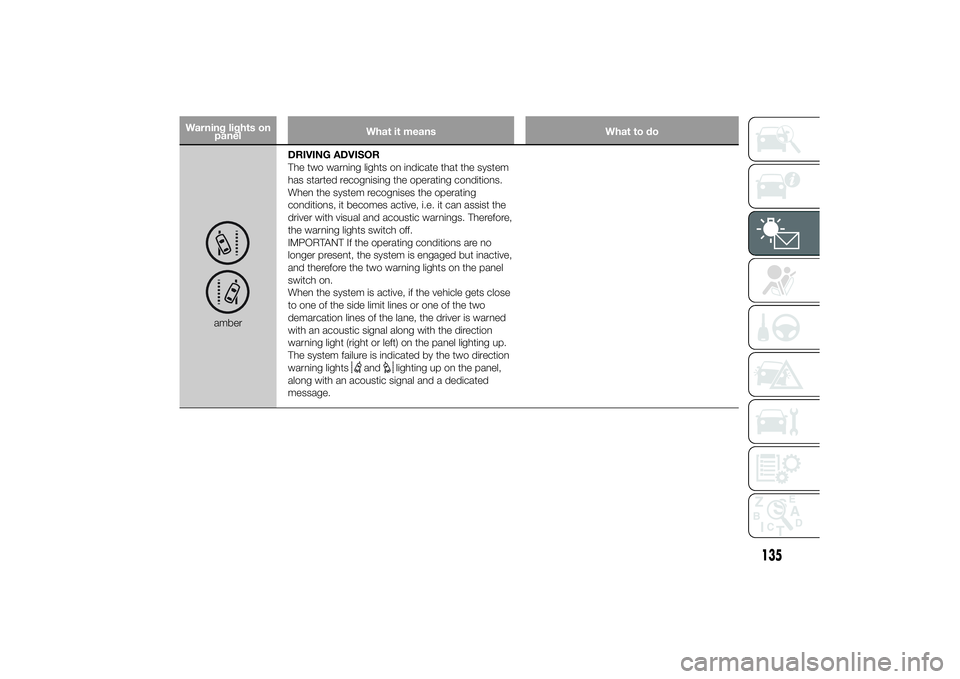

amberDRIVING ADVISOR
The two warning lights on indicate that the system
has started recognising the operating conditions.
When the system recognises the operating
conditions, it becomes active, i.e. it can assist the
driver with visual and acoustic warnings. Therefore,
the warning lights switch off.
IMPORTANT If the operating conditions are no
longer present, the system is engaged but inactive,
and therefore the two warning lights on the panel
switch on.
When the system is active, if the vehicle gets close
to one of the side limit lines or one of the two
demarcation lines of the lane, the driver is warned
with an acoustic signal along with the direction
warning light (right or left) on the panel lighting up.
The system failure is indicated by the two direction
warning lights
and
lighting up on the panel,
along with an acoustic signal and a dedicated
message.
135

Warning lights on
panelWhat it means What to do
amberTPMS
TPMS failure
The warning light switches on when a fault is
detected in the TPMS.In this case, contact a Fiat Dealership as soon
as possible.
Tyre pressure low
The warning light switches on to indicate that the
tyre pressure is lower than the recommended value
and/or that slow pressure loss is occurring. In
these circumstances, optimal tyre duration and fuel
consumption may not be guaranteed.
IMPORTANT
22) If, when the ignition key is turned to MAR-ON, the
warning light does not switch on or if it stays on steadily or
flashing when travelling (on certain versions together with the message on the display), contact a Fiat Dealership as
soon as possible.
23) The presence of water in the supply circuit may cause severe damage to the injection system and irregular engine
operation. If the warning light
switches on (on some versions together with the dedicated message on the
display), contact a Fiat Dealership as soon as possible to have the system bled. If the above indication occurs
immediately after refuelling, water may have entered the tank: turn the engine off immediately and contact a Fiat
Dealership.
24) During regeneration, the fan may be activated.
