REAR LIGHT CLUSTERS

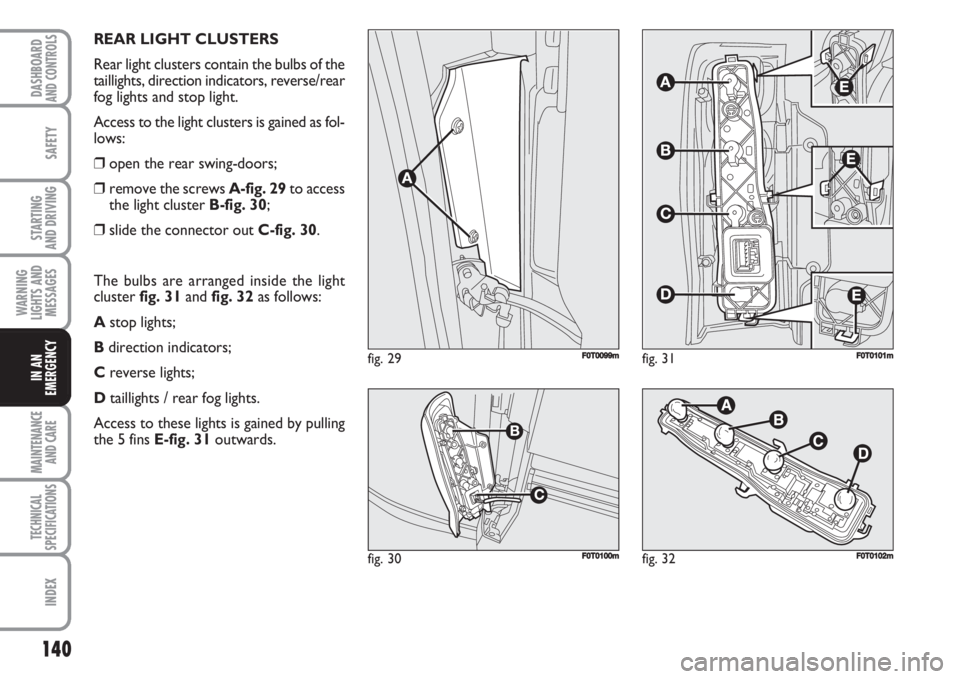

Rear light clusters contain the bulbs of the
taillights, direction indicators, reverse/rear
fog lights and stop light.
Access to the light clusters is gained as fol-
lows:
❒open the rear swing-doors;
❒remove the screws A-fig. 29to access
the light cluster B-fig. 30;
❒slide the connector out C-fig. 30.
The bulbs are arranged inside the light
cluster fig. 31and fig. 32as follows:
Astop lights;
Bdirection indicators;
Creverse lights;
Dtaillights / rear fog lights.
Access to these lights is gained by pulling
the 5 fins E-fig. 31outwards.
fig. 29F0T0099m
fig. 30F0T0100mfig. 32F0T0102m
fig. 31F0T0101m

141
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

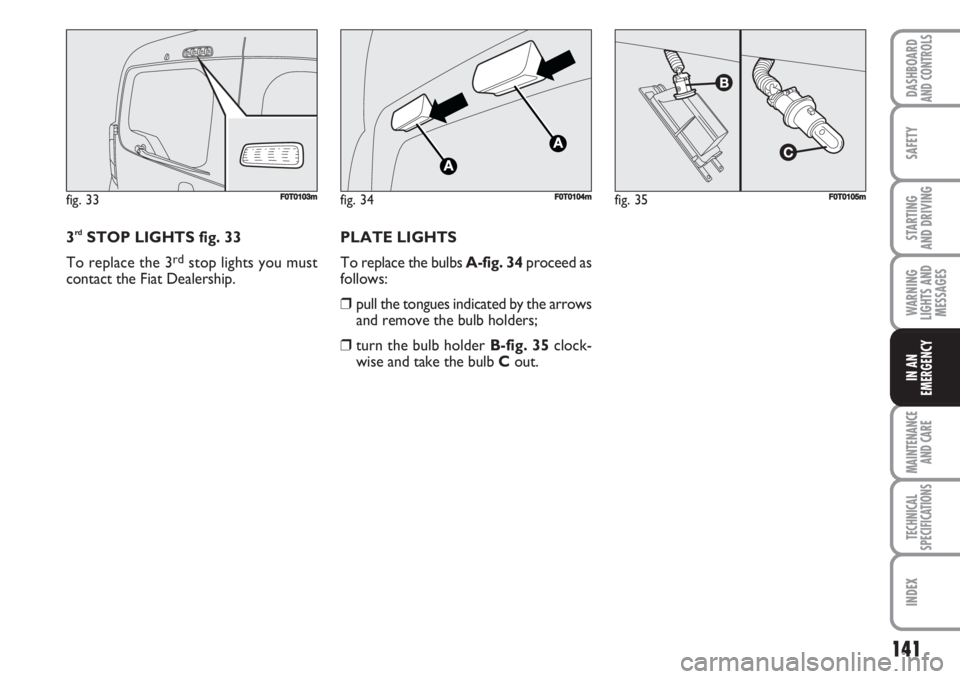

3rdSTOP LIGHTS fig. 33
To replace the 3
rdstop lights you must
contact the Fiat Dealership.
fig. 33F0T0103mfig. 34F0T0104mfig. 35F0T0105m
PLATE LIGHTS
To replace the bulbs A-fig. 34proceed as
follows:
❒pull the tongues indicated by the arrows
and remove the bulb holders;
❒turn the bulb holder B-fig. 35clock-
wise and take the bulb Cout.

142
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

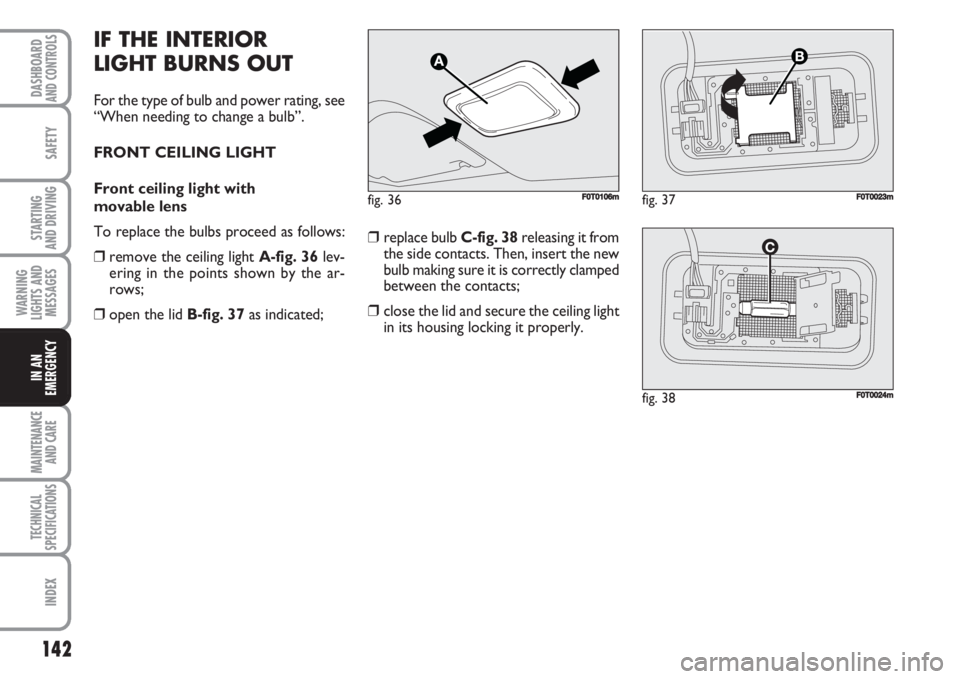

IF THE INTERIOR
LIGHT BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT
Front ceiling light with
movable lens
To replace the bulbs proceed as follows:
❒remove the ceiling light A-fig. 36lev-
ering in the points shown by the ar-
rows;
❒open the lid B-fig. 37as indicated;❒replace bulb C-fig. 38releasing it from
the side contacts. Then, insert the new
bulb making sure it is correctly clamped
between the contacts;
❒close the lid and secure the ceiling light
in its housing locking it properly.
fig. 36F0T0106mfig. 37F0T0023m
fig. 38F0T0024m

143
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

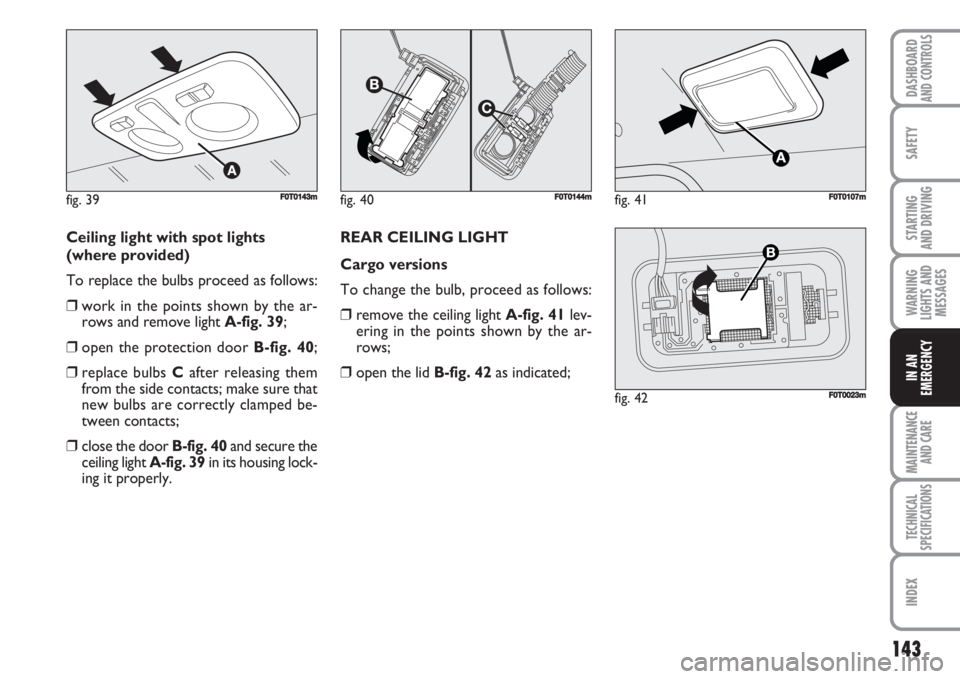

Ceiling light with spot lights
(where provided)
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light A-fig. 39;
❒open the protection door B-fig. 40;
❒replace bulbs Cafter releasing them
from the side contacts; make sure that
new bulbs are correctly clamped be-
tween contacts;
❒close the door B-fig. 40and secure the
ceiling light A-fig. 39in its housing lock-
ing it properly.REAR CEILING LIGHT
Cargo versions
To change the bulb, proceed as follows:
❒remove the ceiling light A-fig. 41lev-
ering in the points shown by the ar-
rows;
❒open the lid B-fig. 42as indicated;
fig. 39F0T0143mfig. 40F0T0144mfig. 41F0T0107m
fig. 42F0T0023m

144
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

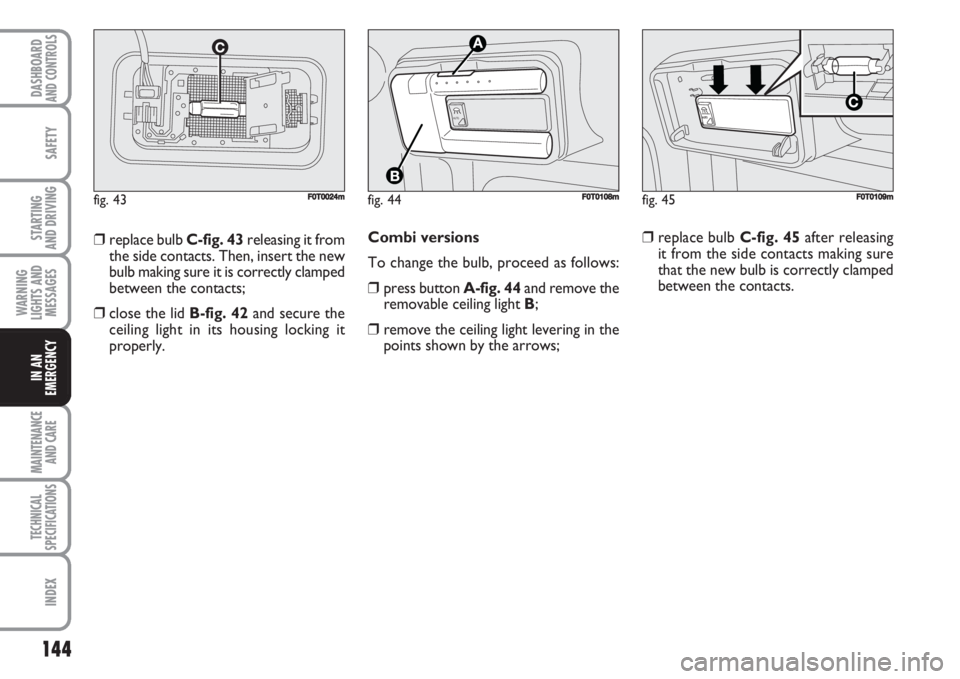

Combi versions
To change the bulb, proceed as follows:
❒press button A-fig. 44and remove the
removable ceiling light B;
❒remove the ceiling light levering in the
points shown by the arrows; ❒replace bulb C-fig. 43releasing it from
the side contacts. Then, insert the new
bulb making sure it is correctly clamped
between the contacts;
❒close the lid B-fig. 42and secure the
ceiling light in its housing locking it
properly.
fig. 44
AU
T
O
F0T0108mfig. 45
AUTO
F0T0109mfig. 43F0T0024m
❒replace bulb C-fig. 45after releasing
it from the side contacts making sure
that the new bulb is correctly clamped
between the contacts.

145
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
IF A FUSE BLOWS
GENERAL
Fuses are protective devices for the elec-
tric system: they come into action (i.e. cut
off) mainly due to a fault or improper ac-
tion on the system.
When a specific device does not work cor-
rectly, check the efficiency of the corre-
sponding fuse. The conducting element
A- fig. 46must not be interrupted.
If it is, replace the blown fuse with a new
one having the same amperage (same
colour).
Bintact fuse.
Cfuse with broken conducting element.
To replace the fuse use the extractor D
positioned inside the tool box or the Fix
& Go kit container (where provided).
If the fuse blows out again,
contact the Fiat Dealership.
WARNING
Never replace a fuse with
another one having higher
amperage: FIRE HAZARD.
If a general protection fuse trips
(MEGA-FUSE, MIDI-FUSE), contact
the Fiat Dealership.
Remove the key from the ignition
switch and switch off all points of use
before replacing a fuse.
WARNING
Never replace a blown fuse
with metal wires or other ma-
terial.
fig. 46FF0T0015m
To identify the protection fuse, see the ta-
bles in the following pages.

146
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
FUSES INSTALLED ON ENGINE
WIRED BOX
The fuse box is positioned on the right-
hand side of the engine.Removing the lid of the fuse box
Proceed as follows:
❒remove the lid A-fig. 47protecting the
positive pole of the battery by pulling
it up;
❒use the fin A-fig. 48to remove the fuse
box protection lid B;
❒move the lid towards the headlight by
turning it anticlockwise (as shown by
the arrow). Then, remove it, fig. 49.
❒The fuse central unit is now accessible,
fig. 50.
fig. 47F0T0171mfig. 48F0T0172m
fig. 49F0T0173m

147
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
Re-installing the lid of the fuse box
To re-install the lid proceed as follows:
❒fit the two attachments A-fig. 51in the
corresponding seats on the fuse box;
❒hook the fin Bin its seat until the lock-
ing click is heard.
fig. 50FF0T0181m
fig. 51F0T0174m

148
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Computer Body F01 60 50
Available F02 – 50
Starter system F03 20 50
ABS (pump) F04 40 50
Available F05 – 50
One-speed engine cooling electric fan (75W)/
Low speed engine cooling electric fan (187W) F06 20 50
Low speed engine cooling electric fan (350W) F06 30 50
High speed engine cooling electric fan (187W) F07 30 50
High speed engine cooling electric fan (350W) F07 40 50
Climate system electric fan F08 30 50
Available (trailer kit) (F09) (15) (50)
Buzzers F10 10 50
Engine control system (secondary loads) F11 10 50
Main beam headlights F14 15 50
Available F15 – 50
+15 Engine control unit/Relay reel T20 F16 7.5 50
Engine control unit (1.4 version) F17 10 50
Engine control unit (1.3 Multijet version) F17 10 50

149
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Relay reel T09 (version 1.4) F18 7.5 50
Engine control unit/Relay reel T09 (1.3 Multijet version) F18 7.5 50
Climate system compressor F19 7.5 50
Rear heated window/Mirror demisters F20 30 50
Fuel pump F21 15 50
Engine control unit (1.3 Multijet version) F22 15 50
Injectors/Ignition reel (1.4 version) F22 15 50
ABS (valves) F23 20 50
+15 ABS F24 7.5 50
Fog lights F30 15 50
Plug heating unit (1.3 Multijet version) F81 50 50
Available F83 – 50
Cigar lighter/Passenger compartment current outlets/Heated seats F85 30 50
+15 Reverse lights/decimetre/Water sensor in diesel fuel/
Reels for relays T02, T05, T14, T17 and T19 F87 7.5 50
