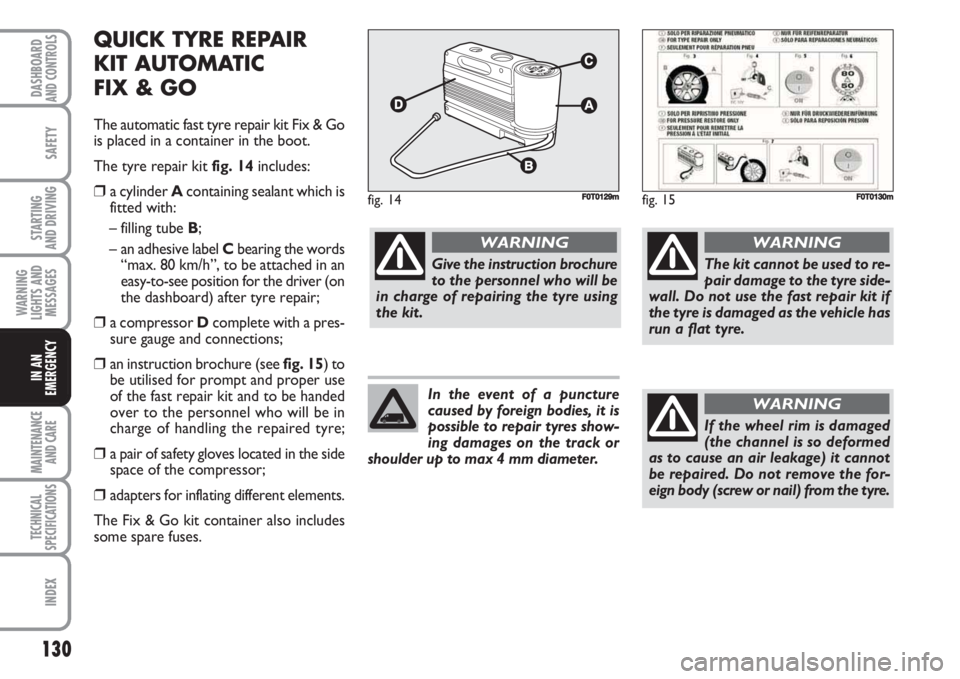

The automatic fast tyre repair kit Fix & Go
is placed in a container in the boot.
The tyre repair kit fig. 14includes:
❒a cylinder A containing sealant which is
fitted with:
– filling tube B;
– an adhesive label Cbearing the words
“max. 80 km/h”, to be attached in an
easy-to-see position for the driver (on
the dashboard) after tyre repair;
❒a compressor Dcomplete with a pres-
sure gauge and connections;
❒an instruction brochure (see fig. 15) to
be utilised for prompt and proper use
of the fast repair kit and to be handed
over to the personnel who will be in
charge of handling the repaired tyre;
❒a pair of safety gloves located in the side
space of the compressor;
❒adapters for inflating different elements.
The Fix & Go kit container also includes
some spare fuses.
fig. 14F0T0129mfig. 15F0T0130m
Give the instruction brochure
to the personnel who will be
in charge of repairing the tyre using
the kit.
WARNING
The kit cannot be used to re-
pair damage to the tyre side-
wall. Do not use the fast repair kit if
the tyre is damaged as the vehicle has
run a flat tyre.
WARNING
If the wheel rim is damaged
(the channel is so deformed
as to cause an air leakage) it cannot
be repaired. Do not remove the for-
eign body (screw or nail) from the tyre.
WARNINGIn the event of a puncture
caused by foreign bodies, it is
possible to repair tyres show-
ing damages on the track or
shoulder up to max 4 mm diameter.

131
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

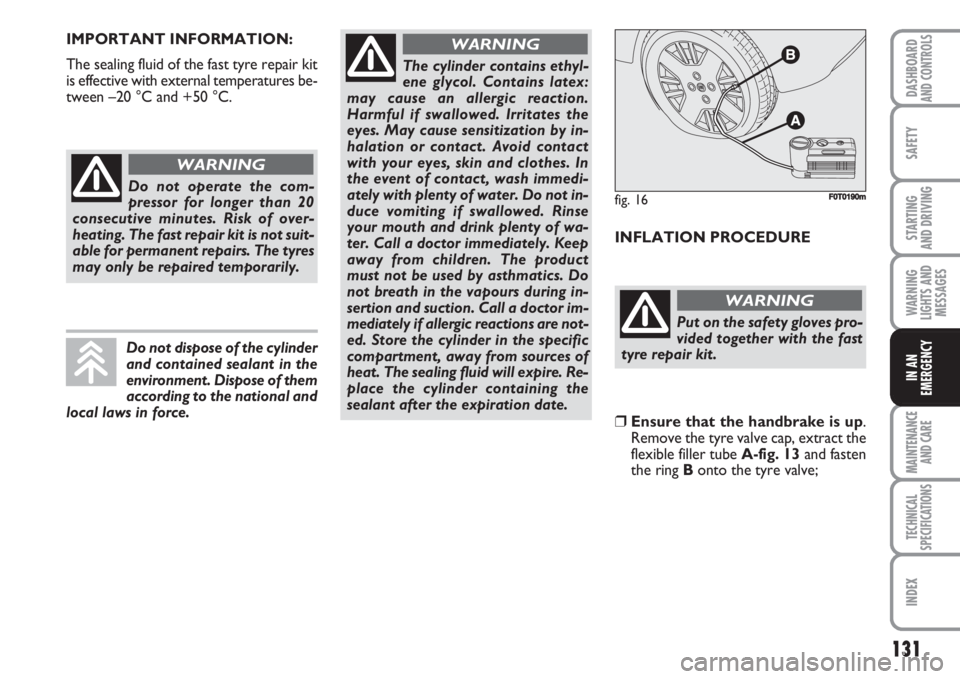

IMPORTANT INFORMATION:
The sealing fluid of the fast tyre repair kit
is effective with external temperatures be-
tween –20 °C and +50 °C.
INFLATION PROCEDURE
Do not operate the com-
pressor for longer than 20
consecutive minutes. Risk of over-
heating. The fast repair kit is not suit-
able for permanent repairs. The tyres
may only be repaired temporarily.
WARNING
Put on the safety gloves pro-
vided together with the fast
tyre repair kit.
WARNING
The cylinder contains ethyl-
ene glycol. Contains latex:
may cause an allergic reaction.
Harmful if swallowed. Irritates the
eyes. May cause sensitization by in-
halation or contact. Avoid contact
with your eyes, skin and clothes. In
the event of contact, wash immedi-
ately with plenty of water. Do not in-
duce vomiting if swallowed. Rinse
your mouth and drink plenty of wa-
ter. Call a doctor immediately. Keep
away from children. The product
must not be used by asthmatics. Do
not breath in the vapours during in-
sertion and suction. Call a doctor im-
mediately if allergic reactions are not-
ed. Store the cylinder in the specific
compartment, away from sources of
heat. The sealing fluid will expire. Re-
place the cylinder containing the
sealant after the expiration date.
WARNING
Do not dispose of the cylinder
and contained sealant in the
environment. Dispose of them
according to the national and
local laws in force.
fig. 16FF0T0190m
❒Ensure that the handbrake is up.
Remove the tyre valve cap, extract the
flexible filler tube A-fig. 13and fasten
the ring Bonto the tyre valve;

132
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

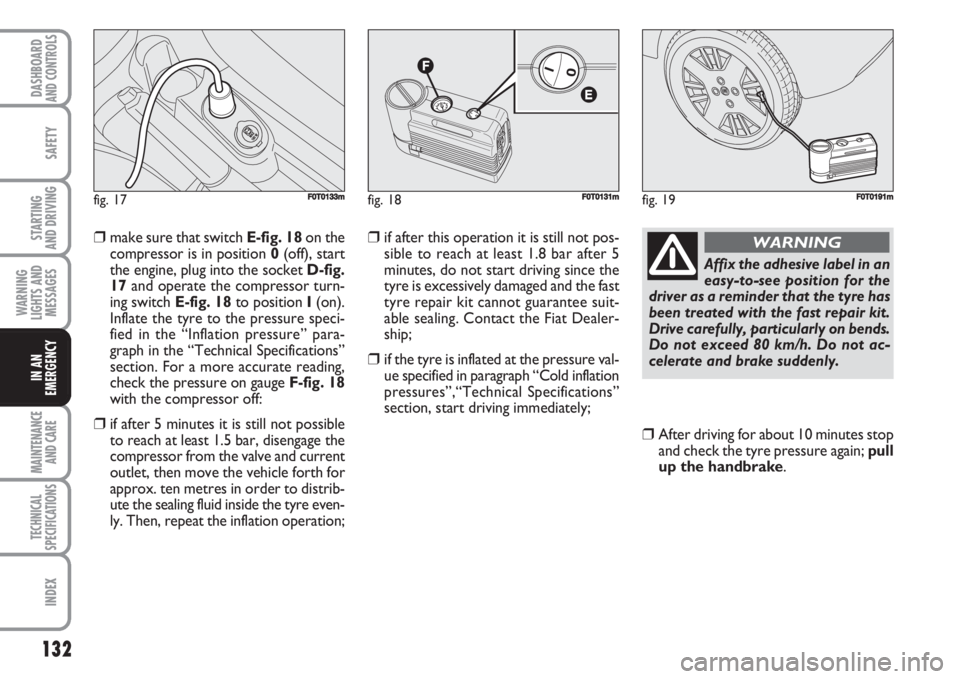

❒make sure that switch E-fig. 18on the
compressor is in position 0(off), start
the engine, plug into the socket D-fig.
17and operate the compressor turn-
ing switch E-fig. 18to position I(on).
Inflate the tyre to the pressure speci-
fied in the “Inflation pressure” para-
graph in the “Technical Specifications”
section. For a more accurate reading,
check the pressure on gauge F-fig. 18
with the compressor off:
❒if after 5 minutes it is still not possible
to reach at least 1.5 bar, disengage the
compressor from the valve and current
outlet, then move the vehicle forth for
approx. ten metres in order to distrib-
ute the sealing fluid inside the tyre even-
ly. Then, repeat the inflation operation;
❒if after this operation it is still not pos-
sible to reach at least 1.8 bar after 5
minutes, do not start driving since the
tyre is excessively damaged and the fast
tyre repair kit cannot guarantee suit-
able sealing. Contact the Fiat Dealer-
ship;
❒if the tyre is inflated at the pressure val-
ue specified in paragraph “Cold inflation
pressures”,“Technical Specifications”
section, start driving immediately;
❒After driving for about 10 minutes stop
and check the tyre pressure again; pull
up the handbrake.
fig. 17F0T0133mfig. 18F0T0131mfig. 19F0T0191m
Affix the adhesive label in an
easy-to-see position for the
driver as a reminder that the tyre has
been treated with the fast repair kit.
Drive carefully, particularly on bends.
Do not exceed 80 km/h. Do not ac-
celerate and brake suddenly.
WARNING

133
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

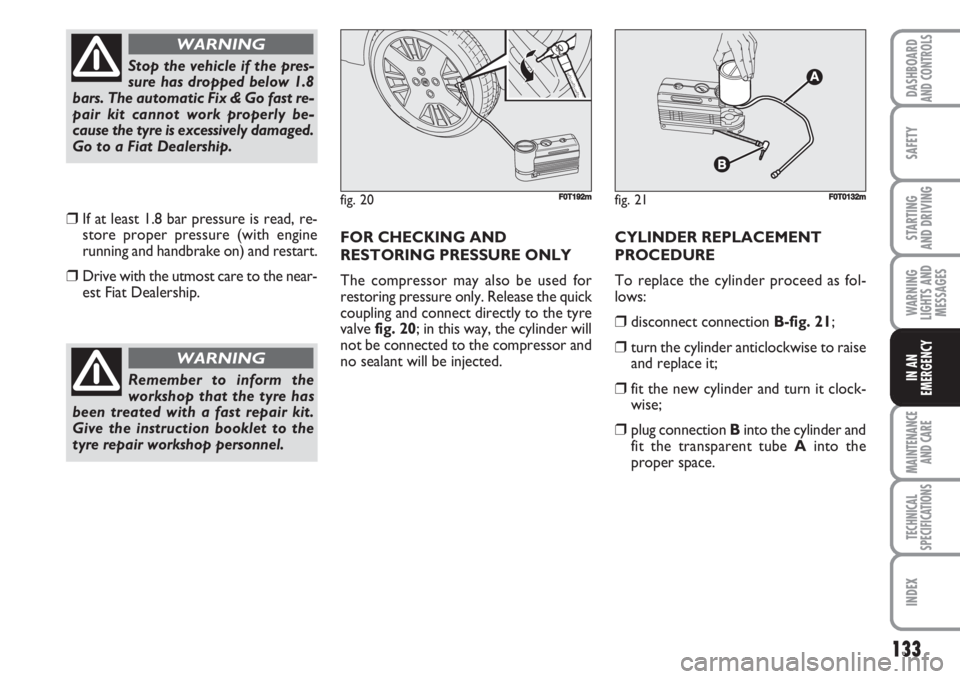

❒If at least 1.8 bar pressure is read, re-
store proper pressure (with engine
running and handbrake on) and restart.
❒Drive with the utmost care to the near-
est Fiat Dealership.FOR CHECKING AND
RESTORING PRESSURE ONLY
The compressor may also be used for
restoring pressure only. Release the quick
coupling and connect directly to the tyre
valve fig. 20; in this way, the cylinder will
not be connected to the compressor and
no sealant will be injected. CYLINDER REPLACEMENT
PROCEDURE
To replace the cylinder proceed as fol-
lows:
❒disconnect connection B-fig. 21;
❒turn the cylinder anticlockwise to raise
and replace it;
❒fit the new cylinder and turn it clock-
wise;
❒plug connection Binto the cylinder and
fit the transparent tube Ainto the
proper space.
Stop the vehicle if the pres-
sure has dropped below 1.8
bars. The automatic Fix & Go fast re-
pair kit cannot work properly be-
cause the tyre is excessively damaged.
Go to a Fiat Dealership.
WARNING
Remember to inform the
workshop that the tyre has
been treated with a fast repair kit.
Give the instruction booklet to the
tyre repair workshop personnel.
WARNING
fig. 20F0T192mfig. 21F0T0132m

134
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

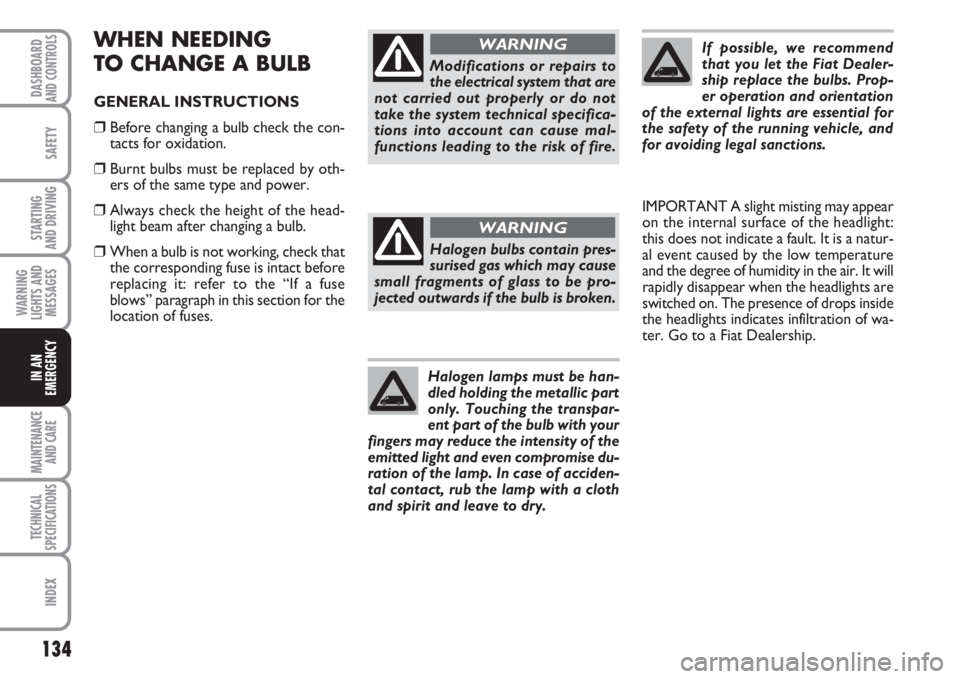

WHEN NEEDING
TO CHANGE A BULB
GENERAL INSTRUCTIONS
❒Before changing a bulb check the con-
tacts for oxidation.
❒Burnt bulbs must be replaced by oth-
ers of the same type and power.
❒Always check the height of the head-
light beam after changing a bulb.
❒When a bulb is not working, check that
the corresponding fuse is intact before
replacing it: refer to the “If a fuse
blows” paragraph in this section for the
location of fuses.IMPORTANT A slight misting may appear
on the internal surface of the headlight:
this does not indicate a fault. It is a natur-
al event caused by the low temperature
and the degree of humidity in the air. It will
rapidly disappear when the headlights are
switched on. The presence of drops inside
the headlights indicates infiltration of wa-
ter. Go to a Fiat Dealership.
Modifications or repairs to
the electrical system that are
not carried out properly or do not
take the system technical specifica-
tions into account can cause mal-
functions leading to the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which may cause
small fragments of glass to be pro-
jected outwards if the bulb is broken.
WARNING
Halogen lamps must be han-
dled holding the metallic part
only. Touching the transpar-
ent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even compromise du-
ration of the lamp. In case of acciden-
tal contact, rub the lamp with a cloth
and spirit and leave to dry.
If possible, we recommend
that you let the Fiat Dealer-
ship replace the bulbs. Prop-
er operation and orientation
of the external lights are essential for
the safety of the running vehicle, and
for avoiding legal sanctions.

135
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

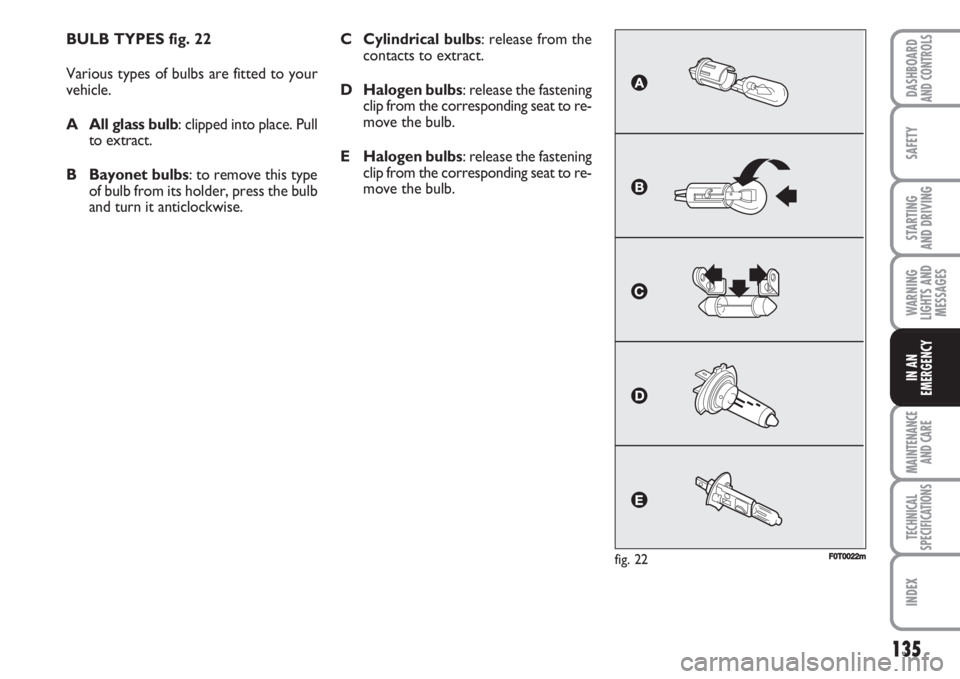

BULB TYPES fig. 22
Various types of bulbs are fitted to your
vehicle.
A All glass bulb: clipped into place. Pull
to extract.
B Bayonet bulbs: to remove this type
of bulb from its holder, press the bulb
and turn it anticlockwise.
fig. 22FF0T0022m
C Cylindrical bulbs: release from the
contacts to extract.
D Halogen bulbs: release the fastening
clip from the corresponding seat to re-
move the bulb.
E Halogen bulbs: release the fastening
clip from the corresponding seat to re-
move the bulb.

136
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

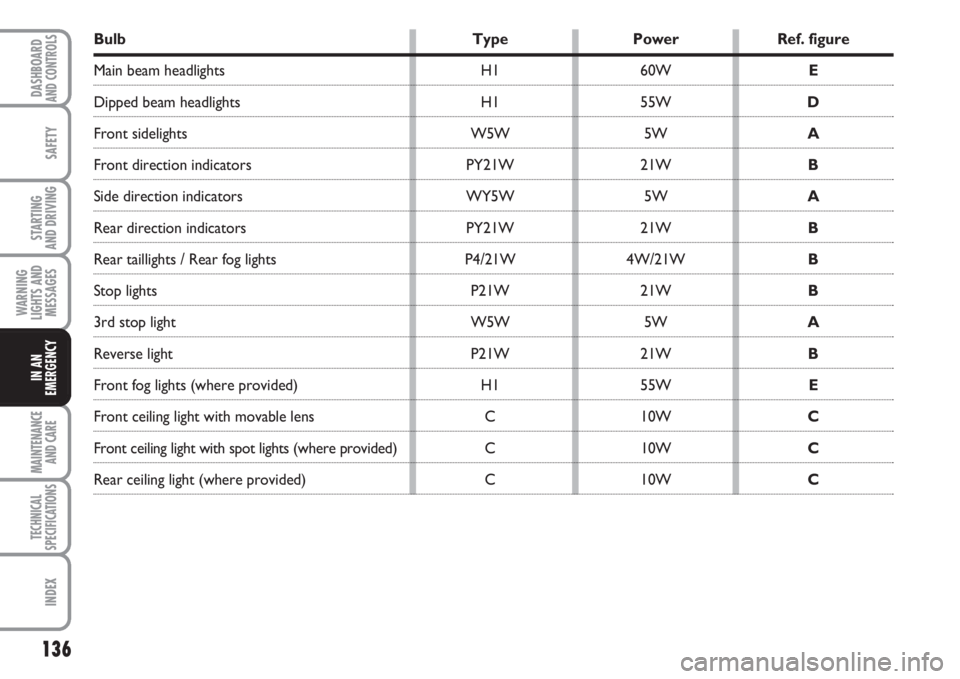

Bulb Type Power Ref. figure
Main beam headlights H1 60W E
Dipped beam headlights H1 55WD
Front sidelights W5W 5WA
Front direction indicators PY21W 21WB
Side direction indicators WY5W 5WA
Rear direction indicators PY21W 21WB
Rear taillights / Rear fog lights P4/21W 4W/21WB
Stop lights P21W 21WB
3rd stop light W5W 5WA
Reverse light P21W 21WB
Front fog lights (where provided) H1 55WE
Front ceiling light with movable lens C 10WC
Front ceiling light with spot lights (where provided) C 10WC
Rear ceiling light (where provided) C 10WC

137
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
IF AN EXTERIOR
LIGHT BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.

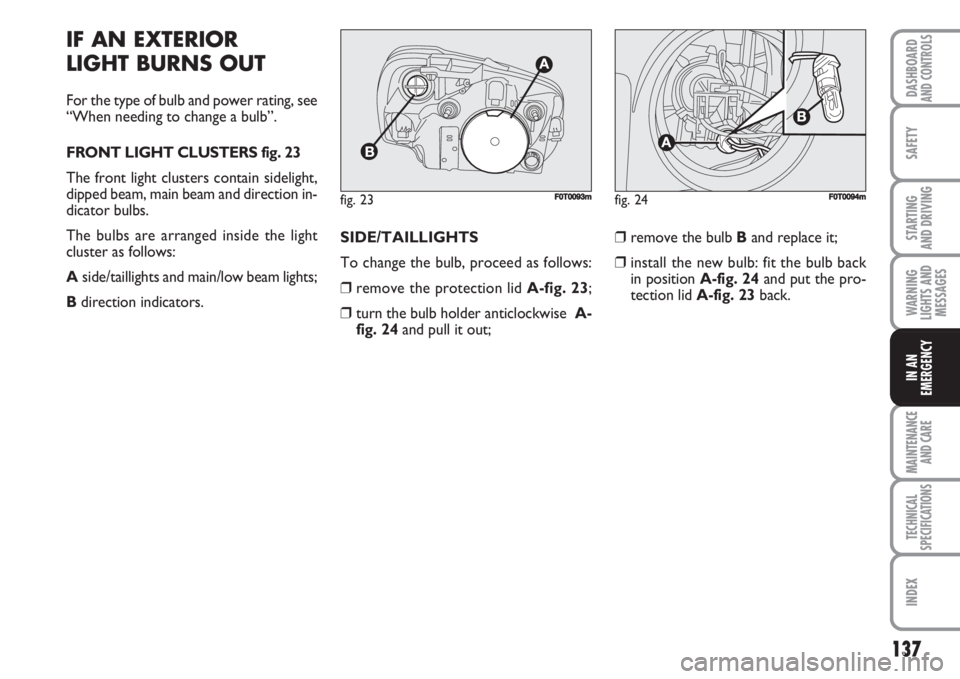

FRONT LIGHT CLUSTERS fig. 23
The front light clusters contain sidelight,
dipped beam, main beam and direction in-
dicator bulbs.
The bulbs are arranged inside the light
cluster as follows:
Aside/taillights and main/low beam lights;
Bdirection indicators.SIDE/TAILLIGHTS
To change the bulb, proceed as follows:
❒remove the protection lid A-fig. 23;
❒turn the bulb holder anticlockwise A-
fig. 24and pull it out;❒remove the bulb Band replace it;
❒install the new bulb: fit the bulb back
in position A-fig. 24and put the pro-
tection lid A-fig. 23back.
fig. 23F0T0093mfig. 24F0T0094m

138
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

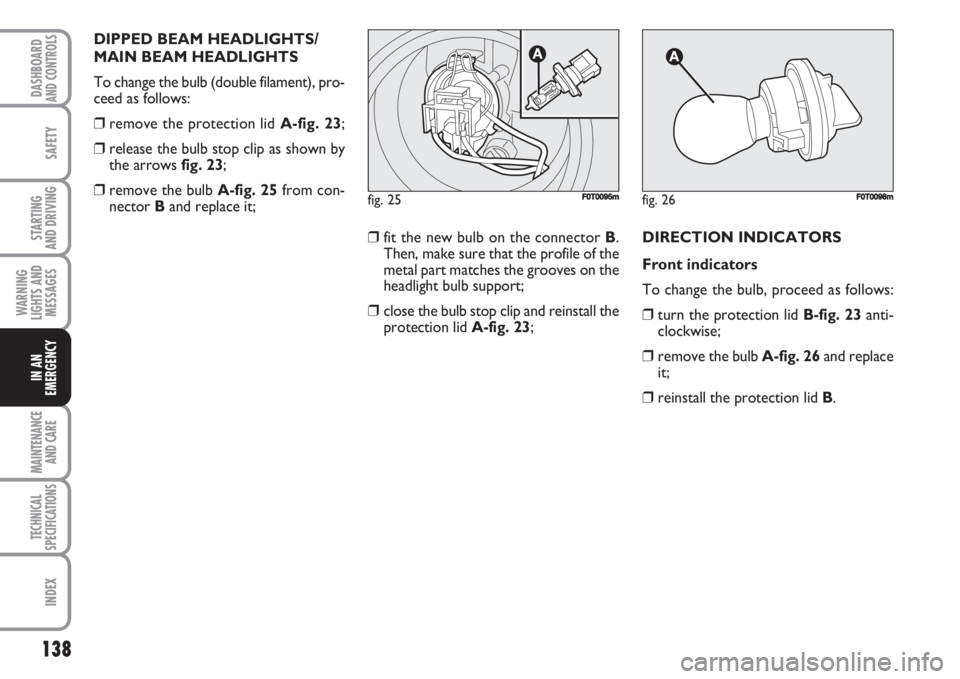

DIPPED BEAM HEADLIGHTS/
MAIN BEAM HEADLIGHTS
To change the bulb (double filament), pro-
ceed as follows:
❒remove the protection lid A-fig. 23;
❒release the bulb stop clip as shown by
the arrows fig. 23;
❒remove the bulb A-fig. 25from con-
nector Band replace it;
❒fit the new bulb on the connector B.
Then, make sure that the profile of the
metal part matches the grooves on the
headlight bulb support;
❒close the bulb stop clip and reinstall the
protection lid A-fig. 23;DIRECTION INDICATORS
Front indicators
To change the bulb, proceed as follows:
❒turn the protection lid B-fig. 23anti-
clockwise;
❒remove the bulb A-fig. 26and replace
it;
❒reinstall the protection lid B.
fig. 25F0T0095mfig. 26F0T0096m

139
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

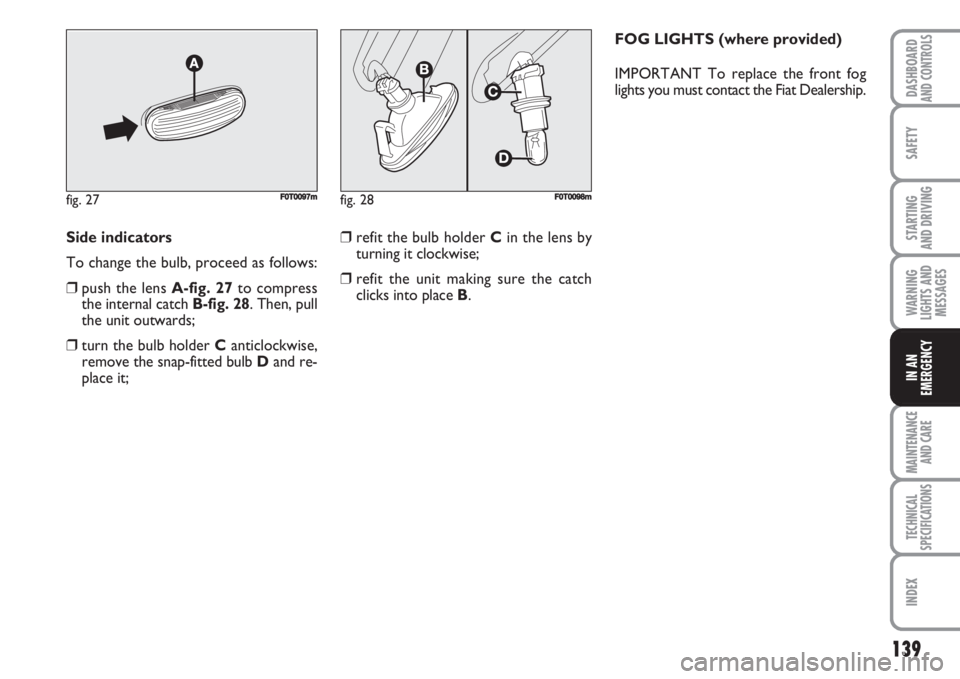

Side indicators
To change the bulb, proceed as follows:
❒push the lens A-fig. 27to compress
the internal catch B-fig. 28. Then, pull
the unit outwards;
❒turn the bulb holder C anticlockwise,
remove the snap-fitted bulb Dand re-
place it;
fig. 27F0T0097mfig. 28F0T0098m
❒refit the bulb holder Cin the lens by
turning it clockwise;
❒refit the unit making sure the catch
clicks into place B.FOG LIGHTS (where provided)
IMPORTANT To replace the front fog
lights you must contact the Fiat Dealership.
